VESTEL ANGELO FNAC11 Manual

-1-
SEMI-INTEGRATED FULLY-INTEGRATED
FREE-STANDING
DISHWASHERS TRAINING DOCUMENT

-2-
Vestel dishwashers are categorized into four series Angelo / Petra / Semi-Integrated and
Fully-Integrated.
Angelo / Petra / Semi_Integrated series have different panel versions. Fully-Integrated models
have built in adjustment mechanism and hinge spring adjustment mechanism.
ANGELO SERIES
ANGELO classified;
•FNAC11
•FNPC12
•FNAC13
•FNAC21
•FNAC31
•FNAC41
They are produced 6 different versions.
PETRA SERIES
PETRA classified;
•FNPC11
•FNPC12
•FNPC13
•FNPC21
They are produced 4 different versions.

-3-
SEMI-INTEGRATED SERIES
Semı-Integrated classified;
•SNSC11
•SNSC13
•SNSC31
•SNSC41
They are produced 4 different versions.
FULLY-INTEGRATED SERIES
Fully –Integrated classified;
•INRD13
•INRD21
•INRD41
They are produced 3 different versions.

-4-
C11 C12 C13 C21 C31 C41
SNSC11 SNSC13 SNSC31 SNSC41
Models
IND13 IND21 IND41
General Features
Place-Settings Capacity 12 12 12 12 12 12
Colour White White White White White White
Programmes 2 3 4 6 7 9
Prewash - Yes Yes Yes Yes Yes
Economic 50°C Yes Yes Yes Yes Yes Yes
Normal - - - Yes Yes -
Automatic- Delicate 30-50°C - - - - - Yes
Automatic Normal 50-60°C - - - - - Yes
Automatic Intensive 60-70°C - - - - - Yes
Super/Intensıve program 65°C Yes Yes Yes Yes Yes -
Extra Intensıve program70°C
(Prewash+Intensıve 65°) - - - Yes Yes -
Hygiene 60°C - - - - - Yes
Extra Hygiene 70°C (Prewash + Hygiene 60°C) - - - - - Yes
Quick program 30' 40°C - - Yes Yes Yes Yes
Delicate program 40°C - - - - Yes -
Super Program 55' 60°C - - - - - Yes
Functions
Tablet detergent - - - - - Yes
Prewash - - - Yes Yes Yes
1/2 Load - - - - Yes Yes
Indicators
Rinse-Aid Indicator - - - Yes Yes Yes
Salt Indicator - - - Yes Yes Yes
Fallowing Programme Indicator Yes Yes Yes Yes Yes Yes
Set the Time - - - Yes Yes Yes
Remaining Time Indicator - - - - - Yes
Child Lock - - - Yes Yes Yes
Baskets
Top basket height adjustment while it is full - - - - Yes Yes
Top basket height adjustment while it is empty - - - Yes - -
Lower Basket Folding Racks - - 2 pieces 4 pieces 4 pieces 4 pieces
Lower Basket Handle - - - Plastic Plastic Plastic
Upper Basket Handle - - - - - Plastic
Sensor - - - - Yes
Drying System Normal Normal Normal Normal Normal Drying with
Fan

-5-
WATER AND ENERGY CONSUMPTIONS OF PROGRAMMES
FNAC11 - FNPC11- SNSC11
Program Time (min )
Water Consumption
( lt )
Energy
Consumption( kWh )
Economic 50°C 150 15,7 1,05
Intensive 65°C 110 17,2 1,55
FNAC12 - FNPC12
Program Time ( dk )
Water Consumption
( lt )
Energy
Consumption( kWh )
Prewash 15 4,5 0,02
Economic 50°C 150 15,7 1,05
Intensive 65°C 110 17,2 1,55
FNAC13 - FNPC13 - SNSC13 - INRD13
Program Time ( min )
Water Consumption
( lt )
Energy
Consumption( kWh )
Prewash 15 4,5 0,02
Quick 40°C 30 12,4 0,68
Economic 50°C 150 15,7 1,05
Intensive 65°C 110 17,2 1,55
FNAC21 - FNPC21 - INRD21
Program Time ( min )
Water Consumption
( lt )
Energy
Consumption( kWh )
Prewash 15 4,5 0,02
Quick 40°C 30 12,4 0,68
Economic 50°C 150 15,7 1,05
Normal 55°C 95 16,5 1,1
Intensive 65°C 110 17,2 1,55
FNAC21 - FNPC21 - INRD21(With Prewash Option Selected)
Program Time ( min )
Water Consumption
( lt )
Energy
Consumption( kWh )
Quick 40°C + Prewash 45 16,9 0,7
Economic 50°C+ Prewash 165 20,2 1,07
Normal 55°C + Prewash 110 21 1,12
Extra Intensive 150 25,7 1,57
FNAC31 - FNPC31 - SNSC31
Program Time ( min )
Water Consumption
( lt )
Energy
Consumption( kWh )
Prewash 15 4,2 0,02
Quick 40°C 30 10,9 0,65
Delicate 40°C 70 13,8 0,79
Economic 50°C 165 13,4 1,05
Normal 55°C 105 14,7 1,5
Intensive 65°C 110 16,4 1,55
Extra Intensive 150 20,1 1,9

-6-
FNAC31 - FNPC31 - SNSC31 (With Half Load Option Selected)
Program Time ( min )
Water Consumption
( lt )
Energy
Consumption( kWh )
Prewash 15 4,2 0,02
Quick 40°C 30 10,9 0,72
Delicate 40°C 62 10 0,80
Economic 50°C 155 9,6 1,03
Normal 55°C 97 10,5 1,13
Intensive 65°C 88 11,8 1,27
Extra Intensive 122 15,5 1,59
FNAC41 - FNPC41 -SNSC41- INRD41
Program Time ( min )
Water Consumption
( lt )
Energy
Consumption( kWh )
Prewash 15 4,2 0,02
Automatic Delicate 30-50°C 64 - 92 10.6 - 17.7 0.60 - 0.80
Automatic Normal 50-60°C 100 - 127 10.9 - 18.5 1,03 – 1,28
Automatic Intensive 60-70°C 111 - 183 13.3 - 24.6 1.25 – 1,78
Quick 40°C 30 11 0,71
Economic 50°C 170 13,5 1,05
Super 55 min 60°C 55 11 0,93
Hygiene 60°C 119 15 1,55
Extra Hygiene 161 22,7 1,75
FNAC41 – FNPC41 -SNSC41- INRD41 (With Half Load Option Selected)
Program Time ( min )
Water Consumption
( lt )
Energy
Consumption( kWh )
Prewash 15 4,2 0,02
Automatic Delicate 30-50°C 62 – 81 9.9 - 13.7 0.79 – 0.94
Automatic Normal 50-60°C 85 - 107 10.5 - 14.3 1.1 - 1.28
Automatic Intensive 60-70°C 113 - 163 11.9 - 19.9 1.20 - 1.77
Quick 40°C 30 11 0,72
Economic 50°C 153 9,8 1,03
Super 55 min 60°C 55 11 1,07
Hygiene 60°C 95 10,5 1,25
Extra Hygiene 130 18,2 1,38
Not: The values declared above are the values obtained under laboratory conditions
according to the relevant standards.
These values can change depending on environment and product’s usage conditions.
(network tension, water input temperature and environment)

-7-

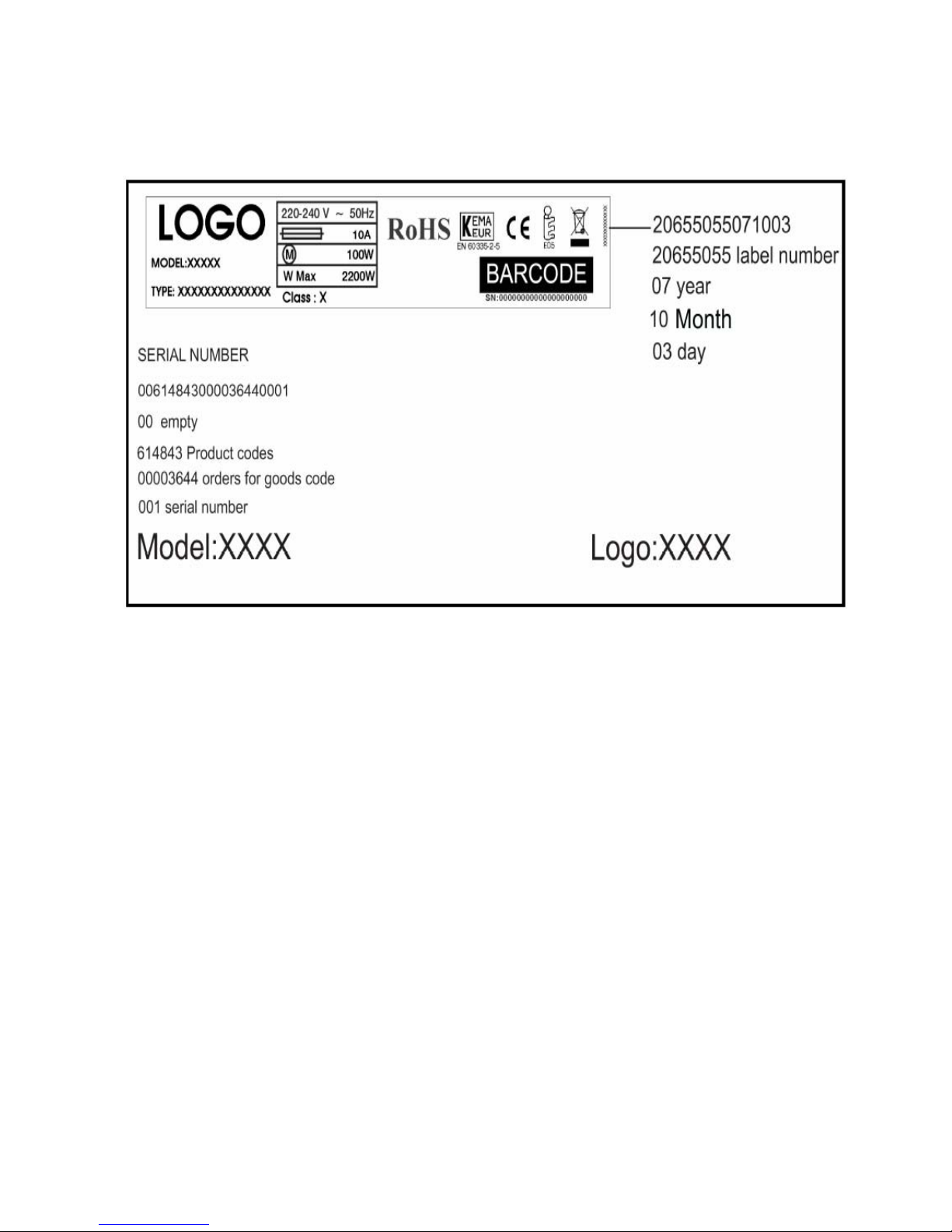

NAME PLATE

-8-
SETTING THE WATER HARDNESS
Test strip;
The washing effectiveness of your machine depends on the softness of the tap water. For
this reason, your machine is equipped with a system that reduces the hardness in mains
water supply. The washing effectiveness will increase when the system is correctly set. To
make the system setting, use the testing strip, if it is available, and find the hardness of the
mains water supply.

-9-
For Free Standing and Semi- Integrated Models;
a) Move the programme selector knob to the 0(reset) position while your machine is not in
operation.
b) Press the Start/Pause button and keep it pressed down. Meanwhile, energise the machine
by pressing the Power On/Off button.
c) Keep Start/Pause button pressed until program monitor lights are on and off.
d) After the lights have flashed, release the Start/Pause button.
Your machine displays the latest entered water hardness setting.You can adjust the
levels by pressing Start/Pause button according to the table of Water Hardness Level
Settings. You can adjust tle levels by pressing “+” and “-“ buttons placed on display in
FNAC31 and FNAC41 models.

-10-
C11, C12, C13
Water Hardness Level Indicators
Water
Hardness
Level
German
Hardness
dH
French
Hardness
dF
British
Hardness
dE
HARDNESS LEVEL
INDICATORS
1 0-5 0-9 0-6
2 6-11 10-20 7-14
3 12-17 21-30 15-21
4 18-22 31-40 22-28
5 23-31 41-55 29-39
6 32-50 56-90 40-63

-11-
C21, C31
Water Hardness Level Indicators
Water
Hardness
Level
German
Hardness
dH
French
Hardness
dF
British
Hardness
dE
HARDNESS LEVEL
INDICATORS
1 0-5 0-9 0-6
2 6-11 10-20 7-14
3 12-17 21-30 15-21
4 18-22 31-40 22-28
5 23-31 41-55 29-39
6 32-50 56-90 40-63

-12-
C41
Water Hardness Level Indicators
Water
Hardness
Level
German
Hardness
dH
French
Hardness
dF
British
Hardness
dE
HARDNESS LEVEL
INDICATORS
1 0-5 0-9 0-6
2 6-11 10-20 7-14
3 12-17 21-30 15-21
4 18-22 31-40 22-28
5 23-31 41-55 29-39
6 32-50 56-90 40-63

-13-

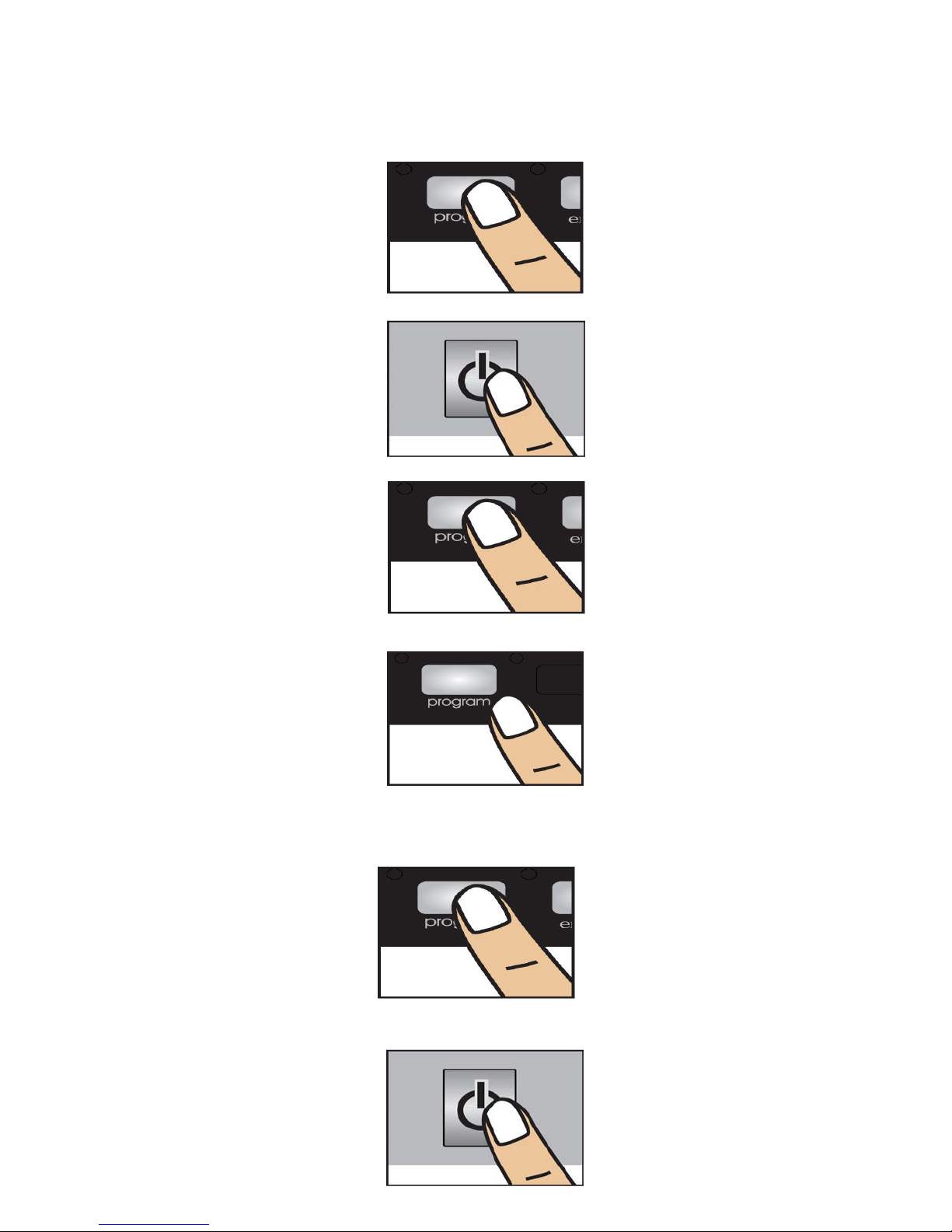

Fully-Integrated Models;
INRD 13
a) Press the Program selector button and keep it pressed down while your machine is not in
operation,
b) Meanwhile, energise the machine by pressing the On/Off button.
c) Keep Program selector button pressed until “P1– P2 – P3 – P4– End” lights are on andoff.
d) After the “P1– P2 – P3 – P4– End” have flashed, release the Program selector button.
Your machine displays the latest entered water hardness setting.
e) You can adjust the levels by pressing Program selector button according to the table of
Water Hardness Level Settings.
f)After adjusting the water hardness level, press on/off button to save settings in memory.

-14-

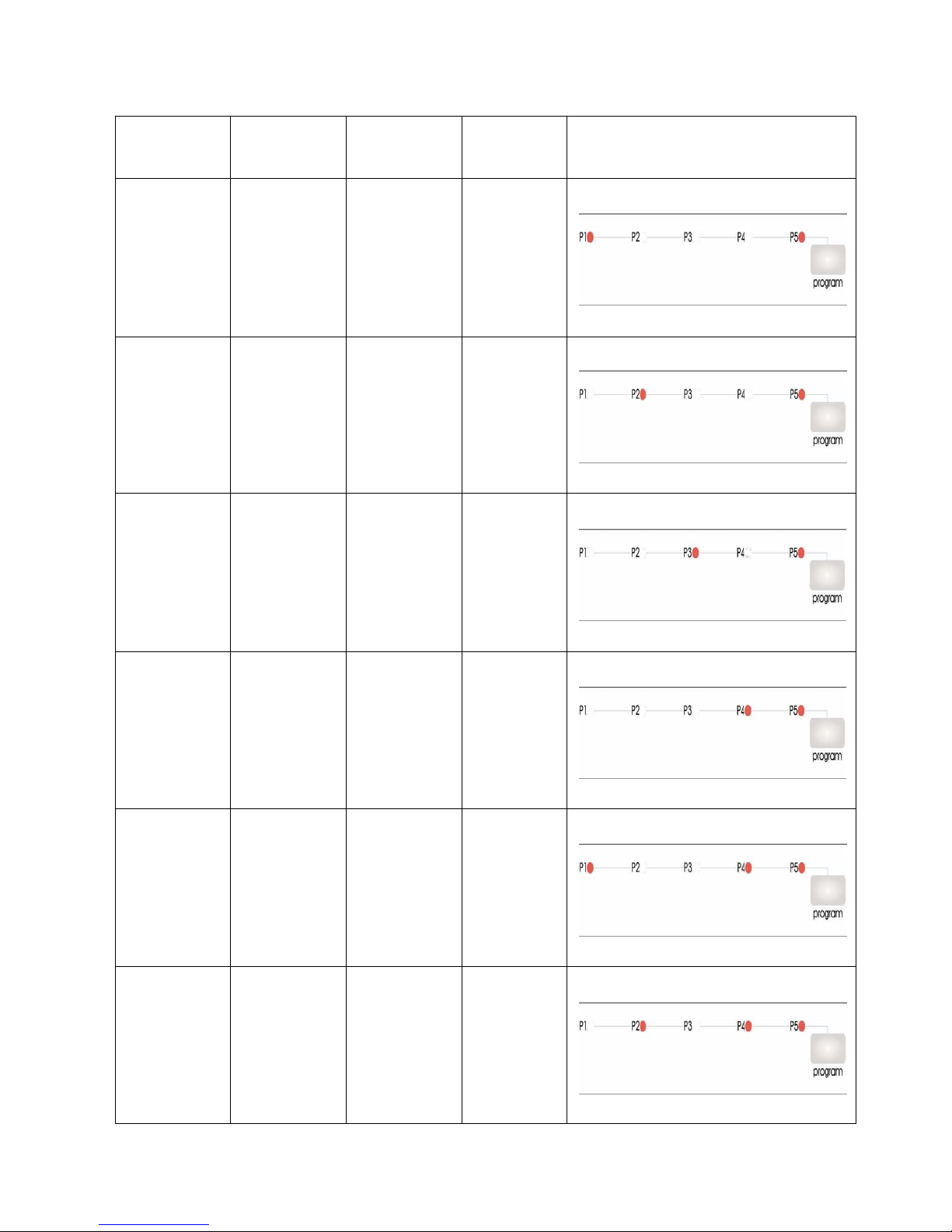

INRD 13
Water
Hardness
Level
German
Hardness
dH
French
Hardness
dF
British
Hardness
dE
HARDNESS LEVEL
INDICATORS
1 0-5 0-9 0-6
2 6-11 10-20 7-14
3 12-17 21-30 15-21
4 18-22 31-40 22-28
5 23-31 41-55 29-39
6 32-50 56-90 40-63

-15-
INRD21
a) Press the Program selector button and keep it pressed down while your machine is not in
operation,
b) Meanwhile, energise the machine by pressing the On/Off button.
c) Keep Program selector button pressed until “P1– P2 – P3 – P4– P5– 3h –6h– 9h– End”
lights are on and off.
d) After the “P1– P2 – P3 – P4– P5– 3h –6h– 9h– End” have flashed, release the Program
selector button.
Your machine displays the latest entered water hardness setting.
e) You can adjust the levels by pressing Program selector button according to the table of
Water Hardness Level Settings.
f) After adjusting the water hardness level, press on/off button to save settings in memory.

-16-
INRD21
Water
Hardness
Level
German
Hardness
dH
French
Hardness
dF
British
Hardness
dE
HARDNESS LEVEL
INDICATORS
1 0-5 0-9 0-6
2 6-11 10-20 7-14
3 12-17 21-30 15-21
4 18-22 31-40 22-28
5 23-31 41-55 29-39
6 32-50 56-90 40-63

-17-
INRD41
a) Press the Program selector button and keep it pressed down while your machine is not in
operation,
b) Meanwhile, energise the machine by pressing the On/Off button.
c) Keep Program selector button pressed until “SL” expression is on and off.
d) After the “SL” expression have flashed, release the Program selector button.
Your machine displays the latest entered water hardness setting.
e) You can adjust the levels by pressing Program selector button according to the table of
Water Hardness Level Settings.
f) After adjusting the water hardness level, press on/off button to save settings in memory..

-18-
INRD41
Water
Hardness
Level
German
Hardness
dH
French
Hardness
dF
British
Hardness
dE
HARDNESS LEVEL
INDICATORS
1 0-5 0-9 0-6
2 6-11 10-20 7-14
3 12-17 21-30 15-21
4 18-22 31-40 22-28
5 23-31 41-55 29-39
6 32-50 56-90 40-63

-19-
Child Lock:
C21, C31 and C41 models
Activate Child Lock: Press Start/Pause and Delay buttons simultaneously for 4 seconds. When
activated, 3h (washing) lamp flashes once. İn C41 model press “+” and “–” buttons on Remaining
time indicator simultaneously for 4 seconds. At this time, "CL" appears for 2 seconds on remaining
time indicator
Inactivate Child Lock: Press Start/Pause and Delay buttons simultaneously for 4 seconds. When
activated, 3h (washing) lamp flashes twice. In C41 model press “+” and “–” buttons again
simultaneously for 4 seconds. "CL" will blink for 2 times.

-20-

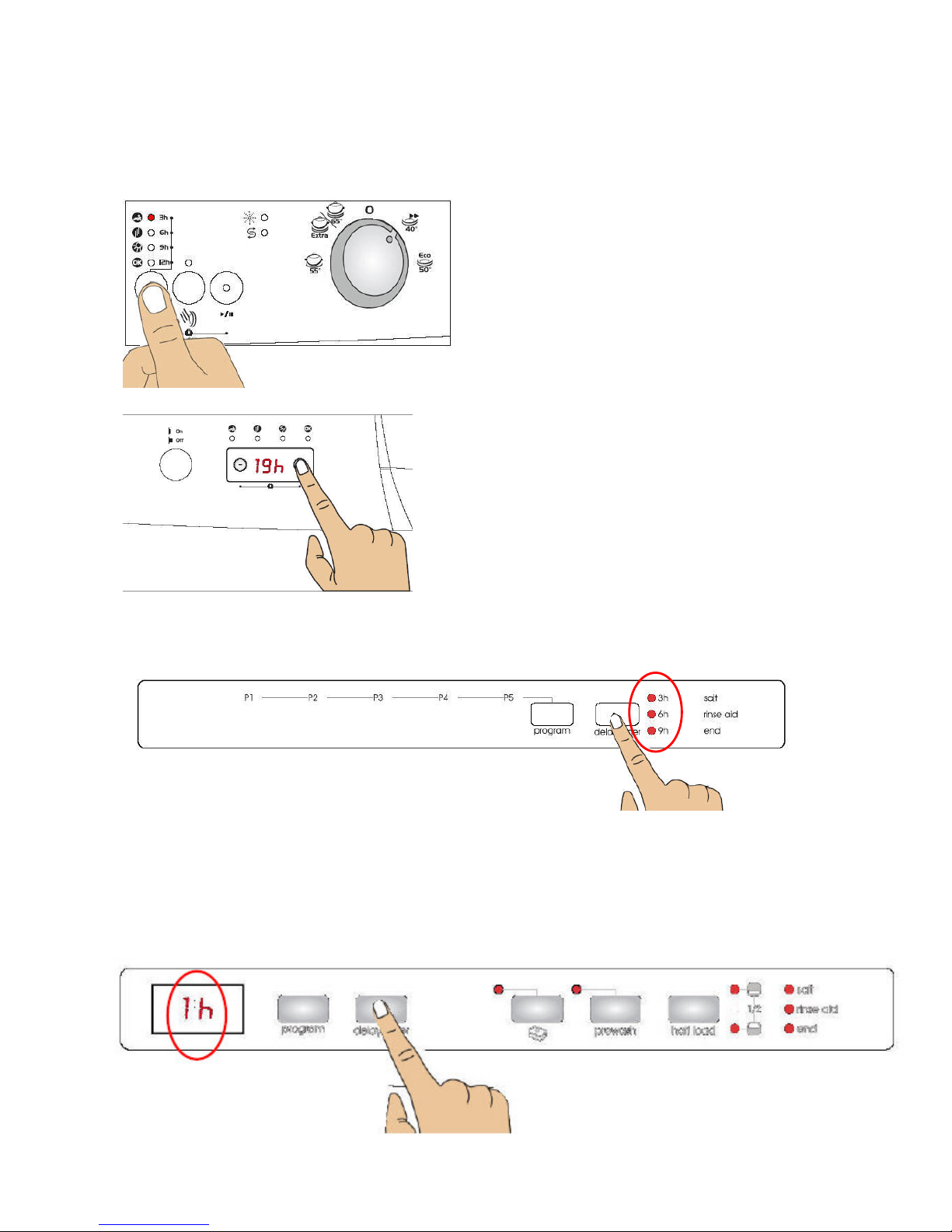

Delay Timer:
C21 and C31,
When you press delay button, 3h (washing) lamp flashes.If you continue pressing delay
button, 6h-9h-12h lamb will flash respectively for each press. If you select delay time and
press Start/Pause button, then you activate delay time.
C41
In these models you can select the delay
time by pressing “+” and “–” buttons on
display. For activating delay time press
Start /Pause button.
IND21
When you press delay button, 3h lamp flashes. If you continue pressing delay button, 6h-9h
lamb will flash . If you press delay button again ,after 9h lamb flashed , delay will reset. You
may select the delay time, after selecting the programme.
IND 41
When you press delay button,"1h" appears on program display. If you continue pressing
delay button, 1h-2h-...19h lamb will flash respectively for each pressing. You may select the
delay time, after selecting the programme. For changing or resetting delay time , adjust the
new time by pressing delay button. It will active according to the latest entered setting.
