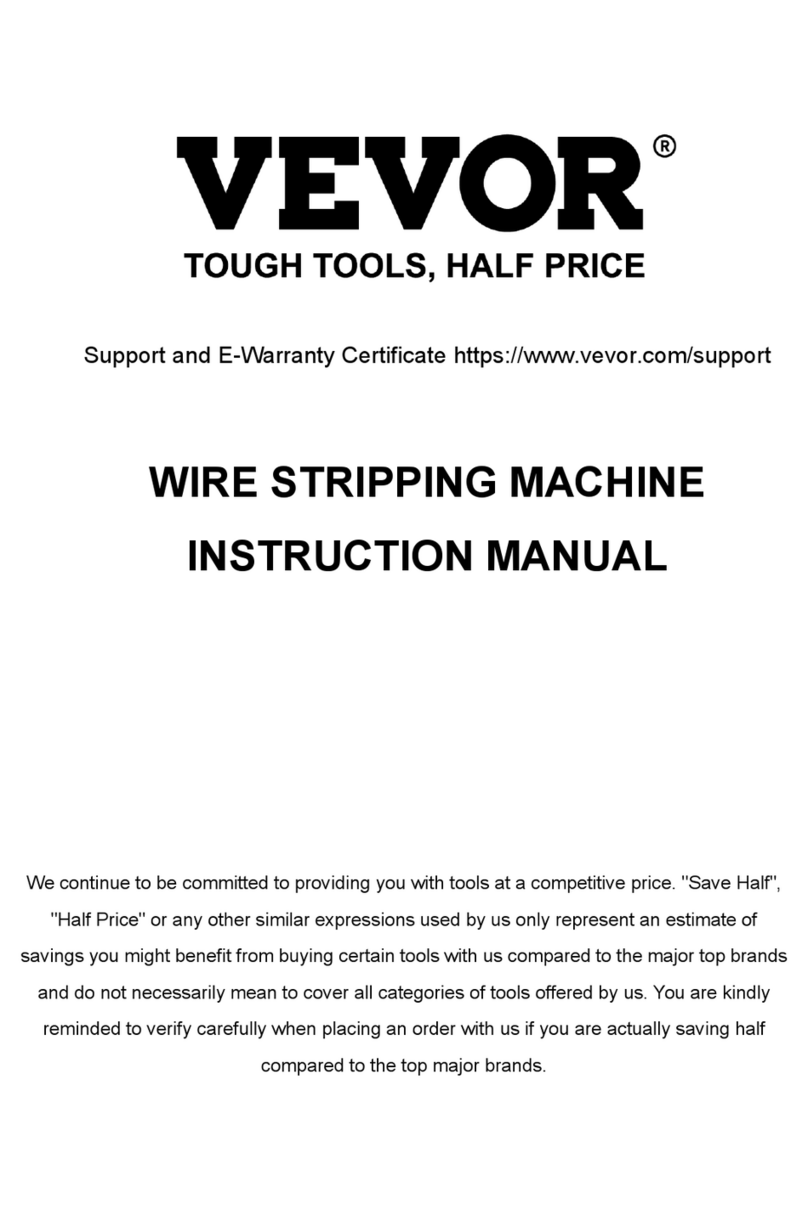

WIRE STRIPPING MACHINE
INSTRUCTION MANUAL
We continue to be committed to providing you with tools at a competitive price. "Save Half",
"Half Price" or any other similar expressions used by us only represent an estimate of
savings you might benefit from buying certain tools with us compared to the major top brands
and do not necessarily mean to cover all categories of tools offered by us. You are kindly
reminded to verify carefully when placing an order with us if you are actually saving half
compared to the top major brands.
- 1 -
MODEL:SD-25
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
WIRE STRIPPING
MACHINE
- 2 -
This is the original instruction, please read all manual instructions carefully before
operating. VEVOR reserves a clear interpretation of our user manual. The
appearance of the product shall be subject to the product you received. Please
forgive us that we won't inform you again if there is any technology or software
updates on our product.
Technical Parameter
Note: this machine is not applicable to silicone rubber cables or armored cables.
Model
Dimension
(L*W*H mm)
Weight
(kg)
Stripping Range
(mm)
SD-025
130×128×300
3.4kg
∅1.5~∅25
Operation Guide video
- 3 -
- 4 -
Parts List
1:M14 plastic nut for regulating blade up and down
2:M14 screw rod for regulating blade up and down
3:Handle 4:Incoming panel
5: Nut for locking screw rod 6:Feeding hole
7:10#Screw for connecting drill 8: Stripping rolling gear
9:Blade
- 5 -
Accessories
Details:
1、One 4# allen key 2、One 5# allen key
3、One 6# allen key 4、One feeding plate
5、Five D8 gaskets
6、Four M8 nut 7、Four M8*35 screw
8、One M8*16 inner-hexagon screw
9、One 10#screw for connecting the electric drill
- 6 -
Operation Instruction
1.Select the appropriate feeding hole according to the wire diameter.
2. When the diameter of the wires to be treated does not exceed 13mm,
select the two hole incoming board.
- 7 -
3. When the diameter of the wires to be treated exceed 13mm, select the
one hole incoming board.
4.During wire stripping, the center of the blade must be collinear with the
center of the rolling gear (as shown below).
- 8 -
5. Adjust the height of the blade. It is best to make the blade scratch the
wire skin without damaging the copper core by rotating the plastic handle
screw (clockwise rotation is downward and counterclockwise rotation is
upward), as shown below.
6.When stripping, adjust the height of the feeding plate according to the
thickness and hardness of the wire (generally, the feeding panel should be
adjusted higher for thick and hard wires and lower for soft and thin wires).In
this way, the wire is not easy to be eccentric when stripping.
- 9 -
7. When the diameter of wire to be treated does not exceed 20mm, the two
rolling gears need not be separated.
When the diameter of the wire to be treated exceeds 20mm, the two rolling
gears need to be separated by loosening the two screws in the gears.
