VEVOR HWT23P User manual

Technical Support and E-Warranty Certificate www.vevor.com/support
HIGH PRESSURE CLEANER
MODEL: HWT23P
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL:HWT23P
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
HIGH PRESSURE
CLEANER

- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
INSTRUCTIONS
Congratulations on the purchase of your POWER WASHER!
Your POWER WASHER is a power tool in every sense of the word that may be
used out-and inside your house.
It is one of the finest most powerful household power washers on the market today.
Please familiarize yourself with the following assembly, operating and safety
information.
Read this manual before using the power washer. Failure to follow these
instructions could cause personal injury, property damage, or both. Save this
manual for other users to read prior to using the power washer.
SAFEGUARDS, WARNINGS AND SAFETY TIPS
IMPORTANT SAFETY INSTRUCTIONS, SAVE THESE INSTRUCTIONS
WARNING ‒ When using this product basic precautions should always be
followed, including the following:
1. To avoid personal injury and/or damage to property and to maximize your
power washing experience, carefully follow all of the safety tips, instructions,
warnings and safeguards and become familiar with all of the controls. Be sure
you know how to quickly bleed off the pressure from all parts of your power
washer, and how to turn off the power Washer.
2. This power washer conforms to safety and consumer standards. Do not
modify or rebuild any part of your power washer.
3. Do not use your power washer when you are under the influence of alcohol or
drugs. Use this power tool carefully and only when you are alert.
4. Watch your balance and footing while using your power washer. Surfaces
become slippery when wet and are extra slippery when using a detergent or
cleaner.
5. Never operate the power washer in bare feet, sandals, or open-toed shoes.

- 3 -
6. When using the power washer near children make sure they are closely
supervised by an adult to avoid injury. Never let a child use the power washer.
7. When you press the power switch to turn off the power washer, water
pressure may remain in the system. To discharge the pressure, point the
spray gun in a safe direction and pull the trigger.
8. Never spray flammable liquids.
9. Never use the power washer in areas that contain combustible dust, liquids or
vapors.
10. Keep operating area clear of all persons.
11. Do not overreach or stand on unstable support. Keep good footing and
balance at all times.
12. Follow the maintenance instructions specified in the manual.
13. Avoid contact of the pressure hose with sharp objects and examine the hose
regularly. Replace if damaged. Due to the high pressure involved, it cannot be
repaired if cut of damaged.
14. Only use detergent specifically formulated for power washers and follow
instructions on the detergent’s label.
15. Power washer detergents are available at your local hardware store.
16. Protect eyes, lungs, and skin from exposure to detergent. Dish or laundry
soap is too thick and will clog the nozzle of your detergent tank.
17. WARNING ‒ Risk of Injection or Injury‒ Do Not Direct Discharge Stream At
Persons.WARNING: If Connection Is Made To A Potable Water System, The
System Shall Be Protected Against Backflow.
18. Never use hot water with your power washer. It will overheat and damage the
high pressure pump.
19. IMPORTANT: Store the power washer indoors to prevent the water in the unit
from expanding under freezing conditions. When the water freezes and
expands, your power washer will be damaged and become inoperable. After
disconnecting the water supply And before disconnecting the high pressure
hose Turn the pressure washer on for 2-3 seconds, Turn the unit off
immediately.
20. Never leave the power washer unattended while it is powered “on”.
21. Always turn the water supply“on ”before turning the power washer power to
“on”. Running the pump dry will cause damage to the internal components.

- 4 -
22. Never use a water supply to your power washer that exceeds 150 psi
maximum.
23. Keep fingers, hands, feet and any part of your body clear of the stream of high
pressure water. The powerful spray can cause blindness or blast holes in the
skin.It can break a window if you are too close when you pull the trigger on
the spray gun.
24. Always wear eye protection to prevent injury to eyes when operating the
power washer.
25. To avoid mishaps or injury, always use the trigger safety lock when not using
the power washer even if the spraying stops for a moment.
26. The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI)
Built Into The Power Cord Plug which greatly reduces the chance of electric
shock while the unit is in use. If Replacement Of The Plug Or Cord Is Needed,
Use Only Identical Replacement Parts.
27. Point the spray gun in a safe direction when beginning a power washing
session.
28. When first using the spray gun, hold the spray gun and lance with two hands
when pulling the trigger until you get used to the “kick back” from the spray
gun (one hand to pull the trigger and the other to stabilize the gun assembly).
29. Never disconnect the high pressure hose from the power washer while the
system is pressurized.
30. Never permanently engage the trigger mechanisms on the spray gun.
31. Never operate the power washer unless all components are properly and
securely connected.
32. Never allow the power washer pump to Run for more than one minute, after
you have contain combustible dust, liquids or vapors. turned off the water
supply.This can cause the motor and pump to overheat and fail.
33. Never use lances or other parts that have not been supplied with your power
washer.
34. Never use an extension power cord since it defeats the effectiveness of the
GFCI and increases the chance of electrocuting the operator.
35. Never spray any electrical outlet with your power washer.
36. Inspect the power cord before using. Do not use it if it is damaged.

- 5 -
GROUND FAULT CIRCUIT INTERRUPTER PROTECTION
This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built
into the plug of the power-supply cord. This device provides additional protection
from the risk of electric shock. Should replacement of the plug or cord become
necessary, use only identical replacement parts that include GFCI protection.
SERVICING OF A DOUBLE-INSULATED APPLIANCE
In a double-insulated product, two systems of insulation are provided
instead of grounding. Grounding means are not provided for a double-
insulated product, nor should grounding means be added to the product.
Servicing a double-insulated product requires extreme care and knowledge
of the system, and should only be done by qualified service
personnel. Replacement parts for a double-insulated product must
be identical to the original parts. A double-insulated product is
marked with the words“Double Insulation”or“Double Insulated”.
Product may also be marked with symbol shown below.
SAVE THESE INSTRUCTIONS
TTECHNICAL DATA
Model
HWT23P
Power
1900W
Rated voltage
120V~
Frequency
60Hz
Rated pressure
1600PSI
Max. pressure
2300PSI
Max. water inlet temperature
40°C
Rated flow
1.2GPM
Machine weight
9.8kg

- 6 -
UNPACKING
When unpacking this product, check to make sure parts listed below are
included and carefully inspect for any damage that may have occurred
during transit. If any part is missing and damaged, do not attempt to
assemble or use the product.
1. Gun
2. Quick lance
3. Metal nozzles (0°/15°/25°/40°)
4. Detergent Bottle
5. Manual
6. Handle
7. Gun hook A
8. ON/OFF switch
9. Wheels(2 pcs )
10. Gun hook B
11. High pressure hose
12. Water outlet pipe
13. Screws package
14. Water inlet connector
15. Water inlet pipe
16. Power cord holder
17. Accessories rack
18. Hose hook
19. Cleaning pin

- 7 -
*The machine is always with handle to transport.
PREPARATION OF OPERATION
HOW TO SET UP YOUR UNIT
Step 1 Install gun holder&power cord holder
Slide the gun holder on the left of the machine.
Slide the power cord holder on the right of the machine.

- 8 -
Step 2 Mounting the Universal wheel assembly
Please install the wheels to the four wheels on the chassis of the machine.
Note: Wheels can be locked and unlocked. Please see the picture below.
Step 3 Attach the quick lance to gun
A. Attach the quick lance to gun
Note: When attaching, align the two projections on the lance with the grooves on

- 9 -
the gun.
B. Attach the nozzle to the spray lance.
Step 4 Screw the high pressure hose onto the water outlet pipe.
Push and turn（clockwise) it tight to avoid leakage.When the pieces are joined
properly, you cannot separate the two components by pulling straight out from the
water outlet.
CAUTION: Prior to operating the machine, please ensure that the high pressure
hose has been completely uncoiled.
Whilst the machine is in operation, the high pressure hose MUST NOT loop.

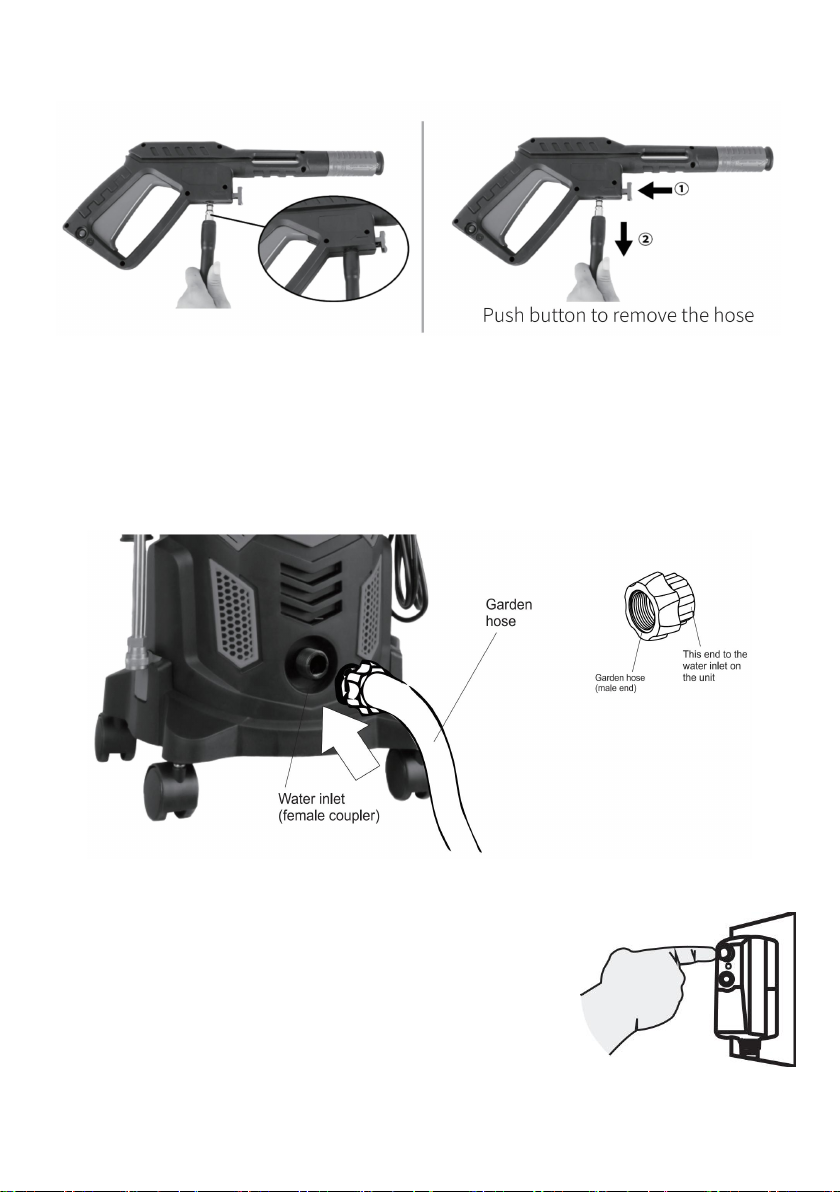

Step 5 Attach the other high pressure hose to the gun.
Note: After the high pressure hose is connected, check the connection by gently
pulling on the hose to ensure it stays connected. Push the lock button and pull to
detach the high pressure hose.
For detaching the hose easily, please pull the trigger to drain water from wand
when

- 10 -
operation is completed and switch is in “ OFF/0 ” position.
Step 6 Attach the garden hose
Connect one end of the home garden hose (not supplied) to the adapter and
another end to water source.
WARNING: The appliance is INTENDED to be used at a temperature above 0
degree.
Step 7 Connect to the power supplier
(1) Plug the pressure washer into the power outlet.
(2) Press TEST button, power will be cut and indicator will
fade. Do not use if this test fails. We recommend you to
press the test button every time before using
pressure washer to ensure the protector works.
(3) Press the RESET button the indicator will illuminates,power on for use.

- 11 -
Step 8 Tips for disassembling the body and chassis
The body and wheel base can be separated by unfastening the buckle.
OPERATING
TO WASH WITH WATER
Step 1 Turn on the water supply tap
Connect the washer to the power supply and turn the switch to “ON/1” position.
Then press trigger.
Note: Before pressing trigger, make sure lock-off switch is in “unlock” position.
Warning: Do not start the machine without connecting and turning on the water
supply because it may cause damage to high pressure seals and reduce the
service life of pump.
Step 2 Release the trigger and turn the switch to “OFF/O” position
Turn off the water supply tap.
Note: When not in use, make sure Lock-off switch is in “Lock” position.

- 12 -
Step 3 Select the right nozzles
The gun is equipped with 4 kinds of quick connect nozzle(0°, 15°, 25°, 40°), 4 type
of water jet shape shown as follow. Pls turn off the gun when changing nozzle,
Move the stop ring of the quick connector seat on the spray gun by left hand, and
install the quick connect nozzle onto spray gun quickly, loose the stop ring, and
push back to original position.
- Warning: High pressure jets can be dangerous if subject to misuse. The jet must
not be directed at persons, live electrical equipment or the appliance itself.
- Warning:Do not direct the jet against yourself or others in order to clean clothes
or foot-wear.
- Waring: Spray gun must be turned off when changing nozzles
Step 4 Cleaning
Begin with the nozzle 1-2ft away from the surface and approach with caution until
it reaches the desired position for overly close spray may do harm to surface.
Warning: Do not connect the machine to water supplies that are dirty, rusty,
muddy, or corrosive.( Including window cleaning luquids, plant foods, or fertilizers
etc.)

- 13 -
Step 5 Add and use detergent
a. Fill it with a properly formulated detergent or cleaner with a water ratio according
to instructions on the container. connect nozzle to wand.
b. Squeezel the wand trigger, detergent will come out through the nozzle.
c. Apply detergent so it thoroughly covers cleaning surface.
d. Allow detergent to remain on the surface for a few minutes. This is a good time
to use a brush to lightly scrub heavily soiled areas.
e. Change to spray nozzle, Rinse detergent from surface.

- 14 -
f. Cleaning up: Always draw fresh water through the detergent bottle when done to
flush any remaining detergents from the injection system. The bottle could be
detached if necessary in this process.
MAINTENANCE
WATER FILTER AND NOZZLE CLEANING INSTRUCTIONS
A clogged or partially clogged water filter or nozzle can cause significant
reduction of water pressure coming out of the nozzle and/or cause the unit
to pulsate while spraying.
1. The water filter was installed inside the water inlet quick connector,
should be cleaned periodically. Rinse it with clean tap water,and then place
it back into the water inlet quick connector.
2. Using the nozzle tip cleaner provided ( or an unfold paper clip), insert the wire
into the nozzle hole and move back and forth until debris is dislodged. Back flush
water through the nozzles using garden hose and highest pressure available
(either standard water nozzle or use your thumb over the nozzle to create water
pressure for back flush ).
STORAGE
Do not store pressure washer outdoors.
Do not store pressure washer where it might freeze while there's water inside the
machine.

- 15 -
Serious damage will occur to the water system, pump and / or motor.
TIPS FOR EXTENDING THE LIFE OF YOUR PRESSURE WASHER
1. Never operate machine without water.
2. Pressure washer is not meant to pump hot water.Never connect to hot water
supply this will significantly reduce life of the pump.
3. Using detergent other than those formulated for pressure washers may cause
damage to pump components (o-rings, etc.). This also applies to chemicals such
as bleach, dish soap, etc.
4. Never operate unit for more than one minute without spraying water. Resulting
heat buildup.

- 16 -
TROUBLESHOOTING AND FAQS
Unit will not turn on.
Make sure the washing machine is in the "off" position. Plug
the power cord into a grounded 120 volt outlet (extension
cords should not be used). If the power cord does not plug
into your outlet, your outlet is not properly grounded and
should not be
used. Use another power outlet. Press the reset button on
the GFCI power box. If you don't see the light on in the GFCI'
s little window, unplug and plug it back in. Press reset, and if
the light is on, turn the power switch on the power washer to
"ON". Press
the trigger on the gun and try again.
If that doesn't fix the problem, try plugging into another power
outlet and repeat the process.
The high pressure(HP)
hose will not connect/stay
connected to the spray gun.
Is this a spray gun
problem?
In most cases, the spray gun is not the problem. The
problem is the rubber sleeve covering the fitting at the end of
the high pressure hos. It has likely slipped up toward the
metal tip. The fix:wiggle, twist and/or pull the rubber sleeve
down until the entire tip is visible plus an 1/8” of the metal
fitting below the tip. Now try to insert the hose tip into the
spray gun. It should “click”into place and will not come out
until the hose is released by pushing in the lever on the
underside of the gun.
You may cut away the end of the sleeve with a sharp knife if
unable to move the sleeve down . Be careful not to cut or
puncture the hose.
The unit is running but
there is not water flow.
Check the water source. Unclog the nozzle on the lace.(See
nozzle cleaning instructions under “Cleaning nozzles”.) Or
take off the lance and just spray out of the spray gun. This
will indicate of the problem is with the lance.

- 17 -
Why is water leaking where
the high pressure hose
connects to the spray gun?
Make sure there is an o-ring at the end of the metal tip of the
high pressure hose. If no o-ring is present, the connection
between the hose and spray gun will leak.
I can’t remove the lance
from the spray gun.What
should I do?
All lances and detergent tank are attached and removed
from the spray gun in the same manner. Insert the
quick-release end of the lance together(about a 1/8”) and
turn clockwise. The lance will lock in place. Remove the
lance by reversing this procedure. Press the spray gun and
lance together and turn counter clockwise. The lance will
slide out. Or, hold the spray gun and lance in an upright
position with the nozzle end on the floor. Push the whole
assembly straight down to loosen the connection, and then
follow the removal process again. You may also spray soapy
water or a lubricant in the area where the lance connects to
the spray gun.
The power washer turns on
for 2 seconds, shuts off,
and will not turn back on.
Do I have a defective unit?
It sounds like your power washer is working just fine. When
the water is connected, the accessories are assembled
properly,and the power switch is turned on, the power
washer may turn on for 1-2 seconds to prime the pump. It
automatically shuts off and waits for the spray gun trigger to
be pressed. When the trigger is pressed, water starts flowing
water through the pump.
The water sensor in the pump “senses” the moving water
and automatically turns the power washer on. Or, turn the
power switch to off, hold in the trigger on the spray gun, so
that you have a steady stream of water. While you are
holding the trigger open on the spray gun, at the same time,
turn the power switch on.

Technical Support and E-Warranty Certificate
www.vevor.com/support
