ELECTRIC TRIMMER
USR MANUAL
MODEL:0700C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL:0700C
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ELECTRIC TRIMMER

- 2 -
Read this operator guide carefully, before using the machine. Ensure that
you know how the machine works, and how it should be operated. Maintain
the machine in accordance with the instructions, and make certain that the
machine functions correctly. Keep this operator's guide and other enclosed
documentation with the machine.
TECHNICAL SPECIFICATIONS
Model
0700C
Rated Voltage
120V/60Hz 220-240V/50Hz
Power
800w
no load speed
10000-30000/RPM
Net weight
1.8kg
Over view
1.Switch
2.Variable speed
3.Carbon brush cap
4.Locking button
5.LED lamp
General Safety Instructions for Electric Tools
This device is exclusively for private use. It is not fit for commercial use.
2
1
3
4
5

- 2 -
Warning - To reduce the risk of injury, user must read instructions
manual carefully.
Warning- Be sure to wear eye protectors when using this product.
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to an
accident. To reduce the risk of injury, fire, or electrocution, please
always follow the recommendation shown below.
Alternating current
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
FCC information:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1)This device may not cause
harmful interference, and (2)this device must accept any interference
received, including interference that may cause undesired operation
Disposal information: This product is subject to the provision of
European Directive 2012/19/EC. The symbol showing a wheelie bin
crossed through indicates that the product requires separate refuse
collection in the European Union. This applies to the product and all
accessories marked with this symbol. Products marked as such may
not be discarded with normal domestic waste, but must be taken to a
collection point for recycling electrical and electronic devices
WARNING! Read all instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/or
serious injury:
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

- 3 -
1) Work area safety
Keep the work area clean and well-lit. Cluttered and dark areas invite
accidents.
Do not operate machines in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Machines create sparks that
may ignite dust or fumes.
Keep children and bystanders away while operating a machine.
Distractions can cause you to lose control.
2) Electrical safety
Machine plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) machines. Unmodified
plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
Do not expose machines to rain or wet conditions. Water entering a
machine will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the machine. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase the risk of
electric shock.
When operating a machine outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk
of electric shock.
If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3) Personal safety
Stay alert. Watch what you are doing and use common sense when
operating a machine. Do not use a machine while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating machines may result in serious personal
injury.
Use safety equipment. Always wear eye protection. Safety equipment

- 4 -
such as dust marks, non-skid safety shoes, hard hats, or hearing
protection used for appropriate conditions will reduce personal injuries.
Avoid accidental starting. Ensure the switch is in the off position before
plugging it in. Carrying machines with your finger on the switch or
plugging in machines that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the machine on. A
wrench or a key left attached to a rotating part of the machine may
result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This
enables better control of the machine in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of these devices can reduce dust related hazards.
Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety principles. A careless
action can cause severe injury within a fraction of a second.
4) Machine use and care
Do not force the machine. Use the correct machine for your application.
The correct machine will do the job better and safer at the rate for
which it was designed.
Do not use the machine if the switch does not turn it on and off. Any
machine that can not be controlled with the switch is dangerous and
must be repaired.
•Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing machines. Such
preventive safety measures reduce the risk of starting the machine
accidentally.
Store idle machines out of the reach of children and do not allow
persons unfamiliar with the machine or these instructions to operate
the machine. Machines are dangerous in the hands of untrained users.

- 5 -
Maintain machines. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the
machine’s operation. If damaged, have the machine repaired before
use. Many accidents are caused by poorly maintained machines.
Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to
control.
Use the machine, accessories and tool bits, etc., in accordance with
these instructions and in
The manner intended for the particular type of machine, taking into account
the working conditions and the work to be performed. Use of the machine
for operations different from intended could result in a hazardous situation.
Keep handles and grasping surfaces dry, clean and free from oil and
grease. Slippery handles and grasping surfaces do not allow for safe
handling and control of the tool in unexpected situations.
5) Service
Have your machine serviced by a qualified repair person using only
identical replacement parts.
This will ensure that the safety of the machine is maintained.
Maintain labels and nameplates on the tool. These carry important
safety information. If unreadable or missing, contact VEVOR for a
replacement.
Type Y attachment: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
OPERATION INSTRUCTIONS
Adjust bit protrusion
1b adjust the bit protrusion, loosen the locking lever and move the tool
base up or down as desired by turning the,adjusting screw. After adjusting,
tighten the locking lever firmly to secure the tool base.

- 6 -
3. scale
I.bit protrusion
2.tool base
4. locking lever
5. adjusting screw
6. hex nut
Switch action
To start the tool, press the ON (I) "side of the switch.
To stop the tool, press the OFF(0)" side of the switch.
3.ON(l)side
2.OFF(O) side
1 .Switch
Speed adjusting dial
The tool speed can be changed by turning the speed and adjusting
the dial to the given number setting from 1 to 6. Higher speed is
obtained when the dial is turned in the direction of number 6. And
lower speed is obtained when it is turned in the direction of number 1.

- 7 -
This allows the ideal speed to be selected for optimum material
processing, the speed can be correctly adjusted to suit the material
and bit diameter. Refer to the table for the relationship between the
number
settings on the dial and the approximate tool speed.
Number
RPM
1
10000
2
13000
3
17000
4
21000
5
25000
6
30000
1.Speed adjusting dial
Installing or removing trimmer bit
Insert the bit all the way into the collect cone and tighten the collect nut
security with the two wrenches or by pressing the shaft lock and using the
provided wrench, lb remove the bit, and follow the installation procedure in
reverse.

- 8 -
1. Tighten
2. Loosen
3. Hold
Operation with straight guide
The straight guide is effectively used for straight cuts when chamfering or
grooving. Attach the guide plate to the straight guide with the bolt and the
wing nut. Attach the straight guide with the clamp screw (A). Loosen the
wing nut on the straight guide and adjust the distance between the bit and
the straight guide. At the desired distance, tighten the wing nut securely.
Circular work
The straight guide is effectively used for straight cuts when chamfering or
grooving. Attach the guide plate to the straight guide with the bolt and the
wing nut. Attach the straight guide with the clamp screw (A). Loosen the
wing nut on the straight guide and adjust the distance between the bit and
the straight guide. At the desired distance, tighten the wing nut securely.

- 9 -

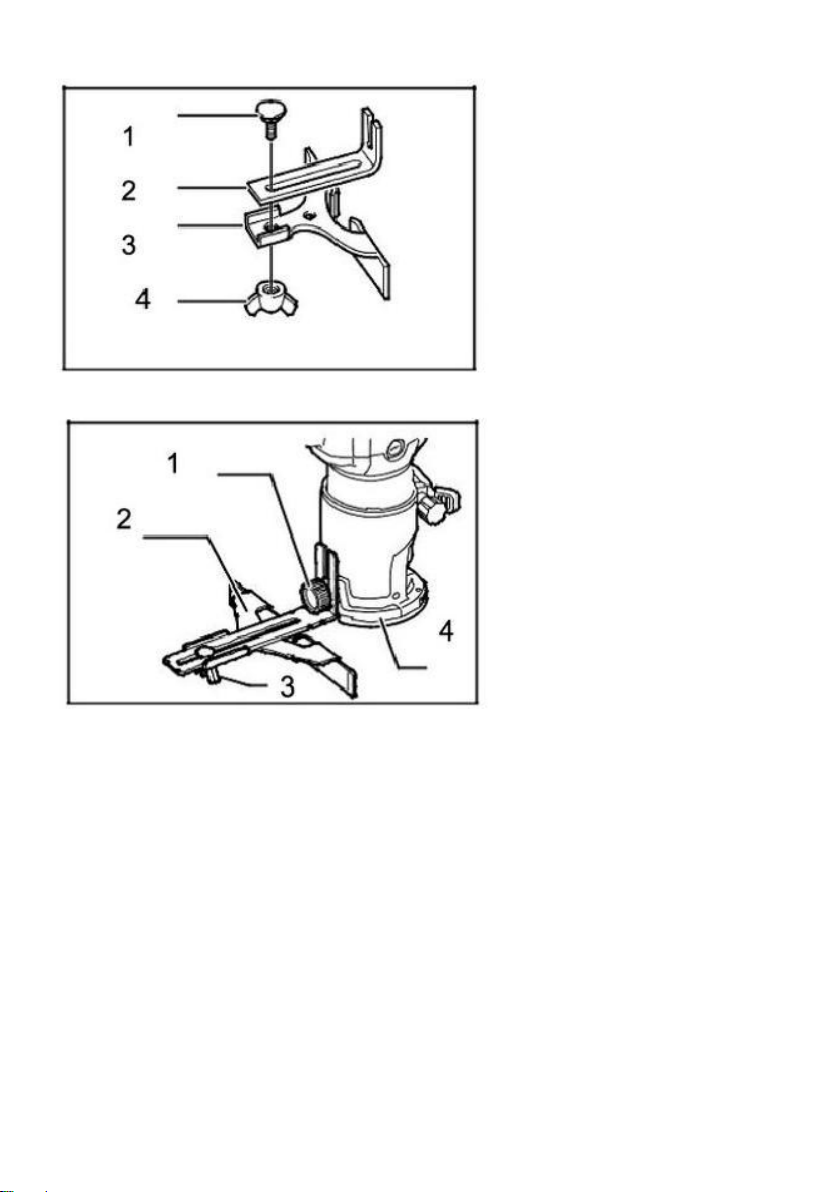

1.Bolt
2.Guide plate
3.Straight guide
4.Wing nut
1.Clamp screw (A)
2.Straight guide
3.Wing nut
4.Base
Circular work
Circular work may be accomplished if you assemble the straight guide and
guide plate as shown in the figures. Min and Max radius of circles to be cut
(distance between the center of circle and the center of bit) are as follows:
Min: 70mm(2-3/4B)
Max: 221mm (8-11/16")

- 10 -

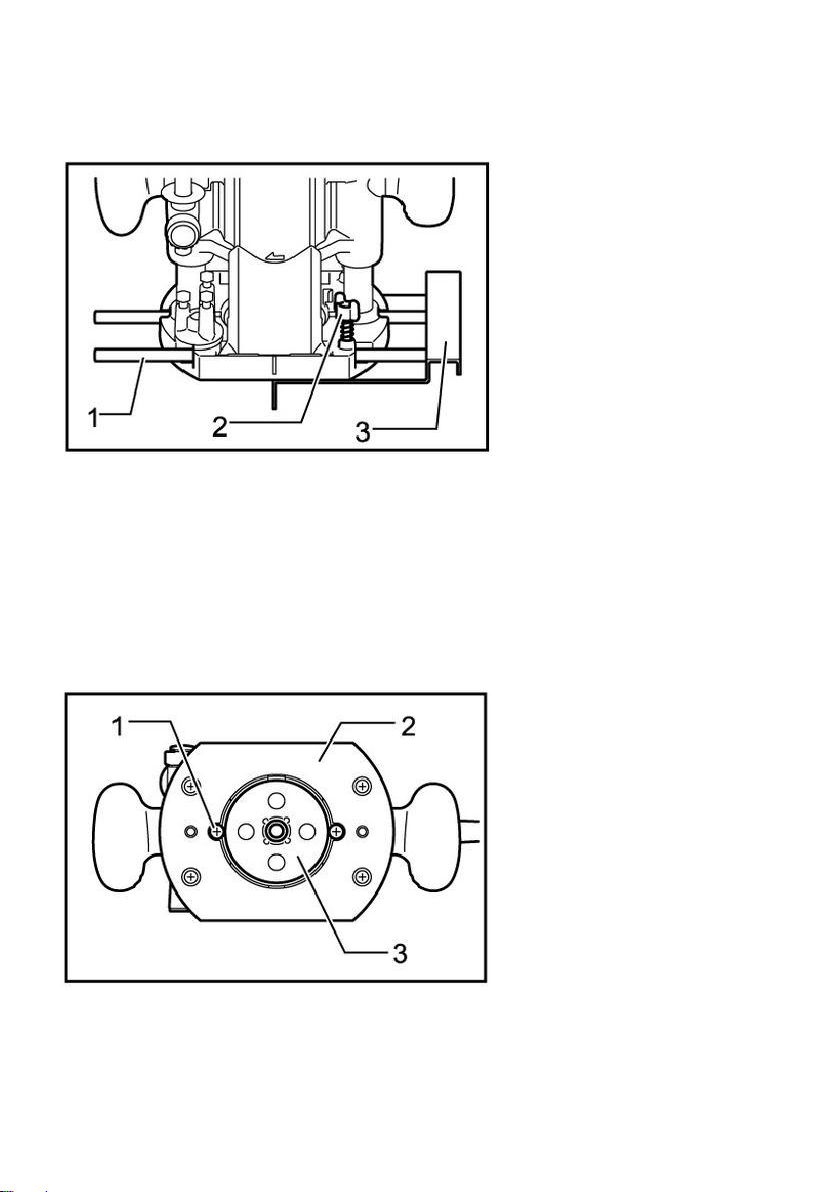

1.Wing nut
2.Guide plate
3.Straight guide
4.Center holder
5.Bolt

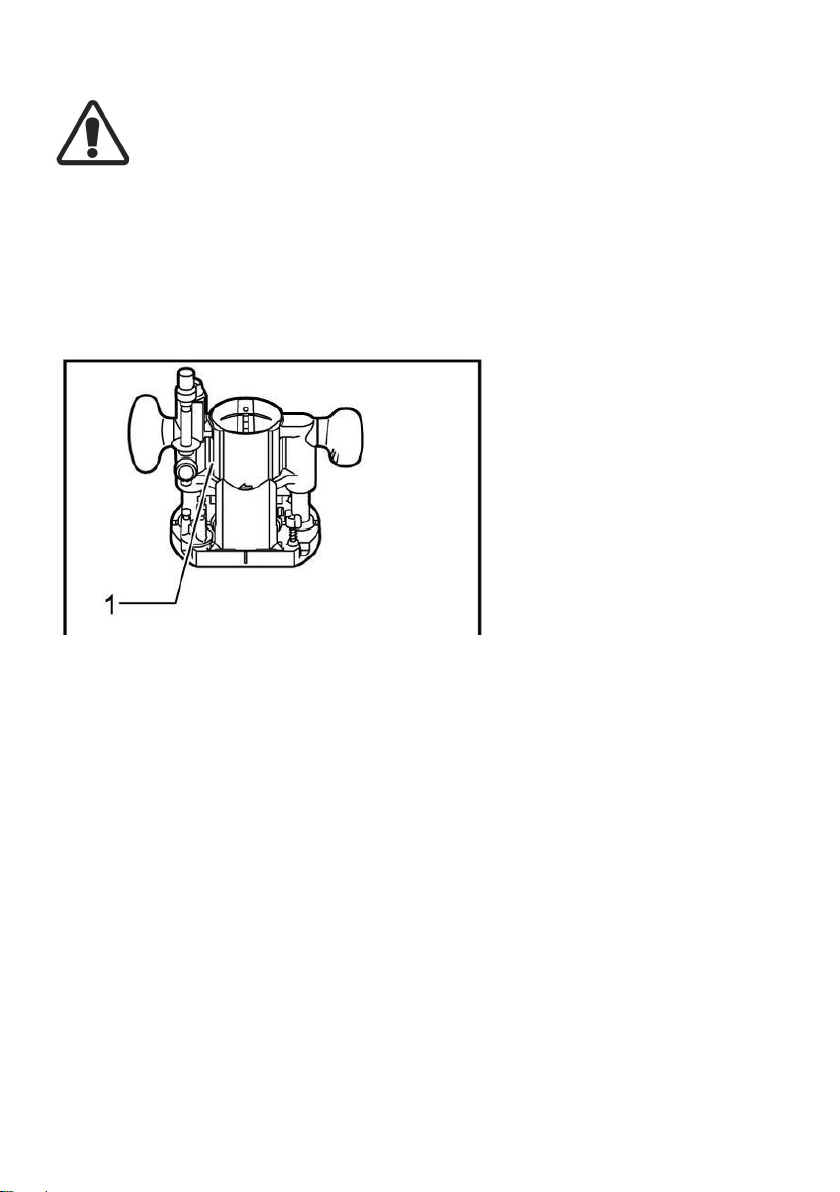

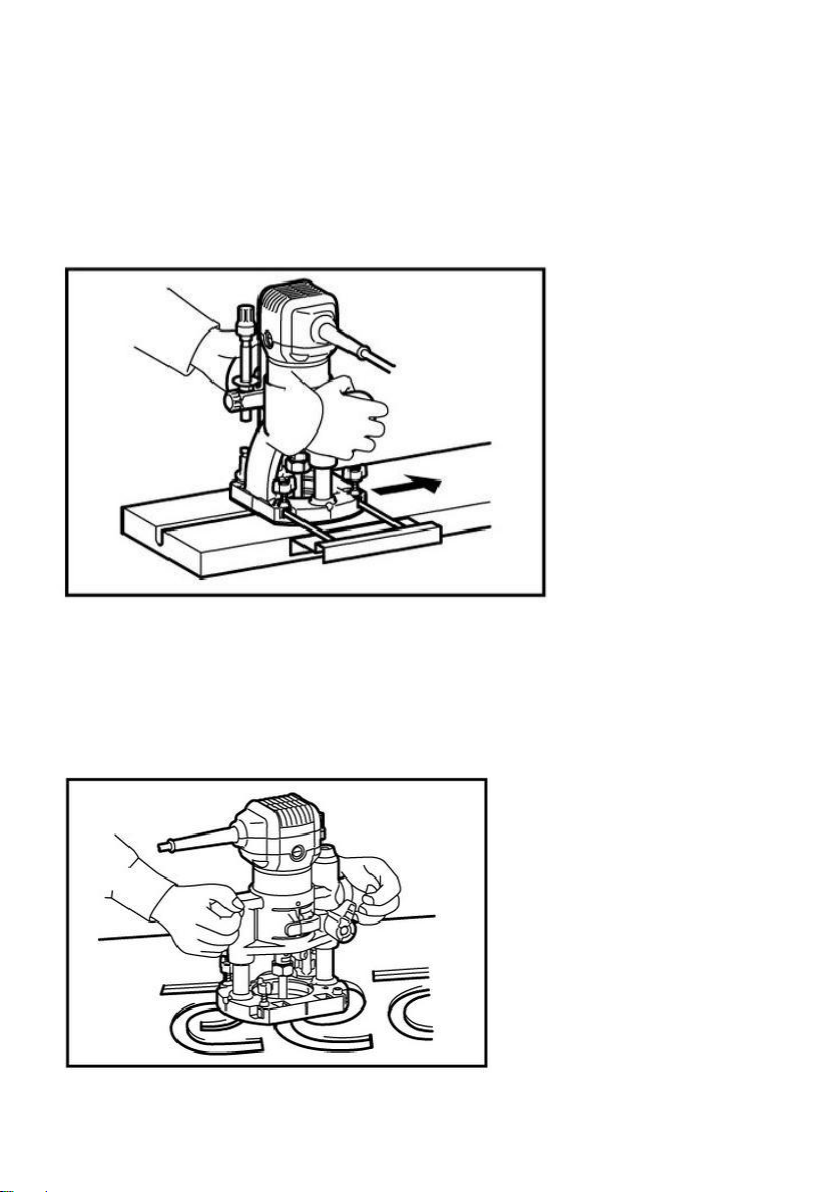

Trimmer guide
Trimming, curved cuts in veneers for furniture and the like can be done
easily with the trimmer guide. The guide roller rides the curve and assures
a fine cut. Install the trimmer guide on the tool base with the clamp screw
(A). Lochen the clamp screw(B) and adjust the distance between the bit
and the trimmer guide by turning the adjusting screw. At the desired
distance, tighten the clamp screw(B) to secure the trimmer guide in place.
When cutting, move the tool with the guide roller riding the side of the
workpiece.

- 11 -
1. Clamp screw(A)
2. Adjusting screw
3. Clamp screw (B)
4. Trimmer guide
1. Workpiece
2 .Bit
3. Guide roller
Overload
The motor of your electric router may be damaged when overloaded. This
results from excessive working pressure over a prolonged period.
Therefore you should not try to accelerate your working speed by
increasing pressure on your machine.
Replacing carbon brush
Remove and check the carbon brushes regularly. Replace them when they
wear down to limited mark. Keep the carbon brushes clean and free to slip
into the holders. Both carbon brushes should be replaced at the same time.

- 12 -
Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps. Take out the worn
carbon brushes, insert the new ones and secure the brush holder caps, lb
maintain product SAFETY and RELIABILITY repairs, any other
maintenance or adjustment should be performed by authorized service
centers, always using replacement parts.
1.Screwdriver
2.Brush holder cap
OPERATION
For trimming machine base
1.Dust collector
2.Butterfly screw
3.Trimming machine base

- 13 -
Be careful
• When used as an engraving machine, please hold the tool tightly with
both hands.
1.Screw
2.Knob handle
3.Offset base plate
When using this tool as an engraving machine,please press the tool fully into the
cut-in base(optional accessories) for installation.According to the operation
situation, you can use knob handle or rod handle (optional accessories).

- 14 -
1.Adjusting knob
2.Locking lever
3.Depth pointer
4.Stopper rod setting nut
5.Quick feed button
6.Stopper rod
7.Stopper lock
8.Adjusting bolt
Place the tool on a flat surface. Loosen the locking lever and lower the
body until the cutter head just touches the flat surface. Tighten the locking
lever to lock the fuselage.
Turn the stop lever, setting nut counterclockwise. Lower the stopper rod
until it contacts the adjusting bolt. Set depth pointer.
1.Bolt
2.Guide plate support
3.Butterfly nut
4.Bolt
5.Butterfly nut
6.Guide plate
7.Linear guide
8.Butterfly bolt
Install the straight guide to the guide bracket with the butterfly nut (optional

- 15 -
accessories). Insert the guide bracket into the hole on the cut-in base and
tighten the butterfly bolt. To adjust the distance between the cutter head
and the linear guide, loosen the butterfly nut. After the required distance is
reached, tighten the butterfly nut to fix the linear guide in place.
Linear guide (optional accessories)
When oblique planing or slotting, the use of linear guide plate for linear
cutting is particularly effective.
Sample gauge guide plate (optional accessories)
The sample gauge guide has a sleeve for the cutter head to pass through,
allowing the use of tools with sample gauge mode.When installing the

- 16 -
sample gauge guide plate,please loosen the screw on the tool base, insert
the sample gauge guide plate,and then tighten the screw.
1. Guide rod
2. Butterfly bolt
3. Linear guide
When installing the straight guide,insert the guide rod into the hole on the
cut-in base.Adjust the distance between the cutter head and the linear
guide plate.When the required distance is reached,tighten the butterfly
bolts to fix the straight guide plate in place.When cutting,move the tool
when the linear guide is flush with one side of the workpiece.
1. Screw
2. Pedestal
3. Sample gauge
Fasten the sample gauge on the workpiece.Place the tool on the sample
gauge and move the tool while sliding the guide plate of the sample gauge
along the side of the sample gauge.

- 17 -
If the distance(a)between one side of the workpiece and the cutting
position is too wide for the linear guide,or if one side of the workpiece is not
straight,the linear guide cannot be used.In this case,a straight guide plate
can be firmly clamped to the workpiece and held against the base of the
engraving machine as a guide plate.Feed the tool in the direction of the
arrow.
1.Cutter head
2.Pedestal
3.Sample gauge
4.workpiece
5.Distance(X)
6.Outer diameter of sample
gauge guide plate
7.Sample gauge guide
Notes: The workpiece will be cut in a slightly different size from the sample
gauge.Leave a certain distance(x)between the cutter head and the outside
of the sample gauge guide plate.The distance(x)can be calculated using
the following equation.Distance(x)=(outer diameter of sample gauge guide
plate-cutter head diameter)12
