Compressor Wine Cooler
SC-90W(E) SC-146W(E)

- 2 -
Thank you for your purchase and use of the compressor wine cooler produced by
this company.
Please carefully read this Manual before installation and operation of this product,
and follow the requirements given in this Manual in operation. The operation
instructions provided in this Manual are essential for keeping this product under
good conditions.
Please keep this Manual properly. Carefully complete the warranty card at purchase
and keep it at hand for application for warranty service.
TABLE OF CONTENTS
1. Table of contents..........................................................................................................2
2. Environment Impact Statement..................................................................................3
3. Safety precautions.......................................................................................................3
4. Packing list...................................................................................................................8
5. Name of component....................................................................................................9
6. Technical parameters.................................................................................................9
7. Electric principle drawing..........................................................................................10
8. Precautions for installation.......................................................................................11
9. Precautions for operation.........................................................................................12
10. Method of operation.................................................................................................12
11. Routine maintenance and care instructions........................................................14
12. Storage of red wine................................................................................................15
13. Ideal wine temperature..........................................................................................15
14. Troubleshooting.....................................................................................................17
15. Disusing..................................................................................................................18
16.Waste disposal warning.........................................................................................19
17. General hints.......................................................................................................20
18. Warranty and after sales service.........................................................................20

- 3 -
Symbols used in the Manual and their definitions:
Not
allowed
This symbol means that the behavior as described is not allowed, failing
which may give rise to product damages or personal injuries.
Warning
This symbol means that the safe operation of the product and the personal
safety of the operator are concerned, and that the operation must be
performed in strict compliance with the requirements as specified, failing
which may give rise to the product damages or personal injuries.
Caution
This symbol means that the operator must pay attention to the information
as described, failing which may give rise to the product damages or other
losses due to the improper operation.
Environment Impact Statement
Protect the environment and avoid any pollution. This product may cause environment
impacts during the operation.
Please pay attention to the following:
The carton, plastics and other recyclable wastes must be put into the classified waste bin as
designated. The improper disposal of old batteries and other hazardous wastes may cause
serious environmental pollution; therefore, they must be stored in the waste recycling bin.
Safety Precautions
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.

- 4 -
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
WARNING: Keep the ventilation holes in the equipment enclosure or built-in structure
free of obstructions.
WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the manufacturer.
For appliances which use flammable insulation blowing gases, the instructions shall
include information regarding disposal of the appliance. Only the service agent or similarly
qualified persons can disposal flammable insulation blowing gases of appliance.
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions.
This appliance is intended to be used in household and similar applications such as
– Staff kitchen areas in shops, offices and other working environments;
– Farm houses and by clients in hotels, motels and other residential type environments;
– Bed and breakfast type environments;
– Catering and similar non-retail applications
Due to the special characteristics of the tempered glass, the tempered glass may
be exploded at the probability rate of 3‰- 5‰ according to the industrial estimate,
while this company will strictly control it within 3‰.

- 5 -
This refrigerating appliance is not intended to be used as a built-in appliance.
Ensure that the power source complies with the requirements as indicated on
the parameter nameplate
A separate receptacle of at least 10A should be used with a grounding device, and it is not
allowed to use the transformer and extension socket for power supply.
• In all cases, the socket must be connected to an earthing line and it is not allowed to
modify the power line and plug.
• The power line plug shall keep in solid contact with the socket; otherwise it may give rise to
any fire.
• After the wine cooler is installed in place, the plug shall be easily accessible to facilitate the
removal of the cooler plug in case of any accident.
Never damage the power line
• Never pull out the wine cooler plug by dragging the power line. To remove the plug, hold it
and pull it out of the socket.
• Avoid crushing of power line by the cooler body or trampling by anybody.
• Take much care when handling the cooler. Bundle up the power line, but never roller it.
In case of damages of power line
When the power line is damaged or the plug is worn out, do not further use it. In such a
case, the power line or plug must be replaced at the repair workshop designated by the
manufacturer, or replaced by the competent professional.
Where the power line needs to be extended, the cross sectional area of the extension line
must not be less than 0.75mm2.
In case of leakage of flammable gas
• Firstly, close the valve with gas leakage, and then open the doors and windows for
ventilation. Never insert or remove the power socket of the wine cooler.
Never store or use the gasoline or other flammable substances in the immediate
area of the cooler to avoid fires.

- 6 -
Never place flammable and explosive substances and highly corrosive acid and
alkaline etc. in the cooler.
• Avoid damages of the refrigerating circuit.
• Do not use any electric device in the closet of this cooler.
• Do not use any mechanical equipment or other methods to accelerate the defrosting
process.
Please take good care of children
• Prevent the children from playing inside the cooler.
• Prevent the children from hanging from the door body to avoid injuries due to inclination of
door body or turnover of the cooler.
• Prevent the children from putting their hands or feet into various types of punched holes
and side edges of the mechanical compartment, back plate or other metal protection parts
of the cooler, to avoid injuries.
• Prevent the children from climbing or seating on the shelf in the cooler, for this may
damage the cooler and the shelf.
• Please keep the key of the cooler, if any, out of reach by the children, to prevent the
children from locking themselves inside the cooler.
Prevent water ingress
• Do not spray or flush the cooler with water, or place the cooler in a damp or sprinkled place,
let alone filling the cooler with water, so as to avoid impairment of the electric insulativity of
the cooler. Furthermore, failing to follow such requirements may lead to electric shock and
fire, or other accidents.
Avoid cold injuries
• After the cooler is put into operation, never touch its inner surface, especially when your
hand is wet; otherwise the skin may stick onto the inner surface to get injured.
Never modify the wine cooler without approval
• It is not allowed to remove or modify the cooler without approval, nor to cause man-made
damages of the refrigerating circuit.
• The cooler must be repaired by the competent professional.

- 7 -
Do not place the wine or other loads onto the door body when the door is open,
to avoid any accident
Remove the power socket in following cases
• Before cleaning or servicing the cooler, or when the cooler is faulty or has a power failure,
remove the power line plug of the cooler, and wait for at least 5 minutes before switching on
the power supply again, to avoid damages of the compressor due to the consecutive starts.
WARNING: Risk of child entrapment. Before you throw away your old cooler:
• Keep the cabinet far away from the source of ignition to avoid any accident.
• Take off the door of the cooler, to avoid any accident of children when they are playing
inside it.
• Leave the shelves in place so that children may not easily climb inside.
Only the technical service personnel can carry out the maintenance of the wine
cooler and non-professional participation can be dangerous for users. The
replacement of the soft power cables must also comply with this regulation.
This appliance is intended to be used exclusively for the storage of wine or
beverage.
• This refrigerating appliance is not suitable for freezing foodstuffs.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance.
When the appliance is discarded, it should only be disposed of at an authorized waste
disposal center. Do not expose to flame.
To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the temperature in

- 8 -
the compartments of the appliance.
• Clean surfaces that may come in contact with food and accessible drainage systems
regularly.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry,
and leave the door open to prevent mould developing within the appliance.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level of environmental compatibility, which is
nevertheless flammable. During transportation and installation of the appliance, ensure that
none of the components of the refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
If the refrigerant circuit should be damaged:
Avoid opening flames and sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.
Packing list
NO.
Contents
SC-90W(E)
SC-146W(E)
1
Main device
1 unit
1 unit
2
Plastic packaging bag of the main device
1 piece
1 piece
3
Operation manual
1 copy
1 copy
4
Warranty card
1 copy
1 copy
5
Quality certificate
1 copy
1 copy
6
Packaging box
1 piece
1 piece
7
Packaging foam
1 set
1 set

- 9 -

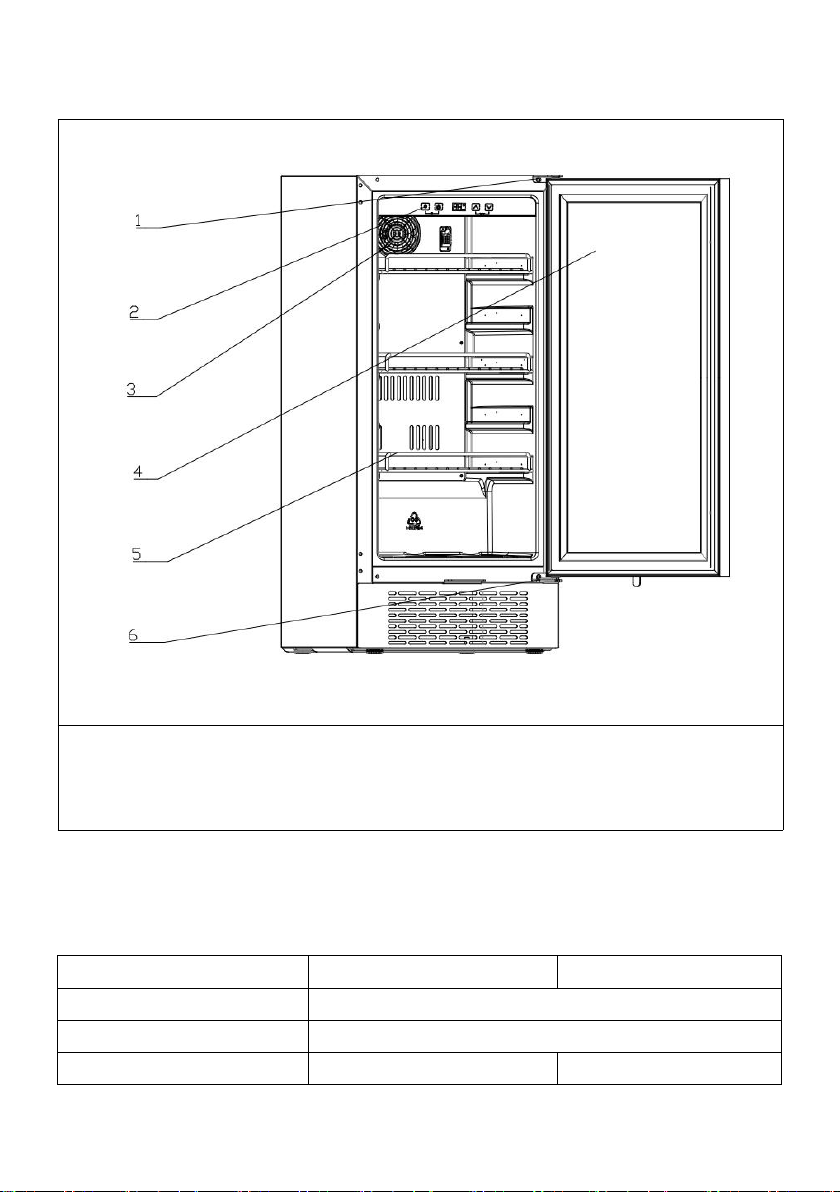

Name Of Component
Model Number：SC-90W(E)\ SC-146W(E)
①DOOR HINGE ②DISPLAY PANEL ③FAN ④DOOR BODY
⑤SHELF ⑥LOWER DOOR HINGE
Technical Parameters
Model
SC-90W(E)
SC-146W(E)
Rated voltage
110-120V ~ 60Hz
Climate type
N/ST
Rated current
1.2A
1.2A

- 10 -
Volume
2.8cu.ft
4.9cu.ft
Refrigerant
R600a/0.92oz
R600a/0.92oz
Insulation blowing gas
Cyclopentane
Cyclopentane
HIGH SIDE
362Psig
362Psig
LOW SIDE
128Psig
128Psig
Temperature range
37~50°F(3-10℃)
37~50°F(3-10℃)
Dimensions
(width* height *depth)
380*870*575
595*870*575
Packaging dimensions
(width* height *depth)
465*965*690
695*965*690
Note:
●The information about the climate type is provided on the nameplate of the cooler. “N/ST”
indicates this appliance is intended to be used at ambient temperatures ranging from 16 °C
to 38 °C’(60.8-100.4°F);
Electric Principle Drawing
SC-90W(E) / SC-146W(E)

- 11 -
Precautions For Installation
The cooler shall not be tilted over 45° when being handled, and it can be electrified
only 10 minutes after handling operation.
The cooler must be placed on a flat and solid ground surface. If it needs to be elevated,
a stable, solid and inflammable pad shall be used. Never use the packaging foam as the
pad to elevate the cooler.
Do not place the cooler in the area exposed to moisture or water splash. The water
splash or dirt on the cooler shall be timely removed using the soft cloth to prevent rusting
and impairment of electrical insulation.
Do not place the cooler in an environment lower than 40 ℉, nor use it in the rain. The
cooler shall be kept far away from the heat source and protected against sunshine, to avoid
influencing the normal operation of the cooler.
The appliance is only applied with power supply of single phase alternating current of
110-120V ~ /60Hz. The device uses a wall socket earthed according to current
recommendations.
If the power cable is damaged, do not proceed with his replacement but contact your
after-sales service.
The socket must be readily accessible but out of reach of children. If unsure, contact
your installer.
The cooler shall be well ventilated; otherwise the normal operation of the cooler may
be adversely influenced. The ventilated space must be at least 20cm from the both sides of
the cooler. The ventilated space must be at least 10cm from the top and back sides of the
cooler.

- 12 -
Precautions For Operation
1. Clean the cooler.
2. Keep the cooler level. After the cooler is leveled and cleaned, do not electrify it
immediately. Keep the cooler stationary for more than 2 hours, and then electrify it to ensure
the normal operation of the cooler.
3. Close the cooler door, and insert the power line.
After the power supply is switched on, the cooler will start to work. If the cooler fails to work
in a long period of time, check whether the power socket and the electric circuit work
normally. If, half an hour later, an abrupt reduction of temperature is detected after the
cooler door is opened, the cooler works normally. After 2~3 hours, adjust the temperature
and then fill wines according the instruction. It is normal the compressor will work for a
longer time for the initial plugging, and then works intermittently.
4. Generally, do not stop the cooler, to avoid influencing its normal service life. After the
power line plug is removed, wait for at least 5 minutes before inserting it again, to ensure
the normal operation of the cooler.
5. Do not switch off the power supply of the cooler when unnecessary, because the power
interruption may cause temperature rise inside the cooler, thus to shorten the storage term
of wines and degrade their drinking quality.
6. A certain space shall be maintained between wine bottles, which will facilitate the
circulation of cool air. The figure illustrates the layout of drawers, baskets and shelves that
result in the most efficient use of energy for the refrigerating appliance.
7. It is not allowed to flush the cooler body using water, nor to wipe the body using the
gasoline or other organic solvents.
8. If the power cord is damaged, it must be replaced by the professional of the
manufacturer, its repair department or any similar department to avoid any danger.
9. All power sockets must be reliably earthed.
10. The system shall be set up during the initial operation of the product for better
protection of this product.
Method Of Operation

- 13 -

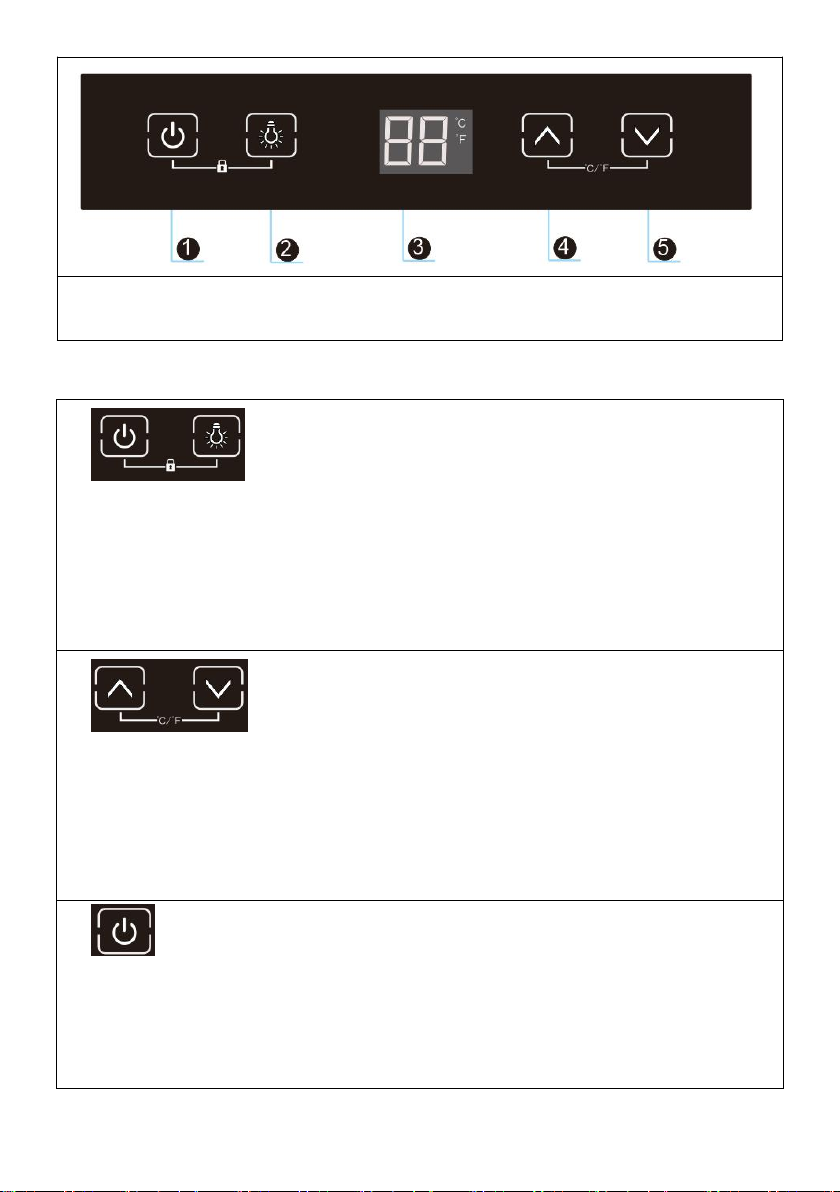

①power key ②illumination lamp key ③display screen ④temperature “+” key
⑤temperature“-” key
Quick start
1. Child lock key (combined key)
Lock: Press the two keys at the same time for 2S, all keys will be locked.
Unlock: To unlock the key, press the two keys at the same time again. Any operation
should be in unlock mode.
The cooler is in unlock mode for the first power-on. The mode will be kept if no any
operation.
2. Celsius degree/ Fahrenheit degree switchover key
(combined key)
Press both keys at the same time for 2S, and then you can switch over between the
Celsius degree and Fahrenheit degree for display. Each time the key is pressed, a
switchover will be made. When setting the system temperature, it is not allowed to
switch over between the Celsius degree and Fahrenheit degree.
3. Power on/off key:
1. Press this key for 3S, and then all external power sources will be disconnected and
all external equipment will be turned off.
2. Then press this power key for 3S again, the cooler will restore its normal operation
and work under real-time conditions.

- 14 -
4. Lamp control key
The lamp control key is a cycling key: Normally on → Normally off → Normally on.
5. Temperature “+” key
1.The digit display indicates the current temperature of the cooler. This key can be
operated to increase the set temperature by 1℃or 1℉each time the key is pressed. The
display will indicate the set temperature in a flashing way at a certain interval, and 5s
later, if no further action, the setting after adjustment will be memorized, and the display
will exit from the flashing mode and will recover the indication of the current temperature.
2. Rules of temperature adjustment: For example: 5℃(current set temperature)
→6℃→7℃→8℃→……→10℃.
6. Temperature“-” key:
1.This key can be operated to decrease the set temperature by 1℃or 1℉each time the
key is pressed. The display screen will indicate the set temperature in a flashing way and
at a certain interval, and 5s later, if no further action, the setting after adjustment will be
memorized, and the display will exit from the flashing mode and will recover the
indication of the current temperature.
2. Rules of temperature adjustment: For example: 10℃(current set temperature)
→9℃→8℃→……3℃.
7. Press the Lamp control key and the Temperature “+” key at the same time for 2S, you
can convert from the wine cooler temperature range 41-68℉to beverage temperature
range 37-50℉or vice versa.
Routine Maintenance And Care Instructions
1. To develop the best performance of this machine and prolong its service life, it shall be
serviced frequently. Before maintenance, the power line plug shall be removed and it shall
be confirmed that the power supply has been cut off.
2. t is not allowed to remove the power line plug from the socket by pulling the cable.
3. The cooler inside shall be thoroughly cleaned every year. To clean the cooler, the plug
shall be removed and the cooler shall be emptied. Then the cooler inside shall be cleaned

- 15 -
using the wet soft cloth or sponge dipped
with clean water or soap liquid (or any other
non-corrosive neutral cleanser). It is not
allowed to clean the cooler using the organic
solvent, alkaline detergent, boiled water,
washing powder or acid and the like.
4. In the humid environment or in the rainy
weather, the cooler surface may be dewed, especially on the external surface of the glass
door. This is caused due to the contact with the moisture in the air. In such a case, the
surface can be dried using the dry cloth.
5. To ensure the normal operation of the cooler in a long period of time, the user should
inspect the cooler on a regular basis; if any abnormality is found, the manufacturer shall be
notified of the same immediately.
6. During cleaning operation, it is not allowed to use the water to flush the compressor
compartment of the cooler. After cleaning operation, the cooler shall be wiped using the dry
cloth to prevent rusting.
Storage Of Red Wine
Red wine storage zone:
The storage zone is mainly intended to ensure the storage of your red wine under the best
conditions.
The temperature of the storage zone has been set at 54℉at the delivery, and this
temperature is suitable for the storage of most of wine products.
The red wine is provided with a complicated nature due to its length of treating process. To
express its best feature, a specific environment is needed. Although all of wine products are
manufactured at the same temperature, they need to be preserved and tasted under
different temperature conditions due to their special features.
Therefore, as for the coolers of the wine manufacturer, the absolute temperature is not
essential for the storage of wine. However, a steady temperature is very important within a
certain period of time. The wine can be properly preserved at any temperature as long as its
temperature is not changed.
Ideal Wine Temperature
Below we will tell you the storage temperature for different types of wine. If you desire a

- 16 -
more appropriate storage temperature than the inside temperature of the cooler (5 - 2 0℃
or 41-68°F), we recommend you to place the wine outside, and then store it into the cooler
when the cooler inside temperature is more appropriate.
Amarone Classic Dry Red Wine 17℃(62.6°F)
Amarone Classic Dry Red Wine 17℃(62.6°F)
Barbaresco Wine 17℃(62.6°F)
Barolo Wine 17℃(62.6°F)
Beaujolais Wine 13℃(55.4°F)
Bordeaux Blanc 6℃(42.8°F)
Dry white wine 8℃(46.4°F)
Bordeaux Red Wine 17℃(62.6°F)
White Burgundy 11℃(51.8°F)
Red Burgundy 18℃(64.4°F)
Brunello Wine 17℃(62.6°F)
Champagne 6℃(42.8°F)
Chianti Classico 16℃(60.8°F)
Languedoc-Roussillon 13℃(55.4°F)
Passito di Pantelleria 6℃(42.8°F)
Provence Rose 12℃(53.6°F)
Sweet Sparkling Wine 6℃(42.8°F)
Verdicchio di Matelica & Verdicchio dei Castelli di Jesi 8℃(46.4°F)
Trentino White Wine 11℃(51.8°F)
Franciacorta White Wine 11℃(51.8°F)
Aromatic White 10℃(50°F)
Fruity Dry White 8℃(46.4°F)
Friulano Venetian Julia White Wine 11℃(51.8°F)
Rodano White Wine 15℃(59°F)
Loire Dry White Wine 10℃(50°F)
Loire Liqueur Wine 10℃(50°F)
Loire Red Wine 14℃(57.2°F)
Passito Liqueur Wine 8 - 18℃(46.4-64.4°F)
Rose Wine, New Wine 12℃(53.6°F)
Light Red Wine with Malt Tannins 14℃(57.2°F)

- 17 -
Red Wine with a Little of Tannins 16℃(60.8°F)
Troubleshooting
If you find any abnormality during operation, immediately stop the operation, remove the
power line plug, and check the machine according to the following instructions. If necessary,
contact the after-sales service center of this company.
Status
Reason and solution
Too high noise
The cooler is not level
Level the cooler, for the
unleveled cooler may produce
noise during operation
The cooler
doesn't work
The power supply is not
switched on
Switch on the power supply
The computer board is
damaged
Notify the manufacturer for
repair
The compressor is provided
with a protection mode
The operation interval of the
compressor is 5 minutes.
The cooler
door surface
is dewed
The door is opened too
frequently or the door is
opened for too long time
Do not open the door for too
long time, nor open or close
the door too frequently
The external environment is
highly humid
Dry using a piece of dry cloth
The cooler temperature is set
too low
Set a proper temperature
The
illumination
lamp is not lit
The illumination lamp is
damaged
Notify the manufacturer for
replacement of the lamp
Check whether the power
supply is switched on
Check the power supply
The door is
not improperly
sealed and
there is a
leakage of
cool air
The door seal may be
hardened or deformed due to
the low temperature inside the
cooler after operation for a
period of time.
Use the hot air of the hair
dryer to bake the deformed
surface or use the hot towel to
cover the deformed surface,
and close door and press it
tightly after the door seal is
softened.

- 18 -
The
compressor
keeps
operating for
long time
If the temperature in the summer is too high, the compressor will
work for long time. This is normal.
If the cooler is not cool enough, please check against the following
items:
If the cooler door is not properly sealed or the door is opened too
frequently, close the door tightly, and open the door at a lower
frequency. Do not place too many drinks in the cooler, and
maintain a certain space between foods.
If the temperature inside the cooler reaches too low required
temperature, check the temperature setup, and set the
temperature at a higher level.
The
refrigerating
effect of the
cooler is poor
Adjust the refrigerating level.
The cooler is exposed to sunshine or any heat source is located in
its immediate area.
Any hot drink is placed into the cooler.
The drinks in the cooler are crowded to impair the cool air
circulation.
The cooler door is frequently opened or is not properly closed.
There is any
odor in the
cooler
The new cooler may give off the smell of the foaming agent or
plastic. That’s normal, and such smell will disappear slowly in
future. Check whether there is any spoiled drink inside the
cooler.
Any odorous drink shall be tightly sealed using the plastic bag.
The cooler shall be cleaned on a regular basis.
The cooler
produces the
liquid flowing
sound
The sound is generated from the flowing of the refrigerant inside
the circulating pipeline of the refrigerating system. That’s normal.
No further treatment is required.
The cooler
produces
snapping
sound in
operation
This is the sound generated in the startup of electric components,
such as the relay and thermal protector, during start or stop of the
cooler.
This is due to the inconsistent thermal expansion and contraction
caused by the sudden change in temperature inside the cooler
when starting or stopping the cooler, resulting in the mutual fine
movement of various materials.
Disusing
If it is not used for a long time, turn off the wine cooler, pull out the plug and take off the
safety device or break the fuse.
Do a good job in cleaning and open the cabinet door so that no smell will be produced.

- 19 -
Waste Disposal Warning
Packing materials are used to protect the electric appliance during transportation, and every
part of the material is recycled material.
●Paper board/cardboard (made of waste paper)
●Polystyrene blocks (foam, non-fluorinated polystyrene)
●Plastic film, bag (polystyrene)
●Packing tape (polystyrene)
●Do not let children play with packaging material, because the plastic film may cause
suffocation!
●Send the packing materials to the public environmental recycling station.
The outdated wine cooler in residential areas where garbage is not classified still has many
valuable raw materials which shall be dealt with.
The outdated wine cooler shall be discarded immediately; the plug shall be pulled out, and
the soft power cable shall be removed. Destroy the lock to prevent children from locking
themselves when they play.
●Before sending the outdated wine cooler to the public recycling station, the cold circulation
system shall not be damaged to ensure the refrigerant and oil of the wine cooler will
not leak.
●Information about recycling dates and recycling stations can be consulted with local
sanitation departments or government agencies.
Correct disposal of this product
This symbol on the product, or in its packaging, indicates that this product
may not be treated as household waste. Instead, it should be taken to the
appropriate waste collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by the inappropriate
waste handling of this product. For more detailed information about the
recycling of this product, please contact your local council, your household
waste disposal service, or the shop where you purchased the product.
