VIA Technologies Mobile360 D700 User manual

USER MANUAL
VIA Mobile360 D700
Powerful and feature-rich
AI dash cam for commercial-grade
eet management applicaons
1.07-11072021

Copyright
Copyright © 2020 VIA Technologies Incorporated. All rights reserved.
No part of this document may be reproduced, transmied, transcribed, stored in a retrieval system, or translated into any language, in any
form or by any means, electronic, mechanical, magnec, opcal, chemical, manual or otherwise without the prior wrien permission of
VIA Technologies, Incorporated.
Trademarks
All trademarks are the property of their respecve holders.
Disclaimer
No license is granted, implied or otherwise, under any patent or patent rights of VIA Technologies. VIA Technologies makes no warranes,
implied or otherwise, in regard to this document and to the products described in this document. The informaon provided in this
document is believed to be accurate and reliable as of the publicaon date of this document. However, VIA Technologies assumes no
responsibility for the use or misuse of the informaon (including use or connecon of extra device/equipment/add-on card) in this
document and for any patent infringements that may arise from the use of this document. The informaon and product specicaons
within this document are subject to change at any me, without noce and without obligaon to nofy any person of such change.
VIA Technologies, Inc. reserves the right the make changes to the products described in this manual at any me without prior noce.
Regulatory Compliance
FCC-A Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residenal area is likely to
cause harmful interference, in which case the user will be required to correct the interference at his personal expense.
Noce 1
The changes or modicaons not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment.
Noce 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.
Noce 3
The product described in this document is designed for general use, VIA Technologies assumes no responsibility for the conicts or
damages arising from incompability of the product. Check compability issue with your local sales representaves before placing an
order.
ii

Safety Precauons
• Always read the safety instrucons carefully.
• Keep this User’s Manual for future reference.
• All cauons and warnings on the equipment should be noted.
• Keep this equipment away from humidity.
• Put this equipment on a reliable at surface before seng it up.
• Do not place the power cord where people will step on it.
• Always unplug the power cord before inserng any add-on card or module.
• If any of the following situaons arise, get the equipment checked by authorized service personnel:
−The power cord or plug is damaged.
−Liquid has entered into the equipment.
−The equipment has been exposed to moisture.
−The equipment is faulty or you cannot get it work according to User’s Manual.
−The equipment has been dropped and damaged.
−The equipment has an obvious sign of breakage.
• Do not leave this equipment in extreme temperatures or in a storage temperature above 70°C (158°F).
The equipment may be damaged.
• Do not leave this equipment in direct sunlight.
• Never pour any liquid into the opening. Liquid can cause damage or electrical shock.
• Do not place anything over the power cord.
• Do not cover the venlaon holes. The openings on the enclosure protect the equipment from
overheang.
iii

VIA Mobile360 D700 User Manual
iv
Box Contents
• 1 x Mobile360 D700 AI Dash Cam
• 1 x 32GB MicroSD card
• 1 x 12V DC power adaptor
• 1 x 12-pin power connector to DC jack combo cable
• 1 x OBD II power cable
• 4 x Blade fuse holder cables and fuses
(Standard, Micro, Low-Prole and Mini)
• 1 x Sucon cup mounng bracket
• 1 x Adhesive tape mounng bracket
• 1 x Allen wrench L-type
Ordering Informaon
Part Number Descripon
M360-D700-5D08A0
(For APAC region only)
Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,
512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras,
4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS,
Micro SIM card slot, MicroSD card slot, 12-pin power connector for 6 GPIO,
CAN bus & power
M360-D700-7D08A0
(For CN region only)
Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,
512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras,
4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS,
Micro SIM card slot, MicroSD card slot, 12-pin power connector for 6 GPIO,
CAN bus & power
M360-D700-6D08A0
(For EU region only)
Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,
512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras,
4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS,
Micro SIM card slot, MicroSD card slot, 12-pin power connector for 6 GPIO,
CAN bus & power
M360-D700-3D08A0
(For JP region only)
Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,
512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras,
4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS,
Micro SIM card slot, MicroSD card slot, 12-pin power connector for 6 GPIO,
CAN bus & power
M360-D700-4D08B1
(For US AT&T / UScellular /
Verizon)
Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,
512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras,
4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS,
Micro SIM card slot, MicroSD card slot, 12-pin power connector for 6 GPIO,
CAN bus & power
M360-D700-DD08A1
(For US T-Mobile)
Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,
512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras,
4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS,
Micro SIM card slot, MicroSD card slot, 12-pin power connector for 6 GPIO,
CAN bus & power

VIA Mobile360 D700 User Manual
v
Table of Contents
1. Product Overview........................................................................................................................................... 1
1.1 Key Features.......................................................................................................................................... 1
1.1.1 Dual 1080p Front Dash and Interior Cameras ............................................................................... 1
1.1.2 Networking Support ...................................................................................................................... 1
1.1.3 Cloud Integraon ........................................................................................................................... 1
1.1.4 Storage Expansion ......................................................................................................................... 1
1.1.5 Reference App................................................................................................................................ 1
1.2 Product Specicaons .......................................................................................................................... 2
1.3 Layout Diagram ..................................................................................................................................... 3
1.4 Product Dimensions ............................................................................................................................. 5
2. External I/O Pin Descripons and Funconality............................................................................................. 6
2.1 Micro USB 2.0 Port................................................................................................................................ 6
2.2 MicroSD Card Slot ................................................................................................................................. 6
2.3 Micro SIM Card Slot .............................................................................................................................. 7
2.4 12-Pin Power Connector ....................................................................................................................... 7
2.5 LED Status ............................................................................................................................................. 8
2.6 Short Record / Two-way Call Buon ..................................................................................................... 8
2.7 Speaker ................................................................................................................................................. 9
2.8 Microphone .......................................................................................................................................... 9
3. Accessories ................................................................................................................................................... 10
3.1 OBD II Power Cable ............................................................................................................................. 10
3.2 Blade Fuse Holder Cables and Fuses................................................................................................... 10
3.3 12V DC Power Adaptor and Power Cord............................................................................................. 11
3.4 Sucon Cup and Adhesive Tape Mounng Brackets........................................................................... 11
4. VIA Mobile360 D700 Installaon.................................................................................................................. 12
4.1 Removing the Right Panel I/O Cover................................................................................................... 12
4.2 Installing the MicroSD Card................................................................................................................. 12
4.3 Installing the 4G Micro SIM Card ........................................................................................................ 13
4.4 Installing the Power/ACC Cable........................................................................................................... 14
4.4.1 Installing the OBD II Power Cable ................................................................................................ 14
4.4.2 Installing the 12-Pin Power Connector to DC Jack Combo Cable................................................. 20
4.5 Mounng the VIA Mobile360 D700 .................................................................................................... 23
4.5.1 Adhesive Tape Mounng Bracket Installaon.............................................................................. 23
4.5.2 Sucon Cup Mounng Bracket Installaon.................................................................................. 25
5. Technical Support ......................................................................................................................................... 27
5.1 Technical Support and Assistance ....................................................................................................... 27

VIA Mobile360 D700 User Manual
vi
List of Figures

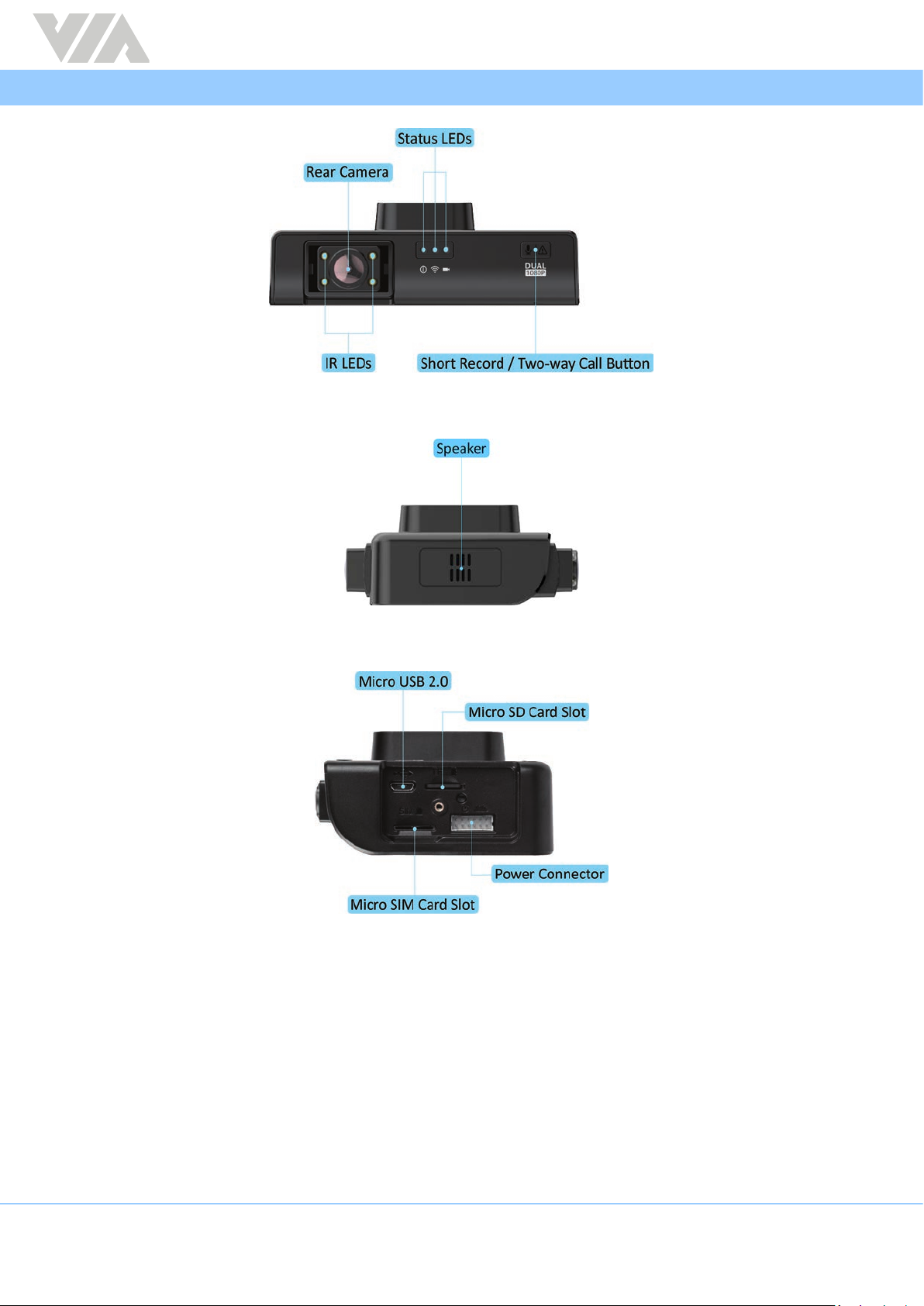

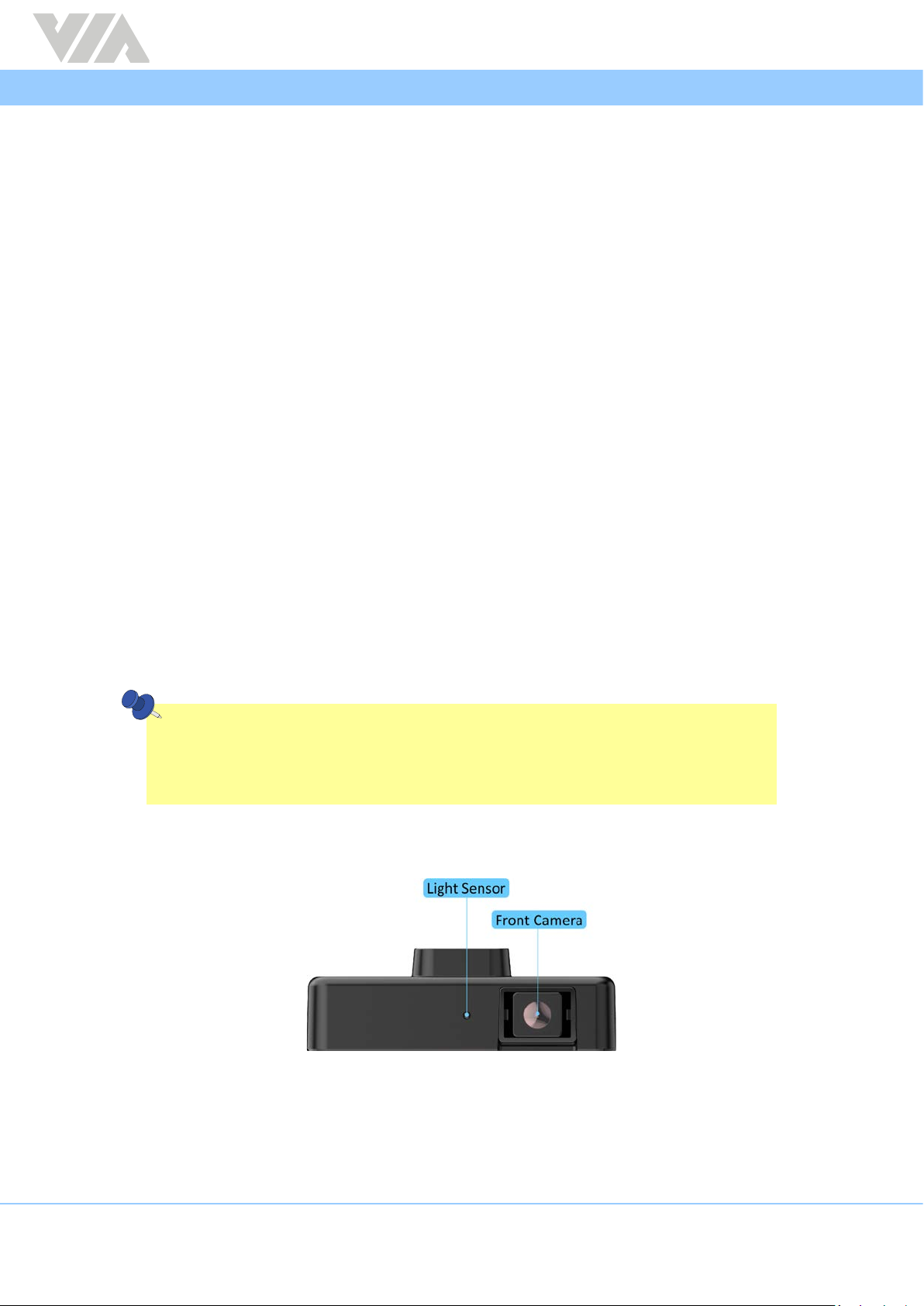

Figure 01: Front panel I/O layout ......................................................................................................................... 3
Figure 02: Rear panel I/O layout .......................................................................................................................... 4
Figure 03: Le panel I/O layout............................................................................................................................ 4
Figure 04: Right panel I/O layout ......................................................................................................................... 4
Figure 05: Boom panel I/O layout...................................................................................................................... 5
Figure 06: Dimensions of the VIA Mobile360 D700 (front view).......................................................................... 5
Figure 07: Dimensions of the VIA Mobile360 D700 (top view) ............................................................................ 5

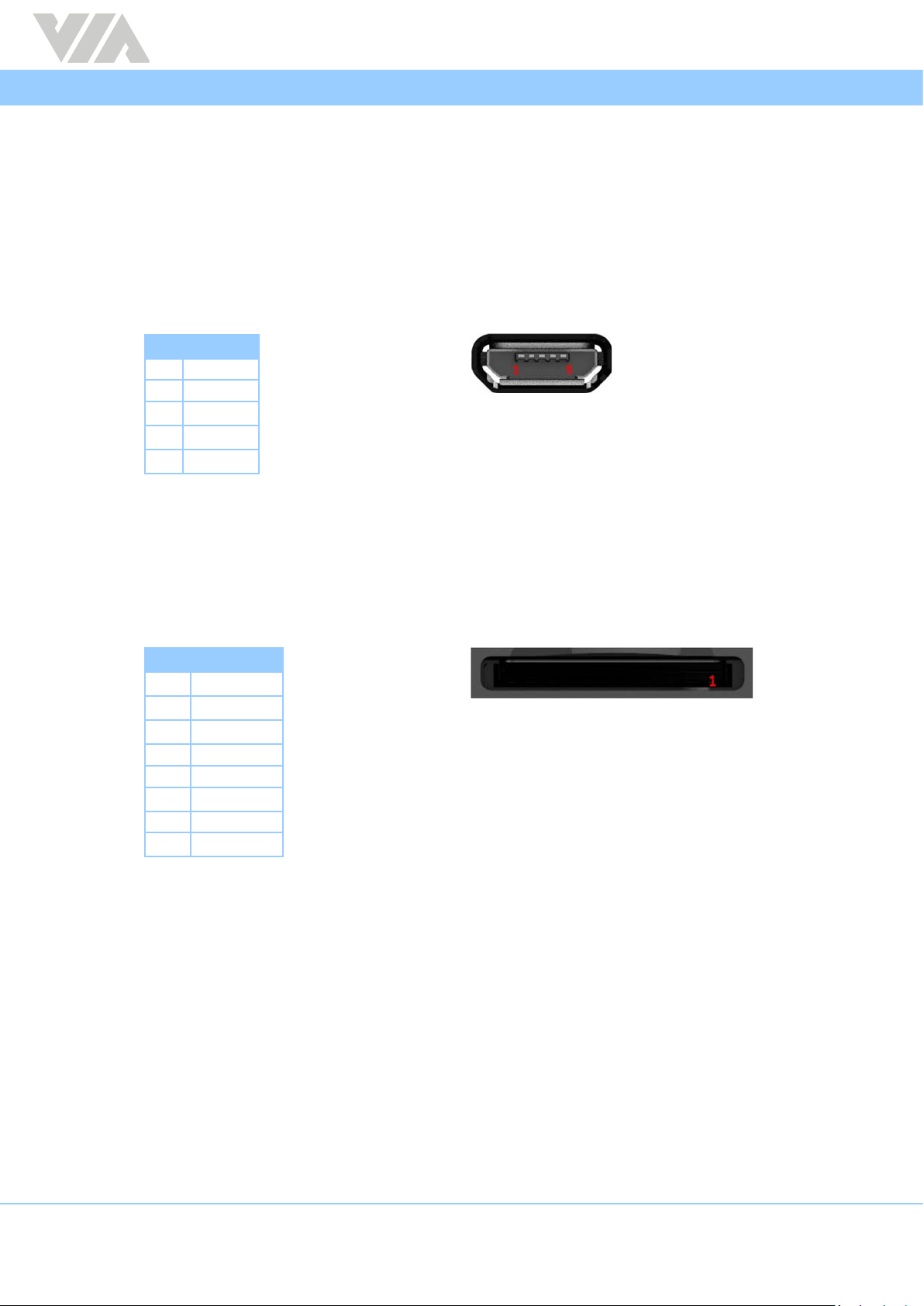

Figure 08: Micro USB 2.0 port diagram ................................................................................................................ 6
Figure 09: MicroSD card slot diagram .................................................................................................................. 6

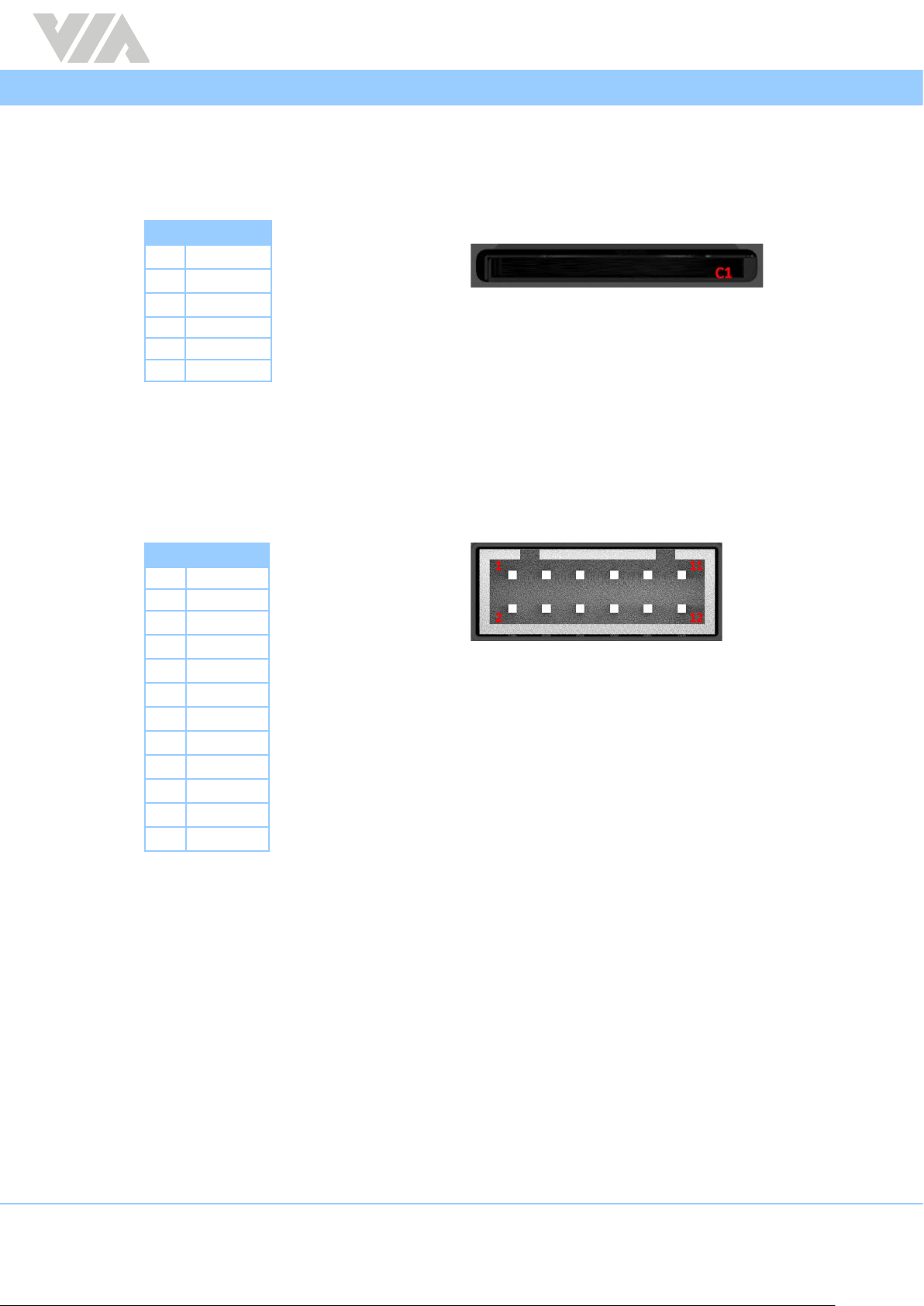

Figure 10: Micro SIM card slot diagram ............................................................................................................... 7
Figure 11: 12-pin power connector diagram........................................................................................................ 7

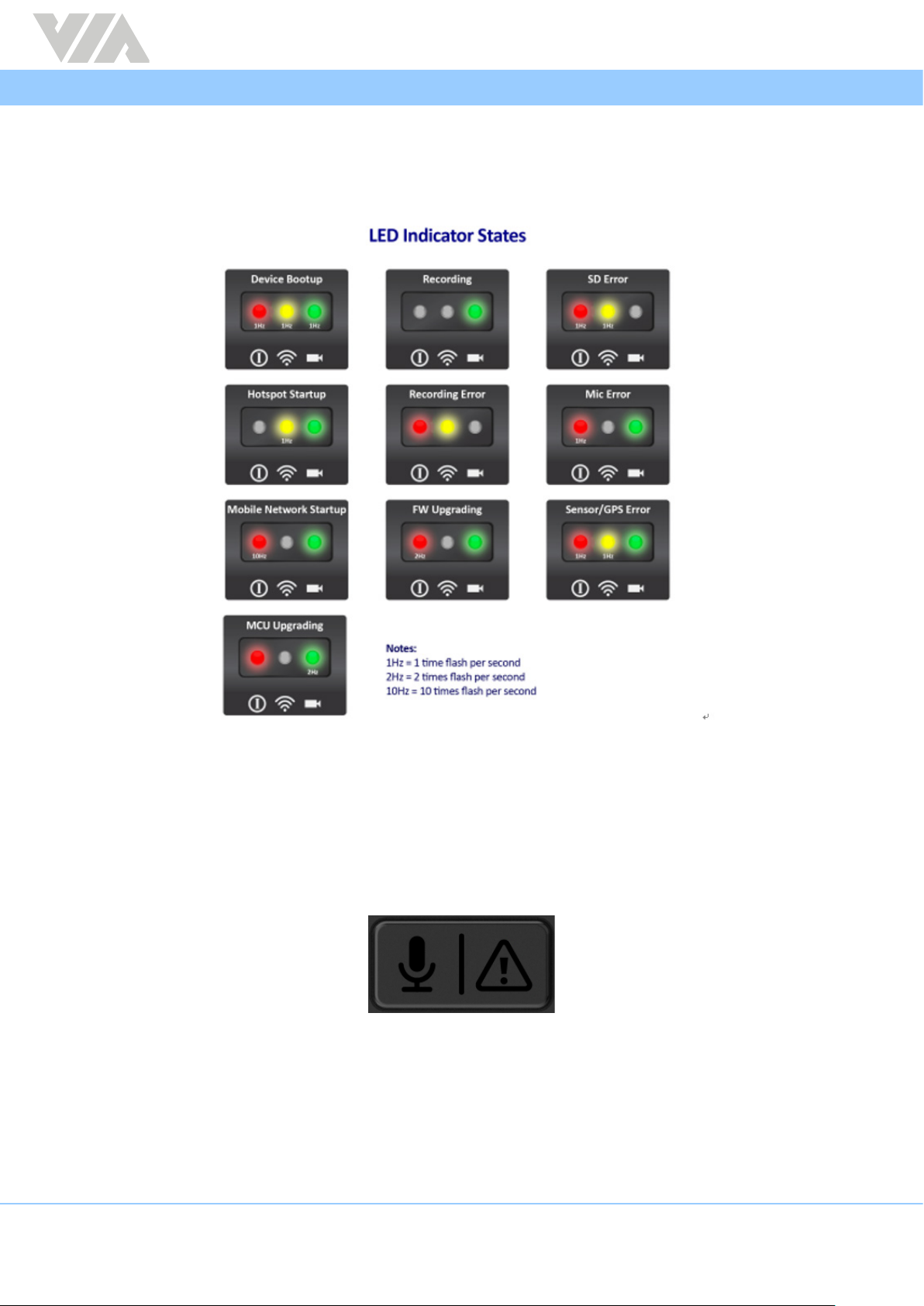

Figure 12: LED indicators states diagram.............................................................................................................. 8
Figure 13: Short record / two-way call buon diagram ....................................................................................... 8
Figure 14: Speaker diagram.................................................................................................................................. 9
Figure 15: Microphone diagram........................................................................................................................... 9
Figure 16: OBD II power cable diagram.............................................................................................................. 10
Figure 17: Blade fuse holder cables and fuses diagram12-Pin Power Connector to DC Jack Combo Cable....... 10
Figure 18: 12-pin power cable connector to DC jack combo cable diagram ...................................................... 10
Figure 19: 12V DC power adaptor ...................................................................................................................... 11
Figure 20: Sucon cup and adhesive tape mounng brackets diagram............................................................. 11
Figure 21: Loosen the screw of the right panel I/O cover .................................................................................. 12
Figure 22: Removing the right panel I/O cover .................................................................................................. 12
Figure 23: Locang the MicroSD card slot.......................................................................................................... 13
Figure 24: Locang the Micro SIM card slot....................................................................................................... 13
Figure 25: OBD II power cable connecons ....................................................................................................... 14
Figure 26: Vehicle's fuse box ......................................................................................................... 14
Figure 27: Extracng the ACC fuse from the fuse box........................................................................................ 15
Figure 28: Installing the ACC fuses on the blade fuse holder cable ................................................................... 15
Figure 29: Connecng the Blade Fuse Holder cable to the fuse box.................................................................. 16
Figure 30: Feeding the 12-pin connector cable through the hole in the I/O cover............................................ 16
Figure 31: Plugging in the 12-pin connector of the OBD II Power Cable............................................................ 17
Figure 32: Reinstalling the right panel I/O cover................................................................................................ 17
Figure 33: Connecng the OBD II power cable to the blade fuse holder cable.................................................. 18
Figure 34: Inserng the OBD II Power cable to the OBD II connector................................................................ 18
Figure 35: OBD II power cable connector pinouts.............................................................................................. 19
Figure 36: 12-pin power connector to DC jack combo cable connecons ......................................................... 20
Figure 37: Feeding the 12-pin connector through the hole on the I/O cover .................................................... 20
Figure 38: Plugging in the 12-pin connector of the 12-pin power connector to DC jack combo cable.............. 21
Figure 39: Reinstalling the right panel I/O cover................................................................................................ 21
Figure 40: Plugging in the 12V DC power adaptor to the 12-pin power connector to DC jack combo cable..... 22
Figure 41: ACC simulator switch......................................................................................................................... 22
Figure 42: 12-pin power connector to DC jack combo cable's connectors ........................................................ 22
Figure 43: Mobile360 mounng brackets .......................................................................................................... 23
Figure 44: Install the adhesive tape mounng bracket ...................................................................................... 24
Figure 45: Installing the adhesive tape mounng bracket on the VIA Mobile360 D700.................................... 24

VIA Mobile360 D700 User Manual
vii
Figure 46: Assembly the sucon cup bracket..................................................................................................... 25
Figure 47: Mounng the sucon cup bracket on the windshield....................................................................... 25
Figure 48: Sucon cup mounng bracket lever.................................................................................................. 26
Figure 49: Installing the mounng bracket on the VIA Mobile360 D700 ........................................................... 26

VIA Mobile360 D700 User Manual
viii
List of Tables
Table 01: Micro USB 2.0 port pinouts ................................................................................................................. 6
Table 02: MicroSD card slot pinouts ................................................................................................................... 6
Table 03: Micro SIM card slot pinouts ................................................................................................................ 7
Table 04: 12-pin power connector pinouts......................................................................................................... 7
Table 05: OBD II power cable connector pinouts.............................................................................................. 19
Table 06: 12-pin power connector to DC jack combo cable's connectors pinouts ........................................... 23

VIA Mobile360 D700 User Manual
1
1. Product Overview
Boost eet management eciency and enhance driver safety with the VIA Mobile360 D700 commercial-
grade AI Dash Cam. Combining dual 1080p front dash and interior cameras with integrated 4G LTE wireless
connecvity and CAN bus support, this robust and stylish device provides a exible and high-performance
soluon that can be customized to meet your specic deployment requirements.
With its CAN bus support, the device enables the collecon of rich vehicle usage data such as speed, distance,
idle me, and fuel consumpon that can be analyzed to idenfy opportunies for opmizing eet eciency
and safety. Its 9~36V DC-in power supply allows in-vehicle power delivery through the provided OBD II cable
and ACC signal with a hard-wire installaon via the vehicle’s fuse box.
Other features included in this lightweight small footprint device include Cortex-A53 dual-core SoC, 512MB
DDR3L DRAM, 256MB SPI Flash Memory, a 3-Axis G-sensor, one Micro SIM card slot, one MicroSD card slot,
and one Micro USB 2.0 port.
1.1 Key Features
1.1.1 Dual 1080p Front Dash and Interior Cameras
The VIA Mobile360 D700 comes with dual 1080p front dash and interior (rear) cameras that capture and
process vibrant HD video footage of the driver and the prevailing road condions.
1.1.2 Networking Support
The VIA Mobile360 D700 is equipped with 4G, Wi-Fi and GPS to enable real-me route tracking and monitoring
via a cloud portal. Customizable event triggers can be set to inform your eet management control center of
crical incidents so that you can rapidly respond when one occurs.
1.1.3 Cloud Integraon
The VIA Mobile360 D700 comes with a feature-rich SDK that supports Amazon AWS IoT and KVS as well as
Microso Azure cloud integraon to facilitate the development of eet management applicaons and services.
1.1.4 Storage Expansion
The VIA Mobile360 D700 comes with a removable MicroSD card storage of up to 512GB.
1.1.5 Reference App
The VIA Mobile360 D700 comes with a complete Smartphone Reference App for both Android and iOS
operang systems.

VIA Mobile360 D700 User Manual
2
1.2 Product Specicaons
Processor
• 800MHz ARM Cortex-A53 dual-core SoC
System Memory
• 512MB DDR3L DRAM
Storage
• 256MB SPI Flash Memory
• MicroSD Card slot
Wireless Connecvity
• 4G LTE module with antenna
• Wi-Fi 802.11b/g/n/ac + BT 4.2
• GPS receiver
Camera and Video
• Sony iMX307 CMOS Sensor: 1080p, supports HDR
• 2 x 1920x1080p @ 29fps
• FOV: D=116°, H=100°, V=56°
• Adjust max angle: horizontal le=10°, right =10°, vercal down=30°
• H.264 encode and decode
Sensors
• 4 x IR LEDs controlled by Light sensor
• 3-Axis G-sensor
Front Panel I/O
• 1 x Front camera
• 1 x Light sensor
Rear Panel I/O
• 1 x Rear camera
• 4 x IR LED lights
• 3 x LEDs for power, Wi-Fi and recording status
• 1 x Short record / Two-way call buon
Le Panel I/O
• 1 x Speaker
Right Panel I/O
• 1 x Micro USB 2.0 port (for debugging)
• 1 x MicroSD Card slot (512GB max)
• 1 x Micro SIM Card slot
• 1 x 12-pin power connector for 6 GPIO (5 GPI, 1 GPO), CAN bus, ACC, power

VIA Mobile360 D700 User Manual
3
Boom Panel I/O
• 1 x MicPower Supply
• 9~36V DC-in
Soware
• Device SDK including Android/iOS smartphone reference apps
Cloud Cercaon
• AWS IoT Core Qualied and Kinesis Video Streams Qualied
• Microso IoT Plug and Play Cered
Operang System
• Linux Kernel 4.1.0
Operang Temperature
• -20°C~70°C
Mechanical Construcon
• PC chassis housing
Dimensions
• 124.52mm(W) x 41.25mm(H) x 95.60mm(D) (4.90" x 1.62" x 3.76")
Weight
• 0.322kg (0.71lbs)
Compliance
• CE, FCC, BSMI, TELEC, NCC, CTA
Note:
As the operang temperature provided in the specicaons is a result of tesng performed in a tesng chamber, a
number of variables can inuence this result. Please note that the working temperature may vary depending on the
actual situaon and environment. It is highly recommended to execute a solid tesng program and take all variables
into consideraon when building the system. Please ensure that the system is stable at the required operang
temperature in terms of applicaon.
1.3 Layout Diagram
Figure 01: Front panel I/O layout

VIA Mobile360 D700 User Manual
4
Figure 02: Rear panel I/O layout
Figure 03: Le panel I/O layout
Figure 04: Right panel I/O layout

VIA Mobile360 D700 User Manual
5
Figure 05: Boom panel I/O layout
1.4 Product Dimensions
Figure 06: Dimensions of the VIA Mobile360 D700 (front view)
Figure 07: Dimensions of the VIA Mobile360 D700 (top view)

VIA Mobile360 D700 User Manual
6
2. External I/O Pin Descripons and Funconality
The VIA Mobile360 D700 AI Dash Cam features several interfaces including a Micro USB 2.0 port (debugging),
MicroSD card slot, Micro SIM card slot and 12-pin power connector.
2.1 Micro USB 2.0 Port
The VIA Mobile360 D700 is equipped with one Micro USB 2.0 port located on the right panel for debugging.
The pinouts of the Micro USB 2.0 port are shown below.
Pin Signal
1 VBUS
2D-
3 D+
4ID
5 GND
Table 01: Micro USB 2.0 port pinouts
Figure 08: Micro USB 2.0 port diagram
2.2 MicroSD Card Slot
The VIA Mobile360 D700 comes with a MicroSD card slot located on the right panel with support for a
maximum storage capacity of 512GB. The pinouts of the MicroSD card slot are shown below.
Pin Signal
1DAT2
2CD/DAT3
3 CMD
4VDD
5 CLK
6VSS
7DAT0
8DAT1
Table 02: MicroSD card slot pinouts
Figure 09: MicroSD card slot diagram

VIA Mobile360 D700 User Manual
7
2.3 Micro SIM Card Slot
The VIA Mobile360 D700 comes with a Micro SIM card slot located on the right panel that can support a 4G
SIM card. The pinouts of the Micro SIM card slot are show below.
Pin Signal
C1 VDD
C2 RST
C3 CLK
C5 VSS
C6 NC
C7 DATA
Table 03: Micro SIM card slot pinouts
Figure 10: Micro SIM card slot diagram
2.4 12-Pin Power Connector
The VIA Mobile360 D700 comes with a 12-pin power connector. The 12-pin power connector is used for
supplying power to the VIA Mobile360 D700. The pinouts of the 12-pin power connector are shown below.
Pin Signal
1 GPI
2VCC
3 GPI
4VCC
5 GPI
6ACC
7 GPI
8 GND
9GPI
10 CAN_H
11 GPO
12 CAN_L
Table 04: 12-pin power connector pinouts
1
2
11
12
Figure 11: 12-pin power connector diagram

VIA Mobile360 D700 User Manual
8
2.5 LED Status
The VIA Mobile360 D700 comes with a three LED indicators located on the rear panel to show the status. The
three LED indicators states are shown in the diagram below.
Figure 12: LED indicators states diagram
2.6 Short Record / Two-way Call Buon
The VIA Mobile360 D700 comes with a short record / two-way call buon located on the rear panel which will
record a 20 second video from both cameras (10 seconds before and 20 seconds aer) as well as snapshots
from each camera at the me the buon is pushed with a short press. It will also create an alert message when
pressed for more than 3 seconds. The diagram of the short record / two-way call buon is shown below.
Figure 13: Short record / two-way call buon diagram

VIA Mobile360 D700 User Manual
9
2.7 Speaker
The VIA Mobile360 D700 comes with a speaker located on the le panel.
Figure 14: Speaker diagram
2.8 Microphone
The VIA Mobile360 D700 comes with a microphone located on the boom panel. The diagram of the
microphone is shown below.
Figure 15: Microphone diagram

VIA Mobile360 D700 User Manual
10
3. Accessories
The following cables and mounng brackets are included with your VIA Mobile360 D700 AI dash cam.
3.1 OBD II Power Cable
Figure 16: OBD II power cable diagram
3.2 Blade Fuse Holder Cables and Fuses
Figure 17: Blade fuse holder cables and fuses diagram12-Pin Power Connector to DC Jack Combo Cable
Figure 18: 12-pin power cable connector to DC jack combo cable diagram

VIA Mobile360 D700 User Manual
11
3.3 12V DC Power Adaptor and Power Cord
Figure 19: 12V DC power adaptor
3.4 Sucon Cup and Adhesive Tape Mounng
Brackets
Adhesive Tape
Moun�ng Bracket
Suc�on Cup
Moun�ng Bracket
Figure 20: Sucon cup and adhesive tape mounng brackets diagram

VIA Mobile360 D700 User Manual
12
4. VIA Mobile360 D700 Installaon
This chapter provides informaon about the VIA Mobile360 D700 installaon procedures.
4.1 Removing the Right Panel I/O Cover
Step 1
Loosen the screw of the right panel I/O cover with the included Allen wrench.
Figure 21: Loosen the screw of the right panel I/O cover
Step 2
Remove the right panel I/O cover.
Figure 22: Removing the right panel I/O cover
4.2 Installing the MicroSD Card
The VIA Mobile360 D700 AI dash cam supports automac video recording to a MicroSD card aer startup
which can be played back in the VIA Mobile360 App. To use this feature, you need to insert a MicroSD card into
the MicroSD card slot on the VIA Mobile360 D700.
