VIA Technologies PT-DVBX User manual

PT-DVBX/PT-DVAX
Pentium II/!!!
Celeron
Twin Processor
ATX MAINBOARD
( VER. 2.x )
USER’S MANUAL
DOC. NO. UM-DVBX-E2.................................................................PRINTED IN TAIWAN

VIA 693/693A Twin Processor Mainboard TABLE OF CONTENTS
i
TABLE OF CONTENTS
Chapter & Section Page
1. INTRODUCTION ...............................................................................1-1
1.1 OVERVIEW ............................................................................................. 1-1
1.2 MAINBOARD LAYOUT ....................................................................... 1-2
1.3 SPECIFICATIONS.................................................................................. 1-3
2. INSTALLATION ................................................................................2-1
2.1 UNPACKING ........................................................................................... 2-1
2.2 AMAZING WAYS TO POWER ON THE PC SYSTEM.................... 2-2
2.3 POWER OFF THE PC SYSTEM .......................................................... 2-4
3. HARDWARE SETUP........................................................................3-1

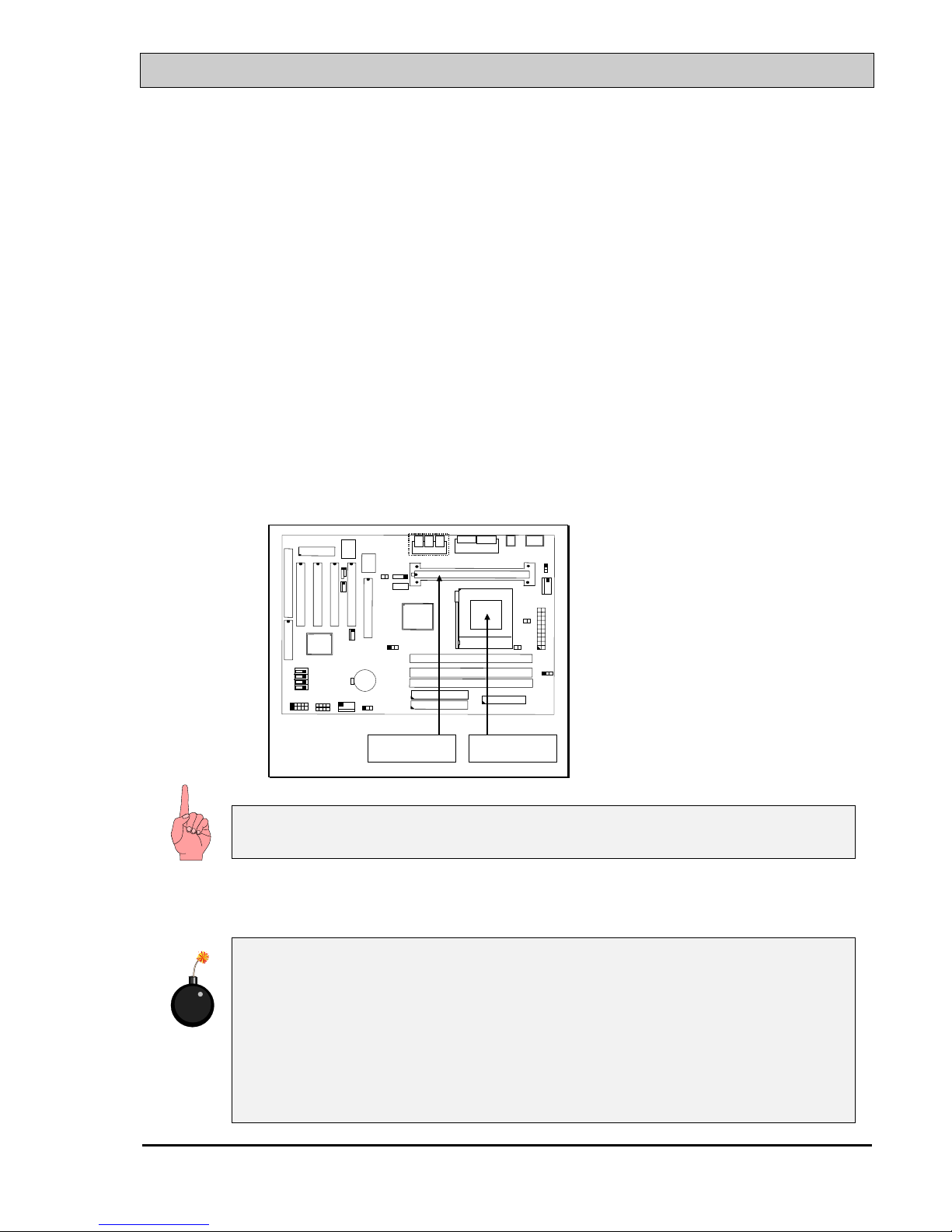

3.1 INSTALLATION OF CPU ..................................................................... 3-1
3.2 INSTALLING THE DRAM MODULES ........................................... 3-2
3.3 CONNECTORS........................................................................................ 3-3
3.4 JUMPERS................................................................................................. 3-13
3.5 INSTALLATION OF DEVICE DRIVERS........................................... 3-22
4. AWARD BIOS SETUP .....................................................................4-1
4.1 GETTING STARTED ............................................................................ 4-1
4.2 MAIN MENU .......................................................................................... 4-2
4.3 CONTROL KEYS................................................................................... 4-2
4.4 STANDARD CMOS SETUP................................................................. 4-3
4.5 BIOS FEATURES SETUP.................................................................... 4-4
4.6 CHIPSET FEATURES SETUP............................................................ 4-7
4.7 POWER MANAGEMENT SETUP ..................................................... 4-11
4.8 PNP/PCI CONFIGURATION............................................................... 4-15
4.9 INTEGRATED PERIPHERALS .......................................................... 4-19
4.10 LOAD SETUP DEFAULTS .............................................................. 4-22
4.11 SUPERVISOR PASSWORD.............................................................. 4-23
4.12 USER PASSWORD............................................................................. 4-24
4.13 IDE HDD AUTO DETECTION....................................................... 4-26
4.14 SAVE & EXIT SETUP...................................................................... 4-26
4.15 EXIT WITHOUT SAVING............................................................... 4-28

VIA 693/693A Twin Processor Mainboard
ii
SOMETHING IMPORTANT !
¶TRADEMARKS
All trademarks used in this manual are the property of their respective owners.
¶LOAD SETUP DEFAULTS
“LOAD SETUP DEFAULTS” is the function which will have the BIOS default
settings loaded into the CMOS memory. These default settings are the suggested
settings which will optimize system performance and increase system stability Load
the setup default is recommended when you receive this mainboard or when the
system CMOS data is corrupted. Please refer to the Section 4.8 for the procedures.
¶DISCHARAGE CMOS DATA
Whenever you want to discharge the CMOS data or open the system chassis, Make
sure to disconnect the AC power first because there is always the 5V standby voltage
connected to the ATX form-factor mainboard. Without disconnecting the AC power
connector from the PC system, the mainboard can be damaged by any improper
action .
¶WAKE ON LAN
In order to support the Wake On LAN feature, the system requires a special SPS
(Switching Power Supply), Such power supply must be able to provide at least 700
mA of driving capability on the “5V standby” voltage. Please refer to the Section 3.3
for pin assignment.
¶WARNING !
The "Static Electricity" may cause damage to the components on the mainboard, In
order to avoid the damage to the mainboard accidentally, please discharge all static
electricity from your body before touching this mainboard.
¶NOTICE
Information presented in this manual has been carefully checked for reliability;
however, no responsibility is assumed for inaccuracies. The information contained in
this manual is subject to change without notice.

VIA 693/693A Twin Processor Mainboard INTRODUCTION
1-1
1. INTRODUCTION
1.1 OVERVIEW
This Mainboard is a revolutionary high performance personal computer
mainboard. It is the ATX form-factor with both Slot 1 and Socket 370 on the
board for different package of processors. VIA693 or VIA693A chipset is chosen
as the system core logic of the mainboard to give the most outstanding
performance and reliability. It is designed for 233, 266, 300 , 333, 350, 366, 400,
433, 450, 466, 500, 550, 600MHz and higher speed Pentium™ II , Pentium™ !!!
and Celeron™ processors
This mainboard is designed by using either VIA693 or VIA693A system chipset.
The difference is shown as following:
Chipset FSB Clock
PC100 VIA 693 Chipset 66.6 / 100MHz
PC133 VIA 693A Chipset 66.6 / 100 / 133MHz
This mainboard two channel “PIO” and “Ultra DMA33/66 Bus Master” mode PCI
IDE ports are built on the mainboard to support the most updated Ultra DMA 66
HDD. One Floppy Disk controller, two high speed Serial ports (UARTs), one
multi-mode Parallel port, one PS/2™ mouse port, one IR interface and two USB
ports is designed on the board for wide variety of peripheral connection.
The ALS300 PCI sound chip is designed on board (sound interface is optional on
the board). The ALS300 has built-in 2D/3D Sound Effect Processor, Enhanced
normal & digital Game port, MPU-401 MIDI controller, ALSFM Synthesizer.
When you find the ALS300 sound interface (CN18) installed on the mainboard,
you don't have to purchase another sound card because there is the 3D audio
interface on this mainboard.
Pentium™ II, Pentium™ !!! and Celeron™ are the 64-bit processors with RISC
technology, which offers several key features such as built-in 512K/256/128K L2
cache, 12-stage super-pipeline architecture, out of order execution … etc. In order
to optimize of its capabilities and performances, the 32-bit Operating System
(such as Windows® and OS/2™) and 32-bit applications are recommended.

VIA 693/693A Twin Processor Mainboard INTRODUCTION
1-2

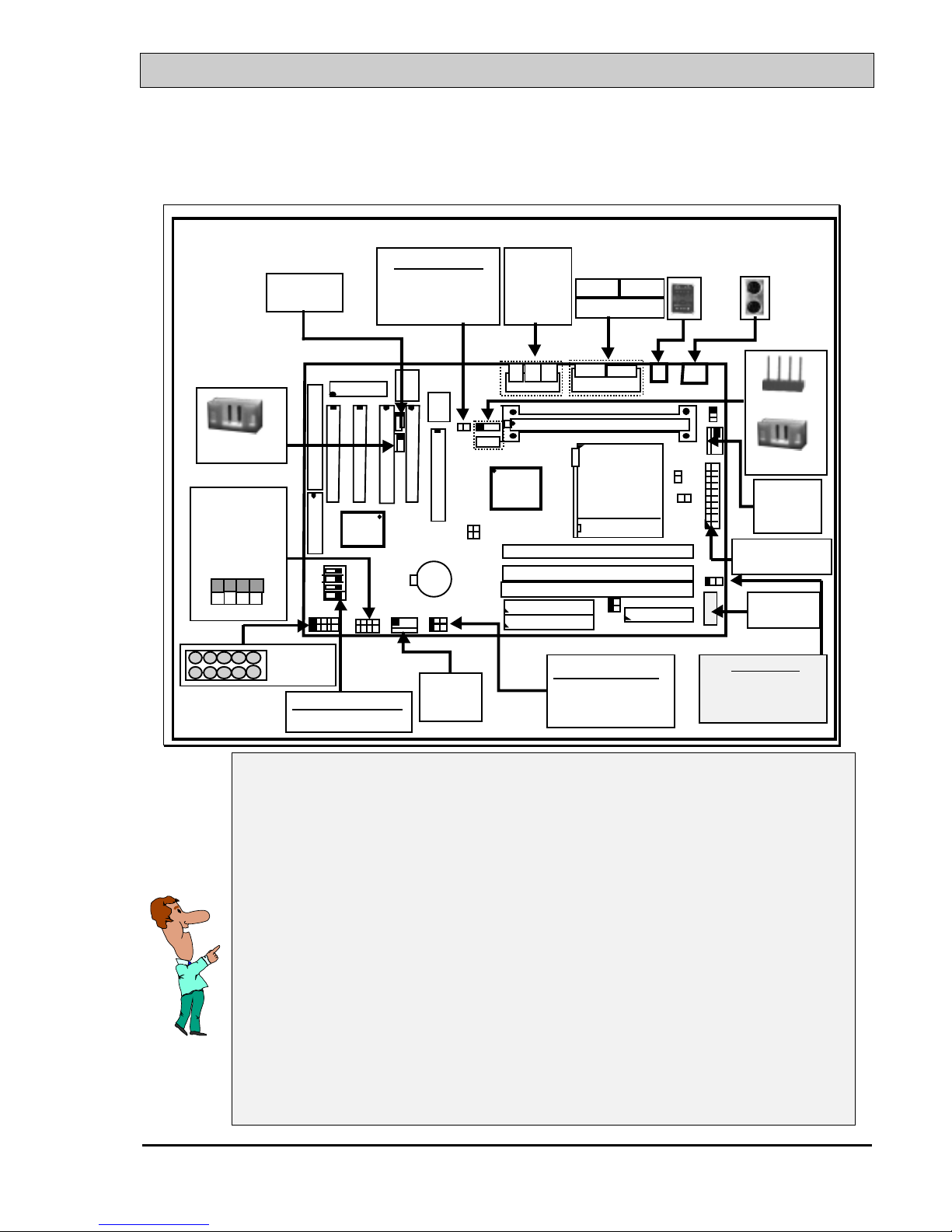

1.2 MAINBOARD LAYOUT
CN15
Power Connector
CN12
IR Port USB 1
USB 2
PS/2 Mouse
PS/2 K/B
1 2 3 4
1 2 3 4 PWR-LED
SPK
CN13
CPU Fan
JP8
Sound Enable/ Disable
Short = Sou nd Enabled
Open = Sou nd Disabl ed
“G” = Ground
1
G G G G
1 1 1
RS
(Reset Button)
HL (HDD LED)
SL(Sleep LED)
PW
(Power SW)
P
W
S
L
H
L
R
S
JP9 Clear CMOS
1. CMOS Data Clear
2. K/B Password Clear
SW ( optional)
Select CPU clock ratio.
CN17
C has sis Fan
CN16 WOL
1. SPK Out
2. Li ne In
3. M ic. In
4. Game
CN22 CD-IN
CN21 CD-IN
DIMM3
SLOT1CPU
AGPSLOT
BIOS
Socket 370
CPU
CN10IDE2
CN9IDE1
DIMM2
DIMM1
BAT1
+
123
CN8FDC
4
CN4 CN3
CN5
JP9
CN17
JP2
CN16 WOL
SW
JP11
JP100
5
5
Parallel Port
U1
W83783 S
JP2: (o ptio nal)
Se nse Temp From
Open = Socket 370
Sh ort = Slot 1
JP12
COM 2 COM 1
IMPORTANT NOTICE:
1. There are two CPU sockets on the mainboard - the Slot 1 for
Pentium II/!!! and slot type Celeron Processor. The Socket 370 is
designed for socket type Celeron Processor. However,You can
install only one CPU on this mainboard.
2. The standby voltage is always active even when system power is off.
Whenever you want to install or remove any component from the
mainboard, please make sure to remove the power cable from the PC
system. Otherwise, it may cause serious damage to the PC system.
3. If W83783S is installed on U1 as shown above, please make sure the
jumper setting on JP2 is correct so that the thermal resistor will
detect the CPU temperature properly. (Note: JP2 is optional, if there
is no JP2 on the board, then the mainboard will detect the CPU and
choose the thermal resistor automatically.)

VIA 693/693A Twin Processor Mainboard INTRODUCTION
1-3
1.3 SPECIFICATIONS
¥CPU
Intel® Pentium™ II, Pentium™ !!! or Celeron™ (f`or both Slot type and Socket
type CPU) 233, 266, 300, 333. 350, 366, 400, 433, 450, 466, 500, 550, 600MHz
and higher speed processors
¥CPU VCC
Switching Voltage Regulator circuits on board, supports +1.80V DC through
+3.5V DC CPU Core Voltage.
Note : The CPU Core Voltage will be Detected and adjusted automatically by the
VID-pin on the CPU, so there is no manual-adjustment required to select the CPU
voltage. Simply plug in the CPU and start immediately.
¥WORD SIZE
Data Path : 8-bit, 16-bit, 32-bit, 64-bit
Address Path : 32-bit
¥PC SYSTEM CHIPSET
PC133 mainboard: VIA693A and 596B chipset
PC100 mainboard: VIA693 and 596B Chipset
¥SUPER I/O CHIPSET
Winbond® W83977TF/EF-AW
¥FRONT SIDE BUS FREQUENCY
VIA693A : 66 MHz 100MHz and 133MHzselectable.
VIA693 : 66 MHz and 100MHz selectable.
¥MEMORY
Three 168-pin DIMM sockets, Maximum 384 MB with ECC.
CACHE :512KB pipelined burst SRAM in Pentium™ II, Pentium™ !!! processor.
0KB, 128KB, or 256KB SRAM in Celeron™ processor.
¥BIOS
AWARD System BIOS. 256KB x 8 Flash ROM
(Supports Plug & Play, ACPI, DMI and Green functions).

VIA 693/693A Twin Processor Mainboard INTRODUCTION
1-4
¥EXPANSION SLOTS
AGP Slots : One 32-bit AGP Slot (Supports 1x or 2x AGP graphics cards)
PCI Slots : Four 32bit PCI slots.
ISA Slots : 16-bit x 1 (One of the slot is PCI/ISA shared)
¥WOL PORTS
One WOL connector supports Wake-On-LAN (WOL up-designed)
¥USB PORTS
Two Universal Serial Bus (USB) ports.
¥IDE PORTS
Two channels of Ultra DMA33/66 Bus Master IDE ports, which will support up to
4 IDE devices like IDE hard disk, ATAPI CD-ROM and LS-120/ZIP-100 devices.
The IDE ports can be programmed to support PIO Mode 4, DMA mode 2 and Ultra
DMA33/66 to support the modern IDE devices.
¥SUPER I/O PORTS
1. Two high speed NS16C550 compatible serial ports (UARTs).
2. One parallel port, supports SPP/EPP/ECP mode.
3. One Floppy Disk Control port.
¥IR PORT
One HPSIR and ASKIR compatible IR transmission connector (5-pin).
One Consumer IR transmission connector (4-pin, optional).
¥MOUSE AND KEYBOARD
One PS/2™ mouse connector, One PS/2™ keyboard connector.
¥3D SOUND (Optional)
Avance Logic ALS-300 Sound Chip is optional on the mainboard. ALS300 built-in
the 2D/3D Sound Effect Processor, Enhanced normal & digital Game port, MPU-
401 MIDI controller, ALSFM Synthesizer.

VIA 693/693A Twin Processor Mainboard INTRODUCTION
1-5
¥HARDWARE MONITORING (optional)
Winbond W83783S (please refer to U1 on page 1-2) is designed on the board to
monitor hardware healthy status like system voltage, system temperature, and
cooling fans. When the CPU temperature is too high, the system BIOS will tell the
system board to give a series of beeping alarm and slow down the CPU speed
(throttling speed) so that you can take proper action to prevent your system from
damage. When you hear the beeping alarm, turn the power off and check on the
mainboard components to see whether it is working properly or not. If you don’t
know how to handle it, send the PC system to your dealer for technical support.
There is the hardware monitoring program in the CD which comes with this
mainboard. You can use it to monitor the system healthy status. When you find
there is the W83783S installed on U1, you can run the hardware monitoring
program and then it will monitor the system healthy status all the time.
¥ACPI
Advanced Configuration and Power Interface (ACPI) function is strongly
recommended by PC’98 because it will let you have many additional features and
that will make your PC system becomes very friendly and convenient. Followings
are the ACPI features designed on the board:
1. On Now: power on the system by panel-switch, Keyboard, PS/2™ Mouse,
Modem ring-in, RTC alarm or LAN signal.
2. Power off (soft-off) by OS or Panel-switch.
3. CPU cooling fan auto-off during Suspend state.
4. Resuming of PC system. (such as Modem ring-in, RTC alarm, .... etc.)
5. Supports Full-On/Doze/Standby/Suspend operating modes.
¥DIMENSION
1. Width & Length : 305 mm x 210 mm.
2. Height : 2 1/2 inches with CPU Retention Mechanism.
3. PCB Thickness : 4 layers, 0.05 inches normal.
4. Weight : 18 ounces.
¥ENVIRONMENT LIMITATION
1. Operating Temperature : 10to 40. (50to 104)
2. Required Airflow : 50 linear feet per minute across CPU.
3. Storage Temperature : - 40to 70. (- 40to 158)
4. Humidity : 0 to 90% non-condensing.
5. Altitude : 0 to 10,000 feet.

VIA 693/693A Twin Processor Mainboard INSTALLATION
2-1
2. INSTALLATION
2.1 UNPACKING
The mainboard contains the following components. Please inspect the following
contents and confirm that everything is there in the package. If anything is missing or
damaged, call your supplier for instructions before proceeding.
lThis mainboard.
lOne USER‘S MANUAL.
lOne Cable set for IDE and Floppy devices.
lOne Pentium™ II Processor Retention Mechanism (RM).
lOne CD diskette for device driver and utility programs.
This mainboard contains electrostatic sensitive components and it can be easily
damaged by static electricity. So please leave it sealed in the original packing until
when installing.
A grounded anti-static mat is recommended when unpacking and installation. Please
also attached an anti static wristband to your wrist and have it grounded to the same
point as the anti-static mat.
After the opening of the mainboard carton, please observe the mainboard carefully to
make sure there is no shipping and handling damage before you can start to install the
PC system.
Having finished all the procedures above, you are now ready to install the mainboard to
the chassis. Please make sure that the chassis is the ATX type so that the mounting hole
will match with this mainboard.

VIA 693/693A Twin Processor Mainboard INSTALLATION
2-2
2.2 AMAZING WAYS TO POWER ON THE PC SYSTEM
When the mainboard has been installed successfully, there are several ways to
power on the system. Please read the following description for all the details.
POWER BUTTON
The power button can be programmed by COMS setup program and it has different
features. Please refer to page 3-15 for detail function description.
Note: This power button can not be used to power-on the PC system if the
”Password“ is selected in the "Power On Function" to power on your
system. (please refer to Section 4.8 for the “INTEGRATED
PERIPHERALS“ in the CMOS setup.) However, you can always use the
power button to turn off the power.
¨KEYBOARD (PASSWORD OR HOT KEY)
This mainboard allows you to use your personal password or a combination of hot
key to power on your PC system. When the jumper setting on JP1 is “Enabled”, the
keyboard OnNow function will be activated. Under this circumstance, this
mainboard will keeps scanning the keyboard status waiting for the correct password
or hot key input even when the system power is off (the stand-by 5V is still working
and the power LED on the keyboard is still active). If you have selected the
Password to power on the PC system in the BIOS setup program, the only way to
power on the PC system will be the correct password. ( you can not use the power
button on the front panel to power on the PC system.) When you have selected the
keyboard hot key to power on the PC system, you will be able to use keyboard hot
key to power on the PC system. ( you can use the power button to power on the PC
system as well.) ( Please refer to Section 4.8.- "Power On function")
When the “Password” and “Hot KEY” is selected, you will have to reboot the PC
system to activate the setting, when you see the POST (Power On Self Test) is
completed, the setting is changed and stored in the CMOS memory. Having finished
the procedure, you may turn the power off and then you can use the keyboard to
power-on the PC system afterward.
In case that you forget the “Password” or “Hot Key”, disconnect the AC power for
30-60 seconds then re-connect the AC power to the PC system, and then you can use
the PW switch to power on the PC system again. Or you may use JP9 setting to clear
the Keyboard password.

VIA 693/693A Twin Processor Mainboard INSTALLATION
2-3
¨PS/2™ MOUSE (LEFT OR RIGHT MOUSE BUTTON)
If you have a PS/2™ mouse connected to the system, you may change the setup in
the BIOS and use the mouse click to turn on the PC system power. Please refer to
section 4.8 for the BIOS setting
To use the mouse key to turn on the PC system power, the mouse click must be done
quickly and continually. Basically, 2-5 quick clicks on the mouse key ( left key or
right key ) will turn the power immediately.
In order to activate the mouse key feature, you will have to reboot the PC system
after the BIOS setting and wait until the POST (Power On Self Test) is completed.
Having finished the procedure, you may use the mouse key to power-on the PC
system afterward..
Note: 1. This feature is not available on the COM port mouse (serial mouse).
2. To use the PS/2 mouse power-on the PC system, JP1 must me "Enabled"
¨RTC ALARM
PC system can be waked up by the RTC setting in the CMOS. You can set the
alarming date and time in the RTC memory, When RTC alarms, the PC system will
be triggered and wakes up automatically on the date and time which you selected in
the BIOS setup program.
Enable the “Resume by Alarm” selection in the BIOS setup utility, and then you
will see the input request for the date and time. (the “Resume by Alarm” is located
in the “POWER MANAGEMENT SETUP”, please refer to Section 4.7), When you
have stored the RTC alarm setting, the PC system will be turned on automatically
according to the date and time which is recorded in the CMOS memory.
¨MODEM RING-IN
Everyone knows that a PC system can be used as a fax machine to send or receive
fax messages. But most people still use fax machine to receive their messages
because it is not practical to have the system powered on all day long waiting for
the incoming messages. Now the problem can be solved because this mainboard can
be triggered by a modem ring-in signal.

VIA 693/693A Twin Processor Mainboard INSTALLATION
2-4
When you have a external modem installed, you can leave the PC system power
off. Whenever there is the incoming message, the PC system will be triggered by
the ring-in signal and wake up automatically to receive the message for you. From
now on, you can tell your PC system to receive the fax message for you.
In order to use the ring-in signal to wake up your PC system, you will have to use
the EXTERNAL MODEM and have it connected to one of the SERIAL PORTS
( COMA or COM B ) on the mainboard. When the mainboard detects the ring-in
signal from the serial port, the system power will be turned on and start to receive
the incoming messages automatically. ( you need to have the software like Award
Zero-Volt Data-Suspend Utility so that you can use the fax utility to receive the
incoming fax message ).
To enable the Modem Ring-In feature, you have to run the BIOS setup utility and
enable the “Power On by Ring / LAN” option (it is located in the “POWER
MANAGEMENT SETUP”, please refer to Section 4.7 for the settings).
Note: This function is not available when using the internal MODEM card.
¨WAKE ON LAN ( WOL )
There is a WOL connector CN16 on the mainboard which is designed to connect to
the signal from a LAN card which supports the Wake On LAN feature. When such
LAN card is installed, you may turn on the PC system from the remote server and
monitor the PC status. To enable this feature, you will have to use the BIOS setup
utility to enable the “Resume by Ring or LAN” in the BIOS setup program.
Note: This function will be disabled if you turn off the power before the system
can verify the DMI pool data.
2.3 POWER OFF THE PC SYSTEM
There are two ways to power off the system. They are “Shut Down by Power Button”
and “ Shut Down by OS”. (such as Windows® 95 and Windows® 98, you can choose
the Shut Down from the file menu and the system will be powered off immediately ).

VIA 693/693A Twin Processor Mainboard INSTALLATION
3-1
3. HARDWARE SETUP
Before you can start to install this mainboard, some hardware setting is required
so that it will work perfectly. To configure the mainboard is a simple task, only a
few jumpers, connectors, cables and sockets need to be selected and configured.
This section will show all the connectors and jumpers on the mainboard.
3.1 INSTALLATION OF CPU
There are two CPU sockets on the mainboard designed for Pentium ™ II,
Pentium ™ !!! or Celeron™ processors. The CPU sockets on the mainboard are
the Slot 1 and Socket 370 as shown in the following picture:
+
123
4
AB
C
Socket 370 CPUSlot 1 CPU
Note: You can install only one CPU on the mainboard. Please do
not install CPU on both sockets at tge sane time.
Before you can install the CPU onto the mainboard, please make sure:
1. Be sure to remove the power cable from the PC system when
installing CPU or any other components . (refer to page 3-14)
2. If the hardware monitoring chip W83783S is install on U1.
Please use JP2 setting to decide which thermal resistor will be
active so that it will detect the CPU temperature. (JP2 is
optional on the mainboard and it is installed on the board
when U1 has the W83783S installed),. (refer to page 3-18)

VIA 693/693A Twin Processor Mainboard INSTALLATION
3-2
Setting of JP2: (JP2 is optional)
This mainboard has the Hardware Monitoring designed on the mainboard. If
you find the W83783S chip installed on U1, then the thermal resistor under the
CPU socket will detect the CPU temperature. There are two thermal resistors
on the mainboard and the setting of JP2 will decide which resistor is active:
Pin 1 & Pin 2 Short: Socket 370 thermal resistor is active
Pin 2 & Pin 3 Short: Slot 1 thermal resistor is active.
3.2 INSTALLING THE DRAM MODULES
This mainboard has three DIMM sockets designed on the mainboard and you can
use the single-side or double-side DIMM module on the mainboard.
DIMM 1
DIMM 2
DIMM 3
+
123
4
A B
C
Picture of Memory sub-system.
In order to have a better performance, only the Synchronous (SDRAM) memory
is recommended. Please refer to the following suggestion to install the memory:
Installation of DIMM modules:
1.Outlook of DIMM modules:

VIA 693/693A Twin Processor Mainboard INSTALLATION
3-3
( Single-Side DIMM module )
( Double-Side DIMM Module )
2.Minimum one DIMM module must be installed on the mainboard.
3.For PC133 M/B (VIA693A chipset). please use 3.3V PC-133 DIMM module.
4.For PC100 M/B (VIA693 chipset), please use 3.3V PC-100 DIMM module.
5.You can use single side or double side DIMM module on this mainboard.
If your DIMM module does not have the parity bit, please
don't enable the Parity/ECC check feature in the BIOS setup.
3.3 CONNECTORS
The connectors on the mainboard are either the pin header type or D-type
connectors, they are used to connect the accessories or peripheral devices (such as
power, mouse, printer,...etc.). Followings are the connectors with its description
and the pin assignment which is designed on the mainboard.
(A) BAT1: Battery Socket (Use the 3 Volts Lithium battery : CR2032)
+
123
4
AB
C
BAT1: Battery Socket
Pin# Pin name Pin# Pin name
+Battery Positive - Ground

VIA 693/693A Twin Processor Mainboard INSTALLATION
3-4
(B) CN1: PS/2 Mouse and Keyboard Connector
PS/2 Mouse Connector
PS/2 Keyboard Connector
+
123
4
AB
C
(C) CN3 : Serial Port COM 1 Connector
(D) CN4 : Serial Port COM 2 Connector
COM 1COM 2
+
123
4
CN4 CN3
CN4 CN3
(I/O address: 3F8H/2F8H/3E8H/2E8H, IRQ3/IRQ4, selected by CMOS setup.)

VIA 693/693A Twin Processor Mainboard INSTALLATION
3-5
(E) CN5: Parallel Port Connector
(Supports SPP/EPP/ECP modes, IRQ7 or IRQ5 is selectable, ECP mode will use
either DMA channel 3 or channel 1 which can be selected by the CMOS setup
probram)
+
123
4
CN5 Parallel Port
(F) CN6: USB Port 1 (Universal Serial Bus) Connector
(G) CN7: USB Port 2 (Universal Serial Bus) Connector
CN6 USB 1
CN7 USB 2
+
123
4
AB
C

VIA 693/693A Twin Processor Mainboard INSTALLATION
3-6

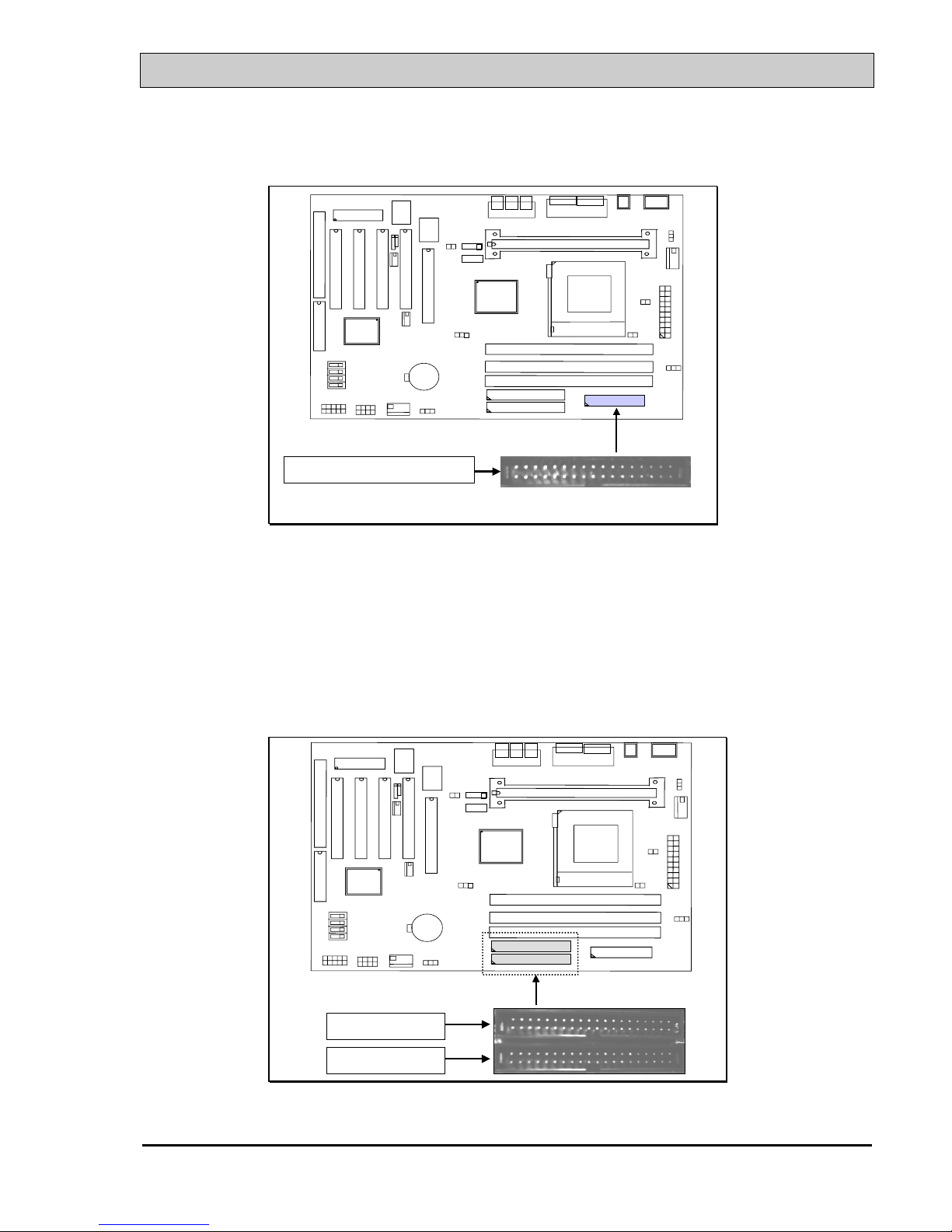

(H) CN8: Floppy Disk Control Port Connector (Use IRQ6, DMA channel 2)
CN8: FDC Connector
+
123
4
(I) CN9 : IDE 1 Connectors (Primary IDE Port: 1F0H, IRQ 14)
(J) CN10: IDE 2 Connectors (Secondary IDE Port: 170H, IRQ 15)
+
123
4
CN9: IDE 1
CN10: IDE 2

VIA 693/693A Twin Processor Mainboard INSTALLATION
3-7
(K) CN12: IR / FIR (Infrared Rays) Connector
Consumer IR Connector ( Consumer IR connector is active only
when W83977CTF-AW I/O Chip is installed on position U13 )
1A
2A
3A
4A
5A
1B
2B
3B
4B
( +5VDC )
( NO CONNECTION )
( IR RECEIVE )
( GROUND )
( IR TRANSMIT )
( +5VDC )
( IR TRANSMIT )
( CONSUMER IR RECEIVE )
( GROUND )
CONSUMER IR CONNECTOR
IR/FIR (INFRARED RAYS) CONNECTOR
+
123
4
CN 12 IR CONNECTOR (Consumer IR is optional)
(L) CN13: CPU Cooling Fan Power Connector
+
123
4
1
2
3
CN13
GND
+12V
Fan Signal

VIA 693/693A Twin Processor Mainboard INSTALLATION
3-8
(M) CN15: ATX Power Connector
ATX Power connector
+
123
4
CN4 CN3
CN15
(N) CN16: WOL (Wake On LAN) Connector
In order to use the WOL LAN card to trigger the power of the PC system, the
switching power supply must be able to provide at least 700mA current driving
ability on the “5V standby” voltage.
+
123
4
CN 16
WOL
1
2
3
