VIA Technologies PT-TVBT User manual

PT-TVBT
PT-TVBT2
VIA 693 SOCKET 370
AT MAINBOARD
USER’S MANUAL
V 1.X
DOC NUMBER: UM-TVBT-E2 ...............................................................PRINTED IN TAIWAN

VIA 693 Socket 370 AT Mainboard TABLE OF CONTENTS
i
TABLE OF CONTENTS
Chapter & Section Page
1. INTRODUCTION ...............................................................................1-1
1.1 OVERVIEW............................................................................................... 1-1
1.2 MAINBOARD LAYOUT ........................................................................ 1-2
1.3 SPECIFICATIONS ................................................................................... 1-3
2. INSTALLATION ................................................................................2-1
2.1 UNPACKING............................................................................................. 2-1
2.2 HOW TO POWER ON THE PC SYSTEM............................................ 2-1
2.3 POWER OFF THE PC SYSTEM........................................................... 2-3
3. HARDWARE SETUP.........................................................................3-1
3.1 INSTALLATION OF CPU....................................................................... 3-1
3.2 INSTALL THE DRAM MODULES ....................................................... 3-2
3.3 CONNECTORS ......................................................................................... 3-3
3.4 JUMPERS .................................................................................................. 3-16
3.5 INSTALLATION OF DEVICE DRIVER .............................................. 3-21
4. AWARD BIOS SETUP ......................................................................4-1
4.1 GETTING STARTED............................................................................... 4-1
4.2 MAIN MENU............................................................................................. 4-2
4.3 CONTROL KEYS ..................................................................................... 4-2
4.4 STANDARD CMOS SETUP .................................................................... 4-3
4.5 BIOS FEATURES SETUP ....................................................................... 4-3
4.6 CHIPSET FEATURES SETUP ............................................................... 4-7
4.7 POWER MANAGEMENT SETUP......................................................... 4-11
4.8 PNP/PCI CONFIGURATION ................................................................. 4-15
4.9 INTEGRATED PERIPHERALS............................................................. 4-18
4.10 LOAD SETUP DEFAULTS ................................................................. 4-20
4.11 SUPERVISOR PASSWORD / USER PASSWORD .......................... 4-21
4.12 IDE HDD AUTO DETECTION .......................................................... 4-23
4.13 SAVE & EXIT SETUP / EXIT WITHOUT SAVING....................... 4-24

VIA 693 Socket 370 AT Mainboard
ii
SOMETHING IMPORTANT !
¶TRADEMARKS
All trademarks used in this manual are the property of their respective owners.
¶LOAD SETUP DEFAULTS
“LOAD SETUP DEFAULTS” is the function which will have the BIOS default
settings loaded into the CMOS memory, these default settings are the best-case
values that should optimize system performance and increase system stability .This
function will be necessitated when you receive this mainboard, or when the system
CMOS data is corrupted. Please refer to the Section 4-10 for the details.
¶DISCHARAGE CMOS DATA
Whenever you want to discharge the CMOS data or open the system chassis, Make
sure to disconnect the AC power first because there is always the 5V standby voltage
connected to this mainboard when using an ATX switching power supply. Without
disconnecting the AC power connector from the PC system, the mainboard may be
damaged by any improper action.
¶WAKE ON LAN
In order to support the Wake On LAN feature, the system requires a ATX type SPS
(switching power supply), Such power supply must be able to provide at least 800
mA of driving capability on the “5V standby” voltage.
¶WARNING !
The "Static Electricity" may cause damage to the components on the mainboard, In
order to avoid the damage to the mainboard accidentally, please discharge all static
electricity from your body before touching this mainboard.
¶NOTICE
Information presented in this manual has been carefully checked for reliability;
however, no responsibility is assumed for inaccuracies. The information contained in
this manual is subject to change without notice.

VIA 693 Socket 370 AT Mainboard INTRODUCTION
1-1
1. INTRODUCTION
1.1 OVERVIEW
This Mainboard is a high performance personal computer mainboard. It is the AT
form-factor with Socket 370 on the board for socket type Celeron™ Processors.
VIA 693 and 596 chipsets are chosen as the system core logic to give the most
outstanding performance and reliability. It is designed for 300, 333, 350, 366, 400,
433, 450, 466, 500, 550MHz and higher speed socket type Celeron™ processors.
The chipset installed on this mainboard will be either VIA 693 with 596A or VIA
693 with 596B chipsets. The difference between these two chipset are shown in
the following table:
CHIPSET ULTRA DMA MODE
VIA 693 with 596A chipset Ultra DMA33
VIA 693 with 596B chipset Ultra DMA66
This mainboard has two channels of “PIO” and “Ultra DMA33 ( or Ultra DMA66)
Bus Master” mode PCI IDE ports built on the mainboard to support the most
updated IDE devices. One Floppy Disk controller interface, two high speed Serial
ports (UARTs), one multi-mode Parallel port, one PS/2™ mouse port, one IR
interface and two USB ports are designed on the board for wide variety of
peripheral connection.
The ESS Solo-1 (ES1938S) PCI sound chip is designed on board (ESS sound chip
is optional on the board). 3-D stereo effects processor, 16-bit stereo wave ADC
and DAC, 16-bit stereo music DAC, MPV-401 UART mode serial port dual game
port and ESFMämusic synthesizer is built in the ES1938S audio chipset. When
you find the ES1938S sound interface (CN18) installed on the mainboard, you
don't have to purchase another sound card because there is the 3D audio interface
on your mainboard.
The Celeron™ are the 32-bit processors with RISC technology, which offers
several key features such as built-in L2 cache, 12-stage super-pipeline
architecture, out of order execution … etc. In order to optimize of its capabilities
and performances, the 32-bit Operating System (such as Windows® and OS/2™)
and 32-bit applications are recommended.

VIA 693 Socket 370 AT Mainboard INTRODUCTION
1-2
1.2 MAINBOARD LAYOUT
CPU
CN1
AT K/B
CN5 LPT
COM2COM1
CN14 AT POWER
CN18 GAME/AUDIO
SYS. BIOS
CN8 FDC
CN9 IDE 1
CN10 IDE 2
PCI 3 PCI 2
PCI 1
AGP
ISA SLOT
DIMM 2
DIMM 1
CN15 ATX POWER
BAT1
CN21 CD-IN
CN6 USB1
CN7 USB2 CN16 WOL
CN2
MS
SPK
PWR-LED S
L
P
W
H
L
T
L
R
S
CN22 AUDIO IN
CN12 IR
JP6
SW
CN13
FAN 2
ISA SLOT
JP5
JP3
ES1938S
Solo 1
NS PC87309
JP4
CN17
FAN 1

VIA 693 Socket 370 AT Mainboard INTRODUCTION
1-3
1.3 SPECIFICATIONS
¥CPU
Intel® Celeron™ 300, 333. 350, 366, 400, 433, 450, 466, 500MHz and higher
speed Socket 370 processors
¥CPU VCC
Three sets Voltage Regulator circuits on board, supports +1.30V DC through
+2.05V DC CPU Core Voltage and all lower-voltage components.
Note : The CPU Core Voltage will be Detected and adjusted automatically by the
VID-pin on the CPU, so there is no manual-adjustment required to select the CPU
voltage. Simply plug in the CPU and start immediately.
¥WORD SIZE
Data Path : 8-bit, 16-bit, 32-bit, 64-bit
Address Path : 32-bit
¥PC SYSTEM CHIPSET
VIA693 with 596A chipset or VIA 693 with 596B chipset.
¥SUPER I/O CHIPSET
NS PC87309 I/O chip
¥FRONT SIDE BUS FREQUENCY
66 MHz and 100MHz selectable.
¥MEMORY
Two 168-pin DIMM sockets onboard, Maximum memory size can be up to 512
MB with ECC checking. Supports 3.3V SDRAM DIMM module,
Cache memory: 128KB pipelined burst SRAM in Celeron™ processor.
¥BIOS
AWARD Plug & Play System BIOS, supports ACPI, DMI and Green functions.

VIA 693 Socket 370 AT Mainboard INTRODUCTION
1-4
¥EXPANSION SLOTS
AGP Slots : 32-bit x 1 (Supports 1x or 2x AGP graphics cards)
PCI Slots : 32-bit x 3 (All master / Slave, PCI 2.1 compliant)
ISA Slots : 16-bit x 2 (One of the slot is PCI/ISA shared)
¥WOL PORTS (active only with ATX power supply)
One WOL connector supports Wake-On-LAN (WOL up-designed)
¥USB PORTS
Two Universal Serial Bus (USB) ports.
¥IDE PORTS
Two channels of Ultra UDMA/33 or Ultra DMA/66 Bus Master IDE ports. It will
support up to 4 IDE devices like IDE hard disk, ATAPI CD-ROM and LS-120/ZIP-
100 devices. The IDE ports can be programmed to support PIO Mode 4, DMA
mode 2 and Ultra DMA/33 or Ultra DMA/66
¥SUPER I/O PORTS
1. Two high speed NS16C550 compatible serial ports (UARTs).
2. One parallel port, supports SPP/EPP/ECP mode.
3. One Floppy Disk Control port.
¥IR PORT
One HPSIR and ASKIR compatible IR transmission connector (5-pin).
¥MOUSE AND KEYBOARD
One PS/2™ mouse connector and one AT type keyboard connector.
¥3D AUDIO INTERFACE ( optional)
ESS Solo-1(ES1938S) PCI sound chip on board, built-in 3D stereo effects
processor, 16-bit stereo wave ADC and DAC, 16-bit stereo music DAC, MPU-401
UART mode serial port, dual game port, ESFMämusic synthesizer.

VIA 693 Socket 370 AT Mainboard INTRODUCTION
1-5
¥HARDWARE MONITORING (optional)
Winbond W83783S (U5) is designed on the board to monitor hardware healthy
status such as system voltage, system temperature, and cooling fans. When the CPU
temperature is too high, the system board to give a series of beeping alarm or
display the warning message on the screen so that you can take proper action to
prevent your system from damage. When you hear the beeping alarm or the warning
message on the screen, be sure to turn the power off and open the chassis
immediately, check on the appropriate component on the mainboard (especially the
CPU cooling fan ) to see whether it is working properly or not. If you don’t know
how to handle it, please ask for the technical support from your dealer.
This mainboard provides the hardware monitoring program so that you can monitor
the healthy status of your PC system. When you find there is the Winbond
W83783S installed on the board, you can run the hardware monitoring program in
the CD (the hardware monitoring program is in the "Driver" sub-directory.) and
then the hardware monitoring feature will inform you the system status all the time.
¥ACPI (Active only with ATX power supply)
Advanced Configuration and Power Interface (ACPI) function is a new feature and
it will let you have many amazing benefits. With the ACPI feature your PC system
will becomes very friendly and convenient. When you have the ATX power supply
connected to the mainboard, you will have the following features:
1. On Now: power on the system by panel-switch, Modem ring-in, and LAN signal.
2. Power off (soft-off) by OS or Panel-switch.
3. Resuming of PC system. (such as Modem ring-in, RTC alarm, .... etc.)
¥DIMENSION
1. Width & Length : 220 mm x 220 mm.
2. Height : 2 1/2 inches with CPU Retention Mechanism.
3. PCB Thickness : 4 layers, 0.05 inches normal.
4. Weight : 18 ounces.
¥ENVIRONMENT LIMIT
1. Operating Temperature : 10to 40. (50to 104)
2. Required Airflow : 50 linear feet per minute across CPU.
3. Storage Temperature : - 40to 70. (- 40to 158)
4. Humidity : 0 to 90% non-condensing.
5. Altitude : 0 to 10,000 feet.

VIA 693 Socket 370 AT Mainboard INSTALLATION
2-1
2. INSTALLATION
2.1 UNPACKING
The mainboard contains the following components in the package. Please inspect the
following contents and confirm that everything is there in the package. If anything is
missing or damaged, call your supplier for instructions before proceeding.
lThis mainboard.
lOne USER‘S MANUAL.
lOne Cable set for IDE and I/O devices.
lOne CD diskette for device drivers and utility programs.
This mainboard contains electrostatic sensitive components and it can be easily
damaged by static electricity. So please leave it sealed in the original packing until
when installing the mainboard in the PC system.
A grounded anti-static mat is recommended when unpacking and installation. Please
also attached an anti static wristband to your wrist and have it grounded to the same
point as the anti-static mat. After the opening of the mainboard carton, please observe
the mainboard carefully to make sure there is no shipping and handling damage before
you can start to install the PC system.
2.2 HOW TO POWER ON THE PC SYSTEM
When this mainboard has been installed successfully and the ATX type power
supply is used to connect to the mainboard, there are several ways to power on the
system. Please read the following description for all the details.
POWER BUTTON (PW SWITCH)
When there is the ATX type power supply connected to the mainboard, the power
button on the front panel can be programmed by the BIOS setup program and it will
have different features. The power button can be used as a power button or suspend
switch according to the selection in the system BIOS. The PW switch can also be
used as suspend switch when the ACPI function is selected when installing
Windows 98. Please refer to page 3-14 for detail function description.

VIA 693 Socket 370 AT Mainboard INSTALLATION
2-2
¨RTC ALARM (optional, active only with ATX type power supply)
PC system can be waked up by the RTC setting in the CMOS. You can set the
alarming date and time in the RTC memory, When RTC alarms, the PC system will
be triggered and wakes up automatically.
Enable the “Resume by Alarm” selection in the BIOS setup utility, and then input
the accurate date and time in following fields. (the “RTC Alarm Resume” is
included in the “POWER MANAGEMENT SETUP”, please refer to Section 4.7),
Having stored the RTC alarm setting, the PC system will be turned on automatically
according to the date and time which is recorded in the CMOS memory.
Same as the above, you have to reboot the PC system and wait for the POST (Power
On Self Test) is completed to enable the RTC alarm.
¨MODEM RING-IN (optional, active only with ATX type power supply)
This mainboard can be triggered by a modem ring-in signal. When you have an
external modem installed, you can use it to power on the PC system. When there is
the incoming message from the external modem, the PC system will be triggered by
the ring-in signal and wake up automatically to receive the message for you.
In order to use the ring-in signal to wake up your PC system, you will have to use
the EXTERNAL MODEM and have it connected to one of the Serial Ports (COM1
or COM2). When the system power is off, this mainboard will continue to detect the
serial port status. When it detects the ring-in signal from the serial port, the system
power will be turned on and start to receive the incoming messages automatically.
To enable the Modem Ring-In feature, you have to run the BIOS setup utility and
enable the “Modem or LAN resume” option (it is in the “POWER MANAGEMENT
SETUP”, please refer to Section 4.7 for the settings). Having completed the BIOS
setup, you have to reboot the PC system so that BIOS can verify the setting. (the
“DMI pool data” will be verified by the BIOS when loading the operating system).
Simply speaking, shut down the PC system and then re-start the system. The modem
ring-in feature will be enabled when the operation system has been loaded.
Note: This function is not available when using the internal MODEM card.

VIA 693 Socket 370 AT Mainboard INSTALLATION
2-3
¨WAKE ON LAN ( WOL ) (optional, active only with ATX type power supply)
There is a WOL connector CN16 (see Section 3.3) on the mainboard which is
designed to connect to the signal from a LAN card which supports the Wake On
LAN feature. When such LAN card is installed, you may turn on the PC system
from your remote server and monitor the PC status.
To enable this feature, you will have to use the BIOS setup utility to enable the
“Modem or LAN resume” (it is located at “POWER MANAGEMENT SETUP”,
please refer to Section 4-7 for the settings). Having completed the BIOS setup, you
have to reboot the PC system so that BIOS can verify the setting. ( the “DMI pool
data” will be verified by the BIOS when loading the operating system). Simply
speaking, reboot the PC system, the Wake On LAN feature will be enabled when the
operation system has been loaded
Note: This function will be disabled if you turn off the power before the system
can verify the DMI pool data.
2.3 POWER OFF THE PC SYSTEM
1. When ATX power supply is connected.
There are two ways to power off the system. They are “Shut Down by Power
button” and “ Shut Down by OS”. (such as Windows® 95 and Windows® 98, you
can choose the Shut Down from the file menu and the system will be powered off
immediately ).
2. When AT power supply is connected.
You can not use the OS to shut down the PC system, you can only use the power
switch on the power supply to turn the system power off.

VIA 693 Socket 370 AT Mainboard HARDWARE SETUP
3-1
3. HARDWARE SETUP
Before you can start to install this mainboard, some hardware settings is required
to make sure it will work perfectly with the component which you are going to
install in your PC system. To configure this mainboard is a simple task, only a few
jumpers, connectors, cables and sockets need to be selected and configured.
(please refer to section 1.2 “mainboard layout” for the component location).
3.1 INSTALLATION OF CPU
When you have installed CPU onto the mainboard, this mainboard will detect the
CPU type and decide the proper CPU voltage as well as the front side bus frequency
(FSB clock) automatically. So you do not have to make any jumper or switch setting
to select the CPU type. All you have to do is plug the CPU onto the mainboard and
use the default BIOS setting to decide the FSB clock. If you want to select different
FSB clock for the CPU, you can use the BIOS setup program to make other

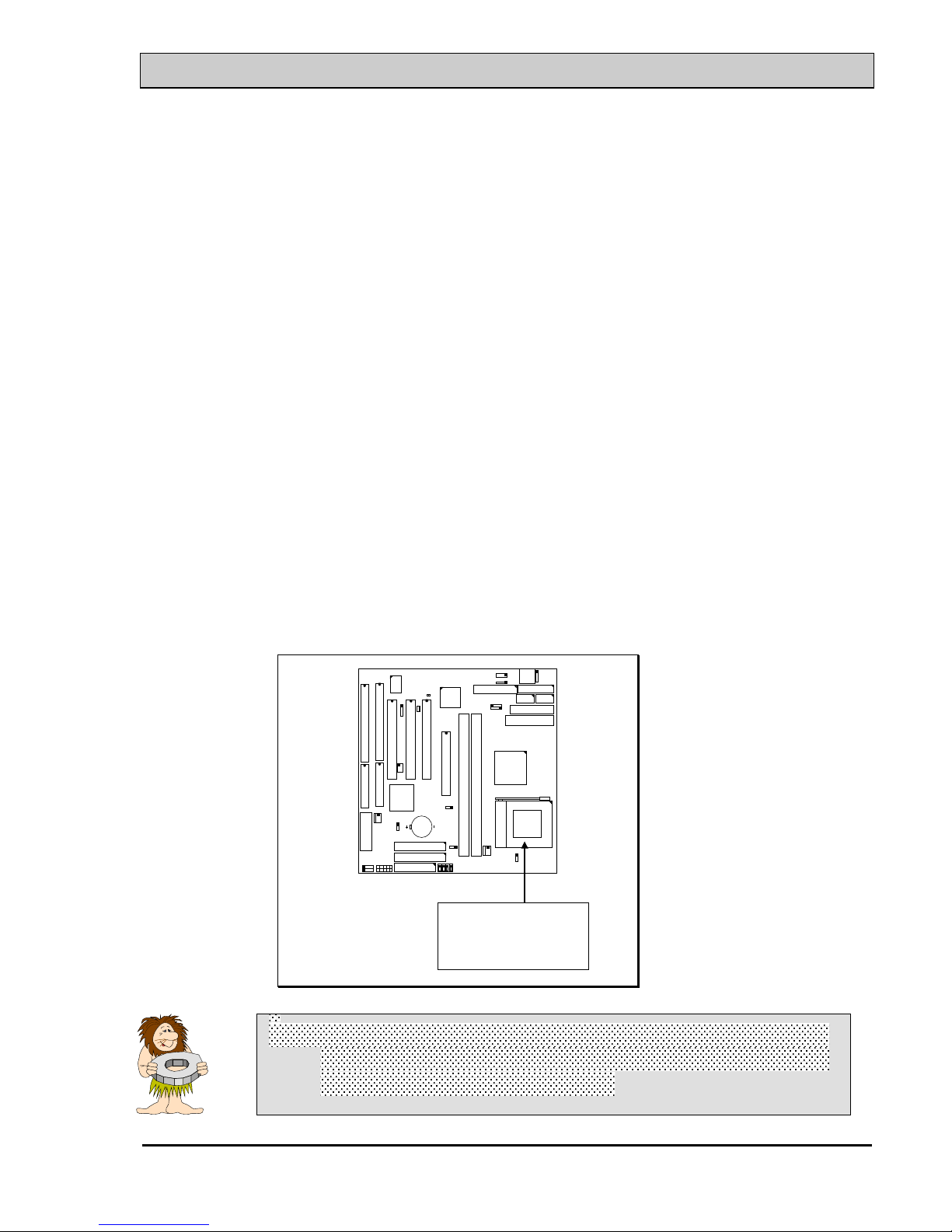

selection. The socket where we are going to install the CPU is a 370-pin socket type
connector and we call it the SOCKET 370 as shown in the following picture:
CPU
Socket 370
for Celeron CPU
Note: Please make sure to attach a CPU cooling fan to the CPU
to reduce the CPU temperature. Without the cooling fan,
the CPU can be damaged because of high temperature.

VIA 693 Socket 370 AT Mainboard HARDWARE SETUP
3-2
3.2 INSTALL THE DRAM MODULES
This mainboard has the 168-pin DIMM sockets designed on the board, each DIMM
can be single-bank or double-bank It supports two types of DRAM memory and
they are either the Extended Data Out (EDO) or Synchronous (SDRAM) memory.
(Both Symmetrical and Asymmetrical DRAM addressing are supported.) Please
note the DIMM modules suggested on the mainboard must be 3.3V, un-buffered and
DRAMs‘ speed must be either 60ns or 50ns,.
DIMM 2 ( BANK3 + BANK4 )
DIMM 1 ( BANK1+ BANK2 )
DRAM Subsystem
CPU
Installation of DIMM modules:
1.Outlook of DIMM modules:
( Single-Side DIMM module )
( Double-Side DIMM Module )

VIA 693 Socket 370 AT Mainboard HARDWARE SETUP
3-3
2.Minimum one DIMM module must be installed on the mainboard.
3.When FSB clock is 66MHz. please use 3.3V PC-66 or PC-100 DIMM
module.
4.When FSB clock is 100MHz. please use 3.3V PC-100 DIMM module.
5.You can use single side or double side DIMM module on this mainboard.
6.Please install the DIMM module starting from DIMM1 first.
Note: If your DIMM module does not have the parity bit,
please don't enable the Parity/ECC check feature in
the BIOS setup.
3.3 CONNECTORS
The connectors on mainboard will be used to connect the accessories or peripheral
devices (such as power, mouse, printer,...etc.). Following is the connectors with its
description and pin assignment which is designed on the mainboard.
(A) BAT1: Battery Socket (Use the 3 Volts Lithium battery : CR2032)
CPU
BAT1: Battery Socket

VIA 693 Socket 370 AT Mainboard HARDWARE SETUP
3-4

VIA 693 Socket 370 AT Mainboard HARDWARE SETUP
3-5

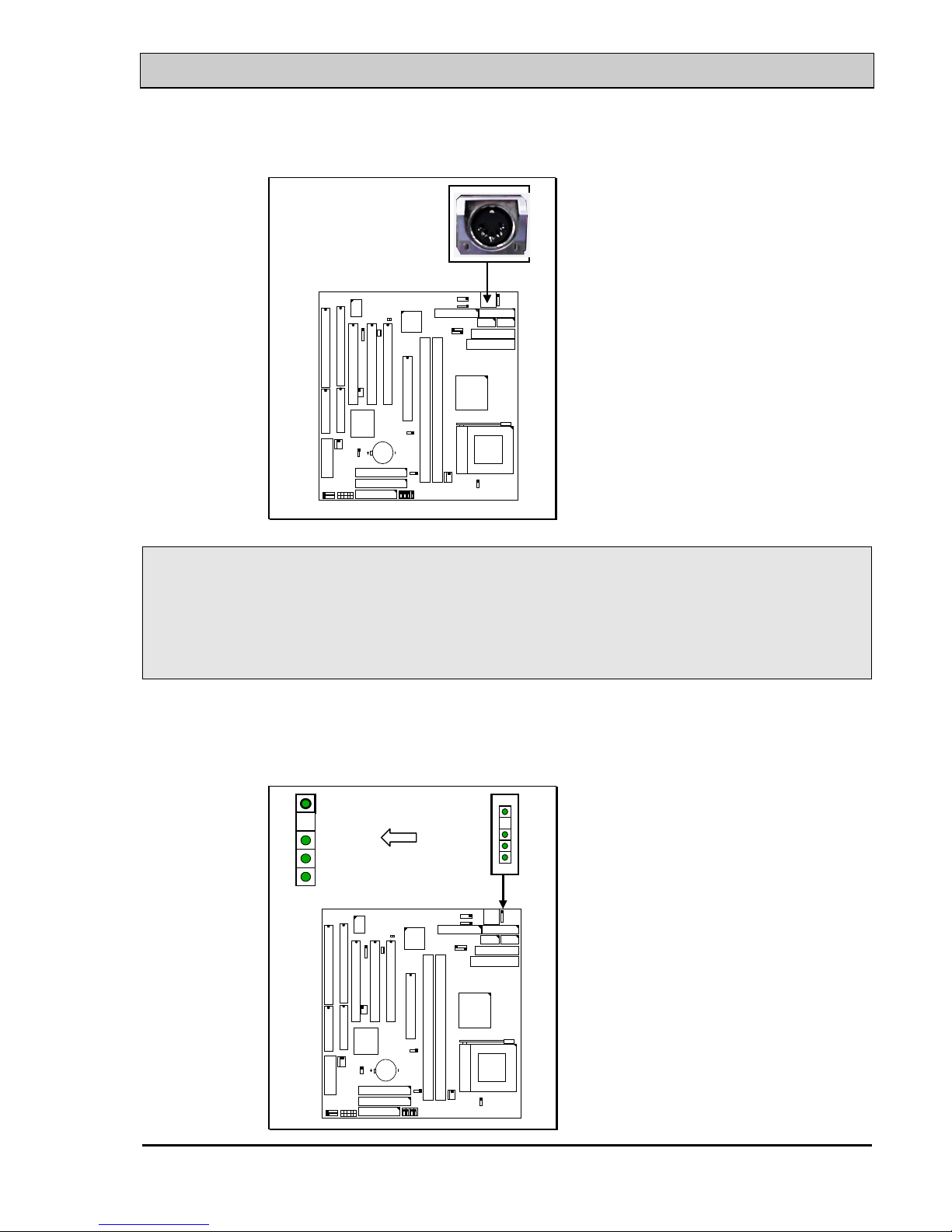

(B) CN1: Keyboard Connectors
CPU
Note: The PS/2 type keyboard connector is also designed on the mainboard and
it share the same location as the AT type keyboard connector. However,
one keyboard can be installed on this mainboard. When you see one
keyboard connector on the mainboard, the other type of connector will be
absent from the mainboard.
(C) CN2: PS/2 Mouse Connector
CPU
1
2
3
4
5
Mouse Data
No Connection
Ground
+5V DC
Mouse Clock
CN 2

VIA 693 Socket 370 AT Mainboard HARDWARE SETUP
3-6
(D) CN3: COM 1 (Serial Port 1) Connector
(E) CN4: COM 2 (Serial Port 2) Connector
CPU
CN 4
COM 2
CN 3
COM 1
I/O address 3F8H/2F8H/3E8H/2E8H, IRQ3/IRQ4, selected by CMOS setup.
(F) CN5: Parallel Port Connector
CPU
CN 5 Parallel Port

VIA 693 Socket 370 AT Mainboard HARDWARE SETUP
3-7

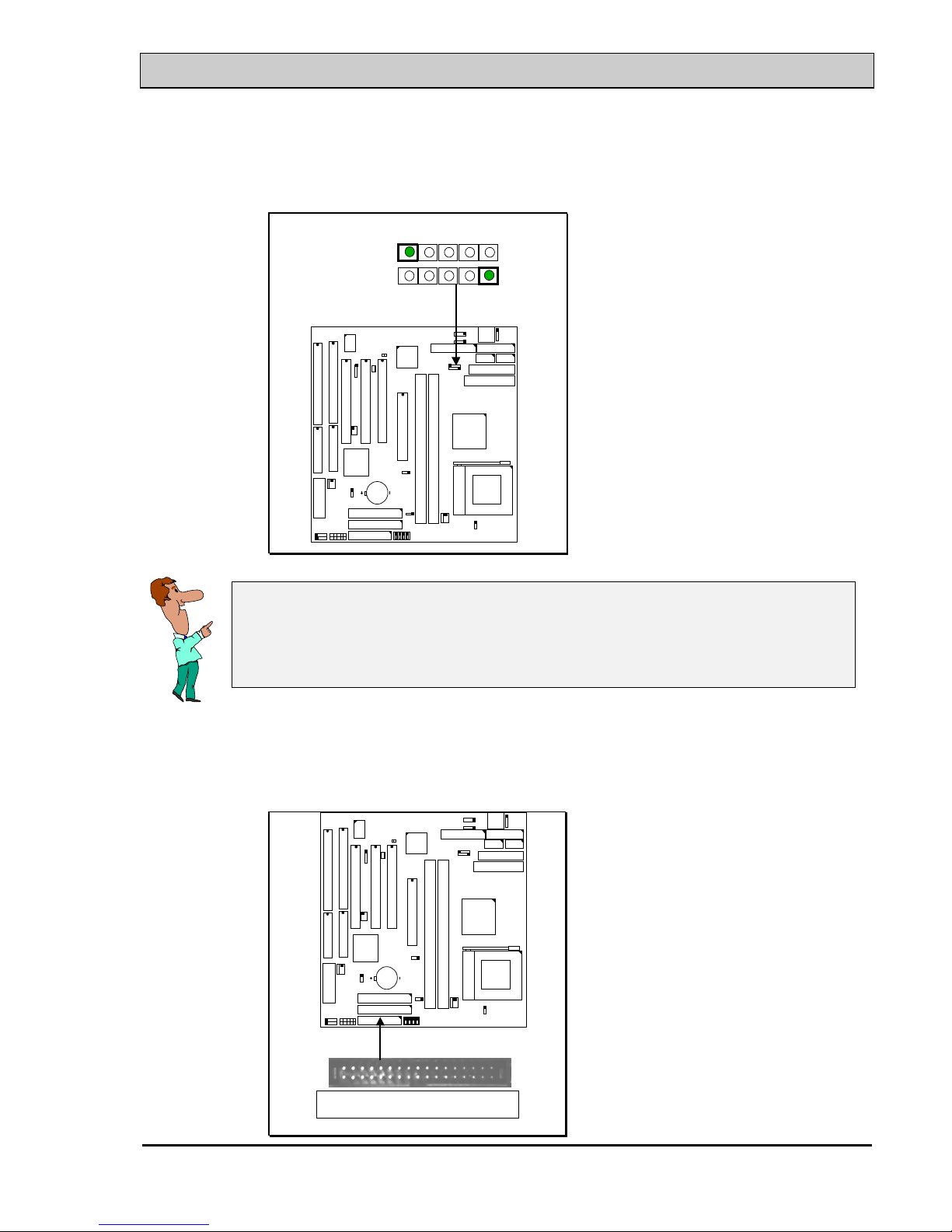

(G) CN6: USB 1 (Universal Serial Bus) Connector
(H) CN7: USB 2 (Universal Serial Bus) Connector
CPU
CN 7
USB 1
1 2 3 4 5
5 4 3 2 1
CN 6
USB 2
Note:
Wrong connection of USB cable or wrong type of USB cable
may destroy the USB device or this mainboard, please check
your mainboard dealer for the correct USB cable.
(I) CN8: Floppy Disk Control Port Connector ( IRQ6, DMA 2):
CPU
CN8 FDC Connector

VIA 693 Socket 370 AT Mainboard HARDWARE SETUP
3-8
(J) CN9: IDE 1 Connectors, (Primary IDE Port: 1F0H, IRQ 14)
(K) CN10: IDE 2 Connectors, (Secondary IDE Port: 170H, IRQ 15)
CPU
CN10: IDE 2
CN9: IDE 1
(L) CN12: IR (Infrared Rays) Connector
CPU
1
2
3
4
5
( +5VDC )
( NO CONNECTION )
( IR RECEIVE )
( GROUND )
( IR TRANSMIT )
IR/FIR (INFRARED RAYS)
CN 12

VIA 693 Socket 370 AT Mainboard HARDWARE SETUP
3-9

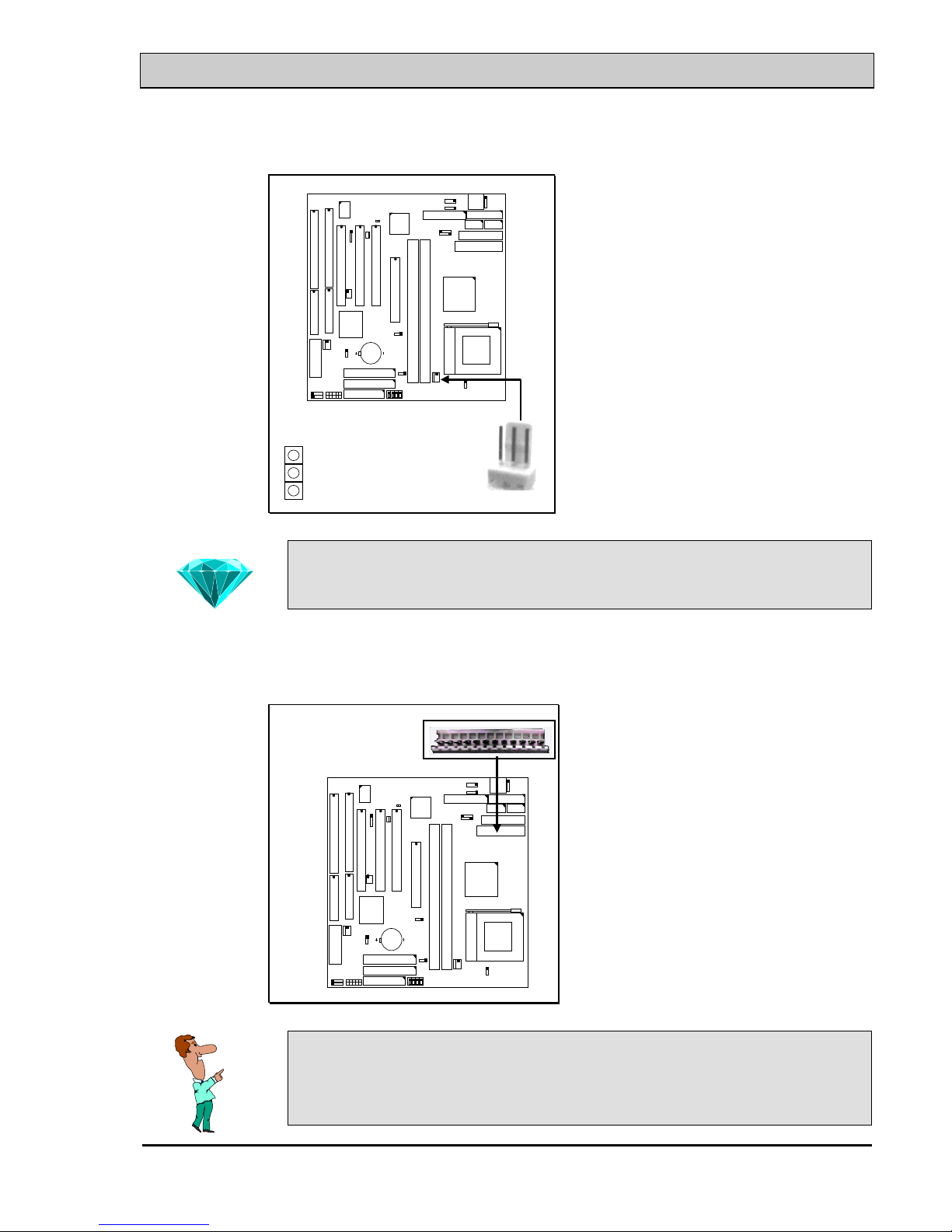

(M) CN13: Cooling Fan Power Connector
CN 13
CN13 CPU Cooling Fan
Ground
+ 12V DC
Fan Sense Signal
1
2
3
CPU
Note: This cooling fan connector can be used as CPU cooling
fan connector or Chassis cooling fan connector.
(N) CN14: AT Power Connector:
CPU
CN 14
Note: There are two connectors from the switching power supply
(P8 & P9), Wrong connection will cause permanent damage to
the mainboard.
