Vicon V702R-R User manual

XX126
MODEL V702R-R
TWO CHANNEL VIDEO RECEIVER
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
UK: [phone] WEB www.vicon-cctv.com
24-Hour Technical Support: 800-34-VICON (800-348-4266)
Vicon part number 8009-8126-00-00 Section 10 Rev 0103

Dear Valued Customer:
Thank you for selecting Vicon systems and products
for your video needs.
Since Vicon's beginning in 1967, our only business
has been the design, engineering, and production of
the highest quality video systems and equipment for
use in a wide variety of security, safety, control, sur-
veillance, and communication applications.
We stand behind the quality and dependability of every product with an
industry leading Beneficial Use warranty.
If you are not satisfied with a Vicon product or service, I would like to know.
Your complete satisfaction is the mission of every Vicon employee.
Sincerely,
Kenneth M. Darby
President

IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the pres-
ence of uninsulated "dangerous voltage" within the prod-
uct's enclosure that may be of sufficient magnitude to con-
stitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important oper-
ating and maintenance (servicing) instructions in the litera-
ture accompanying the unit.
IMPORTANT
1. Read Instructions - All the safety and operating instruc-
tions should be read before the video product is operated.
2. Retain Instructions - All the safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the video product and
in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions
should be followed.
5. Cleaning - Step a applies to equipment that can be dis-
connected from the CCTV system without seriously jeop-
ardizing security. Step b applies to equipment that must
operate continuously such as video switching equipment at
military installations.
a. Disconnect this video product from its power source
before cleaning. Do not use caustic, abrasive, or
aerosol cleaners. Use a damp cloth for cleaning.
b. Use a damp cloth to clean the equipment. Do not allow
moisture or liquids to enter any vents. Do not use caus-
tic, abrasive, or aerosol cleaners.
6. Attachments - Do not use attachments not recom-
mended by Vicon as they may cause hazards.
7. Water and Moisture - Do not use this video product in
any location where it may be exposed to water or moisture.
This does not apply to outdoor camera housings, outdoor
pan-and-tilt drives, and other equipment designed for direct
exposure to outdoor environments.
8. Accessories - Do not place this video product on any
unstable surface or table. The video product may fall, caus-
ing serious injury to a person and serious damage to the
video product. Use only with a mounting accessory recom-
mended by Vicon, or sold with the video product. Any
mounting of the video product should follow Vicon's instruc-
tions, and a mounting accessory recommended by Vicon
should be used.
9. Ventilation - Slots and openings in the cabinet are pro-
vided for ventilation and to ensure reliable operation of the
video product and to protect it from overheating, and these
openings must not be blocked or covered. The openings
should never be blocked by placing the video product on a
rug or other similar surface. This video product should
never be placed near or over a radiator or heat register.
This video product should not be placed in a built-in instal-
lation such as a bookcase or rack unless proper ventilation
is provided or Vicon's instructions have been adhered to.
10. Power Sources - This video product should be oper-
ated only from the type of power source indicated on the
marking label. If you are not sure of the type of power sup-
plied to your installation site, consult your Vicon dealer or
local power company. For video products intended to oper-
ate from battery power, or other sources, refer to the oper-
ating instructions.
11. Grounding - This applies to video products equipped
with a 3-wire grounding-type plug, a plug having a third
(grounding) pin. This plug only fits into a grounding-type
power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat the safety pur-
pose of the grounding-type plug.
12. Power-Cord Protection - Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying par-
ticular attention to cords at plugs, convenience receptacles,
and the point where they exit from the video product.

13. Outdoor Cable Grounding - If an outside
cable system is connected to the video product, be
sure the cable system is grounded so as to pro-
vide some protection against voltage surges and
built-up static charges. Section 810 of the National
Electrical Code, ANSI/NFPA 70-1984, provides
information with respect to proper grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-dis-
charge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
14. Lightning - For added protection for this
video product when it is not used for long periods
of time, disconnect it from its power source and
from the cable system. This prevents damage to
the video product due to lightning and power-line
surges.
15. Power Lines - An outside cable system
should not be located in the vicinity of overhead
power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits.
When installing an outside cable system, extreme
care should be taken to keep from touching such
power lines or circuits as contact with them might
be fatal.
16. Overloading - Do not overload wall outlets
and extension cords as this can result in a risk of
fire or electric shock.
17. Object and Liquid Entry - Never push
objects of any kind into this video product through
openings as they may touch dangerous voltage
points or short out parts that could result in a fire
or electric shock. Never spill liquid of any kind on
the video product.
18. Servicing - Do not attempt to service this
video product yourself as opening or removing
covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified serv-
ice personnel.
19. Damage Requiring Service - Disconnect this
video product from its power source and refer
servicing to qualified service personnel under the
following conditions. Note that step c does not
apply to outdoor camera housings, outdoor pan-
and-tilt drives and other equipment specifically
designed for direct exposure to outdoor environ-
ments.
a. When the power-supply cord or plug is dam-
aged.
b. If liquid has been spilled, or objects have fall-
en into the video product.
c. If the video product has been exposed to rain
or water.
d. If the video product does not operate normally
by following the operating instructions. Adjust
only those controls that are covered by the
operating instructions, as an improper adjust-
ment of other controls may result in damage
and will often require extensive work by a
qualified technician to restore the video prod-
uct to its normal operation.
e. If the video product has been dropped or the
cabinet has been damaged.
f. When the video product exhibits a distinct
change in performance - this indicates a need
for service.
20. Replacement Parts - When replacement
parts are required, be sure the service technician
has used replacement parts specified by Vicon or
that have the same characteristics as the original
part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
21. Safety Check - Upon completion of any serv-
ice or repairs to this video product, ask the service
technician to perform safety checks to determine
that the video product is in proper operating condi-
tion.

GENERAL
This manual is a guide to the installation and operation of
the V702R-R fiber optic video receiver. Please read the
entire manual before installing the equipment.
The V702R-R video receiver offers one-way transmission
of two composite video signals from a camera to a moni-
toring station. The V702R-R receiver operates over two mul-
timode fibers. The V702R-R receiver is used with two V701T
transmitters.
A complete system consists of two transmitters, V701T, and
a receiver, V702R-R.
Units are designed for installation in Vicon’s V515R-PS or
V517R-PS Card Cages.
The V702R-R receiver has two video input connectors and
two fiber connectors.
Unpacking the Unit
In the event that anything is missing from the following list,
contact your authorized Vicon representative.
V702R-R Receiver
Instruction manual
Save the original packing materials in case it becomes nec-
essary to return the unit. Refer to the Shipping Instructions
at the end of this manual.
INSTALLATION
Installation Considerations
This fiber-optic link is supplied as a rack card. Units should
be installed in dry locations protected from extremes of
temperature and humidity.
Rack Cards
Rack cards are designed to be installed in one of Vicon’s
19-inch (483-mm) EIA standard card-cage racks, either the
V515R-PS or the V517R-PS.
CAUTION: Although a rack card may be installed
without turning off power to the rack (hot-swappable),
Vicon recommends that the power switch on the rack
power supply is turned OFF and that the rack power
supply is disconnected from any power source.
1. Make sure that the card is oriented right-side up and
slide it into the card guides in the rack until the edge
connector at the back of the card seats in the corre-
sponding slot in the rack’s connector panel. Seating
may require thumb pressure on the top and bottom of
the card’s front panel.
CAUTION: Take care not to press on any of the
LEDs.
2. Tighten the two thumb screws on the card until the front
panel of the card is seated against the front of the rack.
V702 TWO-CHANNEL
VIDEO RECEIVER
1
FIGURE 1: SYSTEM DIAGRAM
one
optical fiber Video Out 1
Video Out 2
Video In 1
V701T
one
optical fiber
Video In 2
V701T
V702R-R

CONNECTIONS
Video Cable Connection
Connect monitor equipment to the two output BNC jacks on
the V702R-R receiver. See Figure 2.
Vicon suggests that Belden number 9259 or equivalent
coaxial cable should be used.
Fiber Optic Cable Connection
Most cable manufacturers identify the individual fibers in
the cable. Select appropriately terminated fiber and mark
both ends with unique identification label (e.g., for cable no.
03, fiber no. 08) to ensure that the fiber connected to the
near end is the same one that is connected to the far end.
The proper optical connection links the transmitter's out
port to the receiver's in port.
1. Wipe the inside of the port’s sleeve with a lint-free pipe
cleaner moistened with reagent-grade isopropyl alco-
hol. Blow dry with dry air.
2. Clean the connector using a lint-free cloth dampened
with alcohol to thoroughly wipe the side and end of the
ferrule. Blow the ferrule dry with dry air. Visually inspect
the ferrule for lint.
3. Fasten the fiber optic cable to the port.
Power Connections
Rack modules’ power connections are made automatically
when the card is installed. To supply power to the rack,
connect the rack power supply to an AC outlet and set the
power switch to ON.
OPERATION
V702R-R links operate automatically once installed. For an
explanation of LED color codes, see LED OPERATION and
Table 1.
LED OPERATION
The V702R-R has two LEVEL/LOSS LED indicators that
are very useful in describing the current state of operation,
as well as the current status of data flow and fiber optic sig-
nal strength. Table 1 provides a summary of LED opera-
tion. See Figure 3.
The LEVEL/LOSS LED is useful for indicating the relative
optical signal strength at the fiber optic receiver. When suf-
ficient optical power is being received, the LED shines
green. As the optical power is decreased, as happens
through long fiber runs, splices, or connections, the intensi-
ty of the LEVEL/LOSS LED will diminish until the limit of the
V702R-R's sensitivity range has been reached. At this
point the LED will turn red indicating insufficient optical
power is received.
MAINTENANCE
There is no operator maintenance other than keeping the
units clean.
TECHNICAL SUPPORT
For installation assistance, or in the event that a unit should
fail or if the cause of a problem cannot be determined, con-
tact Vicon’ technical support at:
TOLL FREE: 800-34-VICON (800-348-4266) or
PHONE: 631-952-CCTV (2288)
2MODEL V702R-R

3
TWO-CHANNEL VIDEO RECEIVER

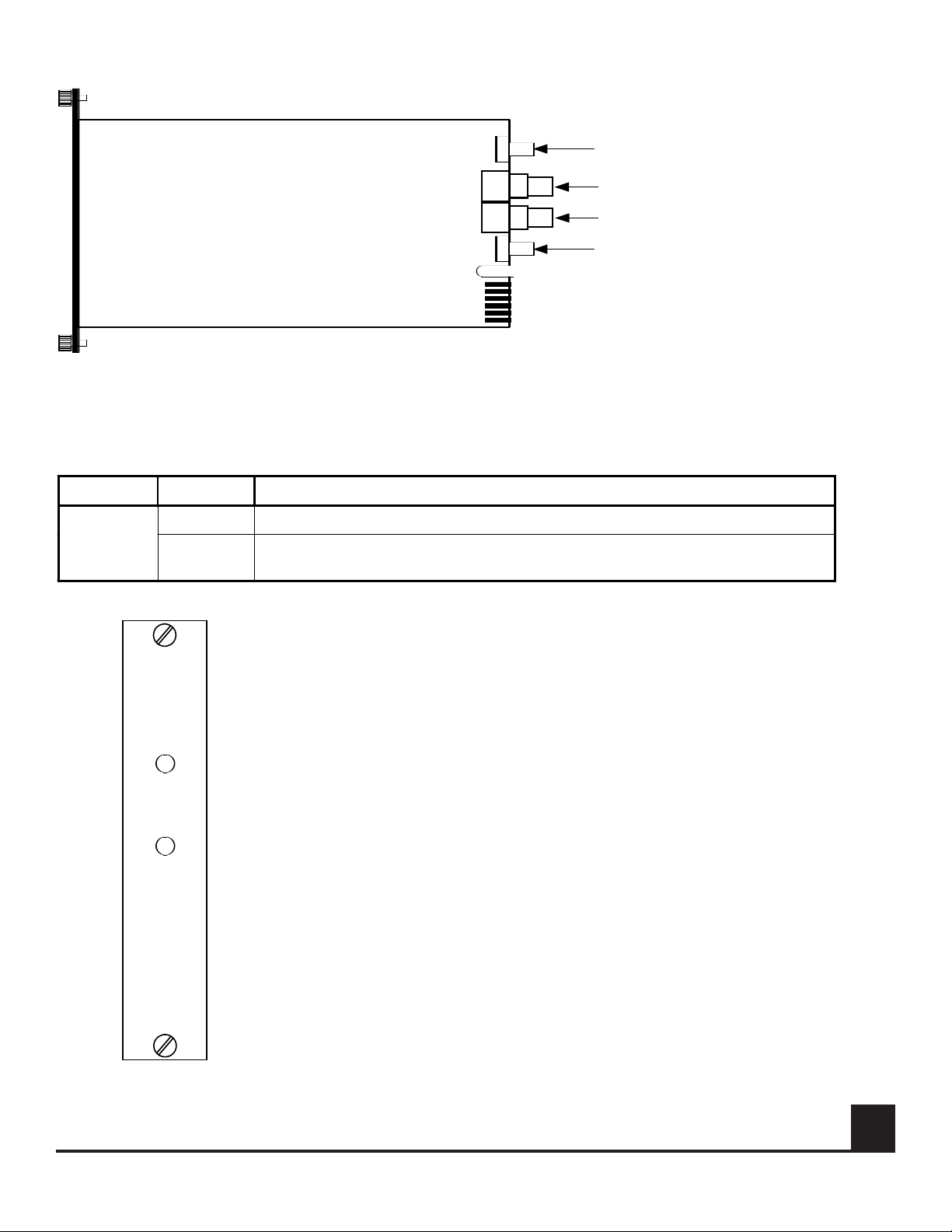

FIGURE 2: RACK MOUNT RECEIVER, V702R-R
VIDEO OUT 2 CONNECTOR
CHANNEL 2 OPTICAL CONNECTOR
VIDEO OUT 1 CONNECTOR
CHANNEL 1 OPTICAL CONNECTOR
FIGURE 3: DIAGNOSTIC LEDS
LVL/LOSS
V702R-R
LVL/LOSS
TABLE 1: RECEIVER LED DIAGNOSTIC INDICATORS
LED Name
Color
Indicates/Corrective Action
Green
Sufficient optical power received. No action required.
LEVEL/
LOSS
Red
Insufficient optical power received. Verify fiber connected, within optical budget,
receiver power on.

4MODEL V702R-R
SHIPPING INSTRUCTIONS
Use the following procedure when returning a unit to the
factory:
1. Call or write Vicon for a Return Authorization (R.A.) at
one of the locations listed below.
Record the name of the Vicon employee who issued
the R.A.
Vicon Industries Inc.
89 Arkay Drive
Hauppauge, NY 11788
Phone: 631-952-CCTV (2288)
Toll-Free: 1-800-645-9116
Fax: 631-951-CCTV (2288)
For service or returns from countries in Europe,
contact:
Vicon Industries Ltd
Brunel Way
Fareham, PO15 5TX
United Kingdom
Phone: [phone]
Fax: [phone]
2. Attach a sheet of paper to the unit with the following
information:
a. Name and address of the company returning
the unit.
b. Name of the Vicon employee who issued the
R. A.
c. R. A. number.
d. Brief description of the installation.
e. Complete description of the problem and
circumstances under which it occurs.
f. Unit's original date of purchase, if still under
warranty.
3. Pack the unit carefully. Use the original shipping
carton or its equivalent for maximum protection.
4. Mark the R.A. number on the outside of the
carton on the shipping label.

5
TWO-CHANNEL VIDEO RECEIVER
ELECTRICAL
Power Requirements: 13.5 - 16 VDC.
Current Requirement: 35 m A.
Power Consumption: 1.4 W.
Heat Equivalent: 0.08 btu/min (0.02 kg-cal/min).
Note: These figures represent the conversion of 100% of the elec-
trical energy to heat. Actual percentage of heat generated will be
less and will vary from product to product. These figures are pro-
vided as an aid in determining the extent of cooling required for an
installation.
Safety Standard: UL 1950.
Radio Frequency
Emissions Rating: FCC Class A.
European Community
(CE) Standards: EN60950.
VIDEO
Number of Channels: 2.
Modulation Type: Frequency Modulation (FM).
Formats Supported: NTSC and PAL.
Full System Bandwidth: 8 MHz per channel.
Horizontal Video Resolution: >640 TV lines.
Input/Output Impedance: 75 ohms.
Optimum Input Signal: 1 V p-p nominal composite video.
Output Signal Level: 1 V p-p nominal, composite video,
unity gain, ±5%.
Differential Phase: 1.7º.
Differential Gain: 1.6%.
Signal-to-Noise Ratio: >50 dB (at max path loss).
Interconnection Distance: Video devices to transmitter:
≤ 100 ft (30 m).
Receiver to video devices:
≤ 100 ft (30 m).
Note: RG59/U coaxial cable, Belden No. 9259 or equivalent, is
recommended for video interconnection.
OPTICAL
Maximum
Optical Attenuation: 13 dB.
Gain Control: Fully automatic optical (OAGC).
Optical Wavelength: 850 nm.
Fiber Type: 62.5 um.
Operating Distance: 3.2 mi (5.2 km).
Note: Operating distance is approximate and will be affected by
the type and number of splices in the fiber and by the exact type
of fiber used.
CONNECTORS AND INDICATORS
Optical Connector: Two ST type.
Video Connector: Two BNC.
Power Connector: Made via card cage rack.
Level/Loss™: Two Bicolor LEDs.
MECHANICAL
RACK-MOUNT CARDS
Module Width: 1 slot, 1.0 in. (25.4 mm).
Weight: 0.61 lb (0.28 kg).
Shipping Dimensions: Length: 9.75 in. (247.7 mm).
Width: 5.25 in. (133.4 mm).
Height: 1.0 in. (25.4 mm).
Shipping Volume: 0.03 cu ft (0.00085 cu m).
Shipping Weight: 0.80 lb (0.36 kg).
Finish: Black semigloss paint.
ENVIRONMENTAL
Operating Temperature Range: -40 to 167° F (-40 to 75° C).
Operating Humidity Range: 0 to 95% relative,
noncondensing.
TECHNICAL INFORMATION

Vicon Industries Inc.
Corporate Headquarters
89 Arkay Drive
Hauppauge, New York 11788
631-952-CCTV (2288) 800-645-9116
Fax: 631-951-CCTV (2288)
Vicon Europe
Headquarters
Brunel Way
Fareham, PO15 5TX
United Kingdom
[phone]
Fax: [phone]
Brussels Office
Planet II - Unit E
Leuvensesteenweg 542
B-1930 Zaventem
Belgium
322 712 8780
Fax: [phone]
Vicon China
Unit 5, 17/F, Metropole Square
2 On Yiu Street, Shatin
New Territories,
Hong Kong
(852) 2145-7118
Fax: [phone]
Internet Address: www.vicon-cctv.com
