Vicon V1111B-THM-TB User manual

User Manual
V1111B-THM-TB
Biometric Kiosk
XX300-45-00
DISCLAIMER: The V1111-THM-TB Biometric Kiosk is a screening device and is not intended for
use in the detection or diagnosis of any disease and, as such, is not an FDA approved medical
device. Subjects that have elevated body temperatures detected by the kiosk should be subject
to secondary evaluation methods, including NCIT or clinical grade contact thermometer.
Document Number: 8009-8300-45-00
Product specifications subject to change without notice.
Issued: 5/2021 Copyright © 2021 Vicon Industries Inc.
All rights reserved.
Vicon Industries Inc.
Tel: [phone]
Fax: [phone]
Toll Free: 800-645-9116
24-Hour Technical Support:
800-34-VICON (800-348-4266) UK:
44/(0) 1489-566300
www.vicon-security.com

Biometric Kiosk
User Manual
i
Precautions
Precautions
Read this document completely before using this device, and strictly observe rules in this
document when using this device. If you install this device in public places, provide the tip "You
have entered the area of electronic surveillance" in an eye-catching place. Failure to correctly use
electrical products may cause fire and severe injuries. To prevent accidents, carefully read the
following context:
Symbols
This document may contain the following symbols whose meanings are described accordingly.
Symbol
Description
Alerts you to fatal dangers which, if not avoided, may
cause deaths or severe injuries.
Alerts you to moderate dangers which, if not avoided, may
cause minor or moderate injuries.
Alerts you to risks. Neglecting these risks may cause
device damage, data loss, device performance
deterioration, or unpredictable results.
Provides a tip that may help you resolve problems or save
time.
Provides additional information.
To prevent electric shocks or other dangers, keep power plugs dry and clean.
Strictly observe installation requirements when installing the device. The manufacturer shall not
be held responsible for device damage caused by users' non-conformance to these requirements.
Strictly conform to local electrical safety standards and use power adapters that are marked with
the LPS standard when installing and using this device. Otherwise, this device may be damaged.
Use accessories delivered with this device. The voltage must meet input voltage requirements for
this device.

Biometric Kiosk
User Manual
If this device is installed in places with unsteady voltage, ground the device to discharge high
energy such as electrical surges in order to prevent the power supply from burning out.
When this device is in use, ensure that no water or any liquid enters the device. If water or liquid
unexpectedly enters the device, immediately power off the device and disconnect all cables (such
as power cables and network cables) from this device.
Do not place the thermal imaging camera and unpackaged products at a radiation source with a
high intensity regardless of whether the device is in the normal power-on state, for example, the
sun, laser, and electric arc welder, and do not place the thermal imaging camera and unpackaged
products against objects with a high heat source, for example, the sun. Otherwise, the accuracy of
the thermal imaging camera will be affected. In addition, the detector in the thermal imaging
camera may be permanently damaged.
If this device is installed in places where thunder and lightning frequently occur, ground the
device nearby to discharge high energy such as thunder strikes in order to prevent device damage
Unless otherwise specified, do not use the camera in a temperature lower than 0 °C (32°F) or
higher than +50 °C (+122 °F). Otherwise, the images displayed by the thermal imaging camera
are abnormal and the device may be damaged if working beyond the temperature range for a long
period.
The thermal camera should be powered on for half-hour, so that the temperature measurement is
normal; powered on for more than 1.5 hours provides the best results.
The camera is designed for indoor installations and should not be installed in outdoor locations.
Avoid heavy loads, intense shaking and soaking to prevent damage during transportation and
storage. The warranty does not cover any device damage that is caused during secondary
packaging and transportation after the original packaging is taken apart.
Protect this device from falling and intense strikes; keep the device away from magnetic field
interference, and do not install the device in places with shaking surfaces or under shocks.
Clean the device with a soft dry cloth. For stubborn dirt, dip the cloth into a mild neutral cleanser,
gently wipe the dirt with the cloth, and then dry the device.
Do not jam the ventilation opening. Follow the installation instructions provided in this
document when installing the device.
Keep the device away from heat sources such as radiators, electric heaters, or other heat
equipment.
Keep the device away from moist, dusty, extremely hot or cold places, or places with strong
electric radiation.
If the device is installed outdoors, take insect- and moisture-proof measures to avoid circuit
board corrosion that can affect monitoring.
Remove the power plug if the device is idle for a long time.
Before unpacking, check whether the fragile sticker is damaged. If the fragile sticker is damaged,
contact customer service or sales personnel. The manufacturer shall not be held responsible for
any artificial damage of the fragile sticker.
.

Biometric Kiosk
User Manual
1
Contents
Precautions.................................................................................................................... i
Contents........................................................................................................................ 1
1 Hardware Description............................................................................................. 3
1.1 Product Features............................................................................................................. 3
1.2 Recommendations for Use ............................................................................................. 7
1.3 Dimensions..................................................................................................................... 8
1.4 Installation and Precaution............................................................................................. 9
1.5 Packaging list ............................................................................................................... 14
2 Quick Configuration ............................................................................................. 15
2.1 System Login and Logout ............................................................................................ 15
2.2 Modify the Password.................................................................................................... 17
2.3 Preview Interface.......................................................................................................... 18
2.3.1 Live Video Interface (Preview)........................................................................ 18
3 Configuration Setting ........................................................................................... 19
3.1 Menu Tree Structure..................................................................................................... 19
3.2 Basic Information......................................................................................................... 21
3.3 System Setting.............................................................................................................. 21
3.3.1 Time configuration........................................................................................... 21
3.3.2 User Management ............................................................................................ 22
3.3.3 System Parameters........................................................................................... 24
3.4 Video Settings .............................................................................................................. 26
3.5 Image Settings.............................................................................................................. 26
3.5.1 Display Settings ............................................................................................... 26
3.6 Alarm............................................................................................................................ 28
3.6.1 Alarm Output Settings...................................................................................... 29
3.6.2 Alarm Notification Email................................................................................. 29
3.6.3 Alarm Input...................................................................................................... 30
3.7 Network Service........................................................................................................... 31
3.7.1 TCP/IP.............................................................................................................. 31
3.7.2 Device Port Configuration ............................................................................... 31
3.7.3 Upload Service................................................................................................. 32

Biometric Kiosk
User Manual
3.7.4 SMTP............................................................................................................... 33
3.8 UI & Sound Settings .................................................................................................... 34
3.9 Thermal Parameters...................................................................................................... 37
3.10 Access Condition........................................................................................................ 38
3.11 Upgrade and Maintenance.......................................................................................... 41
4 Facial Database....................................................................................................... 44
4.1 Add Face ...................................................................................................................... 44
5 Capture History...................................................................................................... 51

Biometric Kiosk
User Manual
3
1Hardware Description
1.1 Product Features
The biometric kiosk is an economical non-contact temperature measurement device designed to
provide accurate and fast measurement of a person’s body temperature when entering the
premises. Combining quick thermal detection of elevated body temperatures with visual
detection of faces and conformance to mask wearing requirements, the kiosk is ideal for use in a
wide range of applications such as building lobbies and school entrances.
Advantages
±0.9° F (±0.5° C) measuring temperature detection accuracy.
Thermal response time of ≤100 milliseconds
Thermal imager resolution 120x90
Integrated 1080p camera with 120 dB WDR
7-inch display with 1024x600 resolution
Facial recognition, mask detection and alarming
Temperature Display Overlay with alarm notification
Simple snapshots can be created in standalone software
3 alarm inputs, 1 alarm output
Powered by 12 VDC
Multiple mounting options
NDAA compliant
Easily integrates with VAX Access Control

Biometric Kiosk
User Manual
Appearance Instructions and Cable description
Figure 1-1 Feature Callouts
Thermal Sensor
White Light
LEDs
IR LEDs
Dual HD
Cameras
Temperature Measurement
7-Inch Display
Temperature Remark
Pendant Mount

Biometric Kiosk
User Manual
5
Figure 1-2 Multi cable
1
2
3
4
5
6
7
8
Table 1-1 Cable description
ID
Description
Description
Remarks
1 RJ45
Network port
Connect to Ethernet
Does not support PoE
2 POWER
Power
Connect to 12 VDC
3 DOOR
LOCK
COM
Connect to Access control
COM
Access control port
When the door lock is
triggered, COMNO is short-
circuited and NC is
suspended
NC
Connect to Access control
COM NC
NO
Connect to Access control
COM NO

Biometric Kiosk
User Manual
4 USB
USB port
Connect to USB ID reader.
For Future Use
5 ALARM-
IN
1
Connect to alarm device line 1
Alarm IN
2
Connect to alarm device line 2
3
Connect to alarm device line 3
G
GND
6 ALARM-
OUT
-
Alarm out COM, negative
Alarm OUT
+
Alarm out, positive
7 IO/
RS-485
G
GND
P
Connect to alarm light negative
A
RS485 port A (+)
For Future Use
B
RS485 port B (-)
8 WG-I/O
12V
DC 12V
Wiegand IN/OUT port
G
GND
D0
Wiegand data port 0
D1
Wiegand data port 1
The detail of connection is shown in Figure 1-3.

Biometric Kiosk
User Manual
7

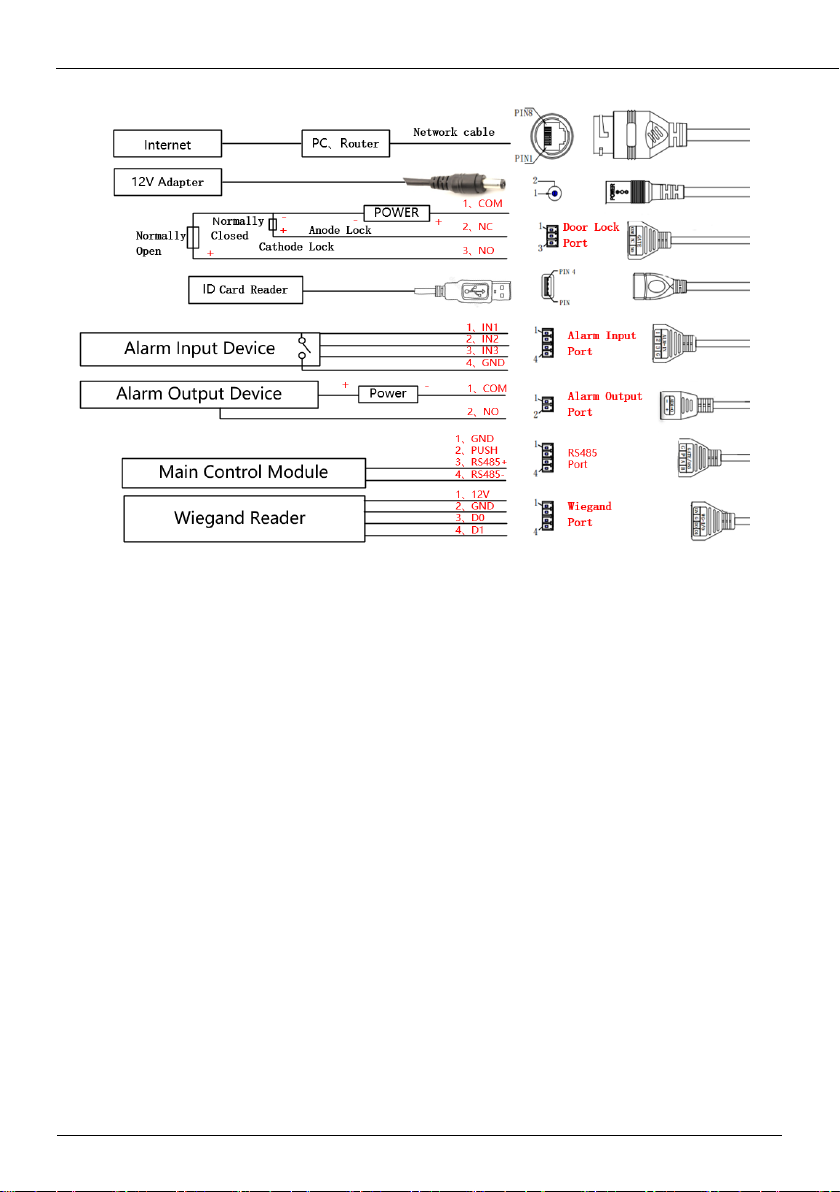

Figure 1-3 Multi cable connection diagram
1.2 Recommendations for Use
To ensure the measurement accuracy, install the device indoors at 68-95 ℉ (20~35 ℃) ambient
temperature.
There should be no other obvious heat source in the surrounding area.
There should be nothing covering the forehead.
It is recommended to start to measure temperature 30 minutes after being powered on.
Please wait for 2-3 minutes before measuring temperature when coming from outdoors or other
environment with large temperature difference.
The temperature can be measured in real time by aiming the human face at measurement area on
the panel; this can trigger high temperature alarm.

Biometric Kiosk
User Manual
1.3 Dimensions
.
Figure 1-4 Dimensions [unit: in. (mm)]
1.1 (28)
10.1
(256)
4.7 (120)

Biometric Kiosk
User Manual
9
1.4 Installation and Precaution
The kiosk must be mounted at a height that allows the capture of faces and detection of
temperature for a wide range of people’s heights with the distance of detection considered. The
graphic below set shows the recommended height.
Figure 1-5 Installing distance
56 in. ± 2 in.
(142 cm ± 5 cm)

Biometric Kiosk
User Manual
Figure 1-6 Typical mounting to a turnstile
Mounting to a surface:
Drill a hole with the diameter is 1.3 in. (34 mm) on the surface according to Figure1-7, 1.
Remove the nut on the pendant and pass the threaded section of the pendant through the hole
(Figure1-7, 2);
Screw the pendant nut onto the threaded section of the column and use a wrench or other tools to
tighten the nut (Figure1-7, 3);
Connect the corresponding functions cable to multi-cable, and the installation is completed
(Figure1-7, 4);
Place at an elevation without adding a pendant mount.
Place at an elevation with adding a pendant mount.

Biometric Kiosk
User Manual
11
Figure 1-7 Surface mounting steps
1 2
34
Silicone pad
Turnstile steel plate
Lock nut
Pendant bracket

Biometric Kiosk
User Manual
Instructions for wall mounting：
Remove the bracket from the Biometric Kiosk.
53
9
28.75
44.75
15
19
36
35
32.75
4-φ5
68.1
4.1
4-φ3.5
12.1
32
25
80.2
.

Biometric Kiosk
User Manual
13
Figure 1-8 Wall mounting (drill the cable access hole)
Drill mounting holes and a cable access hole on the wall. Bracket should be installed at the
recommended height.
Assemble the bracket to the wall according to the figure above.
Slide the kiosk onto the wall plate. The kiosk will hang from the groove on the back of the kiosk
onto the mounting tab of the bracket.
Tighten the lock screw to secure to the wall.
tab
Groove
Tab
Lock Screw

Biometric Kiosk
User Manual
1.5 Packaging list
Table 1-2 Package list
No.
Item
Quantity
1
Biometric Kiosk
1
2
Power supply 12 VDC, 2A
1
3
Screw package
1
4
L hexagonal wrench
1
5
Bracket
1

Biometric Kiosk
User Manual
15
2Quick Configuration
2.1 System Login and Logout
Enter the device IP address in the address bar of the internet browser (device default
IP:192.168.0.120, the IP shows on device panel.). Press Enter to open the login page, as shown in
Figure 2-1. The camera does have a DHCP option that can be enabled to allow the camera to find
an IP address via a DHCP server; refer to the Networking section of this manual to set up DHCP.
Figure 2-1 Login interface
On first login, the default user name, admin, will display; user must click the arrow to use
activation to set the password and security configuration questions, as shown in Figure 2-2.

Biometric Kiosk
User Manual
Figure 2-2 Activation page
Figure 2-3 Security configuration questions
You can exit to the login page by clicking the Logout button in the top right corner of the page.
If you have forgotten your password, you can answer the security configuration questions to
verify identity and then set a new password, as shown in Figure 2-4.
If you have forgotten your password and answers to the security configuration questions, contact
technical support.
