Victorinox ALTIMETER User manual

ALTIMETERTM

14378 REV2010

The Altimeter comes equipped with a 3 volt lithium battery (Panasonic

CR 1225, 3V). To change the battery, use the mini-screwdriver to open the

battery compartment and replace the battery (see illustration below).

ALTIMETER BATTERY CHANGE

The altitude is displayed with a delay in order to substantially

extend battery life. For this reason, a Victorinox Altimeter

may not be used to measure altitudes during parachuting

or similar types of speed/air pressure sports.

IMPORTANT

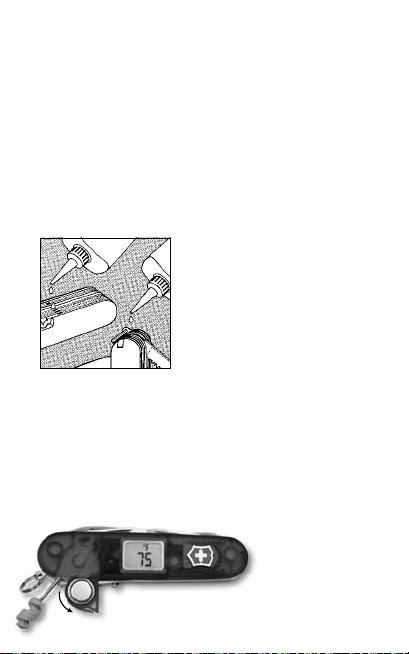

Extend each implement halfway, then

apply a few drops of oil at the base of that

implement. For blades that do not move

easily, open and close a few times in

warm water, then dry and oil. This care

will ensure a lifetime of faithful service.

MAINTENANCE

For more information about our complete line of products, please visit

us on-line at www.swissarmy.com.

OUR PRODUCTS

Victorinox produces and sells unique, high quality products

worldwide which are of practical use in differing areas of life:

Swiss Army Knives, Cutlery, Timepieces, Travel Gear, Fashion and

Fragrances.

The head office of the company is in Ibach, Schwyz, in the heart

of Switzerland, where founder Karl Elsener first set up his cutler’s

business in 1884 and, a few years later, designed the legendary

“Original Swiss Army Knife”.

OUR LEGACY

Victorinox Swiss Army, Inc., warrants this Victorinox product to be free

from defects in material and workmanship for the entire life of the

Swiss Army Knife. Electronic parts are covered by a two-year warranty.

If your Swiss Army Knife has a manufacturer’s defect covered by our

warranty, we will either repair or replace it, at our option, without

charge when it is returned to a Victorinox Authorized Dealer or sent to:

Service Center:

Victorinox Swiss Army, Inc. • 7 Victoria Drive • Monroe CT 06468-1212

Please include your name, address and phone number with your return.

WARRANTY

A damaged Swiss Army Knife not covered by the warranty can be

repaired for a nominal fee. Please return the damaged Swiss Army

Knife with a letter explaining the requested repair, to the above

address. You will then receive a letter confirming the cost of that repair

before the repair is done. Mail form with check, money order or credit

card information or call our customer service number to give approval

with credit card number.

REPAIRS

Only when you see

the name Victorinox®

stamped on the blade

can you be assured

you have the Original

Swiss ArmyTM Knife.

Replacement Parts

Call customer service or visit us at swissarmy.

com to find an Authorized

Dealer near you.

Customer Information • 1-800-442-2706

CUSTOMER SERVICE

Victorinox guarantees all Swiss Army Knives to be of first class

stainless steel, and provides a lifetime guarantee against any

defects in material and workmanship.

VICTORINOX GUARANTEE

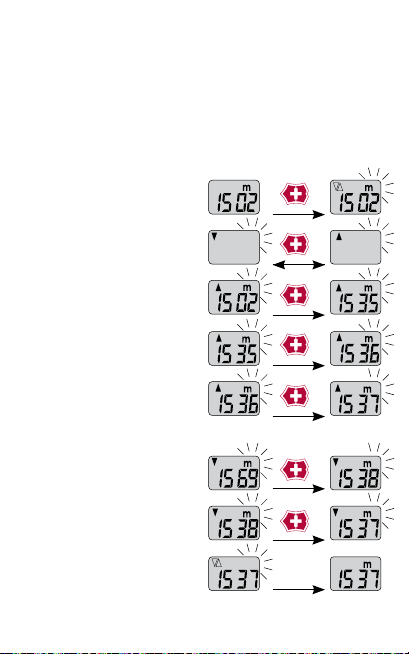

Adjusting the altitude

In altitude mode, press and hold the Shield for 4 seconds until the

up and down arrows appear. Release the Shield. The up and down

arrows will flash alternately. To increase the elevation displayed,

press the Shield repeatedly while the arrow is up. To decrease the

elevation, press the Shield repeatedly while the arrow is down.

Once the display shows the correct elevation, wait 4 seconds until the

display stops flashing. The display will switch itself off automatically

after 15 minutes if not in use.

oCoC

oCoF ft

oC ft

oF ft

oF m

oC ft

oC m

oF m

oC m

oCoC

oCoF ft

oC ft

oF ft

oF m

oC ft

oC m

oF m

oC m

oCoC

oCoF ft

oC ft

oF ft

oF m

oC ft

oC m

oF m

oC m

oCoC

oCoF ft

oC ft

oF ft

oF m

oC ft

oC m

oF m

oC m

oCoC

oCoF ft

oC ft

oF ft

oF m

oC ft

oC m

oF m

oC m

Calibration

Altimeters calculate altitude on the basis of air pressure. For this

reason, any altimeter has to be recalibrated prior to use owing to

daily fluctuations in air pressure. The altimeter has to be reset at

a known altitude (e.g. at home, at a railway station, mountain cottage,

etc.) to this altitude.

Turning on Digital Display

Press and hold the Cross and Shield for 4 seconds until information

appears on the display. Either the temperature or the altitude will

appear depending on how long the display was last set. To toggle

between Altitude and Temperature modes, press the Cross and Shield.

Setting Combinations

1 Large Blade

2 Small Blade

3 Corkscrew

4 Can Opener with

5 – Small Screwdriver

6 Bottle Opener with

7 – Large Screwdriver

8 – Wire Stripper

9 Reamer

10 Key Ring

11 Tweezers

12 Toothpick

13 Scissors

14 Multi-Purpose Hook

(Parcel Carrier)

15 Digital Altimeter

16 Digital Thermometer

17 Pressurized Ball Point Pen

18 Straight Pin

19 Patented Mini-Screwdriver

(20 Wood Saw – Altimeter Plus only)

ALTIMETER™

Operating ranges Altitude: -100 to +6000m (-300 to +18000 ft)

Temperature: -20º to +60ºC (0º to +140º F)

For shipping purposes the battery was put in upside down.

Remove battery and install correctly.

FEATURES

oCoC

oCoF ft

oC ft

oF ft

oF m

oC ft

oC m

oF m

oC m

oCoC

oCoF ft

oC ft

oF ft

oF m

oC ft

oC m

oF m

oC m

Press 4 seconds

Press 3 seconds

Press 6 seconds to increase

Press 1 second

Press 6 seconds

Press 1 second to decrease

After 10 seconds

the altitude is set

Press 4 seconds

Press 1 second

After 10 seconds

Celsius + Meters

Farenheit + Feet

Celsius + Feet

Farenheit + Meters

Celsius + Meters

chosen setting will remain

15,16

31991410

12 1117

6 8
