Victory VPP User manual

INSTALLATION AND OPERATING INSTRUCTIONS
for all
VPP and VPPD Models
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: [phone] | Fax: [phone] | Web: victoryrefrigeration.com
809-152A Rev. 08/30/2022 SEE BACK COVER FOR
WARRANTY REGISTRATION

User Manual for VPP & VPPD Victory
Rev. 08/22Victory2
WELCOME
CONTENTS
Safety ........................................................................................................................................................................ 3
Important Information .......................................................................................................................................... 4
Product Information .............................................................................................................................................. 5
Clearance and Placement ..................................................................................................................................... 6
Unpacking and Set Up ............................................................................................................................................7
Shelf Installation..................................................................................................................................................... 8
Drawer Maintenance ............................................................................................................................................. 9
Electrical..................................................................................................................................................................10

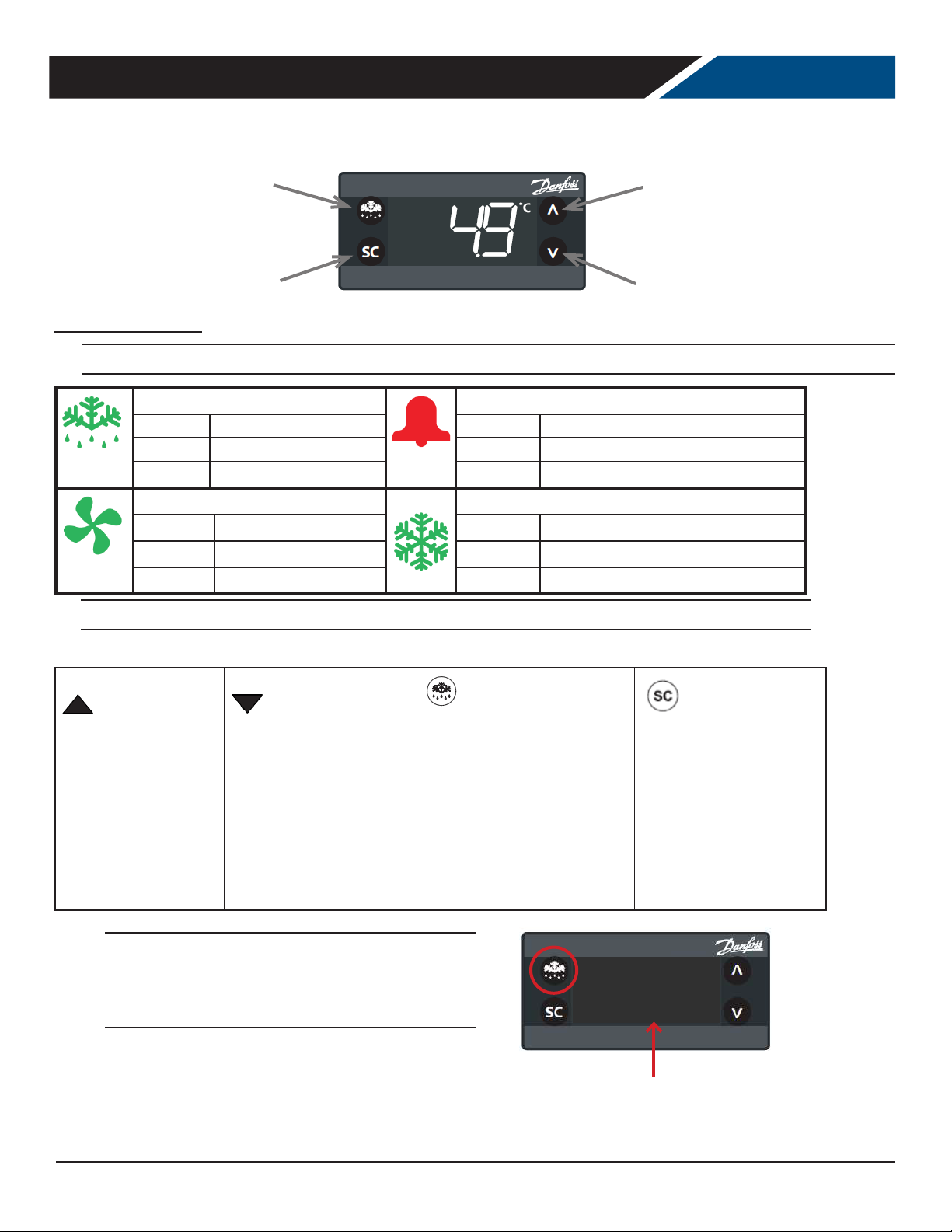

Using The Unit - Danfoss Controller.................................................................................................................. 11
Sequence of Operations Refrigerator......................................................................................................12

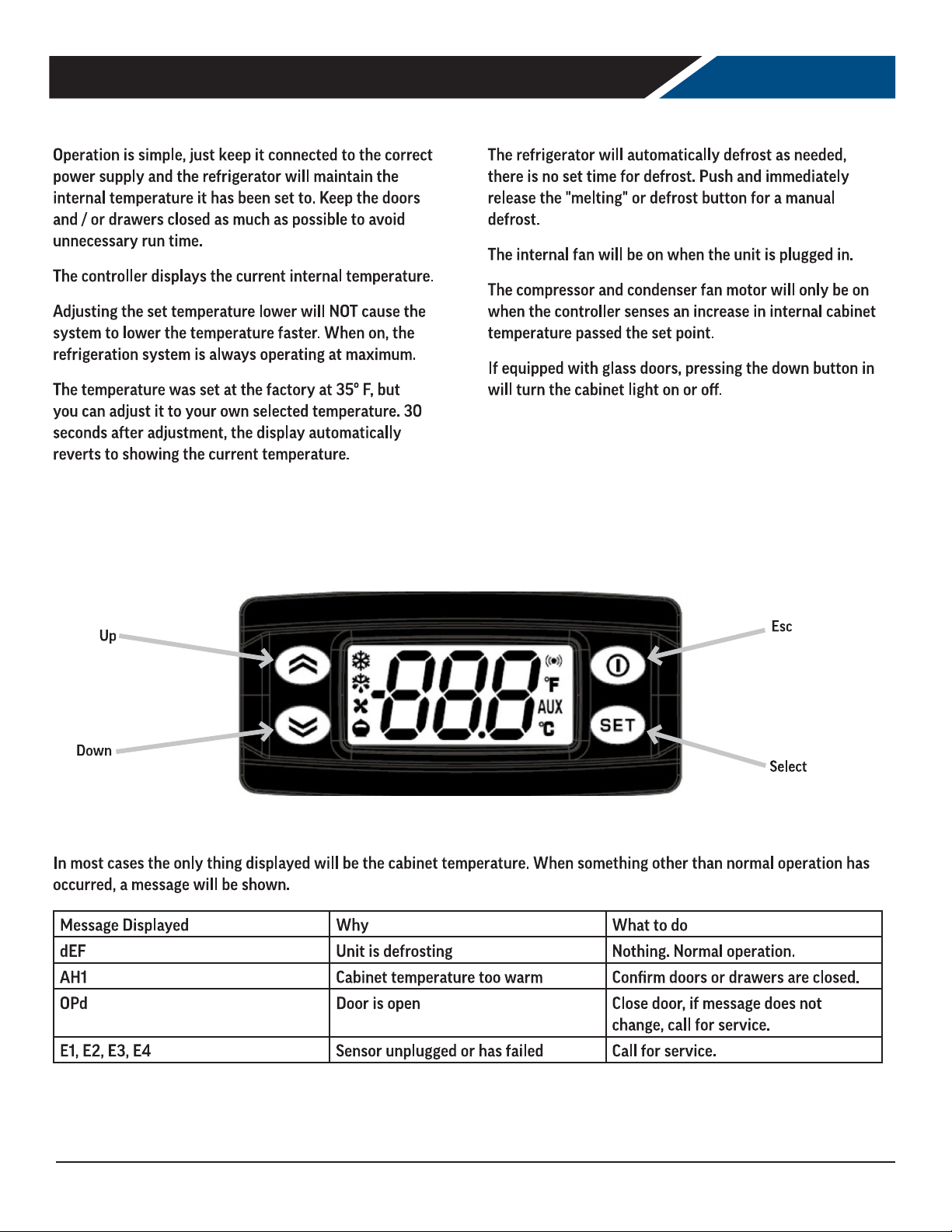

Using The Unit - Eliwell Controller ....................................................................................................................16
Sequence of Operations Refrigerator......................................................................................................17
Cleaning and Maintenance ................................................................................................................................20
Condenser Cleaning...............................................................................................................................................21
Methods For Cleaning Stainless Steel.............................................................................................................22
Help..........................................................................................................................................................................23
For The Service Tech............................................................................................................................................24
For The Service Tech - Wiring Diagram...........................................................................................................25
Limited Warranty .................................................................................................................................................27
Limited Warranty (continued)...........................................................................................................................28
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR USING, IF RECOMMENDED
PROCEDURES ARE NOT FOLLOWED, WARRANTY
CLAIMS MAY BE DENIED.
• Your warranty registration information is located with
this manual. Please complete the card and submit it to
Victory Refrigeration within TEN days of installation.
Failure to properly register equipment may limit or
void the warranty.
• Victory Refrigeration reserves the right to
change specications and product design without
notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions, or
replacements for previously purchased equipment.
Thank you for purchasing a Victory cabinet. This series
has passed our strict quality control inspection and meets
the high standards set by Victory Refrigeration! You have
made a quality investment that with proper maintenance
will give you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit. If you
have any questions, Please call our Technical Service
Department at [phone]. 8:00 AM to 5:00 PM EST.

User Manual for VPP & VPPD Victory
Rev. 08/22 Victory 3
SAFETY
This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However,
safe operation and maintenance are your responsibilities.
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Victory recommended technician certied to
repair R290 equipment.
• Use ONLY Victory factory service parts. Use of non
OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the Caution and Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION

User Manual for VPP & VPPD Victory
Rev. 08/22Victory4
IMPORTANT INFORMATION
This unit is intended to be used in a commercial application. That includes bars and restaurants.
If installed in a residence some commercial service companies may not be able to service it on site.
The manufacturer has designed and produced this machine with the nest in materials. The manufacturer assumes no
liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.
Limitations
The machine is designed for use indoors in a controlled
environment. It must be kept dry, not overheated or
subjected to excessive cold. May only be connected to
a dedicated electrical circuit. Extension cords are not
permitted.
Minimum Maximum
Voltage 103.5 126.5
Room Air Temp 50º F 100º F
Air Flow, All Models
Agency Approvals
These marks appear on the dataplate or serial tag, located
in the inside of the left wall. The dataplate also contains
the model and serial numbers as well as electrical
requirements.

User Manual for VPP & VPPD Victory
Rev. 08/22 Victory 5
Model Cabinet Dimensions
w x d x h (Inches) Door Count Drawers Full Load Amps
Compressor
HP
Refrigerant Type /
Charge (g) / Charage
(oz)
VPP46HC 46 1/8 x 36 7/8 x 53 1/8 1 -
4.5
1/2
R-290 / 105 / 3.5
VPP60HC 60 1/8 x 37 x 53 1/4 2 -
VPP67HC 67 1/8 x 37 x 53 2 -
VPP72HC 72 1/8 x 37 x 53 3/8 2 -
VPP93HC 93 1/8 x 37 x 53 1/8 3 - 7.8 R-290 / 120 / 4.05
VPP119HC 118 7/8 x 37 x 53 1/8 4 -
VPPD46HC-2 46 1/8 x 37 x 53 1/4 - 2
4.5 R-290 / 105 / 3.5
VPPD46HC-3 46 1/8 x 36 7/8 x 53 1/8 - 3
VPPD60HC-2 60 1/8 x 37 x 53 1/4 - 2
VPPD60HC-3 60 1/8 x 37 x 53 1/4 - 3
VPPD67HC-2 67 1/8 x 37 x 53 1 2
VPPD67HC-3 67 1/8 x 37 x 53 1 3
VPPD67HC-4 67 1/8 x 37 x 53 - 4
VPPD67HC-6 67 1/8 x 37 x 53 - 6
VPPD72HC-2 72 1/8 x 37 x 53 3/8 1 2
VPPD72HC-3 72 1/8 x 37 x 53 3/8 1 3
VPPD72HC-4 72 1/8 x 37 x 53 3/8 - 4
VPPD72HC-6 72 1/8 x 37 x 53 3/8 - 6
VPPD93HC-2 93 1/8 x 37 x 53 1/8 2 2
7.8 R-290 / 120 / 4.05
VPPD93HC-3 93 1/8 x 37 x 53 1/8 2 3
VPPD93HC-4 93 1/8 x 37 x 53 1/8 1 4
VPPD93HC-6 93 1/8 x 37 x 53 1/8 - 6
VPPD119HC-2 118 7/8 x 37 x 53 1/8 3 2
VPPD119HC-3 118 7/8 x 37 x 53 1/8 3 3
VPPD119HC-4 118 7/8 x 37 x 53 1/8 2 4
VPPD119HC-6T 118 7/8 x 37 x 53 1/8 2 6
VPPD119HC-6 118 7/8 x 37 x 53 1/8 1 6
VPPD119HC-8 118 7/8 x 37 x 53 1/8 - 8
VPPD119HC-9 118 7/8 x 37 x 53 1/8 1 9
Height includes casters.
PRODUCT INFORMATION
• All models will maintain product temperature between 36º F and 38ºF.
• Right side condensing unit placement is standard, left side is optional and must be specied at time of order.
• All models are 115 volts, 60 Hz AC. All models have a 8 foot power cord with 5-15P NEMA plug
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE FOR THE
MOST UP TO DATE AND ACCURATE VALUES.
• There are no access valves on the refrigeration system.

User Manual for VPP & VPPD Victory
Rev. 08/22Victory6

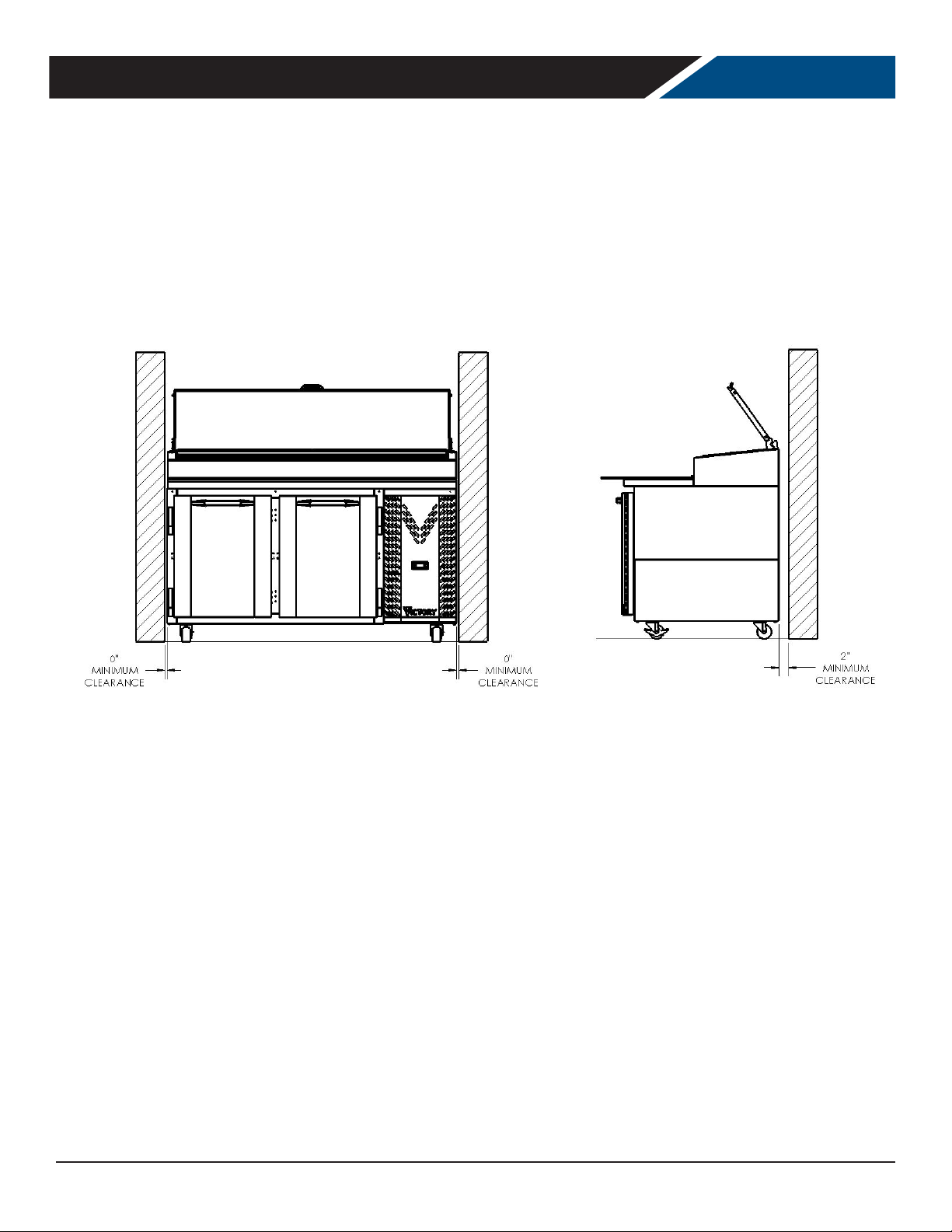

CLEARANCE AND PLACEMENT
Placement
Consider the following when selecting a location for your cooler:
• Clearance: 2 inches at back. None at sides.
• Floor Load: the oor on which the cooler is located must be even and level, free from vibrations, and strong enough to
support the combined weights of the unit and maximum product load.
• Ventilation: Grille area at front must be free and clear of any object or wall.
• Power Outlet: Dedicated power outlet is located within 8 feet of length of cord.

User Manual for VPP & VPPD Victory
Rev. 08/22 Victory 7
UNPACKING AND SET UP
Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is
suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. Do
NOT contact the manufacturer.
Uncrating
Tools Needed: ¾” box wrench, adjustable wrench, level, at
head screw driver, and box cutter.
1. Remove the cardboard top capping, all clear tape,
and all staples including those at the bottom of the
cardboard carton and skid.
2. Start from the top of the carton. Using the box cutter,
carefully make one continuous cut to the bottom of the
skid. Remove cardboard carton and discard.
Note: additional clear plastic protective wrap is applied
directly to any product with a glass door.
3. Move unit as close to nal position as possible before
removing the skid.
Note: The skid must be removed before the casters or
legs can be attached.
Do NOT tip unit on its front or sides. If tipped onto the back,
unit must not be started for 3 hours.
Skid Removal and Caster Attachment
Tip the unit forward and remove the skid.
Risk of personal injury.
Unit must be securely supported
while attaching casters or legs.
WARNING
1. Remove the shipping bolts using the ¾” box wrench while
cabinet is held in one direction. Repeat the process while
the cabinet is held in the opposite direction.
2. None of the threads on the leg or caster stem should be
visible once screwed in.
3. Tilt the cabinet in one direction approximately 8” and
block it securely with pieces of 2x4 lumber or other
suitable material.
4. Thread the stem casters or legs into the ½ -13 holes in
the bottom of the cabinet. Tighten by hand as much
as possible. Some models may already have levelers
installed. If so, then the levelers will need to rst be
removed and discarded.
5. Once the caster or leg cannot be turned any further,
use a 3/4 inch wrench to tighten the nut in between the
mounting plate and the wheel of the caster until snug.
6. Repeat this procedure with unit secured in the opposite
direction so as to access the remaining legs/casters/
levelers
7. If plate casters or legs are installed instead of stem
casters or legs, then repeat step 3 above and secure
the plate with either #14 AB screws, or ¼-20 screws,
depending upon which are required.
8. If levelers are employed, then repeat step 3 above and
thread the leveler in place. Then repeat step 6.
Leveling:
Cabinets must be leveled when installed. Level should be
measured on the headrail.
Failure to level your cabinet may result in door not sealing,
closing correctly, or condensed water draining not draining
properly.
For cabinets with legs, rotate the foot of the leg with an
adjustable wrench to achieve desired height for leveling.
For cabinets with casters, leveling can be achieved by
placing large washers in between the ½’ stud and the holes
located on the bottom of the case.
Do NOT loosen casters to level the
cabinet. Casters MUST be tightly
secured to cabinet for full strength.
Install or attach any accessories that will be used
Remove any plastic covering the stainless steel.
CAUTION

User Manual for VPP & VPPD Victory
Rev. 08/22Victory8

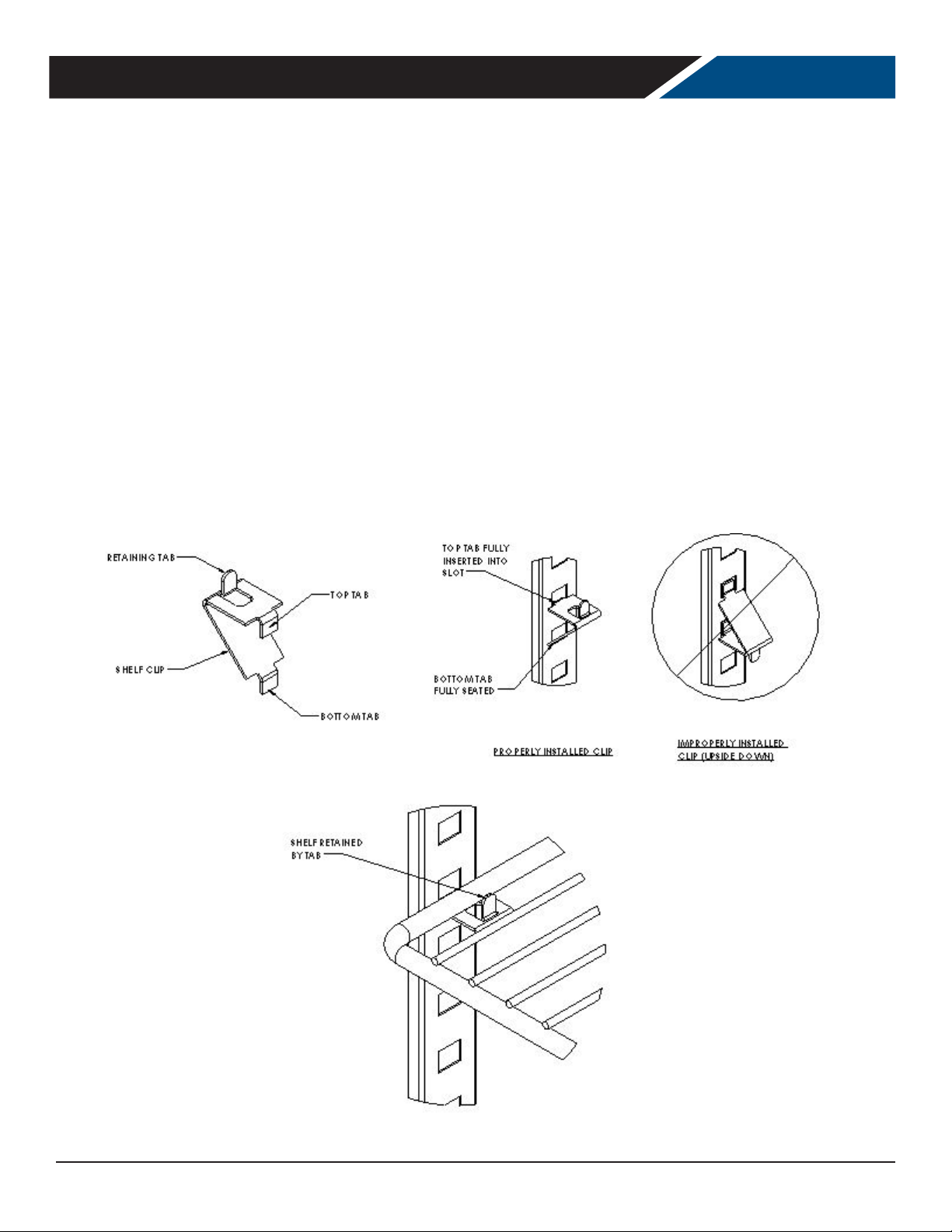

1. Determine the proper location for the shelf clips.
2. Insert the top tab of the shelf clip into the desired
hole of the pilaster. The retaining tab MUST be facing
up as shown.
3. Rotate the clip downwards and insert the bottom tab
into the matching hole in the pilaster. The clip may
need to be squeezed slightly during installation.
4. Install all remaining clips.
5. Install shelves onto clips with the product retention
bar facing up. Be careful not to dislodge clips during
installation.
6. Place shelves so that the retaining tab on the clip
captures the shelf as shown.
7. Conrm that the shelf is resting on ALL 4 clips and
that the clips are securely attached to the pilasters.
8. Improper shelf clip installation could cause the shelf
and / or the product on it to fall, resulting in damage
to the unit and possible bodily injury.
9. Do NOT overload the shelves. The unit is designed to
use all shelves that are supplied in an equally spaced
manner. Contact Victory customer service if fewer
shelves or a dierent conguration to ensure shelf
overloading will not occur.
SHELF INSTALLATION

User Manual for VPP & VPPD Victory
Rev. 08/22 Victory 9
Drawer models are shipped with the drawers already
installed in the cabinets. Drawers are designed with slides
which have locking mechanisms to prevent drawers from
coming o cabinets during normal opening and closing
operations.
See Illustration:
Drawers and slides can be removed from a
cabinet for cleaning purposes. To remove
a drawer from a cabinet follow these
instructions:
1. Open the drawer to full extension
2. Push the white locking tabs forward
on both sides of the drawer
3. Press down the back of the tabs
4. Slide the drawer out of the cabinet
5. To remove the sliding member (Middle
slide), press the metal tab up and slide
it
6. To reinstall the sliding member, press the metal tab up
and slide it in
7. To reinstall drawer, push the locking tab forward and
press the back of the tab down
8. Align the drawer slide members and moving slide
members
9. Slide the drawer in and lock the slide by pushing the
front of the locking tab down and in
DRAWER MAINTENANCE

User Manual for VPP & VPPD Victory
Rev. 08/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
front grille area, and cool air will ow from the inside
blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it is ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL

User Manual for VPP & VPPD Victory
Rev. 08/22 Victory 11
USING THE UNIT  DANFOSS CONTROLLER
Operation is simple, just keep it connected to the correct
power supply and the refrigerator will maintain the
internal temperature it has been set to. Keep the doors
and / or drawers closed as much as possible to avoid
unnecessary run time.
The controller displays the current internal temperature.
Adjusting the set temperature lower will NOT cause the
system to lower the temperature faster. When on, the
refrigeration system is always operating at maximum.
The temperature was set at the factory at 38ºF, but
you can adjust it to your own selected temperature. 30
seconds after adjustment, the display automatically
reverts to showing the current temperature.
The refrigerator will automatically defrost as needed,
there is no set time for defrost. Push and immediately
release the "melting" or defrost button for a manual
defrost.
Note: Holding the defrost button in too long will shut the
controller o.

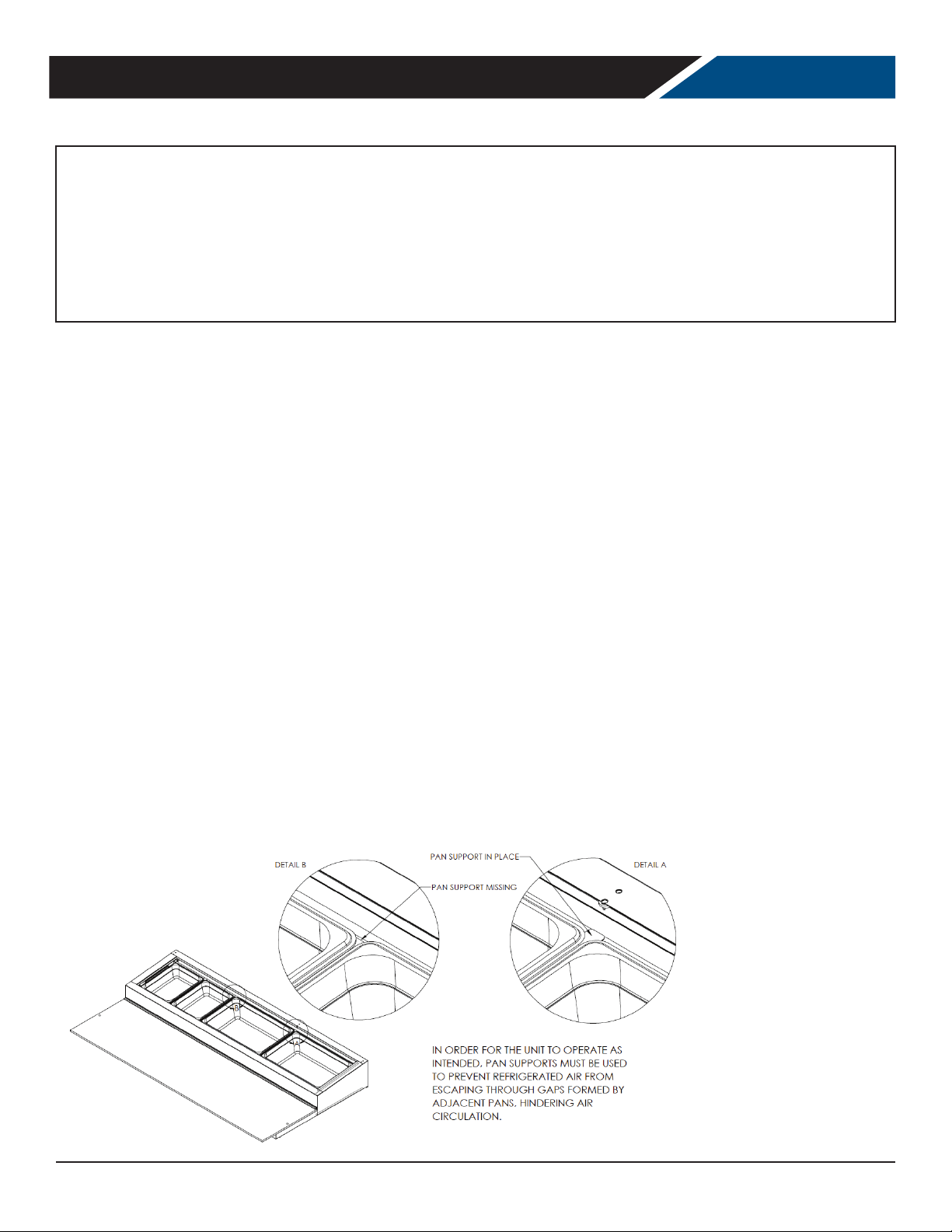

The pans must be kept in place for proper temperature
control.
The internal fan will be on all the time.
The compressor and condenser fan motor will only be on
when the controller senses an increase in internal cabinet
temperature passed the set point.
If equipped with glass doors, holding the SC button in will
turn the cabinet light on or o.
38.0
oF
Select
Defrost Increase
Decrease
In most cases the only thing displayed will be the cabinet temperature. When something other than normal operation has
occurred, a message will be shown.
Message Displayed Why What to do
dEF Unit is defrosting Nothing. Normal operation.
Hi Cabinet temperature too warm Conrm doors or drawers are closed.
dOr Door is open Close door, if message does not
change, call for service.
LEA Compressor run time too long Check doors or drawers closed. If yes,
call for service.
E01, E02, E03, E04 Sensor unplugged or has failed Call for service.

User Manual for VPP & VPPD Victory
Rev. 08/22Victory12
SEQUENCE OF OPERATIONS REFRIGERATOR  DANFOSS CONTROLLER
0123ÿ567869ÿ3ÿÿÿÿ223623
ÿ !"#$%!'(

User Manual for VPP & VPPD Victory
Rev. 08/22 Victory 13
Electronic Controller
Control Panel Display
Note: Defrost is manual, LED indicator is inoperative.
Defrost LED Alarm LED
On xed: Defrost active On xed: ALARM Present
O: Defrost is o Flashing: ALARM Silenced
O: No Alarm
Fan LED Compressor LED
On xed: Fan active On xed: Compressor active
O: Fan O Flashing: Delay, protection or activation blocked
O: No Alarm
Keyboard Functions
UP
Quick press and release
• Increases Set Point
Long press and release
• Increases display brightness
DOWN
Quick press and release
• Decreases Set Point
Long press and release
• Decreases display brightness
DEFROST (ESC)
Quick press and release
• Activates manual defrost
Long press and release
• Controller enter stand-by mode
SET (ENTER)
Quick press and release
• Toggles lights on/o
Long press and release
• Toggles display °F/°C
NOTE: When switched on, the instrument panel performs a lamp test for a few seconds.
UP
DOWN
DEFROST (ESC)
SELECT (OK)
Note: When the controller is in a Standby Mode, a
blue dot will be displayed as shown here. To switch
out of Standby Mode, push and release the Defrost
button.
.

User Manual for VPP & VPPD Victory
Rev. 08/22Victory14
Control Panel Connections
Changing the Set point

User Manual for VPP & VPPD Victory
Rev. 08/22 Victory 15
0123ÿ567869ÿ3ÿÿÿÿ223623
ÿ !"#$%!'(

User Manual for VPP & VPPD Victory
Rev. 08/22Victory16
USING THE UNIT - ELIWELL CONTROLLER
0123ÿ567869ÿ3ÿÿÿÿ223623
ÿ !"#$%!'(

User Manual for VPP & VPPD Victory
Rev. 08/22 Victory 17
SEQUENCE OF OPERATIONS - REFRIGERATOR - ELIWELL CONTROLLER
0123ÿ567869ÿ3ÿÿÿÿ223623
ÿ !"#$%&!'(
ÿ
ÿ
ÿ
*+,-./+-012-ÿ4.15ÿ67.4+77ÿ8291-277+ÿ :+;+-0/+<=.ÿ
>?@A?BC?ÿEFÿEG?HIJKEB>ÿH?FHKL?HIJEHÿ
MNOÿQORQSTOQUVWQÿWXOQUVOYÿZUYO[ÿW\ÿVNOÿUSQÿVO]XOQUV^QOÿ]OUY^QO[ÿZ_ÿVNOÿXQWZOÿ`WaUVO[ÿUVÿVNOÿQOV^Q\ÿUSQbÿ
ÿdeÿdggÿ
hdijdekelÿdjkmnlodeÿ hdelmdppkmÿ
nhlodeÿ djkmnlodeÿ hdelm
dppkmÿ
nhlodeÿ
hdijmkqqdmÿ
rW]XQOYYWQÿV^Q\YÿW\ÿ
sNO\ÿVNOÿUSQÿ
VO]XOQUV^QOÿUVÿVNOÿ
XQWZOÿSYÿUZWtOÿVNOÿ
Y^]ÿWRÿVNOÿYOVÿXWS\Vÿ
uÿvÿ
MNOÿrW]XQOYYWQÿrW\VUaVÿ
SYÿO\OQTSwO[ÿ
rW]XQOYYWQÿV^Q\Yÿ
WRRÿsNO\ÿVNOÿUSQÿ
VO]XOQUV^QOÿUVÿ
XQWZOÿSYÿOx^U`ÿVWÿ
WQÿ`OYYÿVNU\ÿVNOÿ
YOVÿXWS\Vÿ
MNOÿrW]XQOYYW
QÿrW\VUaVÿ
SYÿ[OyO\OQTSwO[ÿ
z{|u}~ÿyÿMOQ]S\U`ÿ
ÿ z{|u}~ÿyÿMOQ]S\U`ÿÿ
hdekeqkmÿgneÿ
MNOÿrW\[O\YOQÿ
U\ÿV^Q\YÿW\ÿsNO\ÿ
VNOÿrW]XQOYYWQÿSYÿ
Q^\\S\Tÿ
MNOÿrW\[O\YOQÿU\ÿSYÿ
sSQO[ÿ[SQOaV`_ÿVWÿVNOÿ
rW]XQOYYWQÿ\WVÿVNQW^
T
Nÿ
VNOÿaW\VQW``OQÿ
MNOÿrW\[O\YOQÿU\ÿ
V^Q\YÿWRRÿsNO\ÿVNOÿ
rW]XQOYYWQÿSYÿ\WVÿ
Q^\\S\Tÿ
MNOÿrW\[O\YOQÿU\ÿSYÿ
sSQO[ÿ[SQOaV`_ÿVWÿVNOÿ
rW]XQOYYWQÿ\WVÿVNQW^
T
Nÿ
VNOÿaW\VQW``OQÿ
knjÿgneÿ
MNOÿ{tUXWQUVWQÿ
U\ÿV^Q\YÿW\ÿsNO\ÿ
VNOÿ^\SVÿSYÿ
XWsOQO[ÿW\bÿ
MNOÿ{tUXWQUVWQÿU\ÿSYÿ
sSQO[ÿVWÿaW\YVU\VÿXWsOQÿ
MNOÿ{tUXWQUVWQÿU\ÿ
V^Q\YÿWRRÿsNO\ÿVNOÿ
^\SVÿSYÿ^\X`^TTO[ÿ
WQÿX^VÿS\VWÿYVU\[Z_bÿ
MNOÿ{tUXWQUVWQÿU\ÿSYÿ
sSQO[ÿVWÿaW\YVU\VÿXWsOQÿ
W]Oÿ]W[O`YÿsS``ÿZOÿ
sSQO[ÿVWÿVNOÿRU\ÿQO`U_ÿ
z{|u}~ÿyÿMOQ]S\U`ÿ
ÿ
W]Oÿ]W[O`YÿsS``ÿZOÿ
sSQO[ÿVWÿVNOÿRU\ÿQO`U_ÿ
z{|u}~ÿyÿMOQ]S\U`ÿ
ÿ
polÿ
MNOÿ`STNVÿsS``ÿV^Q\ÿW\ÿ
sNO\ÿVNOÿ[Ws\ÿ
Z^VVW\ÿSYÿ
XQOYYO[ÿzWQÿsNO\ÿVNOÿ
[WWQÿSYÿWXO\O[ÿsSVNÿ
YW`S[ÿ[WWQYÿ
MNOÿSTNVÿrW\VUaVÿSYÿ
O\OQTSwO[ÿ MNOÿ`STNVÿsS``ÿV^Q\ÿ
WRRÿsNO\ÿVNOÿ[Ws\ÿ
Z^VVW\ÿSYÿ
XQOYYO[ÿzWQÿsNO\ÿVNOÿ
[WWQÿSYÿa`WYO[ÿsSVNÿ
YW`S[ÿ[WWQYÿ
MNOÿSTNVÿrW\VUaVÿSYÿ[Oy
O\OQTSwO[ÿ
z{su}~ÿÿMOQ]S\U`ÿÿz{su}~ÿÿMOQ]S\U`ÿÿ
ÿ
ÿ
ÿ
ÿhÿ
ÿ ÿ ÿ ¡ÿ ÿ
¢£¤¥¡ÿ
h¦§¨ÿl¨©ªÿ«ÿq¨ÿªÿ¬ÿÿdeÿdeÿdeÿdeÿ®ÿdggÿ
h¦§¨ÿl¨©ª¨®¦¯®¨ÿ°±ÿq¨ÿªÿÿ²ÿÿdggÿdggÿdeÿdeÿ®ÿdggÿ
¨³®´ÿdggÿdggÿdeÿdeÿ®ÿdggÿ
ÿ
*+,-./+-012-ÿ4.15ÿ67.4+77ÿ8291-277+ÿ :+;+-0/+<=.ÿ

User Manual for VPP & VPPD Victory
Rev. 08/22Victory18
0123ÿ567869ÿ3ÿÿÿÿ223623
ÿ !"#$%!'(

User Manual for VPP & VPPD Victory
Rev. 08/22 Victory 19
0123ÿ567869ÿ3ÿÿÿÿ223623
ÿ !"#$%!'(

User Manual for VPP & VPPD Victory
Rev. 08/22Victory20
CLEANING AND MAINTENANCE
Cleaning Schedule:
Cabinet
Daily wipe down
Weekly interior
Condenser coil
Quarterly cleaning
Gaskets
Daily inspection, check
that hinges are tight to
the cabinet.
Routine maintenance
Annually
Daily Exterior Cleaning
It is much easier to clean on a regular basis than to have to remove stains once they have built up.
1. Wash with a clean sponge and a mild detergent that
does not contain chlorine.
2. Rinse with clean water.
3. Dry with a soft cloth.
4. Polish with a soft cloth, wiping with the grain.
5. Wipe weekly with stainless steel cleaner.
Weekly Interior Cleaning
1. Remove all food, food related items and shelves. Store
the food at a safe temperature.
2. Disconnect power to the unit (unplug it or switch the
breaker o).
3. Remove all loose food particles from the inside walls,
oor, door liner and ceiling.
4. Scrub all interior surfaces and door gaskets with a
warm (100oF to 110oF) detergent solution and a soft
scrub brush.
5. Rinse with clean water and allow to air dry.
6. Return the shelves to the unit and secure them.
7. Restore power.
8. Return food to the unit when it has reached a
safe temperature.
Pan Support Note
