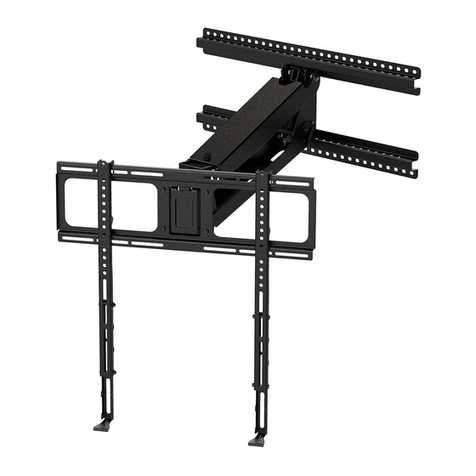

VideoSecu ML531BEV3 User manual

Installation Instruction
Tools Needed for Assembly
Stud finder (for wood stud wall)
Pencil Mark
Electric drill
Drill bit (for wood stud wall)
Masonry drill bit (for concrete wall)
Ratchet
Measuring tape
Phillips screwdriver
Wood Stud Wall Installation
Step 1. Locate the Wood Studs
Wall studs run vertically (up and down) inside the wall, behind the
drywall or plaster. The wall plate must be mounted to wood stud.
1-1. Using an awl, a thin nail, a small drill bit, or an edge to edge stud finder,
1-2. Mark the centerline of the stud.
Step 2. Drill Pilot Holes
2-1. Hold the wall plate so the holes line up with the stud center lines.
2-2. Level the wall plate and mark the mounting hole position.
2-3. Drill a pilot hole at the marked location using a power drill
and a 5/32” drill bit.
Visit our website at www.VideoSecu.com © 2016 VideoSecu.com
Use a qualified professional to properly install. VideoSecu is not liable for the improper use or installation of
its products. Hardware provided is for mount through standard thickness drywall into wood studs, or mount to
solid concrete wall. Installers are responsible to provide hardware for other types of mounting situations.
For metal stud wall or other hollow wall installations, toggle bolt anchors can be purchased from your local
hardware store, consult a specialist at your local hardware store for select and use special anchors.
Level
drill depth
2-1/4”
drill bit diameter
5/32”
1
finds the edges of the stud.
STUD
Step 3. Mount Wall Bracket
Using the provided lag bolts, tighten
each bolt with a socket wrench. Do
not use power drill and do not over
tighten the lag bolts.
ST6.3×65
Self-tap screw
M6 Flat washer
STUD

Visit our website at www.VideoSecu.com © 2016 VideoSecu.com
2
Separate the TV plate from the mount by remove the two screws at the side.
Screws
Step 4. Remove the TV Plate from the Bracket
TV plate
Step 6. Attach TV plate to the TV or Monitor
6-1. Many TVs come with screws already in the wall mounting holes, you can use them. The hardware pack
also includes the most common size screws. Hands thread screws into the threaded inserts on the back
of your TV to determine the correct screw size and length. Some TVs may require specific hardware,
which is not provided. In such case, contact the TV manufacture to identify correct size and purchase
them from your local hardware store.
6-2. Using screws and washers attach the TV plate to the back of the TV If your TV has a flat back, use shorter
screws. For TV with cured back or recessed screw holes, using plastic sleeve spacer and long screws as
needed. Use spacer and long screws also can increase the space between TV plate and the TV, for
cables and better air circulation.
t
Flat
washer
Plastic sleeve
M4~M8 Screw
Back of the TV
FOR TV WITH FLAT BACK FOR TV WITH CURVED BACK
Flat
washer
M4~M8 ScrewBack of the TV
Step 5. Insert the plastic covers
Insert the two plastic covers on the wall plate.
Plastic covers
WALL
Note: The flat washers are only used for M4 or M5 screw.

Visit our website at www.VideoSecu.com © 2016 VideoSecu.com
3
6-4. For TV with mounting hole pattern 300 x 200mm (11 13/16 x 7 7/8 inches),
400 x 200mm (15 3/4 x 7 7/8 inches) install the optional adapter kit as following.
400mm (15-3/4”)
300mm (11-13/16”)
200mm (7-7/8”)
M6*6
Screw
6-3. For TV with smaller mounting holes pattern (VESA 200x100mm or 100x100mm), moving the plate up
or down to select different mounting positions, to avoid block the input panel.
100mm
100mm
WARNING! PLEASE SELECT THE PROPER SCREW LENGTH FOR YOUR FLAT
PANEL BY HAND TIGHTENING TO CHECK YOUR FLAT PANELS THREAD DEPTH.
Nut

Visit our website at www.VideoSecu.com © 2016 VideoSecu.com
4
M6*6
Screw
6-5. For TV with mounting hole pattern 300 x 300mm (11 13/16 x 11 13/16 inches),
400 x 400mm (15 3/4 x 15 3/4 inches) install the optional adapter kit as following.
400mm (15-3/4”)
300mm (11-13/16”)
300mm (11-13/16”)
Nut
6-6. For TV with mounting hole pattern 200 x 300mm (7 7/8 x 11 13/16 inches),
200 x 400mm (7 7/8 x 15 3/4 inches) install the optional adapter kit as following.
200mm (7-7/8”)
300mm (11-13/16”)
400mm (15-3/4”)
400mm (15-3/4”)
M6*6
Screw
Nut
Tips: After add extension adaptor kit to the TV plate, if long slot hole not align with TV mounting holes,
loosen the screws attach the adaptor with the TV plate, so you can adjust the adaptors align with TV
screw mounting holes, put TV mounting screws into the TV mounting hole first, then tighten the adaptors.
Loosen the screws

Visit our website at www.VideoSecu.com © 2016 VideoSecu.com
5
Step 8. Adjusting the TV display
The TV or monitor can be adjusted to desire location by tilt and swivel the bracket.
8-1.
Spanner S=13
Cable
TV
This mount includes a cable management feature.
8-2.
WALL
Step 7. Hang the TV to the Wall Plate
Hang TV onto wall bracket, and then fix the lock nut tightly.
TV WALL
Screws
TV WALL
TV
WALL
±5°
Tilt Angle: +5° -15°
Pivot: +5° -5°
Tension is pre-set at the factory. Some time you may loosen arm adjustment bolts to adjust tension.
Tighten the bolts after moving the TV to desired location.
8-3.
+5°
-15°
~~

Visit our website at www.VideoSecu.com © 2016 VideoSecu.com
Step 2. Install Anchors
Find the plastic concrete anchors(do not use it in wood stud wall). Place an anchor in each hole. Tap each
anchor flush with the wall using a hammer.
6
Concrete Wall Installation
Step 1. Drill Mounting Holes
1-1. Hold the wall plate against the wall where you want to mount the screen.
1-2. Level the mounting plate using level, mark off holes to be used for securing the wall
plate and place the wall plate aside.
1-3. Using a 3/8” Masonry bit, drill 2.5 inch deep holes at the spots marked in the previous step.
Self-tap screw
ST6.3×65
Flat washer M6
Plastic anchor M10
Concrete wall
Swivel Rotate Against Wall
+5°
-15°
±90°
±180°
±180°
Level the TV and then tighten back the nut
