VIDIR BEDLIFT ST327-45R User manual

BEDLIFT ST327-45R
Service Manual

BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
TABLE OF CONTENTS
Bedlift ST327-45R - Service Manual
INTRODUCTION ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 1
SAFETY
Important Safety Instructions ��������������������������������������������������������������������������������������������������������������������������������������������������� 2
Safety Hazards��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3
Bedlift Electrical Installation������������������������������������������������������������������������������������������������������������������������������������������������������� 4
MACHINE SPECIFICATIONS �������������������������������������������������������������������������������������������������������������������������������������������������������������� 5
OPERATING INSTRUCTIONS
Operating the Bedlift�������������������������������������������������������������������������������������������������������������������������������������������������������������������� 6
Loading the Bedlift������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 7
Unloading the Bedlift �����������������������������������������������������������������������������������������������������������������������������������������������������������������10
MACHINE OPTIONS
Vertical Security Gate �����������������������������������������������������������������������������������������������������������������������������������������������������������������11
Platform Bridge Plate������������������������������������������������������������������������������������������������������������������������������������������������������������������12
Extended Ramps ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������13
COMPONENTS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������14
Machine Overview�����������������������������������������������������������������������������������������������������������������������������������������������������������������������14
Rear Main Tubes - Bottom���������������������������������������������������������������������������������������������������������������������������������������������������������15

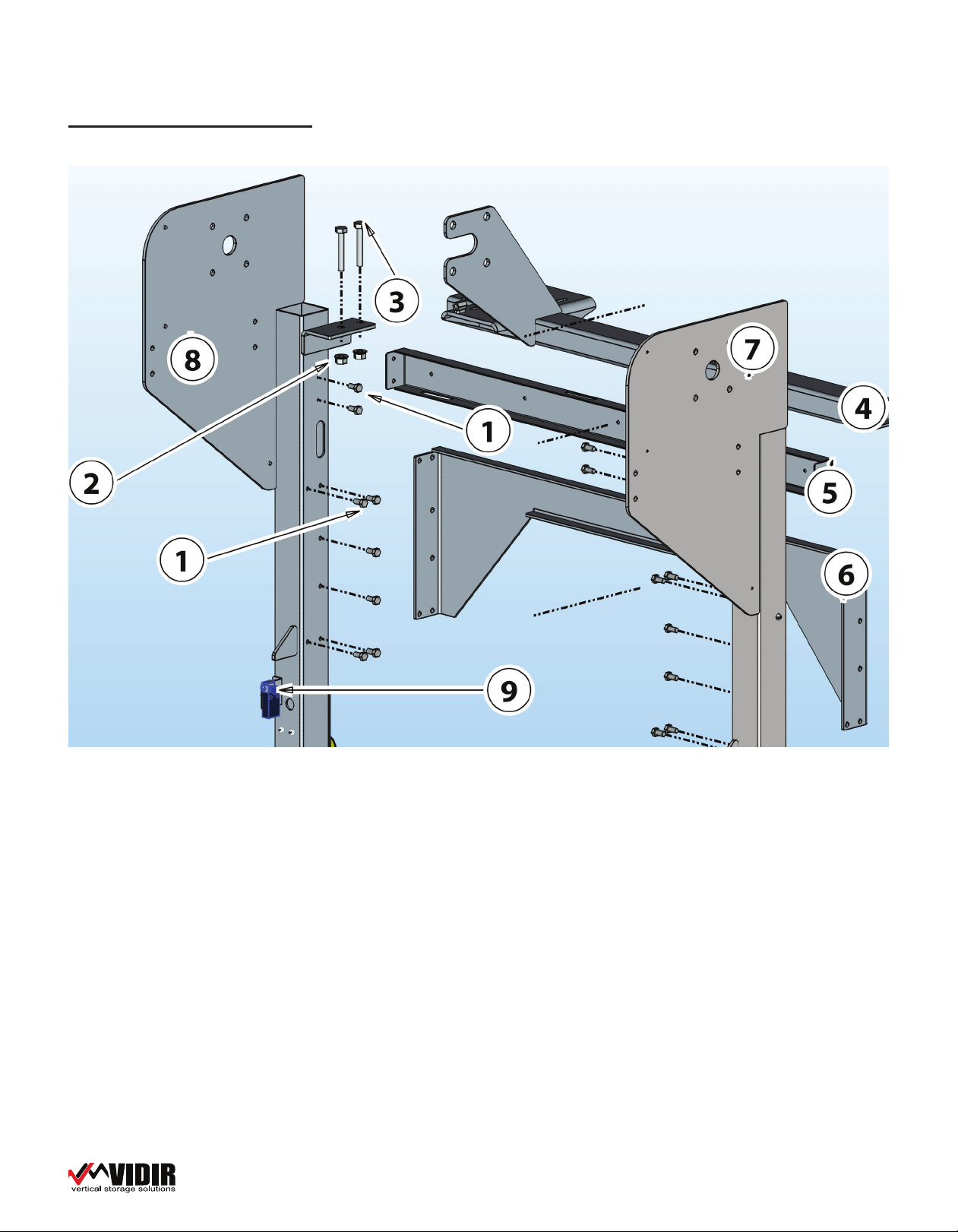

Rear Main Tubes - Top�����������������������������������������������������������������������������������������������������������������������������������������������������������������16
Front Main Tubes��������������������������������������������������������������������������������������������������������������������������������������������������������������������������17
Support/Side Tubes���������������������������������������������������������������������������������������������������������������������������������������������������������������������18
Drive System����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������19
Rear Shaft & Chains ���������������������������������������������������������������������������������������������������������������������������������������������������������������������20
Control Panel ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������21
Top Platform�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������22
Bottom Platform���������������������������������������������������������������������������������������������������������������������������������������������������������������������������22
Top Platform Detail����������������������������������������������������������������������������������������������������������������������������������������������������������������������23
Bottom Platform Detail��������������������������������������������������������������������������������������������������������������������������������������������������������������24
Chain Guard �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������25
Load Chain Guards ����������������������������������������������������������������������������������������������������������������������������������������������������������������������26
Bottom Side Bed Guides������������������������������������������������������������������������������������������������������������������������������������������������������������27
Bed Detection Sensors���������������������������������������������������������������������������������������������������������������������������������������������������������������27
Motor Covers ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������28
Rear Panels (optional)�����������������������������������������������������������������������������������������������������������������������������������������������������������������29
Side Panels (optional)�����������������������������������������������������������������������������������������������������������������������������������������������������������������30
Security Shutter (optional) �������������������������������������������������������������������������������������������������������������������������������������������������������31
Security Shutter Door Sensor ��������������������������������������������������������������������������������������������������������������������������������������������������32
Limit Switches �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������33
Electrical ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������35
VFD Electrical Connections ������������������������������������������������������������������������������������������������������������������������������������������������������38
Control Panel Electrical Connections������������������������������������������������������������������������������������������������������������������������������������39

BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
TABLE OF CONTENTS
Bedlift ST327-45R - Service Manual
WIRING SCHEMATIC ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������40
MAINTENANCE
Maintenance Schedule ��������������������������������������������������������������������������������������������������������������������������������������������������������������44
Preventative Maintenance Checklist�������������������������������������������������������������������������������������������������������������������������������������45
DOCUMENT LIST���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������46
RECOMMENDED SPARE COMPONENTS������������������������������������������������������������������������������������������������������������������������������������47
SHIPPING DIMENSIONS + WEIGHT ���������������������������������������������������������������������������������������������������������������������������������������������49
WARRANTY & LIABILITY �����������������������������������������������������������������������������������������������������������������������������������������������������������������50

Bedlift ST327-45R - Service Manual
Page 1
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
INTRODUCTION
This machine has been carefully designed and constructed to provide you with many years of dependable
service� It has been built to meet or exceed current UL or CSA standards� With proper care in operation and
maintenance, this machine will assist you in maximizing your eciency�
To ensure the utmost value and performance from your machine, please read this manual carefully to be
sure correct operation procedures are followed�
This manual provides you with operation, troubleshooting, and maintenance procedures for your machine�
However, if help is needed or if any of these procedures are unclear, please contact Vidir at 1-800-210-0141�
SERIAL NUMBER
Please be sure to record the serial number for any future service calls and parts ordering�
Serial No�_________________________________________________________________________________
IMPORTANT CAUTION NOTICE:
Vidir has made every eort to protect operators and others from injury due to mechanical parts movement
and electrical safety� As with any mechanical device, the operator is responsible to inspect the condition of
the machine prior to use and adhere to safe operating procedures at all times�
A factory approved Preventative Maintenance is recommended every 12 months or 100 hours, whichever
comes rst�
Information in this document is proprietary, condential, and property of Vidir Machine Inc� Disclosure or
duplication of this material is prohibited except by authorization of Vidir Machine Inc�
U.S. Office
Vidir Inc.
19 East Lehman St�
Lebanon, PA
17046 USA
Service: 1-866-821-2647
Toll Free: 1-866-898-4347
Phone: 1-717-270-1000
Fax: 1-717-270-1001
service@vidir.com
Head Office
Vidir Machine Inc.
Box 700
Arborg, Manitoba, Canada
R0C 0A0
Service: 1-866-821-2647
Toll Free: 1-800-210-0141
Phone: 1-204-364-2442
Fax: 1-204-364-2454
Service Fax: 1-204-364-3072

Bedlift ST327-45R - Service Manual
Page 2
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
SAFETY
Important Safety Instructions
Read this manual carefully to ensure familiarity with the controls and the proper use of the equipment�
The warnings and precautions contained in this manual DO NOT cover all potential dangers, and hazards
that may be encountered�
This manual is intended to provide basic safety guidelines for proper operation, maintenance, and servicing
of the machine�
WARNING – Risk of injury
- Installation and service of this machine should be performed by qualied service personnel�
- Only properly trained service personnel should have access to the interior components of the
machine�
- Electrical connections should be performed by qualied electricians�
- Operation must be performed by trained personnel� Never allow children or unauthorized per-
sons to operate the machine�
DANGER – To reduce the risk of electrical shock:
- Keep cord away from heated surfaces or areas where it can be easily damaged�
- Do not change current limit ratings of overload protectors� For further instruction please contact
our service line�
- Turn all switches to the o position and disconnect power to the machine before cleaning, main-
tenance, or repairs�
- Risk of electrical shock – Connect this machine to a properly grounded outlet only� See ground-
ing instructions�
- Keep the area of operation clear of all persons and potential hazards�
- Always shut o the main power switch before servicing the machine�
- Keep all guards and shields in place
Use this machine only for its intended purpose as described by these instructions�
Do not use attachments not recommended or approved by the manufacturer�
Never operate this machine if it has been damaged, has a damaged electrical cord, or if it is not working
properly� Keep all guards and shields in place�
Keep area clean and organized during operation�
For further instruction please contact our service line.

Bedlift ST327-45R - Service Manual
Page 3
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
SAFETY
Safety Hazards
Safety Hazard - Read Manual -read and understand operator’s manual and all other
safety instruction before using this machine�
Safety Hazard - Entanglement - loose clothing or jewelry could become entangled
or drawn in�
Safety Hazard - Crushing/Rolling - platform may present a hazard of crushing; hospital
bed may present hazard of rolling over toes or hands
when loading/unloading the machine�
Safety Hazard - Electrical shock/
Electrocution
- electrical circuits contain high voltages and may
cause shock or electrocution;
Cease all operation and lock out machine in any case where the machine is not operating as designed and
call Vidir Service�

Bedlift ST327-45R - Service Manual
Page 4
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
SAFETY
Bedlift Electrical Installation
Service: 1-866-821-2647 Oce: 1-800-210-0141 www�storevertical�com Page 1
Machine Name - Manual Name
2014Master-ElectricalConnection4-R-Apr2015.indd
SAFETY
R-Series Bedlift Electrical Installation
Locate a customer-supplied outlet near the Bedlift system� Power supplied to this outlet should be on a
dedicated/isolated* circuit (with an equal or less than 16A circuit breaker), including a dedicated/isolated
ground wire to the distribution source�
This circuit should match the electrical specications of the Bedlift�
Plug-in installation considerations: Power supply cord must NOT run through walls, ceilings, oors and simi-
lar openings in the building structure� Be sure to take measures to prevent physical damage to the power
supply cord� This includes proper routing of the power supply cord and provision for receptacle (socket
outlet) within reach of electrical cord length�
6ft (1�8m) electrical cord is supplied with Bedlift machine� Bedlift can be hardwired by a certied electrician�
*Note: “Dedicated/isolated” is dened as separate hot, neutral and ground wires from the customer distribution source/breaker panel to the
Bedlift junction box/receptacle� To avoid electrical interference, systems must never share wires with any external equipment�
Electrical cord from rear of front-load Bedlift
electrical box to customer supplied outlet�
Model 120V, 60 Hz 240V, 50Hz/60 Hz
15 Amp 10 Amp 15 Amp
ST327-45R X X
ST427-45R X
ST527-45R X
Plug NEMA 5-15 Type B Schuko (50Hz)/NEMA 6-15 (60 Hz)

Bedlift ST327-45R - Service Manual
Page 5
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
MACHINE SPECIFICATIONS
Standard capacity Bedlift maximum load limit: 600lbs/platform�
Maximum overall bed limits: width 44�5”- length: 95” - height: 26”�
Extra capacity Bedlift maximum load limit: 900lbs/platform�
Maximum overall bed limits: width 44�5”- length: 95” - height: 32”�
Max overall width: 44�5”
Max overall width: 44�5”
Max overall length: 95”
Max overall length: 95”
Max overall
height: 26”
Max overall
height: 32”
Additional specications:
Noise emissions: less than 70dB� Maximum altitude: 1000m� Temperature range: -10C to +40C�
Humidity: 5 - 95 % without dripping water conforming to IEC 60068-2-3
5 - 95 % without condensation conforming to IEC 60068-2-3

Bedlift ST327-45R - Service Manual
Page 6
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
Turn master switch (A) to ‘on’position�
Press up or down buttons (C) to lower/raise a loaded bed shelf� Follow unload/load bed
procedures as shown on next page�
Turn master switch (A) to ‘o’ position� This switch can be padlocked as necessary�
OPERATING INSTRUCTIONS
Operating the Bedlift

Bedlift ST327-45R - Service Manual
Page 7
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www�storevertical�com
OPERATING INSTRUCTIONS
Loading the Bedlift
1� Install Bedlift loading ramps, and align bed wheels to loading ramps� The bottom platform has
integrated ramps, and does not require the separate loading ramps�
2� Push bed onto platform and remove loading ramps�

Bedlift ST327-45R - Service Manual
Page 8
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www�storevertical�com
OPERATING INSTRUCTIONS
3� Remove loading ramps� Insert wheel stops�

Page 9
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www�storevertical�com
Bedlift ST327-45R - Master Manual
OPERATING INSTRUCTIONS
4� Press ‘UP’ button to raise platform�
5� Load the next bed, insert wheel stop and repeat until all platforms and ground level hold a bed�
6� The bottom bed is stored on the ground level�
7� It is only the top platform that engages the limit switches on the front right main tube

Page 10
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
Bedlift ST327-45R - Master Manual
OPERATING INSTRUCTIONS
Unloading the Bedlift
1� When lowering a platform to ground level, ensure the ground level bed has been removed and
there are no other obstructions.
2� Press and hold the “DOWN” button, and all platforms will lower and stop once the bottom platform has
reached ground level�
3� Remove the bottom platform wheel stops, and unload the hospital bed from the bottom platform�
4� Press and hold the “DOWN” button�
5� The next platform will lower and stop when the bottom platform has been reached�
6� Remove the platform wheel stops, install ramps and unload the hospital bed�
7� Continue until all platforms have been unloaded�

Page 11
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www�storevertical�com
Bedlift ST327-45R - Master Manual
MACHINE OPTIONS
Vertical Security Gate
Locking the security gate: Pull the gate downward from the open position until the gate passes over the
sensor wheel (shown in purple)�
Once the gate has passed over the sensor wheel, the Bedlift will not operate�
Pull the gate to the oor�
Lock the gate with supplied key turning counterclockwise as indicated on the decal�
Opening the security gate: Unlock the gate with the supplied key, turning clockwise as indicated on the
decal�
Push the gate upward from the oor�
Once the gate passes the sensor wheel, the Bedlift will operate normally�
The gate will stop when it reaches its top limit�

Page 12
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
Bedlift ST327-45R - Master Manual
MACHINE OPTIONS
Platform Bridge Plate
Bridge plates eliminate the gap between platform surfaces to accommodate hospital beds with a narrower
track (the spacing between the 2 front wheels)�
Three bridge plates per platform are
required (except for the bottom platform
which is supplied with 1 bridge plate as
standard equipment to store wheel stops)�
After the bridge plates are installed, wheel stops are stored on each platform�

Page 13
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
Bedlift ST327-45R - Master Manual
MACHINE OPTIONS
Extended Ramps
Available for front loading Bedlift ST3xx, ST4xx, ST5xx machines�
Not available for front loading Bedlift ST2xx machines�
Item................ Description...............................................................................................................part #
1������������������������Ramp, front lip mount (for Bedlift manufactured before May 23, 2014)���������������������� 5-69314
�����������������������������������������������������������������������(for Bedlift manufactured after May 23, 2014) ������������������������� 5-73512
not shown����Ramp, 28”, front lip mount (for Bedlift manufactured after May 23, 2014) ������������������ 5-77804

Bedlift ST327-45R - Service Manual
Page 14
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
COMPONENTS
Machine Overview
1������������������������Drive system����������������������������������������������������������������������������������������������������������������������������������������Page 19
2������������������������Rear shaft, load chains, drive chain tensioners�����������������������������������������������������������������������Page 20
3������������������������Control panel, platform limit switch�������������������������������������������������������������������������������������������Page 21
4������������������������Platforms ����������������������������������������������������������������������������������������������������������������������������������������������Page 22

Bedlift ST327-45R - Service Manual
Page 15
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
Bedlift ST327-45R - Master Manual
COMPONENTS
Rear Main Tubes - Bottom
Item................ Description...............................................................................................................part #
1������������������������3/8 X 1 1/2 hex bolt full thread gr5 unc ���������������������������������������������������������������������������������001-0342
2������������������������Ring snap ext 1/2 #cs50 ���������������������������������������������������������������������������������������������������������������116-0004
3������������������������Sprocket idler h40a18�������������������������������������������������������������������������������������������������������������������120-0039
4������������������������1/2 Flange nut gr5 unc�����������������������������������������������������������������������������������������������������������������004-0017
5������������������������1/2 X 1 1/2 crg bolt f�T� Gr5 unc �������������������������������������������������������������������������������������������������001-0069
6������������������������ Hbl btm crnr sprckt slider������������������������������������������������������������������������������������������������������������� 5-69030
7������������������������ Hbl main tube chn drv 3b bck lft����������������������������������������������������������������������������������������������� 5-69985
8������������������������ Hbl main tube chn drv 3b bck rt������������������������������������������������������������������������������������������������ 5-69983
9������������������������ Hbl bck btm brace �������������������������������������������������������������������������������������������������������������������������� 5-70356
10������������������������3/8 X 3/4 hex bolt gr5 unc��������������������������������������������������������������������������������������������������������001-0113

Bedlift ST327-45R - Service Manual
Page 16
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
COMPONENTS
Rear Main Tubes - Top
Item................ description ...............................................................................................................part #
1������������������������3/8 X 3/4 hex bolt gr5 unc�����������������������������������������������������������������������������������������������������������001-0113
2������������������������3/8 Flange nut gr5 unc�����������������������������������������������������������������������������������������������������������������004-0015
3������������������������3/8 X 2 3/4 hex bolt gr5 unc�������������������������������������������������������������������������������������������������������001-0121
4������������������������3/8 X 1 1/4 hex bolt gr5 unc�������������������������������������������������������������������������������������������������������001-0115
5������������������������1/2 Flange nut gr5 unc�����������������������������������������������������������������������������������������������������������������004-0017
6������������������������/2 X 3 hex bolt gr5 unc �����������������������������������������������������������������������������������������������������������������001-0150
7������������������������Left & right Hbl bck crnr tube weld ������������������������������������������������������������������������������������������� 5-68910
8������������������������Hbl top crss chn drv bck ���������������������������������������������������������������������������������������������������������������� 5-68945
9������������������������Hbl main tube chn drv 3b bck lft������������������������������������������������������������������������������������������������ 5-69985
10������������������������ Hbl main tube chn drv 3b bck rt��������������������������������������������������������������������������������������������� 5-69983

Bedlift ST327-45R - Service Manual
Page 17
BedLift-ST327-45R_sm_07_Dec2015
Service: 1-866-821-2647 Oce: 1-800-210-0141www.storevertical.com
Bedlift ST327-45R - Master Manual
COMPONENTS
Front Main Tubes
Item................ description ...............................................................................................................part #
1������������������������3/8 X 3/4 hex bolt gr5 unc�����������������������������������������������������������������������������������������������������������001-0113
2������������������������1/2 Flange nut gr5 unc�����������������������������������������������������������������������������������������������������������������004-0017
3������������������������1/2 X 3 hex bolt gr5 unc���������������������������������������������������������������������������������������������������������������001-0150
4������������������������ Hbl top #80 gbox mnt cface�������������������������������������������������������������������������������������������������������� 5-69991
5������������������������ Hbl door backing����������������������������������������������������������������������������������������������������������������������������� 5-70549
6������������������������ Hbl frnt inset brc one pc��������������������������������������������������������������������������������������������������������������� 5-70795
7������������������������ Hbl main tube 3b frnt lt w door ������������������������������������������������������������������������������������������������� 5-70535
8������������������������ Hbl main tube 3b frnt rt w door������������������������������������������������������������������������������������������������� 5-70534
9������������������������Schneider limit switch cam roller style�����������������������������������������������������������������������������������410-0155
Table of contents
Popular Lifting System manuals by other brands

Power Fist
Power Fist 8825119 user manual

ARJO HUNTLEIGH
ARJO HUNTLEIGH Maxi Sky 2 Instructions for use

Wesco
Wesco EVM 206-90 Use and maintenance instructions

Air Lift
Air Lift LoadLifter 5000 Ultimate installation guide

Bend-Pak
Bend-Pak PL-6000DC Technical service bulletin

Bend-Pak
Bend-Pak HD-14SS Installation and operation manual
