Viega 41723 User manual

©2008 Viega
Congratulations on Purchasing the Compact Angled PEX Crimp Hand Tool, a
full-circle crimp tool for PEX tubing. Use the Compact Angled PEX Crimp Hand
Tool to install only manufacturer-approved crimp rings, pipe and ttings.
Important Crimp Tool Instructions: Read Before Using
DO NOT USE THIS TOOL UNLESS YOU CAN EXECUTE A PROPER CRIMP
ACCORDING TO APPROVED METHODS AND RECOGNIZED STANDARDS.
If you cannot complete a proper crimp with your tool (including the ability to apply
enough force to make the tool work correctly) discontinue use of the tool.
With the pipe, tting, and crimp ring in assembly position:
Pull back on the upper, moving handle and hold both handles closed
with jaws in full open position. (see illustration)
Position jaws around the crimp ring.
Gently release hand pressure on the moving handle to let the jaws close
properly and squarely over the crimp ring.
Firmly press the handles together to complete the crimp.
DO NOT CRIMP TWICE.
Pull back on the moving handle to release the tool from the crimp ring.
Operating Instructions:
1
1
2
2
3
3
4
4
5
5
• Completed crimps must meet the dimensional requirements of
ASTM F1807, F2159, F845 or F1380 tting standards.
• Check each crimped ring with the Crimp Caliper (Viega stock code 53507) or
other suitable measuring device.
• DO NOT make the measurement at the scared (jaw overlap point) portion of the ring.
• If the GO side does NOT t over the ring, it is under crimped. The connection
must be cut out, the tting replaced and new crimp rings used. The tool must be
adjusted before proceeding.
• If the NO GO side ts over the ring, it is OVER crimped. The connection must be
cut out, the ttings replaced and new crimp rings used. The tool must be adjusted
before proceeding. See “Tool Adjustment Procedures”.
• Refer to the tting and tubing manufacturer’s product assembly instructions for the
correct procedure for joining and gauging.
• The dimensional accuracy of the Crimp Caliper can be affected by normal
eld wear and tear. Therefore, it is recommended you check it with a suitable
measuring device or change to a new gauge regularly to ensure measurement
accuracy.
• The Compact Angled PEX Crimp Hand Tool is user adjustable. When the tool
makes unsatisfactory crimps it must be adjusted.
• The Compact Angled PEX Crimp Hand Tool must be checked for correct
adjustment at the start of every day. Each crimp ring shall be gauged to ensure
that it has been crimped properly and for the accuracy of the tool.
Nominal
Tube Size Minimum Maximum
3/8" 0.580" 0.595"
1/2" 0.700" 0.715"
3/4" 0.945" 0.960"
1" 1.175" 1.190"
Dimensions of crimp ring after a proper, single crimp:
The maximum out-of-roundness of a
completed crimp shall not exceed .006".
This is the difference between the minimum
outside diameter of a properly crimped ring
and the maximum outside diameter of the
same properly crimped ring.
The Compact Angled PEX Crimp Hand Tool handles do not open
like pliers. Forcing the handles apart could cause tool failure.
Use this tool to crimp only copper crimp rings made to ATSM
F1807, F2159, and brass, copper, or plastic ttings for ASTM
F876/F877 SDR9 PEX tubing. Tool may also be used to make
crimp connections with PB tubing and appropriate rings and
ttings.
Maintenance Instructions:
Tool maintenance can effect the life of your Compact Angled PEX Crimp Hand Tool
and the quality of the tool’s crimp. Lubricate the pivot points frequently with light oil
to ensure smooth action and maximum tool life.
DO NOT ATTEMPT TO REPAIR THE TOOL. FOR TOOL INFORMATION, CALL
VIEGA, AT 800.775.5039.
IMPORTANT: The Compact Angled PEX Crimp Hand Tool is under limited warranty
for ninety days from date of purchase. To ensure warranty availability, ll out the
information on the reverse side and retain with a dated proof of purchase. Please
include a copy of your proof of purchase when returning your tool for any adjustment
or repair covered under warranty.
TEL 800-VIEGA-NA • FAX [phone]
www.viega.com
Compact Angled PEX
Crimp Hand Tool
PI-PF-41703 5/08

Viega Limited Warranty
Viega LLC
301 N. Main St. Floor 9
Wichita, KS 67202
800-VIEGA-NA (Continental U.S.) 316-425-7400 (outside U.S.)
Viega warrants that the Compact Angled PEX Crimp Hand Tool will be free
from failure caused by manufacturing or design defect for a period of ninety (90)
days from date of purchase by the user of the tool.
This limited warranty does not apply: (1) if the failure is due to abuse in
handling, using, storing, or maintaining the tool; (2) if the failure of the tool is the
result of use of the tool in non-recommended application; (3) if the failure is due
to unauthorized tampering (attempted repairs or adjustments) to the tool.
THE ABOVE LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF
THE MERCHANTABILITY. Other than this limited warranty, Viega does not
authorize any person or rm to create for it any other obligation or liability in
connection with its products.
If there is a failure covered by this limited warranty during the warranty period,
such failure must be reported promptly to Viega, after such failure is discovered.
Warranty claims and questions should be directed to Viega’s sales department
by writing to the address below or telephoning, toll free, 800-VIEGA-NA to
obtain a return merchandise authorization and directions on shipment. Within
a reasonable time after notication, an investigation of the claimed failure will
occur. If the conditions of the limited warranty are met, Viega will perform, free
of charge, necessary repairs and return the tool, or, if repairs are not possible, a
replacement tool will be provided. THESE ARE THE EXCLUSIVE REMEDIES
FOR BREACH OF THIS LIMITED WARRANTY.
After the expiration of the warranty period, factory repair or reconditioning of
the tool is available at a modest cost. Customers should contact Viega for
information.
NEITHER THE MANUFACTURER OF THE TOOL NOR VIEGA SHALL BE
LIABLE FOR CONSEQUENTIAL, SPECIAL OR INCIDENTAL DAMAGES
BASED UPON BREACH OF WARRANTY, BREACH OF CONTRACT,
NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL THEORY, AND
REGARDLESS OF WHETHER ASSERTED BY DIRECT ACTION, FOR
CONTRIBUTION OR INDEMNITY, OR OTHERWISE. Such damages include,
but are not limited to, damage to property and other economic loss, but do not
include personal injury damages.
Some states do not allow the exclusion or limitation of incidental or consequential
damages or implied warranties in certain types of transactions, so the above
exclusion or limitation may not apply to you. This limited warranty gives you
specic legal rights, and you may also have other rights which vary from state
to state.
5.08
Purchaser’s Name Tool Model No.
Address Tool Serial No.
City State ZIP Date Purchased
Tool Purchased From

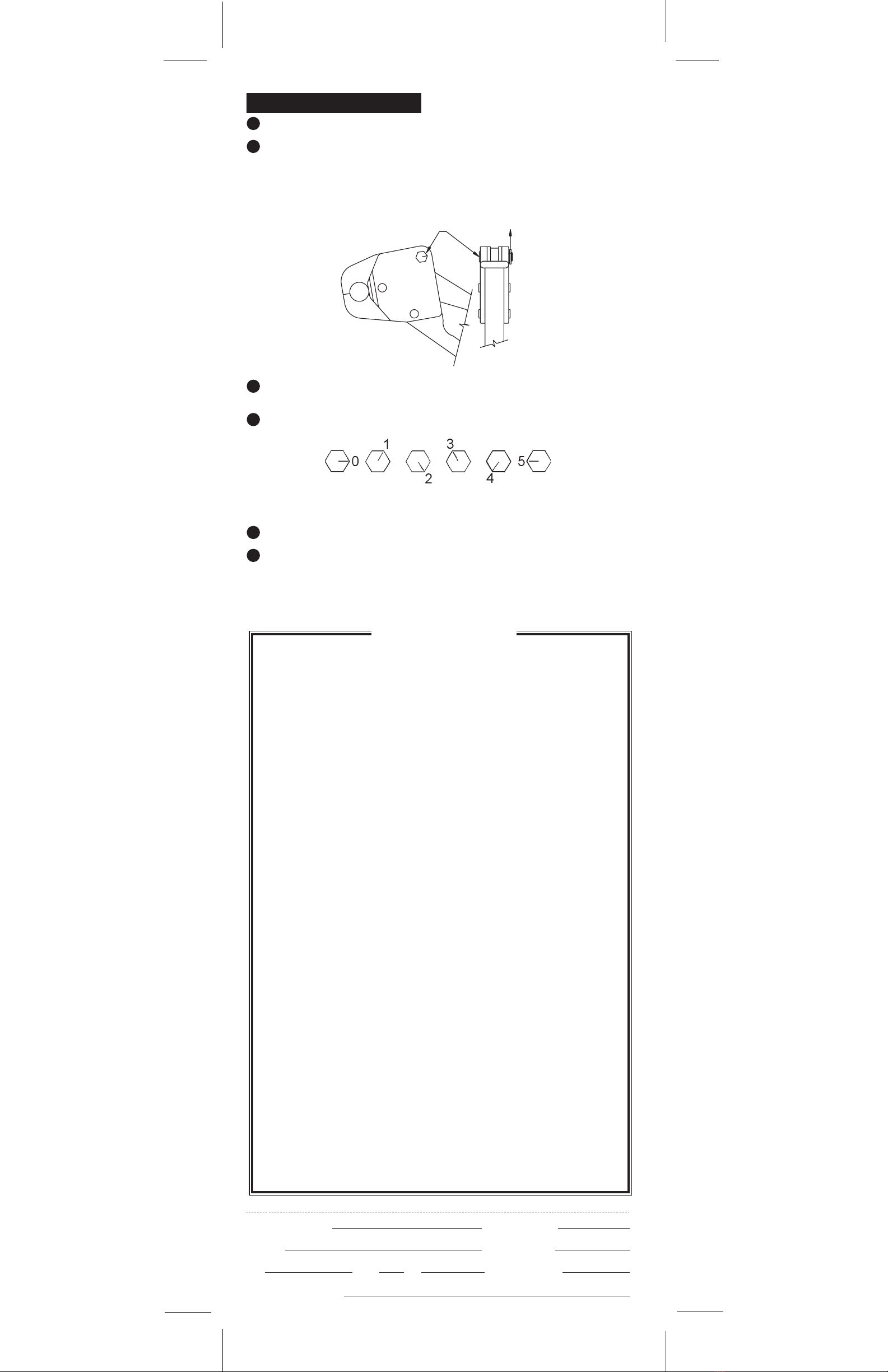

Tool Adjustment Procedures:
From the clip end of the back pin, push it towards the tool body until the hex head
on the other end of the pin just clears the body.
Rotate the pin until the line on the hex head points to the next higher number on the
frame.
Push the pin back into the frame and replace the retaining clip.
Crimp a test joint and check crimp ring for proper sizing with GO/NO-GO gauge
or measurement. Severely worn tools may require further adjustment. As the tool
continues to wear with use, simply repeat these instructions as required.
Note the number to which the line on the hex head of the back pin points.
Carefully remove the retaining clip (see Figure 1) by inserting a small at blade
screwdriver in the loop of the clip and turning the screwdriver. CAUTION! The
retaining clip is made from spring steel and may y off of the pin if not removed
carefully, possibly causing eye damage and loss of the clip.
Figure 1
Back Pin
Remove Retaining
Clip
To Reduce Crimp Size,
Rotate Back Pin to Next Higher Number
2
3
4
5
1
6
The Compact Angled PEX Crimp Hand Tool
PI-PF-41703 5/08
