Viessmann Wireless base station Operating instructions

Installation and service instructions
for contractors
VIESMANN
Wireless base station and wireless base station B
For applicability, see the last page
Wireless base station and wireless base station B
5676 364 GB 12/2015 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on gas installations must only be carried out by
a registered gas fitter.
■Work on electrical equipment must only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for environmental protection
■Codes of practice of the relevant trade associations
■All current safety regulations as defined by DIN, EN,
DVGW, TRGI, TRF, VDE and all locally applicable
standards
aÖNORM, EN, ÖVGW-TR Gas, ÖVGW-TRF and
ÖVE
cSEV, SUVA, SVGW, SVTI, SWKI, VKF and
EKAS guideline 1942: LPG, part 2
Safety instructions for working on the system
Working on the system
■Where gas is used as the fuel, close the main gas
shut-off valve and safeguard it against unintentional
reopening.
■Isolate the system from the power supply, e.g. by
removing the separate fuse or by means of a mains
isolator, and check that it is no longer 'live'.
■Safeguard the system against reconnection.
Danger
Hot surfaces can cause burns.
■Before maintenance and service work, switch
OFF the appliance and let it cool down.
■Never touch hot surfaces on the boiler, burner,
flue system or pipework.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Replace faulty components only with genuine
Viessmann spare parts.
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate our warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions for operating the system
If you smell gas
Danger
Escaping gas can lead to explosions which may
result in serious injury.
■Do not smoke. Prevent naked flames and
sparks. Never switch lights or electrical appli-
ances on or off.
■Close the gas shut-off valve.
■Open windows and doors.
■Evacuate any people from the danger zone.
■Notify your gas or electricity supply utility from
outside the building.
■Have the power supply to the building shut off
from a safe place (outside the building).
If you smell flue gas
Danger
Flue gas can lead to life threatening poisoning.
■Shut down the heating system.
■Ventilate the installation site.
■Close doors to living spaces to prevent flue
gases from spreading.
Safety instructions
Safety instructions
5676 364 GB

3
What to do if water escapes from the appliance
Danger
When water escapes from the appliance there is
a risk of electrocution.
Switch off the heating system at the external iso-
lator (e.g. fuse box, domestic power distribu-
tion).
Flue systems and combustion air
Ensure that flue systems are clear and cannot be
sealed, for instance due to accumulation of conden-
sate or other causes. Ensure an adequate supply of
combustion air.
Instruct system users that subsequent modifications to
the building characteristics are not permissible (e.g.
cable/pipework routing, cladding or partitions).
Danger
Leaking or blocked flue systems, or an inade-
quate supply of combustion air can cause life
threatening poisoning from carbon monoxide in
the flue gas.
Ensure the flue system is in good working order.
Vents for supplying combustion air must be non-
closable.
Extractors
Operating appliances that extract air to the outside
(cooker hoods, extractors, air conditioning units, etc.)
can create negative pressure. If the boiler is operated
at the same time, this can lead to reverse flow of the
flue gas.
Danger
The simultaneous operation of the boiler and
appliances that extract air to the outside can
result in life threatening poisoning due to
reverse flow of the flue gas.
Fit an interlock circuit or take suitable steps to
ensure an adequate supply of combustion air.
Safety instructions
Safety instructions (cont.)
5676 364 GB

4
1. Safety and liability Operational reliability ............................................................................. 5
Liability ................................................................................................... 5
2. Information Symbols ................................................................................................. 6
Intended use .......................................................................................... 6
Product information ................................................................................ 6
3. Preparing for installation Observe prior to installation ................................................................... 8
■Where to install wireless components ................................................ 8
Wireless connection ............................................................................... 8
■Range ................................................................................................. 8
■Angle of penetration ........................................................................... 9
Preparing the wireless outside temperature sensor .............................. 10
4. Installation sequence Overview of the installation and commissioning process ...................... 11
Connecting the wireless base station to the control unit ....................... 11
Logging the wireless components onto the wireless base station ......... 12
■Logging on the wireless outside temperature sensor ......................... 13
■Logging on the Vitotrol 200 RF and Vitotrol 300 RF ........................... 13
■Logging on the Vitocomfort 200 .......................................................... 14
Checking the reception quality of the wireless components .................. 14
■Wireless outside temperature sensor ................................................. 14
■Vitotrol 200 RF and Vitotrol 300 RF .................................................... 14
■Vitocomfort 200 ................................................................................... 14
Using a wireless repeater ...................................................................... 15
Mounting the wireless repeater .............................................................. 15
Mounting the wireless base station ........................................................ 16
■Removing the wireless module ........................................................... 16
■Fitting the wall mounting base ............................................................ 16
■Fitting the wireless module ................................................................. 16
Mounting the wireless outside temperature sensor ............................... 17
Logging off wireless components .......................................................... 17
5. Diagnosis and service
scans
Diagnosis at the wireless base station ................................................... 19
6. Parts lists Ordering parts ........................................................................................ 21
Parts list ................................................................................................. 22
7. Specification Wireless base station and wireless base station B ................................ 24
Wireless outside temperature sensor .................................................... 24
Wireless repeater ................................................................................... 24
8. Certificates Declaration of conformity ....................................................................... 25
9. Keyword index ................................................................................................................ 26
Index
Index
5676 364 GB

5
Danger
Wireless signals can interfere with electronic
devices, particularly cardiac pacemakers, hear-
ing aids and defibrillators.
If any such equipment is fitted, users should
avoid being in the immediate vicinity of opera-
tional wireless components.
■Wireless components may interfere with each other's
signal transmission. To ensure reliable signal trans-
mission, maintain a minimum clearance of 0.5 m
between wireless components.
■Radio frequency of the wireless components:
868 MHz
■Only operate wireless components indoors.
■Avoid impairment through moisture or dust.
■Ensure the wireless components do not come into
contact with gases, vapours or solvents and prevent
long-lasting direct insolation.
■Do not operate wireless components in conjunction
with the following devices:
–Devices which directly or indirectly serve for health
or life-saving purposes.
–Devices which, when operated, may result in a risk
to humans, animals or property.
■Check the status of the wireless components follow-
ing a power failure or restart.
Liability
The licensor rejects all liability for loss of profit, unat-
tained savings, or other direct or indirect consequential
losses resulting from the use of the wireless compo-
nents, as well as losses resulting from inappropriate
use. The limitation of liability shall not apply if the dam-
age was caused deliberately or through gross negli-
gence, or if mandatory liability applies due to product
liability legislation.
Safety and liability
Operational reliability
5676 364 GB
Information

6
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Intended use
Install and operate the appliance as intended, in con-
junction with the electronic control units and controllers
for the Viessmann heat and power generators
designed for this system. Also take account of the rele-
vant installation, service and operating instructions. In
particular, observe the current and voltage specifica-
tions for connections and hook-ups.
The device is exclusively designed for operation in
buildings of a domestic or commercial nature.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and will result in an exclusion of liability. Incorrect
usage also occurs if the components in the heating
system are modified from their intended function.
Note
The appliance is intended exclusively for domestic or
semi-domestic use, i.e. even users who have not had
any instruction are able to operate the appliance
safely.
Product information
The wireless base station or wireless base station B is
the interface between the Vitotronic control unit and
the wireless components.
Information
Symbols
5676 364 GB
Information

7
Suitable wireless components for operation with the
wireless base station:
■Wireless remote control Vitotrol 200 RF
■Wireless remote control Vitotrol 300 RF
■Wireless outside temperature sensor
■Smart Home System Vitocomfort 200
Suitable wireless components for operation with the
wireless base station B:
■Wireless remote control Vitotrol 300 RF
■Wireless outside temperature sensor
■Smart Home System Vitocomfort 200
Max. 3 wireless remote control units or 3
Vitocomfort 200 can be connected.
Note
Cannot be operated in conjunction with a hardwired
remote control.
Information
Product information (cont.)
5676 364 GB
Information

8
Danger
Wireless signals can interfere with electronic
devices, particularly cardiac pacemakers, hear-
ing aids and defibrillators.
If any such equipment is fitted, users should
avoid the immediate vicinity of the operational
wireless components.
The wireless components operate with a frequency of
868 MHz.
Where to install wireless components
■Install at mid wall height, at least 1 m below the ceil-
ing
■Distance to other transmitters (GSM, DECT, WLAN)
at least 2 m
■Distance from room corners at least 0.2 m
Use the Vitotrol 200 RF or Vitotrol 300 RF wireless
remote control, or the field strength meter made by
Thermokon (www.thermokon.de) to determine suita-
ble installation locations for the wireless components.
Note
These devices can also be used to check faulty con-
nections to wireless components that have already
been fitted.
Wireless connection
C
B
B
DC
A
E
F
Fig. 1
AWireless base station
BWireless outside temperature sensor
CWireless remote control
DWireless repeater
EHeat generator
FKM BUS
Range
Please note that in radio technology the range of wire-
less signals can be reduced by walls, ceilings and inte-
rior fixtures. These weaken the wireless signal, caus-
ing poor reception.
Preparing for installation
Observe prior to installation
5676 364 GB
Installation

9
Range reduction:
■On their way between transmitter and receiver, wire-
less signals are damped (e.g. by air or when pene-
trating walls).
■Wireless signals are reflected by metallic objects
(e.g. reinforcements embedded in walls, metal foil of
thermal insulation, thermal glazing with metallised
thermal vapour deposit).
■Wireless signals are isolated by service ducts.
■Wireless signals suffer interference from appliances
that also operate with high frequency signals
(such as computers, audio and video systems,
WLAN, electrical transformers, electrical ballast).
Distance from such appliances: At least 2 m.
Building materials that influence the range Remaining reception quality in %
Wood, gypsum, uncoated non-ferrous glass 90 to 100
Brick, hardboard or chipboard 65 to 95
Concrete with steel reinforcements, thermal glazing 10 to 90
Metal, aluminium backing 0 to 10
Note
If required, install a wireless repeater to increase the
range.
Angle of penetration
The reception quality remains best if radio signals hit
the walls vertically. Avoid wall recesses.
Depending on the angle of penetration, the effective
wall thickness changes and therefore the extent to
which the electromagnetic waves are damped.
A very flat angle of penetration can be avoided by
using a wireless repeater.
Flat (unfavourable) angle of penetration (without wireless repeater)
A
B
D
Fig. 2
AWireless base station
BWireless component, e.g. Vitotrol 200 RF
DCellar ceiling
Preparing for installation
Wireless connection (cont.)
5676 364 GB
Installation

10
Optimised angle of penetration (with wireless repeater)
A
B
D
C
Fig. 3
AWireless base station
BWireless component, e.g. Vitotrol 200 RF
CWireless repeater
DCellar ceiling
Preparing the wireless outside temperature sensor
After unpacking the wireless outside temperature sen-
sor, leave it exposed to light for min. 15 min.
The in-built solar cell will charge the energy store of
the wireless outside temperature sensor.
Preparing for installation
Wireless connection (cont.)
5676 364 GB
Installation

11
Steps Page
1. Switch OFF the power supply at the Vitotronic control unit.
2. Note down the 3-digit wireless key. This is printed on the protective foil on the front of the
wireless base station.
3. Remove the wireless module. 16
4. Provisionally connect the wireless base station to the Vitotronic control unit and place it in
its intended location.
11
5. Place all wireless components near the wireless base station.
6. Fit the wireless module to the wall mounting base and switch ON the Vitotronic control unit. 16
7. If a wireless outside temperature sensor has been installed, log this on first. 13
8. Log on any further wireless components. 12
9. Check the reception quality of the wireless components. 14
10. Install all wireless components. 16
Connecting the wireless base station to the control unit
Danger
An electric shock can be life-threatening.
Before opening the Vitotronic control unit, dis-
connect it from the mains voltage, e.g. at the
fuse or mains isolator.
Note
Connect the wireless base station only provisionally.
This allows for adjustments to the installation location
to improve reception quality.
Installation sequence
Overview of the installation and commissioning process
5676 364 GB
Installation

12
aVG
A
C
4 3 2 1
3 2 17 6 5 4
X3X4
145
1 2
2 1 54321
X3X4 aVG
X14
B
Fig. 4
AWireless base station or wireless base station B
BWith wireless base station B:
To the controller and sensor PCB of the heat pump
control unit Vitotronic 200
CWith wireless base station:
To the Vitotronic control unit or KM BUS distributor
Total length of all KM BUS cables max. 50 m
Logging the wireless components onto the wireless base station
1. Note down the 3-digit wireless key. This is printed
on the protective foil on the front of the wireless
base station.
___ ___ ___
Installation sequence
Connecting the wireless base station to the… (cont.)
5676 364 GB
Installation

13
2. Place all wireless components near the wireless
base station.
Note
If a wireless repeater is used, position this at least
1 m away from the wireless base station.
3. Start the Vitotronic control unit.
A
Fig. 5
4. Log on the wireless components one at a time with
key A (see the following chapter).
Logging on the wireless outside temperature sensor
BC
Fig. 6
1. Open the enclosure of the outside temperature sen-
sor.
2. Wireless base station (see fig. 5):
Press key A:
■Operation without wireless repeater: for 4 s
LED flashes green at long intervals.
■Operation with wireless repeater: for 8 s
LED flashes green at short intervals.
3. Wireless outside temperature sensor:
Briefly press key B.
LED C flashes red.
If the log on was successful, the green LED on the
wireless base station lights up.
Logging on the Vitotrol 200 RF and Vitotrol 300 RF
Relevant installation and service instructions,
chapter "Commissioning"
Installation sequence
Logging the wireless components onto the… (cont.)
5676 364 GB
Installation

14
Logging on the Vitocomfort 200
Operating instructions, see chapter "Making the
wireless connection to the Vitotronic control unit"
Checking the reception quality of the wireless components
Wireless outside temperature sensor
There is no indicator for reception quality on the wire-
less outside temperature sensor.
With wireless remote control With field strength meter (see page 8)
1. Provisionally mount the wireless outside temperature
sensor in its intended location. Observe information
regarding the installation site on page 17.
2. Press B (see diagram on page 13).
3. Check the reception quality with the wireless remote
control.
Chapter "Checking the reception quality" in the
relevant installation and service instructions
4. Good reception quality:
Install the wireless outside temperature sensor.
Poor reception quality:
Select new installation site and check reception.
1. Position the test meter next to the wireless base sta-
tion as a continuous transmitter.
2. With a 2nd test meter acting as receiver, select an in-
stallation site with adequate reception quality. Install
the wireless outside temperature sensor there.
3. If no installation site with good reception can be
found, change the location of the wireless base sta-
tion (if possible) or use a wireless repeater.
Vitotrol 200 RF and Vitotrol 300 RF
Relevant installation and service instructions,
chapter "Checking the reception quality"
Vitocomfort 200
Operating instructions, chapter "Calling up the
reception quality"
Installation sequence
Logging the wireless components onto the… (cont.)
5676 364 GB
Installation

15
B
A
BC
D
Fig. 7
AWireless repeater
BWireless remote controls
CWireless outside temperature sensor
DWireless base station
Ideally, the wireless repeater and wireless components
form a right-angled triangle, with the wireless repeater
at the apex of the right angle (see diagram).
If there are many walls and concrete ceilings, and if
the diagonal intersection is not too pronounced, the
wireless repeater can also be fitted at the midway point
of the transmission path.
Mounting the wireless repeater
55
Fig. 8
1. Secure the wireless repeater near a socket.
2. Plug the wireless repeater cable into the plug-in
power supply unit.
3. Plug the power supply unit into a socket.
Installation sequence
Using a wireless repeater
5676 364 GB
Installation

16

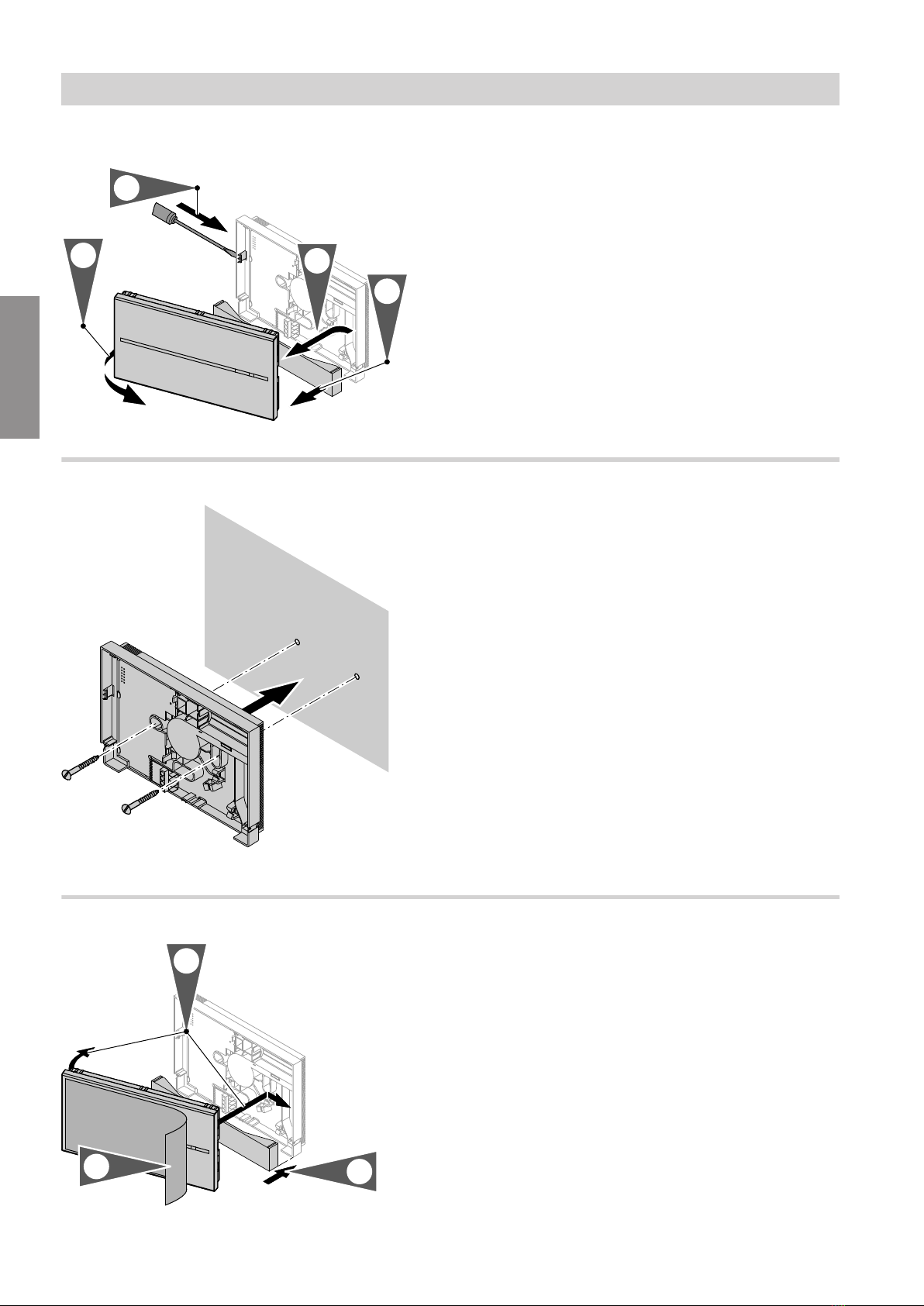

Removing the wireless module
1.

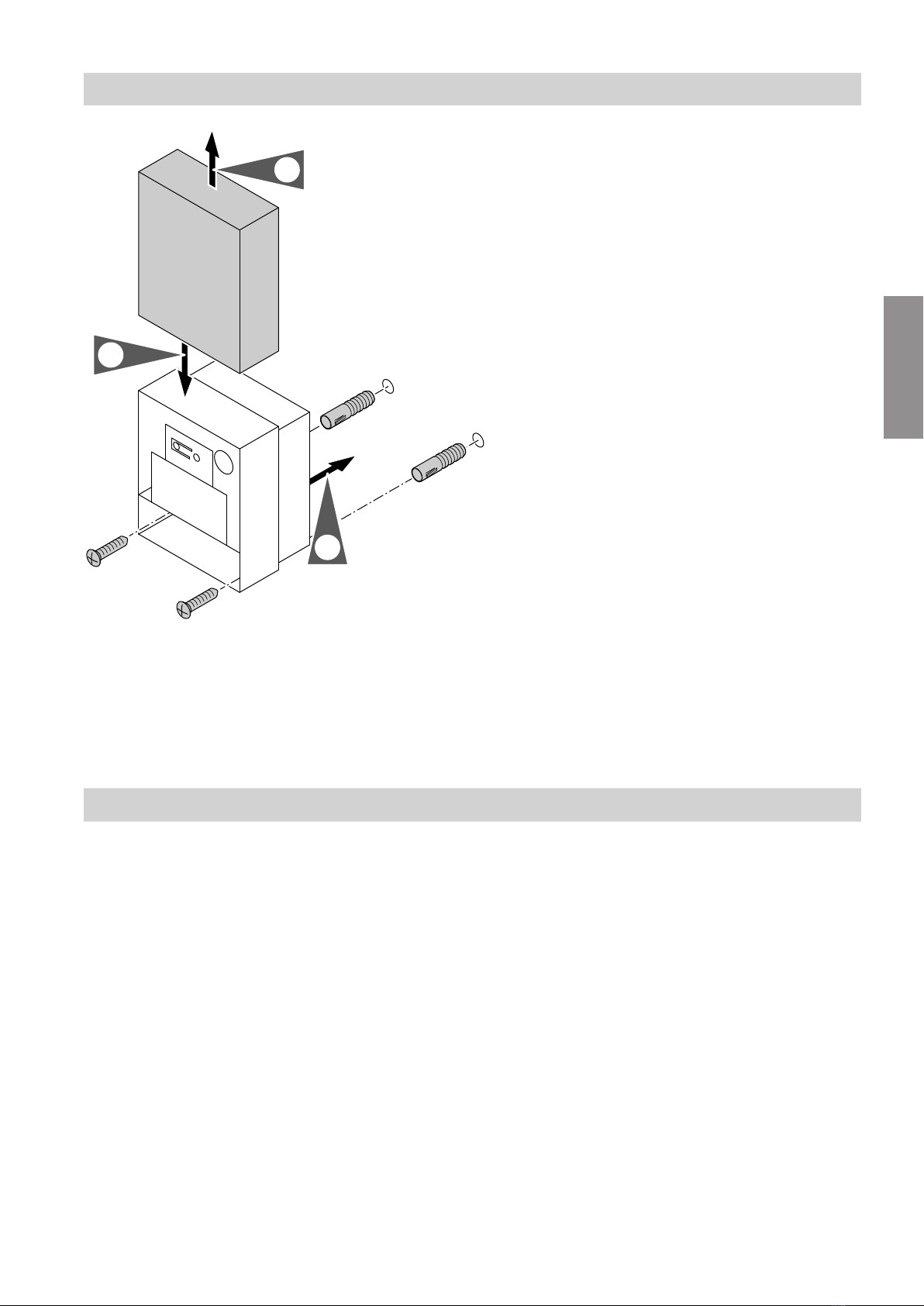

3.
2.
4.
Fig. 9
Fitting the wall mounting base
Fig. 10
Fitting the wireless module
1.
3.
2.
Fig. 11
Installation sequence
Mounting the wireless base station
5676 364 GB
Installation

17
3.
2.
1.
Fig. 12
Installation location:
■North or north-westerly wall, 2 to 2.5 m above
ground level; on multi storey buildings, in the upper
half of the second floor
■Not above windows, doors or vents
■Not immediately below balconies or gutters
■Not level with or immediately above a concrete ceil-
ing/floor
■Never render over.
Logging off wireless components
Note
The wireless components can only be logged off all of
them together.
Log off wireless components under the following condi-
tions:
■The wireless connection is unstable.
■One of the wireless components is faulty.
■A wireless repeater is being retrofitted.
Note
A fault message appears on the Vitotronic control unit
when logging off the wireless components (see rele-
vant installation and service instructions).
1. Switch the Vitotronic control unit off and then on
again after a brief interval.
2. Within 5 min, press A on the wireless base station
(see page 13) and hold for 20 s.
When the LED on the wireless base station flashes
red, all wireless components have been logged off.
3. Log those wireless components that should not be
logged off back on again (see page 12).
Logging off the wireless repeater (if installed)
1. Unplug the mains connection and after a brief inter-
val, plug in again.

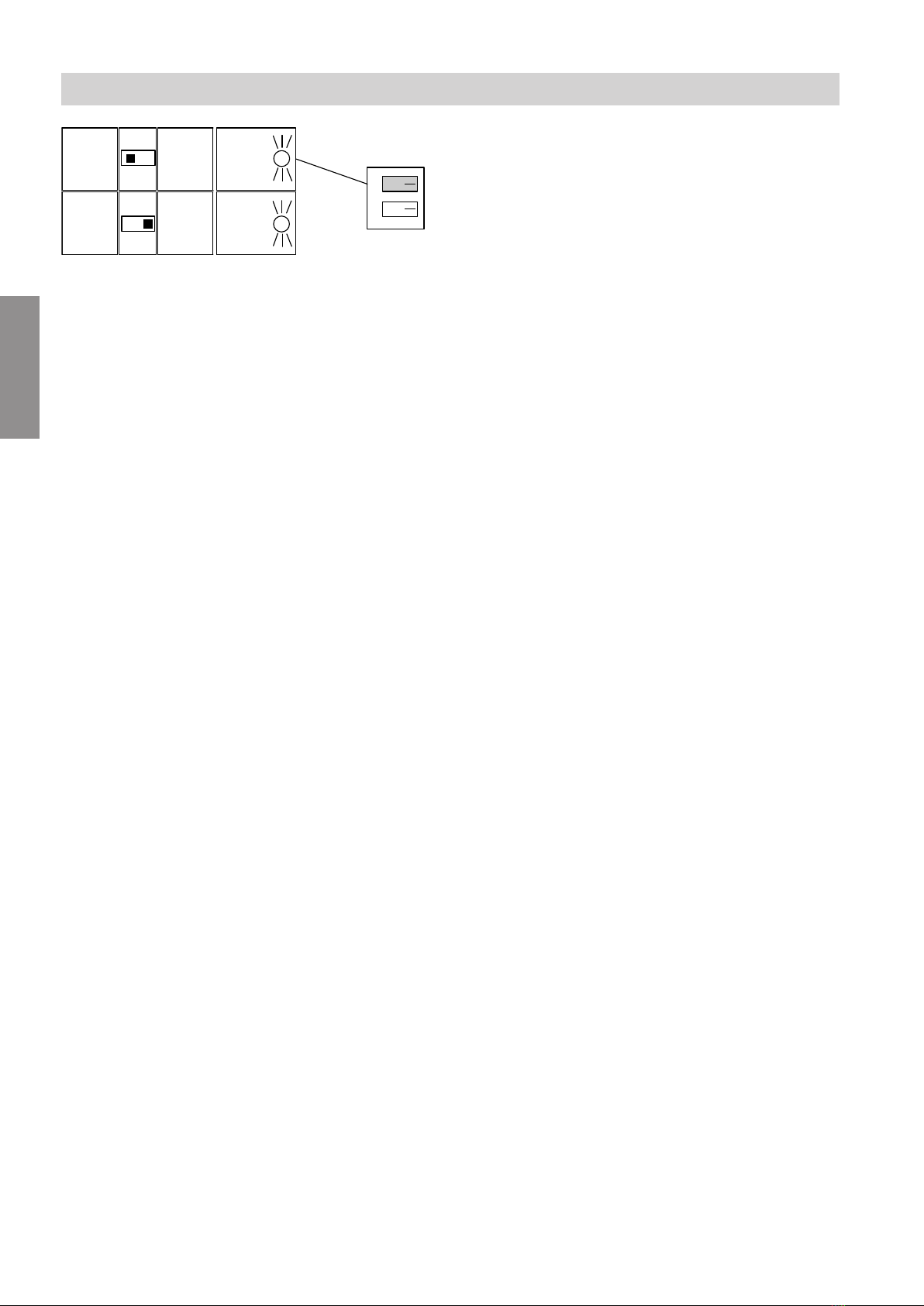

2. Within 5 minutes, set DIP switch 2 at the back of
the wireless repeater (see diagram) to "Reset".
The wireless repeater has been logged off from the
wireless base station if the red LED at the front
flashes (for approx. 20 s).
3. Set DIP switch 2 back to "Run".
Installation sequence
Mounting the wireless outside temperature sensor
5676 364 GB
Installation

18
Reset
Not
used
on
on
Run
Level
1
Power
Wireless
ON
12
Fig. 13
Installation sequence
Logging off wireless components (cont.)
5676 364 GB
Installation

19
The LEDs on the front of the wireless base station indi-
cate different operating states.
LED Meaning
Off Wireless components are not operational.
Green:
■Illuminated Wireless base station in operation
■Flashing slowly Logging on without wireless repeater
■Flashing quickly Logging on with wireless repeater
■Illuminated with brief intervals Wireless communication
Red:
■Illuminated Fault in the wireless connection or the KM BUS connection to the
Vitotronic control unit
■Flashing Wireless components are logged off.
Diagnosis and service scans
Diagnosis at the wireless base station
5676 364 GB
Diagnosis

20
Diagnosis and service scans
Diagnosis at the wireless base station (cont.)
5676 364 GB
Diagnosis
This manual suits for next models
5
Table of contents
Other Viessmann Accessories manuals
Popular Accessories manuals by other brands

Medizintechnik
Medizintechnik SaneoSPORT instruction manual

Schmidt
Schmidt SS 20.515 LED Instructions for use

Haws
Haws VRKHO1 Installation, operation & maintenance instructions

American Dynamics
American Dynamics AD2031 Specifications

Baumer
Baumer R600V.DAE0-11209335 operating manual

Denver
Denver ASA-60 manual
