Viessmann Vitodens 111-W User manual

Operating instructions
for the system user
VIESMANN
Heating system
with control unit for constant temperature or weather-compensated operation
VITODENS 100-W
VITODENS 111-W
5697 793 GB 10/2015 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These operating instructions are intended for heating
system users.
This appliance can also be operated by children 8
years and older, as well as by individuals with reduced
physical, sensory or mental faculties or those lacking
in experience and knowledge, provided such individu-
als are being supervised or have been instructed in the
safe use of this appliance and any risks arising from it.
!Please note
Supervise children in the proximity of the appli-
ance.
■Never permit children to play with the appli-
ance.
■Cleaning and maintenance must not be car-
ried out by unsupervised children.
Appliance connection
■The appliance may only be connected and commis-
sioned by authorised contractors.
■Only operate the appliance with suitable fuels.
■Observe the specified electrical connection require-
ments.
■Modifications to the existing installation may only be
carried out by authorised contractors.
Danger
Incorrectly executed work on the heating system
can lead to life threatening accidents.
■Work on gas installations must only be carried
out by a registered gas fitter.
■Work on electrical equipment must only be
carried out by a qualified electrician.
Work on the appliance
■All settings and work on the appliance must be car-
ried out as specified in these operating instructions.
Further work on the appliance may only be carried
out by authorised contractors.
■Never open the appliance.
■Never remove casings.
■Never change or remove attachments or fitted
accessories.
■Never open or retighten pipe connections.
Danger
Hot surfaces can cause burns.
■Never open the appliance.
■Never touch the hot surfaces of uninsulated
pipes, fittings or flue pipes.
Damage to the appliance
Danger
Damaged equipment poses a safety hazard.
Check the appliance for external damage. Never
start up a damaged appliance.
If you smell gas
Danger
Escaping gas can lead to explosions which may
result in serious injury.
■Never smoke. Prevent naked flames and
sparks. Never switch lights or electrical appli-
ances on or off.
■Close the gas shut-off valve.
■Open windows and doors.
■Evacuate any people from the danger zone.
■Notify your gas and power supply utility and
your local heating contractor from outside the
building.
■Have the power supply to the building shut off
from a safe place (outside the building).
If you smell flue gas
Danger
Flue gas can lead to life threatening poisoning.
■Shut down the heating system.
■Ventilate the installation site.
■Close all doors in the living space.
In case of fire
Danger
Fire presents a risk of burns and explosion.
■Shut down the heating system.
■Close the shut-off valves in the fuel supply
lines.
■Use a tested fire extinguisher, class ABC.
Safety instructions
For your safety
5697 793 GB

3
In case of water leaking from the appliance
Danger
Water leaking from the appliance poses an elec-
trocution hazard.
■Switch off the heating system at the external
isolation point (e.g. fuse box, domestic power
distribution unit).
■Notify your local heating contractor.
What to do if the heating system develops a fault
Danger
Fault messages point to faults in the heating
system. If faults are not rectified, they can have
life threatening consequences.
Never acknowledge fault messages several
times in quick succession. Inform your heating
contractor so the cause can be analysed and
the fault rectified.
Installation room requirements
Danger
Sealed vents result in a lack of combustion air.
This leads to incomplete combustion and the
formation of life threatening carbon monoxide.
Never cover or close existing vents.
Never make any subsequent modifications to
the building characteristics that could affect safe
operation (e.g. cable/pipework routing, cladding
or partitions).
Danger
Easily flammable liquids and materials (e.g.
naphtha, solvents, cleaning agents, paints or
paper) can cause deflagration and fire.
Never store or use such materials in the installa-
tion room or in direct proximity to the heating
system.
!Please note
Incorrect ambient conditions can lead to heating
system damage and can put safe operation at
risk.
■Ensure ambient temperatures are above 0 °C
and below 35 °C.
■Prevent air contamination by halogenated
hydrocarbons (e.g. as contained in paints, sol-
vents or cleaning fluids) and excessive dust
(e.g. through grinding/polishing work).
■Avoid continuously high humidity levels (e.g.
through continuous drying of washing).
Extractors
The operation of appliances that extract air to the out-
side (cooker hoods, extractors, air conditioning units,
etc.) can create negative pressure. If the boiler is oper-
ated at the same time, this can lead to a reverse flow
of the flue gas.
Danger
The simultaneous operation of the boiler and
appliances that extract air to the outside can
result in life threatening poisoning due to
reverse flow of the flue gas.
Take suitable steps to ensure an adequate sup-
ply of combustion air. If necessary, contact your
heating contractor.
Auxiliary components, spare and wearing parts
!Please note
Components not tested with the heating system
may damage the system or affect its function.
Have all installation or replacement work carried
out exclusively by qualified contractors.
Safety instructions
For your safety (cont.)
5697 793 GB

4
1. Information Symbols ................................................................................................. 5
Intended use .......................................................................................... 5
Terminology ........................................................................................... 6
2. Introductory information Commissioning ...................................................................................... 7
Your system is preset at the factory ....................................................... 7
Energy saving tips ................................................................................. 7

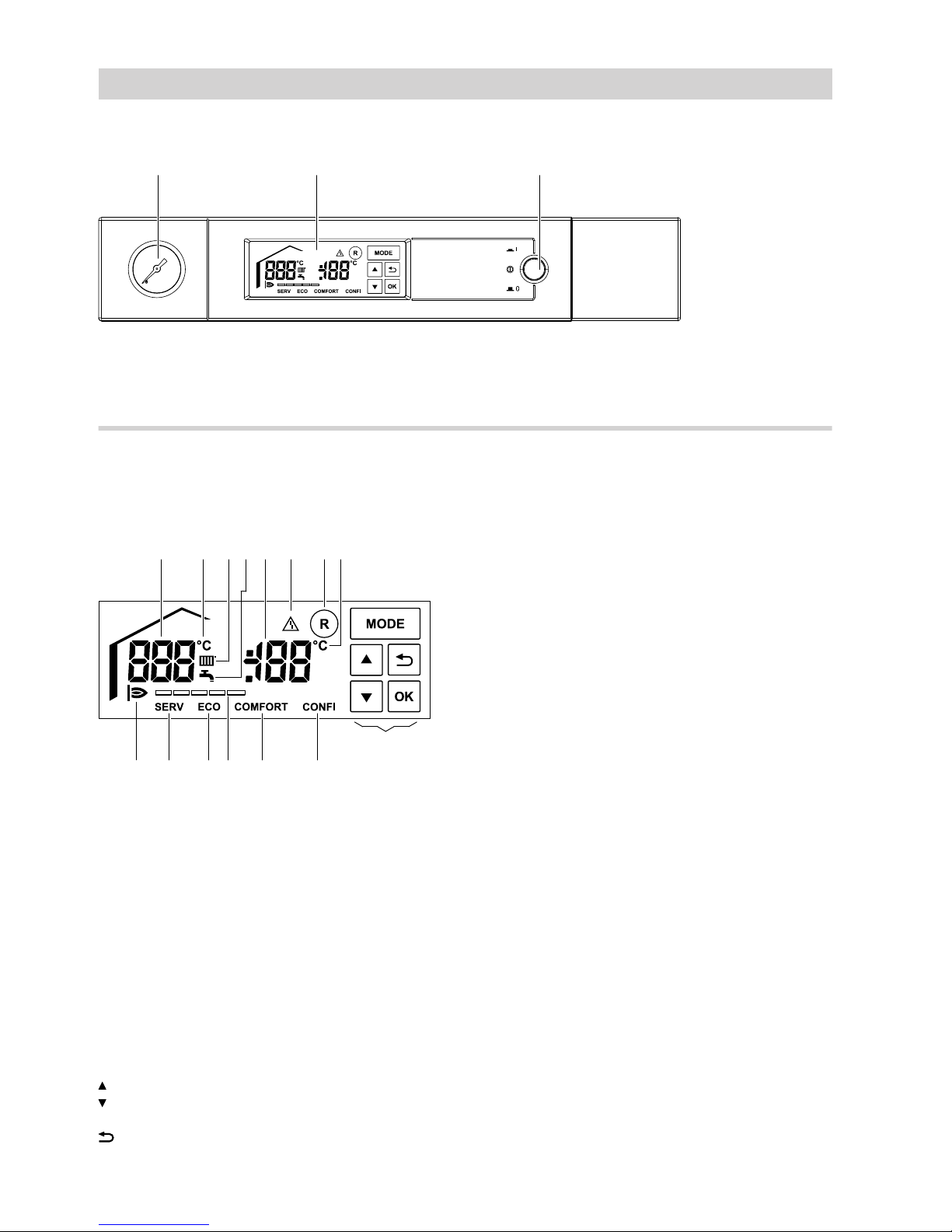

3. Operation Summary of controls and indicators ...................................................... 8
■Controls and display elements ........................................................... 8
■Display indicators and operating buttons ............................................ 8
Operating mode of the heating system .................................................. 9
■Operation without room temperature controller .................................. 9
■Operation with room temperature controller ....................................... 9
■Weather-compensated operation ....................................................... 9
4. Start-up/shutdown Starting the heating system ................................................................... 10
Shutting down the heating system ......................................................... 10
■With frost protection monitoring .......................................................... 10
■Without frost protection (shutdown) .................................................... 10
Stopping central heating and DHW heating .......................................... 11
■Stopping central heating ..................................................................... 11
■Stopping DHW heating ....................................................................... 11
5. Settings Setting the central heating temperature ................................................. 12
■Operation without room temperature controller ― Setting the heating
water temperature .............................................................................. 12
■Operation with room temperature controller ― Setting the boiler
water temperature .............................................................................. 12
■Weather-compensated operation – Setting the room temperature ..... 12
6. Setting the DHW tempera-
ture

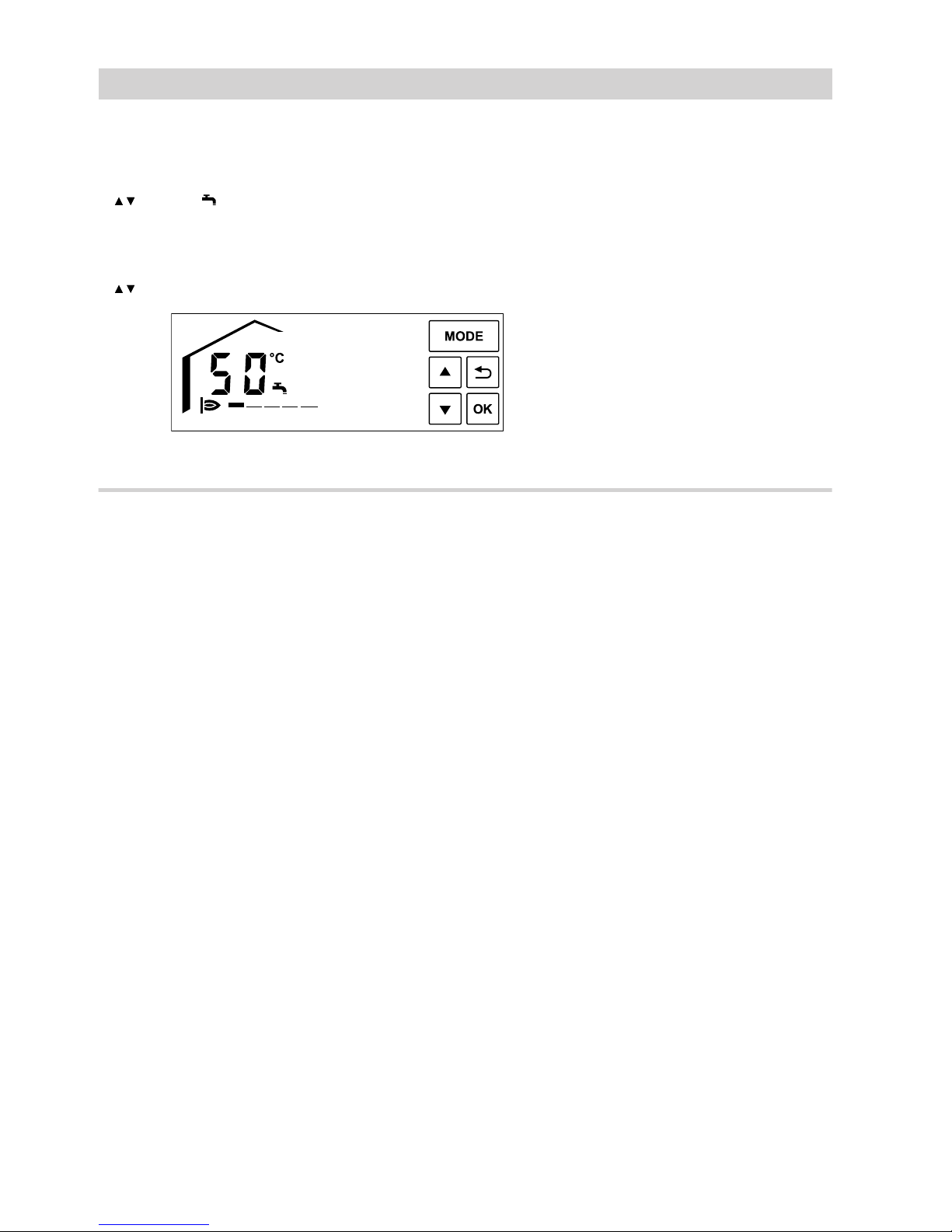

DHW temperature .................................................................................. 14
■DHW comfort function ........................................................................ 14
7. Emissions test mode Starting emissions test mode ................................................................. 15
■Ending emissions test mode ............................................................... 15
8. What to do if... Rooms are too cold ................................................................................ 16
Rooms are too hot ................................................................................. 16
There is no hot water ............................................................................. 17
The DHW is too hot ............................................................................... 17
" " and the fault code flash on the display ........................................... 17
" " is shown on the display .................................................................. 17
Fault indicator on display ....................................................................... 18
Resetting a burner fault ......................................................................... 18
9. Maintenance Cleaning ................................................................................................. 19
Inspection and maintenance .................................................................. 19
■............................................................................................................. 19
10. Appendix Terminology ........................................................................................... 20
Information on disposal .......................................................................... 20
■Disposal of packaging ........................................................................ 20
■Final decommissioning and disposal of the heating system ............... 20
11. Keyword index ................................................................................................................ 21
Index
Index
5697 793 GB

5
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Intended use
The appliance is intended solely for installation and
operation in sealed unvented heating systems that
comply with EN 12828, with due attention paid to the
associated installation, service and operating instruc-
tions. It is only designed for heating up heating water
that is of potable water quality.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer in each individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and will result in an exclusion of liability. Incorrect
usage also occurs if the components in the heating
system are modified from their intended use (e.g. if the
flue gas and ventilation air paths are sealed).
Information
Symbols
5697 793 GB

6
To provide you with a better understanding of the func-
tions of your Viessmann control unit, some terminology
is explained.
The terms are marked as follows:
Further information can be found in chapter
"Terminology" in the appendix.
Information
Terminology
5697 793 GB

7
The commissioning and adjusting of the control unit to
local conditions and to building characteristics, plus the
instruction of the user in operating the system, must be
carried out by your heating contractor.
As the user of new combustion equipment, you may be
obliged to notify your local flue gas inspector of the
installation [check local regulations]. Your local flue gas
inspector [where applicable] will also provide you with
information on additional activities concerning your
combustion equipment (such as regular testing, clean-
ing, etc.).
Your system is preset at the factory
Your heating system is preset at the factory and is
therefore ready for operation.
Your heating contractor can make further adjustments
for you during commissioning.
You can change these settings at any time to suit your
individual requirements.
Power failure
All settings are saved if there is a power failure.
Energy saving tips
Central heating
■Room temperature:
Never overheat your rooms. Every degree of room
temperature reduction saves up to 6 % on your heat-
ing bills.
Never set your room temperature higher than 20 °C.
■Operating modes:
If you do not require central heating, select one of
the following operating modes:
–In summer, if you do not want to heat any rooms
but do need DHW, set the boiler water temperature
to OFF (see page 11).
–If you require neither room heating nor DHW for an
extended period, set the boiler water temperature
and the DHW temperature to OFF.
■Ventilation:
To ventilate, open windows fully briefly, and mean-
while close the thermostatic valves (if there is no
mechanical ventilation system installed).
■Roller shutters:
Close roller shutters (where installed) at dusk.
■Thermostatic valves:
Ensure that thermostatic valves are properly adjus-
ted.
■Radiators:
Never cover radiators or thermostatic valves.
DHW heating
■DHW temperature:
Never set the DHW cylinder temperature excessively
high (see page 14).
■Hot water consumption:
Consider showering instead of running a bath. A
shower generally uses less energy than a full bath.
Introductory information
Commissioning
5697 793 GB

8
Controls and display elements
CA B
Fig. 1
APressure gauge
BTouchscreen with controls
CON/OFF switch
Display indicators and operating buttons
The control unit is equipped with a touchscreen. To
make settings and call up information, tap the on-
screen buttons.
Activation of the on-screen buttons is confirmed with a
signal tone. Your heating contractor can turn the signal
tone off.
A B CD E F GH
K
R P O N M L
Fig. 2
ADisplay value or fault code
BTemperature in °C (in conjunction with the display
value)
CHeating mode
DDHW heating
EDisplay value or fault code
FFault indicator
GBurner fault reset
HTemperature in °C (in conjunction with the display
value)
KOn-screen buttons (see page 8)
LCommissioning setting active (only for contractors)
MDHW comfort function active (only for boilers with
integral instantaneous water heater, see
page 14)
NCurrent burner output
ODHW comfort function not active (only for boilers
with integral instantaneous water heater)
PService setting active (only for contractors)
RBurner in operation
On-screen buttons for operation
MODE Selecting/terminating functions
Changing or selecting values
Changing or selecting values
OK Accepting values/confirming selection
1 step back
RBurner fault reset
Operation
Summary of controls and indicators
5697 793 GB

9

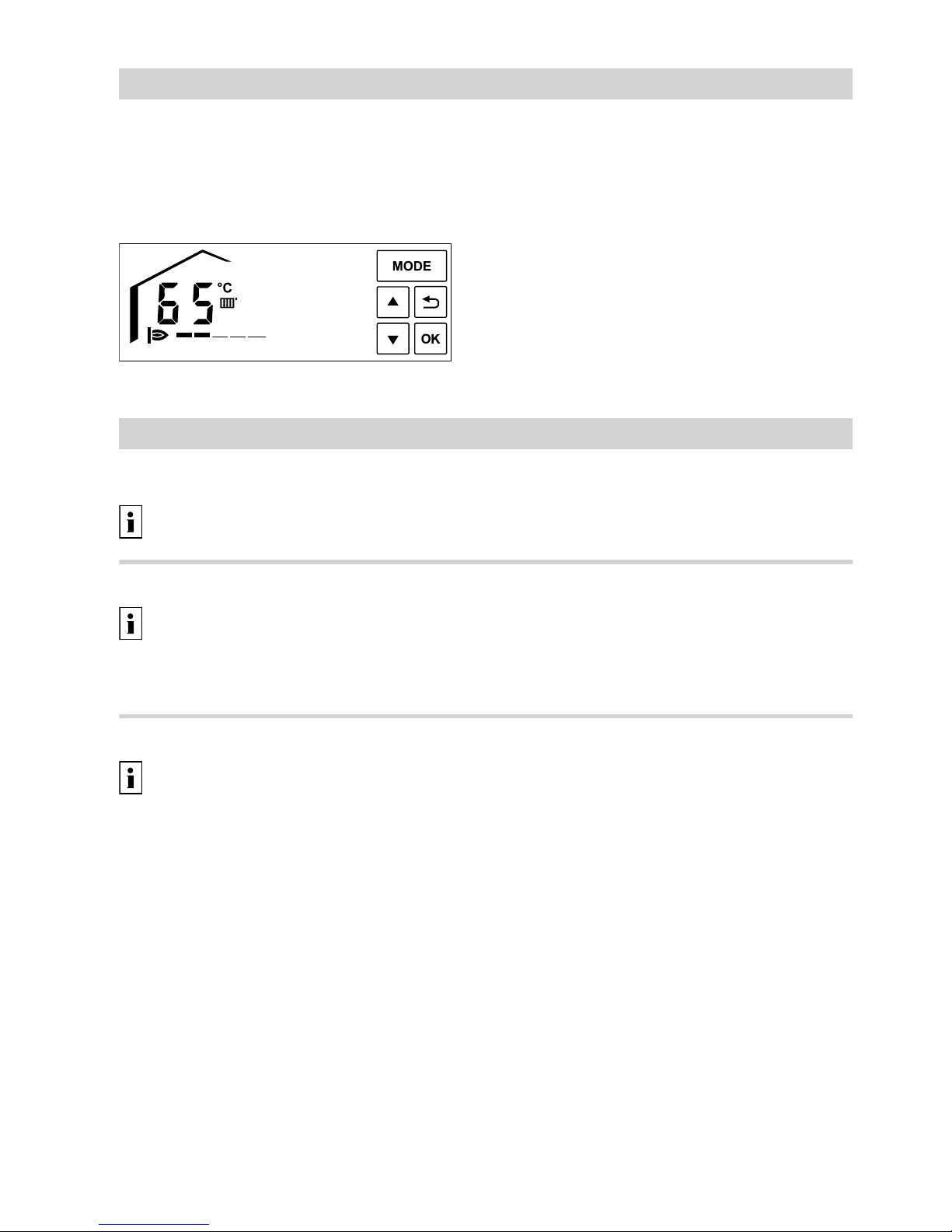

Default display
The following is displayed:
■Current boiler water temperature
■Operating mode
■Burner operation and current burner output
Fig. 3
Operating mode of the heating system
Operation without room temperature controller
Further information can be found in chapter
"Terminology" in the appendix.
Setting the required heating water temperature, see
page 12.
Operation with room temperature controller
Further information can be found in chapter
"Terminology" in the appendix.
Make any settings on the connected room temperature
controller using the relevant operating instructions.
Note
Set the boiler water temperature high enough to ach-
ieve the required room temperature.
For boiler water temperature setting, see page 12
Weather-compensated operation
Further information can be found in chapter
"Terminology" in the appendix.
In weather-compensated mode, the boiler water tem-
perature is regulated subject to the outside tempera-
ture.
Note
Connect a room temperature controller to your heating
system to prevent heat being generated unnecessarily
at times when you do not require central heating. This
enables central heating to be suspended at night, for
example, in order to save energy.
For setting the room temperature, see page 13.
Operation
Summary of controls and indicators (cont.)
5697 793 GB

10
We recommend you contact your local heating con-
tractor if you are planning to start up a heating system
that has not been used for a long period.
1
0
2
3
4
bar
Fig. 4
1. Check the pressure of your heating system on the
pressure gauge.
Minimum system pressure 0.8 bar
Notify your heating contractor if the system pres-
sure is too low.
2. In open flue operation:
Combustion air is drawn from the installation room.
Check whether the vents in the installation room
are open and unobstructed.
Fig. 5
3. Open the gas shut-off valve.
4. Turn ON the ON/OFF switch.
Your heating system and room temperature control-
ler (if connected) are now ready for operation.
Shutting down the heating system
With frost protection monitoring
Further information can be found in chapter
"Terminology" in the appendix.
If you do not wish to use your boiler for several days
you can switch the appliance off.
Set the boiler water temperature and the DHW temper-
ature to OFF.
Frost protection monitoring is now active for the boiler
and the DHW cylinder.
Note
Frost protection for the entire heating system – see
operating instructions for the room temperature con-
troller.
Without frost protection (shutdown)
Shut down your heating system completely if it will not
be needed for longer periods (several months).
We recommend you contact your local heating con-
tractor if you are planning to take your heating system
out of use for long periods. Your heating contractor can
then take suitable steps such as frost protection for the
system or heating surface preservation as required.
1. Close the gas shut-off valve and safeguard against
unauthorised reopening.
2. Turn OFF the ON/OFF switch.
The power to the system is now at zero volt.
Note that the system is no longer protected
against frost.
Start-up/shutdown
Starting the heating system
5697 793 GB

11
Stopping central heating
You do not want to heat your interior but you want to
have DHW available (summer mode).
Tap the following on-screen buttons:
1. the set boiler water temperature flashes and
is displayed.
2. until "OFF" is displayed.
3. OK to confirm.
Note
■The circulation pump briefly starts every 24 hours to
prevent it from seizing up.
■Boiler frost protection is enabled.
Stopping DHW heating
You do not want to have DHW available.
Tap the following on-screen buttons:
1. MODE
2. / until flashes.
3. OK to confirm.
The set DHW temperature flashes.
4. until "OFF" is displayed.
5. OK to confirm.
Start-up/shutdown
Stopping central heating and DHW heating
5697 793 GB

12

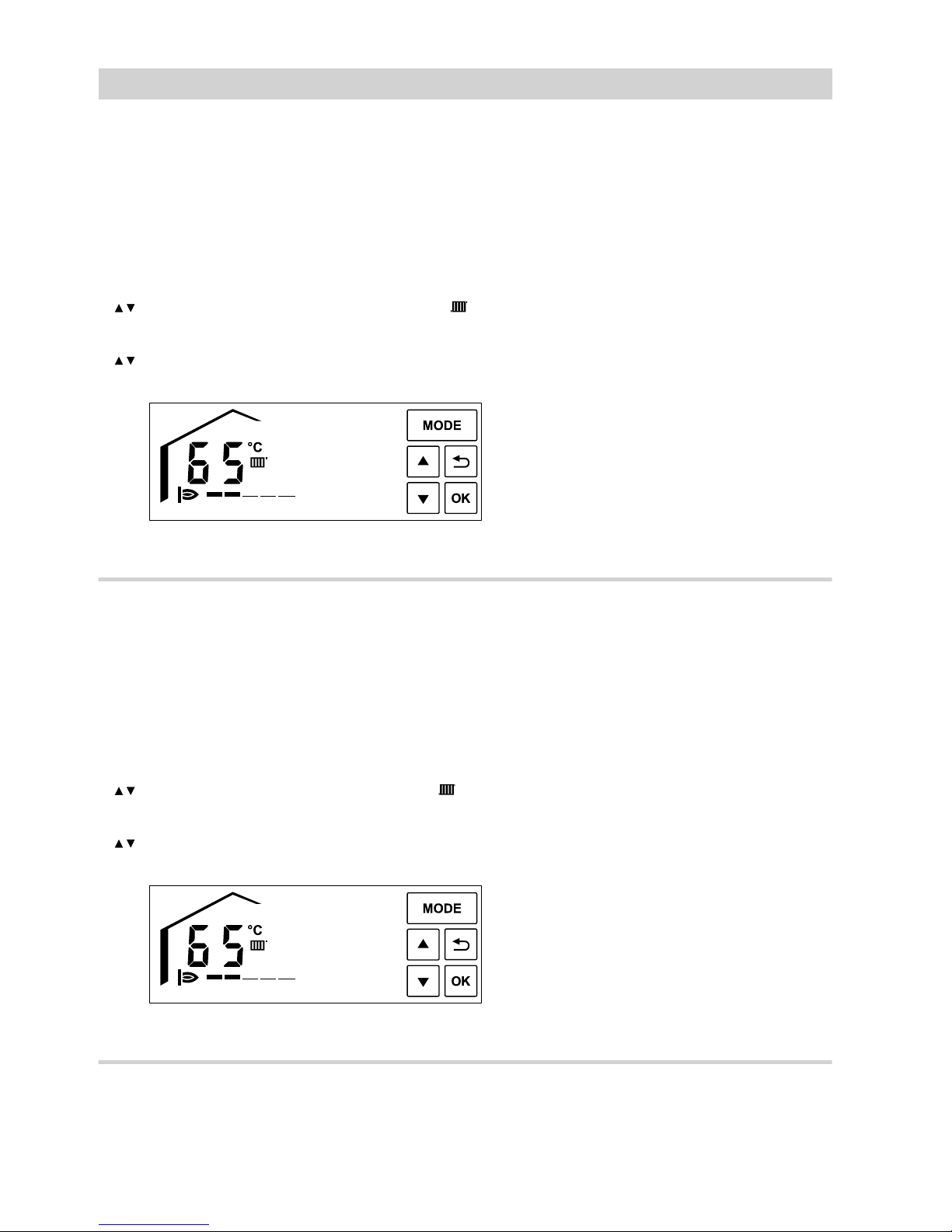

Operation without room temperature controller ― Setting the heating water temperature
If no outside temperature sensor and no room temper-
ature controller is connected.
The room temperature is influenced by the heating
water temperature. In the delivered condition, the heat-
ing water temperature is set to 70 °C.
Tap the following on-screen buttons:
1. / the set heating water temperature flashes and
is displayed.
2. / until the required heating water temperature is dis-
played.
Fig. 6
3. OK to confirm.
Operation with room temperature controller ― Setting the boiler water temperature
If no outside temperature sensor is connected, but a
room temperature controller is.
If the required room temperature is not achieved,
ensure the boiler water temperature setting is suffi-
ciently high. In the delivered condition, the boiler water
temperature is set to 70 °C.
Tap the following on-screen buttons:
1. / the set boiler water temperature flashes and is
displayed.
2. / until the required boiler water temperature is dis-
played.
Fig. 7
3. OK to confirm.
Weather-compensated operation – Setting the room temperature
An outside temperature sensor must be connected for
weather-compensated operation.
In the delivered condition, a parameter value of 20 is
set for central heating. Should you wish to set a higher
room temperature, increase the parameter value;
reduce it for a lower room temperature.
Settings
Setting the central heating temperature
5697 793 GB

13
Tap the following on-screen buttons:
1. / the set parameter flashes and is displayed in
the l.h. display area.
2. / until the required room temperature is achieved.
Note
When adjusting this setting, bear in mind that your
heating system requires some time to heat the
interior to the required temperature.
Fig. 8
Note
The current outside temperature is displayed in the
r.h. display area.
3. OK to confirm.
Settings
Setting the central heating temperature (cont.)
5697 793 GB

14
Tap the following on-screen buttons:
1. MODE
2. / until flashes.
3. OK to confirm.
The set DHW temperature flashes.
4. / to set the required DHW temperature.
Fig. 9
5. OK to confirm.
DHW comfort function
Only for boilers with integral instantaneous water
heater.
Your heating contractor can activate the DHW comfort
function. This makes DHW available faster when
required. The display then shows "COMFORT".
Setting the DHW temperature
DHW temperature
5697 793 GB

15
Emissions test mode should be activated only by your
flue gas inspector, during the annual inspection.
Various output stages can be set for checking the flue
gas.
Press the following buttons:
1. MODE
2. / until "SERV" flashes.
3. OK to confirm.
"OFF" flashes (test mode not active).
4. / to set the required burner output.
Shown on the
display
Burner output
"OFF" 0 %
_ 20 20 %
_ _ 40 40 %
_ _ _ 60 60 %
_ _ _ _ 80 80 %
_ _ _ _ _ 100 100 %
5. OK to confirm.
"SERV" is displayed permanently, test
mode is active.
Ending emissions test mode
Note
This function will also terminate automatically after
30 minutes.
Press the following buttons:
1. MODE
2. / until "SERV" flashes.
3. OK to confirm. The value set last flashes.
4. until "OFF" flashes.
5. OK to confirm.
"SERV" disappears, test mode is no longer
active.
Emissions test mode
Starting emissions test mode
5697 793 GB

16
Cause Remedy
The heating system is off. ■Turn ON the ON/OFF switch " " (see figure on
page 8).
■Switch ON the mains isolator if installed (outside the
boiler room).
■Set the MCB in the power distribution board (main do-
mestic MCB).
Control unit or room temperature controller incorrectly
adjusted.
■Operation with room temperature controller:
Set a higher boiler water temperature (see page 12).
■Weather-compensated operation:
Set a higher room temperature (see page 12).
Only when operating with DHW heating:
DHW priority is enabled (" " is displayed).
Wait until the DHW cylinder has been heated up (" "
disappears).
In the case of operation with an instantaneous water
heater, stop DHW draw-off.
No fuel. With LPG:
Check the fuel reserves and re-order if required.
For natural gas:
Open the gas shut-off valve. If necessary, check with
your gas supply utility.
" " is shown on the display. Notify your heating contractor of the fault code shown.
" " and the fault code flash on the display. The burner
does not start.
Reset burner fault (see page 18).
Notify your heating contractor if the fault recurs.
Danger
If faults are not rectified, they can have life
threatening consequences.
Do not reset the burner fault several times in
quick succession. Notify your heating contractor
if a fault recurs. Your heating contractor will be
able to analyse the cause and rectify the fault.
Air in the heating system. Bleed radiators.
The burner is switched off. Blockage in the ventilation
air supply or flue system.
Notify your local heating contractor.
Rooms are too hot
Cause Remedy
Control unit or room temperature controller incorrectly
set.
Check and correct the room temperature or boiler water
temperature (see page 12)
Room temperature controller operating instruc-
tions
" " is shown on the display. Inform your heating contractor of the fault code.
What to do if...
Rooms are too cold
5697 793 GB

17
Cause Remedy
The heating system is off. ■Turn ON the ON/OFF switch " " (see page 8).
■Switch ON the mains isolator if installed (outside the
boiler room).
■Set the MCB in the power distribution board (main do-
mestic MCB).
Control unit incorrectly set. Check and correct the DHW temperature (see page 14)
No fuel. With LPG:
Check the fuel reserves and re-order if required.
For natural gas:
Open the gas shut-off valve. If necessary, check with
your gas supply utility.
" " is shown on the display. Notify your heating contractor of the fault code shown.
" " and the fault code flash on the display. The burner
does not start.
Reset burner fault (see page 18).
Notify your heating contractor if the fault recurs.
Danger
If faults are not rectified, they can have life
threatening consequences.
Do not reset the burner fault several times in
quick succession. Notify your heating contractor
if a fault recurs. Your heating contractor will be
able to analyse the cause and rectify the fault.
The DHW is too hot
Cause Remedy
The control unit is set incorrectly. Check and correct the DHW temperature (see page 14)
" " and the fault code flash on the display
Cause Remedy
The burner does not start. Reset burner fault (see page 18).
Notify your heating contractor if the fault recurs.
Danger
If faults are not rectified, they can have life
threatening consequences.
Do not reset the burner fault several times in
quick succession. Notify your heating contractor
if a fault recurs. Your heating contractor will be
able to analyse the cause and rectify the fault.
" " is shown on the display
Cause Remedy
Heating system fault Inform your heating contractor of the fault code.
What to do if...
There is no hot water
5697 793 GB

18
In the case of a fault with your heating system, the dis-
play will show and the fault code.
You can check the fault code on the display and then
notify your heating contractor accordingly. This allows
the heating contractor to better prepare for the service
call and may save additional travelling costs.
If flashes and "R" appears, the burner is locked out.
See the following chapter.
Fig. 10
Resetting a burner fault
Note
If " " flashes and "R" appears on the display, the
burner is locked out.
Fig. 11
Touch "R" for approx. 2 seconds. If the fault no longer
exists, the default display will appear.
Notify your heating contractor if the fault recurs.
Danger
If faults are not rectified, they can have life
threatening consequences.
Do not reset the burner fault several times in
quick succession. Notify your heating contractor
if a fault recurs. Your heating contractor will be
able to analyse the cause and rectify the fault.
What to do if...
Fault indicator on display
5697 793 GB

19
All appliances may be cleaned with a commercially
available domestic cleaning agent (non-scouring).
Inspection and maintenance
The inspection and maintenance of a heating system
is prescribed by the Energy Saving Ordinance [EnEV -
Germany] and the DIN 4755, DIN 1988-8 and EN 806
standards.
Regular maintenance ensures trouble-free, energy effi-
cient and environmentally responsible heating opera-
tion. For this, we strongly advise you to arrange an
inspection and maintenance contract with your heating
contractor.
Boiler
Increasing boiler contamination raises the flue gas
temperature and thereby increases energy losses. All
boilers should therefore be cleaned annually.
Logbook
Please ensure that you have a Logbook supplied with
your appliance. This Logbook should be completed by
your installer to verify that the correct installation and
commissioning procedure was followed.
Failure to complete the Logbook may result in difficul-
ties should a problem arise with your appliance during
the guarantee period. This Logbook forms part of the
industry's Benchmark code of practice for the installa-
tion, commissioning and servicing of central heating
systems.
All Gas Safe Registered Installers carry a ID card and
have a registration number. Both should be recorded in
your Logbook. You can check your installer is Gas
Safe registered by calling GasSafe register on +44
(0)800 408 5500 or visit the website www.gassafer-
egister.co.uk
Drinking water filter (if installed)
Further information can be found in chapter
"Terminology" in the appendix.
For reasons of good hygiene
■replace filter element on non-backwashing filters
every 6 months (visual inspection every 2 months),
■on backwashing filters, backwash every 2 months.
Maintenance
Cleaning
5697 793 GB

20
Constant temperature operation
In constant temperature operation, the heating water is
constantly (continuously) heated to the selected boiler
water temperature.
Heating water temperature
The temperature of the heating water that flows to the
radiators (roughly equal to boiler water temperature).
Boiler water temperature
The heating water in the boiler (boiler water) is heated
to the temperature set at the control unit. This temper-
ature is referred to as boiler water temperature.
Open flue operation
The combustion air is drawn from the room where the
boiler is installed.
Room sealed operation
The combustion air is drawn from outside the building.
Room temperature-dependent operation
A room temperature controller captures the room tem-
perature and compares this with the required room
temperature you set. If the room temperature is lower
than the required value, the boiler is switched on; if the
room temperature is higher than the required value,
the boiler is switched off.
Make any settings on the connected room temperature
controller using the relevant operating instructions.
Note
The heating water temperature must be set high
enough in order to achieve the required room tempera-
ture.
Safety valve
Safety equipment that must be installed in the cold
water pipe by your heating contractor. The safety valve
opens automatically to prevent excess pressure in the
DHW cylinder.
Drinking water filter
A device that removes solids from potable water. The
drinking water filter is installed in the cold water pipe
upstream of the DHW cylinder or the instantaneous
water heater.
Flow temperature
The temperature of the heating water that flows to the
radiators (in the flow line). Accordingly, the tempera-
ture of the heating water that flows from the radiators
to the boiler (in the return line) is referred to as return
temperature.
Weather-compensated operation
In weather-compensated mode, the flow temperature
is controlled according to the outside temperature. This
means that no unnecessary heat is generated in order
to heat the rooms to the required room temperature
you selected.
The outside temperature is captured and transmitted to
the control unit by a sensor fitted outside the building.
Information on disposal
Disposal of packaging
You heating contractor will dispose of the packaging of
your Viessmann product.
DE: Packaging waste is channelled for recycling to a
certified disposal contractor in line with statutory
regulations.
AT: Packaging waste is channelled for recycling to a
certified disposal contractor in line with statutory
regulations. Use the ARA statutory disposal sys-
tem (Altstoff Recycling Austria AG, licence num-
ber 5766).
Final decommissioning and disposal of the heating system
Viessmann products can be recycled. Components
and fluids from your heating systems are not part of
ordinary domestic waste.
Please contact your heating contractor in connection
with the correct disposal of your old system.
DE: Operating fluids (e.g. heat transfer medium) can
be disposed of at municipal collection points.
AT: Operating fluids (e.g. heat transfer medium) can
be disposed of at municipal collection points
(ASZ).
Appendix
Terminology
5697 793 GB
