VITODENS 200-W
High Output Gas Condensing Boilers

High Output Gas
Condensing Boilers
Vitodens 200-W
45 to 105 kW
Cascade up to 840 kW

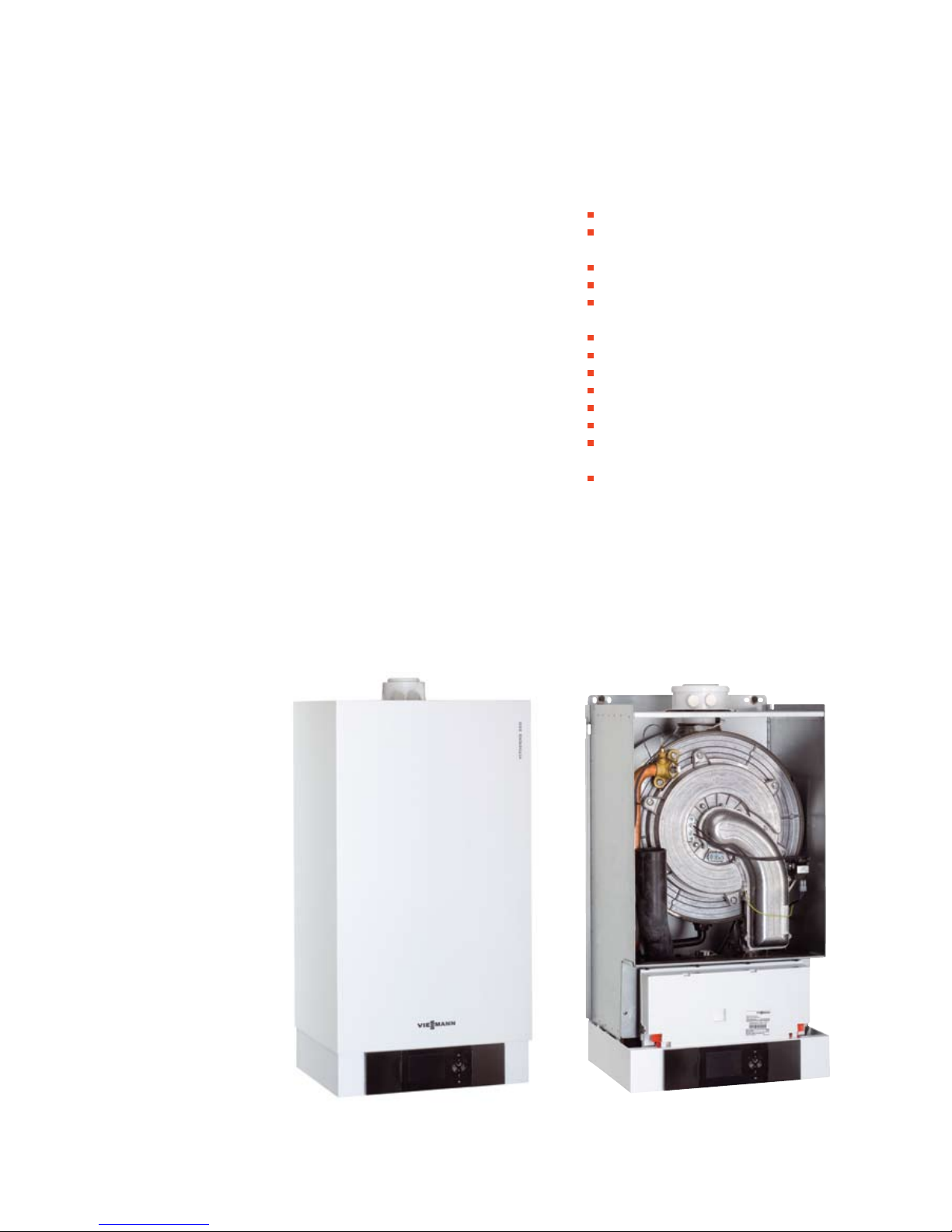

The Vitodens 200-W high specification
boiler is one of the most efficient and
quietest condensing boilers in this sector.
It is now available for commercial applications
up to 840 kW – good news if access is
difficult or floor space is limited, if you prefer
the reassurance of having more than one
boiler running as a back-up or if you want
all the features of this great wall-hung gas
condensing boiler.
It can be cascaded with output ranging from
17 to 840 kW. Up to eight 200-W can be
linked in a single cascade. Simply tell us your
required output and we can supply all the
components you need for the best cascade
combination for your project – see page 7.
Take advantage of these benefits
Gross efficiency up to 98%
NOx credit rating 4 (<39mg/kWh)
according to BREEAM
Up to 4Bar operating pressure
Compact dimensions for easy handling
10 year warranty on the Inox-Radial
stainless steel heat exchanger
High operational reliability
Modulating pre-mix MatriX burner
Lambda Pro combustion control
Optional weather compensation
Easy and fault-free commissioning
Noise emission of less than 32dB(A)
Easy integration with renewable
energy technologies
All serviceable parts accessible from
the front

2/3
Intelligent Lambda Pro gas
management system for optimum
efficiency and performance
The Lambda Pro is designed to work
efficiently irrespective of gas quality – a
factor which will become increasingly
important as imports of international gas
supplies increase.
The Lambda Pro combustion controller works
alongside the burner to constantly monitor
the air to gas ratio. Instead of the gas/air mix
remaining fixed from commissioning, the mix
is self adjusting as required, to maintain
optimum boiler efficiency in relation to the
gas quality – in a similar way to the fuel
management system in a car engine.
The control also replaces the traditional gas
valve control and changing to LPG takes just a
few seconds – with no changing of any parts.
Modulating MatriX pre-mix burner
Developed by Viessmann, the stainless steel
MatriX pre-mix burner burns with thousands
of tiny flames instead of one large one, to
distribute heat cleanly and efficiently to the
heat exchanger. With a modulation range
of 1:4 the heat demand is optimised and
maximum efficiency levels are achieved. The
extremely low NOx and CO emissions meet
or exceed all national clean air regulations and
guidelines.
The stainless steel MatriX mesh ensures
long term reliability.
Inox-Radial heat exchanger
As with all Viessmann wall-hung boilers, the
Vitodens 200-W features Viessmann’s unique
stainless steel heat exchanger, designed for
long term reliability, high performance and
self cleaning.
The design of the heat exchanger ensures
high heat transfer through laminar hot gas
flow across defined gaps. High corrosion
resistance is maintained by the use of high
grade stainless steel 1.4571 and thick
walls. This component is so reliable that it
comes with a 10 YEAR WARRANTY against
corrosion due to products of combustion.
Advanced controls
The Vitodens 200-W is loaded with
features and functions to make installation,
maintenance and servicing easy. These
include in-built software for remote data
communication and monitoring, additional
heating circuits, a solar/heat pump
interface, safety monitor sensors and
automatic commissioning functions.
Weather compensation controls
The Vitodens 200-W is available with
optional weather compensation control (the
Vitotronic 200). It looks at the actual outside
temperature and compares it with the desired
indoor temperature. The flow temperature
is varied suitably to maintain comfort levels.
This keeps the boiler condensing as much as
possible, providing additional fuel savings of
up to 15%.
MatriX cylinder burner
Vitotronic 200 controller

Technical
specification
Vitodens 200-W
General specifications and performance data
Appliance 17 - 45 kW 17 - 60 kW 30 - 80 kW 30 - 105 kW
Mode Unit
Dimensions/Connections
Dimensions Depth
Width
Height
mm
mm
mm
380
480
850
380
480
850
530
480
850
530
480
850
CH flow & return G 1.5 G 1.5 ø 42 mm ø 42 mm
Cylinder flow and return G 1.5 G 1.5 G 1.5 G 1.5
Condensate 20-24 mm 20-24 mm 20-24 mm 20-24 mm
Gas R 3/4" R 3/4" R 1" R 1"
Rated central heating output
AT Tf/Tr 50/30°C (condensing) kW 17.0 - 45.0 17.0 - 60.0 30.0 - 80.0 30.0 - 105.0
AT Tf/Tr 80/60°C (non-condensing) kW 15.4 - 40.7 15.4 - 54.4 27.0 - 72.6 27.0 - 95.6
Rated central heating input (net) kW 16.1 - 42.2 16.1 - 56.2 28.1 - 75.0 28.1 - 98.5
Rated central heating input (gross) kW 17.9 - 46.8 17.9 - 62.4 31.2 - 83.2 31.2 - 109.3
Max. gas rate NG m3/h 4.47 5.95 7. 9 4 10.42
Max. gas rate LPG kg/h 3.3 4.39 5.86 7.7
Efficiency @ full load (80/60°C) % 86.8 86.8 86.8 86.8
Efficiency @ part load (50/30°C) % 96.7 96.7 96.8 96.8
Seasonal efficiency accordance to Part L2 % 97.5 97. 5 97.5 97. 5
NOx (at 0% excess air) mg/kWh <39 <39 <39 <39
CO ppm <50 <50 <50 <50
CH performance
Minimum CH system pressure - cold bar 1111
Maximum CH system pressure - hot bar 4444
CH flow temperature range °C 30 - 80 30 - 80 30 - 80 30 - 80
General specification
Total water capacity ltr 7 7 12.8 12.8
Lift weight kg 65 65 83 83
Total weight (incl. packaging) kg 68 68 86 86
Electricity supply 230v, 50Hz 230v, 50Hz 230v, 50Hz 230v, 50Hz
Internal fuse A 6 6 6 6
Maximum power consumption W 30 50 105 150
Water protection rating IP x 4D IP x 4D IP x 4D IP x 4D
Available flue pressure Pa 100 100 100 100
Inner flue duct diameter mm 80 80 100 100
Outer flue duct diameter mm 125 125 150 150
Product ID
CE-0085 BR 0432 CE-0085 BR 0432 CE-0085 BR 0432 CE-0085 BR 0432
Vitodens 200-W WB2C

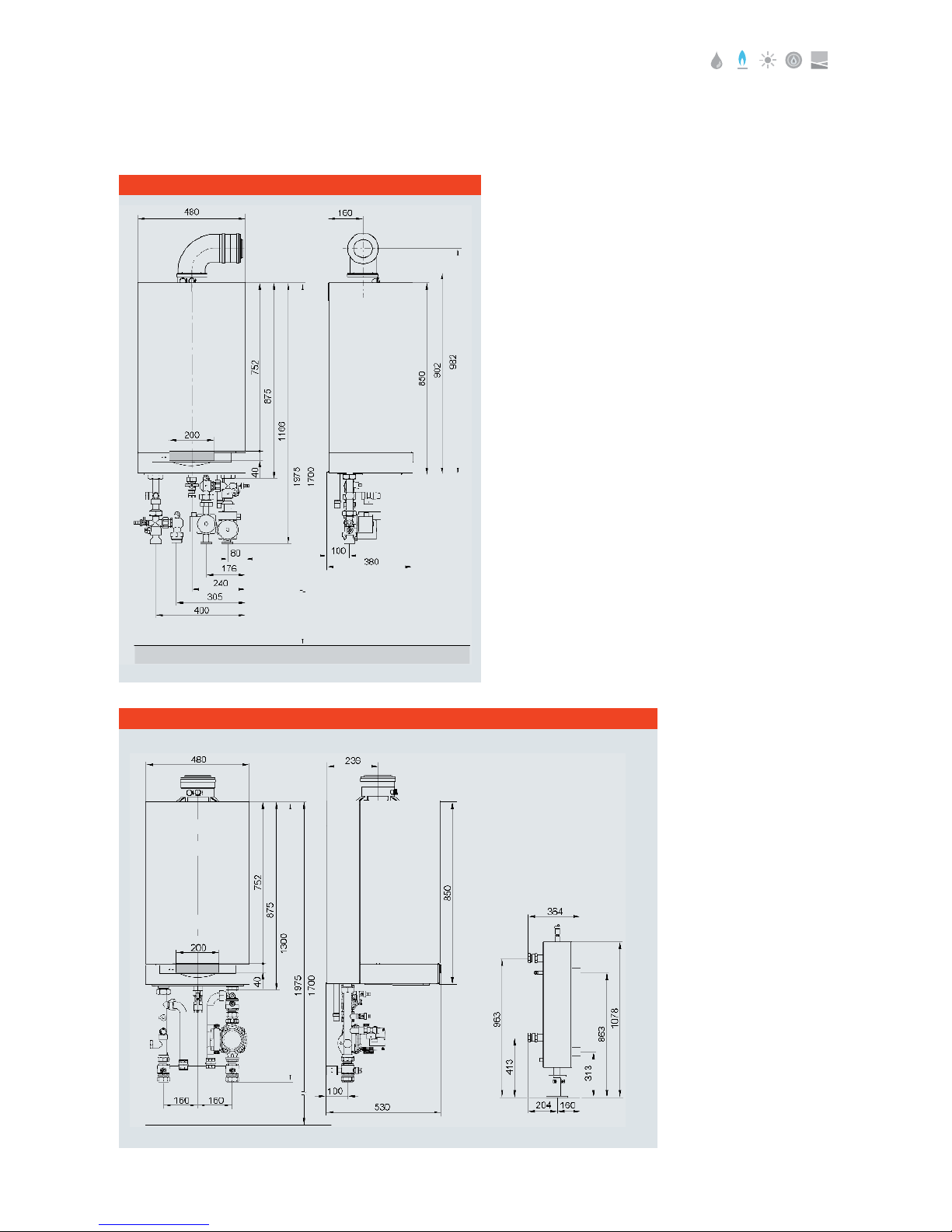

45 kW & 60 kW dimensions
80 kW & 105 kW dimensions
4/5

High Output Gas
Condensing Boilers
Vitodens 200-W
The Vitodens 200-W can be cascaded with up to 8 units, offering outputs up to 840 kW.
Viessmann’s comprehensive cascade packages are designed for easy installation on
all applications.

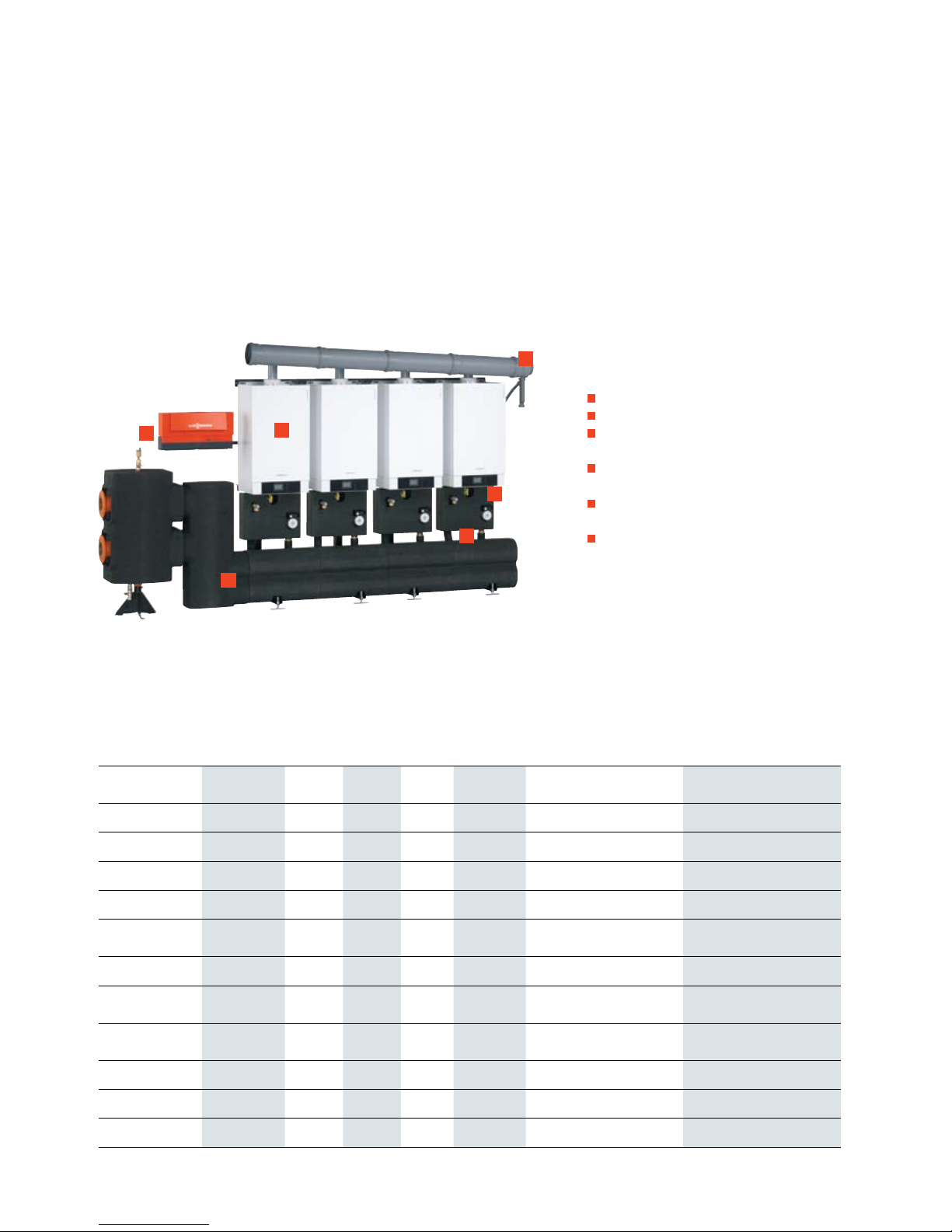

Vitodens 200 Cascade packages
Each package comprises of the boilers,
pumps, Vitotronic controller, connection
sets and a low loss header with cascade
Components of cascade unit packs
1Vitodens 200-W
2Cascade controller
3Cascade units comprising: distributor/header
low loss header insulation
4Flue gas cascade and boiler coding card
(higher speed fan)
5Heating circuit connection set up with
variable speed pumps
6Insulated copper pipes
1
2
3
5
4
6
Cascade packages
Required output Combination 45 kW 60 kW 80 kW 105 kW Overall dimensions in mm
(HxWxD) inc frame
Overall dimensions in mm
Quad block (HxWxD)
90 2 x 45 kW XX 1876 x 1610 x 675
120 2 x 60 kW XX 1876 x 1610 x 675
135 3 x 45 kW XXX 1905 x 2270 x 675
160 2 x 80 kW XX 1876 x 1700 x 675
180 4 x 45 kW
3 x 60 kW
----
XXX 1905 x 2270 x 675 1876 x 1585 x 843
210 2 x 105 kW XX 1876 x 1700 x 675
240 4 x 60 kW
3 x 80 kW
----
XXX 1905 x 2395 x 675
1876 x 1585 x 843
315 4 x 80 kW
3 x 105 kW
XXXX
----
1876 x 1765 x 1280
420 4 x 105 kW XXXX 1934 x 2960 x 675 1876 x 1765 x 1280
630 6 x 105 kW XXXXXX 1992 x 4220 x 675 1876 x 1945 x 1280
840 8 x 105 kW XXXXXXXX 2050 x 5480 x 675 1876 x 2125 x 1280
pipework. Cascade installation can be wall
mounted or free standing on a purpose built
framework. Flue items should be ordered as
seperate accessories, as required.
X Numbers of boilers per cascade - - - - Not part of standard delivery

Hydraulic cascade for wall mounting and
installation on self-supporting frames. Flow
and return collectors with low loss header
for multi-boiler systems of 2 to 8 Vitodens
A Sensor well for flow temperature sensor
B Air vent valve
C Drain
D Connectors for safety equipment Rp ½
E Connection accessories with circulation pump
HR Heating return
HV Heating flow
boilers in series or 4, 6 or 8 boilers arranged
as a block. Heating circuit connections either
on the right or left.
Boiler Number 2 x 45 kW
2 x 60 kW
2 x 80 kW
2 x 10 5 kW
3 x 45 kW
3 x 60 kW
3 x 80 kW
3 x 10 5 kW
4 x 10 5 kW 6 x 8 0 kW
6 x 10 5 kW
8 x 10 5 kW ( 2 x 2 ) 4 5 k W *
( 2 x 2 ) 6 0 k W *
( 2 x 2 ) 8 0 k W *
( 2 x 2 ) 10 5 k W *
( 2 x 3 ) 8 0 k W *
( 2 x 3 ) 1 0 5 k W *
( 2 x 4 ) 10 5 k W *
Heating
circuit
connection
PN4/DN 80 80 80 80 100 100 100 80 100 100 100
Boiler
connection G1.5" 1.5" 1.5" 1.5" 1.5" 1.5" 1.5" 1.5" 1.5" 1.5" 1.5"
Max.
flow rate m3/h 6.9 12.1 10.3 18 .1 24.1 36.2 48.2 13.8 24.1 36.2 48.2
Dimensions a mm 805 805 805 805 1044 1044 1044 805 1044 1044 1044
b mm 683 683 683 683 860 860 860 683 860 860 860
c mm 458 458 458 458 520 520 520 458 520 520 520
d mm 235 235 235 235 250 250 250 235 250 250 250
e mm 219 219 219 219 300 300 300 219 300 300 300
f mm 168 168 168 168 168 168 168 168 168 168 168
g mm 343 343 343 343 343 343 343 343 343 343 343
h mm 2110 2110 2690 2690 3491 4651 5 811 2112 2331 2911 3491
k mm 430 430 430 430 430 430 430 ----
l mm 595 595 595 595 595 595 595 ----
* Cascade supplied as a block in a back to back boiler arrangement
Vitodens 200-W Cascaded System
6/7
Pre-installation, multi boiler system

High Output Gas
Condensing Boilers
Vitodens 200-W
Conventional
flue Output Flue
diameter (mm)
Balanced flue
diameter (mm)
Duct
open flue
Roof
outlet
Ext. wall
terminal
Routing over
ext. wall
Duct
balanced flue
45 kW 80 25
60 kW 80 15
80 kW 100 20
105 kW 100 20
Concentric 45 kW 80 /125 10 10 12 20
60 kW 80 /125 6 6 12 15
80 kW 100/150 15 15 20 20
105 kW 100 /150 15 15 20 20
Max. flue length (m)
Flue gas cascade type each kit comprising: Flue gas non-
return device, flue pipe, terminal with condensate drain and
boiler coding card.
45 - 60 kW 80 - 105 kW
Diameter (mm)
Max. flue length (m) Diameter (mm) Max. flue length (m)
Flue gas
cascade twin
125 12 150 20
Flue gas cascade triple
Flue gas cascade triple
125
150
12
20
150
200
20
25
Flue gas cascade quad
(only for 105 kW)
- - 200 20
Flue gas cascade quad block 150 15 200 20
Flue gas cascade six - - 250 25
Flue gas cascade six block - - 250 25
Flue gas
cascade
eight
- - 250 25
Flue gas cascade eight block - - 250 25
Maximum flue lengths
Single boiler installations
Cascaded installations

Room temperature-dependent and remote control units Vitotronic 100
(constant
temperature)
Vitotronic 200
(weather
compensation)
Vitotrol 200A remote controller
to adjust one heating circuit for
n Day temperature and heating program
n With party and economy keys
n With room temperature sensor for room temperature hook-up (only for heating circuit with mixer)
If Vitotrol 200A is used for room temperature hook-up, locate the device in a main living space
-Z008341
Vitotrol 300A remote controller
to adjust up to 3 heating circuits of which 2 can be mixed
n Day and night temperature, DHW temperature, heating and holiday program plus party and economy keys
n Switching times for one heating circuit, DHW cylinder and DHW circulation pump
n With illuminated display and plain text support
n With room temperature sensor for room temperature hook-up (only for heating circuit with mixer)
If Vitotrol 300A is used for room temperature hook-up, locate the device in a main living space
-Z008342
Room temperature sensor (as an addition to a Vitotrol)
If the Vitotrol 200A or 300A cannot be located in a suitable position to capture
the room temperature
-7438537
8/9
Cascade controls (Vitotronic 300-K
type MW2B)
The Vitotronic 300-K weather compensated
cascade controller can regulate up to eight
Vitodens 200-W boilers as a single heating
centre. By communicating with the individual
boiler controls, the Vitotronic 300-K ensures
that the boiler output is automatically matched
to the heat demand. As a result, subject to
the demand, more or fewer boilers are fired
to match the load. Up to 4 boilers via LON
communication. Up to 8 boilers via KM Bus.
Take advantage of these benefits
Weather compensated regulation of
system/boiler water temperature of a multi
boiler system with up to 8 boilers
The cascade controller can provide variable
temperature control for multiple circuits
with mixers
Boiler sequencing may be set up as
required
Electronic maximum temperature limiter
Demand-dependent heating circuit pump
shut down
Adjustment of a variable heating limit
Anti-seizing pump protection
Central fault message
Integral diagnostic system
Adaptive cylinder thermostat with
priority control (heating circuit pump OFF,
mixer closed)
Screed drying, for underfloor heating
systems
Vitotronic 300-K type MW2B
Boiler controls

High Output Gas
Condensing Boilers
Vitodens 200-W
Heating circuit and DHW cylinder (only for single boiler 45 and 60 kW) Part number
Connection set for heating circuit without circulation pump - comprising:
n Tee with ball valve
n Fill and drain valve
n Safety valve
n Straight-through gas valve with integral thermally activated safety shut off valve
n Plug for circulation pump
Z008 912
Connection set for heating circuit with circulation pump - comprising:
n Tee with ball valve
n Check valve
n Fill and drain valve
n Built-in non return valve
n Thermal insulation
n Straight-through gas valve with integral thermally activated safety shut off valve
n Safety valve
and
n Circulation pump (3-stage)
or
n Circulation pump (high efficiency)
7247 341
7424 757
Connection set for DHW cylinder - comprising:
n Ball valve
n Check valve
n Built-in non return valve
n Cylinder primary pump
n Cylinder temperature sensor (3.75m long)
n H1 internal extension
For integration into thermal insulation of connection set for heating circuit with circulation pump
Z007 620
Ball valve (G 1.25")
Required if the heating circuit pump or the cylinder primary pump is to be changed without draining the heating system
7247 373
Heating circuit and DHW cylinder (only for single boiler 80 and 105 kW) Part number
Connection set for heating circuit with circulation pump - comprising:
n Tee with ball valve
n Check valve
n BDF valve
n Safety valve
n Straight-through gas valve with integral thermally activated safety shut off valve
n Ball valve (2 pce)
n Thermal insulation
and
n Circulation pump (3-stage)
or
n Circulation pump (high efficiency)
7424 951
7424 759
Connection set for DHW cylinder - comprising:
n Cylinder flow and return
n Fittings G 1.25"
n Cylinder temperature sensor
n H1 internal extension
7348 934
Low loss header
n Low loss header with integral sensor (50mm long)
n Thermal insulation
n Immersion temperature sensor
Brackets for low loss header (order separately)
n For floor mounting
n For wall mounting
Z007 743
7346 787
7346 788
Boiler controls & accessories

Heating circuit - Modular-divicon Pump versions
Modular-divicon heating distributor with
heating circuit pump with check valve, fully
wired 2 ball valves with thermometer
Thermal insulation
manually regulated
Wilo
(4-3)
Wilo
(6-3)
Grundfos
(UPS-40)
Grundfos
(UPS-60)
with mixer-3
R 3/4"
Z008 414 Z008 417 Z008 426 Z008 423
with mixer-3
R 1"
Z008 415 Z008 418 Z008 421 Z008 424
bypass valve
for Modular-divicon
7464 889 7464 889 7464 889 7464 889
without mixer
R 3/4"
Z008 426 Z008 429 Z008 432 Z008 435
without mixer
R 1"
Z008 427 Z008 430 Z008 433 Z008 436
Modular-divicon wall mounting (individual)
1 per Modular-divicon
7465 894 7465 894 7465 894 7465 894
NOTE: Actuator for mixer to be ordered separately - see price guide
Heating circuit - Modular-divicon Part number
Manifold for 2 Modular-divicon - wall mounted
with thermal insulation (black)
(wall mounting to be ordered separately)
DN20 - 3/4" & DN25 - 1" - 7460 638
DN32 - 1 1/4" - 7466 337
(also order 7465 439)
Manifold for 3 Modular-divicon - wall mounted
with thermal insulation (black)
(wall mounting to be ordered separately)
DN20 - 3/4" & DN25 - 1" - 7460 643
DN32 - 1 1/4" - 7466 340
(also order 7465 439)
Low loss header
Volume flow up to 4.5m3/h
connection to the manifolds
with thermal insulation (black)
with integral sensor well 50mm long
7460 649
Immersion temperature sensor
for measuring the temperature in the low loss header
for Vitodens 200 -W with 45 and 60 kW (for multi boiler systems
with Vitotronic 300-K and Vitodens 200-W with 80 and 105 kW
in the heating circuit set connection set standard delivery)
7179 488
DHW heating (only for single boiler) Part number
Cylinder temperature sensor
part of the standard delivery with part no Z007620 and 7348934
7179 114
Sensor well (for cylinder temperature sensor)
part of the standard delivery for Viessmann Vitocell 300 cylinders
7819 693
10 /11
Boiler controls & accessories

Your trade partner:
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP
Tel: [phone]
Fax: [phone]
www.viessmann.co.uk
9443 995 GB 11/2011
Copyright Viessmann
Duplication and alternative use only with prior written consent.
Subject to technical modifications.
