ViewSonic N3250W - NextVision - 32" LCD TV User manual

ViewSonic®
ViewSonic®
N3250w
LCD TV
- User Guide
- Guia do usuário
- Guía del usuario
Model No. : VS11335-1L

ViewSonic N3250w
ENGLISH
Contents
Important Safety Instructions .......................................................................... 1
Copyright Information ...................................................................................... 2
Product Registration ........................................................................................ 2
Antenna Installation Instructions ..................................................................... 3
Cleaning the LCD TV ...................................................................................... 3
Getting Started
Package Contents ........................................................................................... 4
Fixing ViewSonic LCD TV to the Wall ............................................................. 4
Front View of the Product ................................................................................ 5
Rear View of the product ................................................................................. 6
Remote Control ............................................................................................... 7
Installation ....................................................................................................... 9
Basic Operation ............................................................................................... 13
OSD Functions
Video Menu ..................................................................................................... 15
Audio Menu ..................................................................................................... 15
TV Menu .......................................................................................................... 16
Setup Menu ..................................................................................................... 16
VGA Menu ....................................................................................................... 18
PIP/POP .......................................................................................................... 18
Other Information
Specifications .................................................................................................. 20
Troubleshooting .............................................................................................. 21
Limited Warranty ............................................................................................. 22

ViewSonic N3250w
1
ENGLISH
Important Safety Instructions
1. Read these instructions completely before using the equipment.
2. Keep these instructions in a safe place.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water. Warning: To reduce the risk of fire or electric
shock, do not expose this apparatus to rain or moisture.
6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the LCD TV”
in this guide for further instructions.
7. Do not block any ventilation openings. Install the equipment in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including amplifiers) that produce heat.
9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade and the third prong are
provided for your safety. If the plug does not fit into your outlet, consult an electrician for
replacement of the outlet.
10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the
point where if emerges from the equipment. Be sure that the power outlet is located near
the equipment so that it is easily accessible.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this equipment when it will be unused for long periods of time.
14. Refer all servicing to qualified service personnel. Service is required when the unit has
been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid
is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if
the unit does not operate normally or has been dropped.
15. This product is only to perform the useful function of entertainment and visual display
tasks are excluded.

ViewSonic N3250w
2
ENGLISH
Copyright Information
Copyright © ViewSonic® Corporation, 2006. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right
to change product specifications without notice. Information in this document may change
without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at: www.viewsonic.com.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
N3250w
ViewSonic LCD TV
VS11335-1L
N3250w-1L_UG_ENG Rev. 1A 06-01-06
_________________________________
_________________________________
Product disposal at end of product life
ViewSonic is concerned about the preservation of our environment. Please dispose of this
product properly at the end of its useful life. Your local waste disposal company may provide
information about proper disposal.
The lamp in this product contains mercury. Please dispose of properly in accordance with
environmental laws of your location.

ViewSonic N3250w
3
ENGLISH
Antenna Installation Instructions
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and built-up static charges, Article 810
of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
2. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will
prevent damage to the product due to lightning and power-line surges. Do not disconnect the antenna or the
power cord during a heavy storm lighting may strike while you are holding the cable cord, causing serious
injury; turn off your LCD TV and wait for the weather to improve.
3. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light
or power circuits, or where it can fall into such power lines or circuits, When installing an outside antenna
system, extreme care should be taken to keep from touching such power lines or circuits as contact with them
might be fatal.
Cleaning the LCD TV
• Make sure the LCD TV is turned off.
• Never spray or pour any liquid directly onto the screen or case.
To clean the screen:
1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
2. If still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft,
lint-free cloth, and wipe the screen.
To clean the case:
1. Use a soft, dry cloth.
2. If still not clean, apply a small amount of a non-ammonia, non-alcohol based, mild non-abrasive detergent
onto a clean, soft, lint-free cloth, then wipe the surface.
Disclaimer
ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the LCD TV screen or
case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic
will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
Antenna
Antenna discharge unit
Grounding conductors
Power service grounding electrode system
Ground clamps
Electric service equipment
Ground clamp

ViewSonic N3250w
4
ENGLISH
Getting Started
• LCD TV
• Power Cord
• VGA Cable
• Quick Start Guide
Congratulations on your purchase of a ViewSonic® LCD TV.
Important! Save the original box and all packing material for future shipping needs.
Package Contents
Your LCD TV package includes:
• 41-Key Remote Control with batteries
• RCA Cable
• ViewSonic User Guide
• Read the Important Safety Instructions, at the start of this manual.
• Do not install in a moist or wet environment. This equipment is intended for indoor use only.
• Do not install near heat source, or strong magnetic fields.
• Use only approved wall brackets capable of supporting the weight of the LCD TV.
• Mount your LCD TV to a supporting wall.
• Ensure there is at least 3cm of space surrounding any air-vents of LCD TV.
Fixing ViewSonic LCD TV to the Wall
The LCD TV can be wall-mounted or freestanding. Before installing the product to the wall,
please consider the following guidelines:
To detach the wall-mounting bracket to LCD TV safely, please use the following guidelines:
1. Disconnect the power and any other cables that might hinder moving the LCD TV.
2. Set the LCD TV on a table or work surface, screen-down with a towel or woolen blanket
between the screen and the surface to protect the display.
3. There are 6 screws holes in the bracket that match the LCD TV (as shown), two-pairs are at
opposing ends of the base (perpendicular to the TV rear panel), and a single screw is mounted
on the underside of each supporting upright (parallel to the direction of the supports). Loosen
all 6 screws, and keep for future use.
Use only approved wall-mounting brackets advised by ViewSonic or your local distributor.
Notes:
• If your LCD TV is already set up for free-standing operation, you need to first remove the
stand before mounting the device to the wall.
• The wall-mount screw type: M6 x L10

ViewSonic N3250w
5
ENGLISH
Front View of the Product
1 2 3 4 5 6
87
Volume Down
Decrease sound volume or adjust a highlighted control while in OSD menu.
Volume Up
Increase sound volume or adjust a highlighted control while in OSD menu.
Menu
Turn OSD menu ON/OFF.
CH Down
Channel down when source is at TV or select a control while in OSD menu.
CH Up
Channel up when source is at TV or select a control while in OSD menu.
ENTER
To highlight a control in OSD menu.
Power ON/OFF button
Power LED Indicator / Remote Control Receiver
1
3
2
4
5
6
7
8
Note:
1. Press VOL+ and MENU buttons at the same time to lock power button, and press
VOL+ and MENU buttons again to unlock it.
2. Press VOL- and VOL+ buttons at the same time to lock OSD menu, and press
VOL- and VOL+ buttons again to unlock it.

ViewSonic N3250w
6
ENGLISH
Rear View of the Product
Analog TV input
Connect to NTSC, PAL M/N TV source.
S-Video input
Connect this port to the S-Video output of A/V device.
AV/ S-Video signal Audio input (left/right)
Connect this port to the RCA audio output connectors of your A/V device.
YPbPr signal Audio input (left/right)
Connect this port to the RCA audio output connectors of your A/V device.
YPbPr signal input
Connect this port to the YPbPr output of A/V device.
Composite Video input
Connect this port to the composite video output of A/V device.
Audio output
Connect this port to your A/V device with audio in (RCA) connectors or to audio amplifier.
PC Audio input
Connect this port to PC line out jack.
VGA signal input
Connect this port to the VGA output of your PC.
HDMI Input Terminal
Connect this port to the HDMI output of A/V device.
Headphone Jack
Connect this port to your headphone.
Power (AC input)
Using power cord provided, connect to a power source.
I
F
E
C
D
B
H
G
A
E
D
A
B
C
F
G
IH

ViewSonic N3250w
7
ENGLISH

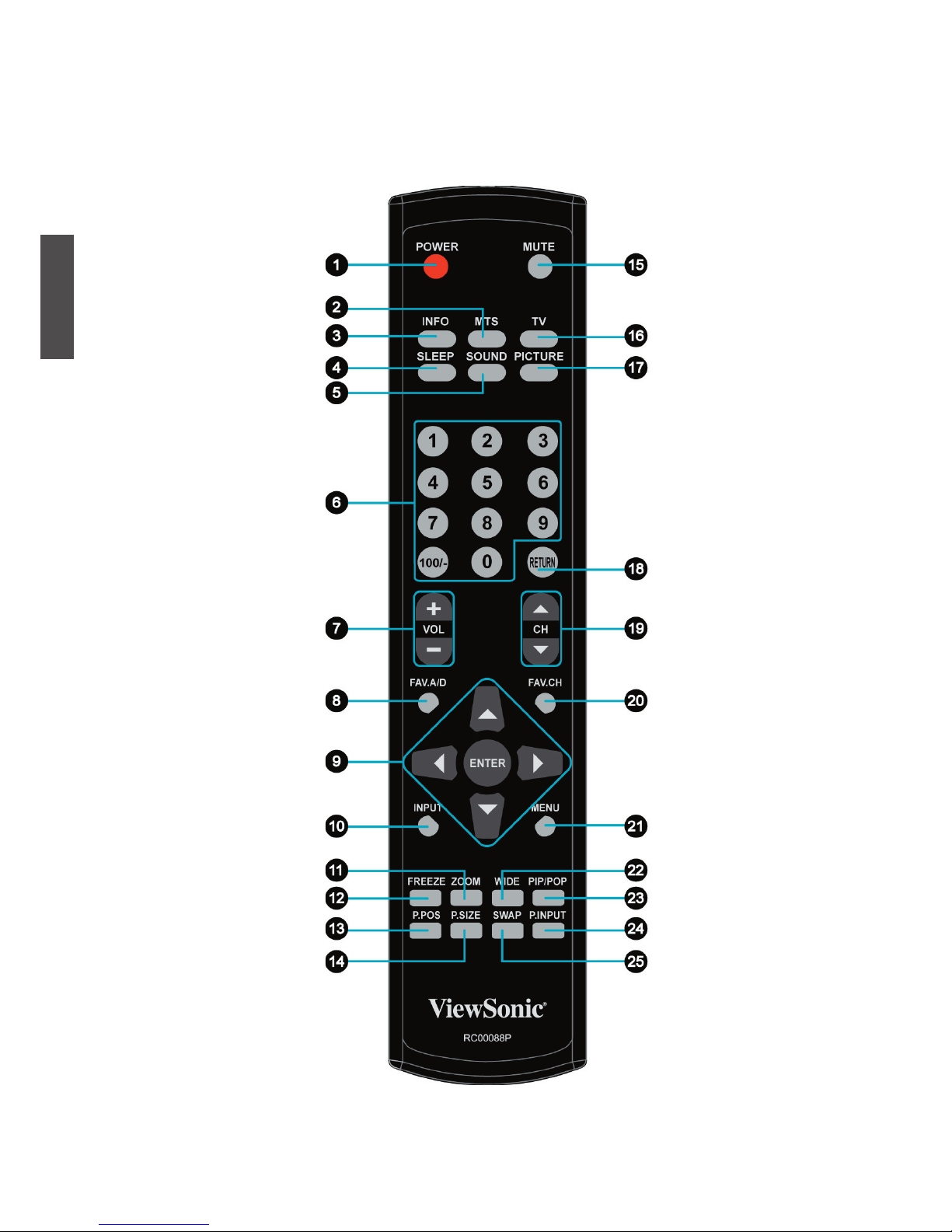

Remote Control

ViewSonic N3250w
8
ENGLISH
1 POWER Power ON/OFF
2MTS Select Mono, Stereo or SAP in TV
3INFO Display current information
4SLEEP Set TV Sleep timer
5SOUND Select sound modes
60~9, 100/- number button Directly channel select
7VOL+ and VOL- Adjust volume UP/DOWN
8FAV.A/D To skip or restore Favorite Channels
9UP/ DOWN/ LEFT/ RIGHT/
ENTER
UP/ DOWN/ LEFT/ RIGHT: Navigate and adjust OSD
function
ENTER: Enter the function setting
10 INPUT Input source select
11 ZOOM Adjust window size
12 FREEZE “Freeze-Frame” the current screen
13 P.POS Adjust sub-screen window position
14 P.SIZE Adjust sub-screen window size
15 MUTE Volume mute ON/OFF
16 TV Switch to TV when in any source
17 PICTURE Select picture modes
18 RETURN Return to previous channel
19 CH▲ and CH▼ Adjust Channel UP/DOWN
20 FAV. CH Select from preset Favorite Channels
21 MENU On Screen Display (OSD) menu ON/OFF
22 WIDE Change the image size
23 PIP/POP Toggle to enable/disable Picture in Picture/Picture Out of
Picture function
24 P.INPUT POP/PIP input source select
25 SWAP Switch between main screen and sub-screen
Note: PIP means Picture In Picture. POP means Picture Out Of Picture.
Remote control button function as follow

ViewSonic N3250w
9
ENGLISH
2. Connecting RF antenna or Cable TV Wire
Make sure the power is OFF before installing your LCD TV.
Connect the LCD TV to TV antenna or set-top-box with 75-ohm coaxial cable.
Preset the TV channels into memory with Auto Scan function when using an
antenna or cable TV system without a cable connecter box (See page 16).
Installation
1 Remove the battery cover by pulling then lifting the knob on the cover.
2 Insert the batteries, corresponding to the (+) and (-) markings on the battery compartment.
3 Reattach the battery cover.
1. Insert Remote Control Batteries
CAUTION
Only use the specified AAA batteries.
Do not mix new and old batteries. This may result in cracking or leakage,
which may pose a risk of fire or lead to personal injury.
Insert batteries according to (+) and (-) markings. Inserting the batteries
incorrectly may result in cracking or leakage, which may pose a risk of fire or
lead to personal injury.
Dispose of the battery in accordance with local laws and regulations.
Keep the battery away from children and pets.
When the remote control will not to be used for an extended period, remove
the batteries.
•
•
•
•
•
•
RF Cable or Adapter
(not supplied)

ViewSonic N3250w
10
ENGLISH
3. Connecting to DVD / Set Top Box
Connect Video/ Audio cables from compatible devices into the back panel of LCD TV.
1) With AV cable:
RCA A/V Cable
VCR or DVD Player
2) With S-Video cable:
VCR or DVD Player
S-Video Cable
(not supplied)
Audio in Cable
(not supplied)
3) With YPbPr cable:
YPbPr Cable (not supplied)
Audio in Cable (not supplied)
VCR or DVD Player

ViewSonic N3250w
11
ENGLISH
4) With HDMI cable:
HDMI Cable (not supplied)
VCR or DVD Player
(DVD Player should have
the HDMI output terminal)
4. Connecting to External Stereo System to Listen to LCD TV Sound
Connect the audio output terminal of the LCD TV to audio in terminal of the stereo
system (stereo system sold separately).
Stereo system
Audio in Cable
(not supplied)
5. Connecting to the Headphone
Connect the headphone to the headphone output terminal of the LCD TV.
(Headphone sold separately).
Headphone
(not supplied)

ViewSonic N3250w
12
ENGLISH
6. Connecting to a Computer
Connect the VGA cable from VGA output of computer to the VGA terminal input of
your LCD TV.
VGA 15 Pin Cable
PC
7. PC Audio In
Connect the Audio cable (green) from audio output of your computer to the audio
input terminal (green) of the LCD TV. PC
PC Audio Connection
(not supplied)
8. Connecting with the power cord
Connect the power cord to the AC inlet on the back of your LCD TV, after all
connections have been completed, and plug the other end of the power cord into
a correctly grounded electrical outlet.
AC wall socket

ViewSonic N3250w
13
ENGLISH
Basic Operation
To operate your LCD TV, you may use the TV remote control or top panel buttons to
select input source, change channels, or adjust volume.
Turning on the LCD TV
Before using the LCD TV:
1. Connect external equipment properly.
2. Insert the power plug, and the power LED indicator will light red.
Power On/Off
To turn the LCD TV on/off:
Press the POWER button under the LCD TV, or press the POWER button on your
remote control to turn on/off the TV. The power LED indicator lights green when the
LCD TV is on.
Selecting input source
To select the required input source:
Press the INPUT button on the remote control. Use ◄► to select the required input
source between TV, HDMI, YPbPr, AV, S-Video, and VGA.
To confirm the selection, press ENTER.
Volume adjusting
Press VOL+/- to adjust the volume.
To silence volume, press MUTE.
If you want to restore volume, press MUTE again, or press VOL+/- directly.
INFO
To display the current information of the LCD TV:
Press INFO, and the current state will be displayed on the screen. (It shows all or
some of the information about Input, Channel, Resolution, Audio Type, Smart Sound
Modes, and Smart Picture Modes, depending on what input source it is in.)
TV
Main Window
Input
Channel
Resolution
Audio Type
Smart Sound Mode
Smart Picture Mode
TV
1
NTSC
MONO
User
User

ViewSonic N3250w
14
ENGLISH
Press the PICTURE button on the remote control to switch between the Smart Picture
modes of User, Cinema, Sport, Vivid, and Hi-Bright.
Sound
Press the SOUND button on the remote control to switch between the Smart Sound
modes of User, Rock, POP, Live, Dance, Techno, Classic, and Soft.
Channel Select
Press number key or CH ▲/▼ button to select your desired channel.
In TV mode:
The 100/- button functions as “100”.
If your desired channel is below 100, directly press number buttons. If your desired
channel is over 100, press 100/- button first, and then press the other two number
buttons.
Ex: Your desired number is 8.
Press 0 → press 8, or press 8 only.
Ex: Your desired number is 110.
Press 100/- → press 1 → press 0.
＊Return to the previous channel, press RETURN button.
Sleep Time Setting
Repeatedly press SLEEP button to set the off timer. The function is used to automatically
shut off the LCD TV after a preset period of time passed. There are several times for
choice – OFF, 30min, 60min, 90min, or 120min.
Zoom
Press ZOOM button repeatedly to select the screen size. You can select from 1/8,
1/4, 1/2, 1, x2, x4, and x8.
Favorite Channel
You can press FAV.CH button to watch your favorite channels.
Use FAV.A/D button to add the current channel to your favorite channels, or to delete
it from your favorite channels. You can add up to 10 favorite channels.
Freeze Picture
Press FREEZE button to freeze picture. However, the sound still continues.
Using the OSD function
You can use the OSD menus and options to adjust various settings by using the
remote control.
The basic operation is as following:
• Press MENU to display OSD Menu.
• Press ◄► to select your desired top Menu.
• Use ▲▼ to select the control you want to adjust.
• When selecting the control with Press <ENTER>, press ENTER to enable the function.
• Press ◄► to adjust the settings.
• Press MENU to exit from the OSD menu.

ViewSonic N3250w
15
ENGLISH
Video Menu — Adjusting the picture quality
Video Menu is active in all but the VGA input source.
• Contrast: To adjust contrast of video. (right: Max, left: Min.)
• Brightness: To adjust luminance of video. (right: Max, left: Min.)
• Color: To adjust color. (right: brilliant color, left: pale color.)
• Tint: To adjust tint level. (right: greenish tone, left: reddish tone.)
• Sharpness: To adjust picture sharpness. (right: sharper, left: softer.)
Note: To adjust the Video settings, Smart Picture must be set to the User mode. (Select
through the Picture button on the remote control)
Audio Menu — To set the audio quality and status
Audio Menu is active in all but the VGA input source.
• Bass: To adjust bass.
• Treble: To adjust the treble.
• Balance: To adjust left and right audio balance.
• Surround: To enjoy a concert hall effect, select On when stereo is playing.
• Audio Out: To control sound output ON/OFF from the RCA audio out connectors.
Note: To adjust the Audio settings, Smart Sound must be set to the User mode. (Select
through the Sound button on the remote control)
ADVANCED OPERATION — OSD MENU
OSD Functions

ViewSonic N3250w
16
ENGLISH
TV Menu — To set up for TV
It is only active in TV source.
• Tuner Mode: To select Cable or Air as the TV source.
• Auto Scan: To auto scan the TV channels. Press ENTER to start auto scanning TV
channels. Press ENTER again at any time to interrupt scanning.
• TV: To select the TV channel to be skipped. Press ◄► to change channel.
• Channel Add/Del.: Select Delete to skip the channel appointed, or select Add to restore
the channel appointed.
• Channel Edit: Press ENTER to edit a name for the channel appointed. Use ▲▼◄► to
select the letters you want, and use BackSpace key to delete backwards. Move the cursor
to OK and then press ENTER to complete and save the channel name. To cancel editing,
choose Cancel or exit without pressing OK.
Setup Menu — To set up OSD window
Setup Menu is active in all input sources.
• Language: To select a OSD language from English, Portuguese or Spanish.
• Parental: To set up parental control.

ViewSonic N3250w
17
ENGLISH
When you enter this control, the screen below will be displayed.
The factory default of the password is “0000”.
To enable parental control, input the password, press ▼ button to focus on OK key, and
press ENTER. (select Cancel if you want to exit)
After entering, the following screen will be shown.
Channel Lock: To lock channels. Use ◄► to select the channel you want to lock, and then
press ENTER to lock or unlock it.
Change Password: To change the password, press ENTER and enter the password again.
Press ENTER, and the following screen appears.
Enter the new password, use ▼ to move the cursor down, and then enter the new password
again, press OK to confirm or Cancel to exit.
Note: Please make sure you remember your new password after changing, because you
cannot recall the default setting of the password by any selection.
Clear All: To clear all the locks set before, press ENTER.
Press MENU to return to the previous page.
• Color Temperature: To select the color temperature from Warm, Cold, Normal or User.
(If you select User, you can adjust the degree of R, G, B in Color Temp. to suit your
personal preference.)
• Back Light: To adjust the luminance of the back light.
• Aspect Ratio: To select image size between Normal, Full, Wide1, Wide2, Wide3, 4:3,
16:9, and No scale.
• OSD Timeout: To setup the display time of OSD. (5, 15, 45, and 60 seconds)
• Memory Recall: To restore the factory default settings.

ViewSonic N3250w
18
ENGLISH
PIP/POP
PIP/POP button allows you to watch two screens from different sources at the same time.
(PIP is picture in picture; POP is picture out of picture)
Press PIP/POP on the remote control repeatedly.
The screen will change from normal screen → PIP screen → POP screen.
• PIP Input Source Select
1. Press P.INPUT button to select input source for sub-screen as following.
VGA Menu — To set up for computer
It is only active in VGA sources.
• Auto Adjust: Press ENTER to auto adjust picture’s horizontal position, vertical position,
fine tune and H-Size.
• Contrast: To adjust contrast of the video.
• Brightness: To adjust luminance of the video.
• Fine Tune: To adjust the delay time of data and clock to reduce noise in picture.
• Manual Clock: To adjust the horizontal pixel clock of the video.
• H Position: To adjust the horizontal position of the picture.
• V Position: To adjust the vertical position of the picture
POP Screen PIP Screen
Main Screen Available Sub-Screen Input Source
TV HDMI / YPbPr / VGA
HDMI TV / YPbPr / AV / S-Video / VGA
YPbPr TV / HDMI / AV / S-Video
AV HDMI / YPbPr / VGA
S-Video HDMI / YPbPr / VGA
VGA TV / HDMI / AV / S-Video
