ViewSonic PD2211 User manual

PD2211
PD2211T
Pen Display
User Guide
Model No. VS16288
P/N: PD2211 | PD2211T
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

2
Thank you for choosing ViewSonic®
As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding
the world’s expectations for technological evolution, innovation, and simplicity.
At ViewSonic®, we believe that our products have the potential to make a positive
impact in the world, and we are confident that the ViewSonic® product you have
chosen will serve you well.
Once again, thank you for choosing ViewSonic®!

3
Safety Precautions
Please read the following  before you start using the device.
• Keep this user guide in a safe place for later reference.
• Read all warnings and follow all instructions.
• Allow at least 4" (10 cm) clearance around the device to ensure proper
ventilation.
• Place the device in a well-ventilated area. Do not place anything on the device
that prevents heat dissipation.
• Do not use the device near water. To reduce the risk of fire or electric shock, do
not expose the device to moisture.
• Avoid exposing the device to direct sunlight or other sources of sustained heat.
• Do not install near any heat sources such as radiators, heat registers, stoves, or
other devices (including amplifiers) that may increase the temperature of the
device to dangerous levels.
• Use a soft, dry cloth to clean the external housing. For more information, refer
to the "Maintenance" section.
• Oil may collect on the screen as you touch it. To clean the greasy spots on the
screen, refer to the "Maintenance" section.
• Do not touch the screen surface with sharp or hard objects, as it may cause
damage to the screen. Only use the supplied pen, or fingers for models that
support touch input.
• When moving the device, be careful not to drop or bump the device on
anything.
• Do not place the device on an uneven or unstable surface. The device may fall
over resulting in an injury or a malfunction.
• Do not place any heavy objects on the device or connection cables.
• If smoke, an abnormal noise, or a strange odor is present, immediately turn the
device off and call your dealer or ViewSonic®. It is dangerous to continue using
the device.
• Do not attempt to circumvent the safety provisions of the polarized or
grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding-type plug has two blades and a third grounding prong. The
wide blade and the third prong are provided for your safety. If the plug does not
fit into your outlet, obtain an adapter and do not attempt to force the plug into
the outlet.

4
• When connecting to a power outlet, DO NOT remove the grounding
prong. Please ensure grounding prongs are NEVER REMOVED.
• Protect the power cord from being treaded upon or pinched,
particularly at the plug, and at the point where it emerges from
the equipment. Ensure that the power outlet is located near the
equipment so that it is easily accessible.
• Only use attachments/accessories specified by the manufacturer.
• When a cart is used, use with caution when moving the cart/equipment
combination to avoid injury from tipping over.
• Disconnect the power plug from the AC outlet if the device is not being used for
a long period of time.
• Refer all servicing to qualified service personnel. Service will be
required when the unit has been damaged in any way, such as:
if the power supply cord or plug is damaged
if liquid is spilled onto or objects fall in the unit
if the unit is exposed to moisture
if the unit does not operate normally or has been dropped
• NOTICE: LISTENING THROUGH EAR-/HEADPHONES AT A HIGH VOLUME FOR
EXTENDED PERIODS CAN CAUSE HEARING DAMAGE/HEARING LOSS. When using
ear-/headphones, adjust the volume to appropriate levels, or hearing damage
may result.
• NOTICE: THE MONITOR MAY OVERHEAT AND SHUTDOWN! If the device shuts
down automatically, please turn on your monitor again. After rebooting, change
your monitor's resolution and refresh rate. For details, please refer to the
graphics card's user guide.

5
Contents
Safety Precautions....................................................... 3
Introduction ................................................................ 7
Package Contents ...................................................................................................7
Product Overview...................................................................................................8
I/O Overview ..........................................................................................................9
Initial Setup............................................................... 10
Making Connections.................................................. 11
Installing Drivers and Software.............................................................................11
Pen Display Driver ................................................................................................. 11
Connecting to Power ............................................................................................12
Connecting External Devices ................................................................................13
HDMI Connection.................................................................................................. 13
Audio Connection.................................................................................................. 14
VGA Connection .................................................................................................... 15
DVI Connection...................................................................................................... 16
USB Connection..................................................................................................... 17
Touch Function Control......................................................................................... 18
Using the Pen Display................................................ 19
Adjusting the Viewing Angle.................................................................................19
Tilt Angle Adjustment............................................................................................ 19
Turning the Device On/Off...............................................20
Using the Control Panel Keys................................................................................20
On-Screen Display (OSD) Menu............................................................................21
Configuring the Settings .......................................................................................22
General Operations............................................................................................... 22
On-Screen Display (OSD) Menu Tree .................................................................... 23
Pen Input Area Mapping.......................................................................................25

6
Appendix................................................................... 27
Specifications........................................................................................................27
Pen ........................................................................................................................ 28
Product Dimensions .............................................................................................29
Troubleshooting ...................................................................................................30
Pen ........................................................................................................................ 30
Maintenance.........................................................................................................31
General Precautions.............................................................................................. 31
Cleaning the Screen............................................................................................... 31
Cleaning the Case.................................................................................................. 31
Replacing a Pen Nib..............................................................................................32
Regulatory and Service Information .......................... 33
Compliance Information.......................................................................................33
FCC Compliance Statement................................................................................... 33
Industry Canada Statement................................................................................... 33
CE Conformity for European Countries ................................................................. 33
Declaration of RoHS2 Compliance......................................................................... 34
Indian Restriction of Hazardous Substances ......................................................... 35
Product Disposal at End of Product Life................................................................ 35
Copyright Information ..........................................................................................36
Customer Service .................................................................................................. 37
Limited Warranty .................................................................................................. 38
Mexico Limited Warranty...................................................................................... 41

7
Introduction
Package Contents
Pen Display VGA cable Pen Replacement Pen
nib x 3
Power Cord Nib removal tool USB Cable Pen Tether
Pen Display
PD2211T
Quick Start Guide
クイックスタートガイド
Aan de slag
Pika-aloitusopas
Guide de démarrage rapide
Schnellstarthandbuch
Guida introduttiva
Przewodnik Szybki start
Guia de Início Rápido
Guía de inicio rápido
Snabbstartsguide
Panduan Mulai Cepat
Quick Start Guide Power Adapter
The contents included in your package may vary depending on your
country. Please contact your local reseller for more informaon.

8
Product Overview
Front and Side View
1
2
3
4
Rear and Side View
55 7 7
3
4
3
6
1. Display Screen 2. Pen 3. Adjustable Foot
4. I/O Panel 5. Security Lock Slot 6. Control Panel
7. Pen Tether
Anchor Point

9
I/O Overview
5 6 7 8
1 2 3 4
HDMIDVI
VGA
1. DC IN 2. Audio In 3. Audio Out 4. VGA
5. DVI 6. HDMI 7. USB Upstream 8. USB Downstream

10



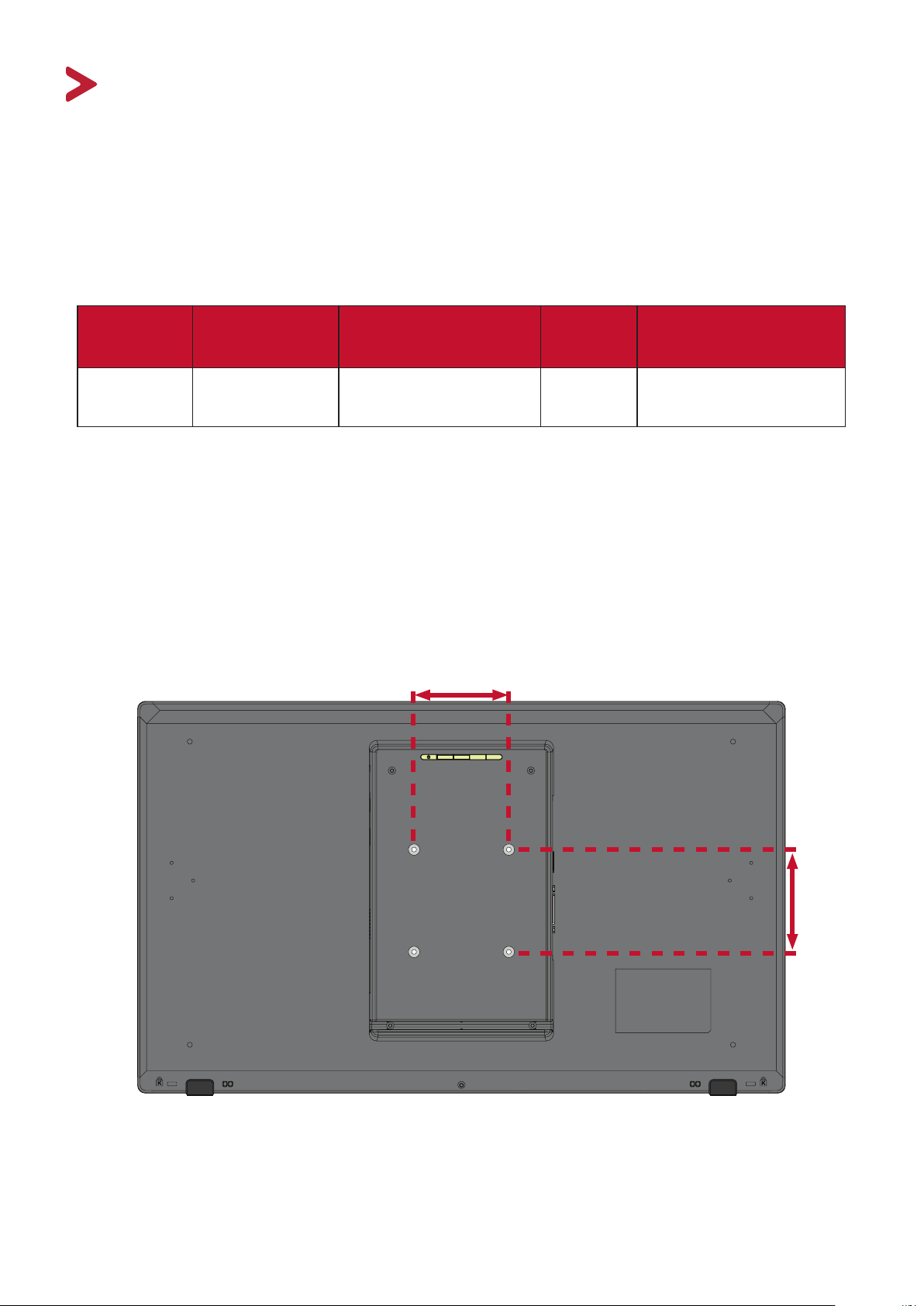

Refer to the table below for the standard dimensions for wall mount kits.
For use only with a UL cered wall mount kit/bracket. To obtain a wall-
mounng kit or height adjustment base, contact ViewSonic® or your
local dealer.
Maximum
Loading

(W x H)
Interface Pad
(W x H x D) Pad Hole  
14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm
4 pieces
Wall mount kits are sold separately.
1. Turn o the device and disconnect all cables.
2. Place the device on a at, stable surface with the screen facing down. Unscrew
and remove the adjustable foot.
3. Aach the mounng bracket to the VESA mounng holes at the rear of the
display. Then secure it with four (4) screws (M4 x 10 mm).
100 mm
4. Follow the instrucons that come with the wall mounng kit to mount the
display.
100 mm

11


Before connecng and using the pen display, it is necessary to install the below
soware. The soware can be downloaded at:
hp://www.viewsonicglobal.com/q/PD2211
Pen Display Driver
Pen Display Manager can be used to map the acve area and adjust the feel of the
pen.
1. Open the PenDisplayDriver installaon le and install the driver.
2. Aer the installaon completes, you will need to restart the computer.
For further soware informaon, please visit:
hps://manuals.viewsonic.com/ViewSign_Soware

12


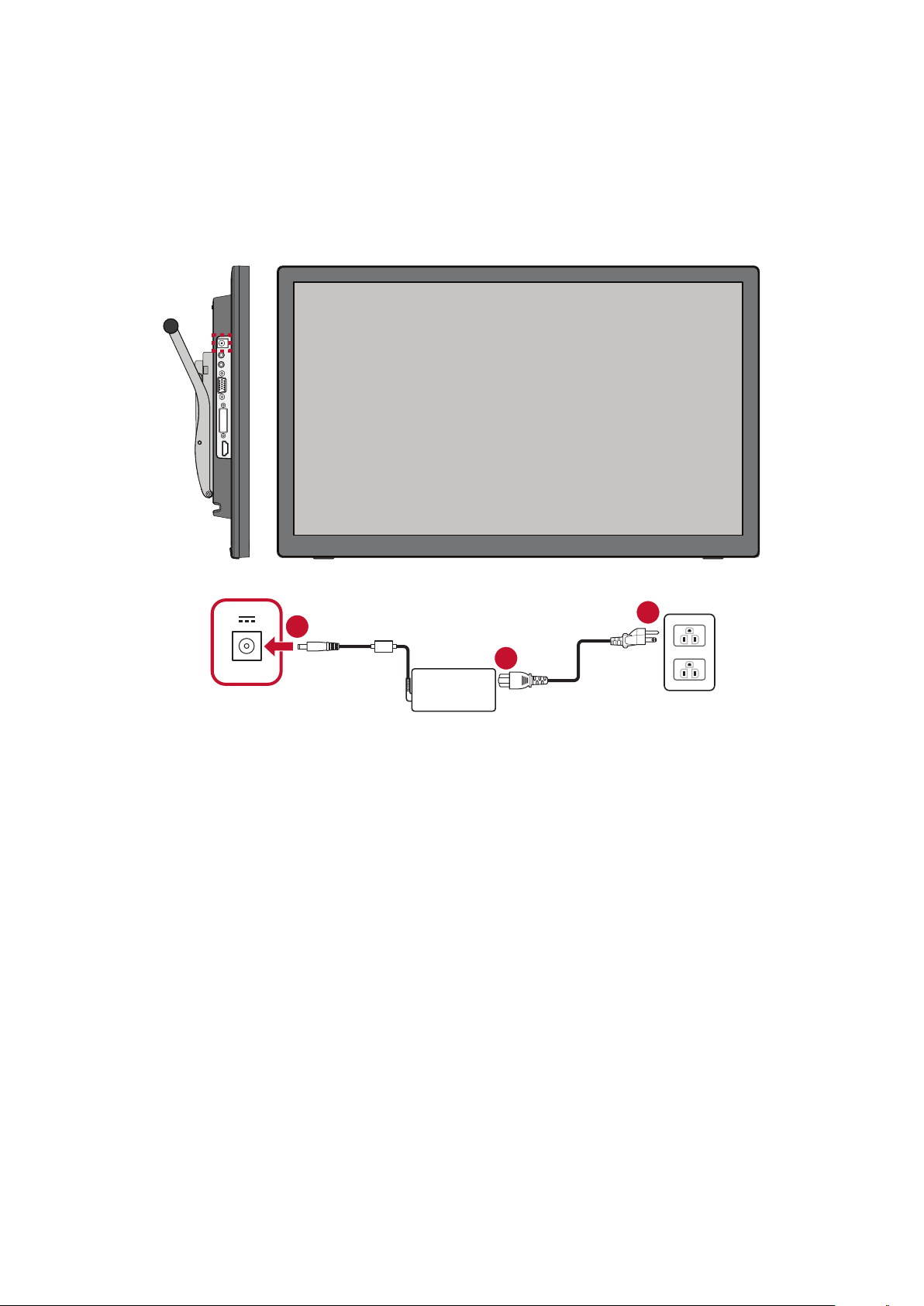

1. Connect the power cord to the power adapter.
2. Connect the power adapter to the DC IN jack at the rear of the display.
3. Connect the power cord to a power outlet.
1
2
3

13


Connect one end of an HDMI cable to the HDMI port of the display. Then connect
the other end of the cable to the HDMI port of your computer.
HDMI
HDMI

14


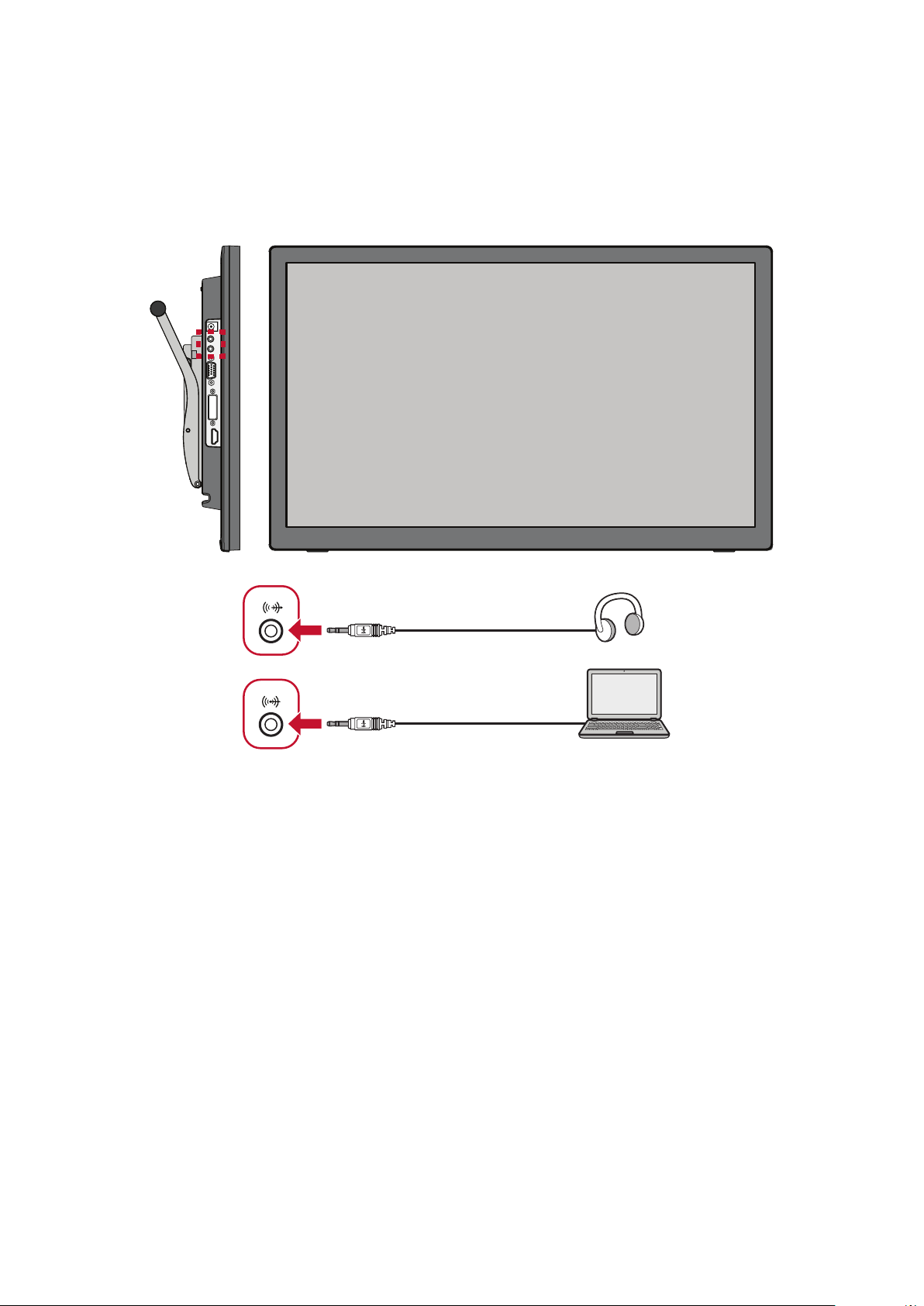

Plug an audio cable into the Audio In/Audio Out port of the display. Plug the other
end into your computer (Audio In) or ear-/headphones (Audio Out).
The display is also equipped with dual speakers.

15

Connect one end of a VGA cable to the VGA port of the display. Then connect the
other end of the cable to the VGA port of your computer.
VGA
VGA

16

Connect one end of a DVI cable to the DVI port of the display. Then connect the
other end of the cable to your computer.
DVI
DVI

17

Connect one end of a USB cable to the USB port of the display. Then connect the
other end of the cable to a USB port of your computer.
The display supports two (2) types of USB port. When making the
connecon, observe the following guideline:
• One (1) USB Type B port: Connect the USB Type B male cable (square
with 2 cut corners) to this port, and then connect the other end of the
cable to the USB downstream port of your computer.
• One (1) USB Type A port: Connecon for your Type A peripheral
device(s). (e.g. storage device).
NOTE: To acvate the USB Type A port, ensure your computer is
also connected to the monitor’s USB Type B port.

18

Before using the touch funcon, ensure the USB Type B to Type A cable is
connected to your computer and the Windows operang system is running.
When using the touch funcon, please note:
• The touch funcon may need about ve (5) seconds to resume if the USB
cable is removed and plugged in again, or the computer resumes from
Sleep Mode.
• The touchscreen can only detect up to ten (10) ngers simultaneously.
• If the Windows’ cursor does not accurately follow your nger when you
touch the screen, do the following:
1. Open: Control Panel > Hardware and Sound >
2. Select .
3. Follow the instrucons to recalibrate your screen.

19
Using the Pen Display

Tilt Angle Adjustment
Tilt the monitor stand forwards or backwards to the desired viewing angle (13.5˚ to
84˚).

20
Turning the Device On/Off
1. Plug the power cord into a power outlet.
2. Press the Power key to turn on the display.
3. To turn the display o, press the Power key again.
The display will sll consume some power as long as the power cord is
connected to the power outlet. If the display is not being used for a long
period of me, please disconnect the power plug from the power outlet.
Using the Control Panel Keys
Use the control panel keys to navigate the On-Screen Display (OSD) Menu and
change the sengs.
Power
Buon
Auto Menu
▲
▲
