ViewSonic PJ506ED User manual

PJ506ED
DLP Projector
ViewSonic®
Model No. : VS11452
- User Guide
- Guide de l’utilisateur
- Bedienungsanleitung
- Guía del usuario
- Guida dell’utente
- Guia do usuário
- Användarhandbok
- Käyttöopas
-Pyководствопользователя
- 使用手冊 (繁體)
- 使用手冊(简体)

i PJ506EDViewSonic
Compliance Information
For U.S.A.
This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modications not expressly approved by
the party responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
CE Conformity for European Countries
The device complies with the requirements of the EEC directive 89/336/
EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to
“Electromagnetic compatibility”, and 73/23/EEC as amended by 93/68/EEC
Art.13 with regard to “Safety.”
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and
Electronic Equipment Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment as
unsorted municipal waste, but use the return and collection systems
according to local law.

ii PJ506EDViewSonic
Important Safety Instructions
1. Read these instructions completely before using the equipment.
2. Keep these instructions in a safe place.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water. Warning: To reduce the risk of re or electric
shock, do not expose this apparatus to rain or moisture.
6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the Display”
in this guide for further instructions.
7. Do not block any ventilation openings. Install the equipment in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other devices (including ampliers) that produce heat.
9. Do not attempt to circumvent the safety provisions of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade
and the third prong are provided for your safety. If the plug does not t into your
outlet, consult an electrician for replacement of the outlet.
10. Protect the power cord from being tread upon or pinched, particularly at the plug,
and the point where if emerges from the equipment. Be sure that the power outlet is
located near the equipment so that it is easily accessible.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the equipment. When a cart is used, use
caution when moving the cart/equipment combination to avoid injury from
tipping over.
13. Unplug this equipment when it will be unused for long periods of time.
14. Refer all servicing to qualified service personnel. Service is required when the
unit has been damaged in any way, such as: if the power-supply cord or plug is
damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to
rain or moisture, or if the unit does not operate normally or has been dropped.

iii PJ506EDViewSonic
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive
2002/95/EC of the European Parliament and the Council on restriction of the use of
certain hazardous substances in electrical and electronic equipment (RoHS Directive)
and is deemed to comply with the maximum concentration values issued by the
European Technical Adaptation Committee (TAC) as shown below:
Substance Proposed Maximum
Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the
RoHS Directives as noted below:
Examples of exempted components are:
1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other
lamps not specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and
electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by
weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight,
aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up
to 4% lead by weight.

iv PJ506EDViewSonic
Copyright Information
Copyright © ViewSonic®Corporation, 2007. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of
Microsoft Corporation in the United States and other countries.
ViewSonic, the three birds’ logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and
DDC are trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines
Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right
to change product specifications without notice. Information in this document may change
without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic
Wizard CD-ROM also provides an opportunity for you to print the registration form, which you
may mail or fax to ViewSonic.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
PJ506ED
ViewSonic DLP Projector
VS11452
PJ506ED-1_UG_ENG Rev. 1A 03-12-07
The lamp in this product contains mercury.
Please dispose of in accordance with local, state or federal laws.

1 PJ506EDViewSonic
Safety Instructions
Read all of these instructions before you operate your projector and save for future
reference.
1. Check that the operating voltage of your unit is identical with the voltage of your
local power supply.
2. Should any liquid or solid object fall into the cabinet, unplug the unit and have it
checked by the qualied personnel before operating it further.
3. Do not attempt to service this product yourself, as opening or removing covers
may damage the components inside and will void your warranty.
4. Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage to the product.
5. Unplug the unit from the wall socket if it is not to be used for several days. To
disconnect the cord, pull it out by the plug. Never pull the cord itself.
6. The wall socket should be near the unit and easily accessible.
7. Do not place the projector where the cord can be stepped on as this may result
in fraying or damage to the lead or the plug. Be alert to tripping hazards.
8. Never look into the projector lens when the lamp is switched on as the bright light
can damage your eyes. Never let children look into the lens when it is on.
9. Do not place your hand or objects near the ventilation holes. The air coming out
is hot.
10. Never open any covers on the projector except the lamp cover. Dangerous
electrical voltages inside the projector can cause severe injury. Except as
specically directed in this User’s Manual, do not attempt to service this product
yourself. Refer all servicing to qualied service personnel.
11. Unplug the projector from the wall socket before cleaning. Use a damp cloth for
cleaning the projector housing. Do not use liquid or aerosol cleaners.
12. Keep the plastic packing materials (from the projector, accessories and optional
parts) out of the reach of children as these bags may result in death by suffocation.
Be particularly careful around the small children.

2 PJ506EDViewSonic
13. For ventilation reasons, the fan continues to operate after the projector has been
powered off. Please do not unplug the power cord until the fan stops.
14. The projector is equipped with ventilation holes (intake) and ventilation holes
(exhaust). Do not block or place anything near these slots, or internal heat build-
up may occur, causing picture degradation or damage to the projector.
15. When you replace the projector lamp, never touch the new bulb with your bare
hands. The invisible residue left by the oil on your hands may shorten the bulb
life. Use lint-free gloves or nger cots are recommended.
16. The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including ampliers) that produce heat.
17. Do not overload wall outlets, extension cords, or integral convenience receptacles
as this can result in a risk of re or electric shock.

3 PJ506EDViewSonic
Ground

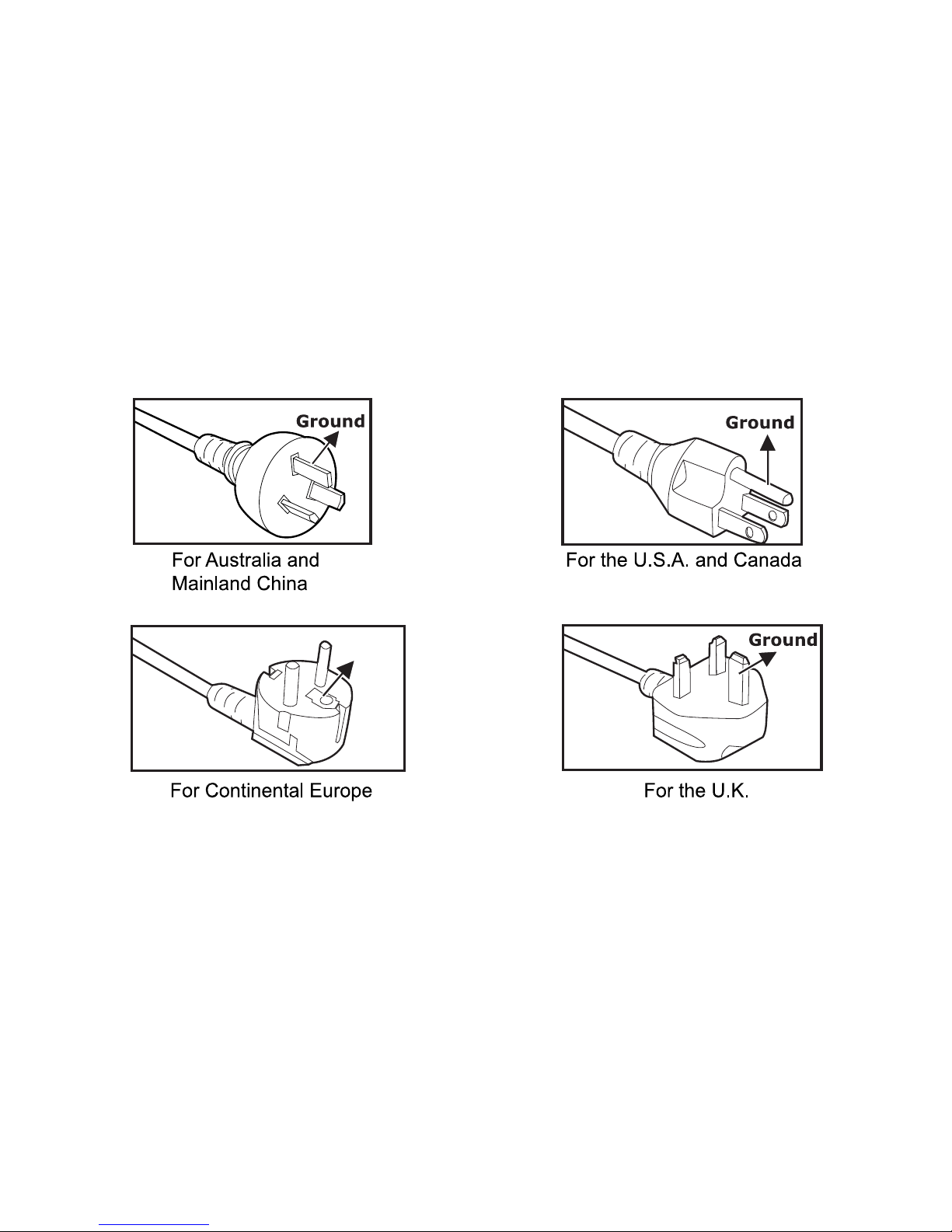

Notes on AC Power Cord
AC Power Cord must meet requirement of country where you use a projector. Conrm
an AC plug type with graphics below and proper AC Power Cord must be used. If
supplied AC Power Cord does not match your AC outlet, contact your sales dealer.
This projector is equipped with a grounding type AC line plug. Make sure that your
outlet ts the plug. Do not defeat the safety purpose of this grounding type plug. We
highly recommend using a video source device also equipped with a grounding type
AC line plug to prevent from signal interference due to voltage uctuation.

4 PJ506EDViewSonic
CONTENTS
Introduction.............................................................................................................5
Projector Features.............................................................................................5
Package Contents.............................................................................................6
Projector Overview............................................................................................7
Using the Product...................................................................................................9
Control Panel.....................................................................................................9
Connection Ports.............................................................................................10
Remote Control ...............................................................................................11
Remote Control Operation ..............................................................................13
Installation.............................................................................................................14
Connecting the Projector.................................................................................14
Powering On/Off the Projector ........................................................................15
Adjusting the Projected Image ........................................................................16
Menu Operation ....................................................................................................19
Image (Computer / Video Mode).....................................................................21
Video (Video Mode).........................................................................................22
Display (Computer Mode) ...............................................................................22
Language (Computer / Video Mode)...............................................................23
Advanced (Computer / Video Mode)...............................................................23
Audio (Computer / Video Mode)......................................................................23
Maintenance..........................................................................................................24
Cleaning the Lens ...........................................................................................24
Cleaning the Projector Housing.......................................................................24
Replacing the Lamp ........................................................................................25
Specications .......................................................................................................27
Appendix ...............................................................................................................28
LED Indicator Messages .................................................................................28
Compatibility Modes........................................................................................29
Troubleshooting...............................................................................................30

5 PJ506EDViewSonic
* means compressed.
Introduction
Projector Features
The projector integrates high-performance optical engine projection and a user-friendly
design to deliver high reliability and ease of use.
The projector offers the following features:
Single chip 0.55” Texas Instruments DLP®technology
SVGA (800 x 600 pixels)
1.1X manual zoom lens
Auto image re-sizing (Auto-Sync.) to 800 x 600 full screen with scaling compression
compatibility for VGA, SVGA, XGA and SXGA*
Compatibility with Macintosh®computers
Compatibility with NTSC, PAL, SECAM, and HDTV
Multi-function remote control
D-Sub 15-pin terminal for analog video connectivity
User-friendly, multi-language on-screen display (OSD)
Advanced electronic keystone correction

6 PJ506EDViewSonic
Package Contents
When you unpack the projector, make sure you have all these components:
Save the original shipping carton and packing material; they will come in handy
if you ever to ship your unit. For maximum protection, repack your unit as it
was originally packed at the factory.
Accessories and components may vary by retailer and region.
Lithium battery is loaded in the remote control. Remove the transparent
insulation tape by pulling it before use.
Projector with Lens Cap AC Power Cord VGA Cable (D-SUB to D-SUB)
S-Video Cable Composite Video Cable Audio Cable
VGA (D-SUB) to
HDTV (RCA) Cable
Projector
Carrying Case User’s Manual
Remote Control (IR)
with Lithium battery
Optional Accessory:
Quick Start Guide
RS232 Cable USB Cable

7 PJ506EDViewSonic
Projector Overview
Front View
1 Ventilation holes
2 Projection lens
3 Front IR remote control sensor
4 Lens cap
5 Elevator foot
9 78
1 12 3 4 5 6
6 Elevator button
7 Zoom ring
8 Focus ring
9 Control panel

8 PJ506EDViewSonic
Rear View
1 Rear IR remote control sensor
2 Ventilation holes
3 Connection ports
4 Elevator button
5Elevator foot
6Speaker
7AC power socket
8Kensington lock
12 3 2
6 5 478
1
2
2
2
This projector can be used with a ceiling mount for support. The ceiling mount
is not included in the package.
Bottom View
1 Lamp cover
2Ceiling mount

9 PJ506EDViewSonic
Using the Product
Control Panel
LED
1 Lamp LED indicator
Refer to “LED Indicator Messages”.
2 Power LED indicator
Refer to “LED Indicator Messages”.
Button Function
3Power
Turns the projector on or off.
4Keystone /
Adjusts image distortion caused by tilting the projector.
5Auto 
Automatically adjusts frequency and phase. This function is available for computer
mode only.
6 Menu
Displays or exits the on-screen display menus.
7Source 
Manually selects an input source.
8Four directional buttons
Use four directional buttons to select items or make adjustments to your selection.
1
8
7
2
3
4
5
6

10 PJ506EDViewSonic
Connection Ports
1 SERIAL
When operating the projector via a computer, connect this to the controlling
computer’s RS-232C port.
2 USB (COMPUTER)
This connector is for page up  down mouse control function and rmware update.This connector is for page up  down mouse control function and rmware update.
3 COMPUTER OUT
Connects to a computer display, etc.
4 COMPUTER IN
Connects image input signal (analog) to this jack.
5 S-VIDEO
Connects S-Video output from video equipment to this jack.
6 VIDEO
Connects composite video output from video equipment to this jack.
7 AUDIO IN
Connects an audio output from video equipment to this jack.
2 3
5 6 74
1

11 PJ506EDViewSonic
Remote Control
1. Power
Turns the projector on or off.
2. Four directional buttons
Use four directional buttons to select items or
make adjustments to your selection.
3. MENU
Displays or exits the on-screen display
menus.
4. Laser
Aim the remote at the viewing screen,
press and hold this button to activate
the laser pointer.
5. Mouse control buttons (Computer mode
only)
These buttons have same function as a PC
mouse.
This function is only available when the projector
is connected to a computer via a USB cable.
6. Page down/Page up (Computer mode
only)
This button has same function as Page
Down/Page Up button in a PC keyboard. This
function is only available when the projector is
connected to a computer via a USB cable.
7. Resync
Automatically adjusts frequency andphase. This
function is available forcomputer mode only.
8. Source
Manually selects an input source.
9. Enter (Computer mode only)
This button has same function as Enter button
in a PC keyboard. This function is only available
when the projector is connected to a computer
via a USB cable.
10. Freeze
Press “Freeze” to pause the screen image.
Press again to cancel the Freeze function.

12 PJ506EDViewSonic
Battery Replacement
1. Open the battery cover in the direction
shown.
2. Install batteries as indicated by the diagram
inside the compartment.
3. Close the battery cover into position.
Keep the batteries out of the reach of children. There is a danger of
death by accidentally swallowing the battery.
Remove batteries from remote control when not using for extended
periods.
Do not dispose of the used battery along with household waste. Dispose
of used batteries according to local regulations.
Danger of explosion may happen if batteries are incorrectly replaced.
Replce all the batteries with new ones.

13 PJ506EDViewSonic
Remote Control Operation
Point the remote control at the infrared remote sensor and press a button.
Operating the projector from the front
Operating the projector from the rear
Do not point the laser pointer directly to the people’s eyes (especially small children).
There is a danger of injury to the eyes.
The remote control may not operate when there is sunlight or other strong light such as
a uorescent lamp shining on the remote sensor.
Operate the remote control from a position where the remote sensor is visible.
Do not drop the remote control or jolt it.
Keep the remote control out of locations with excessively high temperature or humidity.
Do not get water on the remote control or place wet objects on it.
Do not disassemble the remote control.
Frezze
Source
20
7m
Frezze
Source
20
7m

14 PJ506EDViewSonic
Desktop type
Laptop type
2 33
7 5
1
46
When connecting cable, power cords of both a projector and external
equipment should be disconnected from AC outlet.
The gure above is a sample connection. This does not mean that all of these
devices can or must be connected simultaneously.
The cables that come with the projector may differ from the above illustration.
The included cables are based on actual shipment delivery.
Installation
Connecting the Projector
1RS232 Cable 5 Composite Video Cable
2USB Cable 6S-Video Cable
3VGA Cable (D-Sub to D-Sub) 7VGA (D-Sub) to HDTV (RCA) Cable
4Audio Cable

15 PJ506EDViewSonic
Powering On/Off the Projector
Powering on the projector:
1. Remove the projector lens cap.
2. Complete the AC power cord and peripheral signal cable(s) connections.
3. Press button to turn on the projector.
4. Turn on your source (computer, notebook, DVD, etc.). The projector automatically
detects your source.
When searching message appears on the screen, ensure that the appropriate
signal cable(s) are securely connected.
The signal message will appear on the screen when the source is detected.
If you are connecting multiple sources to the projector simultaneously, press
Source button.
Warning:
Remove the lens cap rst before powering on.
Never look into the lens when the lamp is on. This can damage your eyes. It
is especially important that children are not allowed to look into the lens.
Powering Off the Projector:
1. Press button to turn off the projector lamp. You will see a message “Power
Off? Press Power again” appear on the screen.
2. Press button again to conrm.
3. The cooling fans continue to operate for cooling cycle and the Lamp LED goes
out.
When the Power LED begins flashing, the projector has entered standby
mode.
If you wish to turn the projector back on, you must wait until the projector has
completed the cooling cycle and has entered standby mode.
Once in standby mode, simply press button to restart the projector.
4. Disconnect the power cord from the electrical outlet and the projector.
5. Do not turn on the projector immediately following a power off procedure.
Please wait until the fan motor and the Lamp LED turn off before removing
the AC power cord from the projector.
