ViewSonic VPAD10 VS13790 User manual

VPAD10
Tablet PC
ViewSonic®
Model No. : VS13790
- User Guide
- Guide de l’utilisateur
- Bedienungsanleitung
- Guía del usuario
- Användarhandbok
- Kullanιcι kιlavuzu
- Pyководство пользователя
- 使用手冊 ( 繁體 )

i
ViewSonic VPAD10
Compliance Information
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive
2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the
return and collection systems according to local law.
If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg,
Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more
than 0.002% Cadmium, or more than 0.004% Lead.
R&TTE Compliance Statement
This wireless module device complies with the Essential Requirements of the R&TTE Directive of the European Union
(1999/5/EC). This equipment meets the following conformance standards:
ETSI EN 300 328
EN 301 489
EN 301 489
Notied Countries: Germany, UK, Netherlands, Belgium, Sweden, Denmark, Finland, France, Italy, Spain, Austria,
Ireland, Portugal, Greece, Luxembourg, Estonia, Latvia, Lithuania, Czech Republic, Slovakia, Slovenia, Hungary, Poland
and Malta.

ii
ViewSonic VPAD10
Important Safety Instructions
1. DO NOT press or touch the LCD Screen. DO NOT place the tablet PC with small items, they may scratch LCD
Screen or enter the tablet PC.
2. DO NOT expose the tablet PC to dirty or dusty environments. Keep the environment clean and dry.
3. DO NOT place the tablet PC on uneven or unstable work surface.
4. DO NOT place or drop objects on the top of the tablet PC. DO NOT shove any foreign objects into the tablet PC. DO
NOT cover the LCD Screen strongly.
5. DONOTexposethetabletPCtostrongmagneticorelectricalelds;DONOTplacetheoppydisknearoronthe
tabletPC,thatmaycausealossofdataontheoppydisk.
6. DO NOT leave the tablet PC facing the sun as it can damage the LCD Screen, especially when in the car.
7. SAFE TEMPERATURE: This tablet PC should only be used in environments with ambient temperatures between
5°C (41°F) and 35°C(95°F).
8. DO NOT expose the tablet PC to or use near liquids, rain, or moisture.
9. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
10. DO NOT throw the tablet PC in municipal waste. Check local regulations for disposal of electronic products. Please
recycle the Battery Pack, and check with your Local Authority or retailer for recycling advice.
11. The tablet PC and the Adapter may produce some heat during operation or charging. DO NOT leave the tablet PC
on your lap or any part of your body in order to prevent discomfort or injury from heat exposure.
12. INPUT RATING: Refer to the rating label on the tablet PC and be sure that the Power Adapter complies with the
rating.Onlyuseaccessoriesspeciedbythemanufacturer.
13. Check the connections between the main unit and attachments before turning on the tablet PC.
14. DO NOT use the tablet PC while eating food, avoid dirtying the tablet PC.
15. DO NOT insert anything into the tablet PC that may result in short circuit or damage the circuit.
16. Power off the tablet PC, if you want to install or remove some external devices, which do not support hot-plug.

iii
ViewSonic VPAD10
17. Disconnect the tablet PC from the electrical outlet and remove any installed batteries before cleaning the tablet PC.
Keep the tablet PC and its accessories away from children.
18. DONOTdisassemblethetabletPC,onlyacertiedservicetechnicianshouldperformrepairsonyourcomputer.
19. Only use Battery Packs approved by the manufacturer or else damage may occur.
20. The tablet PC has apertures to disperse heat. DO NOT place the tablet PC on soft objects (e.g.: bed, sofa, your lap),
or else the tablet PC may become hot and the system may halt.

iv
ViewSonic VPAD10
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment
(RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical
Adaptation Committee (TAC) as shown below:
Substance Proposed Maximum Concentration Actual Concentration
Lead (Pb) 0,1% < 0,1%
Mercury (Hg) 0,1% < 0,1%
Cadmium (Cd) 0,01% < 0,01%
Hexavalent Chromium (Cr6+) 0,1% < 0,1%
Polybrominated biphenyls (PBB) 0,1% < 0,1%
Polybrominated diphenyl ethers
(PBDE) 0,1% < 0,1%
Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below:
Examples of exempted components are:
1.Mercuryincompactuorescentlampsnotexceeding5mgperlampandinotherlampsnotspecicallymentionedin
the Annex of RoHS Directive.
2.Leadinglassofcathoderaytubes,electroniccomponents,uorescenttubes,andelectronicceramicparts(e.g.
piezoelectronic devices).
3.Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4.Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by
weight and as a cooper alloy containing up to 4% lead by weight.

v
ViewSonic VPAD10
Copyright Information
Copyright © ViewSonic® Corporation, 2010. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic
Corporation.
Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions.
This product has an Android™ platform based on Linux, which can be expanded by a varietyof JME-based application
SW.
All products use in this device and trademarks mentioned herein are trademarks or registered trademarks of their
respective owners.
Google™, the Google logo, Android™, the Android logo and Gmail™ are trademarks of Google Inc. Use of this
trademark is subject to Google Permissions.
Wi-Fi and the Wi-Fi CERTIFIED logo are registered trademarks of the Wireless Fidelity Alliance.
microSD™ is a trademark of SD Card Association.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc.
The prediction engine of the input method is TOUCHPAL, provided by COOTEK.
Disclaimer:ViewSonicCorporationshallnotbeliablefortechnicaloreditorialerrorsoromissionscontainedherein;nor
for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product
specicationswithoutnotice.Informationinthisdocumentmaychangewithoutnotice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written
permission from ViewSonic Corporation.

vi
ViewSonic VPAD10
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please register
your product on the Internet at: www.viewsonic.com. The ViewSonic®Wizard CD-ROM also provides an opportunity for
you to print the registration form, which you may mail or fax to ViewSonic®.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VPAD10
ViewSonic Tablet PC
VS13790
VPAD10_UG_ENG Rev. 1B 10-20-10
Product disposal at end of product life
ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter,
Greener Computing. Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

ii
ViewSonic VPAD10
Table of Contents
Brief introduction............................................................................................................................................. II
Package contents.......................................................................................................................................... III
Exploring the Table PC................................................................................................................................... 1
Front View.................................................................................................................................................... 1
Rear View .................................................................................................................................................... 3
Side view ..................................................................................................................................................... 5
Indicators ..................................................................................................................................................... 8
Windows 7 system application ..................................................................................................................... 10
Using the Camera......................................................................................................................................... 27
Using the Multi-Touch Screen....................................................................................................................... 27
General hardware problems / possible causes and solutions ...................................................................... 28

iii
ViewSonic VPAD10
Brief introduction
Safety Instructions
Use the following safety guidelines to help protect yourself and VPAD10.
•DonotattempttoservicetheVPAD10yourself.Alwaysfollowinstallationinstructionsclosely.
•BesurethatnothingrestsontheACadapter'spowercableandthatthecableisnotlocatedwhereitcanbetrippedover
or stepped on.
•DonotcovertheACadaptorwithpapersorotheritemsthatwillreducecooling;also,donotusetheACadapterwhileitis
inside a carrying case.
•UseonlytheACadapter,powercord,andbatteriesthatareaprovedforusewiththisVPAD10.Useofanothertypeof
batteryorACadaptermaycauseriskofreorexplosion.
•IfyouuseanextensioncablewiththeACadapter,ensurethatthetotalampereratingoftheproductspluggedintothe
extension cable does not exceed the ampere rating of the extension cable.
•WhenyoumovetheVPAD10betweenenvironmentswithverydifferenttemperatureand/orhumidityranges,condensation
mayformonorwithintheVPAD10.ToavoiddamagingtheVPAD10,allowsufcienttimeforthemoisturetoevaporate
before using the VPAD10.
•Whenyoudisconnectacable,pullonitsconnectororonitsstrainreliefloop,notonthecableitself.Asyoupulloutthe
connector, keep it evenly aligned to avoid bending any connector pins. Also, before you connect a cable make sure both
connectors are correctly oriented and aligned.
This guide shown may vary from Actual products, please follow the actual products.

iv
ViewSonic VPAD10
Package contents
After opening the package, carefully inspect the contents. If any of the items is missing or appear damaged, contact your dealer.
The shipping carton should contain the following:
STANDARD
•AVPAD10
•AnACadapterwithpowercord
•User'sguide
•DriverCD(InstalledonSSD)
WARNING
ThisVPAD10driverputonSSDlastpartition,becarefuldonotdeleteorformatethees.
OPTIONAL
The following items are normally optional, but some vendors may include them in the standard package. Some items may not be
available in some countries, or some vendors may choose not to carry all the items. not to carry all the items.
•Pouch
•MiniVGACable
•Cleaningcloth
•Earphone

1
ViewSonic VPAD10
Exploring the Table PC
Front View
ķ ĸ Ĺ
ĺ
Ļ
ļ

2
ViewSonic VPAD10
Camera
A built-in webcam that allows you to capture still images, record videos, and chat online.
Touch screen
Usengertocontrolsystem&application.
Indicators
Refer to "Indicators" on page 8~9 for details.
Power button
Turns your VPAD10 on or off.
Function button 1
Press and hold for “Esc” key,short press for call “Tablet input panel”.
(If not access the systems, press and hold for the arrow keys"up", short press for the arrow keys "down".)
Function button 2
Press and hold for turn on /off 3G, short press that you can quick turn on/o Wi-Fi and bluetooth.
(If not access the systems, for the keys "enter".)

3
ViewSonic VPAD10
Rear View

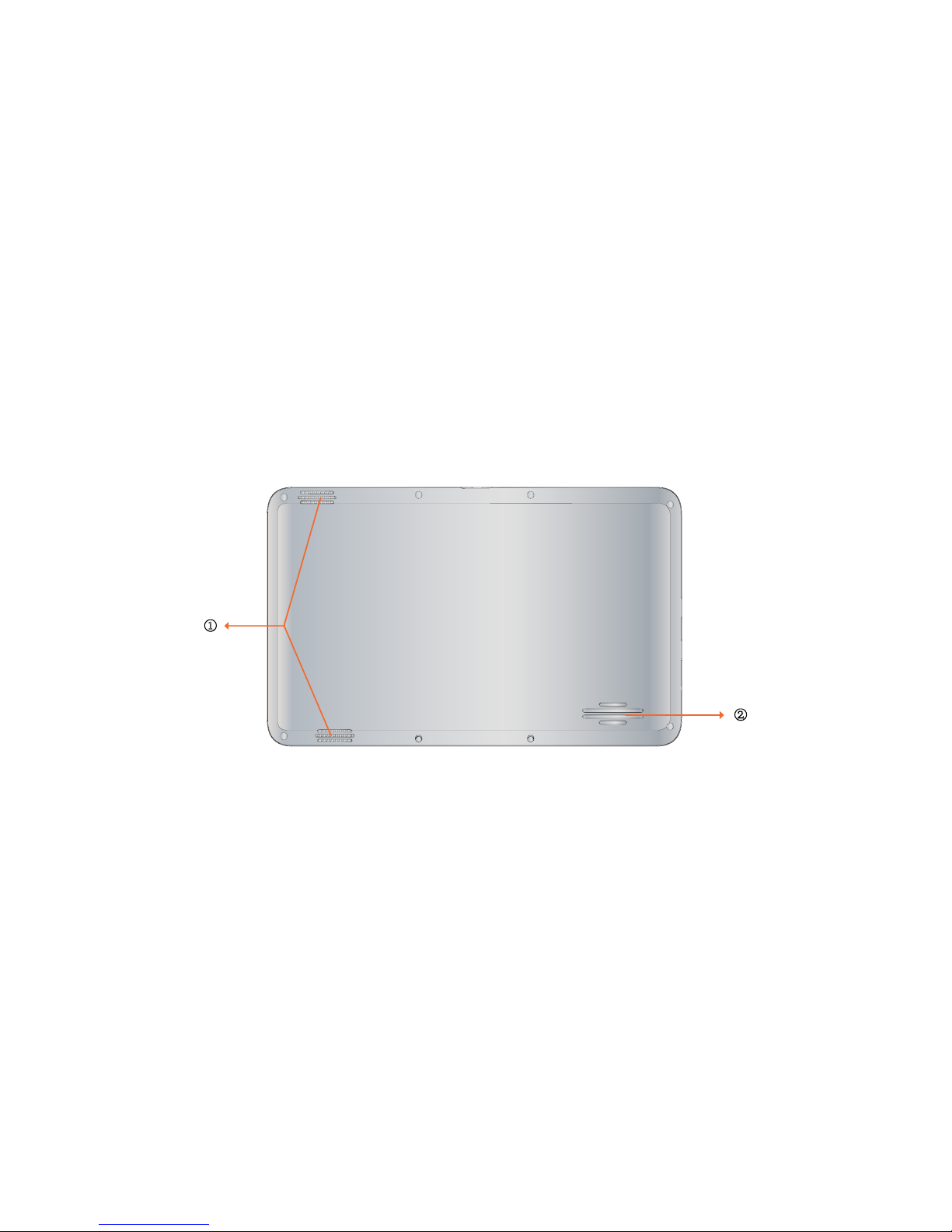

ķ
ĸ

4
ViewSonic VPAD10
Speaker
Producessoundsfrommultimedialesortheoperatingsystem.
Vents
Dissipate heat and keep your VPAD10 at an optimal temperature.

5
ViewSonic VPAD10
ķ
ĸ
Ĺ
ĺ
Ļ
ļ
Ľ ľ Ŀ
Side view
Left side Right side
Top side
Bottom side

6
ViewSonic VPAD10
Power jack
Connects AC power supply to power the VPAD10 and charge the battery.
Micro SD card slot
Insert a Micro SD memory card, you can exchange data material with VPAD10.
Mini VGA port
Connect an external display device (such as a monitor or projector) to the Mini VGA video jack of your Notebook with a Mini VGA
cable.
Power button
Connects peripherals such as mice, digital cameras and MP3 players that use the USB 2.0 interface.
Audio output jack
Connects to an earphone/headset or external speaker for playing the VPAD10 audio.
MIC
Receives sounds and voices for recording.
Reset eject hole
When system abnormal (can’t start the system or turn o the system), insert a thin,straight object(such as a paper clip) in the manual
eject hole on the Tablet.

7
ViewSonic VPAD10
Vents
Dissipate heat and keep your VPAD10 at an optimal temperature.
3G SIM card slot
Insert a 3G SIM card (can not support PnP), then you can connect to 3G network.
(For more information, please contact local Telecom Operators.)

8
ViewSonic VPAD10
Indicators
ķ ĸ Ĺ

9
ViewSonic VPAD10
Wireless LAN indicator
When WLAN is turned on, it lights up in blue.
When WLAN is turned off, the light goes off.
Battery status indicator
When the battery is charging, it lights up in red.
When the battery is low, it flashes in red.
When the battery is fully charged, it lights up in blue.
Power indicator
When the system is on, it lights up in blue.
When the system is in Sleep mode, it flashes in blue.
When the system is o or in Hibernation mode, the light goes off.

10
ViewSonic VPAD10
Windows 7 system application
Start use your VPAD10
Connect the VPAD10 to the external power source via the AC adapter, press and hold the power button for 2~3 seconds , then
start on your VPAD10. Release the press when the power indicator is light up in blue. And then follow the on-screen instructions to
complete the initial Operating system setup.
The system home (destop) screen will appear as follows (The device’s built-in G-sensor movement and changes its angle/
orientation).
Landscape view
Portrait view
