ViewZ VZ-090PM-P User manual

9”” HD-SDI / 3G Broadcast Monitor
VZ-090PM-P
USER GUIDE(v1.2)
Driving Visual Innovation
Please read this manual carefully to ensure proper use, including connection and operation.
Also, keep this manual for future use.

Class B Equipment (Broadcasting and Telecommunications Equipment for Home Use)
This equipment is for home use (Class B) and granted a Certificate of Conformity for electromagnetic
radiation. It is designed for home use and can be used in all regions.
(These images are for illustrative purposes only. They may vary depending on circumstances.)
Please read the Safety Instructions carefully to ensure proper use of the product.
Warning/Caution Label Description
This label indicates potential safety hazards during use.
Failure to do so may result in personal injury or property damage.
Warning/Caution Label Description
This label indicates prohibited actions. This label indicates instructions that must be followed.
▶If you do not use the monitor for a long time, please set it to DPMS (Display Power Management Signaling) mode.
▶If you turn on a screen saver, set it to Moving Picture mode.
▶Do not use dama
g
ed
p
ower cords,
p
lu
g
s, or loose outlets. Failure to do so ma
y
cause an electric shock or fire.
Power Supply Instructions
Never remove the plug or power cord from the outlet with wet hands.
- Failure to do so ma
y
cause an accident due to an electric shock.
Make sure that the power cord is firmly plugged into the outlet and not loose.
- Unstable connection may cause a monitor blackout or fire.
- To disconnect, grip the plug and pull from the outlet. Pulling the cord may cause
Fire.
Do not insert several plugs into an outlet.
- It ma
y
cause a fire or accident due to overloadin
g
.
Never use a damaged plug or outlet. Such use may result in an accident such as
an electric shock or fire.
- Failure to do so may cause a fire or accident due to a short circuit.

Excessive bending of the power plug may cause disconnection or a short circuit.
- Please note that disconnection may cause a fire or accident due to a short circuit.
Do not remove the power cord while using the monitor.
-
A
n electric shock occurrin
g
durin
g
disconnection ma
y
dama
g
e the monitor.
If the monitor is to be installed and used in a special place rather than under normal conditions, the
surroundings may cause serious quality problems. Before installing the product, please check with our
Service En
g
ineer.
Installation Instructions
Do not install or use the product in humid or dusty locations.
- Failure to do so may cause a fire or accident due to a short circuit or electric shock.
Make sure that the monitor stand does not stick out of a desk, shelf, or case when
installing the product.
- If the product falls to the ground, it may be broken or damaged.
Maintain a distance of over 10cm from the wall when installing the monitor.
- An increase in the temperature inside the monitor may affect the service life and
performance of its components.
Set down the monitor gently to avoid impacts.
- An impact may cause monitor failure or personal injury.
Make sure to keep the power cord away from any heat source.
- Melting of the cord coating may cause an electric shock or fire. Please adhere to the
warning.
- Do not place cigarettes, candles, or mosquito repellent incense on top of the product.

To mount a wall-mount monitor on the wall, please consult an expert.
- Installation by an unqualified person may cause personal injury. Make sure to use
the designated mounting device.
Do not spray a cleaning solution directly on the monitor.
- Directly spraying on the monitor may significantly increase the risk of discoloration,
cracks, or peeling of the LCD panel surface.
Do not use or keep flammable sprays or substances near the product.
- Careless handling of flammable substances may cause an explosion or fire.
Make sure to disconnect the power cord before cleaning.
- Failure to do so may cause an electric shock or fire.
Cleaning and Use Instructions
Pull out the power cord and wipe it with soft, dry cloth when cleaning the product.
- Do not use chemicals, including wax, benzene, alcohol, thinner, mosquito repellent,
air freshener, lubricant, or cleaning solution.
Do not put items that can easily catch fire, such as metal chopsticks, wire, awls, paper, or
matches, into the air vent, headphone port, or AV port.
- Failure to do so may cause an electric shock or fire.
- If water or any foreign object gets into the product, turn off the product, unplug it from the
outlet, and contact our Service Center.
If one image is displayed for a long time, it may cause burn-in or image persistence.
- If the monitor is not used for a long time, set it to Power Saving mode or Moving Picture
mode such as animated screensavers.
If the monitor makes unusual noises or smoke, unplug the product and contact our Service
Center.
- Failure to do so may cause an electric shock or fire.

- Sit up straight.
- Position the monitor at a distance of 40-50cm below eye level, and make sure to look straight at the monitor.
- Tilt the monitor back 1 to 20 degrees and adjust the height slightly below eye level.
- Keep the arms perpendicular to the body and parallel to the back of the hand.
- Make sure the elbows are positioned at a 90-degree angle.
- Maintain a knee angle of over 90 degrees and adjust the monitor height to keep the heels on the floor and the
arms above the heart.
Do not cover the air vent.
- Improper ventilation may cause monitor failure or a fire.
If the product is not used for a long time, disconnect the power cord.
- Dust buildup may result in an electric shock or short circuit or fire due to heat output,
ignition or deteriorating insulation.
Do not place the monitor on unstable or vibrating locations, such as shaking shelves or
inclined surfaces.
- The fall of the product may result in failure or personal injury. Using the monitor on
a vibratin
g
location ma
y
shorten its service life or cause a fire.
When moving the monitor, make sure to turn it off and unplug from the outset. Also, make
sure that other cords such as the antenna and other connecting cables have been
disconnected.
- Moving the monitor without disconnecting the cod will damage the cord, which may cause
a fire or electric shock.
Make sure that no child hangs on to or climb on the product.
- If the product collapses, it may cause injury or death.
Set the product resolution and frequency correctly. Otherwise, it may lead to eye problems.
- The resolution varies depending on the monitor size. Find and set the correct resolution
Use the monitor in the correct posture.

Checking Control Buttons / Names & Functions of I/O Port ……………………...… 2
Checking Control Buttons
Names & Functions of I/O Port
Main Features………………………………….…..………………………………………
3
Menu Tree & Control…………………………… ………………………………..………
Menu Tree
Menu Control
To Get Started……………………...………………………………………………………
4
5
Menu Controls and Functions ………….……………..………………..……………..… 6
PictureSettings.
ColorSettings
Audio Settings
Marker Settings
Remote Settings
SDIAnalyze
System Settings
Specification …………..…………………………………………..……………………… 17
- 1 -
This Monitor was
Manufactured by ISO 9001
Certified Factory

Checking Control Buttons / Names & Functions of I/O
Ports
1. Checking Control Buttons
2. Names and Functions of I/O Ports
1. DC 12~24V In 6. RS422 In/Out
2. SDI A/ SDI B
3. SDI Out
4. CV123/ YPbPr/ SYSC
5. Remote
7. PGM
8. HDMI
9. Audio In/ Out
1. Power 10. Volume
2. SDI-A
3. SDI-B
4. Analog
5. HDMI
6. Waveform
7. Focus Assist
8. Down
9. Enter
11. Brightness
12. Contrast
13. Chroma
14. Audio Level
15. Marker
16. UP
17. Menu
- 2 -
1 3 2 4 56
1 2 3 4 5 6 7 89
10
11 12
13 14
15
16
17
7 8 9

Main Features
Color Calibration supported by ViewZ Software
Closed Caption : CEA-608/708/Line21(SDI)
Color Calibration (Gamma, Color Temperature 3200K, 6500K, 9300K)
Waveform(YCbCr/RGB)/ Vectorscope Parade Support(SD/HD SDI)
Selectable Y/R/G/B Histogram(SD/HD SDI)
3G SDI LEVEL A/B (YCbCr, RGB 4:4:4) Support.
SDI Embedded 16CH Audio Level Meter.
SDI Embedded 2CH Select Audio Waveform.
Focus Assist(SD/HDSDI)
False Color(SD/HD SDI)
Y Clip Guide Min/Max Select (SD/HD SDI)
12bit to 8bit / 12bit to 10bit Dithering.
Dynamic UMD Support.
DSLR Scaling (HDMI)
Blue Only, Mono
Maker
Time Code Display
Monitor External Control : Remote , RS422(Daisy Chain)
Selectable 2 User Key
DPMS Select
Color Bar / 100% White Internal Patten
- 3 -

Menu Tree & Control
1. Menu Tree
Main menu includes
1) Picture Settings
2) Color Settings
3) Audio Settings
4) Marker Settings
5) Remote Settings
6) SDI Analyze
7) System Settings
The picture above shows Audio Settings menus in ViewZ monitor.
2. Menu Control
Menu control can be handled in two ways by
1) Main Select Jog
2) Front Keys
Press Menu button or Main Jog to enter menu
Use Up / Down keys on front or turn the main jog to choose desired menu
To enter desired menu press Enter key or Main Jog
To exit to the previous step press Menu key or press Main Jog for 2 seconds
Menu turns to blue when selected
Grey menus are not yet activated
- 4 -

To Get Started
To get ViewZ monitor started, connect required power and choice of your input signal. Turn on
the power button on the back and the front. When not in use power button on the front will shut
off the monitor.
To choose the right input signal after cable connection, please use buttons on front including
1) SDI A
- picture below will be shown on the right bottom corner of your screen with your
resolution
2) SDI B
3) DVI / HDMI
- Use either up and down keys or Main jog to move to your input. Then press either enter
or Main Jog to select
- Blue arrow shows your choice and when selected the menu turns to blue
4) Analog
- 5 -

Menu Controls and Functions
1. Picture Settings
Brightness
- used to control brightness(offset) level from 0 to 100
-shown in grey as it can be controlled by front knobs without entering the menu
Contrast
- used to control contrast(gain) level from 0 to 100
-shown in grey as it can be controlled by front knobs without entering the menu
Chroma
- used to control chroma(saturation) level from 0 to 100
-shown in grey as it can be controlled by front knobs without entering the menu
Aperture
- used to control sharpness level from 0 to 24 (0 for smooth and 24 for edge)
-ViewZ recommend to use internal pattern edge for easier selection
NTSC Setup
- used to control the difference black level when NTSCJ for Japan is used
-used for analog signal only
- 6 -

Menu Controls and Functions
2. Color Settings
Color Temp
- used to control color temperature
-users can choose 3200K, 6500K, 9300K, User 1, User 2, and User 3
-in user # mode, users can define RGB Gain and Bias values for own purpose
Gain Red/Green/Blue
- changes only in user # mode
-used to set R/G/B Gain level from -128 to 128
Bias Red/Green/Blue
- changes only in user # mode
-used to set R/G/B Bias level from -50 to 50
Color Copy
- used to set standard for user # mode
-select color copy and choose among 3200K, 6500K, or 9300K, then preset values will
be shown in RGB Gain and Bias. Users can define their own values based on these
preset values.
- 7 -

Menu Controls and Functions

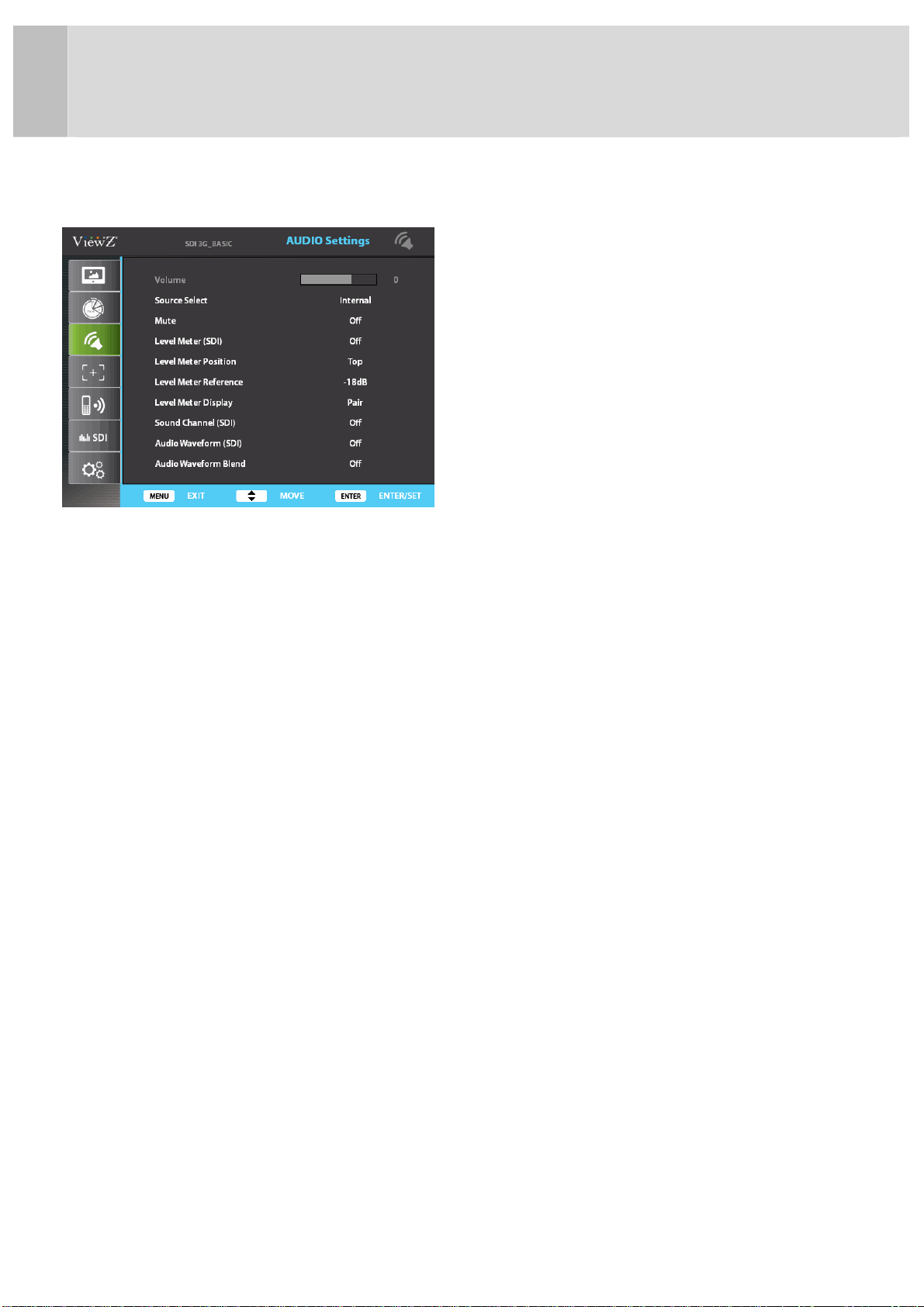

3. Audio Settings
Volume
- used to control volume level of the internal speaker or audio out on the back of the
monitor from 0 to 100
-shown in grey as it can be controlled by front knobs without entering the menu
Source Select
- used to select between Internal and External source of audio
- when an external source is connected to audio in, select External
Mute
- used to turn off entire audio volume for all sources both internal and external
- to turn back on the audio volume to previous level select OFF
Level Meter (SDI)
- used to set the level meter for embedded audio only available in SDI input
- users can choose Off, 16 Ch Horizontal, and 16 Ch Vertical
- 16 Ch Horizontal shows 8 channels in each side horizontally
- 16 Ch Vertical shows 8 channels in each side vertically
Level Meter Position
- used to select audio level meter position on screen depending on user’s display
- users can choose Top, Middle, and Bottom for both horizontal and vertical
Level Meter Reference
- used to select between -18dB and -20dB depending on user's source
- when -20dB is selected, yellow area expands to next marking. Audio level meter within
selected value turns to green and exceeded audio level is displayed in yellow
Level Meter Display
- used to set the display method for audio level meter between Group and Pair.
- Pair represents level meter in even and odd, and Group shows first 8 channels on left
and next 8 channels on right
- 8 -

Menu Controls and Functions
3. Audio Settings (Continued)
Sound Channel (SDI)
- used to set embedded audio channel for internal speaker or Audio Out
- select from CH1, CH2, CH1+CH2, CH3, CH4, CH3+CH4, CH5, CH6, CH5+CH6, CH7,
CH8, CH7+CH8, CH9, CH10, CH9+CH10, CH11, CH12, CH11+CH12, CH13, CH14,
CH13+CH14, CH15, CH16, and CH15+CH16
- when CH1 is chosen, user can hear Ch1 from both speakers. When CH1+CH2 is chosen,
user can hear Ch1 from left speaker and Ch2 from right speaker
Audio Waveform (SDI)
- used to show audio level meter in waveform for easier representation and fast analyze
- available in CH1+CH2, CH3+CH4, CH5+CH6, CH7+CH8, CH9+CH10, CH11+CH12,
CH13+CH14, CH15+CH16 and Off
Audio Waveform Blend
- used to fade off audio waveform on screen for better display
- 9 -

Menu Controls and Functions
4. Marker Settings
Marker On/Off
- used to activate the marker function
- Marker should be ON to use any features in Marker Setting menu
Line Marker
- used to select user’s desired marker type
- available in off, 16:9, 4:3, 4:3(on air), 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 and 4:3
Center Marker
- used to turn on and off center marker
Safety Area
- used to select safety area among off, 80%, 85%, 88%, 90%, 93% and 100%
Marker Mat
- used to change darkness of areas out of line marker
- select level from OFF (transparent) to 7 (black)
Marker Color
- used to change marker color on the screen
- select from blue, green, red, gray, black, and white
Corner On/Off
- used to show safety area by ticks rather than a box
- Safety area shown in regular line when the feature is off
- 10 -

Menu Controls and Functions
5. Remote Settings
To help users to control ViewZ monitor from the distance using own controller, ViewZ includes
Remote port on the back of the monitor with 6 pins (Pin 7 and 8 are used for Power and
Ground). Upon user’s needs, 6 Pins can be assigned to features in monitors including below
1) tally red
2) tally green
3) SDI A
4) SDI B
5) CVBS1
6) CVBS2
7) CVBS3
8) S-VIDEO
9) COMPONENT
10) HDMI
11) DVI
12) 16:9 MARKER
13) 4:3 MARKER
- 11 -

Menu Controls and Functions
` 6. SDI Analyze
Focus Assist
- used to color the pixels in the shape or boundary area of the image to inform the user to
make the best focus
Focus Assist Level
- used to set the focus assist level from 0, the strongest, to 10, the weakest
Focus Assist Color
- used to set the focus assist color from red, green, and blue
Waveform / Vector
- used to turn on and off waveform and vector function
- available in WF(Y/G), VT, WF(Y/G)+VT, WF(YCbCr/RGB), WF(YCbCr/RGB)+VT, and off
Waveform Select
- used to select between YCbCr and RGB for Waveform
Waveform Blend
- used to select the transparency option of Waveform and Vectorscope on the screen
Time Code
- used to activate the time code among VITC, LTC, Off
Time Code Blend
- used to select the transparency option of Time Code on the screen
Closed Caption
- used to activate closed caption among CC608(Line21), CC608(ANC), CC708 and Off
Histogram
- used to turn on and off histogram function
- available in red(R), green(G), blue(B), and black(Y)
- Histogram graph represents how designated color is shown in the screen. At the bottom of
the graph, there is color level of designated color and histogram bar above that level shows
how much designated color is exposed in the screen.
- 12 -

Menu Controls and Functions
6. SDI Analyze (Continued)
Histogram Blend
- used to select the transparency option of Histogram graph on the screen
False Color
- used to turn on and off False Color feature
- False color feature utilizes a full spectrum of assigned color indicators, ensuring flawless
shot exposure. As the camera Iris is adjusted, the subject of the images will change color
based on specific brightness values indicating optimal exposure
False Color Palette
- used to turn on and off False Color palette on the screen
False Color Blend
- used to select the transparency option of False Color on the screen
Y Clip Guide
- used to analyze the luma level of the input video signal and display the selected sector on
the screen to aid exposure setting of the camera
- Clip Guide will highlight areas with luminance level under pre-set value using Y Clip Guide
Min and over preset value using Y Clip Guide Max
Y Clip Guide Max
- used to select maximum value for luminance level from 0 IRE to 100 IRE
Y Clip Guide Min
- used to select minimum value for luminance level from 0 IRE to 100 IRE
Y Clip Guide color
- available in red, green, blue, and white
3G Level A/B
- used to select 3G-SDI A/B input format among normal, YCbCr 444 10Bit A, RGB 444
10Bit A, YCbCrA 444 10Bit A, RGBA 444 10Bit A, YCbCr 422 12Bit A, RGB 444 12Bit A,
YCbCr 444 12Bit A, YCbCr 444 10Bit B, RGB 444 10Bit B, YCbCrA 444 10Bit B, RGBA 444
10Bit B, YCbCr 422 12Bit B, RGB 444 12Bit B and YCbCr 444 12Bit B
- 13 -

Menu Controls and Functions
7. System Settings
Scan
- used to change the scan mode among zero scan, over scan, and pixel to pixel
- wen pixel to pixel is on, turn the main jog to move the position
- when system setting is in pixel to pixel, marker features don't work
Aspect
- used to change the display ratio among full screen, 16:9, and 4:3
BlueMono
- used to change the display among off(regular), mono, and blue
H/V Delay
- used to observe blank area for H sync and V sync
- when system setting is in H/V delay, marker features don't work
Internal Pattern
- used to turn on internal pattern among off, color bar, and white
- 14 -
