Vigilate VIGSAKIT User manual

User Manual
LAN+WiFi+4G LTE
SmtmemSystem
VIGILATE V1.2

2
P3
P3
P3
P4
P4
P5
P9
P10
P12
P24
P2
●Introduction
●Notice
●FCC Statement
●Safety
●Requirements
●Quick Start Guide
●System Status & User Authorities
●Appearance
●App Operation Introduction
●FAQ
●Specifications
Table of Content

3
Introduction
• Thank you for purchasing the GLTE Smart Alarm System. GLTE offers you complete control over your home security and
automation via your smartphone. This manual will guide you through the setup procedures and highlight some key features.
• The system operates on smartphones.
• Please note that all contents listed here might be slightly different from the contents of the package or the App. Please check the
latest version of the user manual.
• Version: V1.2
Notice
• All sensors and devices in the package have already been paired with the panel before shipping. Users can start using the whole system aer
setting up the network. Accessories purchased separately (like sensors or smart devices) need to be paired with the system for proper use.
• The system is designed for easy setup. If any problem occurs during the setup, please contact your distributor for help.
• Please store all manuals, nameplates and stickers with QR codes or barcodes for further use.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
① This device may not cause harmful interference.
②This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

4
Safety
• This system is designed to minimize majority of risks and to ensure the safety of your home, however it does not guarantee protection
against burglary, robbery, the, or any type of emergencies. Users should continue to act prudently to protect the security of their lives and
property.
• Any alarm system is subject to compromise or failure for a variety of reasons as follows:
- An intruder may gain access through unprotected openings.
- An intruder may have the technical sophistication to bypass a sensor or the whole system.
- Signals sent by the panel or sensors may be blocked or reflected without being received, and a block may occur if metal objects are placed
into the path of the signal.
- Motion sensors can only detect the intrusion within the specified ranges and unobstructed areas.
- Malfunction of routers, limited services by wireless phone carriers or internet service providers, limited service such as text messages or push
notification provided by smartphone makers.
- Component failures or some other faults happen in the electrical system.
Requirements
• Wired/Wireless Router compatible with Wi-Fi IEEE 802.11 b/g/n standard
• Provision of Internet Service
• Mobile phone SIM card (supporting GSM/WCDMA/LTE)
• iPhone or Android smartphone
• iOS version 7.0 or higher
• Android version 4.3 or higher
• Bluetooth 4.2 or higher

5
Quick Start Guide
• Internet Connection Requirements
- Please ensure the router you are using has already been connected to the Internet with DHCP mode enabled. GLTE supports
IPV4 protocol only.
- The system supports the following types of connection:
- LAN: 10/100M Ethernet.
- Wi-Fi: 2.4GHz, WEP/WPA/WPA2 encrypted.
- 4G LTE
• Place the Panel at a Suitable Place
- If Wi-Fi is used to connect the panel to internet, please make sure the panel is placed Wi-Fi coverage before
installation. (It is recommended to use your phone to help verify the Wi-Fi coverage at the .
• Install the SIM Card (Optional)
- Insert a Micro SIM card. Please place a Nano-SIM to a card adapter for installation.
- To connect the panel to the GSM network, you need a SIM card with the disabled PIN code request (PIN code request can be
disabled using your mobile phone) and suff icient on the account.
Note: The main panel does NOT support Hot Swap function. Switch off the main panel before inserting or removing Micro SIM Card.
Plastic
Metal
Nano SIM CardMicro SIM Card
RESET
OPEN SIM
ON
OFF

6
Note: Take care not to scratch or bend the contacts on the SIM card when inserting it into the card holder.
• Get Ready for Setup
- Use your iPhone or Android smartphone to download the “
” APP from either iOS APP Store or Google Play by searching
“”, or scan the QR code with your mobile phone.
Power Switch
- Please open the cover on the back of the device, and turn on the power switch. The indicator on the panel will
flash and a
Place the panel close to the 2.4GHz Wi-Fi signal if you are setting it up to Wi-Fi.
Remove back cover and battery to
locate the Micro SIM card holder.
Press the card holder’s lid towards
the ON/OFF button until it “clicks”.
in the compartment. Make sure the gold contacts
placed as shown on the drawing. Hold the card in
the correct position and close the lid.
Carefully press down and slide the
lid away from the ON/OFF button
until it “clicks” in-to place.
ON
OFF
VIGILATE Control

7
• Add the Panel
- Make sure your mobile phone is connected to the Internet and Bluetooth is enabled. Click on [Add a new
device]. Select [Quick Setup].
- The APP will automatically scan for panels available nearby and display their names for which you can choose to
connect.

8
• Set up Password
- After successfully connecting the panel, please rename the device and setup a password for future configuration purpose.
• Configuring the Wi-Fi Setting of the Panel
- Select the Wi-Fi you want the panel to connect with and input the password to finish setup.
• Check Setting
- Make sure your mobile phone connected to the Internet via cellular or Wi-Fi.
- Try pressing ARM/DISARM button in the App, to see if the status icon .
- Try using remote control, pressing ARM / DISARM button to see if the status icon in the App
-
• Installation
- Close the battery cover.
- Place the panel on a desktop or mount it on the wall.

9
System Status & User Authorities
• The GLTE system does not support any wired sensors. The panel communicates with all sensors via wireless RF signals. Most of the
sensors have low battery warning features. In the event of low battery, notifications will be sent to the APP.
• The system can set its security status according to the commands given by users or the signals sent from the triggered sensors.
- ARM:
All working sensors can be
triggered. The system will
generate alarms when receiv-
ing alert signals sent from
sensors.
- DISARM:
This mode will de-activate all
sensors. This mode will also
turn o the siren and stop the
alarm process.
- HOME ARM:
This mode will allow some
selected sensors to remain
working while others are de-
activated. These sensors
can be selected in App.
- SOS:
This mode will trigger built-in
siren and send alarm messag-
es to emergency contacts. It
also triggers external sirens or
other sensors like smart plugs.
- There are th levels of user authorities, shown as below.
- ADMINISTRATOR:
Who can fully control the system
and invite other users with assigned
authorities.
- USER:
Who can operate ARM/DISARM/HOME
ARM/SOS, control the smart plugs and
cameras, can also invite other people
as USER or GUEST.
- GUEST:
Who can only operate
ARM / DISARM / HOME ARM.

10
LAN
USB
DC
Power Adaptor Ethernet
USB Slot
• Rear View
Status
Indicator
LED Indicator Definition
Flash in Red System is starting
Red, Green, Blue Flashing System is waiting for Initialiing
Red System is in Arming
Green System is in Disarming
Blue System is in Home Arming
Appearance
• Top View
Power Adaptor
Sim Card
System Initialiing
WiFi Status
LAN Status
• System Status Indicator

11
RESET
OPEN SIM
ON
OFF
Tamper
• Bottom View
Wall Mounting Hole
Network Configuration ButtonReset Button
Power Switch
Speaker
Speaker
Sim Card Slot

12
APP Operation Introduction
• Home Page
User Settings
The entry for all account settings.
- Device List.
- Account Information: Phone, Email and
Password.
Device List
Select the panel to be managed from
dropdown list.
- Add/Remove panels.
System & App Settings
The entry for system settings and App
settings.
- Add/remove accessories.
- Configure system settings, eg: Exit Delay,
Entry Delay, Duress Alarm, etc.
- Network settings and advanced settings.
Security Status Control
Change the system status between
Arm-Disarm-Home Arm-SOS.
Real-time Status Diagram
It shows a real-time system status and the
quality of network connection.
Colours and icons are used here for better
illustration.
Event List
An event is an operation conducted by users
or status change triggered by accessories.
All events are sorted by time. Tap the top
right coner on event list page to filter door/
window status or/and tamper alarm in
Disarm mode.

13
Common Function
One tap to the frequently used functions:
smart camera, motion detection, smart
widget, smart button, care mode, add
accessory.
Shortcut
Easily control smart bulbs and check
online/o line status.
Door/Window Status
Check the oor/ indow Sensors are
closed/opened and online/offline
status at a glance.
• Scroll up to discover more

14
• Device Status
Press Real-time Status Diagram area to check detailed device status:
- Network Status: LAN/Wi-Fi/4G
- Battery (Power connected/Use battery and Battery
percentage)
- SIM Card Status
Note: In case of SIM card malfunction: error code [CME ERROR: 11] means SIM PIN required, [CME ERROR: 15] means SIM wrong.

15
• Pairing New Accessories
Scan QR Code
Tap [Scan QR Code]
Scan the code printed
on the accessory
Name
Done
Recommended
• Dashboard
- Press [Dashboard] on the home page for SOS and device control.

16
• Share with Others
The owners/administrators can easily share their devices with
the family members or friends.
- Press the top right corner on the dashboard page/home
page.
- Press [Share this device with others]
unique QR code which
contains the identification and the
assigned authority.
- Users can send this QR code to others. By launch
Control APP, others can click [Device List] - [System -
Management], click the [+] icon on the top right corner and
select [Add a new device] to add the shared panel to their APP.

17
• Emergency Contacts Settings
- Select [Users] from [System Settings] page.
- All App users are listed in Emergency Contact list
automatically.
- Users can add mobile phone numbers in [Other Contacts] list.
- For the App users, the [Push Notification] option is enabled by
default, while the [SMS Notification] is disabled by default.
(SIM card required)
- For other contacts, the [SMS Notification] is enabled by
default.
- When an emergency occurs, the App users should get push
notifications, while other users get alert SMS message sent
from the panel.

18
• Accessory Management
Users can add, remove, and modify their settings here,
also control their cameras in the App.
- Status supervision
- Rename
- Siren Setting
- Delete: choose the accessory to be removed from the
system, and slide the column to the left until a [Delete] button
appears. Click the [Delete] button and confirm to finalie the
removal.

19

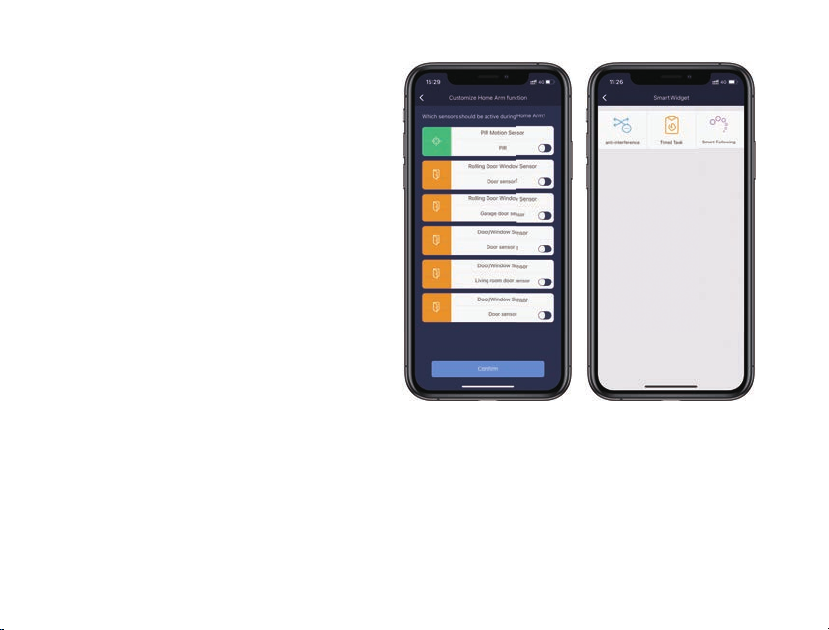

• Smart Widgets
- Anti-interference: by enabl this, it will trigger alarm when
system receive interfering signals. Disable anti-interference
and the system will ignore interfering signal. (Anti-interference
will not function when the system is in disarm status.)
- Timed Tasks: it allows to schedule a task or a daily task. For
instance, set up a daily task of home arm for the supervised
premises at 10 PM.
- Smart Following: when the system is switched to certain status, the pre-setup instructions for chosen accessories will be
executed accordingly. Users can add accessories and configure their status when instructions are executed.
• Home Arm Settings
- Press [Customie Home Arm function] from [System Settings] page.
- By configuring Home Arm status in the APP, users can activate
certain sensors while at home.
- When [Home Arm] button is activated for the first time, the setup
procedure should commence.
- Only those sensors support Home Arm feature will be
listed here.

20
• Advanced Settings
In this section, the following settings can be executed:
-Security Notifications Settings: it allows to setup notification language and duress alarm, which allows users to input pre-set duress
code on the keypad to stop alarm and meanwhile send pre-set emergency messages to other designated contacts.
- Ready to Arm: if this feature is enabled, when arm or home arm the premises, the system will notify if there is a contact sensor in
open status.
- More:
E users can select which sensors should be held for transmitting alarm signals for preset time.
E by enabling this, the system will wait for the preset time before responding to ARM or HOME
ARM instructions.
it defines how long the built-in siren should sound in event of alarm activation.
reset the network parameters and the system password.
turn on/off the sound indic .
T manually select appropriate time zone.
Table of contents
Popular Security System manuals by other brands

Honeywell
Honeywell Friedland HISK1 Quick installation guide

Click
Click SG-09N user manual

Precision Digital Corporation
Precision Digital Corporation Vigilante II PD154 instruction manual

X2 Digital Wireless Systems
X2 Digital Wireless Systems X2-VIDEO-201 user manual

MobileHelp
MobileHelp Touch user guide

Mobotix
Mobotix Mx-S-NAS2A-8 quick guide
