Viking Electronics E-32-IP User manual

QUICK START GUIDE
VIKING Electronics, Inc.
KSee Product Manual for complete installation and programming instructions.
E-32-IP or
E-32-IP-EWP
VoIP Entry Phone
September 17, 2019
1.0 Out-of-Box
1.1 Verify that you have received all of the parts listed
1.2 Download the product manual
1. Go to www.vikingelectronics.com and
enter E-32-IP in the search box
2. Click E-32-IP in the search results
3. Click Product Manual to open and
download the PDF
1.3 Download and install the programming software
1. Go to www.vikingelectronics.com and enter E-32-IP in the search box
2. Click E-32-IP in the search results
3. Scroll down the page to Downloads, click IP Programming Software
4. Install the programming software by saving or opening the file and then clicking on
setup Viking IP Programming.exe
5. Follow the prompts on your screen to complete software installation
2.0 Power Source
Select PoE Switch or PoE Injector that meets the following requirements:
1. IEEE 802.3af / 802.3at / 802.3bt compliant
2. Capable of providing at least 4 Watts (class 1)
Note: CAT5e (or higher) cable recommended
X 1 E-32-IP or E-32-IP-EWP
Entry Phone
X 1 Torx T-10 Security Bit
X 5 Gel-Filled Butt Connectors
X 1 Faceplate Gasket
X 4 6-32 x 3/4” Flat Head Torx
Drive Screws
X 1 Wire Nut
Scan the QR code to
open and download
the product manual - OR -

4.0 Features Overview
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries
assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate such changes.
See the Product Manual for complete installation and programming instructions.
Questions? Call Viking Product Support: 715-386-8666
E-32-IP Quick Start Guide ZF303594 REV B
• Make sure the port is not in trunk mode
• Make sure port is capable of 100mbps full duplex
• Disable Spanning Tree Protocol (STP) or enable Portfast
3.0 Network Port Settings
MAC:
18E80FXXXXXX
asdesaxtff
N.C. (Gray)
N.O. (Yellow)
COM. (Blue)
* On-Board 2 Amp
Relay Output Contacts
(2A@30VDC/ 250VAC max)
3 Gel-Filled Butt
Connectors (included)
Black
Black
- Black
+ Red
Call Switch
Request for Exit (REX Input)
Speaker
Microphone
MAC Address Label: The
MAC address is aunique 12
digit number used by routers
to send network traffic to the
correct IP address.
PoE LAN Port 10/100, PoE
Class 1 (<4 Watts): Connect
to your LAN via RJ45 plug
and CAT5 or greater twisted
pair wire.
Yellow Network Status LED:
Lights steady to indicate power
and data link. Blinks to indicate
network activity.
Green Unit Status LED

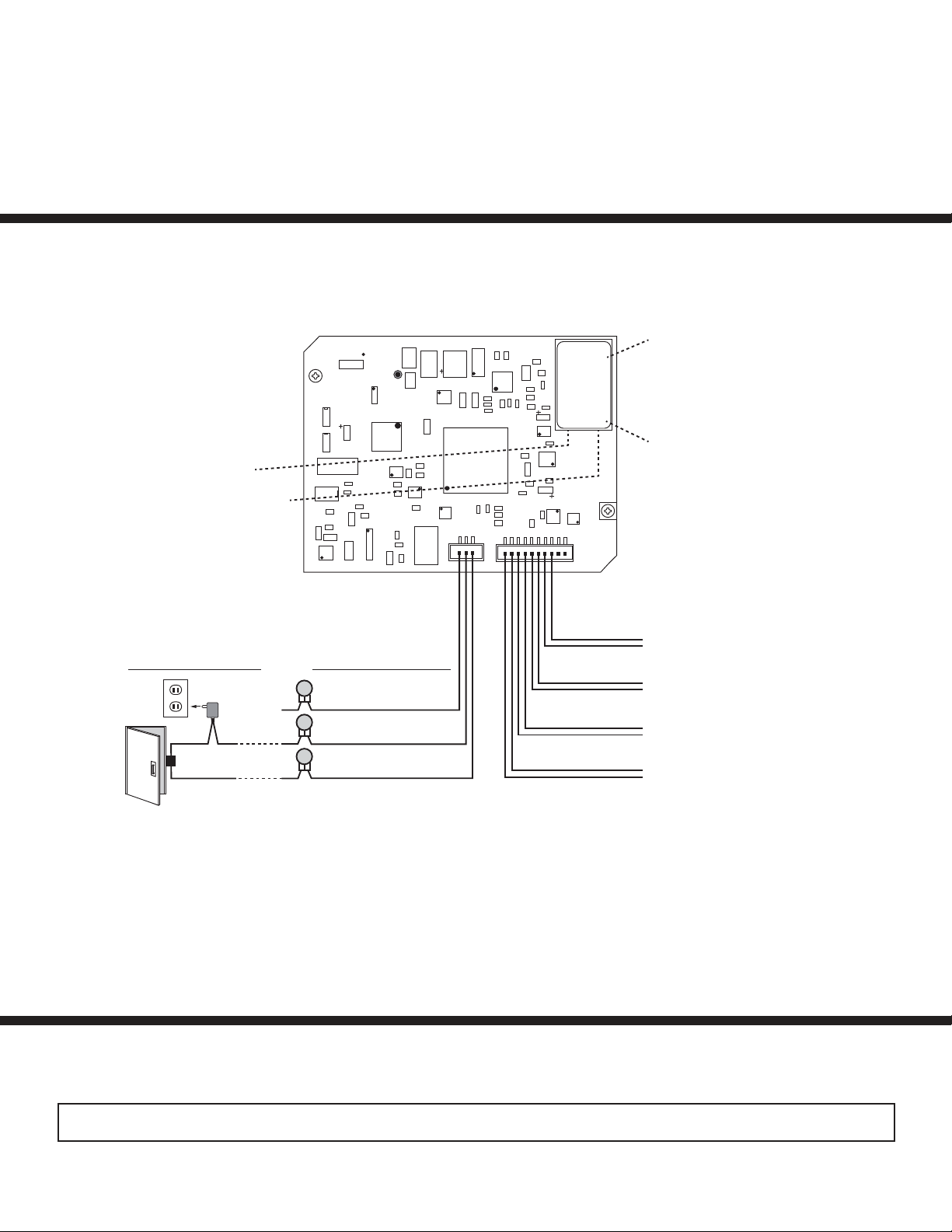

Rear (PCB) View of E-10/20/30/32-IP Entry Phone
Green
Green
Yellow
Yellow
(Power typically not
required for gate controllers)
Doorstrike /
Magnetic Lock
120V AC
Connect to Optional
Doorstrike, Mag Lock,
Gate Controller, etc.
(not
connected)
Note: The gel-filled (water-tight) butt connectors are designed for insulation displacement on 19-26 gauge wire with a
maximum insulation of 0.082 inches. Cut off stripped wire ends before terminating.
* Note: The front panel of the E-32-IP is mounted using security Torx screws to help prevent intruders from removing the
panel and accessing the on board door strike/gate control relays. For applications requiring additional security, a Viking
model RC-4A remote relay controller can be used. The relay controller is mounted securely inside the building and connected
to the same LAN as the E-32-IP. For more information on the RC-4A Secure Relay Controller, see DOD 582.
