Viking SwiveLift Quick setup guide

Figure 1
Step 2: Roller Bracket Assembly
Position the two roller brackets onto the end of
the lift beam as shown in figure 2. Attach the
brackets using two 10mm hex bolts, washers
and locknuts. Insert the plastic rollers as
shown and secure using two 12mm hex bolts,
washers and locknuts. Do not overtighten so
the rollers may rotate freely.
Step 1: Attaching the Lift Beam to the Lift Platform
The lift platform is attached to the lift beam using
two 10mm hex bolts, two flat washers and two
locknuts. Attach the lift platform as shown in figure
1. Tighten the hex bolts securely.
SwiveLift
Receiver Mounted Lifting Platform
Assembly and Use Instructions
Assembly Tools Required:
Adjustable Crescent Wrench
14mm Box Wrench or Socket
16mm Box Wrench or Socket
18mm Box Wrench or Socket
SwiveLift Parts Overview
Hand Winch
Lift Platform
Column Tube
Lift Beam
Receiver Tube
Assembly
Roller Bracket (2)
Plastic Rollers (4)
Lift Platform
Lift Beam
10mm Hex Bolt
10mm Hex Bolts
12mm Hex Bolts
Plastic Rollers
Figure 3
Step 3: Attaching the Hand Winch
Position the hand winch onto the end of the column tube as shown in
figure 3. Attach the winch using two 8mm hex bolts, washer and
locknuts and tighten securely. The washer and locknut should be
inside the tube. Note: the winch spool should be near the end of the
tube.
Hand Winch
Column Tube
8mm Hex Bolt
Clevis Pin Hole
Figure 2

Instructions for using the Viking SwiveLift
Failure to read and follow all instructions may result in property damage, serious
injury or death.
 Never exceed the maximum lifting capacity of 300 Lbs.
 Use appropriate tie-down straps to secure the load and always assure the load is balanced on the lifting platform.
 Always use caution to avoid pinch points during assembly of the system.
 Always verify the anti-reverse ratchet lever is properly engaged before lifting.
 Never operate any vehicle with the SwiveLift attached.
 Never begin lifting any object until you are certain it is secured to the lift platform.
 Never allow anyone or anything below the lift platform during operation.
 Never load an object with wheels or casters unless proper blocking and strapping is used to completely immobilize the
wheels.
 Not for lifting of Humans.
 Store the SwiveLift appropriately when not in use to provide years of trouble-free loading assistance.
Figure 4
©2015 Viking Solutions, LLC 919 Church St. NE Decatur, AL 35601
WWW.VIKINGSL.COM email: [e-mail] Phone [phone]
If there are any questions concerning the assembly and/or operation of the SwiveLift, please call or
email immediately for assistance.
Set-up and Operation of the SwiveLift
Step 1: Insert the receiver tube assembly into a 2”
Class III or Class IV receiver hitch (300 Lb. minimum
tongue weight capacity) making sure to align the clevis
pin hole with the mating hole on the receiver hitch.
Secure with an appropriate locking clevis pin and cotter
pin (not included). Do not use the SwiveLift before
securing the receiver coupling assembly into the
receiver with a locking pin.

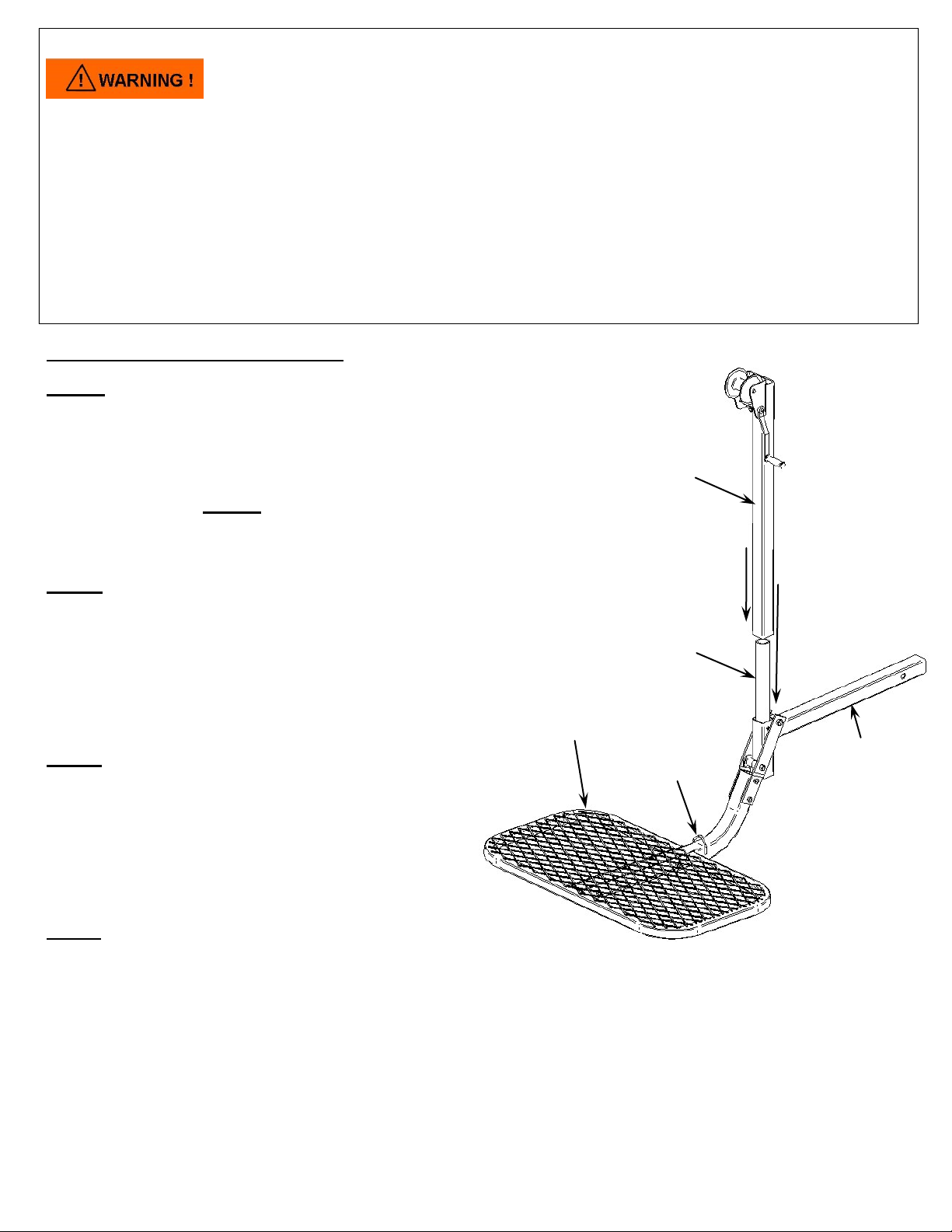

Step 2: Place the lift platform assembly over the pivot
tube on the receiver tube assembly, as shown in figure
4. Slide the column tube over the pivot tube as shown
in Figure 4 until it is seated against the receiver tube
assembly . Align the square column tube with the verti-
cal square tube of the receiver tube assembly as
shown.
Step 3: Attach the winch cable hook to the lift ring of
the lift platform assembly. Note: the lift platform
assembly will not rotate until it is raised completely onto
the lift column (approximately 6” from the lowest
position). Likewise, the lift platform must be facing
directly away from the vehicle reach the lowest position
for loading and unloading.
Step 4: Raise and lower the lift platform using the hand
winch. Use extra caution when lowering any load from
the vehicle to the ground. Tie down straps must be
used to secure the load before loading and/or
unloading. To prevent shifting, secure the tie-down
straps completely underneath the lift platform and over
the object being moved.
Lift Platform Assembly
Pivot Tube
Column Tube
Receiver Tube
Assembly
Lift Ring
