Viking Designer DDFB364 User manual

Model Options
REFRIGERATION
Built-In 36”W. All Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
All models include
•Capacity—19.1 cu. ft. (541.0 L)
o 84”H./24”D.
• ProChill™ Temperature Management
System
oVariable-speed single compressor
system includes the quietest, most
technologically advanced
compressor available
oElectronic controls maintain the
temperature selection within 1ºF
oMulti-channel airflow system
removes odors and excess humidity
• Six adjustable half-width wire shelves
• One full-width metal shelf
• Two full-width slide-out wire baskets
• Factory-installed automatic ice maker
• One full-width ice storage drawer with
two metal ice bins
• Full-extension precision ball-bearing
glides on all baskets and drawers
• Five adjustable aluminum door bins
with tempered glass shelves
• Adaptive defrost
• All-metal freezer interior
• Top-mounted and front-venting sealed
refrigeration system
• Dual magnet and spring-assisted door
closer mechanism
• Robust, heavy-duty door hinges
• Power interruption switch to turn off
all power
• Automatic energy-saving exterior
moisture control
• Open door alarm sounds and glows to
warn that door has been ajar for three
minutes
• Adjustable door stops standard—90°,
110°, or 120° swing
• Sabbath Mode
• For installation of two units together,
separate grille kit must be purchased
• Must be ordered right or left hinge.
(As you face unit, RIGHT has hinge on
right side and handle on left side;
LEFT has hinge on left side and
handle on right side.)
VCFB364
Professional
FINISH DETAILS FOR DFFB MODEL
• Handle not included—opt for custom
handle, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories).
• See Custom Panels section for more
information and additional
specifications.
FINISH DETAILS FOR DDFB MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe
(TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM),
Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB).
• Finish codes designate door front.
Stainless steel upper grille, side trim,
and handle, with black lower kickplate.
• Brass Trim Option (BR)—handle. Brass
components have a durable protective
coating for maintenance-free normal
use.
FINISH DETAILS FOR VCFB MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe
(TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM),
Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB).
• Finish codes designate door front.
Stainless steel upper grille, side trim,
handle, (with chrome-plated brackets);
black lower kickplate.
• Brass Trim Option (BR)—nameplate,
handle/brackets, and side trim. Brass
components have a durable protective
coating for maintenance-free normal
use.
DDFB364
Designer
DFFB364
Custom Front
Standard Features & Accessories
ORDERING INSTRUCTIONS
First specify model number, followed by hinge preference (“R” for right or “L” for left), and then color code (VCFB364RSS).
If ordering optional brass trim, specify code at end (VCFB364RSSBR).

REFRIGERATION
Built-In 36”W. All Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
✪
Please see
Installation Notes &
Accessories
for important
information,
including panel,
grille, trim, and
handle kits.
75-15/16”
(192.9 cm)
3-19/32”
(9.1 cm)
36”
(91.5 cm)
22-3/16”
(56.4 cm)
24-11/16”
(62.7 cm)
27-1/4”
(69.2 cm)
35”
(88.9 cm)
82-7/8”
(210.5 cm)
min.
to
84-1/16”
(213.5 cm)
max.
o
o
o
o
o
75-15/16”
(192.9 cm)
36”
(91.5 cm)
23-13/16”
(60.5 cm)
35”
(88.9 cm)
3-1/2”
(8.9 cm)
82-7/8”
(210.5 cm)
min.
to
84-1/16”
(213.5 cm)
max.
24”
(61.0 cm)
24-3/4”
(62.9 cm)
26”
(66.0 cm)
VARIES
PROFESSIONAL DESIGNER/
CUSTOM FRONT
VCFB364 DDFB364 DFFB364
Overall width 36” (91.5 cm)
Overall height (from bottom) 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth (from rear)
To rear edge of side trim 22-3/16” (56.4 cm) 23-13/16” (60.5 cm) 23-13/16” (60.5 cm)
To front of top grille 24-11/16” (62.7 cm) 24” (61.0 cm) 24-3/4” (62.9 cm)
To front of handle 27-1/4” (69.2 cm) 26” (66.0 cm) Varies
Approx. ship weight 500 lbs. (227.3 kg)
VCFB364
Professional
DDFB364
Designer
DFFB364
Custom Front
See Custom Panels section for
more information and additional
specifications.
Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays
Dimensions & Specifications
PRODUCT DIMENSIONS
ALL MODELS

DFFB364
Custom Front
REFRIGERATION
Built-In 36”W. All Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
22--11//22””
((66..44ccmm))
5588--1111//3322””
((114488..22ccmm))
2244--1111//1166””
((6622..77ccmm))
5566--55//88””
((114433..88ccmm))
5544--77//3322””
((113377..77ccmm)
1144””
((3355..66ccmm))
3366””
((9911..44ccmm))
3355””
((8888..99ccmm))
1188--2299//3322””
((4488..00ccmm))
33--11//3322””
((77..77ccmm))
112200..00
0
111100..00
0
9900..00
0
2244””
((6611..00ccmm))
3366””
((9911..44ccmm))
3355””
((8888..99ccmm))
22--11//1166””
((55..22ccmm))
5588--33//88””
((114488..33ccmm))
5566--1111//1166”
”
((114444..00ccmm))
5544--99//3322””
((113377..99ccmm)
1133--11//88””
((3333..33ccmm))
1188--33//1166””
((4466..22ccmm))
11--2277//3322””
((44..77ccmm))
120.00
110
.0
90.00
0
0
PROFESSIONAL
DESIGNER
See Custom Panels section for
more information and additional
specifications.
Dimensions & Specifications
DOOR SWING
• Adjustable door stops standard—90°, 110°, or 120° swing
VCFB364
Professional
DDFB364
Designer

REFRIGERATION
Built-In 36”W. All Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
Door
24”
(61.0 cm)
standard cabinet depth
Wall
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
Partial overlay
cabinet door
Door
Wall
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
3/4”
(1.9 cm)
full end panel
24”
(61.0 cm)
standard
cabinet
depth
2-1/2”
(6.4 cm) offset
5/16”
(0.8 cm)
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
Door
24”
(61.0 cm)
standard cabinet depth
Wall
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
Countertop
overhang
Dimensions & Specifications
CLEARANCE DIMENSIONS—PROFESSIONAL
TOP VIEW
TOP VIEW
TOP VIEW

REFRIGERATION
Built-In 36”W. All Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Door
24”
(61.0 cm)
standard
cabinet
depth
24-3/4”
(62.9 cm)
Wall
3/4”
(1.9 cm)
full end panel
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
Flush
Cabinet
door
Door
Wall
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
3/4”
(1.9 cm)
full end panel
25”
(63.5 cm)
Flush
Door
24”
(61.0 cm)
standard
cabinet depth
25”
(63.5 cm)
countertop
depth
Wall
3/4”
(1.9 cm)
full end panel
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
Flush
Dimensions & Specifications
CLEARANCE DIMENSIONS—DESIGNER
TOP VIEW
Overlapping cabinet doors
TOP VIEW
TOP VIEW

REFRIGERATION
Built-In 36”W. All Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE

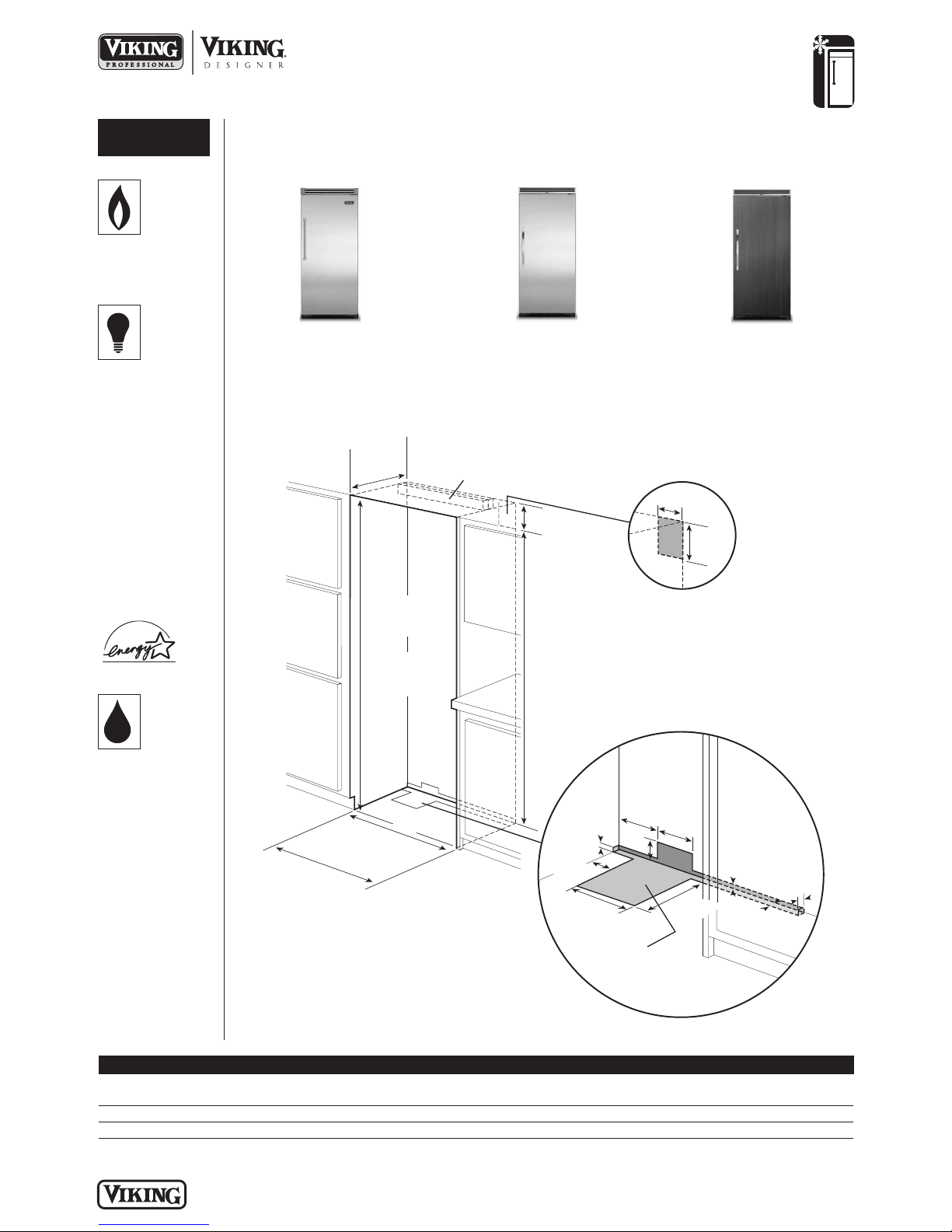

UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with grounded
three-prong plug
attached to
product
• 115 VAC/60 Hz;
15 amp
dedicated circuit
• Maximum amp
usage—9.5
• Estimated
energy usage—
601 kWh/year
PLUMBING
• Inlet waterline
requirements—
1/4” copper
tubing
• 20 psi min.;
120 psi max.
Installation Requirements
Anti-tip board
6”
(15.2 cm)

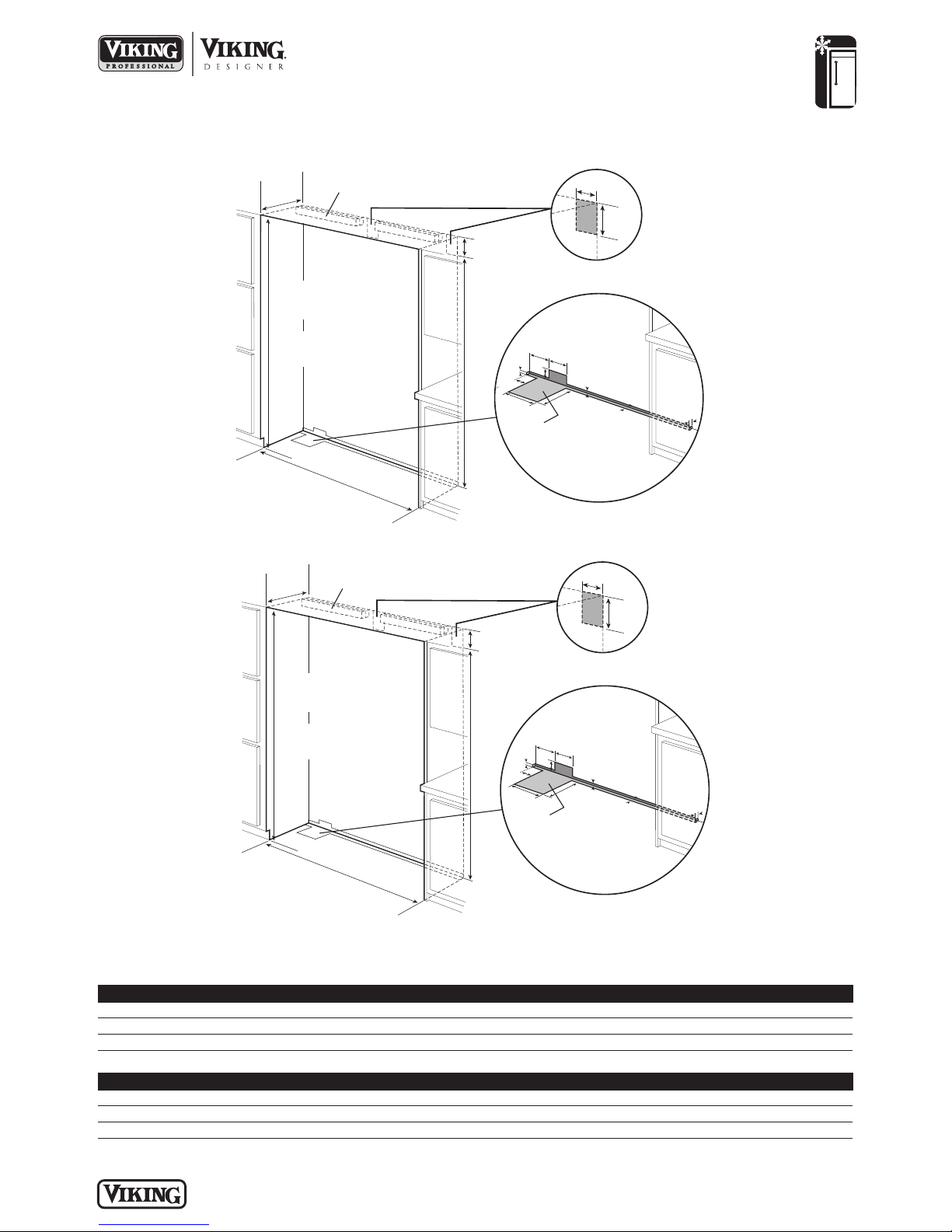

9”
(22.9 cm)
73-3/8”
(186.4 cm)
82-7/8”
(210.5 cm) min.
anti-tip board &
opening height
84-1/16”
(213.5 cm) max.
anti-tip board &
opening height
24”*
(61.0 cm)
min.
ELECTRIC OUTLET LOCATION
WATER LINE ENTRY AREA
6-3/4”
(17.1 cm)
7-5/8”
(19.4 cm)
3”
(7.6 cm)
5/8”
(1.5 cm)
5/8”
(1.5 cm)
10-1/2”
(26.7 cm)
5/8”
(1.5 cm)
10-3/4”
(27.3 cm)
1”
(2.5 cm)
3-5/8”
(9.2 cm)
Optional floor
water line entry
9”
(22.9 cm)
35-1/2”
(90.2 cm) min.
to
35-3/4”
(90.8 cm) max.
Professional
36”
(91.5 cm)
Designer/Custom Front
ACCESS REQUIREMENTS – Single Installation
VCFB364 DDFB364 DFFB364
Cutout width 35-1/2” (90.2 cm) min. to 36” (91.5 cm) 36” (91.5 cm)
35-3/4” (90.8 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.*
VCFB364
Professional
DDFB364
Designer
DFFB364
Custom Front
See Custom Panels section for
more information and additional
specifications.
*Custom front models fit flush in 25”-deep (63.5 cm)
cabinet openings. They can be installed in standard
24”-deep openings. The door faces and top grille
will protrude 3/4” (1.9 cm) into the room.

REFRIGERATION
Built-In 36”W. All Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
9”
(22.9 cm)
73-3/8”
(186.4 cm)
82-7/8”
(210.5 cm) min.
anti-tip board &
opening height
84-1/16”
(213.5 cm) max.
anti-tip board &
opening height
71-1/2” Professional
(182.9 cm)
72” Designer/Custom Front
(182.9 cm)
24”*
(61.0 cm)
6-3/4”
(17.1 cm)
7-5/8”
(19.4 cm)
3”
(7.6 cm)
5/8”
(1.5 cm)
5/8”
(1.5 cm)
10-1/2”
(26.7 cm)
5/8”
(1.5 cm)
10-3/4”
(27.3cm)
3-5/8”
(9.2 cm
)
Optional floor
water line entry
1”
(2.5 cm
)
See anti-tip board installation
6”
(15.2 cm)
9”
(22.9 cm)
9”
(22.9 cm)
73-3/8”
(186.4 cm)
82-7/8”
(210.5 cm) min.
anti-tip board &
opening height
84-1/16”
(213.5 cm) max.
anti-tip board &
opening height
65-1/2” Professional
(166.4 cm)
66” Designer/Custom Front
(167.6 cm)
24”*
(61.0 cm)
6-3/4”
(17.1 cm)
7-5/8”
(19.4 cm)
3”
(7.6 cm)
5/8”
(1.5 cm)
5/8”
(1.5 cm)
10-1/2”
(26.7 cm)
5/8”
(1.5 cm)
10-3/4”
(27.3 cm)
3-5/8”
(9.2 cm
)
Optional floor
water line entry
1”
(2.5 cm
)
See anti-tip board installation
6”
(15.2 cm)
9”
(22.9 cm)
Installation Requirements
VCFB364/VCRB364 DDFB364/DDRB364 DFFB364/DFRB364
Cutout width 71-1/2” (181.6 cm) 72” (182.9 cm) 72” (182.9 cm)
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.*
VCFB364/VCRB304 DDFB364/DDRB304 DFFB364/DFRB304
Cutout width 65-1/2” (166.4 cm) 66” (167.6 cm) 66” (167.6 cm)
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.*
36”/30” FREEZER/
REFRIGERATOR COMBINATION
36”/36” FREEZER/
REFRIGERATOR COMBINATION
ELECTRIC OUTLET LOCATION
WATER LINE ENTRY AREA
Note: cutout opening shown with All Freezer model on left.
Reverse water line entry if All Freezer model is on right
ELECTRIC OUTLET LOCATION
WATER LINE ENTRY AREA
Note: cutout opening shown with All Freezer model on left.
Reverse water line entry if All Freezer model is on right
ACCESS REQUIREMENTS – Dual Installation
*Custom front models fit flush in 25”-deep (63.5 cm) cabinet openings. They can be installed in standard 24”-deep openings. The
door faces and top grille will protrude 3/4” (1.9 cm) into the room.

Side Panel Kits
• Stainless Steel (SS)
• Panels provide finished, freestanding look; unit must still be secured to the wall
• Kit includes one panel and installation hardware
Side Panel Hardware Kit
• For use with Designer built-in refrigerator/freezers
• Hardware allows installation of custom side panels
• Kit includes brackets, screws, and installation instructions to mount panels on left and right side
Top Panel Kit
• Stainless Steel (SS)
• Panel provides finished, freestanding look; unit must still be secured to the wall
• Kit includes one panel and installation hardware
Top Grille Kits
• Stainless Steel (SS)
• 66”W. top grille kit—for use with installation of one 36”W. and one 30”W. all refrigerators/all freezers side-by-side
• 72”W. top grille kit—for use with installation of two 36”W. all refrigerators/all freezers side-by-side
• Grille creates a single unit look
• Kit includes one full-length grille, center cabinet trim connector, and all installation hardware
Center Trim Kit
• Stainless Steel (SS)
• Kit includes center cabinet trim connector to install two custom front units with wood top grille
✪Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
PSSPL2 Professional side panel left 45 (20.2)
PSSPR2 Professional side panel right 45 (20.2)
DSSPL2 Designer side panel left 45 (20.2)
DSSPR2 Designer side panel right 45 (20.2)
Model Description Approx. ship wt. lbs. (kg)
PGK66-SS Professional 66”W. grille (for two VCRB/VCFB units) 23 (10.4)
PGK72-SS Professional 72”W.grille (for two VCRB/VCFB units) 25 (11.3)
DGK66-SS Designer 66”W. grille (for two DDRB/DDFB/DFRB/DFFB units) 23 (10.4)
DGK72-SS Designer 72”W. grille (for two DDRB/DDFB/DFRB/DFFB units) 25 (11.3)
REFRIGERATION
Built-In 36”W. All Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Model Description Approx. ship wt. lbs. (kg)
TOP-36 36”W. top panel 22 (10.0)
Model Description Approx. ship wt. lbs. (kg)
SPHKDS Side panel hardware 3 (1.4)
Model Description Approx. ship wt. lbs. (kg)
FCTK-SS Center trim 5 (2.3)

REFRIGERATION
Built-In 36”W. All Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Handle Kits
• For use with custom front freezers
• For use on locally supplied full custom front panels
• Handles allow refrigerator/freezers with custom front panel to coordinate with other Professional and Designer products
• Kit includes handle(s) and installation hardware
Compliance Information
WARRANTY SUMMARY*
• Two-year full warranty—complete unit
• Six-year full warranty—sealed refrigeration system and automatic ice maker
• Twelve-year limited warranty—sealed refrigeration system (includes compressor, condenser,
dryer/strainer, evaporator, and connecting tubing)
• Ninety-day limited—cosmetic parts such as glass, painted, and decorative items
* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
Model Description Approx. ship wt. lbs. (kg)
PHK26-SS Professional one handle (Stainless Steel) 7 (3.2)
PHK26-BR Professional one handle (Brass) 7 (3.2)
DHK25-SS Designer one handle (Stainless Steel) 7 (3.2)
DHK25-BR Designer one handle (Brass) 7 (3.2)
PHKDFBB-SS Professional two handles (Stainless Steel) 10 (4.5)
PHKDFBB-BR Professional two handles (Brass) 10 (4.5)
HKFDS-SS Designer two handles (Stainless Steel) 10 (4.5)
HKFDS-BR Designer two handles (Brass) 10 (4.5)
