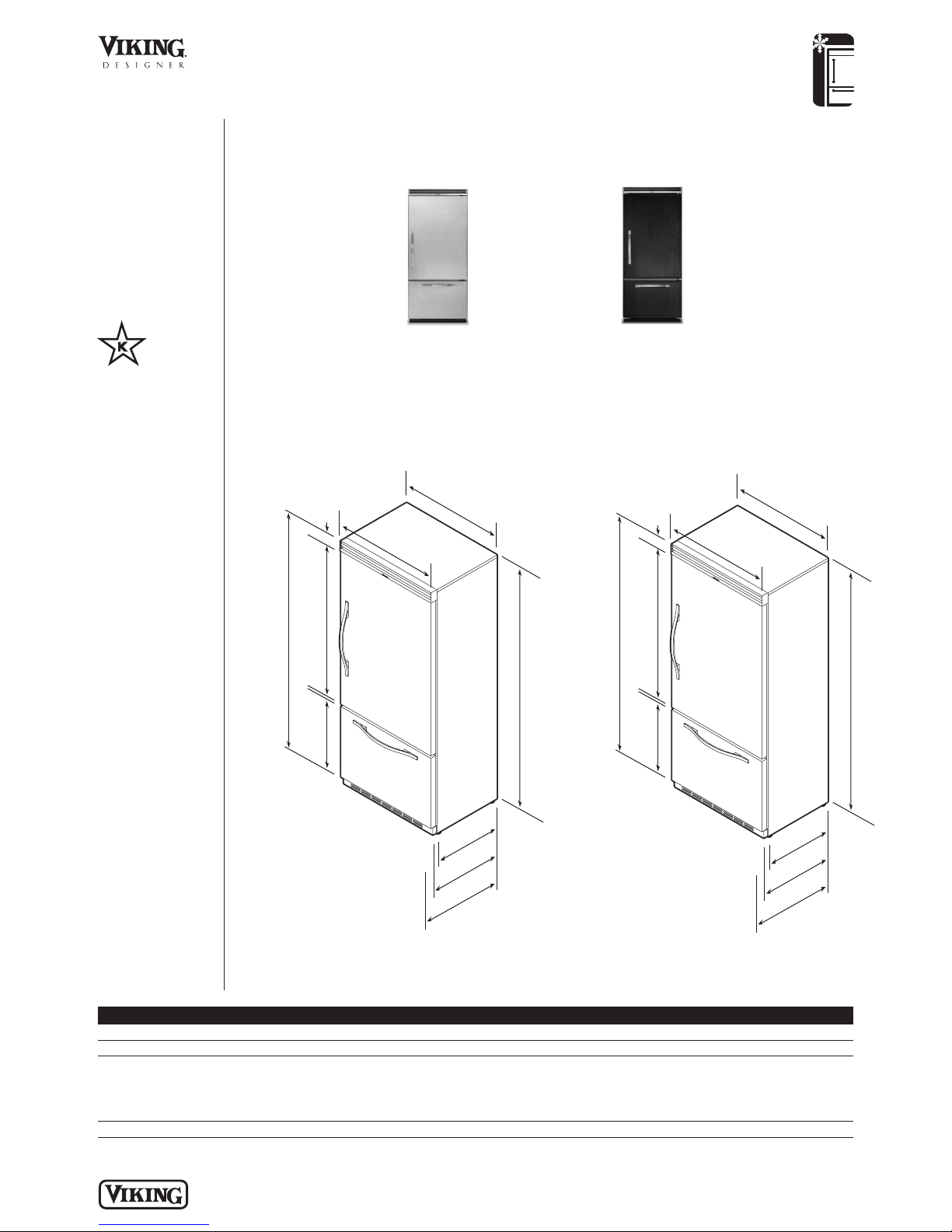

REFRIGERATION
Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
All models include
• Total capacity—20.3 cu. ft. (574.5 L)
o84”H./24”D.
• ProChill™ Temperature Management
System
oVariable speed single compressor
system includes the quietest, most
technologically advanced
compressor available
oElectronic controls maintain the
temperature selection within 1ºF
oMulti-channel airflow system
removes odors and excess humidity
• Frost-free refrigerator
oCapacity—15.2 cu. ft. (430.2 L)
oFive adjustable tempered glass spill-
proof shelves
oConvertible temperature-controlled
Meat Savor™/produce drawer with
precision ball-bearing glides
oSeperate temperature control can
be set for produce or fresh meat
storage
• Quick-chill option chills foods and
beverages in minutes
oTwo moisture adjustable see-
through produce drawers with pre-
cision ball-bearing glides
oTwo in-the-door dairy compartments
with covers
oFive adjustable aluminum door bins
with tempered glass fronts
oTop shelf provides quick chill-down
area
oEgg bin and butter tray
• Frost-free freezer
oFull-extension freezer drawer with
positive self-closing feature
oCapacity—5.1 cu. ft. (44.3 L)
oAdaptive defrost
oFactory-installed automatic ice
maker
oTwo slide-out wire baskets
• Open door alarm sounds and glows to
warn that door has been ajar for three
minutes
• Adjustable door stops standard—90°,
110°, or 120° swing
• Sabbath Mode
• Must be ordered right or left hinge.
(As you face unit, RIGHT has hinge on
right side and handle on left side;
LEFT has hinge on left side and han-
dle on right side.)
VCBB363/VIBB363
Professional/Professional
Integrated
FINISH DETAILS FOR DFBB MODEL
• Handles not included—opt for custom
handles, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories).
• See Custom Panels section for
more information and additional
specifications.
FINISH DETAILS FOR DDBB MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe
(TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM),
Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB).
• Finish codes designate door fronts.
Stainless steel upper grille, side trim,
and handles, with black lower
kickplate.
• Brass Trim Option (BR)—handle. Brass
components maintenance-free normal
use.
FINISH DETAILS FOR VCBB/VIBB MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe
(TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM),
Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB).
• Finish codes designate door fronts.
Stainless steel upper grille, side trim,
and handles (with chrome-plated
brackets); black lower kickplate.
• Brass Trim Option (BR)—nameplate,
handle/brackets, and side trim. Brass
components have a durable protective
coating for maintenance-free normal
use.
DDBB363
Designer
DFBB363
Custom Front
Standard Features & Accessories
Model Options
ORDERING INSTRUCTIONS
First specify model number, followed by hinge preference (“R” for right or “L” for left), and then color code (VCBB363RSS).
If ordering optional brass trim, specify code at end (VCBB363RSSBR).

VCBB363/VIBB363
Professional/Professional
Integrated
REFRIGERATION
Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
✪
Please see
Installation Notes &
Accessories
for important
information,
including panel,
grille, and handle
kits.
36”
(91.4 cm)
22-3/16”
(56.4 cm)
24-11/16”
(62.7 cm)
27-1/4”
(69.2 cm)
35”
(88.9 cm)
82-3/4”
(210.2 cm)
min.
to
84-1/16”
(213.5 cm)
max.
79-17/32”
(202 cm)
51-1/2”
(130.8 cm)
3-19/32”
(9.1 cm)
23-1/16”
(58.5 cm)
36”
(91.4 cm)
23-3/8”
(59.4 cm)
24”
(61.0 cm)
26-1/2”
(67.3 cm)
35”
(88.9 cm)
82-3/4”
(210.2 cm)
min.
to
84-1/16”
(213.5 cm)
max.
79-17/32”
(202 cm)
51-1/2”
(130.8 cm)
3-19/32”
(9.1 cm)
23-1/16”
(58.5 cm)
VCBB363 VIBB363
Overall width 36” (91.4 cm)
Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth (from rear)
To front edge of side trim 22-3/16” (56.4 cm) 23-3/8” (59.4 cm)
To front of top grille 24-11/16” (62.7 cm) 24” (61.0 cm)
To front of handle 27-1/4” (69.2 cm) 26-1/2” (67.3 cm)
Approx. ship weight 565 lbs. (254.3 kg)
Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays
Dimensions & Specifications
PRODUCT DIMENSIONS
PROFESSIONAL PROFESSIONAL
INTEGRATED
ALL MODELS

35”
(88.9 cm)
82-7/8”
(210.5 cm)
min.
to
84-1/16”
(213.5 cm)
max.
23-3/8”
(59.4 cm)
24”
(61.0 cm)
79-17/32”
(202 cm)
51-1/2”
(130.8 cm)
3-1/2”
(8.9 cm)
23-1/16”
(58.5 cm)
36”
(91.4 cm)
26”
(66.0 cm)
DESIGNER
35”
(88.9 cm)
82-7/8”
(210.5 cm)
min.
to
84-1/16”
(213.5 cm)
max.
23-13/16”
(60.5 cm)
24-3/4”
(62.9 cm)
79-17/32”
(202 cm)
51-1/2”
(130.8 cm)
3-1/2”
(8.9 cm)
23-1/16”
(58.5 cm)
36”
(91.4 cm)
Varies
CUSTOM FRONT
REFRIGERATION
Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
DDBB363
Designer
DFBB363
Custom Front
✪
Please see
Installation Notes &
Accessories
for important
information,
including panel,
grille, and handle
kits.
DDBB363 DFBB363
Overall width 36” (91.4 cm)
Overall height (from bottom) 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth (from rear)
To front edge of side trim 23-3/8” (59.4 cm) 23-13/16” (60.5 cm)
To front of top grille 24” (61.0 cm) 24-3/4” (62.9 cm)
To front of handle 26” (66.0 cm) Varies
Approx. ship weight 565 lbs. (254.3 kg) 500 lbs. (227.3 kg)
See Custom Panels section for
more information and additional
specifications.
Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays
Dimensions & Specifications
PRODUCT DIMENSIONS
ALL MODELS

REFRIGERATION
Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
VCBB363/VIBB363
Professional/Professional
Integrated
DDBB363
Designer
DFBB363
Custom Front
2-1/2”
(6.4 cm)
58-11/32”
(148.2 cm)
24-11/16”
(62.7 cm)
56-5/8”
(143.8 cm)
54-7/32”
(137.7 cm
)
14”
(35.6 cm)
36”
(91.4 cm)
35”
(88.9 cm)
18-29/32”
(48.0 cm)
3-1/32”
(7.7 cm)
120.00
110.00
90.00
24”
(61.0 cm)
36”
(91.4 cm)
35”
(88.9 cm)
2-1/16” (5.2 cm)
Designer
2-1/2” (6.4 cm)
Professional Integrated
58-3/8”
(148.3 cm)
56-11/16”
(144.0 cm)
54-9/32”
(137.9 cm
)
13-1/8”
(33.3 cm)
18-3/16”
(46.2 cm)
1-27/32”
(4.7 cm)
120.0
0
110.0
0
90.0
0
PROFESSIONAL
PROFESSIONAL INTEGRATED/
DESIGNER
Dimensions & Specifications
See Custom Panels section for
more information and additional
specifications.
DOOR SWING
• Adjustable door stops standard—90°, 110°, or 120° swing

REFRIGERATION
Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Door
Wall
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
3/4”
(1.9 cm)
full end panel
24”
(61.0 cm)
standard
cabinet
depth
2-1/2”
(6.4 cm) offset
5/16”
(0.8 cm)
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
Door
24”
(61.0 cm)
standard cabinet depth
Wall
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
Countertop
overhang
Dimensions & Specifications
CLEARANCE DIMENSIONS—PROFESSIONAL
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
Door
24”
(61.0 cm)
standard cabinet depth
Wall
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
Partial overlay
cabinet door
TOP VIEW
TOP VIEW
TOP VIEW

REFRIGERATION
Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Door
Wall
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
3/4”
(1.9 cm)
full end panel
25”
(63.5 cm)
Flush

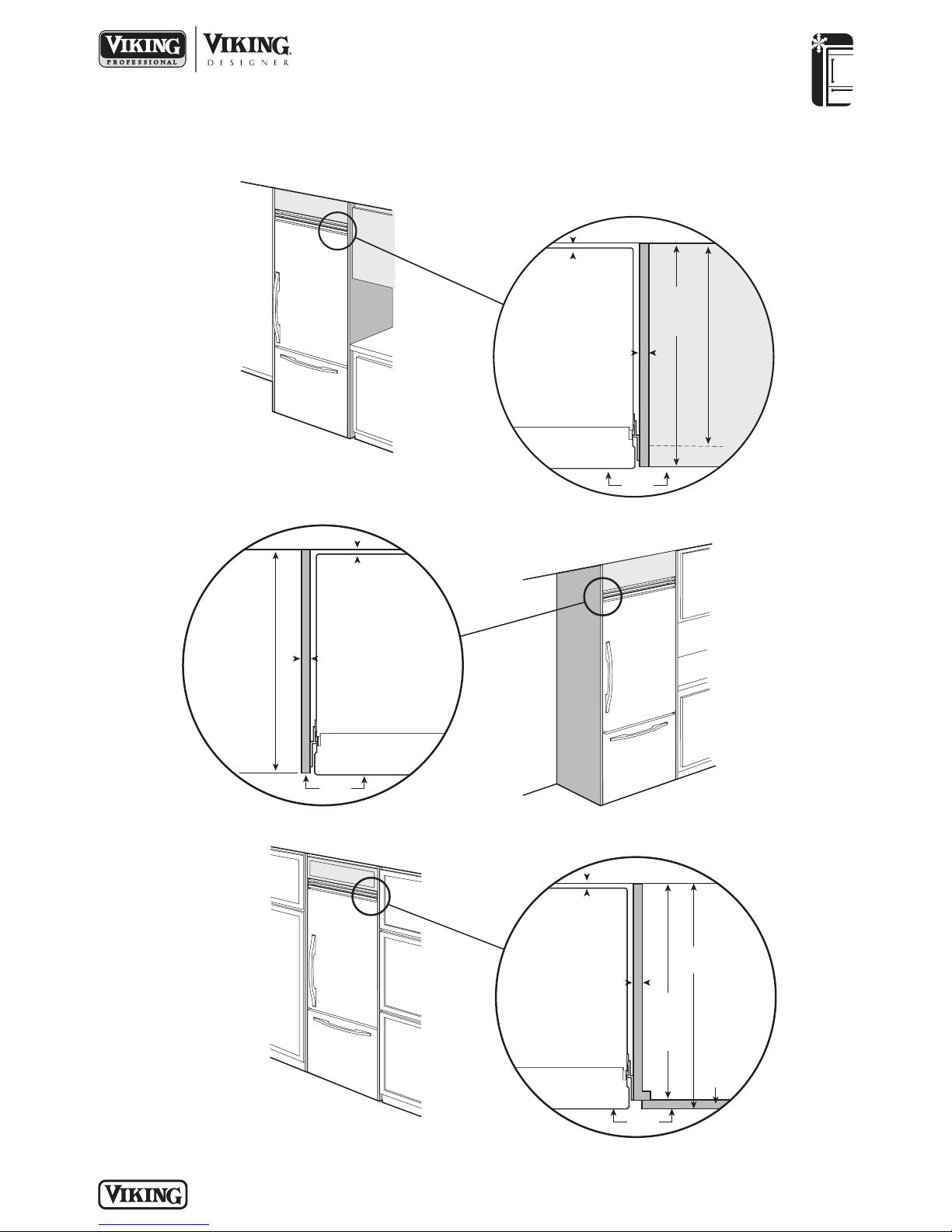

Dimensions & Specifications
CLEARANCE DIMENSIONS—PROFESSIONAL INTEGRATED/DESIGNER
Door
24”
(61.0 cm)
standard
cabinet depth
25”
(63.5 cm)
countertop
depth
Wall
3/4”
(1.9 cm)
full end panel
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
Flush
Door
24”
(61.0 cm)
standard
cabinet
depth
24-3/4”
(62.9 cm)
Wall
3/4”
(1.9 cm)
full end panel
3/4”
(1.9 cm)
if 25” (63.5 cm)
cabinet depth is used
Flush
Cabinet
door
TOP VIEW
TOP VIEW
TOP VIEW
Overlapping cabinet doors

Anti-tip board
6”
(15.2 cm)
9”
(22.9 cm)
9”
(22.9 cm)
73-3/8”
(186.4 cm)
82-7/8”
(210.5 cm) min.
anti-tip board &
opening height
84-1/16”
(213.5 cm) max.
anti-tip board &
opening height
35-1/2”
(90.2 cm) min.
to
35-3/4”
(90.8 cm) min.
Professional
24”*
(61.0 cm) min.
6-3/4”
(17.1 cm)
7-5/8”
(19.4 cm)
3”
(7.6 cm)
5/8”
(1.5 cm)
5/8”
(1.5 cm)
10-1/2”
(26.7 cm)
5/8”
(1.5 cm)
10-3/4”
(27.3 cm)
1”
(2.5 cm)
3-5/8”
(9.2 cm)
Optional floor
water line entry
36”
(91.4 cm)
Professional Integrated/
Designer/CustomFront
VCBB363/VIBB363
Professional/Professional
Integrated
DDBB363
Designer
DFBB363
Custom Front
See Custom Panels section for
more information and additional
specifications.
REFRIGERATION
Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with grounded
three-prong plug
attached to
product
• 115 VAC/60 Hz;
15 amp dedicated
circuit
• Maximum amp
usage—9.9
• Estimated
energy usage—
567 kWh/year
PLUMBING
• Inlet waterline
requirements—
1/4”copper
tubing
• 20 psi min.;
120 psi max.
Installation Requirements
ACCESS REQUIREMENTS
VCBB363 VIBB363 DDBB363 DFBB363
Cutout width 35-1/2” (90.2 cm) min. to 36” (91.4 cm) 36” (91.4 cm) 36” (91.4 cm)
35-3/4” (90.8 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.*
ELECTRIC OUTLET LOCATION
WATER LINE ENTRY AREA
*Custom front models fit flush in 25”-deep (63.5 cm)
cabinet openings. They can be installed in standard
24”-deep openings. The door faces and top grille
will protrude 3/4” (1.9 cm) into the room.

REFRIGERATION
Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
9”
(22.9 cm)
73-3/8”
(186.4 cm)
82-7/8”
(210.5 cm) min.
anti-tip board &
opening height
84-1/16”
(213.5 cm) max.
anti-tip board &
opening height
71-1/2”
(181.6 cm)
Professional
72”
(182.9 cm)
Professional Integrated/
Designer/Custom Front
24”*
(61.0 cm)
6-3/4”
(17.1 cm)
7-5/8”
(19.4 cm)
3”
(7.6 cm)
5/8”
(1.5 cm)
5/8”
(1.5 cm)
10-1/2”
(26.7 cm)
5/8”
(1.5 cm)
10-3/4”
(27.3 cm)
3-5/8”
(9.2 cm
)
Optional floor
water line entry
1”
(2.5 cm
)
See anti-tip board installation
6”
(15.2 cm)
9”
(22.9 cm)
Installation Requirements
VCBB363/VCBB363 VIBB363/VIBB363 DDBB363/DDBB363 DFBB363/DFBB363
Cutout width 71-1/2” (181.6 cm) 72” (182.9 cm) 72” (182.9 cm) 72” (182.9 cm)
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.*
36”W./36”W. REFRIGERATOR/
FREEZER BOTTOM MOUNT
COMBINATION
ACCESS REQUIREMENTS – Dual Installation
ELECTRIC OUTLET LOCATION
WATER LINE ENTRY AREA
*Custom front models fit flush in 25”-deep (63.5 cm) cabinet openings. They can be installed in standard 24”-deep openings. The
door faces and top grille will protrude 3/4” (1.9 cm) into the room.

RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Side Panel Kits
• Stainless Steel (SS)
• Panels provide finished, freestanding look; unit must still be secured to the wall
• Kit includes one panel and installation hardware
Side Panel Hardware Kit
• For use with Designer built-in refrigerator/freezers
• Hardware allows installation of custom side panels
• Kit includes brackets, screws, and installation instructions to mount panels on left and right side
Top Panel Kit
• Stainless Steel (SS)
• Panel provides finished, freestanding look; unit must still be secured to the wall
• Kit includes one panel and installation hardware
Top Grille Kits
• Stainless Steel (SS)
• For use with installation of two 36”W. bottom-mount refrigerator/freezers
• Grille creates a single unit look
• Kit includes one full-length grille, center cabinet trim connector, and grill installation hardware
Handle Kits
• For use with custom front refrigerator/freezers
• For use on locally supplied custom front panels
• Handles allow refrigerator/freezers with custom front panel to coordinate with other Professional and Designer products
• Kit includes two handles and installation hardware
Compliance Information
WARRANTY SUMMARY*
• Two-year full warranty—complete unit
• Six-year full warranty—sealed refrigeration system and automatic ice maker
• Twelve-year limited warranty—sealed refrigeration system (includes compressor, condenser,
dryer/strainer, evaporator, and connecting tubing)
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items
* For complete warranty see Use & Care Guide . Warranty valid on Viking products shipped within the United States and Canada.
Model Description Approx. ship wt. lbs. (kg)
PHK-DFBB-SS Professional handles (Stainless Steel) 10 (4.5)
PHK-DFBB-BR Professional handles (Brass) 10 (4.5)
HKFDS-SS Designer handles (Stainless Steel) 10 (4.5)
HKFDS-BR Designer handles (Brass) 10 (4.5)
REFRIGERATION
Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
✪ Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
PSSPL3 Professional side panel left (VCBB) 45 (20.2)
PSSPR3 Professional side panel right (VCBB) 45 (20.2)
DSSPL3 Designer side panel left (VIBB/DDBB/DFBB) 45 (20.2)
DSSPR3 Designer side panel right (VIBB/DDBB/DFBB) 45 (20.2)
Model Description Approx. ship wt. lbs. (kg)
PBRTGK72-SS Professional 72”W. grille (for two VCBB units) 25 (11.3)
DBRTGK72-SS Designer 72”W. grille (for two DDBB/DFBB units) 25 (11.3)
Model Description Approx. ship wt. lbs. (kg)
TOP-36 36”W. top panel 22 (10.0)
Model Description Approx. ship wt. lbs. (kg)
SPHKDS Side panel hardware kit 3 (1.4)
