Viking Built-in French Door Bottom-Freezer... User manual

Built-in French Door
Bottom-Freezer Refrigerator
Use & Care Manual

We hope you will enjoy and appreciate the care and attention we have
put into every detail of your new, state-of-the-art refrigerator.
Your appliance is designed to offer years of reliable service. This Use
and Care Guide will provide you with the information you need to
become familiar with your refrigerator’s care and operation.
Your complete satisfaction is our ultimate goal. If you have any
questions or comments about this product, please contact the dealer
from whom you purchased it, or contact our Consumer Support Center
at 1-888-845-4641.
We appreciate your choice of our refrigerator and hope that you will
again select our products for your other major appliance needs.
For more information about the complete and growing selection
of products, contact your dealer or visit us online at vikingrange.com in
the US or at brigade.ca in Canada
Congratulations
2

Getting Started
Refrigerator Safety ____________________________________________4
Important Safety Instructions ___________________________________5
Proper Disposal (of old refrigerator)_____________________________6
Water Supply Requirements____________________________________8
Water System Preparation _____________________________________9
Product Controls
Using the Controls___________________________________________10
Temperature Controls ________________________________________12
Water Filter Indicator ________________________________________13
Rest Mode__________________________________________________14
Alarm Functions _____________________________________________15
Operation
Ice Maker___________________________________________________17
Water Filtration System_______________________________________18
Water Filter Certifications_____________________________________20
Refrigerator Features_________________________________________22
Freezer Features_____________________________________________24
Product Care
Cleaning ___________________________________________________25
Changing the Light Bulb _____________________________________26
Troubleshooting _____________________________________________28
Service Information __________________________________________33
Warranty ___________________________________________________34
Table of Contents
3

4
Refrigerator Safety
Getting Started
WARNING
DANGER
CAUTION
WARNING
You can be killed or seriously injured if you don’t
immediately follow instructions.
You can be killed or seriously injured if you don’t follow
instructions.
Hazards or unsafe practices which COULD result in minor
personal injury.
All safety messages will identify the hazard, tell you how
to reduce the chance of injury, and tell you what can happen if
instructions are not followed.
Recognize Safety Symbols, Words, Labels
Warning and Important Safety Instructions appearing in this manual
are not meant to cover all possible conditions and situations that may
occur.Common sense, caution, and care must be exercised when
installing, maintaining, or operating the appliance.
ALWAYS contact the manufacturer about problems or conditions you do not
understand.
Your safety is important to us. This use and care manual contains
safety symbols and statements. Always read and obey all safety
messages.
This symbol alerts you to hazards such as fire, electrical
shock or other injuries.
WARNING
State of California Proposition 65 Warning
• This product contains one or more chemicals known to the State of
California to cause cancer.
• This product contains one or more chemicals known to the State of
California to cause birth defects or other reproductive harm.

5
Getting Started
To reduce the risk of fire, electric shock, or injury when using your
refrigerator, follow these basic precautions:
• Plug into a grounded 3-prong outlet.
• DO NOT remove ground prong.
• DO NOT use an adapter.
• DO NOT use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline, away from
refrigerator.
• Use two or more people to move and install refrigerator.
• Disconnect power before installing ice maker (on ice maker kit
ready models only).
• Use a sturdy glass when dispensing ice (on some models).
SAVE THESE INSTRUCTIONS
Important Safety Instructions
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion,
or fire.
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING

6
Proper Disposal (of old refrigerator)
Getting Started
IMPORTANT:
Child entrapment and suffocation are not problems of the past. Junked
or abandoned refrigerators are still dangerous—even if they will sit for
“just a few days”. If you are getting rid of your old refrigerator, please
follow these instructions to help avoid accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb
inside.
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
WARNING
WARNING

7
Remove the Packaging
■Remove tape and glue residue from surfaces before turning on the
refrigerator. Rub a small amount of liquid dish soap over the
adhesive with your fingers. Wipe with warm water and dry.
■Do not use sharp instruments, rubbing alcohol, flammable fluids, or
abrasive cleaners to remove tape or glue. These products can
damage the surface of your refrigerator. For more information, see
“Refrigerator Safety.”
■Dispose of/recycle all packaging materials.
Clean Before Using
After you remove all of the packaging materials, clean the inside of
your refrigerator before using it. See the cleaning instructions in
“Refrigerator Care.”
Before Using your Refrigerator
Important information to knowabout glass shelves and
covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
CAUTION
Getting Started
Broken Glass Hazard
Do not hit refrigerator glass doors
Protect glass surface and edges during installation or
removal of doors.
Failure to do so can result in serious eye injury or minor
cuts.
WARNING
WARNING

8
Read all directions before you begin.
IMPORTANT:
■When your refrigerator was installed, the water connection from
the water source should have been connected to your
refrigerator. If your refrigerator is not connected to a water
source, see “Connect to Water Line” in the Installation
Instructions. If you have any questions about your water
connection, see “Troubleshooting” or call a licensed, qualified
plumber.
■If you turn the refrigerator on before the water line is connected,
turn the ice maker OFF. See “Ice Maker and Storage Bin.”
■All installations must meet local plumbing code requirements.
A cold water supply with water pressure between 30 and 120 psi (207
and 827 kPa) is required to operate the water dispenser and ice maker.
If you have questions about your water pressure, see
“Troubleshooting” or call a licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a reverse
osmosis system going to the water inlet valve of the refrigerator needs
to be between 30 and 120 psi (207 and
827 kPa). If a reverse osmosis water filtration system is connected to
your cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 psi (276 kPa).
If the water pressure to the reverse osmosis system is less than
40 psi (276 kPa):
■Check to see whether the sediment filter in the reverse osmosis
system is blocked. Replace the filter if necessary.
■Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
■If your refrigerator has a water filter, it may further reduce the
water pressure when used in conjunction with a reverse osmosis
system. Remove the water filter. See “Water Filtration System.”
If you have questions about your water pressure, call a licensed,
qualified plumber.
Water Supply Requirements
Getting Started

9
Please read before using the water system.
IMPORTANT:
After connecting the refrigerator to a water source or replacing the
water filter, fill and discard two full containers of ice to prepare the
water filter for use, before using the ice.

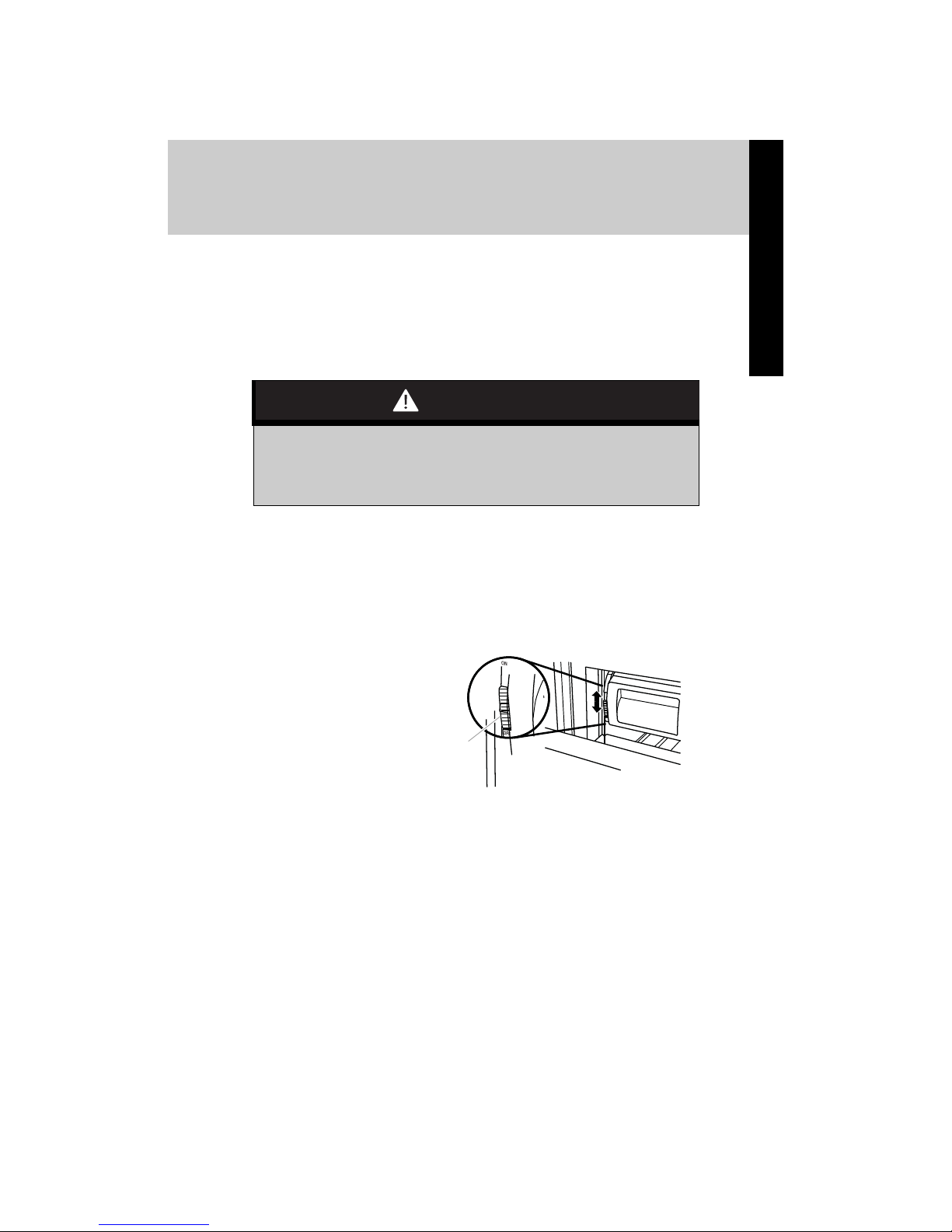

1. Turn on the ice maker. Slide the ice maker On/Off control, located
on the left-hand side of the ice bin, to the ON (up) position. Please
refer to “Ice Maker and Storage Bin” for further instructions on the
operation of your ice maker.
NOTE: Allow 24 hours to produce the first batch of ice.
NOTE: If your model has a base grille water filter, make sure the water
filter is properly installed so that the Eject button is out. See “Water
Filtration System.”
Water System Preparation
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system.
CAUTION
On/O Control
Getting Started

10
Product Controls
Using the Controls
Power ON/Off Switch

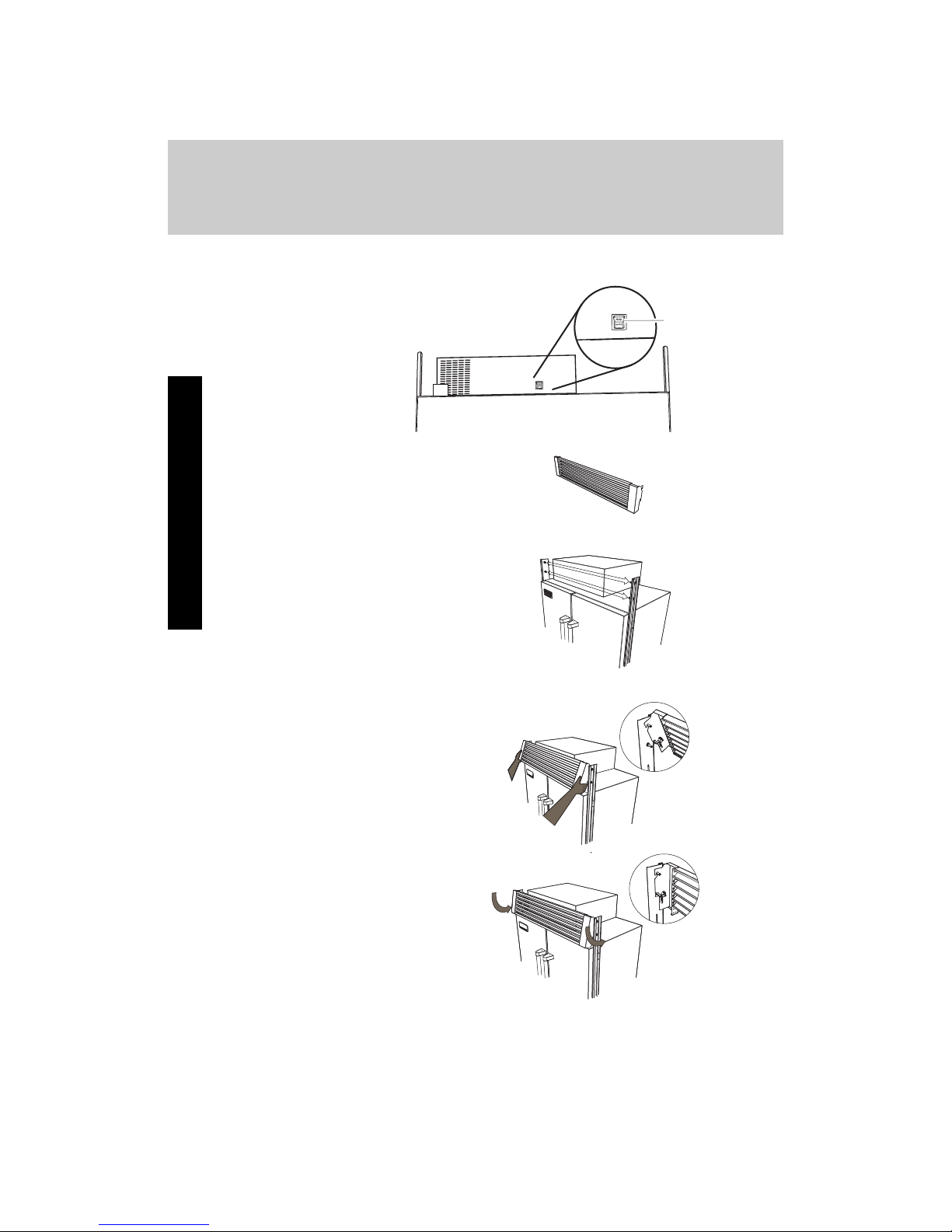

To install the Top Grille:
1. Remove the grille from the
packaging.
2. Locate pins above refrigerator..
3. Place grille on top pins.
4. Rotate grille downward. Grille
will snap in place once it is
secure on the bottom pins.
BACK
BACK
Before installing the top
grille, turn the power
switch to ON.
Power
Switch

11
Product Controls
If you need to turn the power to your refrigerator Off after installation,
you must remove the top grille assembly to access the power switch.
Turn the power to the refrigerator Off when cleaning your refrigerator
or changing light bulbs.
To Remove Top Grille, reverse steps listed for installing the grille.
1. Grasp the grille at the bottom. Pull up slightly to unsnap from
bottom pins.
2. Lift upward to remove grille from top pins.
IMPORTANT: Be sure the power switch is set to the ON position after
cleaning refrigerator or changing the light bulbs.
Using the Controls
■The refrigerator control adjusts the refrigerator compartment
temperature. The freezer control adjusts the freezer compartment
temperature.
■Wait 24 hours after you turn on the refrigerator before you put food
into it. If you add food before the refrigerator has cooled
completely, your food may spoil.
NOTE: Adjusting the refrigerator and freezer controls to a lower
(colder) setting will not cool the compartments any faster.
■If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not blocked
before adjusting the controls.
■The preset settings should be correct for normal household usage.
The controls are set correctly when milk or juice is as cold as you
like and when ice cream is firm.
■The actual temperature may differ from the display when a door is
open for an extended period of time.
NOTE: The factory recommended set points are 0°F (-18°C) for the
freezer and 37°F (3°C) for the refrigerator.

12
Operation
Using the Controls
Turning Refrigerator On and Viewing Set Points

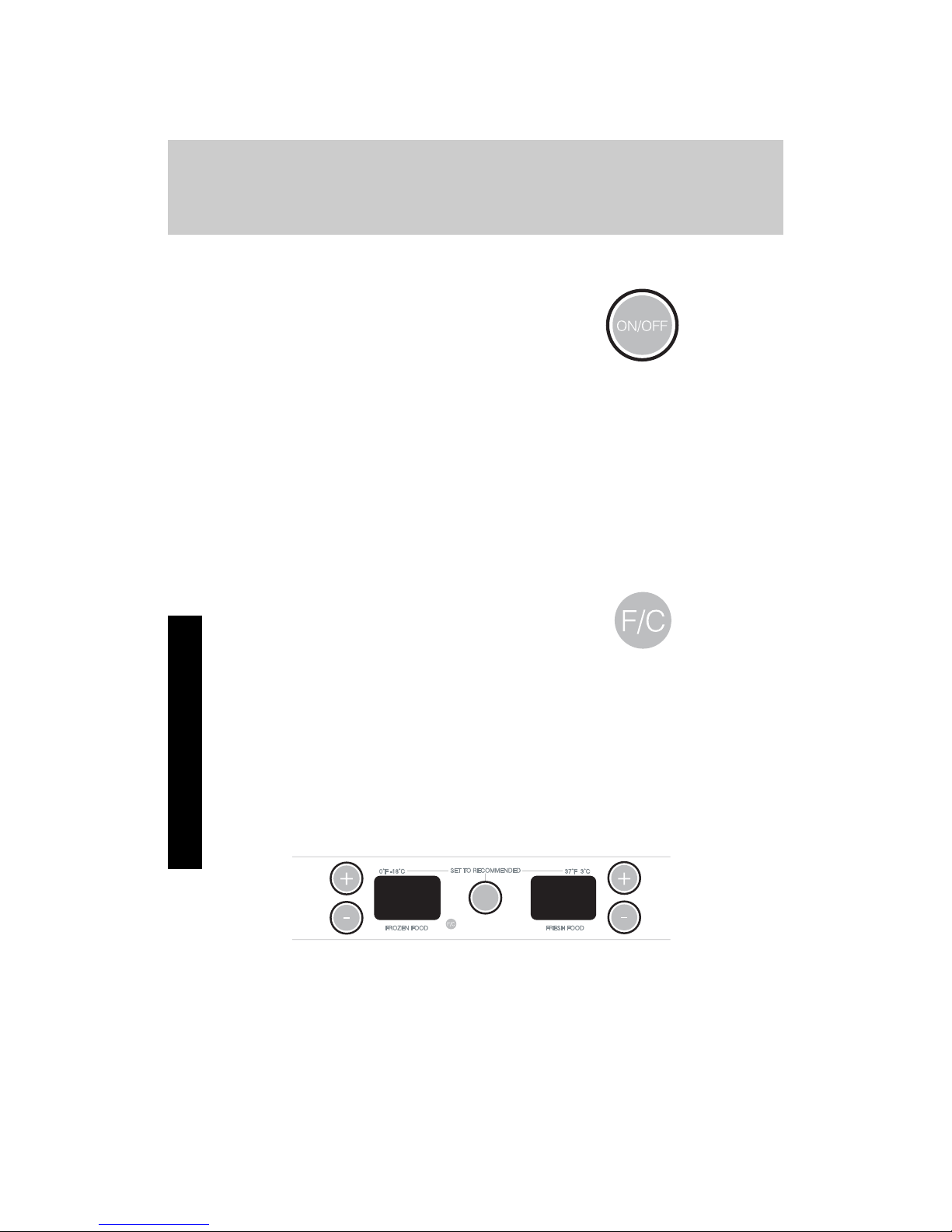

■Press the ON/OFF touch pad.
NOTE:
■After the refrigerator is turned on, the Over
Temperature audio alarm and indicator light may activate every 1¹⁄₂
hours until the refrigerator and freezer temperatures are below
48°F (9°C) and 15°F (-9°C), respectively, or until the alarm is turned
off. To turn off the audio alarm and indicator light, see “Master
Alarm Reset.”
■The ON/OFF touch pad on the control panel shuts down
refrigerator functions such as cooling, lighting, fans and
compressors. To turn the power off completely, use the power
ON/OFF switch located behind the top grille. See “Power On/ Off
Switch.”
Viewing the Celsius Temperatures
■Press °C touch pad. To redisplay degrees
Fahrenheit, press °C again.
NOTE: If the freezer temperature is below zero, the
negative sign next to the freezer display will light up.
This is normal.
Adjusting Controls
NOTE: Wait at least 24 hours between adjustments. Recheck the
temperatures before other adjustments are made.
To Adjust Set Point Temperatures:
■Press the refrigerator or freezer PLUS (+) or MINUS (-) touch pad
until the desired temperature is reached.
■Press the Set To Recommended touch pad to reset the set points
to the factory recommended temperatures.
NOTE: The set point range for the freezer is -5°F to 5°F (-21°C to -
15°C). The set point range for the refrigerator is 33°F to 45°F (0°C
to 7°C).
037

13
Operation
Using the Controls
Water Filter Indicator and Reset
See “Water Filter Indicator” in the “Water Filtration System” section.
MaxCold
The Max Cold feature assists with periods of heavy ice usage, full
grocery loads, or temporarily warm room temperatures.
■Press MAX COLD to turn on the Max Cold
feature. The Max Cold indicator light will remain
on for 24 hours unless manually turned off.
NOTE: The temperature display will remain at 34°F (1°C) and -5°F (-
21°C) for the refrigerator and freezer compartments, respectively, while
the Max Cold feature is enabled. After 24 hours, the refrigerator
returns to the previous temperature set points.
CONDITION/REASON:TEMPERATURE
ADJUSTMENT:
REFRIGERATOR too cold
Not set correctly for conditions
REFRIGERATOR
Control 1° higher
REFRIGERATOR too warm
High use or room very warm
REFRIGERATOR
Control 1° lower
FREEZER too cold
Not set correctly for conditions
FREEZER
Control 1° higher
FREEZER too warm/too little ice
High use or heavy ice use
FREEZER
Control 1° lower

14
Rest Mode
The Rest Mode feature is designed for the traveler or for those whose
religious observances require turning off the lights and ice maker. By
selecting this feature, the temperature set points and Deli Pan settings
remain unchanged, the ice maker will be disabled and the interior
lights will turn off. For most efficient refrigerator operation, it is
recommended to exit the Rest Mode when it is no longer required.
■Press REST MODE to turn on the Rest Mode feature. This feature
will remain on until Rest Mode is pressed again.
NOTE: If the Max Cold feature has been selected
prior to turning on the Rest Mode feature, then the
set points will remain at 34°F (1°C) and -5°F (-21°C)
for the refrigerator and freezer compartments, respectively, until the
Max Cold feature times out. The refrigerator will then return to the
previous temperature set points chosen prior to the selection of the
Max Cold feature, but the lights and ice maker will remain off until the
Rest Mode is pressed again.
Energy Saver™ Feature
The Energy Saver feature controls the heaters located inside the
hinged seal between the refrigerator doors. The heaters help keep
external moisture from forming on the hinged seal.
■Press ENERGY SAVER control to turn on this
feature for low humidity conditions. The ring
around the control will be lit when Energy Saver
is on. If moisture begins to collect on the hinged
seal between the doors, press ENERGY SAVER
control again to turn off this feature.
Using the Controls
Operation
Sales Demonstration Mode
This mode provides a sequential display of the
temperature displays and feature LEDs.
To enter the Demonstration Mode, press and hold
the Max Cool and Power On/Off keys for 2 seconds.
If the refrigerator or freezer door is open for 10
minutes, the interior lights will turn off.

15

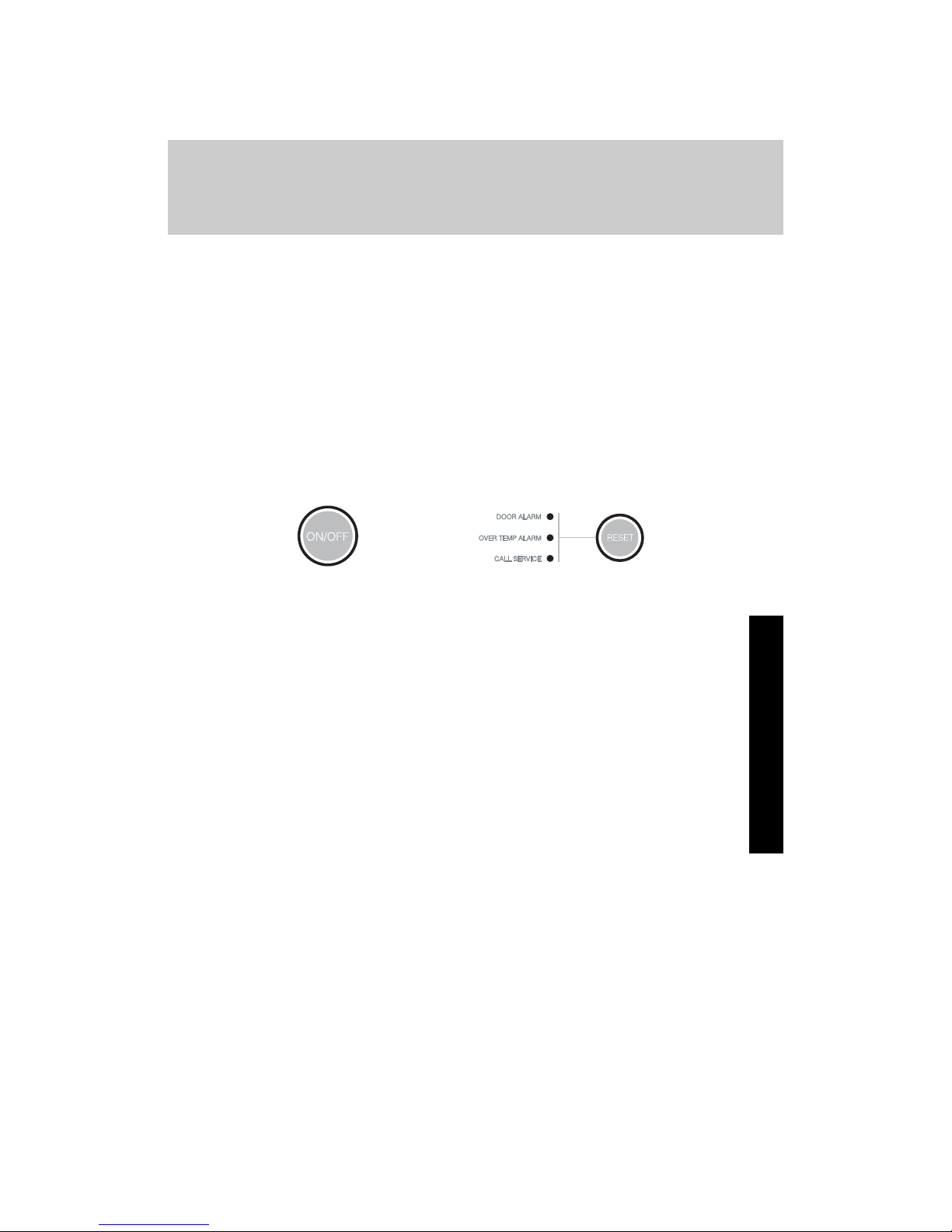

Alarm Functions
Master Alarm Reset
Pressing Alarm Reset once will turn off the audio alarm and indicator
light. The audio alarm will not sound again for the current condition
that caused the alarm until a new condition occurs or until a Master
Alarm Reset is performed.
A Master Alarm Reset can be performed by pressing ON/ OFF twice
or by turning the power to the refrigerator off and on again. See
“Power On/Off Switch.” After performing a Master Alarm Reset, the
indicator light will reactivate if the condition that caused the alarm is
still present. See “Over Temperature,” “Call Service,” or “Door Open.”
Door Open
The Door Open indicator light will flash, an alarm will sound and the
interior lights will turn off when a door has been open for longer than
10 minutes. When the door is closed, the audio alarm will reset and
turn off, but the Door Open indicator light will continue to flash until
the temperature is equal to or below 45°F (7°C) and 15°F (-9°C) for the
refrigerator and freezer compartments, respectively.
NOTE: To deactivate the audio alarm and indicator light, see
“Master Alarm Reset.”
NOTE: The audio alarm will be disabled for subsequent occurrences of
over temperature alarm condition. To enable the audio alarm, see
“Master Alarm Reset.”
Using the Controls
Operation

16
Operation
Using the Controls
Over Temperature
IMPORTANT: If the Over Temperature Alarm activates, your food may
spoil. See the “Power Interruptions.” Minimize door openings until
temperatures return to normal.
The Over Temperature feature is designed to let you know when either
the refrigerator temperature rises above 48°F (9°C) or the freezer
temperature rises above 15°F (-9°C) for longer than
1¹⁄₂hours. The audio alarm will shut off automatically when the
temperature returns to normal, but the indicator light will continue
to flash until the Alarm is pressed to let you know that an over
temperature condition has occurred.
If the over temperature condition is still present when an Over
Temperature Reset is performed, the indicator light will continue to
reactivate every 1¹⁄₂hours until refrigerator and freezer
temperatures are below 48°F (9°C) and 15°F (-9°C), respectively.
Call Service
If the Call Service indicator light is flashing, call for service. See the
“Assistance or Service” section for information on calling for service.
NOTE: The audio alarm will be disabled for subsequent occurrences of
the call service alarm condition. To enable the audio alarm, see
“Master Alarm Reset

17
Operation
Ice Maker
IMPORTANT: After connecting the refrigerator to a water source or
replacing the water filter, fill and discard two full containers of ice to
prepare the water filter for use, before using the ice.
Turn the Ice Maker On/Off
The ice maker On/Off control is located on the left-hand side of the ice
bin.
1. To turn on the ice maker, slide the ice maker On/Off control to the
ON (up) position.
NOTE: Your ice maker has an automatic shutoff. As ice is made, the
ice cubes will fill the ice storage bin. The ice maker sensors will
automatically stop ice production, but the ice maker control will
remain in the ON (up) position.
2 To manually turn off the ice
maker, slide the ice maker
On/Off control to the OFF
(down) position as shown.
Ice Storage Bin Care
NOTE: It is normal for ice to stick together in the ice bin. It is
recommended that the ice bin be emptied and cleaned as needed.
To clean the ice storage bin:
1. Slide the ice bin out of the freezer and lift up and out.
2. Empty the ice bin. Use warm water to melt the ice if necessary.
NOTE: Do not use anything sharp to break up the ice in the bin.
This can cause damage to the ice container and the dispenser
mechanism.
3. Wash ice bin with warm water and a mild detergent, rinse well and
dry thoroughly. Do not use harsh or abrasive cleaners or solvents.
REMEMBER:
■Allow 24 hours to produce the first batch of ice.
■It may take 3 to 4 days for the ice bin to completely fill, if no ice is
used.
■The quality of your ice will be only as good as the quality of the
water supplied to your ice maker.
■Avoid connecting the ice maker to a softened water supply. Water
softener chemicals (such as salt) can damage parts of the ice
maker and lead to poor quality ice. If a softened water supply
cannot be avoided, make sure the water softener is operating
properly and is well maintained.
■It is normal for the ice cubes to be attached at the corners. They
will break apart easily.
■Do not store anything inside the ice bin.
On/O Control

18
Water Filter Indicator
The water filter indicator, located on the control panel, will help you
know when to change the water filter.
A new water filter should display a reading of 99%. The reading in the
display will decrease as the filter life is used. A replacement water filter
should be ordered when “Order Filter” is displayed. It is
recommended that you replace the filter when “Change Filter” is
displayed or when water flow to your water dispenser and/or ice maker
decreases noticeably. See “Changing the Water Filter” later in this
section.
After changing the water filter,
press and hold RESET for
2 seconds until the status
display changes to 99%.
Changing the Water Filter
The water filter is located in the base grille below the freezer
compartment door. It is not necessary to remove the base grille to
remove the filter.
1. Remove the filter by
pressing the eject button
and pulling straight out on
the filter cap.
NOTES:
■Avoid twisting the cap when removing the filter because this could
cause the cap to come off. If this occurs, replace the cap and pull
the filter straight out.
■There will be water in the filter. Some spilling may occur.
2. Remove the cap by turning it counterclockwise until it stops.
IMPORTANT: Do not discard the cap. It is part of your refrigerator.
Keep the cap to use with the replacement filter.
Water Filtration System
Operation
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system.
CAUTION
99
Eject
Button
Filte
r
Cap

19
3. Align the ridge on the cap
with the arrow on the new
filter and turn the cap until
it snaps into place.
4. Remove the covers from the O-rings. Be sure the O-rings are still in
place after the covers are removed.
5. Place the cap (removed in Step 2) on the new filter. Align the ridge
on the cap with the arrow on the filter. Turn the cap clockwise until
it snaps into place.
6. Push the new filter
into the opening in
the base grille. As
the filter is inserted,
the eject button will
depress. The eject
button will pop back
out when the filter is
fully engaged.
7. Pull gently on the
cap to check that the filter is securely in place.
8. Flush the water system. Depending on your model, see “Water and
Ice Dispensers” or “Ice Maker and Storage Bin.”
Using the Ice Maker Without a Water Filter
You can operate the ice maker without a water filter. Your ice will not
be filtered.
1. Remove the filter by pressing the eject button and pulling on the
cap. See “Changing the Water Filter” earlier in this section.
2. Remove the cap by turning it counterclockwise until it stops.
IMPORTANT: Do not discard the cap. It is part of your refrigerator.
Keep the cap to use with the replacement filter.
3. With the cap in a
horizontal position, insert
the cap into the base grille
until it stops.
4. Turn the cap
counterclockwise until the
cap slips into the
attachment slot. Then, turn
the cap clockwise until it is in a horizontal position. NOTE: The cap
will not be even with the base grille.
Water Filtration System
Operation
Cover
O-Rings
Eject
Button
Arrow on
Filter
Ridge on
Cap

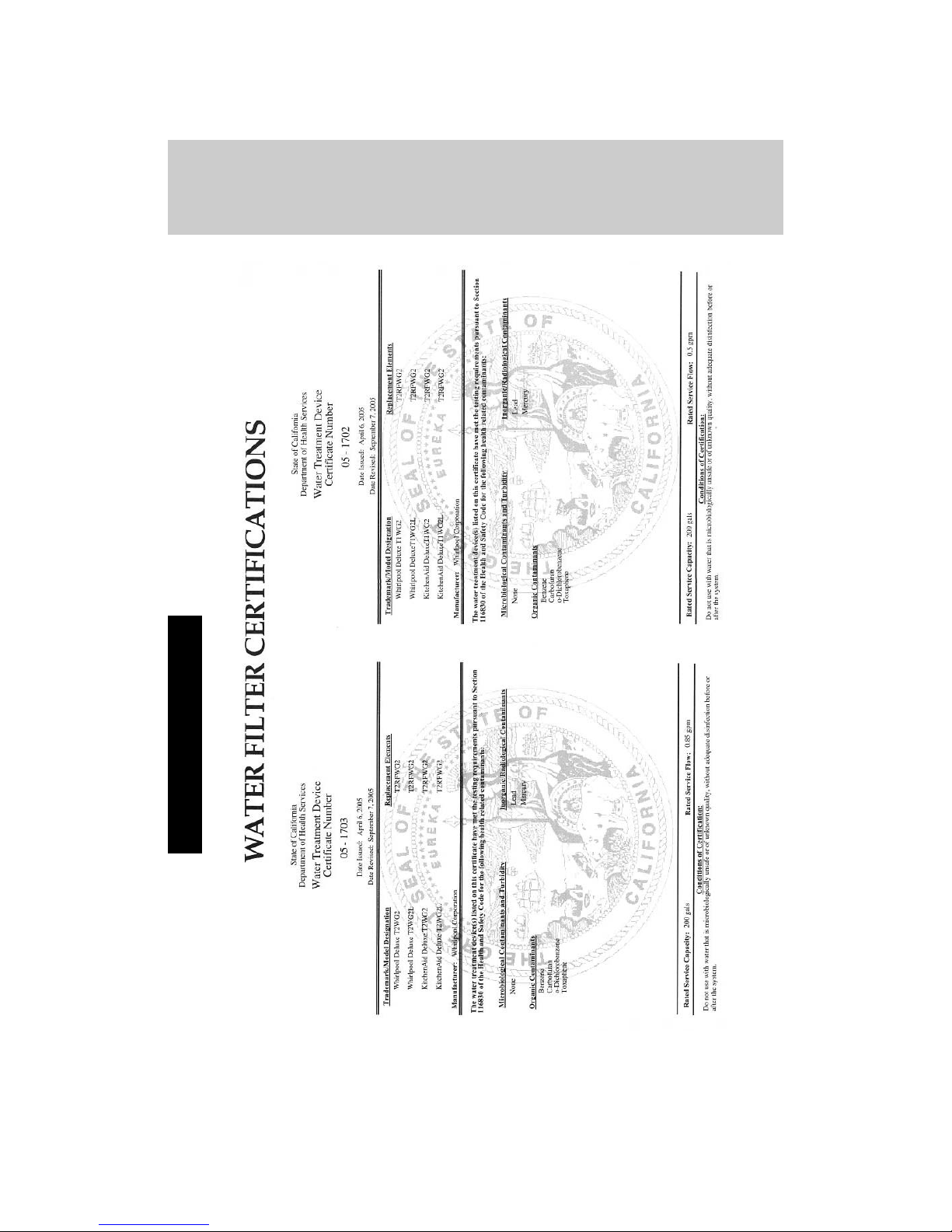

20
Operation
Water Filtration System
