Viltrox JY-710 User manual

Buku Manual
FSK 2.4GHz
Timer Remote Control Wireless Digital
JY-710
FSK 2.4GHz
JY-710RX

1
2
3
4
5 6 7 8
9
JY-710TX
N1
N2
N3
C1
S1
P1
E2
C3

For Your Safety……………………………………2
Notices……………………………………………2
Introduction………………………………………4
Parts of the JY-710………………………………4
JY-710TX………………………………………4
Display Panel……………………………………5
JY-710RX………………………………………5
Inserting Batteries………………………………5
Replacing Batteries……………………………5
When the JY-710 is Not in use………………5
Lighting/Lock Button…………………………6
Connecting the JY-710…………………………6
Using the JY-710…………………………………7
Timed Photography………………………………7
Manual Release…………………………………14
Precautions for use………………………………15
Caring for the JY-710……………………………15
Specifications………………………………… 16
Support Model…………………………………....17
JY-710RX
1
Daftar Isi
56
N1
N2
N3
C1
S1
P1
E2
C3

2
Peringatan (1/2)
To prevent damage to your product or injury
to yourself or to others,read the following sa-
fety precautions in their entirety before using
this equipment.Keep these safety instructio-
ns where all those who use this equipment
will read them.
The consequences that could result from
failure to observe the precautions listed in
this section are indicated by the following
symbol:
Failure to observe this precaution could re-
sult in electric or product malfunction. Sho-
uld the product break open as the result of
a fall or other accident,remove the batteri-
es and take the product to manufacturer
for inspection.
This icon marks warnings,information
thatshould be read before using this
product to prevent possible injury.
Do not handle with wet hands or immerse
in or expose to water or rain. Failure to ob-
serve this precaution could result in fire or
electric shock.
Failure to observe this precaution could
result in explosion or fire.
This device contains small parts which may
posea chocking hazard.Consult a physician
immediately if a child swallows any part of
this device.
Should you notice smoke or an unusual sm-
ell coming from this device,remove the batt-
ery immediately and take the device to an
authorized service representative for inspec-
tion,taking care to aviod burns. Continued
operation could result in injury.
Do not leave the device in a closed vehicle
under the sun or in other areas subject to
extremely high temperatures. Failure to ob-
serve this precaution could result in fire or in
damage to the c-asing or internal parts.
Do not disassamble or modify
Keep dry
Do not use in the presence of amable
Keep out of reach from children
Turn o immediately in the event of malfunction
Do not expose to high temperatures

3
Peringatan (2/2)
Batteries may leak or explode if improperly han-
dled.Observe the following precautions when hand-
ing batteries for use in this device:
Use only batteries listed in this manual. Do not
mix old and new batteries or batteries of different
types.
Read and follow all warnings and instructions pr-
ovided by manufacturer.
Do not short or disassemble.
Do not expose to flame or excessive heat.
Do not attempt to insert batteries upside down or
backwards.
Batteries are prone to leakage when fully discha-
rged. To avoid damage to the product, be sure to
remove the batteries when leaving the product una-
ttended for prolonged periods or when no charge
remains.
Should liquid from the batteries come into conta-
ct with skin or clothing, rinse immediately with fresh
water.
Read precaution label when in use

4
Pengenalan
Thank you for your purchase JY-710 wireless remote controller. The JY-710 is composed
by one JY-710TX( transmitter) and one JY-710RX(receiver) is equipped with an interval
timer suited to wide variety of tasks, including astronomical photography.
Bagian Produk (1/3)
Please see the back of the cover
illustrations.
Connector (More models availuble)
Straps fixed deduction(available separately;
use cell phone or other similar strap)
Focus and the release of two-color indicator
light
Display panel
button
button
(Lighting/lock)Button
Arrow button
Shutter-release button
Battery-chamber cover
TIMER START/STOP
JY-710TX

5
Bagian Produk (2/3)
Functional cursor
Show time
Lock indicator
Low battery indicator
“TIMER ACTIVE” indicator
Speaker on/off indicator
“ ” indicator
“ ” indicator
Number of shots
Slide the battery-chamber cover ( ) from
the back of the JY-710TX and insert two
AAA 1.5V LR03 alkaline batteries (available
separately) as shown.
The low battery indicator( )will blink when
the batteries are low. Please replace the
battery.
When replacing batteries:
1.Check that the “ ” ( ) and
“ ”( )indicators are not displayed.
2.Turn the camera off and disconnect the
JY-710
3.Remove the batteries.
4.Wait until the control panel has gone out
and insert new batteries.
The JY-710 is not equipped with an off switch.
To reduce the drain on the batteries when the
JY-710 is not in use,end shooting and check
that the “ ”( ), “ ”( ),
“ ” ( ) indicators are not displayed.
The drain on the batteries increases when
these indicators are flashing.
*The illustration inside the front cover shows
the control panel with all elements lit. In the
other illustrations throughout this manual,
elements relevant to the explanation in the
accompanying text are shown in black. Indi-
cators not mentioned in the text are shown
in gray.
5

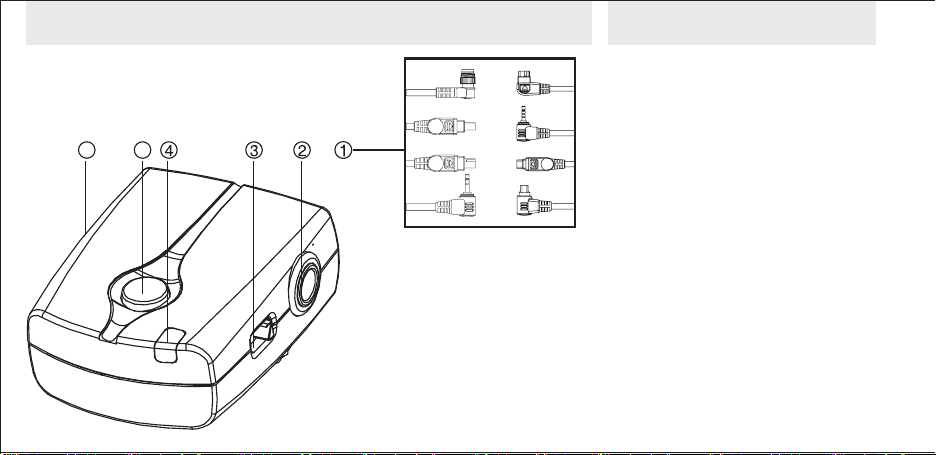

shutter release cable shutter socket
channel switch status indicator
shutter release button power on/off switch
6
SET
RELEASE
TIMER ACTIVE
RELEASE
TIMER ACTIVE SET
RELEASE
JY-710RX
Display panel* Inserting batteries Replacing batteries
When the JY-710 is not in use

6
Memasang JY-710

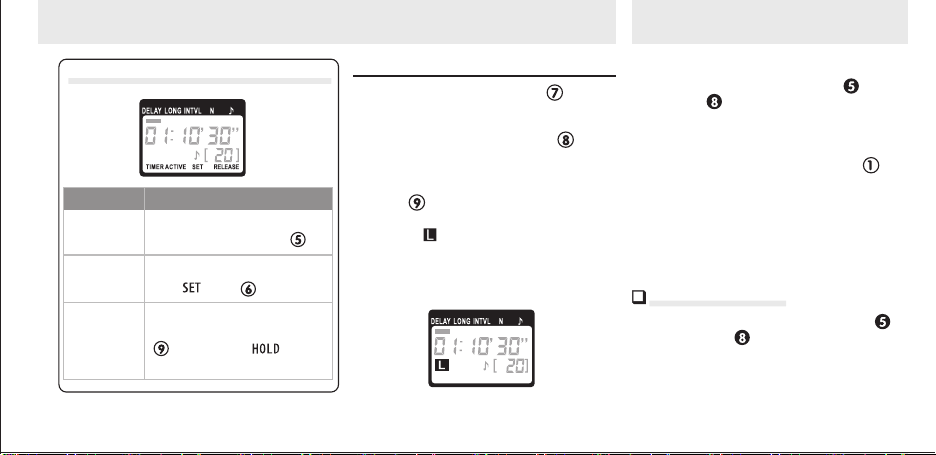

Press the lighting/lock button ( ) briefly
to activate the control panel backlight.The
backlight will remain lit for about six seco-
nds; pressing the arrow button ( ) while
the backlight is on extends the timer for
another six seconds.
To lock all controls except the shutter-
release ( ) and Lighting/lockbuttons, pr-
ess the illuminator lock button until the
lock icon ( ) is displayed in the control
panel. To the release the lock, Please pr-
ess the lighting/lock button until the lock
icon is no longer displayed.
1.Turn the camera off.
2.Check that the “ ” ( ) and
“ ”( ) indicators are not displayed.
3.Remove and Remote cord socket termial
cover from the camera. By connecting the
camera shutter, camera will firmly connec-
ted by JY-710RX with shutter plug ( )
Bagian Produk (3/3)
After checking that the “ ” ( )
and “ ” ( ) indicators are not displ-
ayed,turn the camere off and disconnect the
JY-710. Replace the Remote cord socket te-
rminal cover.
（not flashing）
Timer active (page11);press
button( ).
Manual release active (page14);
release shutter-release button
( ; if botton is in position,
release shutter-release lock).
Settings can be modified (page7);
press button( ).
The “TIMER ACTIVE” “SET”and “RELEASE”indicator
If this ashes Expression means: Close method
TIMER ACTIVE
TIMER ACTIVE
RELEASE
SET
TIMER START / STOP
TIMER ACTIVE
RELEASE
TIMER ACTIVE
RELEASE
Disconnecting the JY-710
Lighting / Lock Button

7

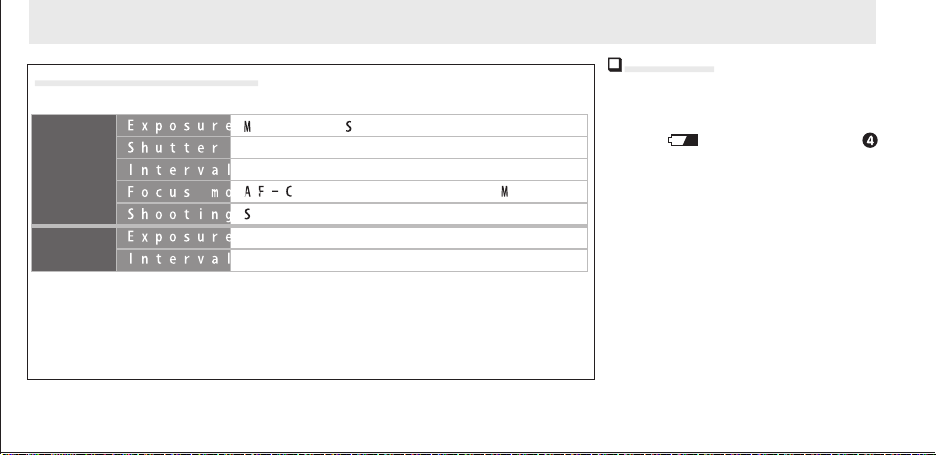

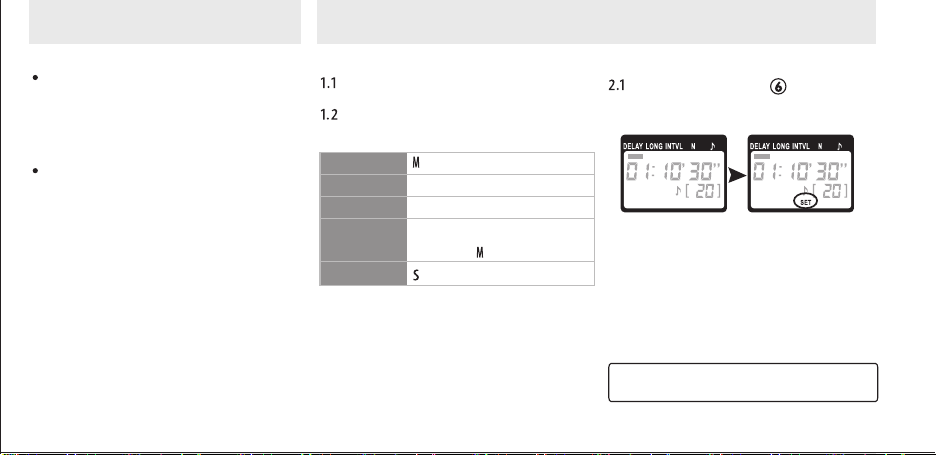

Connect the JY-710 and turn the camera
on.
Adjust camera settings as follows (see
the camera manual for details):
The JY-710 functions as:
Choose the delay (ti-
me before shooting starts), exposure
time, interval, and number of shots for
timed interval photography. Shutter
speed can be selected with the camera if
desired.
Take photographs ma-
nually using the shutter-release button
on the JY-710. Photographs can be tak-
en manually even when the timer is
running.
(manual)
Bulb
Off
(continuous-servo auto-
focus)* or (manual)
(single frame)
* Select “release priority” if available.
Press the button ( )." " will
flash in the display panel.
The JY-710 can be connected to the
camera after the timer has been set.
Menggunakan Produk Timed Photography (1/7)
An automatic timer
A manual release
1. Adjust camera settings 2. Set the timers
SET SET
Exposure mode
Shutter speed
Interval timer
Focus mode
Continuous
AF-6

8
Timed Photography (2/7)
Adjust the following settings:
Delay before shutter is released
Exposure time
Interval
Number of shots
Speaker on/off
0 s to 99 hrs 59 min 59s (in one-second increments)
1 s to 99 hrs 59 min 59s (in one-second increments)
1 to 399, --(unlimited)
(on), (off)
Delay, Exposure, and Interval Settings
Shutter opens
Shutter closes
Timer starts
1 st frame
Exposure
time
Delay
2nd frame
Number of shots(N)
Timer ends
th frame
n
Interval
Option Description Supported settings
DELAY
LONG
INTVL

9

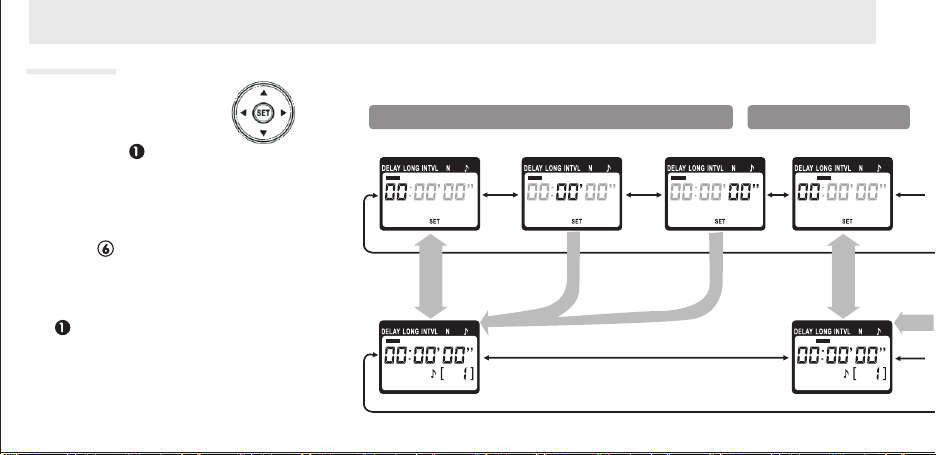

Use the arrow button to set the
timer. press left or right to select,
up or down to change. The curr-
ent selection is indicated by the
selection cursor( ).
Timed Photography (3/7)
Press ( )at any time to complete the
operation and display the new settings for
the selected item. To view other settings, pr-
ess the arrow button left or right. The curre-
nt selection is indicated by the selection cur-
sor ( ). Press the button to edit the cu-
rrent setting as described above.
Adjust
settings
Setting
complete
Delay(time until shooting starts)
Hour Minute Second
Setting the timer
SET

1 0
Timed Photography (4/7)
Exposure time Interval Number of shots Speaker
Minute Second Hour Minute Second

1 1
To ensure correct operation, choose an int-
erval at least one second longer than the
exposure time.When using autofocus, set
the delay to two seconds or more and choo-
se an interval at least two seconds longer
than the exposure time to ensure that the
camere has time to focus. When using long
exposure noise reduction (available with
some digital cameras), the interval should
be at least twice the exposure time.
Intervals of 00:00:00 will automatically
be reset to 00:00:01 when the button
( ) is pressed to put settings into effect.

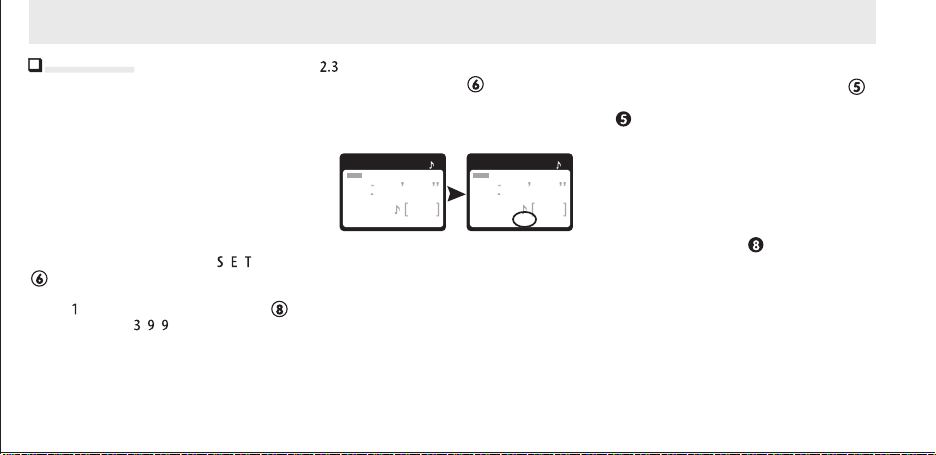

To set the number of shots to-- (unlimited) ,
select and press the arrow button( )
down or select and press the arrow
tutton up.
Timed Photography (5/7)
After adjusting all settings as desired,
press the button ( ) to put the new
settings into effect. Timer will issue a beep-
(speakers in the open aircumstances), and
the “ ” indicator will go out.
The new settings will remain in effect until
changed or until the batteries are removed
or exhausted.

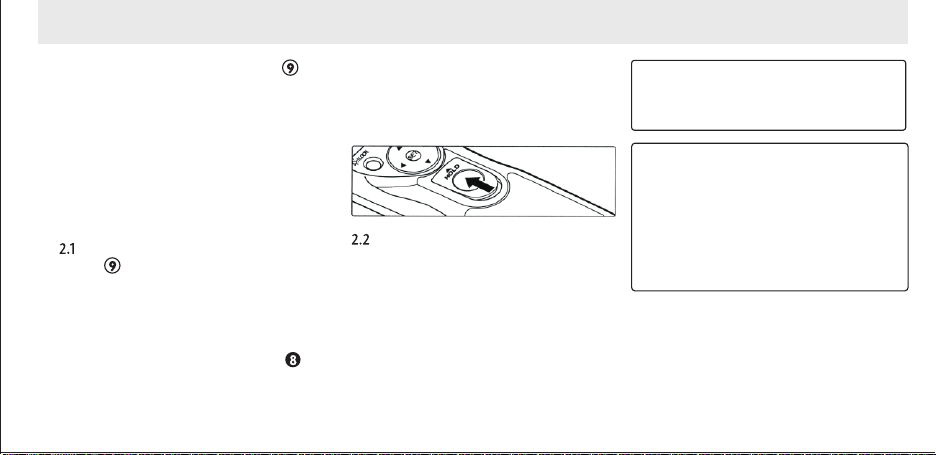

Press the button ( ).
The timer will start and “ ”
( )will falsh in the show panel. Between
shots, the control panel will show the time
remaining until the next photograph is
taken. Two second focus output, focus and
the release of light-green light.
While the shutter is open, the show
panel will show the time remaining until the
shutter closes, and the release lamp and
“ ” indicator( )will flash at one-
second intervals. Focus and the release
indicator Lianghong Deng. If the speaker is
tured on, the timer will be issued one
second intervals for the beeps, each take a
picture, the remaining number of shots will
be updated.
0 1 10 30
20
SET
DELAY LONG INTVL N
0 1 10 30
20
DELAY LONG INTVL N
Setting the timer
SET
SET
3. Set the timer
TIMER START/STOP
TIMER ACTIVE
RELEASE

1 2
Timed Photography (6/7)
Shooting will end automatically when the
selected number of shots has been taken.
To end shooting before all photographs have
been taken, Press the
button ( )
Show panel Display (Timer Active)
Flashes while timer is active
shots: Time remaining until next shot
Time remaining
until shutter closes
Number of shots remaining
Flashes while shutter is open
The Speaker and Release Lamp
The following illustration shows when a beep will sound ( ) and the release lamp flash ( ) with
a delay of 5 s, an exposure time of 4 s, and an interval of 5 s.
Loudspeakers
Light green
The red indicator light
Focus output
The release of output
4. End Shooting
TIMER START/STOP
When that did not open the shutter:
While shutter is open:

1 3
* Select “release priority” if available.
** When using autofocus, choose an interval at least two seconds longer than the camera
shutter speed to allow the camera time to focus. When using long exposure noise
reduction (available with some digital cameras), choose an interval at least double the
camera shutter speed.
Timed Photography (7/7)
Before using the timer for extended periods,
check that the batteries have enough charge.
Replace the batteries when the low battery
indicator ( ) flashs in the show panel( ).
JY-710
Any
Off
（continuous- servo autofocus）* or （manual）
（single frame）
（manual）or （shutter- priority auto）
0s
Longer than camera shutter speed**
To take photographs at the shutter speed selected with the camera, adjust settings as follows:
Camera
Using the timer
Using the camera to Select shutter speed

1 4
Manual Release
The JY-710 shutter-release button( ) fun-
ctions in much the same way as the camera
shutter-release button.
Connect the JY-710 (pg.6) and turn the
camera on. Choose exposure mode, shutter
speed, focus mode, and shooting mode as
desired.
Press the JY-710TX shutter-release butt-
on ( ) halfway and check focus and ex-
posure, Focus and the release of bright
green light. And then click to complete
their photographs. When the shutter op-
ens, focus and the release indicator red
light every one second camera issued a
beep, the “ ” indicator ( ) will
flash, and the display will show the
shutter has opened the time.
To keep the shutter-release button
fully pressed for bulb photography,
slide the button to the position.
Slide it in the opposite direction to
release the lock.
Release the button to end shooting.
The JY-710TX shutter-release button can
be used when no batteries are inserted.
The Show panel will remain off and no
beep will sound.
The shutter-release button can be used to
release the shutter manually while the
timer is active. Timer count-down (packa-
ge so display panels,focus and the relea-
se of the indicator light and beep). Contin-
use during manual release. If a manual re-
lease overlaps with an automatic release,
the shutter will remain open until both exp-
osure times have expired.
1. Adjust Camera Settings
2. Take Pictures
RELEASE
HOLD

1 5
Check the camera battery level and number
of exposures remaining before using the
JY-710 (see the camera manual for details).
The timer will continue to operate even
when no pictures can be recorded due to
low battery, lack or film or memory, or lack
of space in the memory buffer (digital came-
ras only). An AC adapter (available separat-
ely) is recommended for longer sessions.
Some cameras have an AF activation opti-
on that determines whether the camera will
focus when the shutter-release button is
pressed halfway (see the camera manual
for details). Enable shutter-release button
AF-activation when using the JY-710.
Please note that the timer is less accurate
than most watches or household clocks.
Peringatan Penggunaan Perawatan
The product may malfunction if
subjected to strong shocks or vibration.
This product is not waterproof and
may malfunction if immersed in water or ex-
posed to high levels of humidity. Rusting of
the internal mechanism can cause irrepara-
ble damage.
Sudden changes in temperature, such as
occur when entering or leaving a heated
building on a cold day, can cause conden-
sation inside the device. To prevent conden-
sation, place the device in a carrying case
or a plastic bag before exposing it to
sudden changes in temperature.
Strong
Keep away from strong magnetic fields:
static charges or the electromagnetic
fields pro-duced by equipment such as radio
transmitters could interfere with the device.
In
A note on electronically-controlled devices:
Display panel:
extremely rare instances, unusual char-
acters may appear in the show panel and
the device may stop functioning. In most
cases, this phenomenon is caused by a
strong external static charge. Turn the ca-
mera off, disconnect the JY-710, remove
the batteries, and then replace them once
the control panel has turned off. Caution is
required when handling the batteries,
which may be hot from use. In the event of
continued malfunction, contact your retailer
or representative.
LCD displays tend to darken
at high temperatures and exhibit slower
response times at low temperatures. This
does not indicate a malfunction.
Do not drop:
Keep dry:
Avpid sudden changes in temperature:

1 6
Spesikasi
Supported cameras
Timer delay
Exposure time
Interval
Number of shots
Power source
Battery life
Nikon、Canon、Sony、Samsung、Pentax、Olympus、Konica、Minolta etc.
0s to 99hrs 59min 59s in one-second increments
0s to 99hrs 59min 59s in one-second increments
1s to 99hrs 59min 59s in one-second increments
1 to 399,-- (unlimited)
JY-710TX: AAA 1.5V LR03 battery×2; JY-710RX: AAA 1.5V LR03 battery×2
Operating temperature
Type
Distance
Channels
Dimensions
JY-710TX can work for about 20,000 times;
JY-710RX can standby time for about 45 hours.
-20-+50 C(-4-+122 F)
FSK 2.4GHz wireless remote control system
≤100m
4
JY-710TX:155×40×18mm; JY-710RX: 60×46×34mm

1 7
Model yang didukung
Pentax K100D,K110D,K10D,*ist Ds2, *ist D,*ist Ds, *ist, *ist DL,
*ist DL2
Samsung GX-1L, GX-1S, GX-10
Canon EOS 30,33,50E,300,300V,3000,50,300D(Digital Rebel),
350D(Digital Rebel XT),400D(Digital Rebel XTi), 450D(Digital
Rebel XSi), 500D,1000D,60D,600D,650D.
Canon EOS 1Ds Mark Ⅱ，1Ds Mark Ⅲ, 1Ds, 1D Mark Iv, 1D
Mark Ⅱ N, 1D Mark Ⅲ. 5D Mark Ⅱ,5D Mark Ⅲ
1D,5D,7D,50D,40D,30D,20D,10D,D60,D30,D2000,1v HS, 1v, 3
Olympus SP-510UZ, SP-550UZ,E400,E410,E510,E450,E520,E420
C1
C3
E2
N1
N2
N3
S1
Nikon
D2H,D2Hs,D1x,D1h,D1,D2X,D2Xs,D200,D300,D3,D3X,D3s,
D2Hs, D300S, D700,D800, F5, F6, F100, F90, F90x, D100
(MB-D100 Vertical Grip/Battery Holder needed),
Kodak DCS-14n, Fujifilm Finepix S3pro, S5pro
Nikon D70S,D80
Nikon D90,D3000,D3100,D3200,D5000,D5100,D7000
Sony Alpha DSLR-A100,SlR-A200,SlR-A300,SLR-A350,SLR-
A700,SLR-A900,Alpha 5D,Alpha 7D
Minolta Maxxum/Dynax/AF 7D,5D,9,7,5,4,3,807si,800si,700si,
600si,505si,500si,Sweets,9000,7000,5000,Dimage 7Hi,7i,7,5

2013.08
C1 P1C3 S1N2 N3N1 E2
www.viltrox.com
JYC Technology (HK) Co.,Ltd.
