WINE-MATE Split System
Installation, Operation & Care Manual
VINO2500SSD, 4500SSD
VINO6500SSD, 8500SSD
V
Vi in no ot te em mp p I In nt te er rn na at ti io on na al l C Co or rp p. .
w
ww ww w. .w wi in ne em ma at te e. .c co om m
READ AND SAVE THESE INSTRUCTIONS

- 1 -
TABLE OF CONTENTS
Important Safety Information….........................................2
Feature Description…………………………….……………..3
Installer’s Instruction…………….…..….……..……………..6
Temperature Control & Humidity Adjustment.………….13
Care Guide…………………………………………………….18
User’ Troubleshooting…….………………………………...19
Customer Support……………………………………………22
Warranty……………………………………………………….23

- 2 -

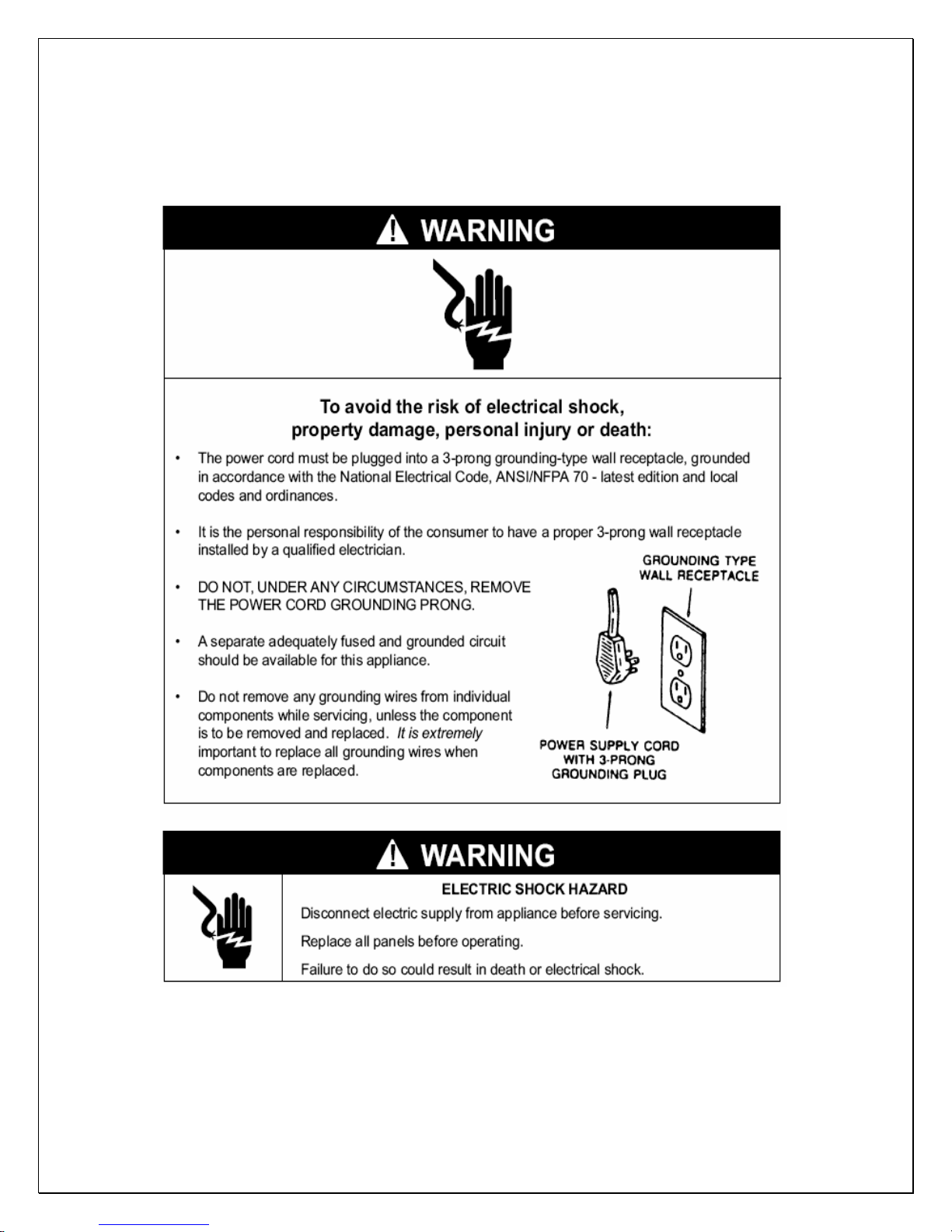

Important Safety Information
•DO NOT USE A GROUND FAULT INTERRUPTER (GFI).
•A DEDICATED 20 AMP CIRCUIT IS HIGHLY RECOMMENDED.

- 3 -
Feature Description
•Wine-Mate split cooling system is designed and used to provide a cold
temperature between 50~65 °F for a properly insulated wine room at a
normal environment.
•The wine room will maintain humidity of 50~70% RH even when the
environment becomes dry and humid.
•These temperatures and humilities are optimized for long term storage of
wine.
•The condensing unit can be located away from the wine cellar or other
refrigerated enclosure as far as 50 feet, which will bring you quiet
operation.
•The SSD units provide two way air supply operation. The evaporator units
can be installed on the ceiling in a cabinet or room.
The dimensions and capacities are specified as follows:
MODEL EVAP UNIT
W”xH”xD”
COND
UNIT
L”xH”xD”
Btu/h
(55/90°F)
CFM
BOTTLE
CAPACITY
(55/75°F) REFRIGERANT ELECTRICAL
EVAP UNIT/
COND UNIT
WEIGHT(lb)
EVAP UNIT/
COND UNIT
VINO-
2500SSD WM-25SFCD 17.5X7.5X23
WM-
25SCU
18x14x12 2500/350 250
cu ft 1200 bottles R134a 115V-60HZ-1A /
115V-60HZ-
5.7A 35/40
VINO-
4500SSD WM-45SFCD 17.5X10.5X23
WM-
45SCU
18x14x12 4500/460 1000
cu ft 4500 bottles R134a 115V-60HZ-1A /
115V-60HZ-
6.9A 40/60
VINO-
6500SSD WM-65SFCD 21X11.75X30
WM-
65SCU
24x17x18 6500/660 1500
cu ft 6500 bottles R134a 115V-60HZ-
1.5A / 115V-
60HZ-12A 66/90
VINO-
8500SSD WM-85SFCD 21X13.5X30
WM-
85SCU
24x17x18 8500/810 2000
cu ft 8500 bottles R134a 115V-60HZ-
1.5A / 115V-
60HZ-15A 95/115

- 4 -
Fig. 1.1 WM25-85SFCD Evaporator Unit
Fig. 1.2 WM25-45SCU Condensing Unit

- 5 -
Fig. 1.3 WM65-85SCU Condensing Unit

- 6 -
Installer’s Instruction
Federal law requires that WINE-MATE split cooling systems be
installed by an EPA certified refrigeration technician.
WINE-MATE split system is shipped as components and is ready for use only
after a certified refrigeration technician has properly installed and tested the
system. Proper installation is critical. Vinotemp can only warrant the quality of the
components. The installation and proper operation of the system must be
warranted by the installer. Installation of the system must be done in accordance
with all state and local building codes.
The condensing unit and evaporator unit are connected by a liquid line and an
insulated suction line that are supplied by the installer. These lines must be
properly sized for the distance between the two units. After the units and the lines
are installed, the system must be pressure tested. If no leaks are found,
evacuate and charge system with R134A. Refrigerant amount will vary
depending on the length of line set.
1. Condensing Unit
•Place the condensing unit in a properly ventilated location. If it is not, heat
exhausted by the condensing unit will build up and the cooling system will
not operate properly.
•Leave minimum 5 feet clearance for the exhaust side and leave minimum
1 foot clearance for the fresh air intake side.
•Condensing unit should be elevated to avoid possible flooding and shaded
from direct sun. It should not be exposed to temperatures higher than 110
°F or lower than 45 °F (optional low ambient kit for 20 °F).
2. Evaporator Unit
•The WM25-85SFCD evaporator units should be installed for ceiling mount
with air supply on both sides and air return on the bottom.

- 7 -
•Supply and return air flow from the evaporator unit should be unobstructed
for at least 1 foot.
3. Air Sensor
•The air sensor can be located in the wine room or the return air area, but
not the supply air area.
4. Refrigeration Piping and Charging
•If equipped with a TXV, the evaporator superheat is set around 8 °F for a
10 °F TD system at factory.
•If equipped with an AXV, the valve is set around 38-40°F at factory.
•The charge may be complete when there are no more bubbles forming in
the sight glass. The subcooling at the condensing unit is around 10°F and
the superheat at the evaporator unit is around 8°F at 75°F ambient
temperature.
•The installation order starts from condensing unit (including the receiver),
liquid line filter-drier, moisture-liquid indicator (sight glass), liquid line,
evaporator unit (including liquid line solenoid valve and thermostatic
expansion valve or automatic expansion valve), suction line, and returning
to condensing unit.
The line sizes and refrigerant charges are listed as follows.
MODEL REFRIGERATION
LINES LIQUID LINE SUCTION LINE DRAIN LINE CHARGE
VINO-
2500SSD < 50 FT 1/4" OD 3/8” OD 1/2” OD R134a/ 20 OZ
VINO-
4500SSD < 50 FT 1/4" OD 1/2” OD 1/2” OD R134a/ 26 OZ
VINO-
6500SSD < 50 FT 1/4" OD 5/8” OD 1/2” OD R134a/ 32 OZ
VINO-
8500SSD < 50 FT 3/8"
OD 5/8” OD 1/2” OD R134a/
38 OZ
5. Pressure, Superheat and Subcooling Readings
NOTES: THE VALVES MUST BE IN THE MIDDLE POSITIONS TO READ
PROPERLY.
Low side pressure: 33 psig.
High side pressure: 130 psig at 75 °F ambient temperature and 150 psig at 90 °F
ambient temperature.
Complaint Possible Causes
a. High suction pressure and low head pressure
b. High suction pressure and low head pressure a. Compressor may be bad b. Expansion valve opened, too

- 8 -
Low superheat and low subcooling
c. High suction pressure and high head pressure
Low superheat and high subcooling
d. High to normal suction pressure and high head pressure
Low subcooling
e. High suction pressure and high head pressure
Low subcooling
f. High suction pressure and high head pressure
High superheat
g. Low suction pressure and low head pressure
High superheat and low subcooling
h. Low suction pressure and low to normal head pressure
High superheat and high subcooling
i. Low suction pressure and low head pressure
Low subcooling
j. Low suction pressure and low head pressure
Low superheat and low subcooling
k. Low suction pressure and low to normal head pressure
High superheat and normal to high subcooling
l. Low suction pressure and normal head pressure
High superheat and normal subcooling
m. Low suction pressure and high head pressure
High superheat and high subcooling
n. Low suction pressure and high head pressure
High superheat and high subcooling
o. low to normal suction pressure and high head pressure
High to normal superheat and high subcooling
much oil
c. Overcharge
d. Non-condensable gas
e. Air restricted, dirty condenser,
bad condenser fans
f. High room temperature, high
evaporator load
g. Undercharge
h. Liquid line restricted after
receiver, solenoid valve
restricted
i. Suction line restricted
j. Air restricted at evaporator,
evaporator iced
k. Evaporator restricted
l. Expansion valve restricted
m. Both evaporator and condenser
restricted
n. Liquid line restricted before
receiver
o. Condenser restricted

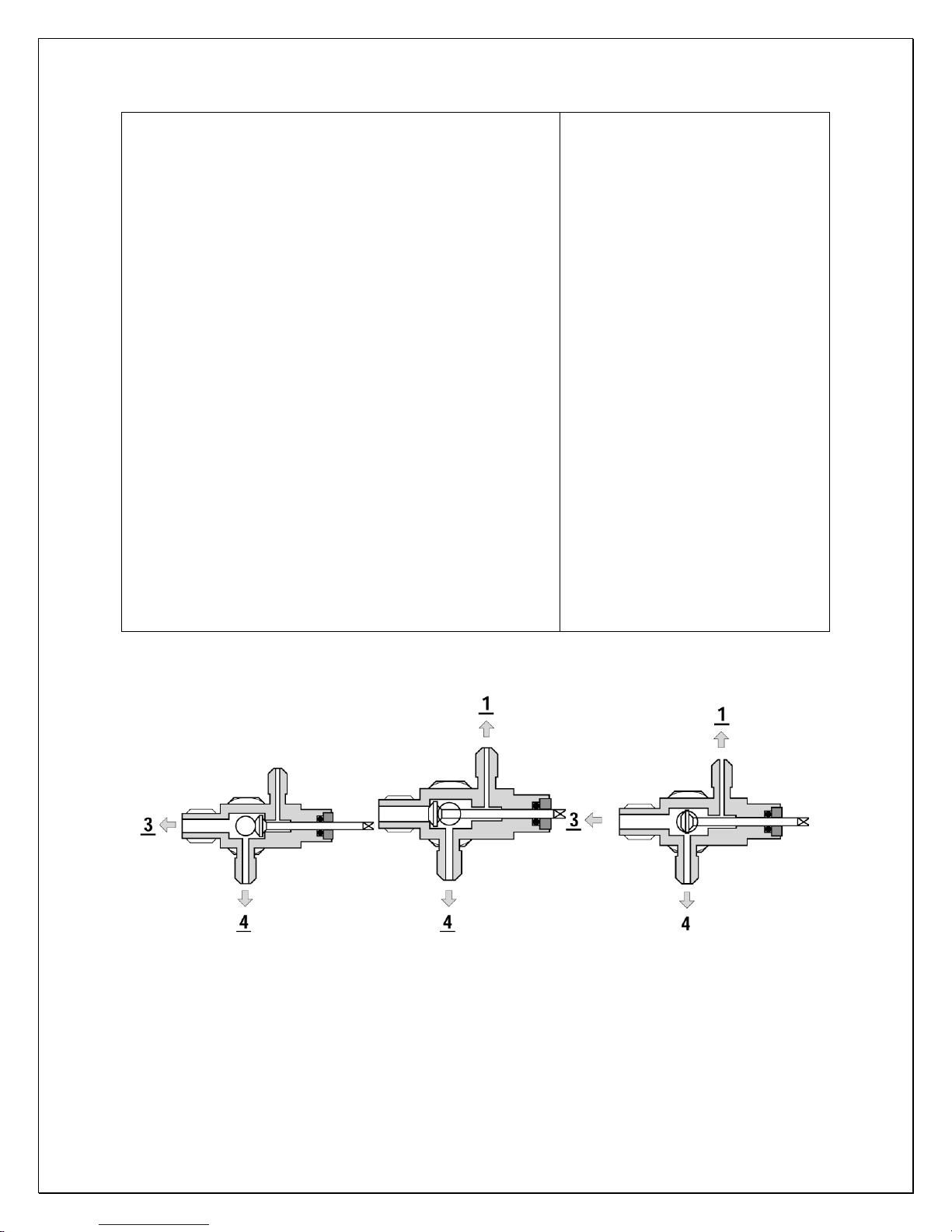

6. Valve Operation
SPINDLE BACK POSITION SPINDLE FRONT POSITION SPINDLE MIDDLE POSITION
Fig. 2.1 Valve Operation
Back Position: Process and manometer port closed for normal operation
Front Position: Main connection to liquid or suction line closed
Middle Position: All ports open for vacuum, charge and measurement

- 9 -
7. Electrical Wiring

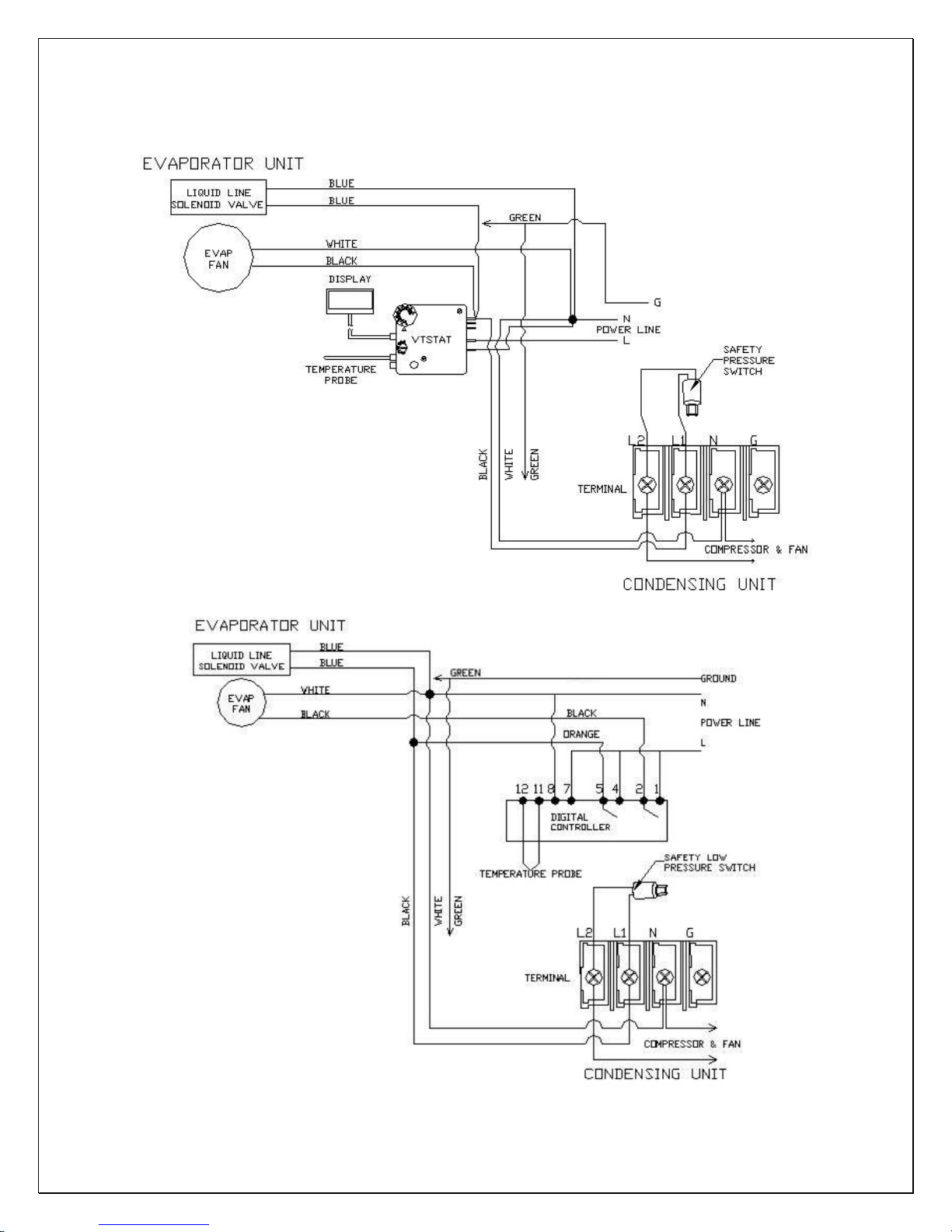

Fig. 2.2 VINO2500 & 4500SSD Electrical Wiring Diagram (VTSTAT)
Fig. 2.3 VINO2500 & 4500SSD Wiring Diagram (DIGITAL CONTROLLER)

- 10 -
Fig. 2.4 VINO6500SSD Electrical Wiring Diagram (VTSTAT)
Fig. 2.5 VINO6500SSD Electrical Wiring Diagram (DIGITAL CONTROLLER)

- 11 -
Fig. 2.6 VINO8500SSD Electrical Wiring Diagram (VTSTAT, UJ6220Z)
Fig. 2.7 VINO8500SSD Wiring Diagram (DIGITAL CONTROLLER, UJ6220Z)

- 12 -
8. Use of the adjustable low pressure control
Cut out = 5 psig; Cut in = 25 psig; Differential = 20 psig
Fig. 2.8 Adjustable Low Pressure Control
9. Condensing Unit Troubleshooting
Unit not running
a. Incorrect power supply
b. Incorrect or loose wirings
c. Failed components
d. Liquid refrigerant in the compressor
e. Low pressure switch shutting down the unit
a. Check for proper voltage
b. Check all wirings and connections
c. Check start relay, start capacitor, overload
protector, compressor.
d. Call service for OEM information
e. Check for system restriction or low
refrigerant

- 13 -
Temperature Control & Humidity Adjustment
1. Temperature Setting
•Set the temperature at 55 °Ffor the optimum aging of wine
•On initial start-up, the time required to reach the desired temperature
will vary, depending on the quantity of bottles, temperature setting
and surrounding temperature.
•Allow 24 hours to stabilize the temperature for each new temperature
setting operation
2. Use of the VTSTAT controller

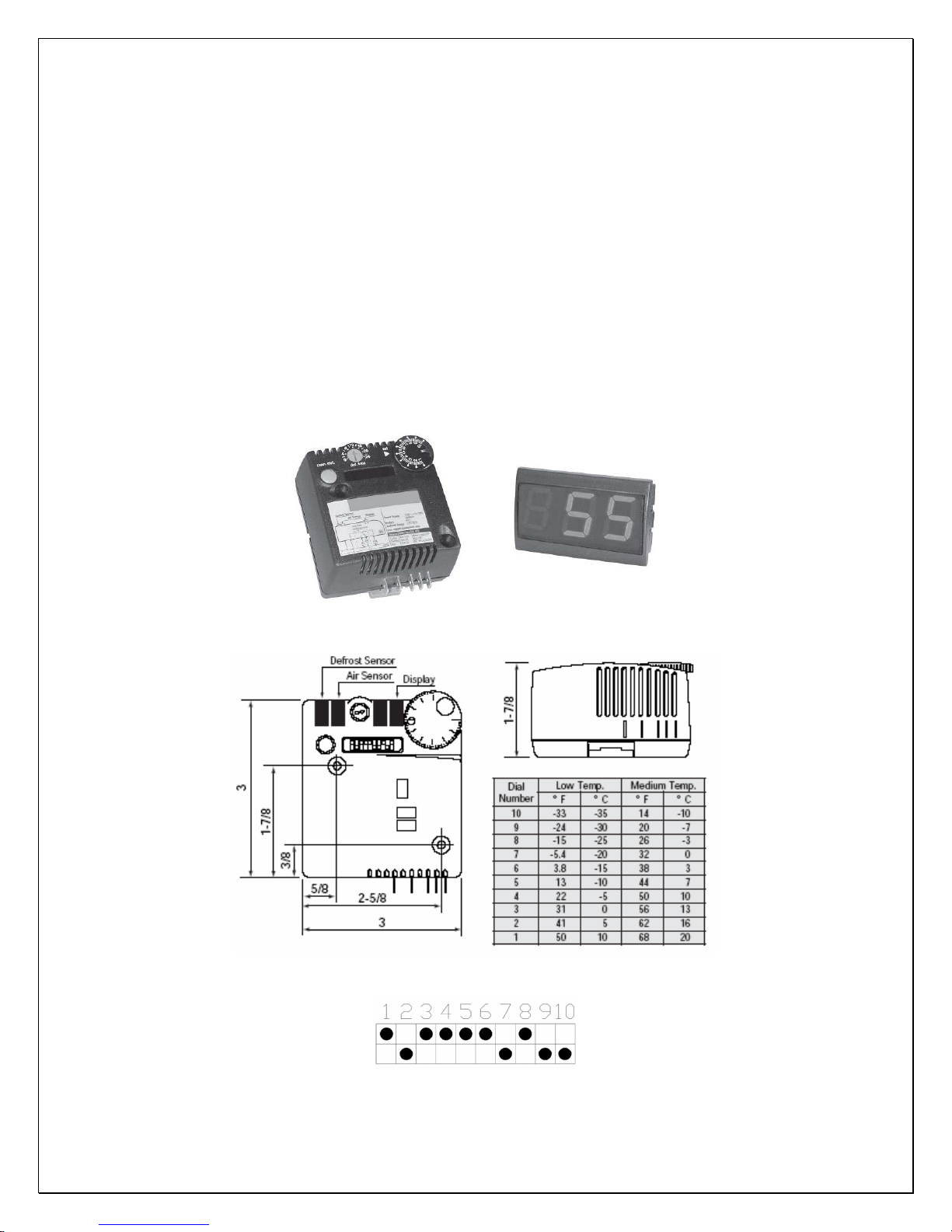

Fig. 3.1 Digital Controller
Fig. 3.2 Dip Switch Setting

- 14 -
1) Set Point
Rotate the circular selector in correspondence with the arrow placed nearby. The
selector represents 14°F to 68°F (-10°C to +20°C) for medium temperature
models. “10” is the coldest setting, “1” is the warmest. Use the medium temp
setting and place the dial at number 3.
2) Differential
It is possible to modify the differential from 1°F minimum to 12.5°F maximum.
Simply shift the first two dip-switches to the ON or OFF position according to the
wanted value.
3) Defrost management and setting
A defrost can be activated manually, by pressing the “man. def.” button, or
cyclically, the interval set by the “def.intvl” rotary switch at the top left with respect
to Set Point selector. The interval can be selected from 1 to 12 hours in 1 hour
steps. If the selector is positioned on the “0”, the cyclic defrost is disabled.
Note: manual defrost reinitializes the time required for successive cyclic
defrosting. The selections are effective beginning from the successive cycle. For
an immediate effect, it is necessary to turn power to the VTSTAT off for a few
seconds.
It is possible to choose between an electric defrost (the compressor is
deactivated and the defrost relay is activated) and a hot gas defrost (both the
compressor and the defrost relay are activated); The defrost termination, can
take place by time (from 1 to 60 min.) or by temperature (from 0 to 86°F) if the
defrost sensor is utilized for the correct programming). If the defrost sensor is
disconnected, interrupted or breaks down for any reason, the defrost terminates
after a maximum time of 90 minutes if it is resistance-based, or 40 minutes if it is
hot-gas based.
The instrument stores the defrost state every 15 minutes to allow restart after
power loss.
4) Compressor safety function
If the function is enabled, a minimum three minute interval is ensured between
deactivation and successive restart of the compressor.
If the function is enabled, the compressor is not energized for three minutes after
controller power up.
The function is also active in hot-gas defrost mode.

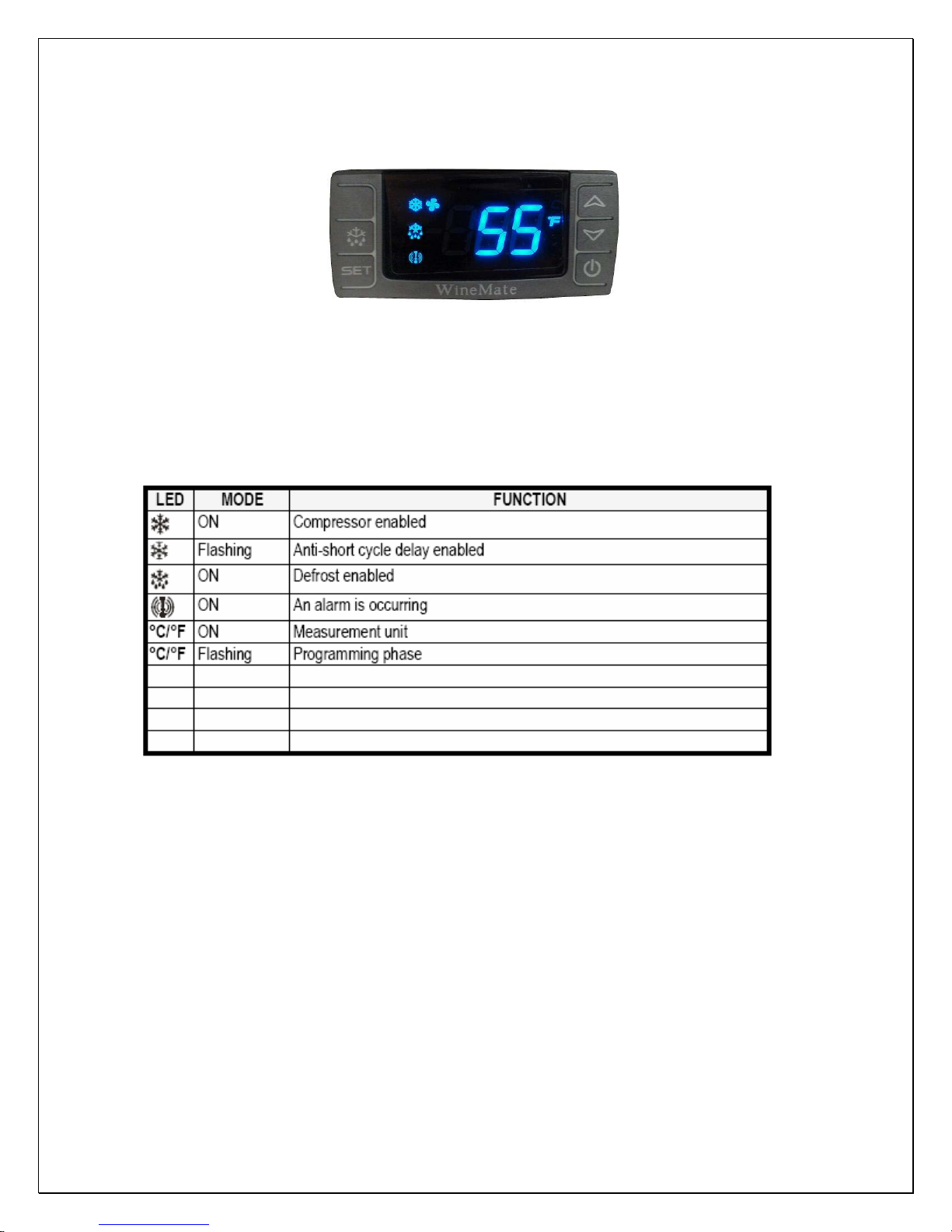

5) LED & Display Messages
1. LED off
2. LED on
3. LED blinking 0.5s on/0.5s off
4. LED blinking 0.5s on/1.5s off
5. Display A1
6. Display A2
1. Compressor and defrost deactivated
2. Compressor energized
3. Defrost activated
4. Sensor fault
5. Regulation probe fault
6. Defrost probe fault

- 15 -
3. Use of the Digital Controller
Fig. 3.3 Digital Controller
1) Display
During normal operating conditions, the display shows the value measured by
the air regulation probe. In case of active alarm, the temperature flashes
alternately to the code alarm.
1.1 LED Functions
1.2 Front Panel Commands

- 16 -
2) Alarm Signals
2.1 Code Description
2.2 Alarm Recovery
Probe alarms P1”, start a few seconds after the fault in the related probe; they
automatically stop a few seconds after the probe restarts normal operation.
Check connections before replacing the probe. Temperature alarms “HA”, “LA”
automatically stops as soon as the temperature returns to normal value. Alarm
“CA” (with i1F=PAL) recovers only by switching off and on the instrument.
3) Temperature Set-Point
3.1 How to see the set-point
1. Push and immediately release the SET key: the display will show the Set-point
value;
2. Push and immediately release the SET key or wait for 5 seconds to display the
probe value again.
3.2 How to change the set-point
1. Push the SET key for more than 3 seconds to change the Set point value;

- 17 -
2. The value of the set point will be displayed and the “°C” or “°F” LED starts
blinking;
3. To change the Set value, push the o or n arrows within 10s.
4. To memorize the new set point value, push the SET key again or wait 10s.
4) Humidity Adjustment
The parameter Fon is used to modulate the humidity in the wine cabinet. The
higher value of Fon, the higher relative humidity will be.
1. Press the Set +keys for 3 sec. (the “°C” or “°F” LED starts blinking).
2. Release the keys, then push again the Set +keys for more than 7sec, the
Pr2 label will be displayed immediately followed from the HY parameter.
3. Select the required parameter Fon by up or down keys .
4. Press the “SET” key to display its value.
5. Use up or down keys to change its value.
6. The default value is 0, change high or low value to maintain high or low
humidity.
7. Press “SET” to store the new value.
8. To exit: Press SET + or wait 15sec without pressing a key.
5) Manual Defrost
Push the DEF key for more than 2 seconds and a manual defrost will start.

- 18 -
Care Guide
In general, always unplug system or disconnect power while doing care.
1. Coil Cleaning
•Clean the condenser coil regularly. Coil may need to be cleaned at least
every 6 months.
•Unplug the system or disconnect power.
•Use a vacuum cleaner with an extended attachment to clean the coil when it
is dusty or dirty.
•Plug cooling system or reconnect power.
2. Moisture Removing
•Remove the extra condensate if it is accumulated in the wine cellar at high
ambient temperature and humidity.

- 19 -
User’s Troubleshooting
This Troubleshooting Chart is not prepared to replace the training required for a
professional refrigeration service person, not is it comprehensive
Troubleshooting Chart
Complaint Possible Causes Response
1. Unit not running
p. No power
q. Power cord unplugged
r. Defrost light blinking
s. Compressor light blinking
t. Setting higher than ambient
temperature
u. Low voltage.
v. Incorrect or loose wirings.
p. Check power at receptacle & fuses
q. Check for power cord plug
r. Unit is under defrost mode
s. Unit waits for anti-short cycle delay
t. Lower temperature setting
u. Contact an authorized electrician
v. Check all wirings and connections
2. Temperature fluctuating
a. Air sensor When using an air sensor, the wine
bottle temperature is mainly controlled
by the average air temperature. If the
set-point is 55°F with a differential 4 °F,
the cooling unit turns on at 59°F of air
temperature and turns off at 55°F of air
temperature. The average air
temperature is 57°F, and then the wine
temperature is around 57+/-0.5°F. The
air is light enough to change so quickly
that it maintains relatively constant
average temperature that would prevent
wine bottle temperature from varying.
3. Temperature too high
a. Setting too high
b. Improper room insulation & seal
c. Room too large
d. Ambient temperature too high
e. Exhaust restricted
f. Malfunctioning fans
g. Improper evaporator or condenser
airflow
h. Dirty Condenser
i. Iced evaporator
j. Sealed system problem
a. Lower setting
b. Check for insulation, gasket and
door opening
c. Check for excessive size
d. Check for installation location
e. Leave minimum 3 feet clearance for
the exhaust side and leave minimum
1 foot clearance for the fresh air
intake side
f. Check for both evaporator and
condenser fans
g. Check for air restrictions
h. Clean condenser
i. Defrost and reset temperature
j. Call service for checking loss of
refrigerant or restrictions
