Vintage Vibe VIBANET E7 User manual

VIBANET PREAMP: E7 INSTALLATION

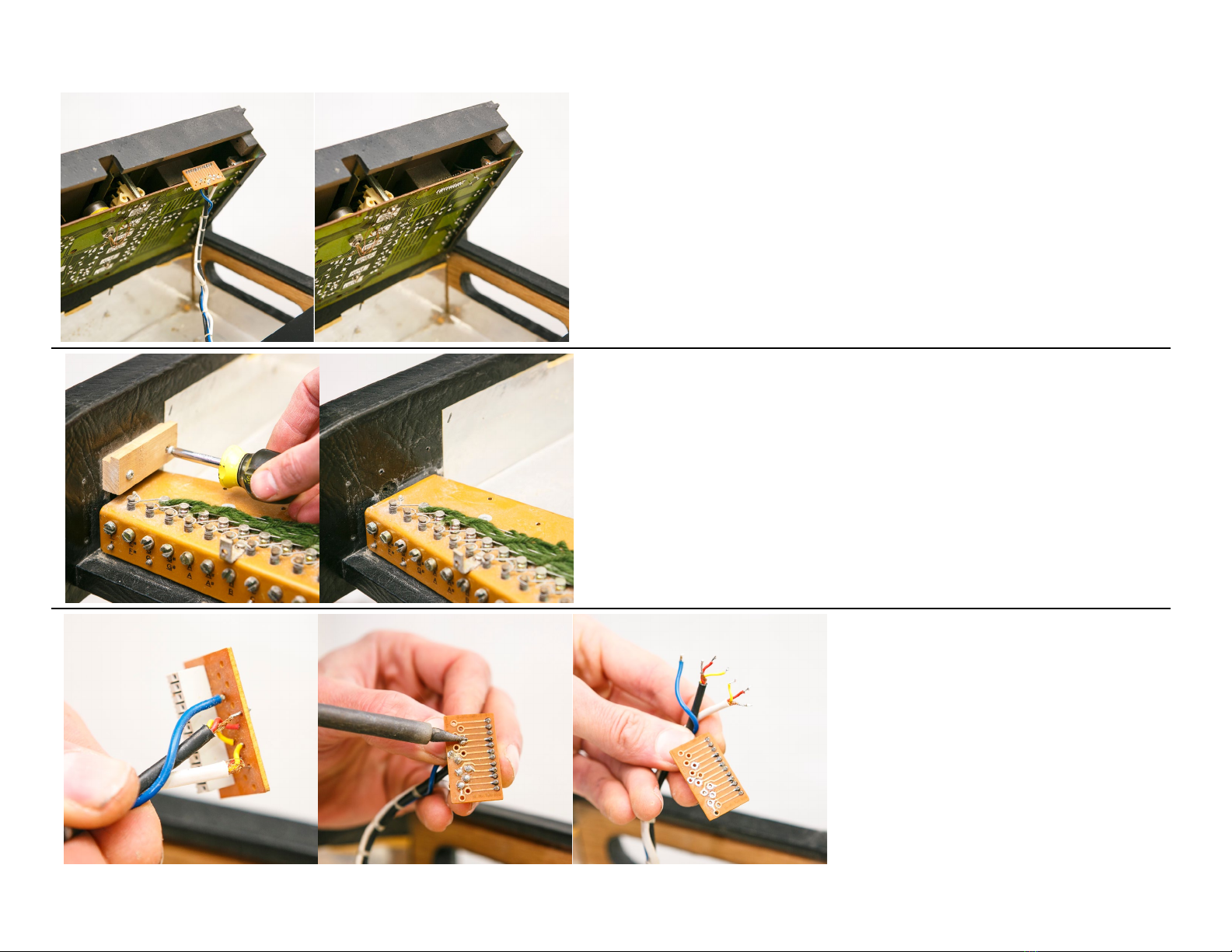

REMOVE PREAMP HOUSING AND UNPLUG
PICKUP WIRING PCB FROM MAIN PCB
UNSCREW AND REMOVE LEFT FRONT
SUPPORT BLOCK FROM BASE
DESOLDER WIRES FROM PICKUP
WIRING PCB.*
* WE HAVE INCLUDED A DIAGRAM AT
THE END OF THIS DOCUMENT SHOULD
YOU EVER WISH TO REINSTALL AN
ORIGINAL E7 PREAMP
2

THE BLUE WIRE IS A GROUND WIRE UNNECESSARY FOR
THIS INSTALLATION. YOU MAY EITHER CLIP IT BACK TO
PREVENT ANY POSSIBLE SHORT OR GO AHEAD AND
REMOVE IT ALL TOGETHER.
3

1) ENSURE THAT SUFFICIENT WIRE IS INSERTED INTO THE TERMINALS AND NOT WIRE
INSULATION.
2) ENSURE THAT SCREWS ARE TIGHTENED BUT DO NOT OVER-TORqUE.
3) THE POWER & OUTPUT CONNECTORS ARE DESIGNED TO MATE WITH THE PCB SOCKET
IN ONE DIRECTION ONLY.
4) WHEN INSTALLED PROPERLY THE CONNECTOR WILL “LOCK” INTO PLACE AND REqUIRE
VERY LITTLE FORCE.
4
VIBANET E7 WIRING DIAGRAM

1. Blue ground wire to top pickup ground lug.
2. Bottom pickup shield.
3. Bottom pickup red wire.
4. Top pickup yellow wire
5. Bottom pickup yellow wire.
6. Top pickup red wire.
7. Top pickup shield.
1
2
34
56
7
E7 PICKUP WIRING PCB
5
