VINTAGE VIBE
ELECTRIC PIANO CO.
LEsLIE™ TuBE PrEAmP (L.T.P.)
OWNErs mANuAL

Thank you for purchasing Vintage Vibe’s Leslie™ Tube Preamplier.
The L.T.P. is an all tube preamplier for interfacing instruments with
model 122 & 147 Leslie™ Ampliers.
The L.T.P. utilizes one 12AX7 and one 12AU7 vacuum tube and custom
wound output transformers.

IMPORTANT SAFETY INSTRUCTIONS
• READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS.
• DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY
VENTILATION OPENINGS ON THIS APPARATUS.
• DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR
STANDING LIQUIDS.
• CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING
AGENTS.
• ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET
WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE,
POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF
THE
APPARATUS.
• PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON,
PINCHED, OR STRAINED.
• UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED
FOR LONG PERIODS OF TIME.
• ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED
BY THE MANUFACTURER FOR SAFE OPERATION AND TO AVOID INJURY.
• WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
• SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.
• WARNING: THIS UNIT REQUIRES A SAFETY GROUNDED OUTLET WIRED TO
CURRENT ELECTRIC CODES HAVING THE LINE SUPPLY VOLTAGE, POWER,
AND FREQUENCY IDENTIFIED ON THE REAR OF THE UNIT. THE OUTLET MUST
REMAIN ACCESSIBLE TO DISCONNECT THE UNIT IF A FAULT SHOULD ARISE
WHILE IN USE. THIS UNIT SHOULD BE UNPLUGGED WHEN NOT IN USE.
WARNING: TO REDUCE THE RISK OF A FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER. NO USER SERVCEABLE PARTS INSIDE.
REFERER SERVICING TO QUALIFIED SERVICE PERSONNEL.
= “DANGEROUS VOLTAGE”
= “IT IS NECESSARY FOR
THE USER TO REFER
TO THE INSTRUCTION
MANUAL”

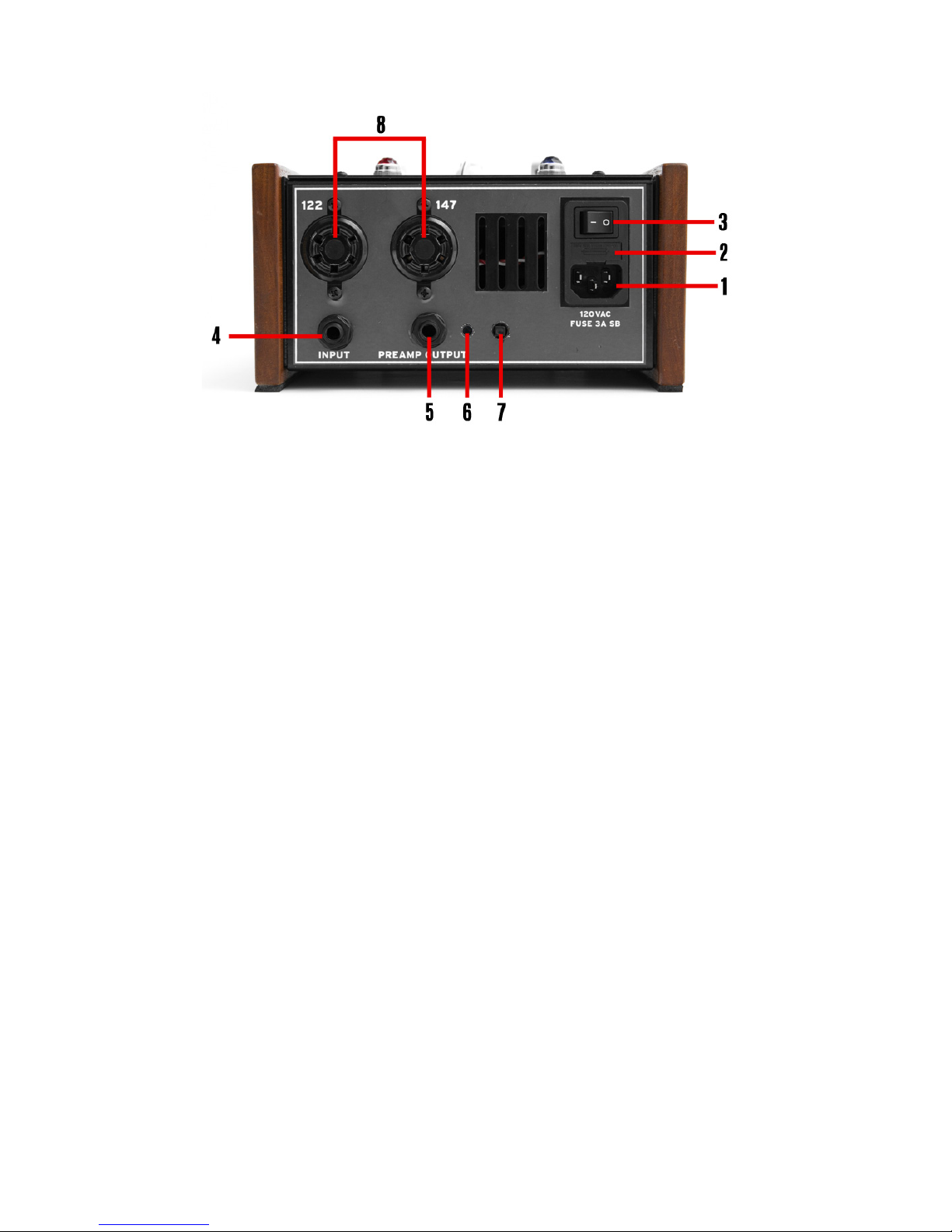

REAR PANEL CONNECTIONS & CONTROLS
1) MAINS INPuT:
Plug the supplied IEC cord into the outlet to supply power to the unit.
2) MAINS FuSE:
Units equipped for 120VAC mains: 3A Slow Blow 5x20mm
Units equipped for 240VAC mains: 1.5A Slow Blow 5x20mm
*Units equipped for 240VAC must only be used with Leslie™ ampliers and motors that
are outtted for 240VAC mains usage.
3) POwER SwITCh:
Turns the L.T.P. on and off.
Always make sure that all cable connections have been made before
turning the unit on.
4) INPuT JACk:
Plug in the 1/4” output of the instrument of your choice: Guitar, Electric
Piano, Keyboard, Etc.
5) PREAMP OuTPuT JACk:
Take the output signal of the preamp via a 1/4” cable and interface it with
a mixing console, powered speakers, power amp, F.O.H., etc.
6) PREAMP TRIM POT:
Use a small screwdriver to set the level of the signal found at the
Preamp Output Jack. Always begin with the trimmer turned fully counter
clockwise and then turn it up to the desired level for the gear you are
interfacing with.

7) PreamP OutPut GrOund Lift Switch:
Lifts the ground connection at the Preamp Output Jack.
If you detect hum or buzz when interfacing the 1/4” preamp output with
another piece of gear, pushing the ground lift will remove the L.T.P.’s
ground from that signal path and eliminate a potential ground loop.
8) 6 Pin amPhenOL SOcketS:
Plug your standard 6 Pin Leslie™ cable between the L.T.P. and the
appropriate Leslie™ unit.
The 122 socket should only be interfaced with 122 type Leslie™ units.
The 147 socket should only be interfaced with 147 type Leslie™ units.
*When utlizing the L.T.P. with a model 147 Leslie™, ensure that the load
switch on the Leslie™ amplier is set to open.
**Interfacing one of the sockets with a non-corresponding Leslie™ unit
could result in damage to the L.T.P. and Leslie™ and is considered
misuse and not covered by any warranty**
frOnt PaneL cOnnectiOnS & indicatOrS
1) VOLume cOntrOL:
Adjusts the overall gain / level of the preamplier
2) trebLe cOntrOL:
Adjusts the higher frequency content of the signal

3) Bass Control:
Adjusts the lower frequency content of the signal
When adjusting the tone and volume controls, consider the gain staging
between the L.T.P. and the Leslie™ amplier. Think of the volume
control on the Leslie™ amplier as the Master Volume.
For clean tones, set the volume control on the Leslie™ amplier to the
fully clockwise position and adjust the L.T.P. controls to taste.
For dirtier tones, set the L.T.P. controls to taste and use the volume
control on the Leslie™ amplier to adjust your overall volume.
1) speed FootswitCh:
Changes the speed of the Leslie rotors between Chorale and Tremolo.
When the Chorale speed is selected, the Blue indicator light will be
illuminated.
When the Tremolo speed is selected, the Red indicator light will be
illuminated.
2) Mute FootswitCh:
When engaged, the Leslie™ amplier will be muted but the preamplier
signal will still be present at the Preamp Output Jack. This is useful to
those users who wish to feature the Leslie™ tone as an effect during
certain passages while still maintaining the signal from the preamp to a
power amp, mixing console, F.O.H., etc.

3) Bass Control:
Adjusts the lower frequency content of the signal
When adjusting the tone and volume controls, consider the gain staging
between the L.T.P. and the Leslie™ amplier. Think of the volume
control on the Leslie™ amplier as the Master Volume.
For clean tones, set the volume control on the Leslie™ amplier to the
fully clockwise position and adjust the L.T.P. controls to taste.
For dirtier tones, set the L.T.P. controls to taste and use the volume
control on the Leslie™ amplier to adjust your overall volume.
1) speed FootswitCh:
Changes the speed of the Leslie rotors between Chorale and Tremolo.
When the Chorale speed is selected, the Blue indicator light will be
illuminated.
When the Tremolo speed is selected, the Red indicator light will be
illuminated.
2) Mute FootswitCh:
When engaged, the Leslie™ amplier will be muted but the preamplier
signal will still be present at the Preamp Output Jack. This is useful to
those users who wish to feature the Leslie™ tone as an effect during
certain passages while still maintaining the signal from the preamp to a
power amp, mixing console, F.O.H., etc.

Vintage Vibe warrants the L.T.P. (Leslie™ Tube Preamplier) to be
free of defects in materials and workmanship within normal use for a
period of 1 year from the date of shipping. This warranty is provided
to the original purchaser and is nontransferable. The manufacturer
warrants vacuum tubes and transformers for a period of (90) days.
Defective parts identied during the applicable warranty period will be
replaced or repaired without charge if performed by a Vintage Vibe
authorized service center. Any repair or service performed by any entity
other than an authorized service center is not covered by this warranty.
The customer is responsible for all costs incurred transporting the
equipment to and from the service center. The customer is responsible
for any and all charges if no issue is found with the instrument. Vintage
Vibe will not be held responsible for lost time wages or any other losses
due to our product or services.
The L.T.P. has no user serviceable parts. Opening the chassis voids
any and all applicable warranty. Should an issue arise, contact Vintage
Vibe for support.
Address
Vintage Vibe Electric Piano Company
114 Beach Street
Ste 5
Rockaway, NJ 07866
PHONe
[phone]
eMAIL
[email protected]
WeB
www.vintagevibe.com
