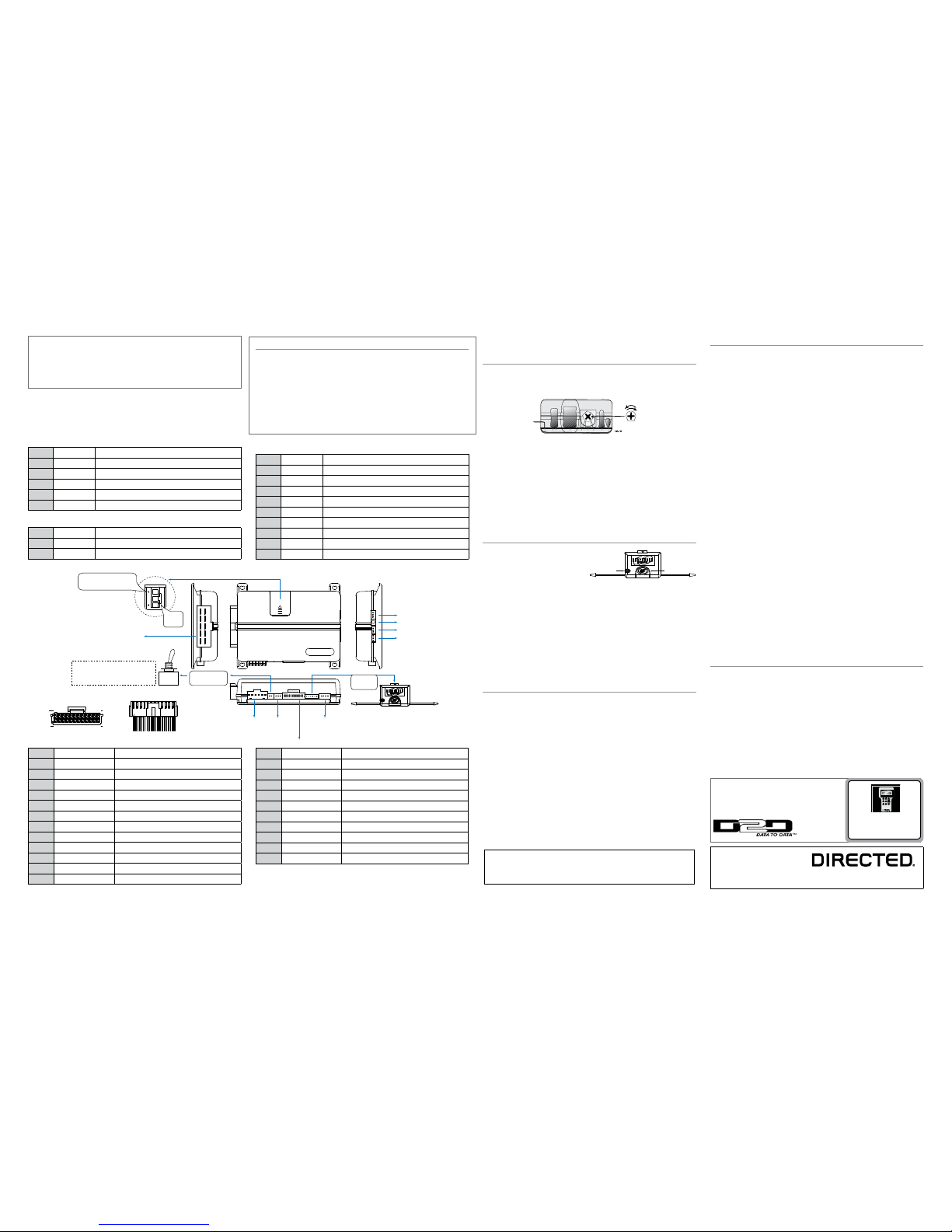

Viper 5704 Responder LC3 User manual

© 2012 Directed. All rights Reserved. 1
Quick Reference Install Guide
Security and Remote Start
Responder LC3
5x04
Neutral Safety
Switch
110 9 8 7 6
12345
1
1 8
51
1 3
10
12
18 10
91
1 12
D2D Port (for external
Xpresskit interface module)
ON
IMPORTANT! Neutral Safety
switch must be plugged in
and in the ON position RF Port
for IVU
Control Center
Thermistor/Temp Sensor
Sensor 1
Bitwriter/SmartStart Port
Door Lock
Port
Remote Start
10-pin Harness
Main 6-pin
Harness
10A FUSE
MINI ATM
RPN: 8540
LIGHT FLASH POLARITY
(10A (MAXIMUM) FUSE JUMPER)
Sensor 2
Aux/Shutdown/Trigger 24-pin Harness
Guide Translations
For a Spanish or French version of the Installation Guide, please download it from
www.directechs.com under “Resources”.
Traducción de los manuales:
Para obtener una versión en Español o Francés del Manual de Instalación, descár-
guela de www.directechs.com bajo el título “Recursos” (“Resources”).
Traduction du guide:
Pour une version française ou espagnole du guide d’installation, veuillez le té-
lécharger à www.directechs.com sous «Resources»..
Auxiliary/Shutdown/Trigger Harness, 24-pin connector
1PNK/WHITE (-) 200mA Ignition 2/Flex OUTPUT
2BLUE/WHITE (-) 200mA 2ND STATUS /REAR DEFOGGER OUTPUT
3RED/WHITE (-) 200mA TRUNK RELEASE OUTPUT
4BLACK/YELLOW (-) 200mA DOME LIGHT OUTPUT
5DARK BLUE (-) 200mA STATUS OUTPUT
6WHITE/BLACK (-) 200mA AUX 3 OUTPUT
7WHITE/VIOLET (-) 200mA AUX 1 OUTPUT
8ORANGE/BLACK (-) 200mA AUX 4 OUTPUT
9GRAY (-) HOOD PIN INPUT (NC OR NO)
10 BLUE (-) TRUNK PIN/INSTANT TRIGGER INPUT (N/C OR N/O)
11 WHITE/BLUE ACTIVATION INPUT
12 VIOLET/WHITE* TACHOMETER INPUT
13 BLACK/WHITE** (-) NEUTRAL SAFETY /PARKING BRAKE INPUT
14 GREEN/BLACK (-) 200mA FACTORY ALARM DISARM OUTPUT
15 GREEN* (-) DOOR INPUT
16 BROWN/BLACK (-) 200mA HORN HONK OUTPUT
17 PINK (-) 200mA IGNITION 1 OUTPUT
18 VIOLET* (+) DOOR INPUT
19 VIOLET/BLACK (-) 200mA AUX 2 OUTPUT
20 BROWN (+) BRAKE SHUTDOWN INPUT
21 VIOLET/YELLOW (-) 200mA STARTER OUTPUT
22 GRAY/BLACK (-) DIESEL WAIT TO START INPUT
23 ORANGE (-) 200mA ACCESSORY OUTPUT
24 GREEN/WHITE (-) 200mA FACTORY ALARM ARM OUTPUT
* Required connection for manual transmission vehicles.
** Ground this wire for automatic transmission vehicles or connect to the park-
ing brake wire for manual transmission vehicles.
Important: NEVER connect 200mA low current outputs directly to a motor or high
current device WITHOUT a relay
1 3 5
INSERTION/WIRE SIDE
2 4 6 24
23PINK/WHITE VIOLET/WHITE
GREEN/WHITEBLACK/WHITE
1 2 3
INSERTION/WIRE SIDE
13 24
12PINK/WHITE VIOLET/WHITE
GREEN/WHITEBLACK/WHITE
Bitwriters with a date code of 6a or older require an IC
upgrade (p/n 998M). Some bitwriters with a date code
of 6B do not require the IC upgrade, refer to tech tip #
1112 for more information.
The Bitwriter® (p/n 998U)
requires chip version 2.7 or
newer to program this unit.
Installation Points
Adjusting the Sensor
Adjusting the sensor:
Important! Make sure the vehicle is disarmed. The shock sensor sensitivity can be
adjusted by using a trimmer tool to turn the potentiometer.
Adjusting the sensor:
1. Disarm the system, turn the ignition Off.
2. With the sensor mounted in its permanent location, locate the trim pot on the
shock sensor module and using a trimmer tool:
• Turn the potentiometer clockwise for increased sensitivity or
• Turn it counterclockwise for decreased sensitivity
Note: You can test the new setting by cautiously impacting the vehicle with increas-
ing intensity while noting the LED status on the shock sensor. The LED turns on for a
short duration for small impacts before turning off (indicating a warn-away trigger).
The impact level required to fully trigger the alarm is indicated when the LED remains
on for a longer duration before turning off.
Learning the Tach (not needed with Virtual Tach)
To learn the tach signal:
1. Start the vehicle with the key.
2. Within 5 seconds, press and hold
the Control button.
3. After 3 seconds the status LED on your Control Center lights constant when
the tach signal is learned.
4. Release the Control button.
Important: This unit can learn the tachometer with the analog input or through d2d
using an interface module. The unit confirms which source is used by flashing the
parking lights. When programming tach learning with:
• Analog, the parking lights flash one time.
• D2D interface module, the parking lights flash twice.
If the tachometer input on the system is connected to the vehicle, the d2d tachometer
input is ignored.
Initializing Virtual Tach (not needed with hardwire tach inputs)
To program Virtual Tach:
1. After the install is complete, remote start the engine. The programming op-
eration may require 3 cranks of the starter before the engine starts and runs.
Do not turn off the remote start if this happens, it is a normal programming
operation.
2. Once the engine begins running, let it run for at least 30 seconds.
3. Using the Remote, send the Remote start command to turn remote start off.
Virtual Tach is programmed.
To reset Virtual Tach, go into the Remote Pairing section of this guide and press/re-
lease the Control button 4 times for step #4, then press and hold the Control button
to reset Virtual Tach. Virtual Tach cannot be reset with the Bitwriter.
Note: Virtual Tach cannot be used in MTS Manual Transmission Mode. It is also not
recommended for diesel trucks.
Virtual Tach handles disengaging the starter motor during remote starting – it does
not address over-rev. If the customer wants to have the over-rev protection capability,
the tach wire must be connected.
Important: After successfully learning Virtual Tach, a small minority of ve-
hicle starters may over crank or under crank during remote start. The Bit-
writer can be used fine tune the starter output time in 50 ms increments to
compensate for such an occurrence.
Remote Start Shutdown/Startup Diagnostics
To perform shutdown diagnostics:
1. With the ignition Off, press and hold the Control button (on Control Center).
2. Turn the ignition On and then back Off while holding the Control button.
3. Release the Control button.
4. Press and release the Control button. The status LED flashes to report the last
shutdown for one minute or until the ignition is turned on, as shown in the
following table:
Status LED Flashes Shutdown Mode
1 flash Runtime expired
2 flashes Over-rev shutdown
3 flashes Low or no RPM
4 flashes Transmitter shutdown (or optional push button)
5 flashes (+) Brake shutdown
6 flashes (-) Hood shutdown
7 flashes Timer mode/Turbo mode/Manual mode error *
8 flashes Neutral safety shutdown
9 flashes Low battery (voltage mode)
10 flashes Alarm triggered **
11 flashes Wait-to-start input timed out
* Timer mode error: Ignition is on or shutdown input is active when activating
timer mode.
Turbo mode error: Turbo mode is programmed off, engine is not on or shut-
down input is active.
Manual mode error: MTS mode not enabled.
** Alarm was triggered during remote start sequence.
Startup Diagnostics: If the vehicle fails to activate the remote start, the remote start
module will notify you via your Responder LC3 remote control and will flash the park-
ing lights on the vehicle to notify you of what caused the no-start situation.
Parking Light Flashes
5 flashes Brake wire is active
6 flashes Hood pin wire is active
7 flashes Manual transmission mode is enabled and not initialized.
8 flashes Neutral safety wire has no ground or the neutral safety
switch is Off.
Long Term Event History
The system stores the last two full triggers in memory. These are not erasable. Each
time the unit sees a full trigger, the older of the two triggers in memory is replaced by
the new trigger. To access long term event history:
1. With the ignition Off, press and hold the Control button (on Control Center).
2. Turn the ignition On.
3. Release the Control button.
4. Within 5 seconds, press and release the Control button. The status LED flashes
in groups indicating the last two zones that triggered the unit for 1 minute or
until the ignition is turned off. Refer to table of zones (overleaf on page 2).
Note: The Warn Away triggers are not stored to memory and is not reported.
See full Installation Guide for more
detailed information on this system.
Such information and more can be
found online at:
www.directechs.com
Wiring Connections
Main Harness, 6-pin connector
H1/1 RED (+)12VDC CONSTANT INPUT
H1/2 BLACK (-) CHASSIS GROUND
H1/3 BROWN (+) SIREN OUTPUT
H1/4 WHITE/BROWN PARKING LIGHT ISOLATION WIRE - PIN 87a of onboard relay
H1/5 WHITE PARKING LIGHT OUTPUT
H1/6 ORANGE (-) 500mA GROUND WHEN ARMED OUTPUT
Door Lock, 3-pin connector
1BLUE (-) 500mA UNLOCK OUTPUT
2EMPTY NOT USED
3GREEN (-) 500mA LOCK OUTPUT
Remote Start, 10-pin heavy gauge connector
H3/1 PINK (+) IGNITION 1 INPUT/OUTPUT
H3/2 RED/WHITE (+) FUSED (30A) IGNITION 2 / FLEX RELAY INPUT 87
H3/3 ORANGE (+) ACCESSORY OUTPUT
H3/4 VIOLET (+) STARTER OUTPUT (CAR SIDE OF THE STARTER KILL)
H3/5 GREEN (+) STARTER INPUT (KEY SIDE OF THE STARTER KILL)
H3/6 RED (+) FUSED (30A) IGNITION 1 INPUT
H3/7 PINK/WHITE (+) IGNITION 2 / FLEX RELAY OUTPUT
H3/8 PINK/BLACK (+) FLEX RELAY INPUT 87A key side (if required) of FLEX RELAY
H3/9 RED/BLACK (+) FUSED (30A) ACCESSORY/STARTER INPUT
H3/10 NC No Connection
Status LED Control button
Menu
Wheel
Menu
Wheel
Menu
Wheel

© 2012 Directed. All rights Reserved. 2
QRN5704 2012-08
Programming System Features
The System Features Learn Routine dictates how the unit operates. It is possible to
access and change most of the feature settings using the Control button.
1. Open a door.
2. Turn the ignition on, then off.
3. Select a Menu. Press and hold the Control button. The number of siren chirps
indicates the menu number. 1 chirp indicates menu 1, 2 chirps - menu 2 and
3 chirps for menu 3.
4. When the desired menu chirps are heard, release the Control button.
5. Select a Feature. Press and release the Control button the number of times
corresponding to the feature you wish to change. Then press and hold one
more time to select the features.
6. Program the Feature. While holding the Control button, you can program the
feature using the remote control.
For features with only two options;
AUX
= option 1 while
AUX
= option 2.
For features with more than two options;
AUX
selects the options in ascending order,
while
AUX
selects them in descending order.
Note: Pressing
AUX
button resets the feature to the factory default.
Once a feature is programmed:
• Other features can be programmed within the same menu
• Another menu can be selected
• The learn routine can be exited if programming is complete
To access another feature in the same menu:
1. Press and release the Control button the number of times necessary to advance
from the feature you just programmed to the next one you want to program.
2. Then press the Control button once more and hold it.
To select another menu:
1. Press and hold the Control button.
2. After 3 seconds, the unit advances to the next menu and the siren chirps, indi-
cating which menu has been accessed.
The learn routine exits if any of the following occurs:
• The open door is closed
• The ignition is turned On
• There is no activity for 30 seconds
• The Control button is pressed too many times
Bitwriter - Only Options
If programming with the Bitwriter®, the learn routine can be locked or un-
locked. If the learn routine has previously been locked, it must be unlocked
with Bitwriter® - this cannot be done manually with the Control button.
The Bitwriter® gives you access to a wider range of system options. These
features and the adjustments that may be programmed are described in the table
below. Default settings are in bold type.
Menu
Item
Feature Default Opt. 2 Opt. 3 Opt.4 Opt. 5+
1 Zone 4 Sensor Type* None Shock/
Omni
Field
Distur-
bance
Tilt Sen-
sor
Glass Break (5)/
Ultrasonic (6)
2 Siren Duration 30 sec. Options: 1 to 180 sec.
3Aux/Trunk Icon Type* Trunk Window Sunroof Audio Lights/Left dr/Right
dr/Rear Hatch
4 Aux 1 Timed Output 30 sec. Options: 1 to 90 sec.
5 Aux 1 Icon Type* Pulsed Trunk Window Sunroof Audio/Lights/Left dr/
Right dr/Rear Hatch/
Timed/Latched
6 Aux 2 Timed Output 30 sec. Options: 1 to 90 sec.
7 Aux 2 Icon Type* Pulsed Trunk Window Sunroof Audio/Lights/Left dr/
Right dr/Rear Hatch/
Timed/Latched
8 Aux 3 Timed Output 30 sec. Options: 1 to 90 sec.
9 Aux 3 Icon Type* Pulsed Trunk Window Sunroof Audio/Lights/Left dr/
Right dr/Rear Hatch/
Timed/Latched
10 Aux 4 Timed Output 30 sec. Options: 1 to 90 sec.
11 Diesel Start Delay
Timer
15 sec. Options: 1 to 90 sec.
12 Timer Mode Runtime 12 min. Options: 1 to 16 min.
13 Timer Mode Starts 6 starts Options: 1/2/3/4 to 24 (Starts) in increments of 2
14 Timer mode intervals 3 hr. Options: 1/2/3/4 to 24 in 2 hour increments
15 Smart start low temp 0° (F) Options: OFF, -20° to 70° in 10° increments
16 Smart start high temp 100° (F) Options: OFF, 40° to 130° in 10° increments
17 Smart start low bat-
tery (volts)
10.5V Options: OFF, 9V to 12.5V in 0.5V increments
18 Sensor 1 Level 7Options: 0 to 15 in increments of 1
19 Starter Release
Fine Tune
6
(normal)
Options: 0 to 20 in increments of 1
20 Feature Programming Unlocked Locked
21 Transmitter Program-
ming
Unlocked Locked
22 Remote Start Runtime 12 min. Options: 1 to 60 min.
23 Virtual Tach Fine tune Not Ini-
tialized
Options: Not initialized, 0 to 1000 in 50 millisecond
increments
* Only available on remote controls with display screens.
Feature Menus
Default settings are in bold type. New features are bold with grey background.
Menu 1 - Security
Menu
Item
Feature Opt. 1 Opt. 2 Opt. 3 Opt.4 Opt. 5+
1
System Arming Mode
Active
Passive Arm
w/o lock
Passive
Arm w/
lock
Auto re-arm
w/o lock
Auto
re-arm w/
lock
2
Panic Mode On Ign Off
only
Off
3
Confirmation Chirps
On w/Warn
chirps On
On w/
Warn
chirps Off
Off w/
Warn
chirps On
Off w/
warn
chirps Off
4
Siren Duration
30 sec.
60 sec.
5
Ign-controlled Locks
No Ign-
locking
Lock &
Unlock
Lock Only Unlock
Only
6
Door Lock Pulses
Single
Double
Unlock
Only
Double
Lock Only
Double
Lock &
Unlock
7
Door Lock Output
Duration
0.8 sec.
3.5 sec. 0.4 sec.
8
2nd Unlock
2nd unlock
on Ign-
control after
first unlock
2nd unlock
on Ign-
control with
first unlock
9
Comfort Closure
No Comfort
Closure
Comfort
Closure 1
Comfort
Closure 2
10 Horn Function Full Alarm
Only
Siren Func-
tion 20 ms
Siren Func-
tion 30 ms
Siren
Function
40 ms
Siren Func-
tion 50 ms
11 Hood Switch type
Normally
Open
Normally
closed
12 Sensor Full trigger Single Double
13 Door Switch Type Normally
open
Normally
closed
14 Trunk Switch Type Normally
open
Normally
closed
15 Remote Button unlock
(Ign off)
On Off
Menu 2 - Convenience
Menu
Item
Feature Opt. 1 Opt. 2 Opt. 3 Opt.4 Opt. 5+
1 One-time Bypass One time
bypass
Off
One time
bypass On
2 Nuisance Prevention On Off
3 Override Pulse count 12 3 4 5
4 Door Trigger Error
Chirp
On Off
5 Ign-controlled Dome
light
On Off
6 OEM Alarm Disarm
w/Aux-Trunk
On Off
7 OEM Alarm Disarm
Output
With
Unlock
Before
Unlock
Remote
Start Only
8 OEM Alarm Disarm
Pulses
12
9 Aux 1 Output type Validity Latch Latch/
reset/ign
30 sec.
Timed
Off (5)/2nd
unlock (6)
10 Aux 1 Linking No Linking Link to Arm Link to
Disarm
Link to
Arm/
disarm
Link to
Remote Start
only
11 Aux 2 Output Type Validity Latch Latch
reset/ign
30 sec.
Timed
Off (5)/2nd
unlock (6)
12 Aux 2 Linking No Linking Link to Arm Link to
Disarm
Link to
Arm/
Disarm
Link to
Remote Start
only
13 Aux 3 Output Type Validity Latch Latch
reset/ign
30 sec.
Timed
Off (5)/2nd
unlock (6)
14 Aux 3 Linking No Linking Link to Arm Link to
Disarm
Link to
Arm/
Disarm
Smart Key
Control (Link
to Remote
Start Off)
15 Aux 4 Output Type Validity Latch Latch
reset/ign
30 sec.
Timed
Off (5)/2nd
Unlock (6)
16 Aux 4 Linking No linking Link to Arm Link to
Disarm
Link to
Arm/
Disarm
Link to
Remote Start
Only
17 Aux/Trunk Output type Validity Off 2nd unlock
Menu 3 - Remote start
Menu
Item
Feature Opt. 1 Opt. 2 Opt. 3 Opt.4 Opt. 5+
1 Transmission Mode Manual Automatic
2 Engine Checking Mode Virtual
Tach
Voltage Off Tachom-
eter
3 Cranking Time 0.6 sec. 0.8 sec. 1.0 sec. 1.2 sec. 1.4 (5)/ 1.6
(6)/ 1.8 (7)
2.0 (8)/
4.0 (9)
4 Remote Start Runtime 12 min. 24 min. 60 min.
5 Activation Pulse Count 12
6 Turbo Mode No Turbo
Mode
On-1 min. On-3 min. On-5 min. On- 10 min.
7 Timer Mode Runtime 12 min. 3 min. 6 min. 9 min.
8 Flex Relay Function Ignition 2 Acces-
sory 2
Starter 2
9 Diesel Start Delay Wait-to
Start input
Timed 15
sec.
Timed 30
sec.
Timed 45
sec.
10 Accessory during Diesel
Start Delay
On Off
11 Status 2 Output Status Latch Rear
Defogger
Pulse Rear
Defogger
12 Parking Light Output Constant Pulsed Off
13 Anti-grind Output On Off
14 Tach Mode Starter
Release
Normal Increase Decrease
15 Vehicle Temp *
Auto Report
Off On
16 Remote Start Safelock Off On
* Not applicable to 1 way remote control.
Remote Pairing
Prepare the vehicle system to be Paired with a new remote
1. Open a door.
2. Turn the key to the ON position.
3. Within 5 seconds press and release the Control button on the system’s Control
Center one time.
4. Within 5 seconds, press and hold the Control button on the Control Center.
The status LED will flash one time and the siren will chirp once to confirm the
system is ready for remote pairing.
5. Release the Control button and proceed below.
Note: If no remote pairing results, the system will exit after 60 seconds.
Prepare the new remote to be Paired with the system
Make sure the LC3 remote is set for the desired Car 1 (Default) or Car 2 opera-
tion.
1. Press and hold the
AUX
button for 8 seconds until the main menu appears.
2. Press and release the
AUX
button until Remote Pair text is displayed.
3. Press and release the
AUX
button until Pair text is displayed.
4. Press and hold the
AUX
button until tones are played on the LC3 remote.
5. Successful or Failed Pair: The LC3 remote control indicates a successful or
failed pairing on the display.
Note: Please see installation guide for pairing with the 1-way companion remote.
Basic Remote Functions
Button
Level DIRECT
ACCESS
A U X
X 1
A U X
X 2
A U X
X 3
A U X
X 4
A U X
ARM SILENT ARM SENSOR BYPASS ARMED (SILENT
SENSOR)
ARMED (SILENT
TRIGGER)
A U X
DISARM SILENT DISARM VALET MODE CAR FINDER
A U X
REMOTE START RUNTIME RESET TIMER MODE SMART START REAR DEFOGGER
A U X
TRUNK RELEASE AUX 1 AUX 2 AUX 3 AUX 4
A U X
FUNCTION SHIFT CABIN TEMPERA-
TURE REQUEST
(2-WAY ONLY)
RUNTIME CHECK
(2-WAY ONLY)
LAST TRIGGER
REQUEST
(2-WAY ONLY)
Note: See Owner’s guide for more details
Table of Zones
A zone is represented by the number of status LED flashes used by the
system to identify a particular type of input.
Zone Description Input Description
1Trunk Pin 24 pin Harness Blue wire
2Instant trigger: a heavier impact
detected by the shock sensor
Shock sensor.
3Door switch trigger 24 pin Harness Green or Violet wire
4Instant trigger: For optional sensors Optional MUX port
5Ignition trigger 10 pin Harness Pink wire
6Hood Pin 24 pin Harness Grey wire
