Congratulations
Congratulations on the purchase of your state-of-the-art remote start
and security system. Reading this Owner’s Guide prior to using your
system will help maximize the use of your system and its many fea-
tures. For any additional questions please contact your authorized
Directed dealer or contact Directed at 1-800-753-0600 (U.S. only).
Additional Guide Information
Only basic commands, features and essential information are covered
in this compact guide. Your product has many advanced features
which are not discussed here, please consult the expanded online ver-
sion for these on the website listed on the back cover. Most sections in
this guide also contain additional information which can be found in
the expanded online version.
Government Regulations and Safety information
Read the Government Regulations and Warning! Safety
First sections of this manual prior to operating this system.
Warning! Failure to heed this information can result in
death, personal injury or property damage and may also
result in the illegal use of the system beyond its intended
purpose.

Your Warranty
Your system comes with a warranty. The warranty terms are detailed at
the end of this guide. Make sure that you receive the proof of purchase
from your dealer, indicating the product was installed by an autho-
rized Directed dealer.
Replacement remote controls
Please see your authorized dealer or visit us at www.directedstore.
com to order additional remote controls. Remote control part numbers
are found on the back of the device.
Getting Started
Due to transit and storage time prior to your purchase, the battery
charge may have depleted. To ensure proper operation, check the
battery level and connect the included USB cable between it and a
computer if not fully charged. The displayed battery level icon indi-
cates when the battery is fully charged.

Contents
Remote Control Information.................................................................................. 2
Control Center..................................................................................... 3
Specifications...................................................................................... 3
Status Screen Icons.............................................................................................. 4
Using your System............................................................................................... 6
Commands and Confirmations .............................................................. 6
Navigation ......................................................................................... 6
Performing Commands ......................................................................... 6
Fault Condition Alerts........................................................................... 7
Basic commands (function level 1) ........................................................................ 8
Arm ................................................................................................... 8
AUX/Trunk.......................................................................................... 8
Disarm ............................................................................................... 9
Remote Start........................................................................................ 9
Configuring your System.................................................................................... 10
Navigating menus and configuring features ......................................... 10
1-way Companion Remote Control..................................................................... 12
Specifications.................................................................................... 12
Battery Information (Responder HD).................................................................... 13
Battery Information (1-Way) ................................................................ 13
Battery Disposal ................................................................................ 13
Patent Information ............................................................................................. 14
Government Regulations .................................................................................... 14
Warning! Safety First......................................................................................... 16
Installation ........................................................................................ 16
Remote Start Capable ........................................................................ 16
Manual Transmission Vehicles ............................................................. 16
Interference....................................................................................... 18
Upgrades and Batteries ...................................................................... 18
Water/Heat Resistance ...................................................................... 18
Limited lifetime consumer warranty ..................................................................... 19

2© 2013 Directed. All rights reserved.
Remote Control Information
Feature Description
Internal Antenna* Used for transmitting and receiving information
Display Full color display
Command buttons
(4):
A U X
A U X
A U X
A U X
Used to perform arming, disarming, auxiliary channel and
remote start commands
Menu wheel
(located on side)
Used to access Function Level screens, control Status Screen
info center content, and navigates the remote control and
system configuration menus
Reset Button** Resets the remote control’s microprocessor
Mini USB Port Used for charging the internal battery (not shown)
* Avoid touching or grasping the area where the internal antenna is located as it may
reduce range (the internal antenna is located above the display, towards the top).
** Should the remote stop responding to button presses, insert a pin or the end of a
paper clip through the small hole on the remote control rear and press in on the reset
button for one second.

3
© 2013 Directed. All rights reserved.
Control Center
Status LED Control button
Menu
Wheel
Menu
Wheel
Menu
Wheel
The Control Center, typically located on the upper part of the front
windshield sends and receives commands or messages to and from
your system. It consists of:
• The In-vehicle system antenna, for 2 way communication.
• The Status LED, as a visual indicator of the system’s status.
• The Control button, for placing the system into Valet Mode* and
to perform the Emergency Override** operation.
Specifications
Responder HD 2-way SST Remote Control
Power Requirements: 5 VDC, 500 mA
Display: 128 by 128 pixel, 65k, Color Organic Light Emitting Diode
(OLED)
Frequency: 900 - 928 MHz Spread Spectrum
Operating Temperature: -10°C to +40°C (23°F to 104°F)
* See “Remote and System Operations” in online guide.
** See “Alarm Features” in online guide.

4© 2013 Directed. All rights reserved.
Status Screen Icons
Clock
Battery Level
Timer Mode/Smart Start
Remote Start Status
Name Tag
Info Center
Sensor Status
Siren Status
Page/Alerts
System Status
12
34
12
34
12
12
34
12
12
34
12
34

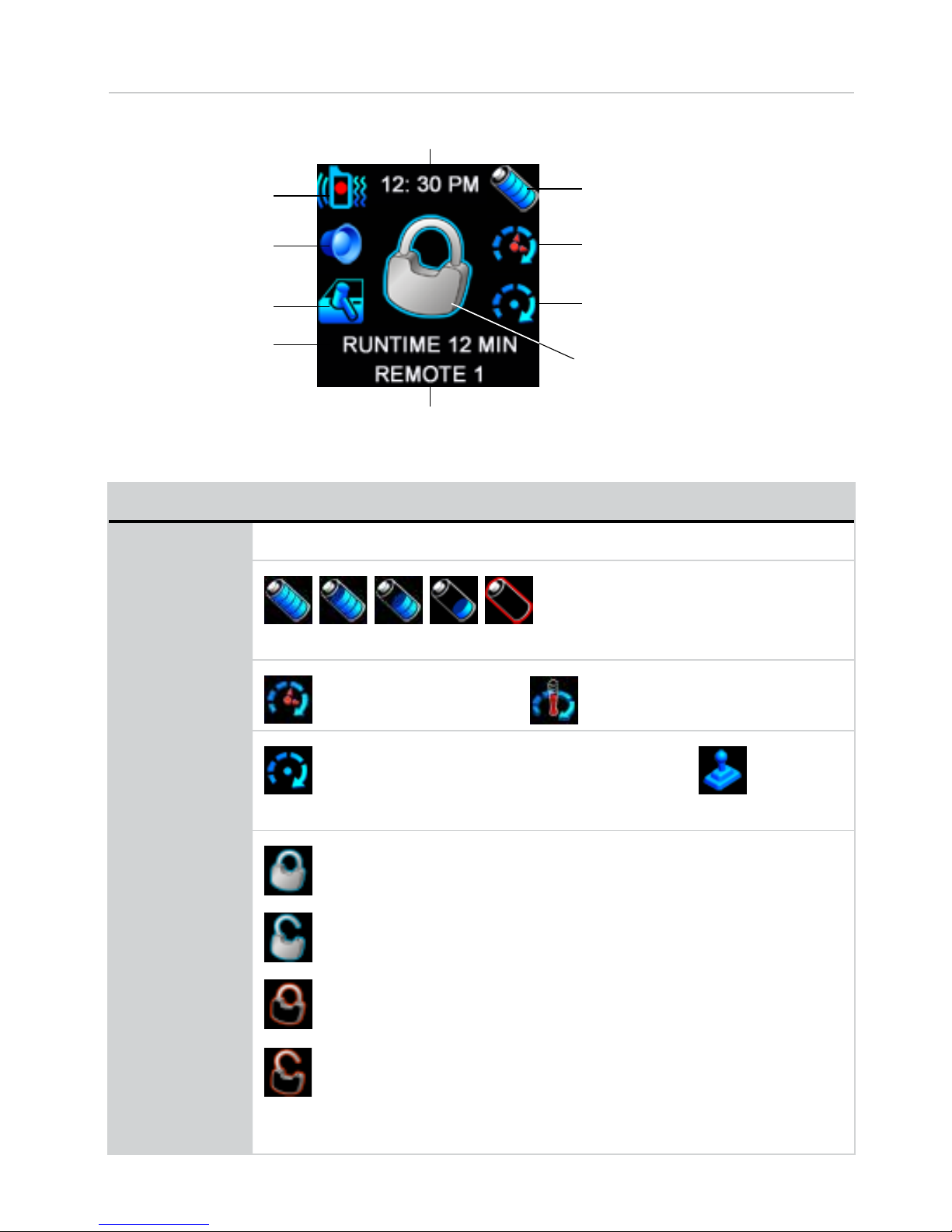

The table below describes all the Status screen icons.
Feature Description
Clock Indicates the time in 12 or 24 hour format
Battery level
Full ¾ ½ ¼ Empty
Timer Mode
/ Smart Start Timer Mode is enabled. Smart Start is enabled.
Remote Start
Remote start is active, the engine is running. Manual
Transmission Start mode is enabled, the engine can be started
System Status The system is armed, the alarm is enabled.
The system is disarmed, the alarm is disabled.
The system is Locked in Valet, the alarm is disabled.
The system is Unlocked in Valet, the alarm is disabled.
Second system operation: If set to control a second system, the
above lock icons will contain a “2”.

5
© 2013 Directed. All rights reserved.

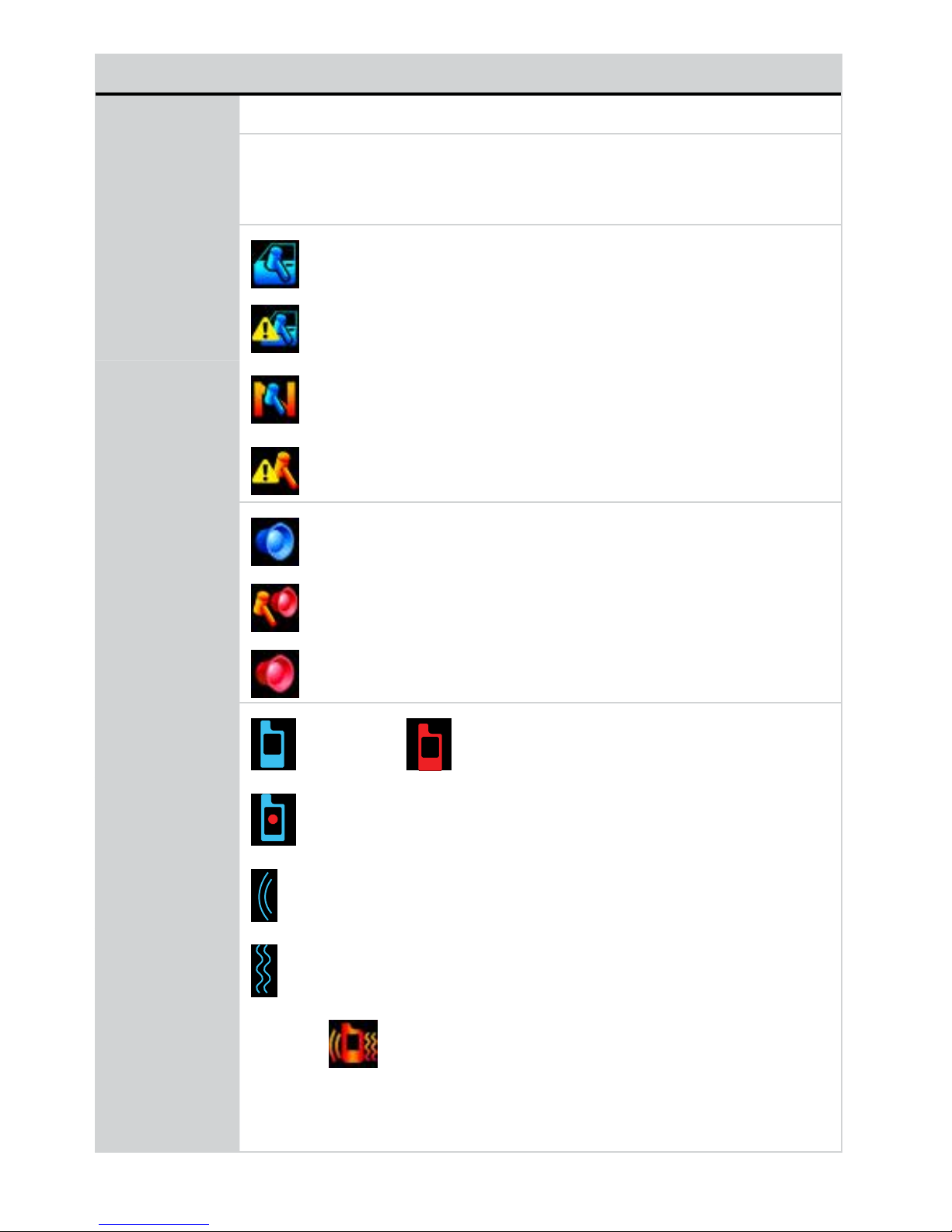

Feature Description
Name Tag Displays a personalized name tag 1-15 characters long
Info Center Displays the Remote Start runtime, Temperature Auto-report, Parking
meter and Countdown timers. While Status screen is on, press the
menu wheel to change the displayed information.
Sensor Status Trigger Zones are enabled and functioning normally.
Trigger zone fault found when arming and is bypassed.
NPC On, a sensor has triggered excessively and is bypassed
Remote Sensor bypass On, the bypassed sensor will not
trigger the alarm.
Siren Status Siren is enabled and will sound for all alarm outputs.
Siren is disabled for sensor triggers, remote is paged for all
triggers (Sensor Silent Arm).
Siren is disabled for all triggers, remote is paged for all trig-
gers (Full Silent Arm).
Page/Alerts Pager On, Pager Off.
Battery Save On (Red dot), Battery Save Off (No dot).
Tone On (icon is not present when Tone is Off).
Vibrate On (icon is not present when Vibrate is Off).
Example Page Off, Vibrate On & Tone On.
Varying combinations of these icons reflect the Paging and Alert
Types menu settings.

6© 2013 Directed. All rights reserved.
Using your System
Commands and Confirmations
Commands, Basic or Advanced, are used to activate system features
and are performed by pressing one of the Command buttons. Basic
commands control the most often used security and remote start fea-
tures while Advanced commands control more specialized features
and request reports.
Confirmations for Basic or Advanced commands are indicated
first by siren chirps and vehicle light flashes, and then as animations,
still screens and beeps or tones on the remote control. A description of
each feature confirmation is found in the following Basic commands
section with the Advanced commands section found online.
Navigation
To navigate to the Status and Function level screens, toggle the menu
wheel up or down, the screens will cycle as shown in the facing dia-
gram. These screens remain displayed for 3 seconds before reverting
to a blank screen. To display a screen for an extended 20 second
period; toggle and hold the menu wheel on the desired screen for this
duration, after which the display reverts to a blank screen.
Performing Commands
Perform Basic commands by pressing one of the command buttons
while the remote control display is blank or the Status screen is On.
Perform Advanced commands by pressing one of the command but-
tons while a Function Level screen is displayed.
Advanced command example: Silent Arm
1. Toggle the menu wheel to display the Function Level 2 screen.

7
© 2013 Directed. All rights reserved.
2. Press the
AUX
AUX
button while this screen is still on to perform the
Silent Arm command.
3. The Responder HD remote will play the SILENT ARM animation
followed by the Status screen.

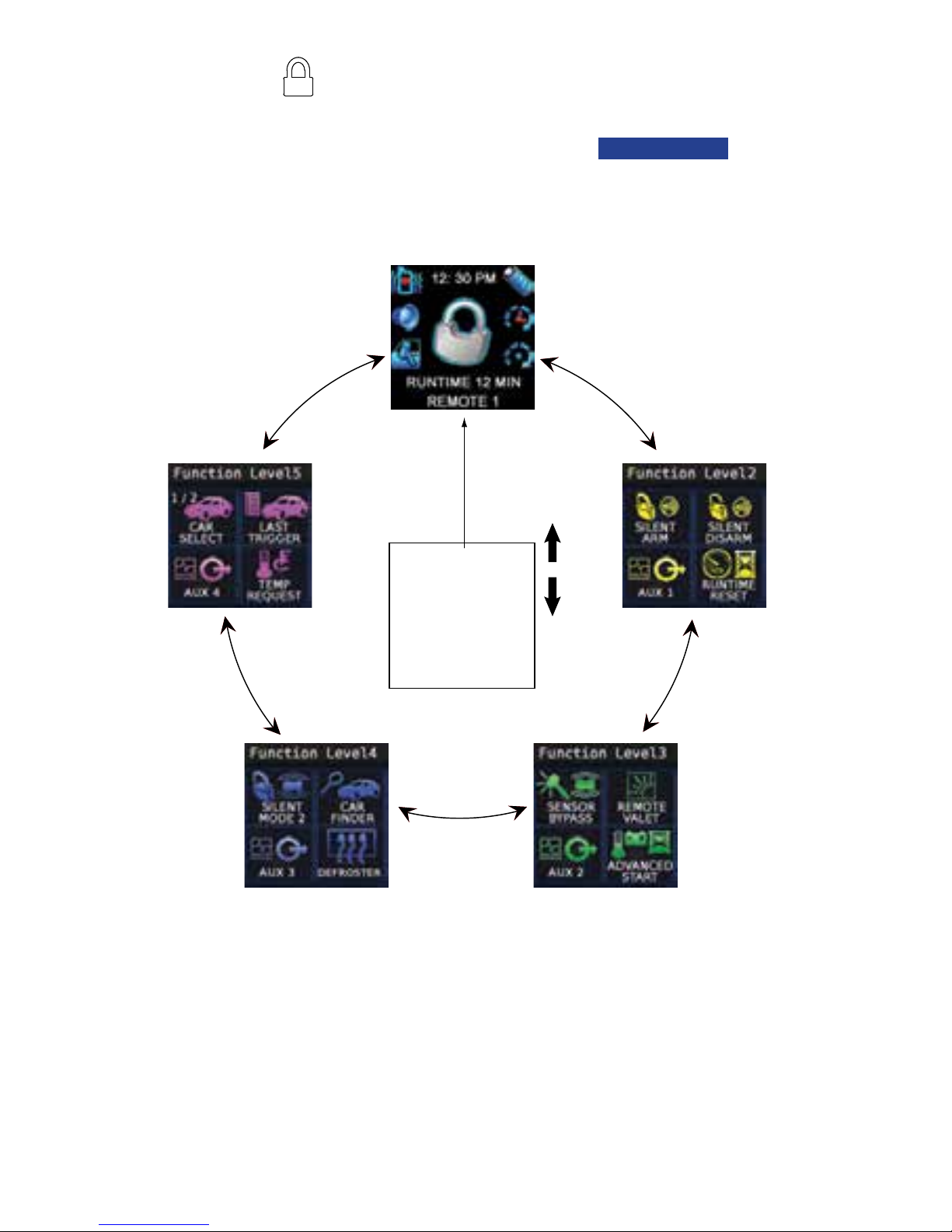

Function Level Displays (2 - 5)
Blank
Display Toggle
Menu Wheel
Up or Down
Status Screen
Fault Condition Alerts
If, when performing a command, a condition exists that does not al-
low the activation of a feature, a fault screen and tone plays as an
alert. For more details on the condition and possible resolutions, use
the fault screen title and locate the respective section through the table
of contents.

8© 2013 Directed. All rights reserved.
Basic commands (function level 1)
Arm
Press and release
AUX
AUX
The alarm arms, doors lock (if connected), and the siren chirps and
lights flash once. The ARMED animation and beeps play to confirm. If
Valet mode* is On the doors lock and the LOCKED (IN VALET) anima-
tion and tone play. Exit Valet mode to arm the alarm normally.
If a trigger zone fault is detected the siren chirps once again and the
Trigger Zone Fault report** plays.
To Arm and Panic
Press and hold
AUX
AUX
The alarm Arms (or Locks in Valet) and, after 2 seconds, sounds
the siren and flashes the lights. The PANIC animation and siren
tones play to confirm. Press the
AUX
AUX
or
AUX
AUX
button to stop the out-
put.
AUX/Trunk
Press and hold AUX
AUX
The Trunk opens (if connected) when this button is pressed for 2 sec-
onds. The TRUNK RELEASE animation and tones play to confirm.

9
© 2013 Directed. All rights reserved.
Disarm
Press and release
AUX
AUX
The alarm disarms, doors unlock (if connected), and the siren chirps
and lights flash twice. The DISARM animation and beeps play to con-
firm. If Valet mode* is On the doors unlock and the UNLOCK (IN VALET)
animation and tone play.
More than 2 siren chirps and remote beeps indicates a trigger has
occurred. The Disarm animation is then replaced by the Alarm Trigger
report.**
Remote Start
Press and release
AUX
AUX
Activates (or if On, deactivates) the remote starter. The engine and lights
turn On and the REMOTE START ACTIVATED animation and On tones play,
or the engine and lights turn Off and the REMOTE START DEACTIVATED
animation and Off tones play to confirm. The Remote Start status icons
in the Status screen are updated accordingly. If Remote Start fails to
activate, a fault screen and tone plays to identify the reason.***
* See “Remote and System Operations” in online guide.
** See “Alarm Features” in online guide.
*** See “Remote Start Not Available” in online guide.
For Manual transmission vehicles see the “Manual Transmission Start (MTS
mode)” in online guide.

10 © 2013 Directed. All rights reserved.
Configuring your System
You can customize the way the HD remote communicates information
and adjust a variety of system features in the Settings, Adjustments and
Options configuration menus. The following features are listed and
defined in the same sequential order as they appear on your system.
Button Auto Lock
Alert Types
Animations
Button Beeps
Paging
Temp Units
Clock Settings
Timer Start
Smart Start
Remote Pair
Sensor Adjust
Power Off
Parking Meter
Countdown Timer
Name Tags
Demo Mode
Level 5 screen
No features, used
only to exit menus
Navigating menus and configuring features
Configuring your system is performed via the menu wheel and com-
mand buttons.
Menu
Wheel Press in on wheel to Enter
Toggle Up
Toggle Down
Side View

11
© 2013 Directed. All rights reserved.
The following instructions discuss how to access and configure the
many features available, allowing you to customize your HD remote
control to your personal preferences.

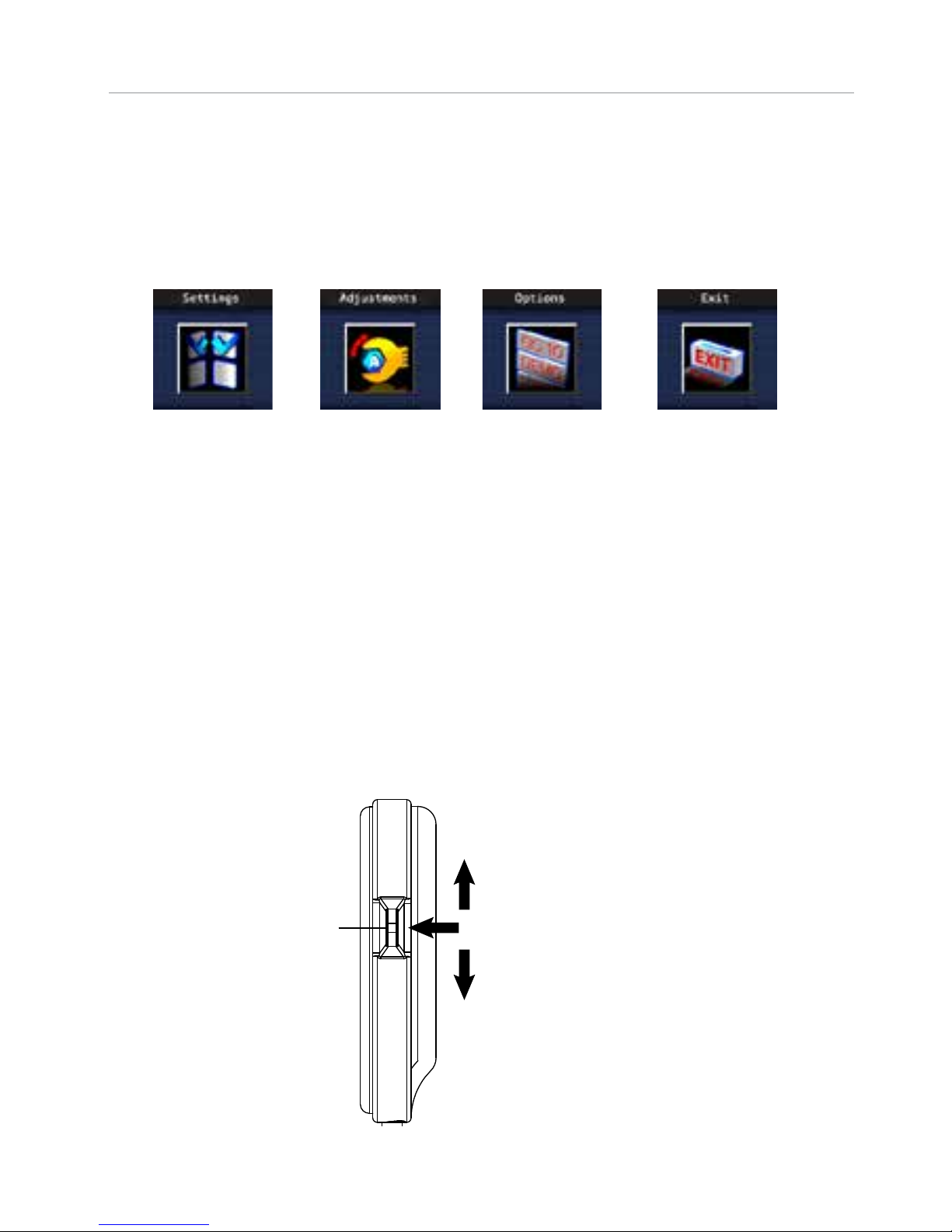

To access the main menu screens (from a blank display):
1. Press and hold the menu wheel for 3 seconds, the remote control
enters the main menu and displays the Settings screen.
2. Toggle the menu wheel to scroll through the Settings, Options,
Adjustments and Exit main menu screens.
3. Press the menu wheel to enter a displayed main menu.
4. Toggle the menu wheel to highlight a menu item.
5. Press the menu wheel to access the menu item screen.
Making selections, go back and exit:
6. Toggle the menu wheel to move the highlight to the desired con-
figuration and then press to set. The selected configuration is
indicated by the pointer on the right. Continue to hold the menu
wheel to return to normal operation or release to remain within
the menu. Highlight Back and press to return to the previous
menu or continue holding to return to normal operation.
Adjust timers and features
7. When adjustment screens are accessed, the current settings are
displayed. Toggle the menu wheel to highlight a settings field
and then press it to adjust the setting. Follow the on-screen in-
structions or the description in each feature section to adjust the
feature settings.
Menus are automatically exited after a 30 second lapse in button
activity.

12 © 2013 Directed. All rights reserved.
1-way Companion Remote Control
Basic
Commands
Advanced
Commands
(Function
Level 1)
Function
Level 2
Function
Level 3
Function
Level 4
Function
Level 5
Button
Level Direct Access
A U X
x 1
A U X
x 2
A U X
x 3
A U X
x 4
A U X
Arm/Lock
(Panic)
Silent Arm Sensor
Bypass
Sensor Silent
Mode
Full Silent
Mode*
A U X
Disarm/
Unlock
Silent Disarm Remote Valet Car Finder
A U X
Remote Start Runtime
Reset
Timer
Mode*
Smart Start* Defroster*
A U XAux/Trunk AUX 1 AUX 2 AUX 3 AUX 4
A U X
Not Used Used to access function levels for Advanced Commands
(
A U X
with multiplier in third row implies button presses)
* These Function Level commands on the 1-way do not reside in the exact same Function
Level location as on the HD remote control.
Specifications
1-way SST Remote Control
Power Requirements: 3 VDC, CR2032 Coin Cell Battery
Frequency: 900 MHz
Operating Temperature: -10°C to +40°C (23°F to 104°F)

13
© 2013 Directed. All rights reserved.
Battery Information (Responder HD)
The Responder HD remote control is powered by an internal recharge-
able battery that can be serviced only through an authorized Directed
dealer.
Warning! When charging, NEVER use a cable other
than the one provided or plug into an unspecified
source. Injury, severe damage or explosion may occur
when connected to any other products or used in a
way not intended.
Battery Information (1-Way)
The 1-way companion remote is powered by one 3V coin cell lithium
battery (P/N CR-2032) that should last approximately one year under
normal use.
Battery Disposal
Directed cares about the environment. If you need to dis-
pose of the battery, please do so in accordance with your
municipal requirements for battery disposal.

14 © 2013 Directed. All rights reserved.
Patent Information
This product is covered by one or more of the following United States
patents:
Remote Start Patents:
5,349,931; 5,872,519; 5,914,667; 5,952,933; 5,945,936;
5,990,786; 6,028,372; 6,467,448; 6,561,151; 7,191,053;
7,483,783
Vehicle Security Patents:
5,467,070; 5,532,670; 5,534,845; 5,563,576; 5,646,591;
5,650,774; 5,673,017; 5,712,638; 5,872,519; 5,914,667;
5,952,933; 5,945,936; 5,990,786; 6,028,505; 6,452,484
Other patents pending.
Government Regulations
This device complies with Part 15 of FCC rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency en-
ergy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television, which can be

15
© 2013 Directed. All rights reserved.
determined by turning the equipment OFF and ON, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
Remote Controls
To satisfy FCC RF exposure compliance requirements, this device should be
used in hand-held, hand operated configurations only. The device and its an-
tenna must maintain a separation distance of 20 cm or more from the person’s
body, except for the hand and wrists, to satisfy RF exposure compliance. This
device is designed to be used in a person’s hands and its operating configu-
rations do not support normal transmissions while it is carried in pockets or
holsters next to a person’s body.
Control Center
To satisfy FCC RF exposure compliance requirements, the device and its an-
tenna must maintain a separation distance of 20 cm or more from the person’s
body, except for the hand and wrists, to satisfy RF exposure compliance.
This device complies with the Industry Canada Radio Standards Specification
RSS 210. Its use is authorized only on a no-interference, no-protection basis;
in other words, this device must not be used if it is determined that it causes
harmful interference to services authorized by IC. In addition, the user of this
device must accept any radio interference that may be received, even if this
interference could affect the operation of the device.
WARNING! Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this de-
vice.

16 © 2013 Directed. All rights reserved.
Warning! Safety First
Please read the safety warnings below before proceeding. Improper
use of the product may be dangerous or illegal.
Installation
Due to the complexity of this system, installation of this product must only be
performed by an authorized Directed dealer. If you have any questions, ask
your retailer or contact Directed directly at 1-800-753-0600.
Remote Start Capable
When properly installed, this system can start the vehicle via a command
signal from the remote control transmitter. Therefore, never operate the system
in an enclosed area or partially enclosed area without ventilation (such as a
garage). When parking in an enclosed or partially enclosed area or when
having the vehicle serviced, the remote start system must be disabled using the
installed menu wheel. It is the user’s sole responsibility to properly handle and
keep out of reach from children all remote control transmitters to assure that the
system does not unintentionally remote start the vehicle. THE USER MUST IN-
STALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA
ADJACENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIV-
ING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STOR-
AGE AREA MUST AT ALL TIMES REMAIN CLOSED. These precautions are the
sole responsibility of the user.
Manual Transmission Vehicles
Remote starters on manual transmission vehicles operate differently than those
with automatic transmission because you must leave your car in neutral. You
must read this Owner’s Guide to familiarize yourself with the proper procedures
regarding manual transmission remote starters. If you have any questions, ask
your authorized Directed dealer or contact Directed at 1-800-753-0600.

17
© 2013 Directed. All rights reserved.
Before remote starting a manual transmission vehicle, be sure to:
• Leave the vehicle in neutral and be sure no one is standing in front or
behind the vehicle.
• Only remote start on a flat surface
• Have the parking brake fully engaged
WARNING! It is the responsibility of the owner to ensure the parking/emer-
gency brake properly functions. Failure to do so can result in personal injury or
property damage. We recommend the owner have the parking / emergency
brake system inspected and adjusted by a qualified automotive shop biannu-
ally.
Use of this product in a manner contrary to its intended mode of operation may
result in property damage, personal injury, or death. (1) Never remotely start
the vehicle with the vehicle in gear, and (2) Never remotely start the vehicle
with the keys in the ignition. The user must also have the neutral safety feature
of the vehicle periodically checked, wherein the vehicle must not remotely start
while the car is in gear. This testing should be performed by an authorized
Directed dealer in accordance with the Safety Check outlined in the product
installation guide. If the vehicle starts in gear, cease remote start operation im-
mediately and consult with the authorized Directed dealer to fix the problem.
After the remote start module has been installed, contact your authorized dealer
to have him or her test the remote start module by performing the Safety Check
outlined in the product installation guide. If the vehicle starts when performing
the Neutral Safety Shutdown Circuit test, the remote start unit has not been
properly installed. The remote start module must be removed or the installer
must properly reinstall the remote start system so that the vehicle does not start
in gear. All installations must be performed by an authorized Directed dealer.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN
