Congratulations
Congratulations on the purchase of your state-of-the-art Directed Digi-
tal System. Reading this Owner’s Guide prior to using your system will
help maximize the use its many features. For more information please
visit us online (see back cover for URL). For any additional questions
please contact your authorized Directed dealer or Directed at 1-800-
753-0600. Additional support is also available at: http://support.
directed.com.
Important information
Government Regulations and Safety information
Read the Government Regulations and Warning! Safety
First sections of this manual prior to operating this system.
Warning! Failure to heed this information can result in
death, personal injury or property damage and may also
result in the illegal use of the system beyond its intended
purpose.
Your Warranty
Your system comes with a warranty. The warranty terms are detailed at
the end of this guide. Make sure that you receive the proof of purchase
from your dealer, indicating the product was installed by an autho-
rized Directed dealer.
G7857 2018 02

iv © 2018 Directed. All rights reserved.
Replacement remote controls
Please see your authorized dealer or visit us at www.directedstore.
com to order additional remote controls. Remote control RPNs (Re-
placement Part Numbers) are found on the back of the device.

Contents
Congratulations ................................................................................................. iii
Important information ........................................................................................ iii
Government Regulations and Safety information .....................................iii
Your Warranty.....................................................................................iii
Replacement remote controls ................................................................. iv
Getting Started.................................................................................................... 4
Charging the remote control:................................................................. 4
Keys to using this manual...................................................................... 4
Responder LE 2-Way Remote Control.................................................................... 6
Control Center .................................................................................................... 7
Using your System............................................................................................... 8
Commands and Confirmations .............................................................. 8
Performing Commands ......................................................................... 8
Remote Control Command table ............................................................ 9
Fault Condition Alerts........................................................................... 9
Basic Commands (Direct Access) ........................................................................ 10
Arm ................................................................................................. 10
Disarm ............................................................................................. 11
Remote Start...................................................................................... 11
AUX/Trunk........................................................................................ 11
Advanced Commands: (Level 1) ......................................................................... 12
Silent Arm......................................................................................... 12
Runtime Reset .................................................................................... 13
AUX 1.............................................................................................. 13
Temperature Request .......................................................................... 13
Advanced Commands: (Level 2) ......................................................................... 14
Sensor Bypass................................................................................... 14
Alarm/System Valet .......................................................................... 14
Timer Start* ...................................................................................... 15
AUX 2.............................................................................................. 15
Arm Status ........................................................................................ 15
Advanced Commands: (Level 3) ......................................................................... 16
Sensor Silent Arm* ............................................................................ 16
Smart Start**.................................................................................... 16
AUX 3.............................................................................................. 17
Runtime Remaining ............................................................................ 17
Advanced Commands: (Level 4) ......................................................................... 18
Full Silent Arm* ................................................................................. 18
Start Valet** .................................................................................... 18
AUX 4.............................................................................................. 19
Remote Control Configuration ............................................................................ 19

Remote Features ............................................................................... 19
Car 2............................................................................................... 22
Remote Beep..................................................................................... 22
Sensor Adjust .................................................................................... 22
Remote Pairing Mode......................................................................... 22
Alarm Features ................................................................................................. 24
Normal Arm Protection....................................................................... 24
Sensor Silent Arm Protection................................................................ 24
Full Silent Arm Protection .................................................................... 25
Sensor Warn Away ........................................................................... 25
Full Trigger........................................................................................ 25
Emergency Override .......................................................................... 25
Trigger Zone Fault Report.................................................................... 26
Alarm Report..................................................................................... 26
NPC (Nuisance Prevention Circuitry).................................................... 27
Remote Start Features ........................................................................................ 28
Key Takeover..................................................................................... 28
Remote Start Safelock......................................................................... 28
Disabling Remote Start ....................................................................... 28
Advanced Start ................................................................................. 29
Temperature Reporting........................................................................ 30
Remote Start Time-out Alert.................................................................. 30
Pit Stop Mode ................................................................................... 30
MTS Mode (Manual Transmission Start)................................................ 31
Turbo Timer Mode.............................................................................. 32
Remote Start Faults............................................................................. 33
Remote and System Operations.......................................................................... 34
Passive Arming*................................................................................ 34
Auto Re-arming*................................................................................ 34
Onetime Bypass* .............................................................................. 34
Manual Valet Mode ........................................................................... 35
Power Save....................................................................................... 35
Rapid Resume ................................................................................... 35
Automatic Remote Updates ................................................................. 36
Out of Range .................................................................................... 36
No Remote Output............................................................................. 36
Feature not Available ......................................................................... 37
Car Select......................................................................................... 37
System Expansion Options................................................................................. 38
Battery Information............................................................................................ 40
Low Battery....................................................................................... 40

Battery Information (1-way)................................................................................ 41
Battery Replacement........................................................................... 41
Glossary of Terms.............................................................................................. 42
Patent Information ............................................................................................. 43
Government Regulations .................................................................................... 44
Warning! Safety First......................................................................................... 46

4© 2018 Directed. All rights reserved.
Getting Started
Charging the remote control:
1. Plug the USB end of the provided USB cable into the USB port
on a computer. Insert the micro-USB connector into the micro-
USB port located on the side of the remote control. The LED
flashes to indicate the remote control is charging (The remote
remains operational while charging and can command the
system).
2. Once fully charged, the transmit LED will flash once every two
seconds.
3. The remote control is then ready for use. Disconnect the cable
from the remote control end first.
Note To check the battery level, press the
AUX
AUX
button 5 times. The
LEDs turn on, from bottom to top to indicate the current bat-
tery charge.
Note If the battery is excessively depleted when charging, func-
tionality may be delayed while it charges to the minimum
voltage required to operate the display, after which normal
charging resumes.
Keys to using this manual
Specific actions (in bold type) and style conventions are used consis-
tently throughout this manual, they are as follows:
• Press: implies pushing in and releasing a button.
• Hold: is used after Press actions when a button needs to be held
in position for an extended period of time, typically several sec-
onds.

5
© 2018 Directed. All rights reserved.
• Italicized words denote section/sub headings in this guide and
can be located through the table of contents.
• An asterisk (*) when used after a word or phrase denotes that
additional details can be found in related sections usually noted
at the bottom of the page or end of the section.
• Confirmation LED’s are identified by the command/function but-
ton they are associated with.

6© 2018 Directed. All rights reserved.

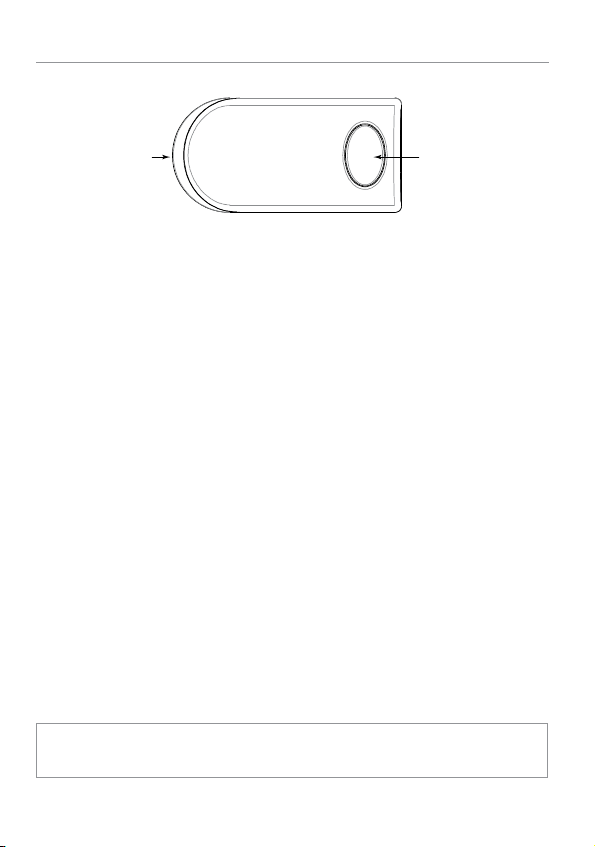

Responder LE 2-Way Remote Control
Feature Description
Internal Antenna Used for transmitting and receiving* information
Command buttons (4)
A U X
A U X
A U X
A U X
Used to perform Arming, Disarming, Auxiliary channel and
Remote Start commands.
Function button
A U X
Used to access function levels for commands, configura-
tion menus for programming, Car Selection, and to request
reports, as well as 2-way remote battery voltage.
Confirmation LED’s Each button has an associated LED next to it that is active
during related operations. These LEDs are labeled respec-
tively as: Arm LED, Disarm LED, Remote Start LED, and AUX
LED
Micro-USB Port The USB cable plugs into this port to charge the battery
(located on the remote control side).
* 2-way communication is only applicable to the Responder LE
remote control.
