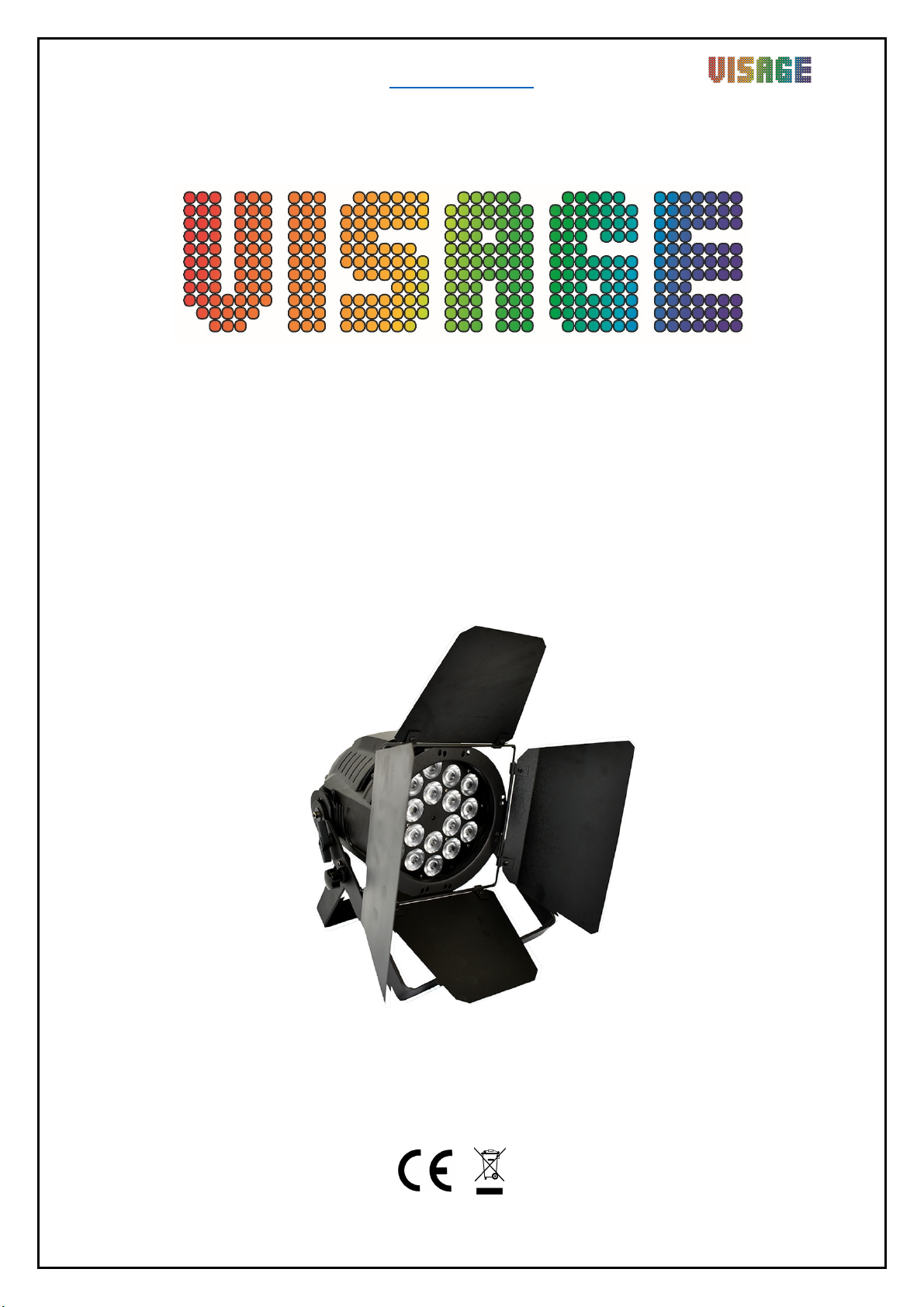

VIS0483
Multipar 18 x 7in1 LED
RGBWA + UV + L)
User Manual
KEEP THIS MANUAL FOR FURTHER NEEDS

Visage Lighting & Effects www.batmink.co.uk
CAUTION
Keep this device away from rain and moisture.
Unplu main lead before openin the housin .
For your own safety, please read this user manual carefully before you initially use the product.
All persons involved with the installation, operation and maintenance of this device must:
•be qualified
•follow the instruction of this manual
•consider this manual to be part of the total product
•keep this manual for the entire service life of the product
•pass this manual on to every further owner or user of the product
•download the latest version of the user manual from the Visa e Li htin website
Unpacking your Multipar 18x7in1
Before you initially use your Multipar 18x7in1, please ensure there is no dama e caused by
transportation. Should there be any faults or dama es, consult Batmink Distribution and do not use
the device.
SAFETY INSTRUCTIONS
Please ensure you have implemented all safety measures when operatin this product. With a
dan erous volta e you may suffer electric shock when touchin the wires. This device has left our
premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe
operation, it is absolutely necessary for the user to follow the safety instruction and warnin notes
written in this manual.
Important:
Dama es caused by the disre ard of this user manual are not subject to warranty. Batmink
Distribution will not accept liability for any resultin defect or problem. Please ensure you follow the
health and safety recommendations below when usin the PAR 64-TRI 9-4 IN 1:
•If the device has been exposed to temperature fluctuation (e. . after transportation), please
do not switch it on immediately. Fluctuatin temperatures may cause dama e to your device.
We recommend that you leave your device switched off until the product has maintained
room temperature
•Please make sure that there are no obvious transport dama e. Should you notice any dama e
on the A/C connection cable or on the casin please contact Batmink Distribution

Visage Lighting & Effects www.batmink.co.uk
•Please handle the power cord with care. Never modify, bend, strain mechanically, put
pressure on, pull or heat up the power cord
•If an extension cord is required, make sure that the core diameter is sufficient for the required
power consumption of the device
•Always disconnect from the main power source when the device is not in use or before
cleanin it
•Please ensure you keep this device clean and in ood condition. If the power plu or the device
is dusty, the device must be taken out of operation, disconnected then be cleaned with a dry
cloth. Dust may reduce the insulation which could cause an electric shock. More severe levels
of dirt in the device should be removed by a specialist
•Please ensure you keep this device away from liquids or fluctuatin temperatures that may
cause condensation. If the device is on contact with any liquid, please disconnect the device
from the main power source immediately and leave to dry out before usin a ain. If there is
any dama e to the device please consult a specialist
HEALTH WARNING
Never look directly into the li ht source as this may cause dama e to eyes.
Keep away from children and amateurs.
Never leave this device runnin unattended.
OPERATING & INSTALLATION CONSIDERATIONS
•This product is only allowed to be operated with an alternatin volta e of 90V/240V,50/60 Hz
and was desi ned for indoor use only. This device is desi ned for professional use (e. . on
sta e in discotheques, theatres etc.)
•Please do not leave this device runnin for lon er than recommended to ensure the device
operates efficiently for future use
•If used in conjunction with a smoke machine make sure that the device is never exposed to
the direct smoke jet and is installed in a distance of 0.5 meter between the smoke machine
and device
•The ambient temperature must always be between –5ºC and +45ºC
•The relative humidity must not exceed 50% with an ambient temperature of 45ºC.
•This device must only be operated in an altitude between -20 and 2000 m over NN
•The minimum distance between li ht-output and the illuminated surface must be more than
0.1 meters.
•This device is only allowed for an installation via mountin bracket. In order to safe uard
sufficient ventilation leave 50 cm of free space around the device.
•The installation of the device must be built and constructed in a way that can hold 10 times
the wei ht for 1 hour
•When installin the device, make sure there is no hi hly flammable material (i.e. decorations)
within a minimum of 0.5m

Visage Lighting & Effects www.batmink.co.uk
IMPORTANT OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE OF INSTALLTION, includin
(but not limited to):
•calculatin workin load limit
•periodic safety inspections of all installation materials bein used with the device
•safe install areas out of reach of people if the device is lowered from the ceilin or hi h points
•professional trussin systems must always be used with secure clamps
•secure installation to ensure the device does not swin freely
•the use of safety rope at least 12 times the wei ht of the fixture
•A maximum drop distance never exceedin 20cm
FIRE SAFETY
Connection cables are as follows:
Cable
Pin
International
Brown
Live
L
Blue
Neutral
N
Yellow/Green Earth
INSTRUCTIONS FOR USE
DMX – 512 connection. Wires must not meet each other, otherwise only use a stereo shielded cable
and 3-pin XLR plu and connector in order to connect the controller with the fixture, or one fixture
with another XLR connector.
DMX
-
input
DMX
-
output
XLR mountin
-
socket XLR
XLR mountin
-
socket:
1. Ground
1. Ground
2. Si nal(
-
)
2. Si nal(
-
)
3. Si nal(+)
3. Si nal(+)
When usin controllers with this device you can connect the DMX output of the controller directly
with the DMX input of the first fixture in the DMX chain. If you wish to connect DMX controller with
other XLR outputs you will need to use an adapter cable.
Building a serial DMX chain. Connect the DMX output of the first fixture in the DMX chain with the
DMX input of the next fixture. Always connect one output with the input of the next fixture until all
fixtures are connected.
Operational Modes:
The Multipar has seven modes of operation, manual dimmer colour mode, sound active mode, auto
run mode, static colour mode, pro ram select mode, slave mode and DMX mode.

Visage Lighting & Effects www.batmink.co.uk
The Display:-
Below is a chart showin the various modes of operation and readin s shown on the display.
MODE
Manual
SET UP Address UP/DOWN
Manual
Instruction
DMX MODE
Address
d001
-
d512
Sets the DM
X start address
Ch07
The unit operates at 7 DMX channels
Ch09
The unit operates at 9 DMX
channels
Ch10
The Unit operates at 10 DMX channels
Ch13
The Unit operates at 13 DMX channels
SLAVE MODE
Slave mode
SLAu
The unit operates in slave mode
D
IMMER
MODE
Red Dimmer
r.000
–
r.255
Adjust the intensity of the red colour
Green Dimmer
G.000
–
G.255
Adjust the intensity of the reen colour
Blue Dimmer
b.000
–
b.255
Adjust the intensity of the blue colour
White Dimmer
U.000
–
U.255
Adjust the int
ensity of the white colour
Amber Dimmer
A.000
–
A.255
Adjust the intensity of the amber colour
UV Dimmer
u.000
–
u.255
Adjust the intensity of the UV colour
Lime Green Dimmer
L.000
–
L.255
Adjust the intensity of the Lime Green colour
Colour Temper
ature
Cr.00
–
Cr.08
Select
the 8 colour temperature
Flash Frequency F5.00 – F5.15 Adjust the flash speed,F5.00 is flash off,
F5.01 is slowest F5.15 is fastest
SOUND
MODE
Mode Select So01 -So.16 Select the 16 built in sound modes
Sensitivity Select SJ -1 – SJ - 8 Adjust the sensitivity of the sound-active, SJ-
1 is the lowest level, SJ
-
8 is the hi hest
AUTO RUN
MODE
Dreamin mode set
AF.01
–
AF.16
Selection of 16 built in Fade modes
Jumpin mode set
AJ.01
–
AJ.16
Selection of 16 built in Jump modes
Auto Dreamin &
jumpin mode
A – JF Set the fittin into Fade mode followed by
Jump mode in continuous operation
Speed set SP.01 – SP.16 Adjusts the speed of either Jump or Fade
modes
STATIC
COLOUR
SELECT
MODE
Colour Select CL.00 – CL.63 Select the 63 static Colours
Flash
F5.00
–
F5.15
Adjust the flash speed, F5.00 is flash off,
F5.01 is slowest, F5.15 is fastest.
OTHER MODE Display ON/OFF
don
The LED di ital display will always be ON
doff
The LED display will always be OFF

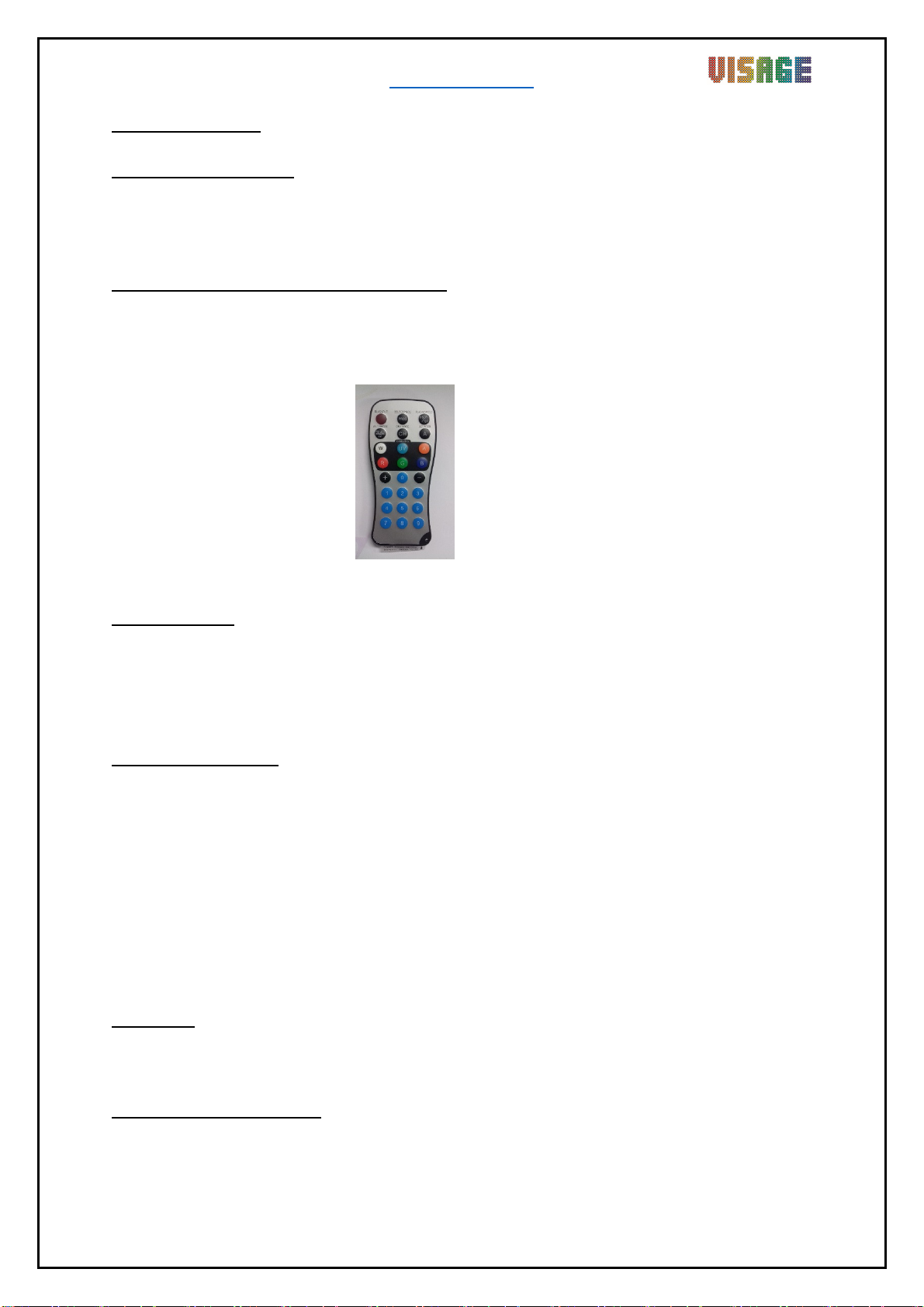

IR Remote ON/OFF
I ron
IR function
switched ON
I rof
IR function swit
ched OFF
Display
Normal/Reverse
Stnd LED di ital display normal
LED di ital display reversed
Initialization mode
dEFA
Initialise the unit at extra factory settin
MODE
SET UP
UP
DOWN
3

Visage Lighting & Effects www.batmink.co.uk
DMX MODE
7 Channel Mode
Channel
Value
Function
CH1 0-255 Red Dimmer- 0% - 100%
CH2
0-255
Green
Dimmer
-
0%
-
100%
CH3
0-255 Blue Dimmer- 0% - 100%
CH4 0-255 White Dimmer- 0% - 100%
CH5 0-255 Amber Dimmer- 0% - 100%
CH6 0-255 Ultra Violet Dimmer – 0% - 100%
CH7 0-255 Lime Green Dimmer 0%-100%
9 Channel Mode
Channel
Function
Instruction
CH1 0-255 Red Dimmer- 0% - 100%
CH2 0-255 Green Dimmer- 0% - 100%
CH3 0-255 Blue Dimmer- 0% - 100%
CH4
0-255 White Dimmer- 0% - 100%
CH5 0-255 Amber Dimmer- 0% - 100%
CH6 0-255 Ultra Violet Dimmer – 0% - 100%
CH7
0-255
Lime Green Dimmer 0%
-
100%
CH8 0-15
16-255
STROBING
No Function
Strobe Slow-Fast
CH9 0-255
Master
Dimmer
0% -100%

Visage Lighting & Effects www.batmink.co.uk
10 Channel Mode
Channel
Function
Instruction
CH1 0-255 Red Dimmer- 0% - 100%
CH2 0-255 Green Dimmer- 0% - 100%
CH3 0-255 Blue Dimmer- 0% - 100%
CH4
0-255 White Dimmer- 0% - 100%
CH5 0-255 Amber Dimmer- 0% - 100%
CH6 0-255 Ultra Violet Dimmer – 0% - 100%
CH7
0-255
Lime Green Dimmer 0%
-
100%
CH8 0-255 Colour Temperature 2700K-5600K
CH9 0-15
16-255
Strobe
NO Function
Strobe Slow- Fast
CH10 0-255 Master Dimmer 0%-100%
13 Channel Mode
Channel
Function
Instruction
CH1 0-255 Red Dimmer- 0% - 100%
CH2 0-255 Green Dimmer- 0% - 100%
CH3 0-255 Blue Dimmer- 0% - 100%
CH4
0-255 White Dimmer- 0% - 100%
CH5 0-255 Amber Dimmer- 0% - 100%
CH6 0-255 Ultra Violet Dimmer – 0% - 100%
CH7
0-255
Lime
Green Dimmer 0%
-
100%
CH8 0-255 Colour Macros Select from 63 colours
CH9 0-255 Colour Temperature 2700K-5600K

Visage Lighting & Effects www.batmink.co.uk
CH10
0-31
32-38
39-45
46-51
52-58
59-65
66-72
73-79
80-86
87-93
94-100
101-107
108-114
115-121
122-128
129-135
136-141
142-148
149-155
156-162
163-169
170-176
177-183
184-190
191-197
198-204
205-211
212-218
219-220
221-227
228-234
235-241
242-255
P
ro rams
No Function
Pro ram 1
Pro ram 2
Pro ram 3
Pro ram 4
Pro ram 5
Pro ram 6
Pro ram 7
Pro ram 8
Pro ram 9
Pro ram 10
Pro ram 11
Pro ram 12
Pro ram 13
Pro ram 14
Pro ram 15
Pro ram 16
Pro ram 17
Pro ram 18
Pro ram 19
Pro ram 20
Pro ram 21
Pro ram 22
Pro ram 23
Pro ram 24
Pro ram 25
Pro ram 26
Pro ram 27
Pro ram 28
Pro ram 29
Pro ram 30
Pro ram 31
Pro ram 32
CH11 0-255 Pro ram Speed – Slow to Fast
CH12
0-15
16-255
Strobe
No Function
Strobe- Slow to Fast
CH13 0-255 Master Dimmer 0%-100%
SLAVE MODE
Press “MODE” button, select slave mode, the display will show SL.Au,
SET UP, UP or DOWN buttons do not work.

Visage Lighting & Effects www.batmink.co.uk
DIMMER MODE
Press “MODE” button select the manual dimmer colour select mode. The display will show
red as r.000 – r.255, press the “SET UP” to choose the different colours as shown in the
above table, ie reen G.000-G.255 etc, then press the “UP” and “DOWN” button to set the
dimmin rate 0-255.
Colour temperature can be selected by pressin the “MODE” button until the display shows
“Cr.00 – Cr.08” then press the “UP” and “DOWN” buttons to select from the ei ht available
colours.
The Flash speed can be chan ed by selectin “MENU” until the display shows “F5.00 –
F5.15, you can press the “UP” and “DOWN” button to select from the 15 available flash
speeds.
SOUND ACTIVE MODE
There are two selections in this mode, one for sound activation and the second for sound
sensitivity.
Press “SET UP” button until the display shows “So01- So16”, then press the “UP” and
“DOWN” button to select from the sixteen different sound modes.
To select the Sensitivity, press the “SET UP” button until the display shows SJ-1 – SJ-8, then
press the “UP and DOWN buttons to select, 1 is sound sensitivity off, no 2 is the lowest
sensitivity and 8 is the hi hest.
AUTO RUN PROGRAM MODE
Press MODE button and select the auto pro rams, there are three available which can be
selected by pressin “SET UP”.
Colour Fade (dreamin ) mode; Press SET UP until the display shows AF01 to AF16, then
press the UP and DOWN button to select from the sixteen available pro rams.
Colour Jumpin ; Press SET UP until the display shows AJ01 to AJ16, then press the UP and
DOWN button to select from the sixteen available pro rams.
Auto Fade and Jumpin Mode; Press SET UP until the display shows A-JF the fade mode and
jumpin mode will continuously operate one after the other. The UP and DOWN buttons do
not work in this mode.
Auto Fade/Jump Speed control; Press SET UP until the display shows SP01 to SP16, then
press the UP and DOWN button to select from the sixteen available speeds, 1 bein the
slowest and 16 the fastest.
STATIC COLOUR SELECTION
Press the MODE button until the display shows CL.**, there are two different modes, colour
selection and flash speed.
Static Colour select; Press “SET UP” button until the display shows CL.00 – CL.63, then press
the UP and DOWN to select from the 63 colours available.
Flash Speed select; Press “SET UP” button until the display shows F5.00 – F5.15, then press
the UP and DOWN to select from the 15 speeds available.
OTHER PROGRAM FUNCTIONS
Display ON/OFF mode; when this mode is en a ed the display will switch off after 60
seconds after the last operation.

Visage Lighting & Effects www.batmink.co.uk
IR Remote Function; when switched on the fittin can be used with the correct IR remote
control (available separately)
Display Normal/Reverse; enables the user to switch over the display in a reverse mode.
Initialisation settin ; enables you to combine the first four colours only in the jumpin mode
(AJ01). To enable press SET UP until the display shows dEFA and the display flickers, now
press UP and DOWN buttons at the same time.
Infra Red Remote Control Operation Mode.
This allows the fittin to be operated by a separate remote control (available separately).
Press “MODE” button, press “UP” and “Down” buttons to select “1ron” this means the unit
can now be operated usin the separate remote control.
Listed below are the various pro rams and selections available on the remote control.
Auto Run Mode
Press SL/AU button to cycle amon auto run mode, colour dream, colour jump, sound
activate and slave mode. Each press of this button will chan e to the next step. When the
Multipar oes into the Auto run mode, By pressin FS/SP button to set the auto run speed
and press “+” and “-“ to adjust.
Select program Mode
Press “PROG” button to select static colour select mode. Then press “+” and “-“to select
from the 63 static colours and the 14 runnin modes in this pro ram.
When the Multipar is in the static colour selection you can press FS/SP button to turn on
flash and this can be adjusted usin the “+” and “-“ keys.
When the Multipar is in the Runnin mode pro rams you can press FS/SP and this will adjust
the speed usin “+” and “-“ keys.
When the Multipar oes into Sound activate mode you can press “+” and “-“ keys to select
from 16 different sound modes. You can press the FS/SP button to adjust the sound
sensitivity.
M/S Mode
Press “SL/AU” button to select between the auto run mode, sound activate and slave mode.
Each press of the button will chan e to the next mode.
Select light Program mode.
Press R,G,B,W,A,UV to choose any one of the colours, you can then use the “+” and “-“
buttons to adjust the intensity. Pressin the “A” button to switch between the Amber and

Visage Lighting & Effects www.batmink.co.uk
Lime Green colour. You can also press the FS/SP button to turn on/off flash effect and use
the + and – buttons to adjust the speed.
Setting DMX Mode using IR Remote
Press CH button to switch between DMX address set mode and DMX channels set mode.
Each press of this mode will chan e to the next mode.
1. When the Multipar oes into the DMX address set mode, you can press + or – to select
the DMX address.
2. When the Multipar is in the DMX channel set mode, you can press + or – to select the
DMX channels.
Setting DMX Address using IR Remote.
Press the button to set the DMX address (A) the red, reen, blue, white, amber and UV
li hts will flash 2-3 times.
Input the three address number for example 123. When the red li ht is on put in the first
number “1”, after this the reen li ht will be on and input the second number “2”, after this
when the blue li ht is on input the third number “3”. After you have inputted all three
numbers all the LED’s will flash 2-3 times and the address is accepted. If the address is
incorrect then the red li ht will remain on. A new DMX address should then be inputted.
Black out mode.
Press “Black OUT” to set the li hts power on or off by pressin the button.
SPECIFICATIONS
Weight: 4.8K
Dimensions: 370mm x 270mm x 220mm
Power input: AC 100v-240v/50Hz-60Hz
Wattage: 215watt
LED’s: 18 pieces of 25watt RGBAW+UV+Lime Green (7in1)
Beam Angle: 18 de ree
Connection Mains: Power con in and out sockets
DMX Connection: 3 Pin Female and Male XLR
Features: Built in Microphone
Four Button LED Display
IP Remote Control operation
Power cord daisy chain fixtures: maximum 3 fittin s
LIGHTING products are distributed in the UK by
Website: www.batmink.co.uk
E-Mail: [email protected]o.uk
Telephone: [phone]
