Visidec VF-AT-NBC User manual

Component Checklist
Arm Assembly
Notebook Tray and
Arm Assembly
Pole Assembly
Primary Arm Cable
Cover (x2)
Secondary Arm Cable
Cover (x2)
Pole Top Cap
Bolt Through
Base
Cable Ball
Cable Clip
Steel Washer
M8 x 30mm
Screw
Pole Assembly
Bolt Through
Base
9mm (0.35")
M8 Desk
Clamp Screw
Steel Washer
TIGHTEN
Hole
5mm Allen Key
Screw
Bolt Thru
Pole Assembly
Bracket
M8 Desk
Pressure Plate
Clamp Screw
5mm Allen Key
Suits 12mm (0.5”)
to 38mm (1.5”)
thick Work
Surfaces
Pole Assembly
5mm Allen Key
TIGHTEN
Work Surface
UNLOCK
REMOVE
First
Handgrip
Second
Handgrip
Second
Handgrip
3.3 Slide Second
Handgrip to the top of
the Visidec Pole so the
Second Handgrip Tab
protrudes.
UNLOCK
SLIDE
Second Handgrip Tab
Second Handgrip
Notebook
Tray Arm
SLIP
3.5: Slide the Notebook Tray Arm
and the Handgrip down the Visidec
Pole.
3.6: Lock the Handgrip.
SLIDE
LOCK
IMPORTANT:
The “User Operating
Card” must be left with
Visidec Focus Articulated
Arm once installed.
Installation Instructions
VF-AT-NBC
IMPORTANT INFORMATION:
Step 1. Check Components
Step 2. Mount Visidec Pole to desk: Bolt Through or Desk Clamp
Step 3. Attach the Notebook Tray Arm to Pole Assembly
! IMPORTANT - Install Notebook/Monitor Arm Combo as per Installation Instructions.
! This product supports a maximum load of 8kg (17.5lbs) in each arm.
! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm.
! The manufacturer accepts no responsibility for incorrect installation.
Display Mounting
Screws
Bits Box
Check you have received all parts against the Component Checklist and Hardware above.
Focus | Notebook/Monitor Arm Combo
Bolt Through
Drill 9mm (0.35") hole in the Work
Surface at the desired position and
assemble as shown below.
Note: It is recomended that the Pole
Assembly be mounted towards the rear
edge of the Work Surface.
Desk Clamp
2.1: Attach the Desk
Clamp Bracket to the bottom
of the Pole Assembly using the
M8x30mm Screw. Tighten
firmly using the 5mm Allen
Key. Ensure the Visidec logo is
facing the front as shown.
2.2: Install the M8
Desk Clamp Screw and
Pressure Plate as shown.
2.3: Adjust the height of the Pressure Plate to suit
the Work Surface and Tighten Firmly in the desired
location.
ADJUSTMENT RANGE
Note: It is recommended
that the Pole Assembly be
clamped to the rear or
side edge of the Work
Surface.
3.1: Unlock the First Handgrip.
Remove from the Pole Assembly.
3.2: Unlock the Second Handgrip.
3.4: Slip the Notebook Tray Arm
over the Handgrip Tab and then
onto the Visidec Pole.
Desk Clamp
M8x30mm
Base
OR
M4x12mm (x4)
M4x10mm (x4)
M4x16mm (x4)
Hook and Loop
Fasteners (x4 sets)
5mm Allen Key
Desk Clamp Bracket
Pressure Plate
M8 Desk Clamp Screw
Desk Clamp Box
TOOLS REQUIRED:
Power Drill
9mm (0.35”) Drill Bit
Phillips Head
Screwdriver

.
First Handgrip
First Handgrip Tab
Arm
Assembly
Primary Arm
Cable Cover
Secondary Arm
Cable Cover
Secondary Arm
Cable Cover
8.1: Route the Cables underneath the Arms, inserting the Primary
and Secondary Arm Cable Covers to hold the Cables in place.
8.2: Insert cable into slots using cable balls to hold them in place.
Cable Balls
TIP: Leave enough slack
in the cables at the joints
to allow full movement.
Installation Complete
No portion of this document or any artwork contained herein should be reproduced in anyway without the express written consent Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 21.07.10 ©

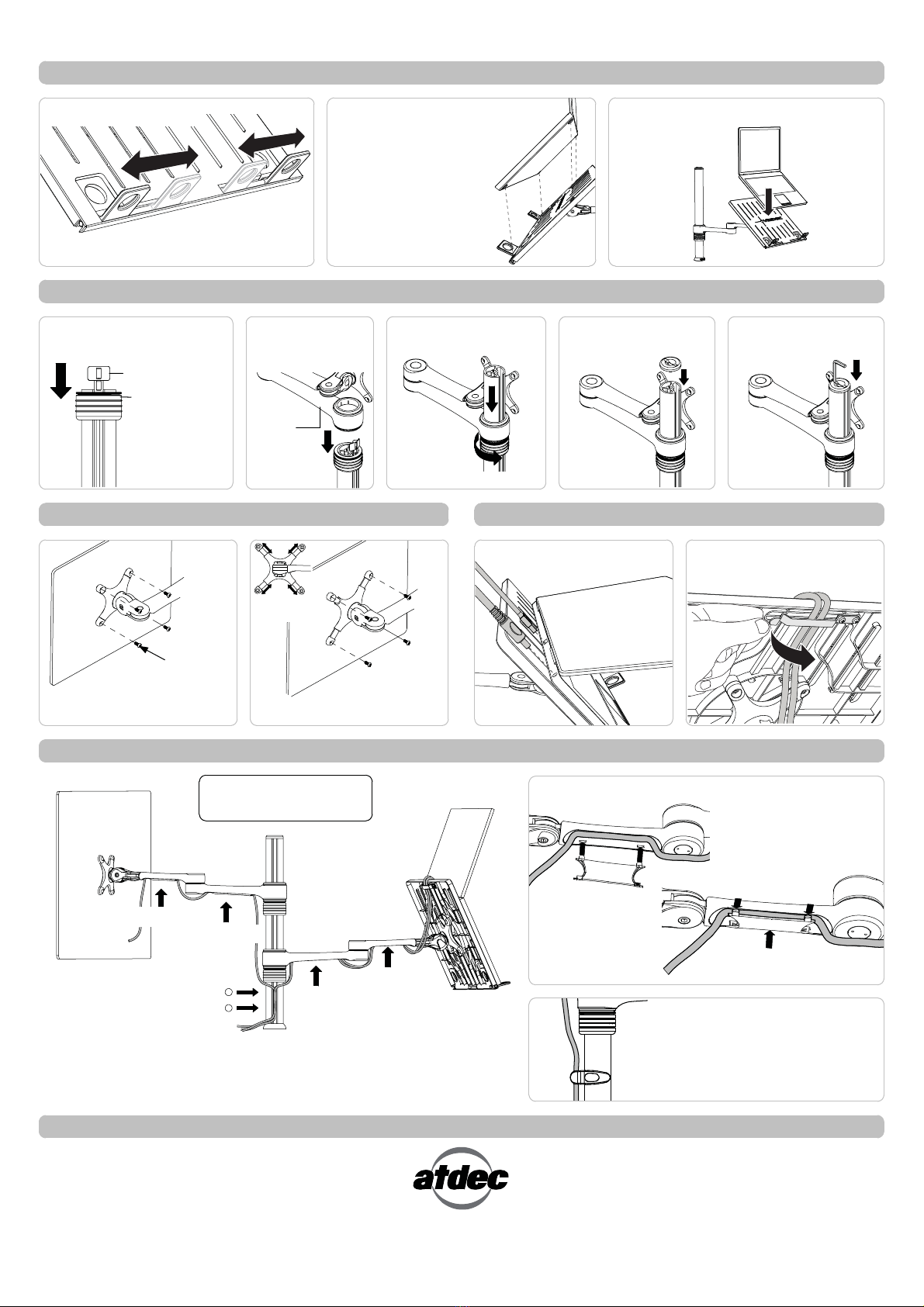

Step 4. Install the Notebook Computer
4.1: Adjust the Support Tabs to suit the width of
your Notebook Computer.
NOTE: Ensure that the Support Tabs do not
obstruct
any cable ports.
4.2: To increase stability, use the
self adhesive Hook-and-Loop
Fasteners supplied:
Peel off the backing 
paper from the fasteners.
Attach fasteners to your 
Notebook Computer
and the Notebook Tray.
Ensure that each set of 
fasteners are correctly
aligned, i.e. Hook to
Loop.
4.3: Postion your Notebook Computer onto
the Notebook Tray.
Step 5. Attach the Monitor Arm to Pole Assembly
5.1: Insert and Position First
Handgrip back to the Pole Assembly
so the First Handgrip Tab protrudes.
5.2: Slip the Arm
Assembly over the
Handgrip Tab and
then onto the Pole

5.3: Slide the Arm
Assembly and the Handgrip
down the Pole.
5.4: Lock the Handgrip
5.5: Insert the Pole Top
Cap into the top of the Pole.
5.6: Insert the 5mm Allen
Key into the slot in the Pole
Top Cap.
Step 6. Fasten Display to Monitor Arm Step 7. Connect Cables
For displays with 75mm x 75mm
mounting hole patterns
For displays with 100mm x 100mm
mounting hole patterns
Connect cables to your Notebook
Computer.
Lift the Cable Management Clip on
the back of the Notebook Tray, and
route the Cables underneath. Release
the Clip to hold the Cables in place.
Step 8. Cable Management -
Ensure arms are fully extended before attaching cables.
To Insert Cable Covers:
NOTE: If Visidec Focus Articulated arm
is to be used in a multi-user environment,
use the supplied cable clip to secure the
display's cables to the pole.
M4 Display
Mounting Screws
tabs
Pull-out
TFIL
A. Insert tabs
Primary Arm
Cable Cover
B. Push-in
C. Then Push-up
