Visionary E4200 User manual

WWW.VISIONARYAV.COM
|
2060 Alameda Padre Serra, Suite 100 • Santa Barbara, CA 93103 • 805-845-8900
|
Visionary Solutions, Inc.
2060 Alameda Padre Serra, Suite 100 • Santa Barbara, CA 93103 • 805-845-8900
|
Visionary Solutions, Inc.
E4200 • Encoder |D4200 • Decoder User Manual

CONTENTS
INTRODUCTION .................................................................................................................................. 1
NETWORK AV INFRASTRUCTURE PREREQUISITES ....................................................................................... 1
NETWORK REQUIREMENTS...................................................................................................................................2
POWER OVER ETHERNET (POE) ............................................................................................................................2
SWITCH SPEED ..................................................................................................................................................2
CHOOSING AN ETHERNET SWITCH .........................................................................................................................3
SWITCH GUIDELINES ...........................................................................................................................................3
IMPLEMENTATION CONSIDERATIONS ......................................................................................................................4
INSTALLING ON ACONVERGED NETWORK ...............................................................................................................4
INSTALLING ON ADEDICATED NETWORK .................................................................................................................6
SINGLE SWITCH NETWORKING ..............................................................................................................................6
MULTIPLE SWITCH NETWORKING ..........................................................................................................................6
E4200/D4200 LAN1 &LAN2 ETHERNET EXPANSION PORT......................................................................................7
INSTALLATION AND CONNECTIONS (SYSTEM EXAMPLES) ............................................................................. 8
ONE SOURCE TO ONE DISPLAY .............................................................................................................................9

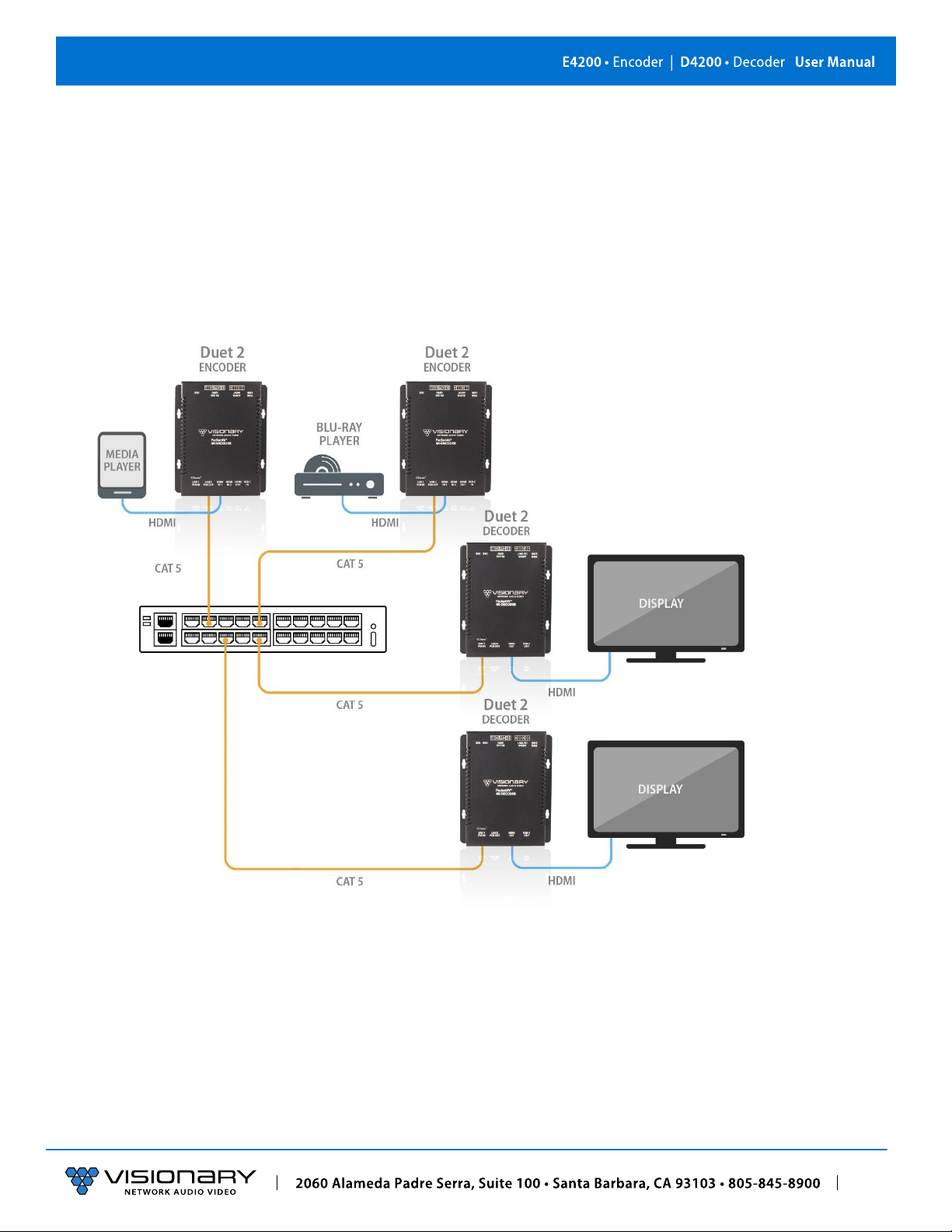

ONE SOURCE TO MANY DISPLAYS..........................................................................................................................9
MANY SOURCES TO MANY DISPLAYS....................................................................................................................10
MANY SOURCES TO MANY DISPLAYS WITH USB OVER IP (KVM)............................................................................... 11

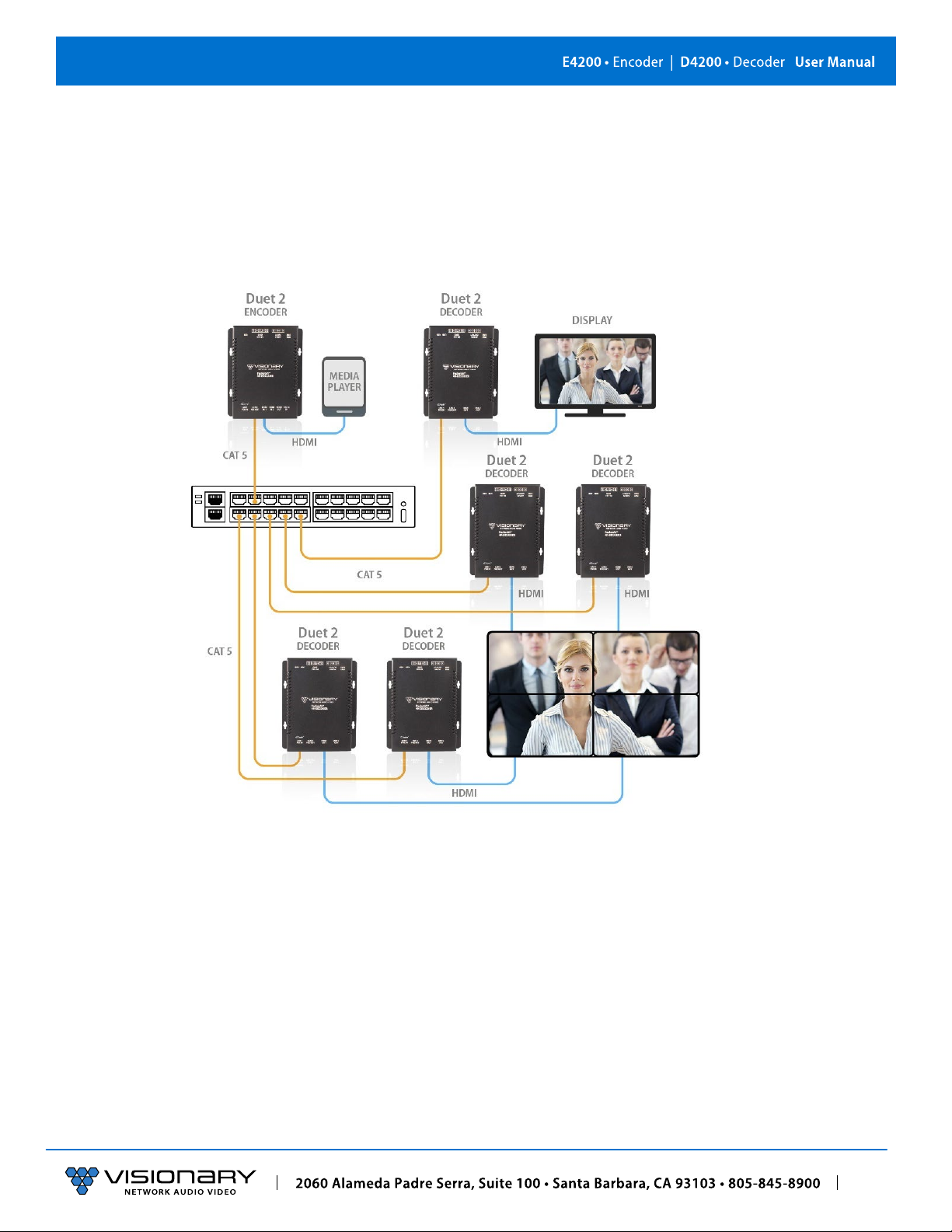

VIDEO WALL .................................................................................................................................................. 12
NETWORK DISCOVERY ......................................................................................................................................12
CONFIGURATION .............................................................................................................................. 15
CONFIGURING ENCODER AND DECODER IP ADDRESSES ............................................................................................. 15
VLAN TRUNK MODE........................................................................................................................................15
CONFIGURING STREAM SETTINGS (MANUALLY)....................................................................................................... 16
UNICAST MODE ..............................................................................................................................................16
MULTICAST MODE...........................................................................................................................................16
STREAM BIT RATE ............................................................................................................................................17
STREAM FRAME RATE ....................................................................................................................................... 17
FAST(ER)SWITCHING........................................................................................................................................ 17
USB OVER IP (KVM)....................................................................................................................................... 17
AUTO SELECT MODE ........................................................................................................................................ 18
ACTIVE PER REQUEST MODE (DEFAULT) ...............................................................................................................18
ACTIVE ON LINK MODE.....................................................................................................................................18
FAST(ER)KVM SWITCHING................................................................................................................................ 18
RS-232 OVER IP.............................................................................................................................................18
SIMPLE GUEST MODE .......................................................................................................................................18
CEC OVER IP (DECODER ONLY) .......................................................................................................................... 19
CEC API EXAMPLES .........................................................................................................................................19
GPIO ........................................................................................................................................................... 20
GPIO API EXAMPLES .......................................................................................................................................20
IR OVER IP..................................................................................................................................................... 20
IR API EXAMPLES ............................................................................................................................................ 20
VIDEO FORMAT SETTINGS (DECODER ONLY)........................................................................................................... 21
AUDIO SETTINGS .............................................................................................................................................21
AUDIO SOURCE ...............................................................................................................................................21
RTP AUDIO STREAM (ENCODER ONLY) ................................................................................................................. 22
VIDEO WALL .................................................................................................................................................. 22
EDID ...........................................................................................................................................................23
MULTI-INPUT EDID MANAGEMENT (ENCODER ONLY).............................................................................................. 24
CUSTOM SPLASH SCREEN (DECODER ONLY) ........................................................................................................... 24
ADVANCED CONFIGURATION............................................................................................................... 25
VIDEO SOURCE TIMEOUT (DECODER ONLY) ...........................................................................................................25

VIDEO POWER SAVE (DECODER ONLY).................................................................................................................. 25
HDCP FORCE ON............................................................................................................................................25
HDCP FORCE OFF (ENOCDER ONLY)....................................................................................................................25
INPUT SOURCE SELECTION AND PRIORITY (ENCODER ONLLY) ......................................................................................25
GENLOCK (DECODER ONLY) ...............................................................................................................................25
VIDEO OUTPUT SETTING (DECODER ONLY) ............................................................................................................ 25
OSD TEXT DISPLAY (DECODER ONLY)................................................................................................................... 25
MASS CONFIGURATION (DECODER ONLY)..............................................................................................................26
ENCODER OPTIONS ........................................................................................................................... 27
E4200 ENCODER DEVICE TAB ............................................................................................................................ 27
E4200 ENCODER NETWORK TAB ........................................................................................................................ 28
E4200 ENCODER CONFIGURATION TAB ................................................................................................................30
E4200 SYSTEM TAB.........................................................................................................................................33
DECODER OPTIONS ........................................................................................................................... 34
D4200 DECODER DEVICE TAB ............................................................................................................................34
D4200 DECODER NETWORK TAB ........................................................................................................................ 36
D4200 DECODER CONFIGURATION TAB................................................................................................................37
D4200 DECODER SYSTEM TAB ...........................................................................................................................41
CONTROL........................................................................................................................................ 42
VISION LITE .................................................................................................................................................... 42
THIRD-PARTY CONRTOL DRIVERS AND PLUGINS ....................................................................................................... 48
API..............................................................................................................................................................48
TROUBLESHOOTING........................................................................................................................... 48
LED INDICATORS ............................................................................................................................................. 48
CHECKING THE FIRMWARE ................................................................................................................................. 48
SUPPORT .......................................................................................................................................................48
FACTORY DEFAULT SETTINGS ..............................................................................................................................48
DIAGNOSTICS PAGE..........................................................................................................................................49
NETWORK INFO............................................................................................................................................... 49
VIDEO INFO.................................................................................................................................................... 50
AUDIO INFO ...................................................................................................................................................51
USB INFO......................................................................................................................................................52
FLASH LEDS...................................................................................................................................................53
TEMPERATURE ................................................................................................................................................54
RACK MOUNT KIT ............................................................................................................................ 55
PRODUCT SPECIFICATIONS .................................................................................................................. 56
©2022 Visionary Solutions, Inc. All rights reserved. PackeTV® and PacketAV® are trademarks of Visionary Solutions, Inc. in the United States and other countries. All
other brand names, product names
and trademarks are the property of their respective owners. Certain trademarks, registered trademarks, and trade names may
be used to refer to either the entities claiming the marks and names or their products. Visionary Solutions, Inc. disclaims any interest in the marks and names of
others.
Document Version: 221013

1
Introduction
INTRODUCTION
Visionary Solutions 4K UHD over IP cinema quality, ultra-low latency [~1 frame - visually lossless] encoder and decoder bypass the
constraints of traditional switch matrix distribution systems by harnessing the flexibility and scalability of converged IP networks.
With the growing demand for 4K UHD video, professional AV designers and IT directors–in an increasingly converged AV/IT
environment–can use Visionary Solutions products as an alternative to conventional distribution systems.
PacketAV E4200/D4200 is nothing short of a paradigm shift for networked AV. True convergence is finally here; a single platform to
support audio and Video over IP. Integrate 4K UHD video over IP into your audio network and bypass the constraints of traditional
switch matrix systems by harnessing the flexibility and scalability of converged IP networks.
Visionary’s PackeTV® and PacketAV® products can be deployed on any industry standard IP network. They can be used on existing
enterprise IP networks or on a physically separate parallel network [private network] to offload traffic, using the same network
protocols, methods, and devices but without intermingling video traffic with data or voice, and with equal ease of installation.
An encoder is connected to an [HDMI] AV source signal [a camera, STB, media player, PC or server, BluRay player, or digital signage
player, etc.]. The signal is converted into a packetized network stream that is compatible with off-the-shelf IGMP enabled Gigabit
Ethernet (GbE) switches (Jumbo Frames enabled). Using an existing CAT 5/6 infrastructure, users can connect CAT 5/6 to any decoder
anywhere on the same GbE network. The decoder takes the IP packets received over CAT 5/6 cables, converts them back into an
HDMI signal connecting directly to a display, delivering visually lossless video along with USB over IP (KVM) and RS-232 over IP
controls. A signal from any encoder can be sent to any decoder on the same network. The signals can easily be controlled with our
Vision Lite software to create different outputs on the display side, including video wall or matrix switching.
NETWORK AV INFRASTRUCTURE PREREQUISITES
This section is intended to provide a basic understanding of applicable networking technologies and the infrastructure requirements
needed for a successful Visionary Solutions E4200/D4200 system installation, and to ensure a rapid deployment and seamless
integration. Many network issues can be minimized or solved before they occur with appropriate knowledge and proper planning.
The E4200/D4200 will work with most non-blocking, IGMP with IGMP Snooping, 8K or better Jumbo Packet 1GbE network
switches. At least one layer-3 switch with IGMP-query capability is required. For PIM (multicast routing) of E4200/D4200 video
streams, the network switches would need to be capable of PIM (Sparse, Dense, or Sparse-Dense).
Do not connect any encoders or decoders to aswitch until the switch is configured for multicasting and IGMP Snoopingis enabled.
Check with your switch manufacturer for the default configuration settings.
NETWORK PROTOCOLS
All data on a network is encapsulated in packets, according to the TCP/IP protocols. Data packets are routed through the network to
their destination(s) by switches using information in the header of IP packets. Transmission can be unicast or multicast. Unicast
transmissions are point-to-point, from a single source to a single destination. Multicast transmissions originate from a single device
and are received by a group of devices on the network, according to the Internet Group Management Protocol (IGMP). Multicast
transmission is ideal for bandwidth-intensive application such as media distribution as it allows for efficient use of network
bandwidth. Only a single copy of the data is distributed to multiple destinations. On the other hand, unicast distribution of media to
multiple destinations is an extremely inefficient use of network bandwidth because duplicate copies of the data are sent, point-to-
point, from the source to each destination. E4200/D4200 devices make use of the multicast protocol.
More information concerning IGMP may be found here at:
http://docwiki.cisco.com/wiki/Internet_Protocol_Multicast#Internet_Group_Management_Protocol

2
Network AV Infrastructure Prerequisites
There are two ways to implement multicast routing when using our equipment:
• IGMP (Internet Group Management Protocol): Allows video streams (groups) to be dynamically routed only to those ports
requesting the video stream. The IGMP feature prevents the multicast video traffic from flooding the network and can
significantly reduce traffic in a layer-3 network. This is the recommended setting for our equipment.
• PIM (Protocol Independent Multicast): Functions independently of IP routing protocol. PIM Dense Mode (PIM-DM) is less
preferred for this application because it floods the network using unicast routing protocols to build routing tables. For more
information, visit: http://docwiki.cisco.com/wiki/Internet_Protocol_Multicast#Protocol-Independent_Multicast.
NETWORK REQUIREMENTS
For help determining the network requirements for your Visionary Solutions installation, please contact support@visionary-
av.com.
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) is a system that uses an PoE Ethernet switch as a power source to provide both electrical power and data
over a single cable to devices on a network, such as the E4200/D4200 devices. This reduces the number of cables and power supplies
that are required to power the devices in the network. The result is lower cost, less downtime, easier maintenance, and greater
flexibility for the network installation.
When selecting a PoE power supply scheme, is it important to select a PoE Ethernet switch that is capable of providing enough
power per port, as well as total power to accommodate all devices simultaneously. You should plan on the maximum available PoE
power per port for E4200/D4200 (15.4W). In some operating conditions less power will be demanded per E4200/D4200, call
Visionary Solutions for details.
To calculate the number of devices that can be used on a PoE Ethernet switch, divide the total PoE power capability of the switch by
the power required for each port and round down. For example, many PoE Ethernet switches can provide up to 370W of DC power. If
each port needs 15.4W of power, a switch can supply power to a total of 24 ports.
Examples:
• A Cisco SG300-52P has a PoE power output of 375W and the ports require 15.4W: 375 / 15.4 = 24.35. Therefore, 24 devices can
be powered by this switch.
• A Cisco SG300-52MP has a PoE power output of 740W and the ports require 15.4W: 740 / 15.4 = 48. Therefore, 48 devices can
be powered by this switch.
Some switches can only supply PoE power to a certain number of ports. If it is necessary to use this type of switch, PoE injectors can
be used or a local power supply can be provided for the switch, or you may need to disable the detection of the PoE for those ports in
the Ethernet switch.
Exceeding the PoE switch limit can cause erratic behavior on the network system. The PoE switch cuts power to prevent overloading,
which may cause units to reset at seemingly random intervals.
PoE specification standards are:
• IEEE 802.3-2008 provides up to 10W of DC power.
• IEEE 802.3af provides up to 15.4W of DC power. Only 12.95W is assured to be available at the device.
• IEEE 802.3at, known as PoE+ or PoE plus, provides up to 32W of DC. Only 25.5W is assured to be available at the device.
Class 0 devices comply with the PoE standard that provides up to 15.4W of DC power for each port. The real power draw is between
5-10W.
Class 3 devices comply with IEEE 802.3-2008 that provides up to 10W of DC power.
SWITCH SPEED
The E4200 encoder will produce up to 800Mb/s of data. Therefore, 10 encoders will require 10 x 800MB/s = 8Gbps. E4200/D4200
requires the switch to be GbE. E4200/D4200 technology is used to transmit visually lossless 8~10:1 compressed video up to 4K along
with other AV signals such as audio, USB, and control signals. For video alone, this means raw bandwidth of up to 800Mbps for 4K.

3
Network AV Infrastructure Prerequisites
CHOOSING AN ETHERNET SWITCH
Switches must support these functions:
• Jumbo Frames (enabled)
• IGMP Snooping
• IGMP Querier
• IGMP Snooping Fast Leave
If the switches are used for multi-switch networking, they must also support PIM Routing (Sparse, Dense, or Sparse-Dense).
These features may be helpful as well:
• Dynamic multicast router port
• Forwarding unknown multicast to multicast router ports only
Any network switch should have a backplane capacity of at least (2 x 1000-Mbps x N) where N is the number of ports on the switch
passing the video traffic. For example, a 24-port switch where all available ports may be used to pass video traffic should have a (2 x
1000 x 24) = 48Gbps backplane. One channel of encoder video can be sent or received from each port in this switch example
although full bandwidth may not be used at any one time.
The maximum distance between devices is 100m (328ft) over CAT 5e (or better) cable. This distance can be extended in increments of
100m (328ft) by using a gigabit switch as a repeater between devices. Copper to fiber adapters can extend the maximum distance
between devices up to 10km through the use of fiber.
Since different brands and models of switches perform differently when handling multicast IP packets, functional verification and
pressure testing are also recommended in any installation. Switches that perform well in smaller installations may not work well in
larger installations. Recommended configuration settings may vary based on your switch.
Visionary Solutions offers sample switch configuration files, optimized for Network AV, for certain switch brands/models for testing
purposes. Contact [e-mail] obtain the files.
SWITCH GUIDELINES
1. Enable IGMP querying and snooping (set IGMP Version to IGMP V2 if the switch is capable). To enable the transmission of a
source to multiple destinations, E4200/D4200 devices make use of multicast. The default behavior of a layer-2 switch is to
broadcast those packets, which means that every packet will be transmitted to all possible destinations. IGMP snooping checks
IGMP packets passing through the network, picks out the group registration, and configures multicasting accordingly. A layer-2
switch supporting IGMP Snooping can passively snoop on IGMP Query, Report, and Leave (IGMP version 2) packets transferred
between IP multicast routers/switches and IP multicast hosts to determine the IP multicast group membership. This is why any
network switch used with E4200/D4200 must support IGMP Snooping. Our end points use IGMP protocol to assign the end
points into multicast groups and the router uses IGMP snooping to efficiently route multicast packets only to the receivers that
want to receive them.
IGMP Snooping is used to identify multicast IP packets, assign IP packets into multicast groups so that the router only sends to
devices that want to receive the packets, establish membership in a multicast group, and register a router to receive designated
multicast traffic. Multicast filtering is achieved by dynamic group control management. Many switches have the IGMP Snooping
feature disabled by default and manual configuration is required. Often, checking the Enable IGMP Snooping option is the only
setting needed to enable IGMP Snooping. Implementing IGMP Snooping is vendor specific andadditional configuration is often
needed.
IGMP Snooping Querier is used to send out group membership queries on a timed interval, retrieve IGMP membership reports
from active
members, and update the group membership tables. The Leave Group packet is sent when a device wants to leave a
group.

4
Network AV Infrastructure Prerequisites
Because multicasting video traffic can flood a network and
significantly reduce the flow of traffic, it is important to ensure that
your
network infrastructure and backbone switches support IGMP Snooping so that your core network is able to ignore the traffic
streams multicasting can generate. By default, all multicast traffic should be blocked until requested by a multicast
group
member.
Without IGMP Querying/Snooping, multicast traffic is treated in the same manner as a broadcast transmission, which
forwards packets to all ports on the network. With IGMP Querying/Snooping, multicast traffic is only forwarded to ports
that
are
members of that multicast group. IGMP Snooping generates no additional network traffic, which significantly reduces the
multicast traffic passing through your switch.
Note: Some switches require that the routing table be pre-loaded so that the switch does not have to interrogate each IP packet to
determine its
destination. Static routing can be used to route multicast traffic. Protocols similar to Generic Routing Encapsulation
(GRE) can be used to
encapsulate multicast packets in unicast wrappers for point-to-point transmission between switches, and
when the packets arrive at the destination IP address, the unicast wrapper is removed.
2. Enable Fast Leave. The switch may also support IGMP Snooping Fast Leave, which shortens the time takes for a device to leave a
group and be made available to join to a different group. A switch can be informed that a device wants to leave a multicast
channel by sending it a IGMP Leave Group packet. Once received, the time it takes for the switch to apply the new configuration
may vary from one switch to another. Most switches have a Fastleave configuration option. When enabled, Fastleave speeds up
the time needed for a port assigned to one multicast group to leave the group and join a different multicast group. This
significantly reduces the video switching time. Always enable the Fastleave option when it is available.
3. Allow multicast traffic on all network ports through which video streams pass.
4. Ensure current Access Control Lists (ACLs) are not filtering multicast or control traffic.
5. Remove Flow Control and/or Storm Control on any network port passing the video stream.
6. Enable VLANs to separate video traffic from data and voice.
7. Enable Jumbo Frames.
8. Disable Green Ethernet (or efficiency mode). Some switches have the ability to lower the power consumption on the ports as a
“Green” feature. This can cause issues with bandwidth intensive devices (like our encoders and decoders).
IMPLEMENTATION CONSIDERATIONS
E4200/D4200 devices can be installed on a physically separate network or converged onto an existing GbE network. When
implementing, it is important to decide at the earliest stages of planning if the system will be integrated into the rest of the network
or if it will reside on a dedicated AV network. Each has its own advantages and disadvantages, but wherever possible we recommend
the use
of a dedicated AV switch. Using the existing network is of course possible–but it adds extra complexity to the installation and
often removes control of the networking equipment from the site’s AV staff or installer.
The first thing to consider is how much control the install and site teams have over the network configuration. Do they have access
and clearance to change the managed switch configurations on the fly? Is the network administrator willing to make the necessary
changes to support multicast and IGMP traffic on their network? Will they allow the creation of a VLAN or change their existing
VLAN configuration to support the required configuration? If the answer to these questions is no, then it is highly recommended that
the system be installed on a separate dedicated network switch. If this is not an option, then a conversation needs to take place with
the network admin staff to ensure they are aware of the requirements.
INSTALLING ON ACONVERGED NETWORK
Figure 1 illustrates how E4200/D4200 endpoints can be installed on an existing (converged) network. When using an existing
infrastructure, dedicated VLANs are recommended to separate the video traffic from other network data. All switches that will
handle AV traffic must be 1 GbE capable per the specifications in Network Requirements.
Visionary Solutions recommends that all encoders be turned off before connecting to an existing network. Once connected,
encoders can be turned on one at a time to determine network impact.

5
Network AV Infrastructure Prerequisites
Figure 1. Converged Network Diagram

6
Installation and Connections (System Examples)
INSTALLING ON ADEDICATED NETWORK
Figure 2 illustrates how E4200/D4200 endpoints can be installed on a dedicated network. A dedicated network is recommended
for transmitting AV over IP. We offer various models of preconfigured switches for resale to our partners. These switches are
shipped pre-configured for AV over IP from the factory. Please contact [e-mail] for more information.
Figure 2. Dedicated Network Diagram
SINGLE SWITCH NETWORKING
Single switch networking can be used when there are no more than 100m (328ft) from the central distribution point. Any network
switch should have a backplane capacity of at least (2 x 1000-Mbps x N) where N is the number of ports on the switch passing the
video traffic. For example, a 24-port switch where all available ports may be used to pass video traffic should have a (2 x 1000 x 24) =
48Gbps backplane.
MULTIPLE SWITCH NETWORKING
The maximum distance between devices is 100m (328ft) over CAT 5e (or better) cable. This distance can be extended in increments of
100m (328ft) by using a gigabit switch as a repeater between devices. Copper to fiber adapters can extend the maximum distance
between devices up to 10km through the use of fiber.
When using multiple switches, we recommend at least 10Gbps bi-directional connections between switches.

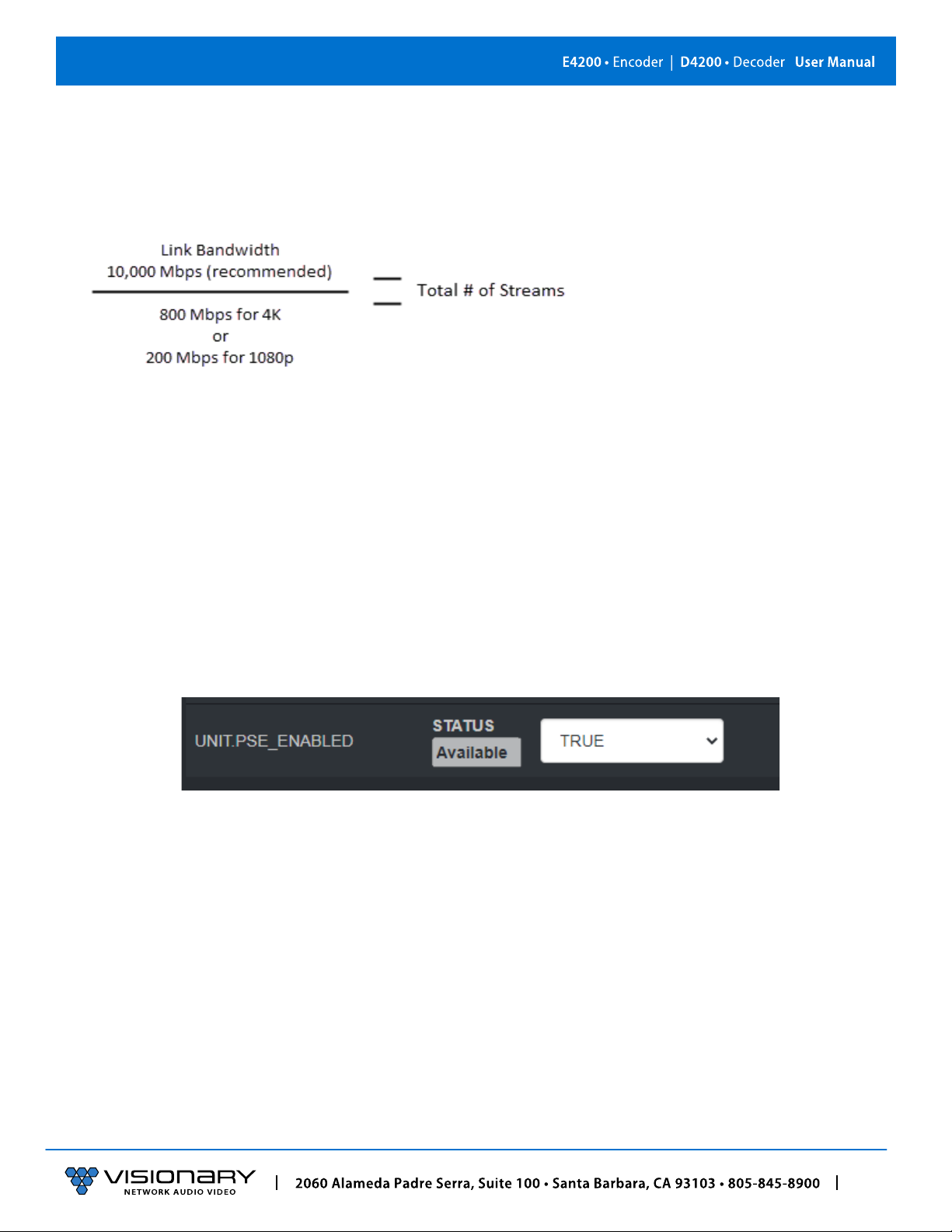

• (Link Bandwidth)/(800Mbps) = Number of simultaneous streams across link for 4K and (Link Bandwidth)/(200Mbps) = Number
of simultaneous streams across link for 1080p.

7
Installation and Connections (System Examples)
• The maximum number of streams possible between switches = link bandwidth (10Gbps) / 800Mbps (for 4K) x number of
encoders (or 200Mbps for 1080p).
• For 4K streaming, the total number of streams (800xn) must be ≤ 10,000.
• For 1080p streaming, the total number of streams (200xn) must be ≤10,000.

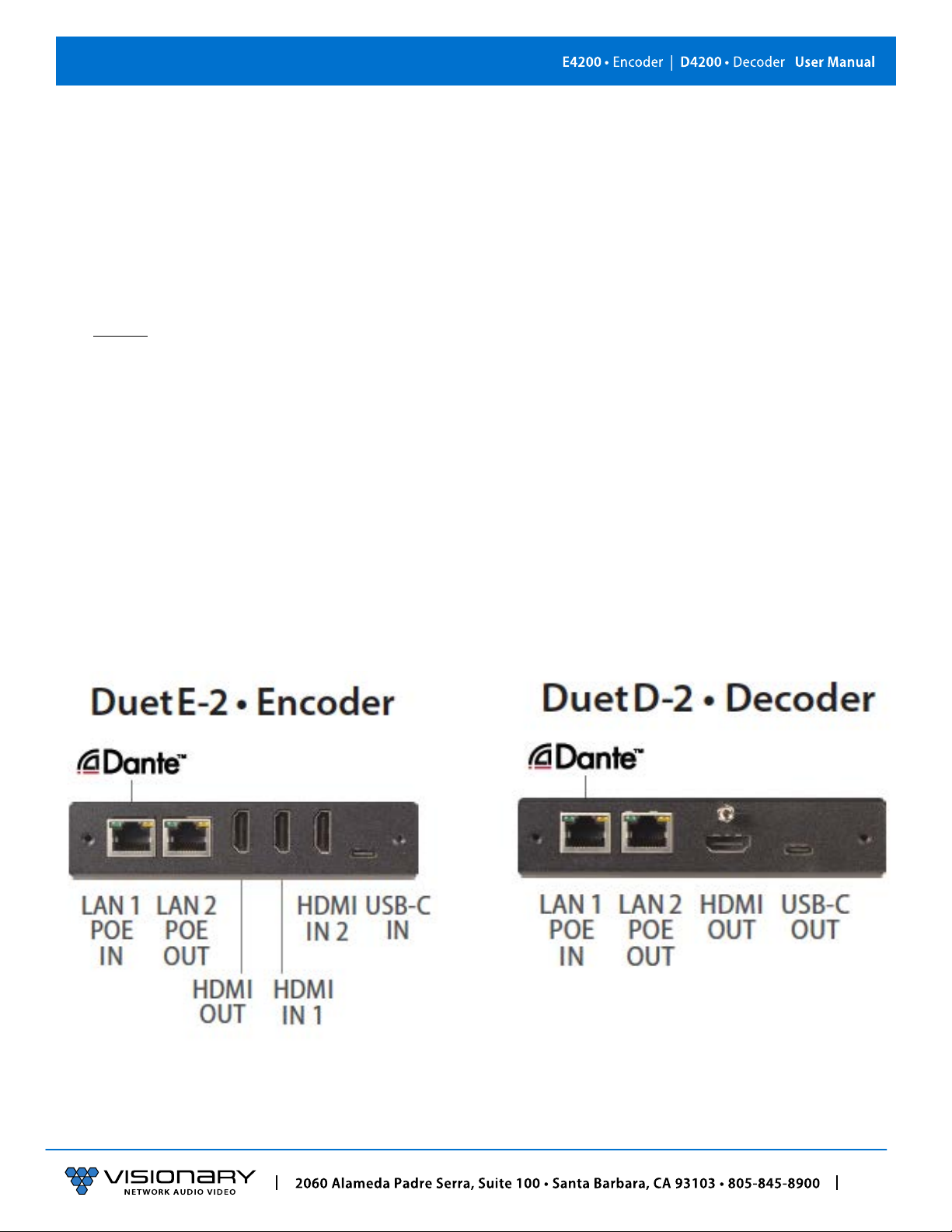

E4200/D4200 LAN1 &LAN2 ETHERNET EXPANSION PORT
E4200/D4200 is equipped with a single main gigabit (LAN1)Port for 4K UHD Video, Control, and Powered Device (PD). This single
Ethernet port is used for Video over IP and control, with VLAN tagging capability to separate LAN1 & LAN2 network traffic as needed.
E4200/D4200 is also equipped with an Ethernet Expansion (LAN2)Port - Power Sourcing Equipment (PSE). This port enables network
connectivity for control and IP traffic pass-through to remote LAN devices (ex. displays, projectors, control touch-panels). The port
can also be used to daisy-chain multiple endpoints for easy video wall creation or extend distances to displays.
Power connected devices with PoE pass-through.
E4200 Encoders and D4200 Decoders only require standard PoE power (15w or lower), however, when PoE+ is supplied to the Main
LAN1 port you can pass-through PoE power to devices connected to the LAN2 Ethernet Expansion Port.
When PoE+ is supplied to the LAN1 port, the UNIT.PSE_ENABLED status found at the bottom of the unit’s web UI Network tab will
display “Available.” When the Status window displays “Available,” use the drop-down menu to choose either TRUE or FALSE. When
set to TRUE, PoE will be supplied out the LAN2 Ethernet Expansion port.
