Visonic GFD-40W User manual

DE4031 1
*)':
Ultra Low-Current Wireless Audio Discriminator Installation Instructions
,1752'8&7,21
The GFD-40W is a battery powered, ultra low current wireless
audio discriminator, sensitive to sounds above the cutoff
frequency of approximately 5 kHz. It is primarily designed to
detect the breakage of any type of glass. When activated by a
sound in the proper frequency range, the GFD-40W triggers a
plug-in, low power UHF transmitter module that sends a coded
alarm signal to the control panel.
The detection sensitivity can be adjusted with an on-board
RANGE control, so that an alarm would be triggered only in
response to sounds of sufficient amplitude. A jumper link on the
PC board is used for temporary activation of a DETECTOR LED,
which serves as a sound level monitor (see para. 3.5).
The transmitted RF signal consists of a SYSTEM code and a
CHANNEL code that perform the following functions:
• The SYSTEM code serves as a password – the remote
receiver ignores RF signals other than the correctly coded
ones. A code match between the GFD-40W and the remote
receiver is obtained by selecting identical settings on an
8-position CODE switch in both units. It is possible to select
256 different system codes (see para. 3.3).
• The CHANNEL code
determines which one of the
remote receiver's outputs
will be activated by the
transmitted RF signal. This
code is selected by
presetting the GFD-40W
4-position "CHANNEL"
selector (see para. 3.4).
Both detector and transmitter
are powered by an internal 9
Volt alkaline or lithium battery
housed within the unit's case.
63(&,),&$7,216
ACOUSTIC
Detection Range: Up to 35 ft (10 m)*.
Cutoff Frequency: 5 kHz nominal
Microphone: Electret condenser.
* Varies with room shape, acoustics, temperature and humidity.
ELECTRICAL
Battery: 9-volt alkaline or lithium type.
Current Drain: 0.008 mA in standby.
Battery Life: Up to 2 years in standby; calculation is based on
initial full battery capacity of 0.5 Ah and operating conditions
within the limits of battery specifications.
Note: Although the battery should last 1 - 2 years, it is a good
practice to replace it every 12 months.
Visual Indicators:
ALARM LED - lights upon alarm.
DET. LED - indicates detection of ambient noise.
Testing: Built-in LED for ambient noise monitoring.
WIRELESS
Frequency (MHz): 315, 304, 404, 418, 433.92 or other
frequencies per local requirements.
Transmission Duration: 2 seconds
System Code: 8-bit digital word, 256 combinations, pulse width
modulation.
Channels: 4 channels, switch-selectable.
ENVIRONMENTAL
Operating Temperatures: 0°C to 50°C (32°F to 122°F).
Storage Temperatures: –20°C to 60°C (-4°F to 140°F).
PHYSICAL
Dimensions (H x W x D): 110x63x25mm (4-5/16 x 2-1/2 x 1 in.).
Weight: 67 gr ( approx. 2-1/2 oz).
Color: White.
,167$//$7,21
6HOHFWLQJ0RXQWLQJ/RFDWLRQ
The GFD-40W should be positioned close to and facing toward
the expected forced entry points (door, windows etc.). It is
inadvisable to mount the unit on the wall through which intrusion
could occur.
There should be a clear acoustic path between the unit and the
protected area. Do not mount the unit behind walls or around
corners from the area to be covered, as the signal it receives will
be reduced. Any coverings or decorations (drapes, blinds etc.)
should be in place and taken into consideration during
adjustment.
,QVWDOODWLRQ
The detector unit is suitable for surface mounting, using the
mounting knockouts provided in the base (see Figure 1).
A. Unpack the GFD-40W and save the nylon bag with the round
plastic cap for later use (see para. 3.7).
B. Remove the screw which secures the front cover to the case.
C. Punch out two diagonally opposed mounting knockouts (see
Figure 1 for knockout locations).
Figure 1. Inside View

2DE4031
D. Secure the unit to the wall with 2 screws (use wall inserts if
required).
E. Connect a 9-volt alkaline or lithium battery to the battery clip.
6\VWHP&RGH6HOHFWLRQ
The code selector consists of an 8-key DIP switch, marked 1
through 8. Each key is set to either ON or OFF position to create
a unique digital system code combination (256 possibilities - see
Figure 2).

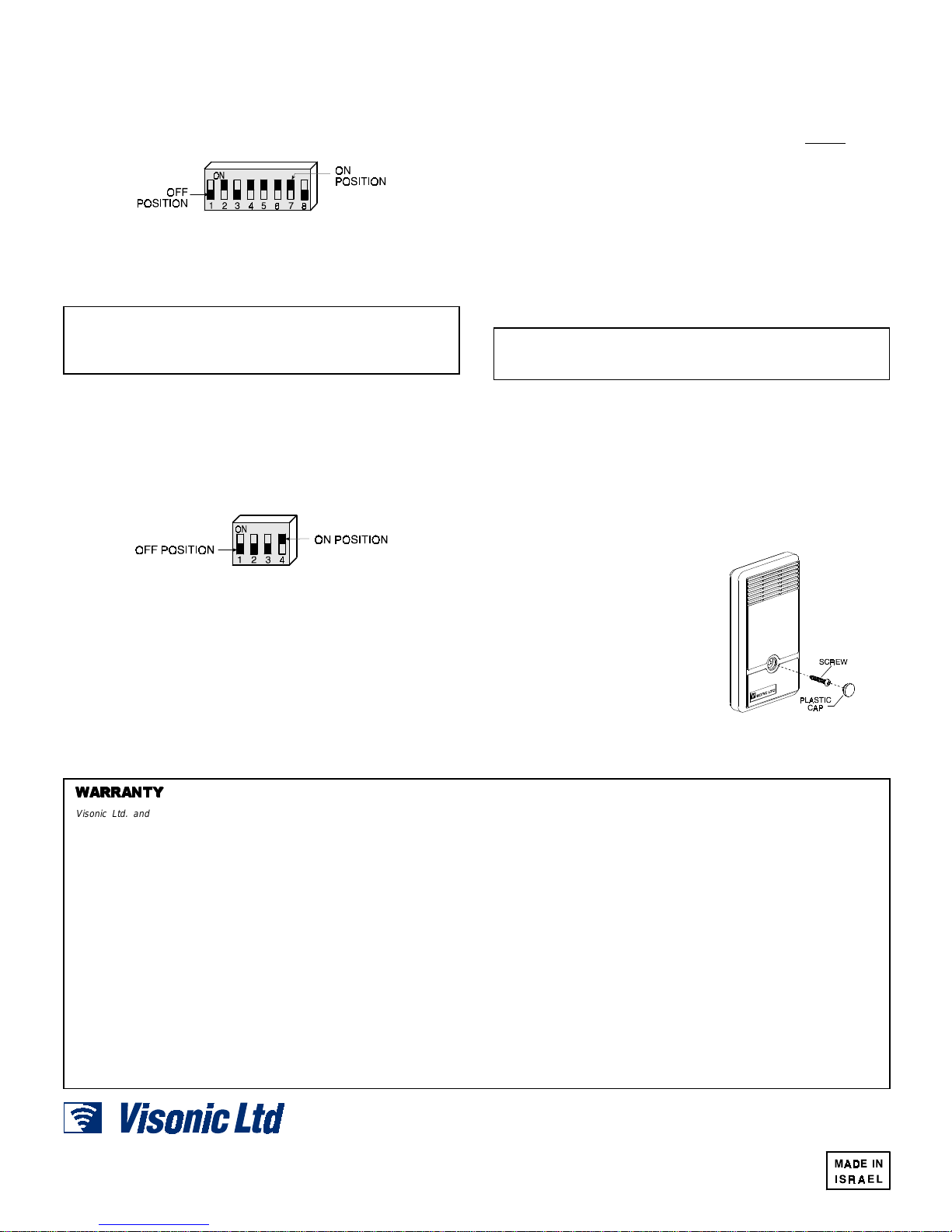

Figure 2. System Code Selector
Select the desired digital code so that it will match the one
selected on the companion receiver. All wireless detectors and
the receiver used in the alarm system must be set to the same
digital code.
CAUTION: the code combination 2, 4, 5, 6, 7 ON / 1, 3, 8 OFF
is a factory test code that must not be used. Also avoid
often-used codes such as all keys ON, all keys OFF or
alternating ON-OFF settings.
&KDQQHO&RGH6HOHFWLRQ
The Visonic Ltd. wireless security systems have a multi-channel
capability. Each GFD-40W audio discriminator can be set to
transmit any combination of 4 different channel codes. Each
channel code activates a particular output circuit of the
companion receiver. This feature is very useful for zoning
purposes - activation of different zones at the control panel.
Figure 3. Channel Code Selector
The channel selector consists of a 4-key DIP switch marked 1
through 4. The channel code transmitted by the detector is
selected by setting the corresponding switch(es) to the ON
position.
$GMXVWPHQWDQG7HVW
Allow one minute after power up for the unit to stabilize. Use the
RANGE control to select the sensitivity best suited to each
application. The sensitivity should be set only as high as
necessary, to avoid false alarms.
All sounds affecting the detector can be monitored and displayed
by the test LED marked DETECTOR, provided that the
NORM/TEST jumper is placed in the TEST position (see Fig.
1).Check individual sounds, such as telephones and door chimes,
to find out whether they cause the detector LED to light. If they
do, gradually rotate the range control counterclockwise until the
LED no longer lights.
Next, test the GFD-40W response to sounds that should trigger
an alarm. A good simulation for frequencies above 5 kHz is to
strike keys against the protected glass. You can also use a
commercially available, dedicated glass break simulator. If the
simulation does not trigger an alarm, gradually increase the range
control to a point where the test signal consistently causes the
unit to go into alarm.
In some cases, optimum sensitivity and maximum immunity to
false alarms can be obtained by re-locating the GFD-40W.
Upon alarm, the ALARM indicator should light for 2 seconds, and
a 2-second alarm transmission should take place. Verify that the
transmitted signal affects the correct zone in the control panel.
Important: Do not forget to return the NORM/TEST jumper to
NORM. Otherwise, the unit will draw excess current which will
result in shorter battery life.
0DLQWHQDQFH
The proper adjustment and operation of the GFD-40W should be
checked at least once a year, in accordance with para. 3.5.
To assure proper continuous functioning, the user should be
instructed to perform a simulation as explained in para. 3.5, to
assure an alarm output prior to each time the alarm system is
armed.
5HSODFLQJWKH&RYHU
Reposition the front cover with
the grille at the top (over the
microphone). Secure with the
screw and insert the plastic
cap over the screw head (see
Figure 4).
Figure 4. Screw and Cap
