1. Main Components of the Vitalograph asma-1 BT
Figure 1 Vitalograph asma-1 BT Components
1 User Buttons
2 Display
3 Flowhead
Down Button
Up Button
Enter Button
1.1. Features of the Vitalograph asma-1 BT
• Electronic records
• Stores 600 test sessions
• Download test results via Bluetooth and export to PDF
report using Vitalograph Reports software.
• Automatically assesses test quality
• Measures PEF and FEV1 and % of personal best
• PEF and FEV1 zones can be personalized
• Automatically stores best values

2. Setting Up the Vitalograph asma-1 BT
To get the asma-1 BT ready for use:
1. Remove the detachable battery door at rear of unit. Fit two
AAA 1.5V batteries. Replace battery door.
2. Attach a mouthpiece to the owhead.
Figure 2. Mouthpiece inserted into owhead
3. If used for multiple subjects, Vitalograph intends that a
new Eco Bacterial Viral Filter (Eco BVF) be used for every
test subject to prevent cross contamination. Using a new
Eco BVF provides a signicant level of protection of the
subject, the device and the user against the risk of cross
contamination during spirometry manoeuvres. Eco BVF
and SafeTway mouthpieces are single use items and must
be disposed of after use.
4. Turn on via the On/Off Button. (The same button is used
to power down.)

3. Operating Instructions
If the device has just been unpacked or transported, ensure that it is
left sitting, fully powered and is at room temperature prior to testing.
3.1. Setting Personal Best (Reference) Values
Personal Best (reference) values can be set for peak ow (PEF)
and/or forced expiratory volume after 1 second (FEV1).
To set the Personal Best (reference) PEFs:
1. Turn the device on, .
2. When the device is ready for a test ( ), press the and
buttons together for 3 seconds.
3. Set the reference PEF value by pressing the button and
releasing when the value is reached. Press the to roll
back. The values will increase/decrease in values of 10. If
the button is kept depressed, the values will scroll faster.
4. Press ENTER to save the reference PEF value.
5. Press again to exit, OR to set the Best Test (reference)
FEV1:
6. Set the reference FEV1 value by pressing the button and
releasing when the value is reached. Press the to roll
back. The values will increase/decrease in values of 0.10.
If the button is kept depressed, the values will scroll faster.
7. Press ENTER to save the reference FEV1 value. The
device will return to the test screen.
Note: to de-activate zones, set both the PEF and FEV1 reference
values to 000/0.00.
3.2. Setting Management Zones
The asma-1 BT can be set for use with 3 or 4 zone management
plans. The zones are factory set to 2 boundaries (80% & 50%)
resulting in 3 Zones (0-50%, 50-80%, 80-100%). For 4 zones the
middle boundary is set last. The colour systems for each zone are:

Green Green
Top Boundary Yellow Yellow Top Boundary
Orange Middle Boundary
Bottom Boundary Red Red Bottom Boundary
3 Zone 4 Zone
To set boundary percentage values for 3 zones:
1. Turn the device on, .
2. When the device is ready for a test ( ), press the and
buttons together for approximately 3 seconds.
3. Set the top (Green/Yellow) boundary by pressing the
or button and releasing when the value is reached. The
values will increase/decrease in values of 1%. If the button
is kept depressed, the values will scroll faster.
4. Press ENTER to save the boundary value.
5. Set the bottom (Yellow/Red) boundary by pressing the
or button and releasing when the value is reached.
6. Press to save the boundary value.
7. Select the next value as 0% (default). Only 2 boundaries are
required for the 3 zone system.
8. Press . The device will return to the test screen.
To set boundary percentage values for 4 zones:
1. Set the top and bottom boundaries – see steps 1 – 6
above.
2. Set the middle (Yellow/Orange) boundary by pressing the
button and releasing when the middle boundary value
is reached. The values will increase/decrease in values of
1% after an initial jump to the lower boundary value. If the
button is kept depressed, the values will scroll faster. This
boundary value cannot be set at a value that is greater than
the top boundary value or less than the bottom boundary
value.
3. Press to save the middle boundary value. The device
will return to the test screen.

3.3. Performing a Test
1. Fit a mouthpiece, SafeTway or Eco BVF lter to the device.
2. Turn the device on.
3. Sit down to blow into the device (unless the physician
advises otherwise).
4. When the device is ready for a test ( ), holding the head
high, breathe in as deeply as possible, hold the Vitalograph
asma-1 BT ready in front of the mouth, see Figure 3.
Figure 3. Holding device during test.
5. Holding the breath, place mouthpiece into the mouth, biting the
mouthpiece lightly, and with the lips rmly sealed around it.
6. Blow out as HARD and as FAST as possible for a second or
more. Be careful not to block the mouthpiece with the tongue
or teeth. A ‘spitting’ action will give false readings.
7. The PEF result for this blow displays on screen, followed by the
FEV1 result after approximately 3 seconds. If the Personal Best
has been set, an arrow indicates which colour management
zone the blow relates to.
8. When the blow icon shows, blow again ( ). Usually 3 blows
are required.
9. To view the best test in the session (best PEF and best FEV1),
press the button. This value is recorded as the result for
the session in the device history.
Note: An exclamation mark ! indicates a poor quality blow and the
blow should be repeated.
The ! warning appears when the time to Peak Flow > 120ms or a
cough is detected in the rst second.

If dizziness or fatigue is experienced during the test session, wait
until this passes before blowing again, or terminate the session.
3.4. Reviewing Previous Results
The asma-1 BT can store up to 600 test sessions. To view
previously performed test sessions:
1. When the device is ready for a test ( ), press the
button for approximately 3 seconds.
2. The most recent test session displays. The best PEF result
will be displayed for approximately 3 seconds, followed
by the best FEV1 result. The session number ‘1’ is also
displayed, this is the latest session.
3. View earlier test sessions by pressing the button.
4. Press . The device will return to the test screen.
3.5. Deleting All Results History
Caution: Results history cannot be recovered once it has been
deleted.
To delete entire history, i.e. all previously stored session results:
1. When the device is ready for a test ( ), press the and
buttons simultaneously for approximately 10 seconds.
2. A long beep indicates success. The device returns to the test
screen.
3.6. Downloading saved results
The test session may be transmitted to Vitalograph Reports
software on your PC where it can be stored as a PDF le and viewed
or printed.
Vitalograph Reports must be installed and running on the PC before
data is transmitted. The software is running if the Vitalograph ’V’
icon shows in the PC System Tray. If not, refer to help button of the
software for more information. The Bluetooth Adaptor should be
plugged in to the host PC to allow communication. Drivers should
automatically install.
1. Run Vitalograph Reports.
2. If the ‘No devices have been detected’ message appears,
click ‘Continue’.

a. Turn device on, .
b. In Vitalograph Reports ensure ‘Vitalograph asma-1’ is
selected as the device via the Device Selection Button
3. To print the test results from the asma-1 BT:
When the device is ready for a test ( ), press the
button for 3 seconds. The device will show the Report
icon ( ). OR
After completing the test session, press the or
button until the Report icon ( ) is displayed. Press .
4. Once the print icon is displayed on the device, start the
service as shown by selecting ‘Start Report Service’ from
the ‘File’ Menu
5. Vitalograph Reports will download the report and the report
will be generated.
6. In Vitalograph Reports enter the Subject Demographic
details and Comments. When the information is entered
select ‘Continue’.
7. The PDF report saves in the default location: C:\
Vitalograph\VitalPrint2.0\Reports
4. Power Management
The asma-1 BT operates with 2 AAA 1.5V disposable batteries.
If the battery symbol ashes the batteries should be replaced.
Replace the batteries by removing the battery door on the underside
of the device.
Note: Dispose of used batteries safely.
5. Cleaning & Hygiene
The Vitalograph asma-1 BT is not designed or supplied as a ‘sterile’
device. Keep the device clean and dust free. If you suspect the
device is damaged or is measuring incorrectly, contact your medical
professional immediately.

The Vitalograph asma-1 BT should continue to give reliable
measurements for up to three years in home use. It should then be
replaced with a new device.
5.1. Cleaning in Single Patient Environment
For single patient use, the plastic mouthpiece may be used.
Weekly cleaning of the mouthpiece, outside surfaces and owhead
of the device is recommended. A cloth impregnated with 70%
isopropyl alcohol may be used. The reusable plastic mouthpiece
may be washed in warm soapy water and then rinsed in clean water.
The device should be cleaned before and after an extended period
of storage.
5.2. Preventing Cross-Contamination of Subjects in Clinic use
For multi-patient use in a clinic or telemedicine environment
Vitalograph recommends the use of ECO BVF lters or, if these
aren’t available then SafeTway mouthpieces may be used based on
the customer own risk assessment and hygiene controls.
Before use by the next subject, the mouthpiece, outside surfaces
and owhead of the device should be cleaned with a cloth
impregnated with 70% isopropyl alcohol. The device should be
cleaned before and after an extended period of storage. If you
suspect that a device intended for multi-patient use has become
contaminated, it should be replaced.
When used in the clinic environment, it is recommended that
the device be replaced annually. There is no planned preventive
maintenance for this medical device.
6. Fault Finding Guide
Problem Fault Symptoms: No ow measurements
Possible Solutions: (In
probable order)
The batteries may be low. Replace
the batteries.The owhead may be
damaged. Check that the rotating
vane is spinning freely.

Problem Fault Symptoms: Cannot read user interface
Possible Solution: The batteries may be low. Replace
the batteries.
7. Customer Service
For further assistance, setting up, using or maintaining the device
or to report unexpected operations or changes in performance,
contact Vitalograph, using the contact information at the start of
this manual. Also contact the healthcare provider on any changes to
the performance of the device, as a precaution.
Service and repairs should be carried out only by the manufacturer,
or by Service Agents approved by Vitalograph. Contact information
for approved Vitalograph Service Agents may be found at the start
of this manual.
Any serious incident that has occurred in relation to the device
should be reported to Vitalograph or its Authorized Representative
and the Regulatory Authorities of the country. Refer to the
Vitalograph contact information at the start of this manual.
8. Consumables and Accessories
Cat. No Description
28501 Eco BVF (100)
28572 Eco BVF + Disposable Noseclips (80)
40168 Plastic Mouthpiece 4000 series (20)
20303 Disposable Noseclips (200)
40167 Pouch Spare (x10)
20242 SafeTway Mouthpieces (200)
67201 Bluetooth Adaptor
9. Disposal
The device and Bluetooth Adapter must be taken to separate
collection at the product end-of-life. Do not dispose of these

products as unsorted municipal waste. The pouch can be disposed
of in unsorted municipal waste.
Used Eco BVFs and SafeTways, constitute minimally soiled waste
from human healthcare and should be disposed of in line with local
requirements. Eco BVFs are made from 100% polypropylene.
10. Explanation of Symbols
Symbol Description
Type BF equipment
VA Power rating
Direct current
Instructions for Use; operating instructions
Manufacturer
Date of Manufacture (include date in format yyyy-mm-dd)

The device must be taken to separate collection
at the product end-of-life. Do not dispose of these
products as unsorted municipal waste
Serial Number
Device Order Number
Use by Date (Date format yyyy-mm-dd)
Keep Dry
Do not re-use

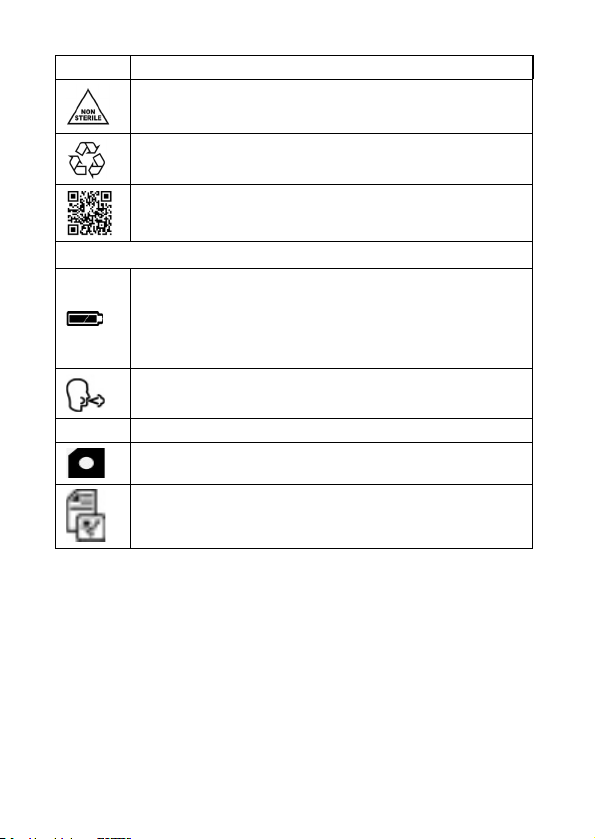

Symbol Description
Non sterile
Recycle
QR code - matrix bar code. All information in the bar
code is included in the text under it
Other Labels
Battery status
Battery status Full
Battery status Half
Battery status Quarter
Battery status Empty (ashing)
Blow Now Symbol
!Bad Test Symbol
Memory 90% - 100% Full Icon
Flashes when memory reaches 100%
Transmit Report Symbol
11. Description of the Vitalograph asma-1 BT
The Vitalograph asma-1 BT is a medical device intended to give
objective measures of lung function for help in managing asthma.
It is intended to be used in a variety of professional healthcare
environments, e.g. primary care, hospitals and occupational health
centres as well as in the home. The device measures airow out of
the lungs when blown into as hard and fast as possible. The asma-
1 BT can reveal narrowing of the airways well in advance of an
asthma attack being felt by the asthmatic. Used mainly by persons
with moderate to severe and persistent asthma, the asma-1 BT can

help determine:
• When to seek emergency medical care
• The effectiveness of an asthma management and treatment plan
• When to stop or add medication, as directed by the physician
• What triggers the asthma attack (such as exercise-induced
asthma)
11.1. Indications for Use
The Vitalograph asma-1 BT is a hand held respiratory monitor
which measures subject respiratory parameters FEV1 and PEF. It
is designed for lung function testing of adults and children, 5 years
and older, in home and professional healthcare environments, e.g.
primary care, hospitals and occupational health centres. The device
is intended to be operated by the patient, under the supervision of a
healthcare provider.
12. Technical Specication
Product Respiratory Monitor asma-1 BT
Model 4000
Dimensions 109mm (length) x 63mm (width) x
42mm (height)
Weight 63g (not including batteries)
Flow Detection Principal Stator/rotor
Accuracy Better than ± 3% (FEV1), ± 10%
(PEF)
Back pressure Less than 0.15kPa/L/second @
14L/s
Measurement Range: PEF: 25 – 840 L/min BTPS
FEV1: 0 – 9.99 L BTPS
Maximum test duration 1 second
! Bad Test Criteria Time to Peak Flow >120ms or a
cough detected in the rst second
Power Supply 3V (2 x 1.5V AAA batteries)

Battery Life
3 months of use, 3 tests per day
(Batteries near the end of their shelf
life will have reduced capacity.)
Product Life
6 Years for the main device. The
Eco BVF, SafeTway & nose clips are
single use.
Operating temperature
range 17–37ºC
Operating humidity
range 30%–75%
Ambient pressure range 850hPa–1060hPa
Performance standards: ATS/ERS 2019, ISO 23747:2015, ISO
26782:2009
Safety standards EN60601-1, EN 60601-1-11
EMC Standards EN 60601-1-2
QA/GMP standards EN ISO 13485, FDA 21 CFR 820,
CMDR SOR/98-282, JPAL, MDSAP.
Communications Bluetooth
Bluetooth Adaptor
Requirements USB2.0/3.0
PC Requirements Windows® 7, Windows® 8 or
Windows® 10
13. Contraindications, Warnings, Precautions and
Adverse Reactions
1. No modication of this equipment is allowed. Any
unauthorised changes to the device may compromise product
safety and/or data and as such Vitalograph cannot be held
responsible and the device will no longer be supported.
2. The device should only be used under the supervision of a
healthcare professional.
3. The device is not designed as a sterile device. Always follow
the safety guidelines given by the manufacturer of cleaning

and disinfectant chemicals.
4. If used for multiple subjects, Vitalograph intends that a new
Eco Bacterial Viral Filter (Eco BVF) be used for every subject to
prevent cross contamination. Using a new Eco BVF provides a
signicant level of protection of the subject, the device and the
user against the risk of cross contamination during spirometry
manoeuvres. An Eco BVF is for single use only.
5. Spirometry is a valuable tool that provides important
information to clinicians which is used together with other
physical ndings, symptoms, and history to reach a diagnosis
(ATS/ERS 2019). And as such, spirometry may support or
exclude diagnosis, but it cannot make one.
6. Take care not to block the mouthpiece with the tongue or
teeth during testing. A ‘spitting’ action or cough will give false
readings.
7. Subject fatigue may occur during testing depending on the
subject’s characteristics e.g. age, health status. For safety
reasons, testing should be preferably done in the sitting
position, using a chair with arms and without wheels. Subject
can also take a break between tests.
8. All values displayed are expressed as BTPS values.
9. Time zero is determined using the back-extrapolated method,
from the steepest part of the curve.
10. Symptoms must take precedence over device measurements.
If the patient at home thinks that the device is not reading
correctly, they must advise the healthcare professional
immediately.
11. Do not expose the device to liquids other than cleaning liquids
specied.
12. Keep device dry. If the device gets wet, do not use it, and
contact Vitalograph using the contact information at the start
of this manual. Do not connect any part of this device to mains
power as there is a risk of injury especially if the device is wet.
13. The device is not intended to be used in the presence of
ammable liquids or gases, dust, sand or any other chemical
substances.
14. Service and repairs should be carried out only by the
manufacturer or by Service Agents specically approved by

Vitalograph.
15. RF communications equipment (including peripherals such
as antenna cables and external antennas), which emit
electromagnetic elds, should be used no closer than 30 cm
(12 inches) to any part of the device, including cables specied
by Vitalograph. Otherwise, degradation of the performance of
this equipment could result.
16. The device is a Type BF applied part. The subject comes into
contact with the device, mouthpiece, SafeTway or Eco BVF
during use.
17. Take care during battery replacement or during Bluetooth
adaptor installation. An AAA battery and Bluetooth adaptor are
potential choking hazards for a small child. Adult supervision
is required at all times, when a child is using the device. The
battery door, when removed, has pointed corners which may
present a risk of injury.
18. The batteries should be removed if the device is intended to be
stored or left unused for an extended period of time.
19. Only approved accessories from the manufacturer should be
used with the device. It may be unsafe to use accessories,
detachable parts and materials not described in this document.
20. Non-Medical Electrical equipment used with the device, should
comply with its relevant IEC or ISO standard.
21. For the device to be used as intended, there is no requirement
to clean the supporting computer. If cleaning is required to
remove any visible soiling, this should be done as per the
computer manufacturer’s instructions.
14. CE Notice
Marking by the symbol indicates compliance of the
Vitalograph Model 4000 asma-1 to the Medical Devices Directive of
the European Community.
The Vitalograph Model 4000 asma-1 is intended for use in a variety
of Home and professional healthcare environments, e.g. primary
care, hospital wards and occupational health centres, except for
near active high frequency surgical equipment and the RF shielded
room of an ME system for magnetic resonance imaging, where the

intensity of electromagnetic disturbance is high. The customer or
the user of the asma-1 should assure that it is not used in such an
environment.
The Model 4000 asma-1 has been tested in accordance with:
EN60601-1:2006 + A1:2013
Medical electrical equipment. General requirements for basic safety
and essential performance
EN 60601-1-11: 2015
Medical electrical equipment. General requirements for basic safety
and essential performance. Collateral Standard: Requirements for
medical electrical equipment and medical electrical systems used
in the home healthcare environment.
EN 60601-1-2: 2015
Medical electrical equipment - Part 1-2: General requirements
for basic safety and essential performance - Collateral Standard:
Electromagnetic disturbances - Requirements and tests.
EN 60601-1-2 - Emissions tests
Emissions test Compliance Electromagnetic environment
- guidance
RF emissions
CISPR 11 Group 1
The Model 4000 asma-1
uses RF energy only for its
internal function. Therefore,
its RF emissions are very low
and are not likely to cause
any interference in nearby
electronic equipment.
RF emissions
CISPR 11 Class B
The Model 4000 asma-1
is suitable for use in all
establishments, including
domestic establishments.

EN 60601-1-2 Immunity tests
Immunity test Test level Compliance level
Reached
Electrostatic
discharge (ESD)
EN 61000-4-2
Contact: ± 8 kV
Air: ± 2 kV,± 4 kV,
± 8kV,± 15 kV
Contact: ± 8 kV
Air: ± 2 kV,± 4 kV,
± 8kV,± 15 kV
Radiated RF
EN 61000-4-3
3 V/m
80MHz to
2700MHz
3 V/m
80MHz to 2700 MHz
Proximity elds
from RF devices
EN 61000-4-3
9 to 28V/m
385 to 5785MHz
As per Table 9
EN60601-1-2:2015
9 to 28V/m
385 to 5785MHz
As per Table 9
EN60601-1-2:2015
Medical Devices may be affected by mobile RF communications
equipment including cellular telephones and other personal
or household devices not intended for medical facilities. It is
recommended that all equipment used near the Vitalograph product
comply with the medical electromagnetic compatibility standard
and to check before use that no interference is evident or possible.
If interference is suspected or possible, switching off the offending
device is the normal solution, as is required in aircraft and medical
facilities.
Medical electrical equipment needs special precautions regarding
EMC and needs to be installed and put into service according to the
EMC information provided.
15. FDA Notice
Caution: Federal Law restricts this device to sale by, or on the order
of a physician.

16. EU Declaration of Conformity
Product: Respiratory Monitor 4000, asma-1
Vitalograph hereby ensures and declares that the above product
associated with these instructions for use, is designed and
manufactured in accordance with the following QMS regulations
and standards:
• European Medical Devices Directive {MDD} 93/42/EEC, as
amended.
This device is classied as IIa per Annex IX of the MDD
also meets the provisions of the Essential Requirements,
Annex I, via compliance with Annex II of the Medical
Devices Directive as per Article 11, section 3a, excluding
point 4 of Annex II.
• EN ISO 13485 Medical devices. Quality management systems.
Requirements for regulatory purposes.
Certifying Body: British Standards Institute {BSI}.
BSI Notied Body #: 2797
Certicate Nos. CE 00772, MD 82182
Signed on behalf of Vitalograph (Ireland) Ltd.
Frank Keane.
CEO, Vitalograph Ltd.
