VS-4300-B USER MANUEL
Bluetooth Travel Blood Pressure Monitor
Heart Rate Bluetooth Data History

Congratulations on your Vitasigns Life Report System by
Vitagoods purchase. Using your Bluetooth Advanced Travel
Blood Pressure Monitor VS-4300, you are now able to
measure, track, and share vital blood pressure parameters
from the comfort of your home.
To get the most out of your new blood pressure monitoring
device and ensure safety, read the user manuel prior to use.
Please follow the instructions carefully, and retain the user
manuel for future reference. We hope you enjoy the many
benefits of your Vitagoods Life Report System.
For assistance, call 1-888-870-2786 or visit www.vitagoods.com.

Table of Contents
INTRODUCTION ....................................................................................................... 1
Safety Information
FEATURES AND COMPONENTS ............................................................................ 3
Monitor Functions
Features and Components
ABOUT BLOOD PRESSURE...................................................................................... 4
Systolic Pressure and Diastolic Pressure
Standard Blood Pressure Classification
Blood Pressure Fluctuations
Hospital Versus Home Readings
Wrist Choice
INITIAL START-UP...................................................................................................... 5
Installing and Replacing the Batteries
Setting Date, Time & Measurement Units
VITASIGNS APP ......................................................................................................... 9
Downloading the App/Compatible Devices
Pairing the App
WARRANTY.............................................................................................................. 10
What is Covered
TAKING MEASUREMENTS..................................................................................... 11
Positioning the Cuff
Tips for Measurement
Taking Measurements
DATA MANAGEMENT............................................................................................ 13
Recalling Records
Deleting Records
USER GUIDELINES .................................................................................................. 15
Maintenance
Cleaning and Disposal
TROUBLESHOOTING ............................................................................................. 17
Error Messages
SPECIFICATIONS .................................................................................................... 18
FCC Statement ........................................................................................................ 19
COMPILED STANDARDS........................................................................................ 20
ELECTROMAGNETIC COMPATIBIILITY................................................................ 21
TABLE OF CONTENTS

SAFETY INFORMATION
Page 1
This Vitagoods Life Report System device measures systolic and diastolic blood pressure
and pulse rate of an adult by using a pressurized cuff on the left wrist. The device is
not intended for use on infants and children. The device is designed for home use only,
and is not intended for ambulatory measurement (measurement recorded continuously
throughout the day).
Blood pressure measurements determined with this device are equivalent to those
obtained by a trained observer using the American National Standard, Manuel,
Electronic or automated sphygmomanometers.
If you suffer from disorder of heart rhythm (arrhythmia), only use this blood pressure
monitor after consulting with your physician. In certain oscillometric cases, this
measurement method may produce incorrect readings.
This Life Report System device is not intended to be a diagnostic device. Contact your
physician immediately if pre-hypertensive or hypertensive values are indicated.
CAUTION
Read this user manuel thoroughly before use. This device is designed and manufactured to
operate within defined design limits. Misuse may result in harm. The following should be
observed to best use and maintain your device:
• This device is intended for adult use only.
• This device is intended for non-invasive measuring and monitoring of arterial blood pressure.
It is not intended for use on body extremities other than the wrist. • Its sole function is blood
pressure measurement.
• Monitoring blood pressure with this device does not equate to a medical diagnosis.
• This device allows you to monitor your blood pressure under the care of a physician.
• If you are taking medication, consult with your physician to determine the most appropriate
time for your measurement. Never change a prescribed medication without your physician’s
consent.
• This device is not suitable for continuous monitoring during medical emergencies or
operations.
• If the pressure of the cuff exceeds 40 kPa (300 mmHg), the device will automatically deflate.
Should the cuff not deflate when its pressure exceeds 40 kPa (300 mmHg), detach the cuff
from the wrist and press START/STOP to stop inflation.
• Do not use the monitor under the conditions of strong electromagnetic field (e.g. medical
radio frequency equipment) that radiates interference signal or electrical fast transient/burst
signal.
• The device is not AP/APG equipment. It is not suitable for use in the presence of flammable
gases (avoid oxygen, nitrous oxide).
• Keep the unit out of reach of infants or children. Inhalation or swallowing of the device’s small
pieces is dangerous or even fatal.
• Use only accessories and detachable parts specified and authorized by the manufacturer.
Not doing so may cause damage to the unit or danger to you.

SYMBOL DESCRIPTION DEFINITION
Systolic Blood Pressure High Pressure Result
Diastolic Pressure Low Pressure Result
Pulse per Minute, BPM Beats per minute
Low Battery Batteries are low and need to
be replaced
mmHg Measurement Unit of Blood
Pressure (1mmHg=0.133kPa)
IHB Indicator Irregular Heartbeat Detector
Bluetooth Bluetooth Indicator
Error Indicates and error in
measurement, usually a result of
movement
Memory Recalling the historic records
Time Hour:Minute (Month/Day/Year)
DISPLAY AND INDICATORS
+ Lo
SAFETY INFORMATION
THE FOLLOWING SYMBOLS, DEFINED BELOW ARE FOUND ON YOUR PRODUCT
AND IN THIS USER MANUEL. THEY ARE REQUIRED AND STANDARD FOR USE.
This part of the Operation Guide
Must be Read Indicates Type B Applied Parts
Indicates Direct Current
ENVIRONMENT PROTECTION
Electronic products should not be
disposed of with household waste.
Please recycle.
Indicates compliance with MDD
93/42/ECC Requirements
Represents the Manufacturer
Indicates the Serial Number
Page 2
INTRODUCTION

FEATURES AND COMPONENTS
PRODUCT INCLUDES
SYSTOLIC MEMORY / UP BUTTON
CUFF
COMPONENT LIST
MICRO CONTROL UNIT
AMPLIFIER
AIR PIPE
PUMP
VALVE
DIASTOLIC START BUTTON
BATTERY COMPARTMENT
PULSE RATE STOP / BLUETOOTH
SYNC BUTTON
LCD DISPLAY TIME SET / DOWN BUTTON
1 - VS-4300 VITASIGNS BLOOD PRESSURE MONITOR
2 - AAA SIZE BATTERIES
1 - USER MANUAL
Page 3

SYSTOLIC PRESSURE AND DIASTOLIC PRESSURE
ABOUT BLOOD PRESSURE
STANDARD BLOOD PRESSURE CLASSIFICATION
When ventricles contract and pump blood out
of the heart, the blood pressure reaches its
maximum value in the cycle, systolic pressure.
When the ventricles relax, the blood pressure
reaches its minimum value in the cycle, which is
called diastolic pressure.
Measuring your own blood pressure is an important way of monitoring your health. High
blood pressure (hypertension) is a major health problem, which can be treated effectively
once detected. Measuring your own blood pressure between doctor visits on a regular
basis and keeping accurate records helps monitor any significant changes in blood
pressure.
CAUTION
Please contact your physician if your measurment results are outside of the
normal range. Only a physician can tell you whether your blood pressure
value has reached a dangerous point.
This chart is the standard blood pressure classification published by American Heart
Association (AHA).
AHA Home Guideline for upper limit of normal blood pressure:
SYS 135 mm Hg DIA 85 mm Hg
ABOUT BLOOD PRESSURE
Page 4
Blood Pressure
Category
Systolic
mm Hg (upper #)
Diastolic
mm Hg (lower #)
Normal less than 120 and less than 80
Pr-hypertensive 120-139 or 80-89
High Blood Pressure
(Hypertension) Stage 1 140-159 or 90-99
High Blood Pressure
(Hypertension) Stage 2 160 or higher or 100 or higher
Hypertensive Crisis
(Emergency Care Needed) Higher than 180 or Higher than 110

BLOOD PRESSURE FLUCTUATIONS
HOSPITAL VERSUS HOME READINGS
WRIST CHOICE
Why does my blood pressure measurement change within a one-day period?
• Individual blood pressure varies throughout the day. Measurements are also
affected by the way you fasten your cuff and your measurement position. Try to
daily take measurements at the same time and in the same condition.
• Individuals who take medication are more prone to variation in blood pressure.
• To ensure the most accurate measurements, wait at least five (5) minutes before
conducting another.
Why does my blood pressure measurement in a hospital differ from home?
Blood pressure variations are common. Measurements are different during
a 24-hour period due to both internal (exercise, stress, etc.) and external
(weather, etc.) conditions.
Is the result the same if I measure on my right wrist instead of my left wrist?
You should try to use your left wrist but can use your right wrist. Reading results
between both wrists tend to be random, but the difference is usually not
significant.
Guidelines to measure your blood pressure
at home:
• Fasten the cuff securely on your wrist.
• Make sure the cuff is not too tight or too
loose.
• Avoid use if pressure on your body gives
you anxiety.
• Take three deep breaths before beginning
the measurement.
Page 5

displays on the LCD
• The LCD display dims
• When powering the monitor on, the LCD does not light up
INSTALLING AND REPLACING THE BATTERIES
BATTERY LIFE: APPROXIMATELY 57 DAYS
REPLACE THE BATTERIES UNDER THE FOLLOWING CIRCUMSTANCES
1. Open the Battery Door
2. Insert the batteries according to the
polarity indications.
(Always select the authorized / specified
battery: Two LR03 AAA-size alkaline
batteries).
3. Close the
battery door.
(Battery capacity: 600 mAH. If blood pressure is measured 3 times per day (each
measurement taking 30 seconds), and the unit’s memory is checked once per day
(memory check lasting for 60 seconds).
The current used during measurement is 350 mA. The current used while displaying
records is 50 mA. While the unit is shut down the current 25 uA.)
+ Lo
SAFETY INFORMATION
• Remove the batteries if the device is not likely to be used for some time.
• Worn out batteries are harmful to the environment. Do not dispose of them with
daily garbage, please recycle.
• Remove the old batteries from the device following your local recycling guidelines.

SETTING DATE, TIME & MEASUREMENT UNITS
PLEASE SET THE TIME ON YOUR DEVICE BEFORE YOU USE IT. HAVING THE
CORRECT TIME SET ENSURES THAT EACH RECORD IS LABELED WITH THE
CORRECT TIME STAMP (YEAR RANGE: 2012-2052; TIME FORMAT: 12 HOURS).
MEM
MEM
MEM
1. When the monitor is OFF, press and hold
the “SET” button for 2 seconds to enter
“Time Setting” mode.
2. As pictured on the left, the numeral “12”
will begin blinking, representing [HOUR].
Press “MEM” button to change the
numeral. Each press will increase the
numeral by one.
3. Press the “SET” button again to confirm the
[HOUR] selection.
Then the numeral representing the
[MINUTE] will begin blinking.
Page 7

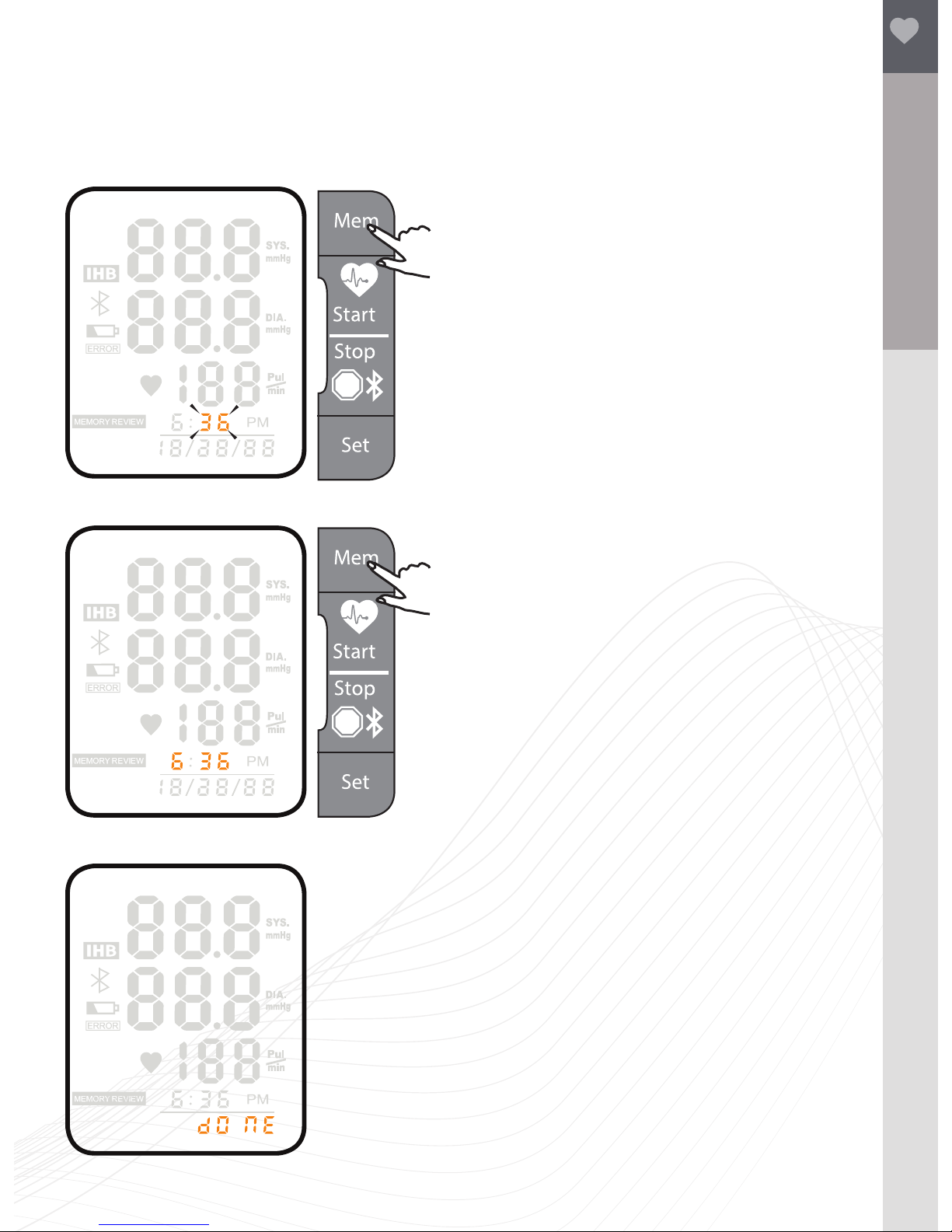

4. Repeat steps 2 and 3 to confirm the
selection of the [MINUTE}.
5. Repeat steps 2 and 3 to confirm the
[MONTH], [DAY] and [YEAR].
6. After confirming the [YEAR], the LCD will
display “dONE” and the monitor will shut
off automatically.
MEM
MEM
INITIAL START-UP
Page 8

Keep track of all your vital signs!
Download the Vitasigns App to sync your
favorite Vitasigns body monitoring products.
Set goals, stick to targets and monitor
general vitality with this easy-to-use App.
Available free from itunes or our website
www.vitasigns.com/app
Also available in this range:
Blood Pressure
Monitors
Digital Body
Analyzers
Bluetooth
Digital Body Analyzer Scale
VS-3200-B
Bluetooth Desktop
Blood Pressure Monitor
VS-4000
Page 9
Downloading the App
This Life Report System device works with the iPhone, iPad, or iPod touch.
1. Please confirm your iPhone, iPad, or iPod touch
model is listed as a compatible model.
2. Prior to data management between the devices, you must first download the Vitasigns App. It
is available from the App Store as a free download.
3. Install the Vitasigns App on your mobile device. The Life Report System device indicates
“Application Not Installed” if the Vitasigns App cannot be found.
Pairing Devices (if pairing with Vitasigns App)
1. Turn on the Bluetooth option and open the Vitasigns App on your iPhone, iPad, or iPod touch.
2. When the monitor is off, press and hold START/STOP button for two (2) seconds initiate the
pairing. The symbol ( ) and the symbol ( ) appear on the LCD alternatively, indicating that
pairing is proceeding.
If SUCCEED, ( ) symbol appears on the LCD.
If FAILED, ( ) symbol appears on the LCD.
3. The monitor shuts off automatically after pairing process is complete.
iPod touch 5
iOS 5 or iOS 6
iPhone 4S
iOS 5 or iOS 6
iPhone 5
iOS 5 or iOS 6
iPad mini
iOS 5 or iOS 6
iPad 3 and 4
iOS 5 or iOS 6

POSITIONING THE CUFF
1. Remove your watch and/or jewelry from your left hand. (If your physician has diagnosed you
with poor circulation in your left wrist, use your right wrist.)
2. If applicable, roll or push up your sleeve to expose your skin.
3. Wrap the cuff around your wrist, palm facing up,
and fasten.
4. Make sure the cuff is firmly against your skin and
aligned to the center. (If the cuff is too loose, the
measurement will not be accurate.)
5. Sit comfortably on a chair. The central of the cuff
should remain at the same level as your heart.
Your legs should be relaxed with the feet falling
outwards.
TAKING MEASURMENTS
TIPS FOR MEASUREMENT
Do not take a measurement under any of the following circumstances, inaccuracies may result.
Eating or drinking within
one hour prior to measurement
Wait at least 20 minutes
after taking a bath
In a very
cold environment
Immediate measurement after
tea, coffee, smoking
When talking
or moving your fingers If you need to use the restroom

TAKING MEASUREMENTS

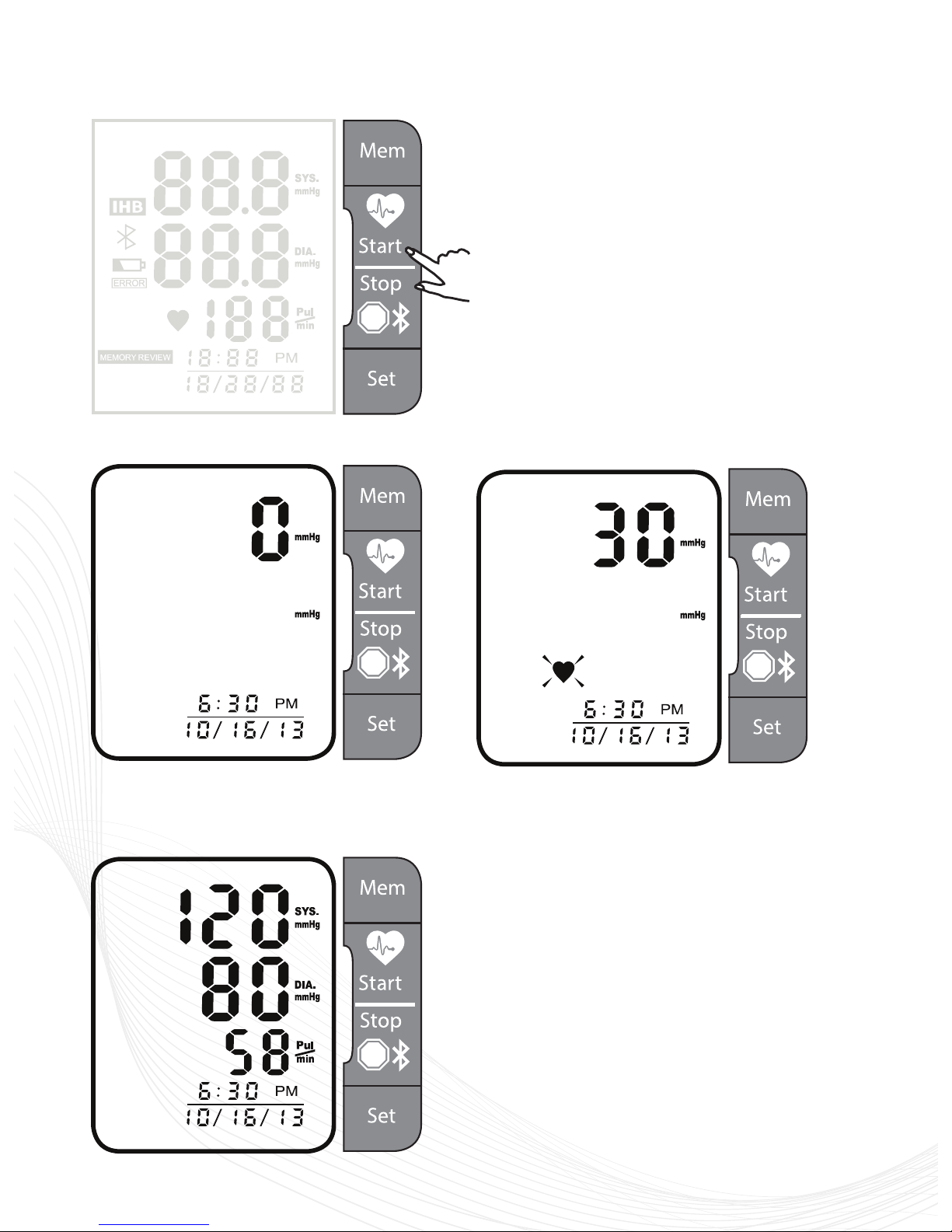

1. After correctly positioning the cuff, press
START button to turn on the monitor. The
measurement process will automatically.
1a. Adjust to Zero 1b. Inflating and Measuring
1c. Display and Save the
Measuring Result
MEM
MEM
MEM
MEM
T
Page 11

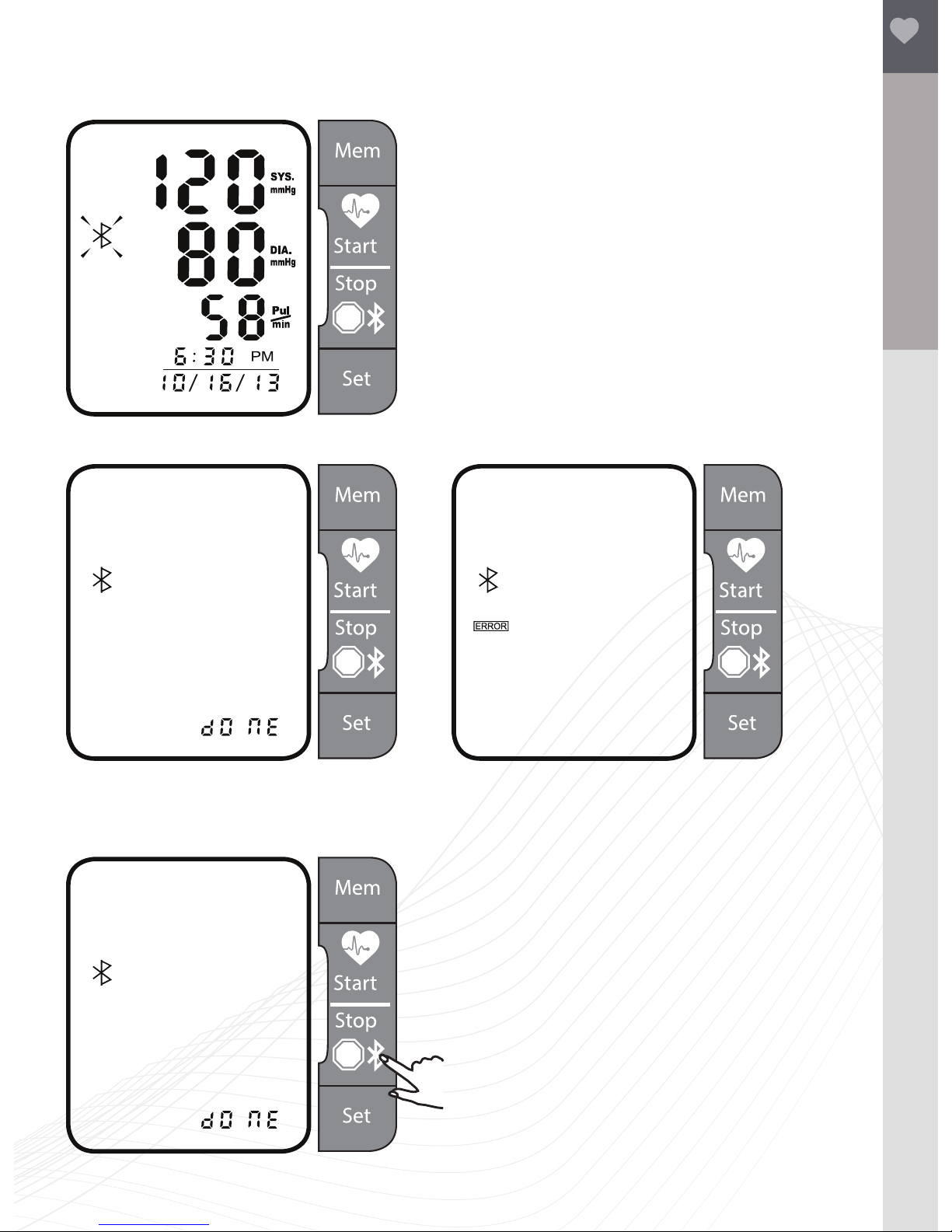

2. The device will proceed to transmit the data
automatically after the measurement.
The Bluetooth symbol will blink during
transmission.
4. Press the STOP button to turn off the
monitor.
The device will power off automatically if you
miss this step.
The mobile or portable equipment, equipped with Bluetooth
functionality in line with BLE Technical Specications as well
as BLP Protocol established by the global organization
Bluetooth SIG, are capable to receive the health data, including
measurement time, systolic pressure, diastolic pressure, etc.
3a. If the data is successfully
transmitted, the LCD will display as
pictured above.
3b. If the data transmission fails, the
LCD will display “ERROR” as
pictured above.
MEM
MEM
MEM
MEM
T
TAKING MEASURMENTS
Page 12

RECALLING THE RECORDS
MEM
MEM
1. Press the “Mem” button to access
the devices memory.
2. Press the “Mem” button to scroll
forward through the records
and the “Set” button to scroll
backward.
CAUTION
The most recent record (1) is shown first. Each new measurement is assigned to the first
(1) record. All other records are pushed back one digit (e.g., 2 becomes 3, and so on), and
the last record (60) is dropped from the list.
Page 13

DELETING THE RECORDS
MEM
MEM
MEM
1. Under Memory Recalling Mode, press
and hold both the “MEM” button and the
“SET” button for 3 seconds.
When you did not obtain the accurate measurement, you can clear all the
measuring results by following below steps.
2. The LCD will display “dEL dONE”,
indicating that memory clearing is
complete.
3. If you wish to give up clearing memory,
press “STOP” to turn off the monitor.
4. When there are no records in the monitor’s
memory if you press the “MEM” button
to look up history, the LCD will display as
pictured on the left.
DATA MANAGEMENT
Page 14

Page 15
MAINTENANCE
To obtain the best performance, please follow the instructions below.
CLEANING
DISPOSAL
Dusty environments may affect the performance of the unit. Use a soft cloth to
remove dust before and after use. Please make sure the unit functions safely and
it is in proper working conditions before use.
Please follow the instructions for correct replacement of interchangeable or
detachable parts specified by SERVICE PERSONNEL of MANUFACTURER as
“replaceable”.
Degraded sensors may result in inaccurate measurement while loosened
electrodes may cause the monitor to fail to power on. Please dispose of
ACCESSORIES, detachable parts, and EQUIPMENT according to local guidelines.
Put in a dry place and avoid the
sunshine
Avoid immersing it in the water.
Clean it with a dry cloth in case Avoid shaking and collision.
Avoid dusty environment and
unstable temperature surrounding
Use the slightly damp cloth to
remove the dirt. Avoid washing the cuff

WARRANTY
Vitagoods warrants device to the original purchaser or the person receiving the product as a gift
against defects in materials and workmanship as based on the date of original purchase (“Warranty
Period”) from an Authorized Dealer. The original sales receipt showing the product name and the
purchase date from an authorized retailer is considered such proof. Vitagoods warrants the device
under normal use for a period of one (1) years from the date of retail purchase.
WHAT IS COVERED:
The Vitagoods warranty covers new products if a defect in material or workmanship occurs and a
valid claim is received by Vitagoods within the Warranty Period. At its option, Vitagoods will either
(1) repair the product at no charge using new or refurbished replacement parts or (2) exchange the
product with a product that is new or has been manufactured from new, or serviceable used parts and
is at least functionally equivalent or most comparable to the original product in Vitagoods current
inventory, or (3) refund the original purchase price of the product.
Vitagoods warrants replacement products or parts provided under this warranty against defects
in materials and workmanship from the date of the replacement or repair for ninety (90) days or
for the remaining portion of the original product’s warranty, whichever provides longer coverage
for you. When a product or part is exchanged, any replacement item becomes your property and
the replaced item becomes Vitagoods’ property. When a refund is given, your product becomes
Vitagoods’ property.
Note: Any product sold and identied as refurbished or renewed carries a ninety (90) day limited
warranty.
This Limited Warranty does not cover:
• Shipping charges to return defective product to Vitagoods.
• Product repair and/or part replacement because of improper use or maintenance, connections
to improper voltage supply, power line surge, lightning damage, retained images, or screen
markings resulting from viewing fixed stationary content for extended periods, product cosmetic
appearance items due to normal wear and tear, unauthorized repair or other cause not within the
control of Vitagoods.
• Damage or claims for products not being available for use, or for lost data or lost software.
• Damage from mishandled shipments or transit accidents when returning device to Vitagoods.
• A device that requires modification or adaptation to enable it to operate in any country other
than the country for which it was designed, manufactured, approved and/or authorized, or repair
of products damaged by these modifications.
• A device used for commercial or institutional purposes (including but not limited to rental
purposes).
• A device lost in shipment and no signature verification receipt can be provided.
• Failure to operate per User Manuel.
Register your device online at www.vitagoods.com to ensure
warranty confirmation.
WARRANTY

TROUBLESHOOTING
This section includes a list of error messages and frequently asked questions for
problems you may encounter with your blood pressure monitor. If the device is
not operating properly, check here before arranging for service.
PROBLEM SYMPTOM CHECK THIS REMEDY
No Power Display is dim or will
not light up.
Batteries are exhausted Replace with new batteries
Batteries are inserted
incorrectly Insert batteries correctly
Low
Batteries
Shown on
the display Low Battery Replace with new batteries
Error
Message
E1 Shows Data communication
has failed
make sure your smart-
phone’s Bluetooth is turned
on and in range
E2 Shows The cuff is very tight Refasten the cuff and then
measure again
E3 Shows The pressure of the cuff
is excess
Relax for a moment and then
measure again
EF or E6 Shows System Error Turn off the monitor and then
turn it on again
E10 or E11 Shows
The monitor detected
motion while
measuring.
Movement can affect the
measurement. Relax then
measure again.
E20 Shows
The measurement
process does not
detect the pulse signal.
Loosen clothing on the arm
and them measure again.
E21 Shows Measure incorrectly Relax for a moment and then
measure again
+ Lo
Page 17
