Vitek VT-PIRC2/H User manual

VITEK
•1/3” Sony High Density CCD (960H) with 700 TV Lines
•Minimum Illumination of 0.2 Lux / 0.1 Lux
•Pinhole 3.7mm / F2.0 Lens Included
•NC/N/NO Alarm Output
•Working 100’ Motion Detection Using 58 Beams Within 3
layers (35’ x 35’ Coverage Area)
VT-PIRC2/H
Color PIR Cameras

2

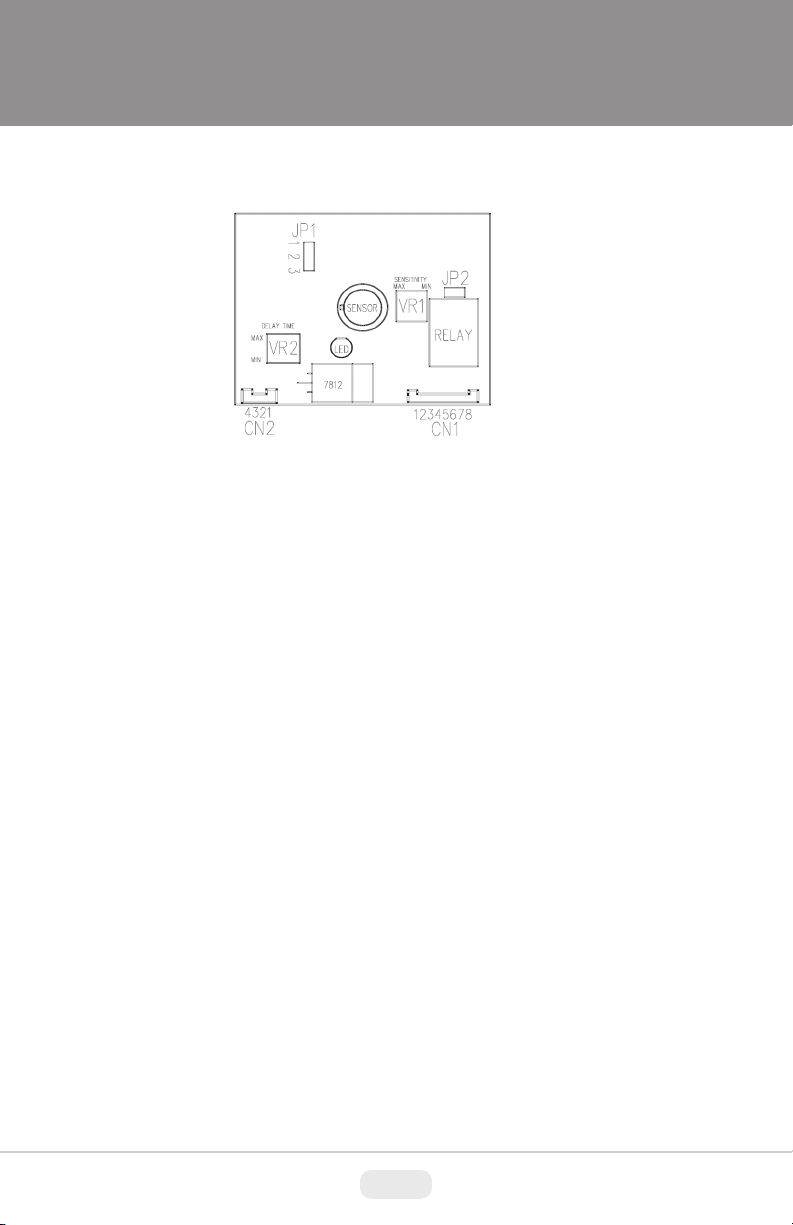

PIR BOARD LAYOUT
1. LED: When an intrusion is detected, the LED will activate.
2. JP1: Pulse count setting.
1-2 short: Relay will activate when an intrusion is detected once. (For stable
environments or high risk operating environments)
2-3 short: Relay will activate when an intrusion is detected twice within 15 seconds.
(For harsh environments)
3. JP2: Relay output select.
Short: For outer control used in area where DC12V is requested (Limited at 200mA).
Normal: N.C. = DC12V out
Activate: N.O. = DC12V out
Open: Normal relay connector (1.5A at DC24V/1.5A at AC120V/1A at AC240V)
Normal: C & N.C. short / C & N.O. open.
Activate: C & N.C. open / C & N.O. short.
Caution! Risk of electric shock. Set-up and operation should be performed by
Authorized Service Person only.
4. VR1: Sensitivity adjustment.
Turn clockwise for high sensitivity, turn counter-clockwise for low.
5. VR2: Relay activation time adjustment (range about 2 ~ 30 seconds).
Turn clockwise for short time, turn counter-clockwise for long.
6. NC/C/NO Wiring:
C: BLACK NO: WHITE NC: YELLOW
CN1 Connector:
1. DC 12V IN
2. GND
3. AUDIO OUT (option)
4. GND
5. VIDEO OUT
6. RELAY C. (common)
7. RELAY N.O. (normal open)
8. RELAY N.C. (normal close)
CN2 Connector:
1. AUDIO IN (Not Available In US)
2. VIDEO IN (from CCD MODULE)
3. GND
4. DC 12V/120mA OUT (for CCD MODULE)

3
Image Device
Effective Pixels
Resolution
Minimum Illumination
S/N Ratio
Electronic Shutter
AGC
Sync. Mode
Scanning System
Gamma Correction
Sync. Frequency
Video Output
Power Source
Power Consumption
Operation Temp.
Standard Lens
Dimensions
1/3” Sony High Density CCD (960H)
1020 x 508
700 TV Lines
0.1 Lux
More Than 48dB
1/60 to 1/100,000 sec.
>18Db
Internal Sync.
2:1 Interlace
0.45
15.734KHz (H) / 60Hz (V)
Composite: 1.0 Vp-p / 75 Ohm
12VDC
100mA
-10° ~ 60°C (14° ~ 140°F) Less Than 80% RH
3.7mm/F2.0
2.75” x 4.72” x 1.69” (70mm x 120mm x 43mm)
SPECIFICATIONS VT-PIRC2/H
•Use a professional CCTV monitor only to achieve best resolution and performance.
•Camera may also be connected to other devices such as a DVR .
•Use copper braid RG59U coax for best video performance. Video may also be transmitted via
CAT5E cable with the use of video baluns .
•12VDC Regulated power adapter 12V must be used otherwise the device will be damaged
and un-repairable.
Application Note:

4
28492 Constellation Road ValenCia, Ca 91355
WWW.ViteKCCtV.CoM
