Vitek TRANSCENDENT VTD-T4D6HR8MD User manual

VITEK
VITEK
FEATURES
• 1/2.3” 8.0 Megapixel [4K] Progressive Scan CMOS Sensor
• 8MP[4K]@15fps/12.5fps, 4MP@30fps/25fps,
1080P@30fps/25fps
• True Day / Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output
(Selectable)
• 3.6~10mm Motorized Varifocal Lens
• 6 Integrated High Power Dynamic IR LEDs with up
to 165’ IR Range
• 3D-DNR Noise Reduction
• Digital Wide Dynamic Range (D-WDR)
• IP66 Weather Resistance, 4000V
Lightning Protection
• Supports CoC (Control over COAX)
• Over 1500’ HD Video Transmission (Depending on cable
characteristics and integrity)
• 12VDC / 24VAC Dual Voltage Operation
• 3 Year Warranty
VTD-T4D6HR8MD
8 Megapixel [4K] 4-in-1 Dual Voltage
Motorized Varifocal WDR
Vandal Dome Camera
with IR LED Illumination

2 3

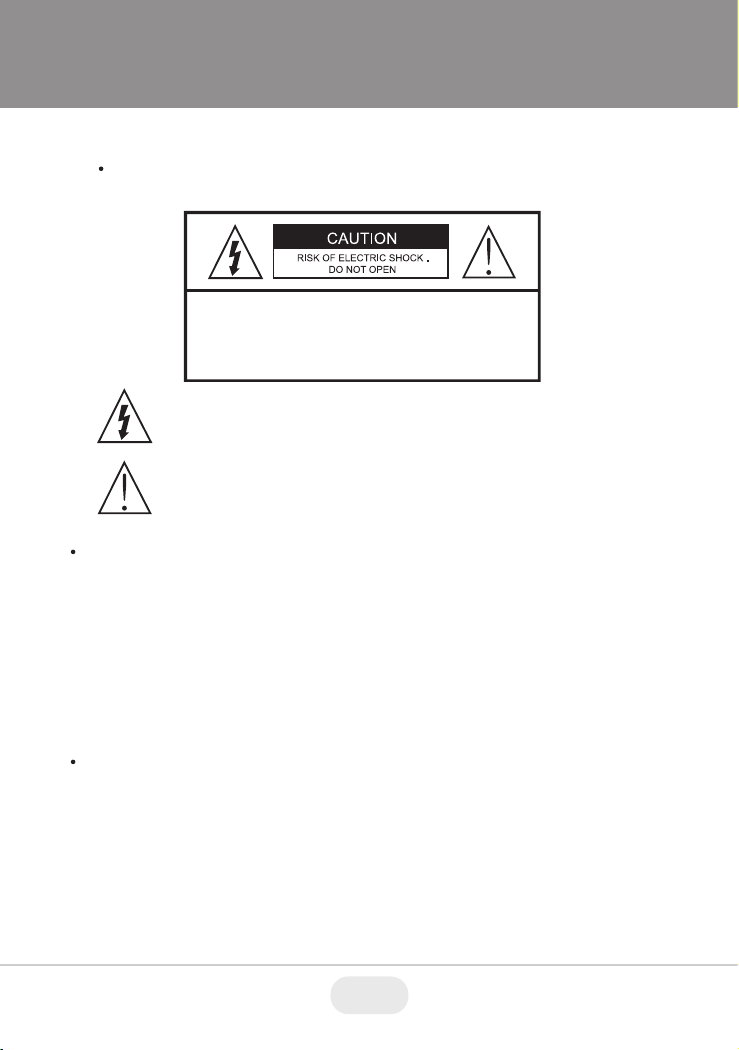

Safety Precaution
CAUTION: TO REDUCE THE RISK OF ELECTICAL
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
To prevent electrical shock and risk of fire hazards, do not expose this unit
to rain or moisture and only use specified power source..
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Main power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power interruptions, it is
recommended that the device be powered from an uninterruptible power supply
(UPS).
The symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electrical shock.

3
Power & Video Connections
Monitor
Video
12VDC / 24VAC Power
Connect the HD-TVI Video or AHD/CVBS video connector to a BNC
patch cable, then to a DVR. Next connect the power connector to a
12VDC or 24VAC power adaptor.
Installation
1) Disconnect power before installation.
2) Confirm proper 12VDC or 24VAC power supply is used to prevent
damage to the camera.
3) Do not use in an environment beyond the boundaries of the
specifications.
Video Output Mode Switch:
Select the desired video mode using the dip switches
contained within the on-cable Output Mode Switch as follows:
ON
12
ON
12
HD-TVI
ON
12
AHD
ON
12
CVI
ON
12
CVBS
EXAMPLE:
1 & 2 Off

4 5
OSD INSTRUCTIONS - VTD-T4D6HR8MD
MAIN
AE ↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
EXPOSURE
BRIGHTNESS: 1~100 (Default 34)
EXPOSURE MODE:GLOBAL,
BLC 1~7 (Default Global)
RETURN
MAIN
AE
↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
AF
AF MODE: SEMI
ZOOM: -/+
FOCUS: -/+
BOOT MODE: SAVE POS
TDN AF: OPEN
FOCUS TRIGGER ↵
LENS INIT ↵
RETURN
MAIN
AE ↵
AF ↵
ABW ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
AWB
MODE: PRO, GRAY WORLD (Default PRO)
R GAIN: 1~100 (Default 38)
B GAIN: 1~100 (Default 50)
RETURN
MAIN
AE ↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
DAY NIGHT
MODE: EXT, AUTO, COLOR, B/W
(Default EXT)
RETURN

5
OSD INSTRUCTIONS - VTD-T4D6HR8MD
MAIN
AE ↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
EXPOSURE
BRIGHTNESS: 1~100 (Default 34)
EXPOSURE MODE:GLOBAL,
BLC 1~7 (Default Global)
RETURN
MAIN
AE ↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
AF
AF MODE: SEMI
ZOOM: -/+
FOCUS: -/+
BOOT MODE: SAVE POS
TDN AF: OPEN
FOCUS TRIGGER ↵
LENS INIT ↵
RETURN
MAIN
AE
↵
AF ↵
ABW ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
AWB
MODE: PRO, GRAY WORLD (Default PRO)
R GAIN: 1~100 (Default 38)
B GAIN: 1~100 (Default 50)
RETURN
MAIN
AE
↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
DAY NIGHT
MODE: EXT, AUTO, COLOR, B/W
(Default EXT)
RETURN

6 7
MAIN
AE
↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
IMAGE ENHANCE
CONTRAST: AUTO, Manual 1~20 (Default Auto)
SHARPNESS: AUTO, Manual 1~20 (Default Auto)
SATURATE: AUTO, Manual 1~20 (Default Auto)
3DNR: AUTO, Manual 1~20 (Default Auto)
RETURN
MAIN
AE
↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
VIDEO SETTING
HD: TVI,CVI,AHD,CVBS (Default TVI)
STANDARD: 8MP15,8MP12.5,4MP25,4MP30,
1080P25,1080P30
RETURN

7
MAIN
AE ↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
IMAGE ENHANCE
CONTRAST: AUTO, Manual 1~20 (Default Auto)
SHARPNESS: AUTO, Manual 1~20 (Default Auto)
SATURATE: AUTO, Manual 1~20 (Default Auto)
3DNR: AUTO, Manual 1~20 (Default Auto)
RETURN
MAIN
AE ↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
VIDEO SETTING
HD: TVI,CVI,AHD,CVBS (Default TVI)
STANDARD: 8MP15,8MP12.5,4MP25,4MP30,
1080P25,1080P30
RETURN
MAIN
AE
↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
DWDR
RESET
SAVE & EXIT
EXIT
LANGUAGE
ENGLISH
MAIN
AE
↵
AF ↵
AWB ↵
DAY/NIGHT ↵
IMAGE ENHANCE ↵
VIDEO SETTING ↵
LANGUAGE ↵
WDR
RESET
SAVE & EXIT
EXIT
WDR
WDR ON / OFF (DefaultON)

8 9
Image Sensor 1/2.3” 8 Megapixel [4K] Progressive Scan CMOS Sensor
Signal System PAL/NTSC
Effective Pixels 3840 (H) × 2160 (V) [4K]
Resolution 8MP@15fps/12.5fps, 4MP@30fps/25fps, 1080P@30fps/25fps
Video Output HD-TVI / HD-CVI / AHD / CVBS (Selectable), 1Vp-p Composite Output(75Ω/BNC), 4-in-1
Lens Motorized 3.6~10mm MegaPixel IR Corrected Varifocal Lens
Day/Night True Day/Night by ICR (Extern, Color, B&W, Auto)
Min. Illumination Color 0.01 LUX @ f2 / BW 0.0 LUX (IR ON)
Shutter Speed Auto
IR LEDs 6x High Power Dynamic IR LEDs
IR Distance 165’ (50M)
Smart IR YES
OSD Cable YES
S/N Ratio ≥50dB (AGC Off)
WDR Off / On
Digital Noise Reduction XD-DNR (3D-DNR & 2D-DNR)
White Balance Auto
BLC Adjustable - GLOBAL / ON: 0~7
Brightness / Sharpness 0~100 Steps, AUTO / MANUAL: 0~20
Control over COAX (COC) YES
Transmission Distance Up to 1500’ (Depending on cable characteristics & integrity)
Power Input Dual Voltage: 12VDC / 24VAC
Max Power 8W
Power Consumption (12VDC) 560mA (IR ON) / 280mA (IR OFF)
Power Consumption (24VAC) 280mA (IR ON) / 140mA (IR OFF)
Resistance Rating IP66 / IK10
Lightning Protection 4000V
Operation Conditions -4~140F / 10%~90% Humidity
Weight (Net, Shipping) 18.34oz / 1.15lbs / 520g, 21.87oz / 1.37lbs / 620g
Dimensions 4.72” × 3.41”× 4.72” (120cm × 86.5cm × 120mm)
DETAILED SPECIFICATIONS

9
CONSIDER THESE OTHER GREAT
TRANSCENDENT PRODUCTS!
• 4, 8, or 32 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs + IP Camera Support
• Simple plug and play, point-to-point connection from camera to DVR
• H.265 / H.264 Compression
• HDMI, VGA, and BNC (Spot) Video Outputs
• 2-Way Audio
• PTZ Control over Coax (Control over COAX) RS-485
• Alarm Inputs and Outputs
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Free VMS (Video Management Software) Lite and Standard versions available for
organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller]
• SATA2/SATA3 HDD Slots supporting up to 10TB ea: Models range from 1~10TB
(VT-TR8NHA410), 1~20TB (VT-TR8NHA820), 1~80TB (VT-TR8HA3280)
• Applications for iOS & Android
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports Dynamic and Static IP Addresses
• Control locally via USB Mouse, or with the Included IR Remote control
• 3 Year Warranty
• NDAA Compliance on Select Models
Transcendent Series 4, 8, and 32 Channel 5-In-1 HD-TVI / AHD /
CVI / 960H / IP Digital Video Recorders
VT-TR4VPK
Video and
Power Balun
Transmitter / Reciver
Pair for HD-TVI /
AHD / CVI for Distances
Up to 1000’
VT-TR4K
Passive Video Balun
Transmitter /
Receiver Pair for
HDI-TVI / AHD / CVI
for Distances up to 1440’

28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM
Version 1.0
June 2021
