VT-PTZ10 Ultra-Compact PTZ Camera with 10x Optical Zoom
•Built-In 3.8-38mm Lens with 10x Optical / 10x Digital Zoom.
•High Performance 1/4” CCD with 500 TV Lines.
•True Day/Night function with ICR.
•128 Presets programmed with view direction, zoom, and BLC.
•4 Patterns record and play back user preference of surveillance path
up to 120º sec.
•8 Scans: 8 speed steps from slow to medium panning with smooth
Diagonal Scan.
•4 Tours: Each tour consists up to 32 Presets, Patterns, and/or Scans.
•4 Alarm inputs with 1~4 priority / 1 Auxiliary output with
programmable NC & NO.
•8 Privacy Zones: Video off or up to 8 masked blocks
•64 steps of variable speed from 0.4º/sec to 90º/sec. Max manual
speed 190º/sec with Turbo key pressed, Preset speed is 380º/sec.
•Built-in RS-485 receiver driver.
•Built-in power-line surge protection and lightning protection.
•Optional Wall Mount, Indoor/Outdoor pendant housing, and Heater &
Blower Kit
FEATURES
Flush Mounted
Optional Wall Mount
VT-PTZ10 Inside

BLACKYELLOWMAGENTACYAN
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
VT-PTZ10 Ultra-Compact PTZ Camera with 10x Optical Zoom

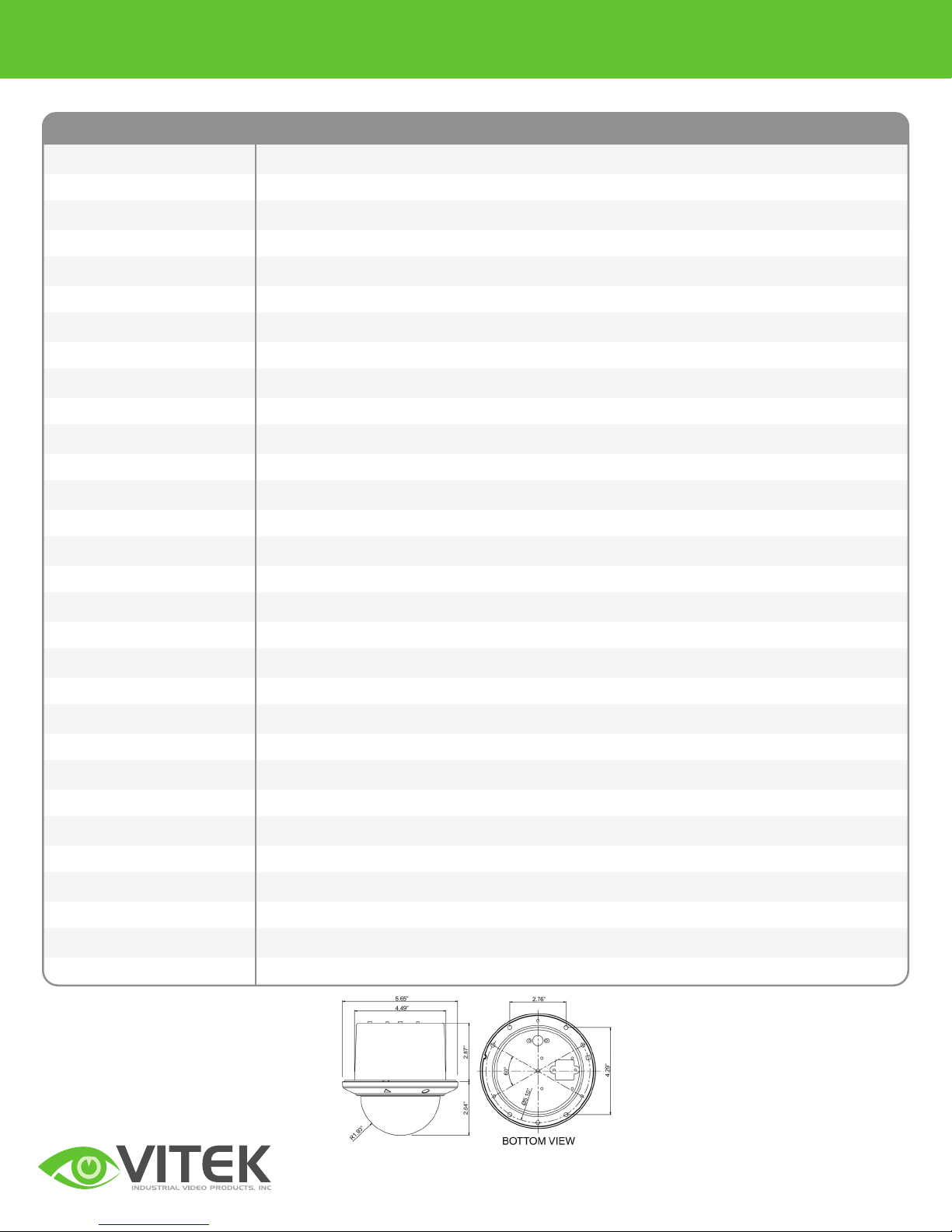

Detailed Specifications
Image Sensor
Picture elements
Horizontal Resolution
Lens
View angle
Minimum Illumination
S/N ratio
Certification
Input Voltage
Power Requirement
Power Consumption
Alarm Output
Alarm Input
Control
Access Time
ID (Camera Address)
Pan Angle
Speed
Repeatability
Flip
Autoscan
Preset Position
Tour
Pattern
On-Screen Display
Operating temperature
Operating humidity
Storage temperature
Dimension (W x H)
Weight
1/4" Interline Transfer CCD(Sony)
NTSC : 768x494 Approx. 380K pixels / PAL : 752x582 Approx. 440K pixels
500 TV Lines
10x optical zoom with auto focus / 10x digital zoom / F1.8 to F3.0, f=3.8mm to 38mm
Approx. 51.2° (WIDE end) to 5.58° (TELE end)
0.7 lux(F1.8,normal shutter speed) / 0.02 lux (F1.8, IR Cut Filter Removed) / 0.005 lux (F1.8, DSS Auto with IR Cut Filter Removed)
more than 50dB
CE EMC, FCC CLASS A
18 to 30 VAC; 24 VAC nominal, built-in power-line surge
24 VAC/VDC 700mA
Maximum 15W / 30W(Heater Use)
1 Normal relays 24 VDC/1A Max (selectable NC/NO)
4 Normal dry contact (selectable NC/NO)
RS-485 baud rate:2400~38400bps (default:9600bps)
0.75 second maximum preset recall time
Physical 99, Logical 3999
360° continuous rotation
0.4° to 90°/sec. (proportional to zoom) / 190°/sec. maximum (with Turbo key pressed) / Preset Speed : 380°/sec
0.2°
Rotate 180° at bottom of tilt
4 auto scan include vector scan/1 Auto Pan
128 positions with camera status (16-character title)
4 tours
4 patterns, 120 second
Displays camera ID and area name on screen
0°C to 50°C (32°F to 122°F) / -30°C to 50°C (-22°F to 122°F)
0 to 90%RH (non-condensing)
-20°C to 60°C (4°F to 140°F)
5.65" x 5.51"
Approx. 2.4lbs. (1.2 kg)
