Vivant Incendio User manual
USER MANUAL
Read carefully before using the device and save these instructions.
Energize the crystal, summon the fire.
USER MANUAL
1
Table of Contents.....................................................Page
1. Introduction...........................................................................2
2. List of Components.................................................................4
3. Getting Started.......................................................................6
4. Glass Water Filter...................................................................10
5. Cleaning Tips........................................................................16
6. Warranty..............................................................................17
7. Company Contact Information.................................................18
Introduction
Congratulations on purchasing your new IncendioTM kit! The IncendioTM
is a portable e-Nail that is powered by the revolutionary FirecoreTM, a
coil-less quartz heating element. Your material is vaporized without
touching any coil, wick, or contaminated surface. This provides the
cleanest hit possible with no contamination from the set up itself.
Because of the smooth surface of the quartz glass, cleaning is a
breeze. With a simple wipe from a cotton swab while the quartz is
warm, your nail will be ready for the next dab. The IncendioTM comes
with a battery featuring a dedicated e-Nail setting. Simply adjust your
desired temperature and activate the fire button. You can enjoy your
session starting in 10 seconds.
The kit includes a glass water filter along with a portable glass tank,
making this a truly portable e-Nail system.
Some features of the kit:
• IncendioTM Tank
• FirecoreTM Technology
• Glass Water Filter
• E-Nail Mode and VW Mode
• Powerful 5000mAh Li-ion Battery
2
3
Introduction
Stainless Steel Carb
Cap with Dab Tool
FirecoreTM Coil
Power Button
LED Screen
Function Button
IncendioTM Battery
Up Adjustment Button
Down Adjustment Button
Atomizer
Base
IncendioTM Glass
Water Filter
4
List of Components
The IncendioTM kit comes with the following:
1 * IncendioTM Battery 1 * Stainless Steel Carb
Cap with Dab Tool
1 * USB Cable 1 * Wax Container
1 * IncendioTM Tank
(with installed FirecoreTM Coil)
1 * IncendioTM Glass
Water Filter
5
List of Components
1 * Spare Coil 3 * Spare Small
O-Rings
3 * Spare Large
O-Rings
Thread the IncendioTM Tank onto
the 510-threaded connector on
the battery.
1.
Remove the glass chamber by
twisting and pulling upwards.
2.
6
Getting Started

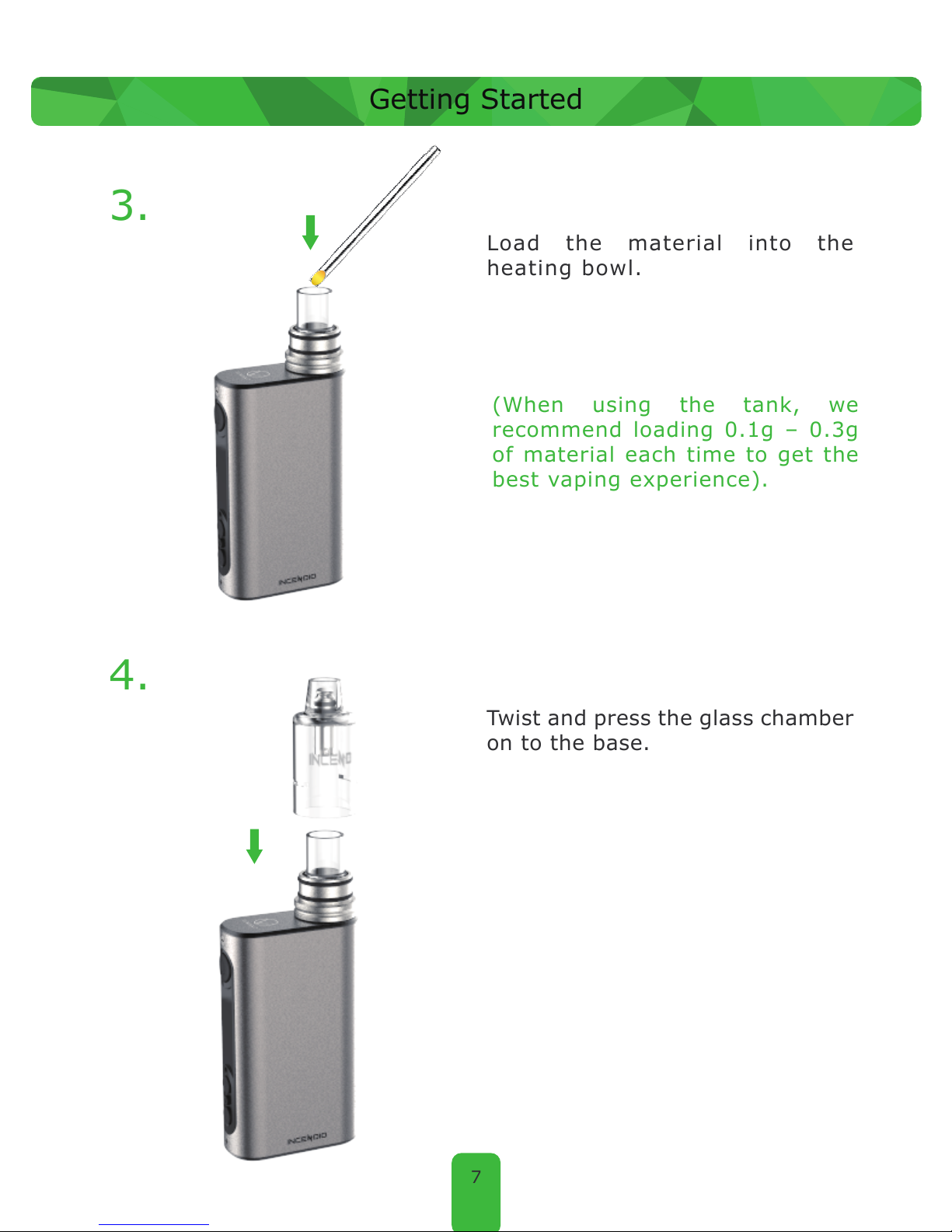

Load the material into the
heating bowl.
3.
Twist and press the glass chamber
on to the base.
4.
7
Getting Started
(When using the tank, we
recommend loading 0.1g – 0.3g
of material each time to get the
best vaping experience).
Press the power button 5 times
quickly to turn on the battery .
5.
To enter “VW Mode”, press and
hold the function button until
“VW” is displayed on the LED
Screen.
(We recommend using between
25W to 40W).
6.
8
Getting Started

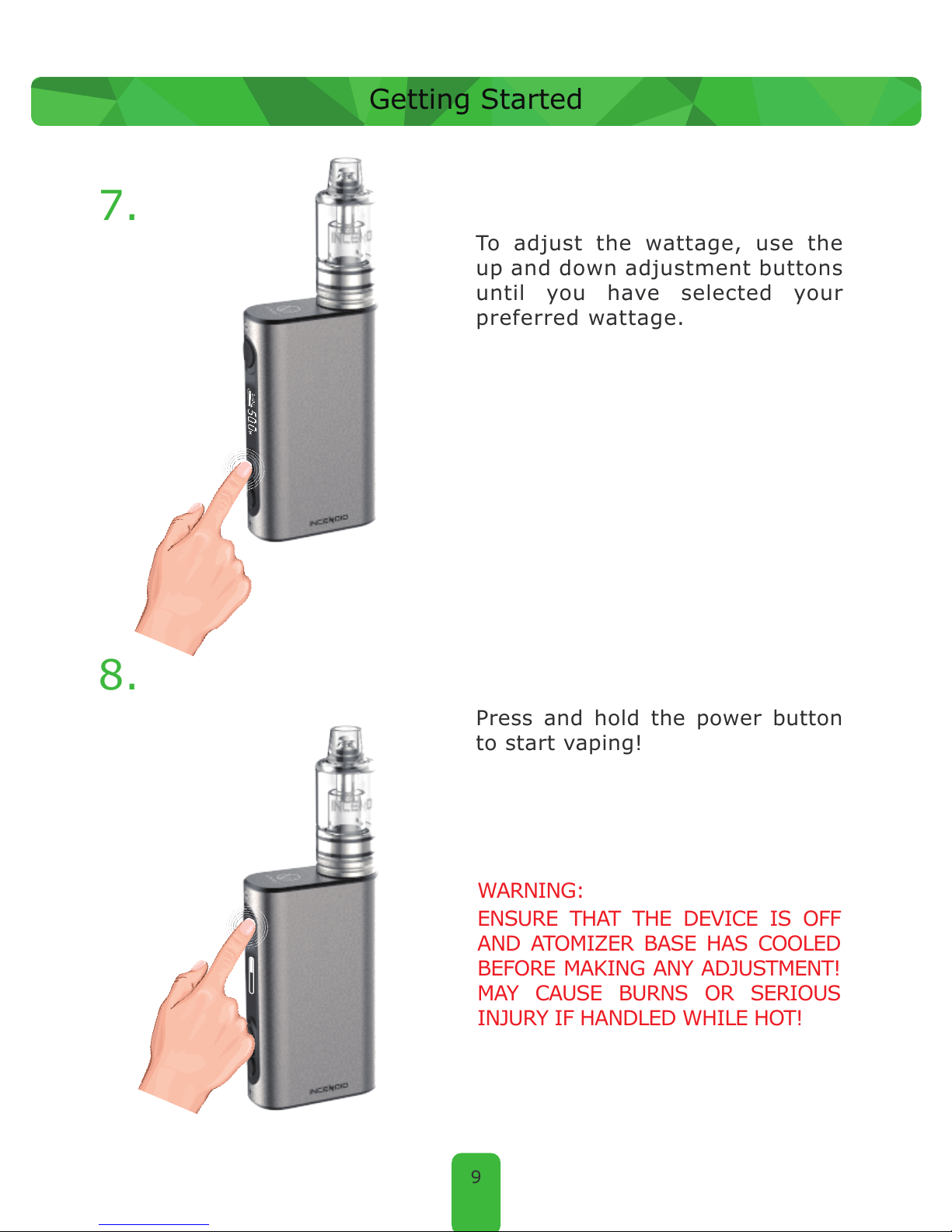

To adjust the wattage, use the
up and down adjustment buttons
until you have selected your
preferred wattage.
7.
Press and hold the power button
to start vaping!
8.
9
Getting Started
WARNING:
ENSURE THAT THE DEVICE IS OFF
AND ATOMIZER BASE HAS COOLED
BEFORE MAKING ANY ADJUSTMENT!
MAY CAUSE BURNS OR SERIOUS
INJURY IF HANDLED WHILE HOT!
5.0 S
To use the Glass Water Filter, you
will only need the atomizer base
without the glass chamber.
Thread the atomizer base onto
the 510-threaded connector on
the battery.
1.
To fill the glass water filter, pour
water from the top. Reverse the
water filter upside down to pour out
excessive water. When it is filled,
the water level should not exceed
the maximum level indicated in the
photo.
2.
10
Glass Water Filter
Max. limit of
water level
To remove the water, gently blow air through the
mouthpiece while the filter is disconnected from the
atomizer base and the battery.
Connect the glass water filter by
twisting and pressing it down
gently onto the base of the
atomizer.
3.
11
Glass Water Filter
Press the power button 5 times
quickly to turn on the battery.
4.
Enter “e-Nail Mode” on your
device by pressing and holding
the function button until “e-Nail”
is displayed on the LED screen.
5.
12
Glass Water Filter
0.40 Ω
F
e-Nail 550
To select the temperature, use the
up and down adjustment buttons
until preferred temperature is
selected.
(We recommend using between
600 oF to 850 oF. )
6.
To begin the session, press and hold
the power button for 2 seconds,
after which the display will say
“Ready” in about 10 seconds.
7.
13
Glass Water Filter
0.40 Ω
F
e-Nail 600
0.1 S F
600
0.40 Ω
C
e-Nail 454
14
Wait until the screen shows “Ready”
in 10 seconds.
8.
Dab your material into the heated
glass bowl while inhaling through the
mouthpiece. Use the carb cap to
adjust the air flow.
9.
Glass Water Filter
Ready
15
After the material has melted into the FirecoreTM, use the
reverse side of the carb cap to control the airflow by pressing
and releasing the two holes on the carb cap.
10.
Glass Water Filter
16
Cleaning Tips
After you have completed your dab, use a cotton swab to clean out
your glass bowl. To clean the water filter, pour half a cup of 90%
alcohol into a cup, and pour the alcohol through the glass into the
other cup. Repeat this process until the glass is cleaned and ready
for your next dab!
90% Alcohol
18
Contact Information
Vivant Inc
Address:
3059 Edinger Ave, Tustin, CA 92780, USA
Email: info@vivant.com
Tel: 1-844-8-vivant (1-844-8-848268)
Web: www.vivant.com
17
Vivant Product Replacement
Warranty
This warranty provides free replacement of an authentic Vivant product
if it malfunctions due to manufacturing defects. This warranty does not
cover any damages outside of expected normal use.
Void of Warranty
Any one of the following conditions will void the warranty:
Voiding the warranty is not limited to the conditions stated above. This
warranty only covers authentic Vivant brand products and is valid for
two years from the user’s date of purchase.
Failure to provide original receipt of purchase.
1.
2.
Product failure or damage due to the use of excessive force or user
negligence (i.e. dropping the device, submerging the device in
liquids, etc.).
3.
Product failure or damage caused by using incompatible parts or
wires (i.e. using the wrong power cable, etc.).
4.
Product failure or damage due to improper use or unauthorized
repair or alteration.
