vCam-6 Technical Specifications V1.7
Page 1 of 11
vCam-6
Technical Specifications V1.7

vCam-6 Technical Specifications V1.7
Page 1 of 11
Worldwide Locations
World Headquarters, United States of America
Central/South America and the Caribbean
Vivax-Metrotech Corporation
3251 Olcott Street, Santa Clara, CA 95054, USA
T/Free : 1-800-446-3392
Tel : [phone]
Fax : [phone]
Website: www.vivax-metrotech.com
Email : [email protected]
Ventas para América Latina
3251 Olcott Street, Santa Clara, CA 95054, USA
T/Free : 1-800-446-3392
Tel : [phone]
Fax : [phone]
Website: www.vivax-metrotech.com
Email : [email protected]
Canada
United Kingdom
Vivax Canada, Inc.
41 Courtland Ave Unit 8, Vaughan, ON L4K 3T3, Canada
Tel : [phone]
Fax : [phone]
Website: www.vivax-metrotech.com
Email : [email protected]
Vivax-Metrotech Ltd.
Unit 1, B/C Polden Business Centre, Bristol Road,
Bridgwater, Somerset, TA6 4AW, UK
Tel : [phone]
Website: www.vivax-metrotech.com
Email : [email protected]
France
Germany
Vivax-Metrotech SAS
Technoparc ‐1 allée du Moulin Berger, 69130 Ecully,
France
Tel : [phone]
Fax : [phone]
Website: www.vivax-metrotech.fr
Email : [email protected]
Metrotech Vertriebs GmbH
Am steinernen Kreuz 10a
D-96110 Schesslitz
Tel : [phone]
Website: www.vivax-metrotech.de
Email : [email protected]

vCam-6 Technical Specifications V1.7
Page 2 of 11
A. Typical Applications
Component
Specification
Purpose
A tool to inspect and produce digital video recordings and JPEG images of the interior of small
diameter metallic and non-metallic pipes, drains, conduits, and ducts. The most typical application
is the inspection of sewer laterals and plumbing. Digital video and JPEG picture images are
viewed on the control modules LCD and recorded onto the internal hard drive, USB thumb drives,
or SD card.
System Components
•Viewing & Recording Device:
vCam-6 Control Module (supplied with AC/DC power cables, accessory kit, and manual)
•Reel Options:
Standard size Type-CP Reel available in lengths of:
- 200 ft. / 60m
- 300 ft. / 90m
- 400 ft. / 120m
Mini size Type-MX Reel available in lengths of:
- 100 ft. / 30m
- 150 ft. / 45m
- 200 ft. / 60m –NorthAmerica markets only
•Camera Head Options:
For Type-CP Standard Reel:
- D34-HD 1.3" / 34mm Self-leveling color camera
- D46-HD 1.8" / 46mm Self-leveling color camera
For Type-MX Mini Reel:
- D18-MX 0.70” / 18mm Fixed position color camera
- D26-MX 1” / 26mm Self-leveling color camera
The vCam-6 control module is backward compatible with previous camera heads supplied with legacy Type-C,
Type-P, Type-M, and Type-M2 reels and camera heads.
vCam-6 Control Module
Control Module
Type-CP Reel
D34-HD Camera Head
D46-HD Camera Head
Standard size systems

vCam-6 Technical Specifications V1.7
Page 3 of 11

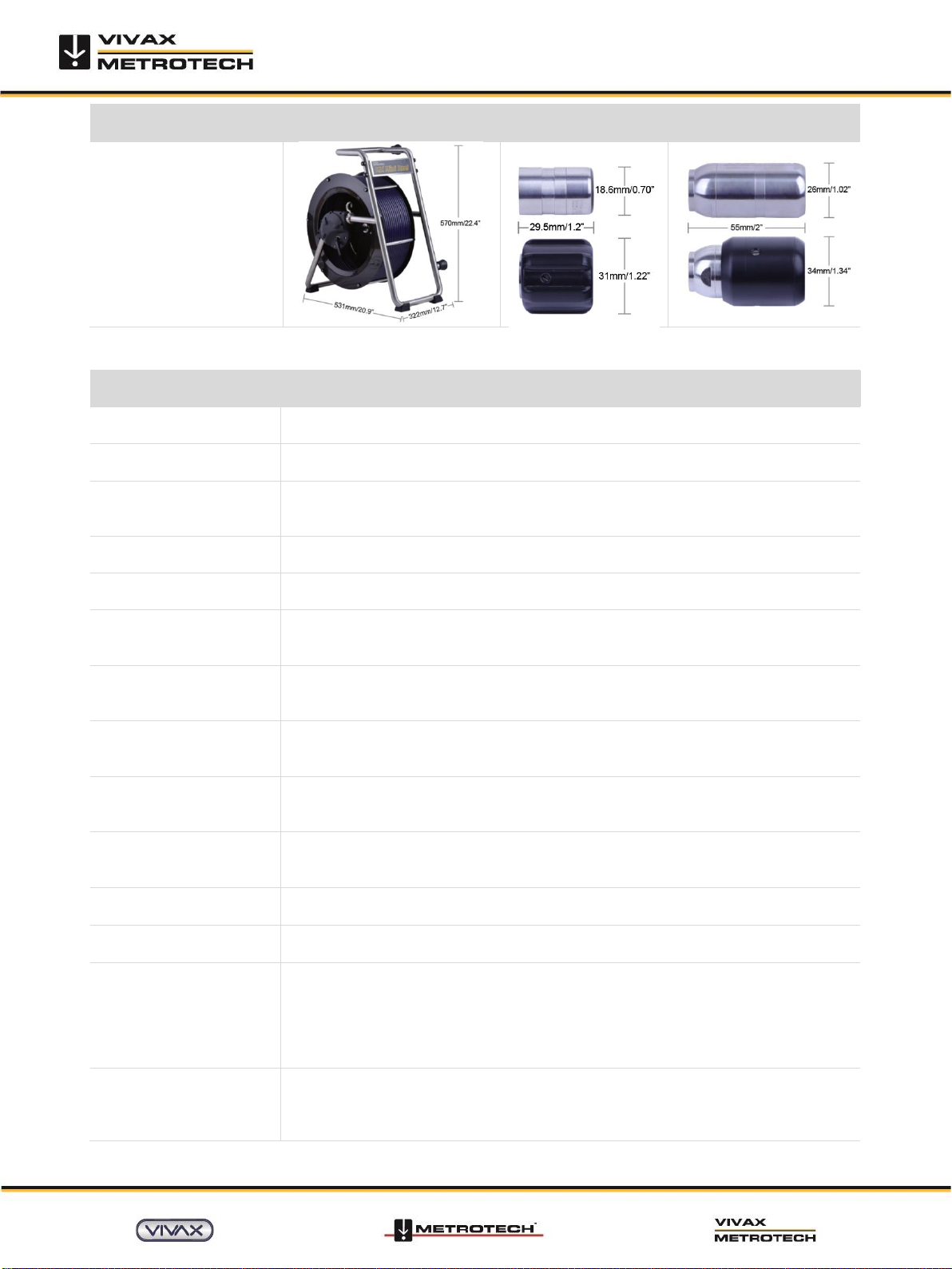

Type-MX Reel
D18-MX Camera Head
D26-MX Camera Head
Mini size systems
B. vCam-6 Control Module
Component
Specification
Dimensions
14.2" (L) x 5.91" (W) x 12.6" (H) (360mm(L) x 150mm(W) x 320mm(H)).
Weight
12.1 lbs. (5.49kg)
Power Supply
•AC Power: 100V / 240V,AC power powers unit, and charges internal batteries
•DC Power: 12V DC external power supply powers unit and charges internal batteries
Fuse
10 Amp –250 Volt, glass, quick blow
Internal Storage
1 TB / 5400 RPM Hard Drive
External Storage
•USB Port –Supports up to 128GB Removable USB 2.0 Drives.
•SD Card Slot –Supports up to 32GB Removable Class 10 SD Cards
File Format
•MP4 Video (1920 x 1080) (PAL or NTSC)
•JPEG Still Image Capture (1920 x 1080, 96 dpi)
Display
•9.7" (24cm) Daylight viewable HD (1024x 768) (diagonal measurement)
•Touch screen option
Environmental
•Water-resistant to IP54 (IEC 60529-Light shower) (lid closed)
•Shock resistant (IEC 60068-2-31) (lid closed)
Temperature Range
•Storage: -4ºF to 158ºF (-20ºC to +70ºC)
•Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing
•Designed and manufactured per ISO 9001:2015
Battery
•An Internal Lithium-ion rechargeable battery (supplied with a 12V charger)
Battery Life
•Internal Lithium-ion rechargeable batteries
•Time to a full charge = Six hours
•Runtime is typically four hours with sonde on, six hours with sonde off (at 70ºF (21ºC) (with the
backlight turned on).
•Re-charging cycles are approximately 500 times the life cycle. Battery life varies with
temperature.
Battery Indicators
•The power button acts as a charging indicator. The button glows red while charging and glows
green when fully charged
•A battery icon on the LCD status bar shows the battery level and running power source

vCam-6 Technical Specifications V1.7
Page 4 of 11
Mounting
Mounts directly atop standard size Type-CP reel
Operating System
Firmware is updatable via USB port with files available from the Vivax-Metrotech website, local
distributor or factory
Options and Accessories
vCam Live View Mobile phone/tablet app for video streaming, image capturing, adding text and file
sharing
C. Operator Controls
Controls
Functions
Camera LED Dimmer
Variable control on the front panel to adjust the brightness of the camera LEDs
Distance Counter
Push-button control on the front panel to zero distance count*
Sonde Operation
Push-button control on the front panel activates the sonde and changes frequencies
Microphone Operation
•Push-button control on the front panel turns the internal and external microphone on and off
•Push-button glows red, and the microphone icon appears on the status bar on LCD when
active
Power On/Off
•Push-button control on the front panel turns the internal microphone on and off
•Push-button glows red, and the microphone icon appears on the status bar on LCD when
active
Recording Control
•Pushbutton on the front panel, push to record, push second time to stop recording
•Push-button glows red when recording, and flashing icon appears on the status bar on LCD
when recording
Image Capture
•Press the pushbutton on the top panel, and the image is captured to the default drive
•A JPEG icon flashes on the status bar confirming the image capture
Video Playback control
•Pushbuttons on the top panel to pause the video, rewind/fast forward, play and stop
•Icons appear on the status bar to advise which function is active
Digital Zoom
Pushbutton on the top panel. Pressing the button repeatedly toggles through 4 x zoom, then off.
When the button is pressed, a movable window appears on the LCD. Use the left/right/up/down
keys to move the window and zoom in on the desired area
On-Screen Display (OSD)
Pressing keyboard F2 brings up OSD showing time, date, and distance counter on the bottom of
the screen, press to move to the top of the screen, pressing again turns off the OSD
Wi-Fi
150' / 45m Wi-Fi range for use with vCam Live View Mobile streaming and recording app
Keyboard
Custom QWERTY splash-proof keyboard with specifically labeled function keys F1 through F12
Custom Keys
Functions
F1
Help - Press to view help screens describing icons, keys, and their functions
F2
Ctrl + F2
Info - (On Screen Display) move the position of systems date, time and distance of pushrod
deployed
Colors - Use to change the color choice of the On-Screen Display. White, black, yellow or green

vCam-6 Technical Specifications V1.7
Page 5 of 11
F3
Ctrl + F3
Text Colors - Use to change the color choice of the Text Writer. White, black, yellow or green
Text - Use to turn theText Writer on and off
F4
Background - Use to add a background to the text from the text writer, white, black or grey
F5
Recall - Use to recall a saved page of text
F6
Save - Use to save a page of text
F7
Delete Page - Use to delete a saved page of text
F8
Delete All - Use to delete all saved pages of text
F9
Display - Use to adjust the LCD color settings, backlight and touch screen
F10
Ctrl + F10
Menu - Use to access file transfer menu and setup menu
Show/Hide Status Bar - Use to show or hide the status bar
F11
Font - Choose between four font sizes/types
F12
Wi-Fi - Turns the internal Wi-Fi on and off
Sockets and Jacks
Functions
Audio and Video
RCA Sockets: Color-coded industry-standard female socket for video out, video in, and audio out
VGA Port: 15-pin DE-15 connector to connect to external monitors
HDMI Port: to connect to HD monitors, LCD's and TV's
Microphone
3.5mm female industry-standard socket
Media Sockets
USB 2.0 and SD (secure digital) sockets
Supports up to 128GB USB 2.0 USB Drives and 32 GB Class 10 SD Cards
AC Power
100V-240V Grounded power socket
Data Port
USB Mini data port for use with third-party LACP software
Camera Test Port
4 Pin female keyed socket to test camera head picture and LEDs
DC Power
12V 1 Pin male circular sock for DC power cable assembly
Reel Interconnect
9 Pin female keyed locking socket for reel interconnect cable
D. Type-CP Standard Reels
Component
Specification
Pushrod
Fiberglass rod, conductors and coax with a high-density Polyethylene Jacket
Pushrod length Options
200ft (60m), 300ft (90m), or 400ft (120m)
Pushrod Diameter
0.47" (12mm)

vCam-6 Technical Specifications V1.7
Page 6 of 11
Minimum Break Strength
4000lbs (1800kg)
Bend Radius
Approximately 40 x the rods OD, Minimum bend radius approximately 5.5"/139mm
Sonde Frequencies
512Hz, 640Hz, or 33kHz selectable and set as default in the control module setup menu
Sonde Output/Range
5-Watt output power provided by the control module.Average maximum locatable depth of
approximately 12ft (4m) in cast-iron pipes. Possibly more in non-metallic pipes.
Pushrod Tracing
Post for connecting an external utility locating transmitter. When connected and energized, the
entire length of the pushrod can be traced with a buried utility locator
Termination Springs
Field serviceable coiled cable, lanyards, and spring
Distance Counter
Encoder driver accurate to 0.33ft (0.1m) resolution*
Reel Dimensions
28’’(L) x 19.7’’(W) x 35.8’’(H) (710(L) x 500(W) x 910(H) mm).
Weight
200 ft (60m): 57 lbs. (26kg)
300 ft (90m): 68 lbs. (31kg)
400 ft (120m): 79 lbs. (36kg)
Environmental
Water-resistant to IP54
Construction
All stainless-steel tubular fame with stainless hardware
Manufacturing
Designed and manufactured per ISO 9001:2015
Braking/Locking
Hand tightening friction brake to slow pushrod cage, push/pull brake lever to lock the cage
Options and Accessories
•Interconnect Cable –Extended length 25ft (8m) cable to provide greater distance from the
control module. (Standard version is 12ft (4m) long)
•Drip Bag - Attaches around the reel cage to catch debris from pushrod.
•Rotate, and Tilt Table (RATT Table) –Mounts between the control module and Type-CP reel
allow it to tilt and rotate the control module to a comfortable viewing position.
•Short Spring Kit –Consist of shorter length (7inch/18cm) and stiffer spring, coiled cable, and
lanyards. Suitable for use in larger diameter lines with few bends
E. Camera Heads (For Type-CP Standard Reel)
D34-HD, Self-Leveling Color Camera, 1.3inch/34mm diameter
Component
Specification
Application
Used with Type-CP Reel, in pipe diameters from three to six inches
Resolution
1080P
Active Pixels
NTSC: 1920 x 1080 (30 fps) PAL: 1920 x 1080 (25 fps)
Focus Point
7.8"/20cm
Aperture / Field of View
F2.4/96o
Light Sensitivity
0.01 Lux
Lighting
12.87 Lumen

vCam-6 Technical Specifications V1.7
Page 7 of 11
Auto Upright
Cantilever self-leveling design
Construction
Stainless steel housing with scratch-resistant Sapphire lens
Environmental
Water resistance up to 11 BAR pressure
Temperature Range
Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing
Designed and manufactured per ISO 9001:2015
Dimension Installed
1.36" (Dia.) x 2.2" (L) / 34.5mm (Dia.) x 56mm (L) without standard skid
1.77" / 45mm Diameter with standard skid installed
Total Dimensions
1.36" (Dia.) x 2.9" (L) / 34.5mm (Dia.) x 73mm (L) without standard skid
1.77" / 45mm Diameter with standard skid installed
Weight
0.49lbs (0.22kg)
Shipping Weight
0.77lbs (0.35kg)
Warranty
1 Year
Options and Accessories
Camera Exchange Program
Guide skid range: 2.25", 3", and 4" (57 mm, 75 mm, and 100 mm)
Type-B Adjustable Skid
D46-HD, Self-Leveling Color Camera, 1.8inch/46mm diameter
Component
Specification
Application
Used on Type-CP Reel, in pipe diameters from four to eight inches
Resolution
1080P
Active Pixels
NTSC: 1920 x 1080 (30 fps) PAL: 1920 x 1080 (25 fps)
Focus Point
7.8"/20cm
Aperture / FOV
F2.4/96o
Light Sensitivity
0.01 Lux
Lighting
44.02 Lumen
Auto Upright
Cantilever self-leveling design
Construction
Stainless steel housing with scratch-resistant Sapphire lens
Environmental
Water resistance up to 11 BAR pressure
Temperature Range
Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing
Designed and manufactured per ISO 9001:2015
Dimension Installed
1.8" (Dia.) x 1.9" (L) / 46mm (Dia.) x 50.5mm (L) without standard skid

vCam-6 Technical Specifications V1.7
Page 8 of 11
2.41" / 61.2mm Diameter with standard skid installed
Total Dimensions
1.8" (Dia.) x 2.6" (L) / 46mm (Dia.) x 68.4mm (L) without standard skid
2.41" / 61.2mm Diameter with standard skid installed
Weight
0.73lbs (0.33kg)
Shipping Weight
0.84lbs (0.38kg)
Warranty
1 Year
Options
Camera Exchange Program
Guide skid range: 3", 4", and 5" (75 mm, 100 mm, and 127 mm)
Type-B Skid
F. Type-MX Mini Reel
Component
Specification
Pushrod
Fiberglass rod, conductors and coax with a high-density Polyethylene jacket
Pushrod length Options
100 ft. 60m or 150 ft. 90m (200ft./60m - available in the North America market)
Pushrod Diameter
0.39" (10mm)
Minimum Break Strength
4000lbs (1800kg)
Bend Radius
Approximately 40 x the pushrods diameter, Minimum bend radius approximately 3"/75mm
Sonde Frequencies
33kHz, 512Hz, or 640Hz selectable and set as default in the control module setup menu
Sonde Output/Range
•1-Watt output
•Average maximum locatable depth approximately 9 feet (3m) in cast-iron pipes
Pushrod Tracing
Post for connecting an external utility locating transmitter. When connected and energized the
entire length of the pushrod can be traced with a buried utility locator
Termination Spring
Removable spring assembly consists of spring, coiled cable, and lanyard
Distance Counter
Encoder driver accurate to 0.33ft (0.1m) resolution*
Reel Dimensions
20.9" (L) x 12.7" (W) x 22.4" (H) (531mm (L) x 322mm (W) x 570mm (H)).
Weight
100 ft (30m): 22 lbs. (10kg)
150 ft (45m): 27 lbs. (12kg)
200 ft (60m): 32 lbs. (14kg) - Available only in the NorthAmerican market
Environmental
Water-resistant to IP54
Construction
Stainless-steel tubular fame with lightweight carbon fiber drum
Manufacturing
Designed and manufactured per ISO 9001:2015
Braking/Locking
All-in-one locking and friction lever slow pushrod drum or lock in place

vCam-6 Technical Specifications V1.7
Page 9 of 11
Options and Accessories
Drip Bag - Attaches around the reel cage to catch debris from the pushrod
G. Camera Heads (For MX Mini Reel)
D18-MX, Fixed Position Color Camera, 0.70 inch / 18mm diameter
Component
Specification
Application
Used on MX Reel, in pipe diameters from 1.5" to 4" / 40 to 100mm
Resolution
520 TVL
Active Pixels
NTSC: 704 x 480 PAL: 704 x 576
Focus Point
4.7" (120mm)
Aperture / FOV
F2.0/55o
Light Sensitivity
0.008 Lux
Lighting
17.53 Lumen
Auto Upright
None, fixed position non-leveling camera
Construction
Stainless steel housing with scratch-resistant Sapphire lens
Environmental
Water resistance up to 11 BAR pressure
Temperature Range
Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing
Designed and manufactured per ISO 9001:2015
Dimensions
0.70" (Dia.) x 1.2" (L) / 18.6mm (Dia.) x 29.5mm (L) without standard skid
1.22" / 31mm Diameter with standard skid installed
Weight
0.039lbs (0.018kg)
Shipping Weight
0.22lbs (0.1kg)
Warranty
1 Year
Options and Accessories
Optional 2.5 / 57mm Guide skid
Camera exchange program
D26-MX, Self-Leveling Color Camera, 1 inch / 26mm diameter
Component
Specification
Range
Used on MX reel, in pipe diameters from 2 to 4" / 50 to 100mm
Resolution
700 TVL
Active Pixels
NTSC: 704 x 480 PAL: 704 x 576
Focus Point
7.87" (20cm)

vCam-6 Technical Specifications V1.7
Page 10 of 11
Aperture / FOV
F2.0/88.4º
Light Sensitivity
0.01 Lux
Lighting
20.39 Lumens
Auto Upright
Cantilever self-leveling design
Construction
Stainless steel housing with scratch-resistant Sapphire lens
Environmental
Water resistance up to 10 BAR pressure
Temperature Range
Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC).
Manufacturing
Designed and manufactured per ISO 9001:2015
Dimensions Installed
1.02" (Dia.) x 2" (L) / 26mm(Dia.) x 55mm(L) without standard skid
1.34" / 34mm Diameter with standard skid installed
Weight
0.205lbs (0.093kg)
Shipping Weight
0.4lbs (0.18kg)
Warranty
1 Year
Options and Accessories
Optional 2.5 and 3" guide skids (57 and 75mm)
Camera exchange program
H. Shipping Weights
Model
Dimensions and Weights
vCam-6 Control Module
(with tool kit)
Dimension: 15.8" (L) x 8.7" (W) x 17.3" (H) (400(L) x 220(W) x 440(H) mm.
Weight: 14.3 lbs. (6.5 kg)
Type-CP Reel with
Pushrod
(Reels with pushrod, camera
head, insert sleeve and
interconnect cable)
•200ft/60m
Dimension: 31.1" (L) x 21.3" (W) x 38.6" (H) (790(L) x 540(W) x 980(H) mm)
Weight: 74 lbs. (34kg)
•300ft/90m
Dimension: 31.1" (L) x 21.3" (W) x 38.6" (H) (790(L) x 540(W) x 980(H) mm)
Weight: 83 lbs. (38kg)
•400ft/120m
Dimension: 31.1" (L) x 21.3" (W) x 38.6" (H) (790(L) x 540(W) x 980(H) mm)
Weight: 95 lbs. (43kg)
D34-HD Camera Head
* Dimensions: 9" (L) x 5" (W) x 5" (H) (228(L) x 127(W) x 127(H) mm)
* Weight: 2 lbs. (0.90kg)
D46-HD Camera Head
* Dimensions: 9" (L) x 5" (W) x 5" (H) (228(L) x 127(W) x 127(H) mm)
* Weight: 2 lbs. (0.90kg)
MX Reel with Pushrod
(Reels with pushrod, camera
head, insert sleeve and
interconnect cable)
•100 ft / 30m
Dimension: 22.6" (L) x 13.5" (W) x 24.2" (H) (574 (L) x 343 (W) x 615 (H) mm)
Weight: 31 lbs. (14 kg)
•150 ft / 45m
Dimension: 22.6" (L) x 13.5" (W) x 24.2" (H) (574 (L) x 343 (W) x 615 (H) mm)

vCam-6 Technical Specifications V1.7
Page 11 of 11
Weight: 34 lbs. (16 kg)
•200 ft / 60m (North America Markets only)
Dimension: 22.6" (L) x 13.5" (W) x 24.2" (H) (574 (L) x 343 (W) x 615 (H) mm)
Weight: 48 lbs. (23 kg)
D18-MX Camera Head
* Dimensions: 9" (L) x 5" (W) x 5" (H) (228(L) x 127(W) x 127(H) mm)
* Weight: 2 lbs. (0.90kg)
D26-MX Camera Head
* Dimensions: 9" (L) x 5" (W) x 5" (H) (228(L) x 127(W) x 127(H) mm)
* Weight: 2 lbs. (0.90kg)
*Shipping dimensions and weight are approximate
I. Warranty
Item
Parameter
Warranty
Control Module: 1 year
Reels & Pushrod: 1 year
Camera Heads: 1 year
Accessories: 1 year
Note
*The distance count shown on the LCD is designed to provide an estimate. Care should always be
used by actually locating the camera with a Sonde or Pipe and Cable Locator.
Shipping dimensions and weights are approximate (metric data is the most accurate).
The LCD and Hard Drive used in this product areconsumer products, and models may change. Vivax-
Metrotech Corporation attempts to ensure that the minimum features listed here are present in every
LCD and hard drive. Some additional features may vary from model to model.
Vivax-Metrotech Corporation will continue to update and improve its products. The information in
these specifications is subject to change, obsolescence, or superseding. Check with your local sales
representative or Vivax-Metrotech Corporation for updates.
Disclaimer: Product and accessory specification and availability information are subject to change without prior notice.
