User Manual
LVA1074CHR
Change Alarm
Time Delay
C
ordless Pad Al
arm
Alarm
05 25 45

USER GUIDE
The Vive chair sensor pad is designed to alert caregivers of falls or unwanted
movement by sounding an alert whenever pressure is removed from the
sensor pad. The sensor pad can be placed on a chair or in a wheelchair to
provide security and peace of mind that no movement goes unnoticed.
SETTING UP THE SENSOR PAD
Step 1: Write the in-use date and expiration date on the pad with a
permanent marker. The usable life of this pad is 365 days.
Step 2: Connect the transmitter to the sensor pad.
Step 3: Place the sensor pad on the desired location. Make sure the
transmitter is mounted where the caregiver can access it conveniently.
Step 4: Proceed to programming your transmitter to your wireless pager if not
already complete.
C
h
a
n
g
e
A
la
r
m
T
i
m
e
D
e
l
a
y
C
o
r
d
l
e
ss
P
a
d
A
l
a
r
m
A
la
r
m
0
5
2
5
4
5

PROGRAMMING THE TRANSMITTER TO A WIRELESS PAGER
Step 1: Open the battery door of the pager and insert two AA batteries as
shown. Close the battery door.

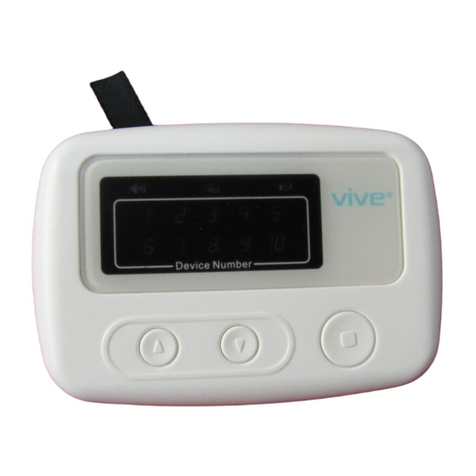

Step 2: On the pager, press and hold both UP and DOWN arrows for 5
seconds. You will see the number “1” is blinking in red, indicating that the pager
is now in programming mode.
Number
UP Button DOWN Button

Step 3: There are 10 channels on the pager for programming up to 10
individual wireless devices. Select a number for programming by pressing the
UP or DOWN arrow on the front of the pager.
Step 4: While the pager is in pairing mode, a red light should flash over the
device number (#1-10) that you are attempting to pair the alarm with. While
this light is flashing, press the button on the transmitter once to wake it up,
then hold for 5 seconds until the alarm light on the transmitter flashes orange.
Then release the button on the transmitter.
Step 5: The pager will beep to signal a successful connection. Then it will
re-enter programming mode in case you need to connect other wireless
devices. If you do not need to connect more devices press and hold both
the UP and DOWN arrows on the front of the pager to exit
programming mode.
Step 6: Test the connection by sitting down on the sensor pad and standing
up. The alarm should sound on the pager and the connected channel
number should flash in red while the alarm sounds. To silence the alarm press
the STOP button on the pager. If this does not occur follow these steps again
from the beginning or contact us for help.
Note: The wireless pager sounds the alerts given from the sensor pad. The
pager is sold separately.
Change Alarm
Time Delay
Cordless Pad Alarm
Alarm
05 25 45
Alarm
Light
Number

Notification Mode Notification Sign
Audible notication Beeps
Vibration notication Vibration
Audible + Vibration
notication
Audible and
Vibration
NOTIFICATION MODES FOR THE WIRELESS PAGER
Step 1: Set notification mode for the WPG
The WPG has three notification modes.
To set the notification modes, press and hold down both Button on the front
of the WPG for more than 5 seconds until the image is blinking.
To select another notification mode, press and release the UP Button or DOWN
Button on the front of the WPG. The next notification light will start blinking.
Continue to press and release the Up or Down buttons until the desired
notification light is selected. Once you’ve landed on your desired notification
light, press and release the Button, you will hear a 1 second beep and/
or feel a 1 second vibration. This means the current notification mode is
recorded to the WPG.
Step 2: Exit programming mode: Press and hold both the UP and Down
Button

buttons on the WPG for more than three seconds until you see the number
light turn off. The WPG has now exited programming mode.
ADJUSTING THE TRANSMITTER TIME DELAY
Press and release the time delay button on the front face of the transmitter
until desired time delay setting is selected. Options are 0 seconds, 2 seconds
and 4 seconds.
Note: This function can reduce false alarms if the patient momentarily shifts off
the pad and then back onto the pad within the set delay time.
TEST THE CHAIR ALARM TRANSMITTER
It is important to test the chair alarm before using with a patient. To test, apply
pressure on the chair pad and release. If working correctly, the alarm light will
flash one time and the programmed receiving devices will alarm. Press the
button on the front of each receiving device to silence alarm.
CHANGING THE TRANSMITTER
The usable life of this chair alarm transmitter is 24 months. Actual life depends
on how frequently the transmitter is used. When the transmitter needs
Change Alarm
Time Delay
Cordless Pad Alarm
Alarm
05 25 45
Alarm
Light

replacing, the red “Change Alarm” light will flash. To replace the transmitter,
remove the transmitter from the pad and connect a new transmitter to
the pad.
WARNINGS
This device will not prevent a fall or injury. It is a supplemental part of an overall
fall management program.
Failure to follow all product instructions may result in the failure or improper
function of the product.
The WPG is able to communicate up to 150 feet away from the patient in
open field. The actual communication distance or wireless range will vary
from building to building. Test the wireless range in your building prior to
putting the system into service. Always keep the pager located within the
wireless range.
The pad, transmitter and any other devices should be checked prior to each
use for proper functioning.
TROUBLESHOOTING
When your system is not properly functioning, please follow these steps.
Change Alarm
Time Delay
Cordless Pad Alarm
Alarm
05 25 45
Change Alarm Light

Step 1. Change the batteries if the “Change Alarm” light is lighted
Step 2: Change the transmitter if the “Change Alarm” light is lighted.
Step 3. Check that the pad is properly plugged into transmitter
Step 4: Check on how long the WPG and the pad have been in use. They may
have run out of usual life.
Step 5: To determine which piece of equipment is at fault, follow the
steps below:
a. Take a new working transmitter and connect with the original pad.
b. If the system works properly, the problem is with the original transmitter.
c. If the system still does not work properly, the problem is with the
original pad.

ACTIVATE YOUR GUARANTEE
You are protected by Vive Health’s industry leading
guarantees and customer service:
If you did not purchase through vivehealth.com,
please register at vivehealth.com/register to validate
your guarantee.
Product Code: LVA1074CHR
[email protected]
1-800-487-3808
Monday - Friday 9am - 5pm EST
