VIVI M500 User manual

American
VIVI
E-bike User’s Manual
CAUTION: READ THIS MANUAL BEFORE USING YOUR EQUIPMENT

CONTANTS
Safety instruction------------------------------------------------------------------Page 1
Technical configuration parameters------------------------------------------------------Page 1
Meter operation-------------------------------------------------------------------Page 3
Battery:Further information and maintenance-----------------------------------Page 4
About Charging---------------------------------------------------------------------------Page 5
Installation Instruction----------------------------------------------------------Page5-10

1
1.Safety Instruction__________________
1. Thank you for purchasing the VIVI E-BIKE. The E-BIKE features the most
recent innovation in technology.
2. For Safety reasons, it is most important that you read this user’s manual
before you operate the bike. Improper handling can reduce its riding
performance and most importantly, cause danger to your safe and healthy.
3. For handling and maintenance of the bicycle, please refer to the E-BIKE
user’s manual which is an integral part of this e-bike user’s manual!
4. Do not at any time dismantle or disassemble any of the above e-bike
components!
5. Please check all parts are tighten and locked before riding.
6. Please make sure that the battery charger and charging plug are always
kept dray and never get wet.
7. The charger should only be cleaned with a dry cloth. Never use a wet cloth,
oil or any other liquid.

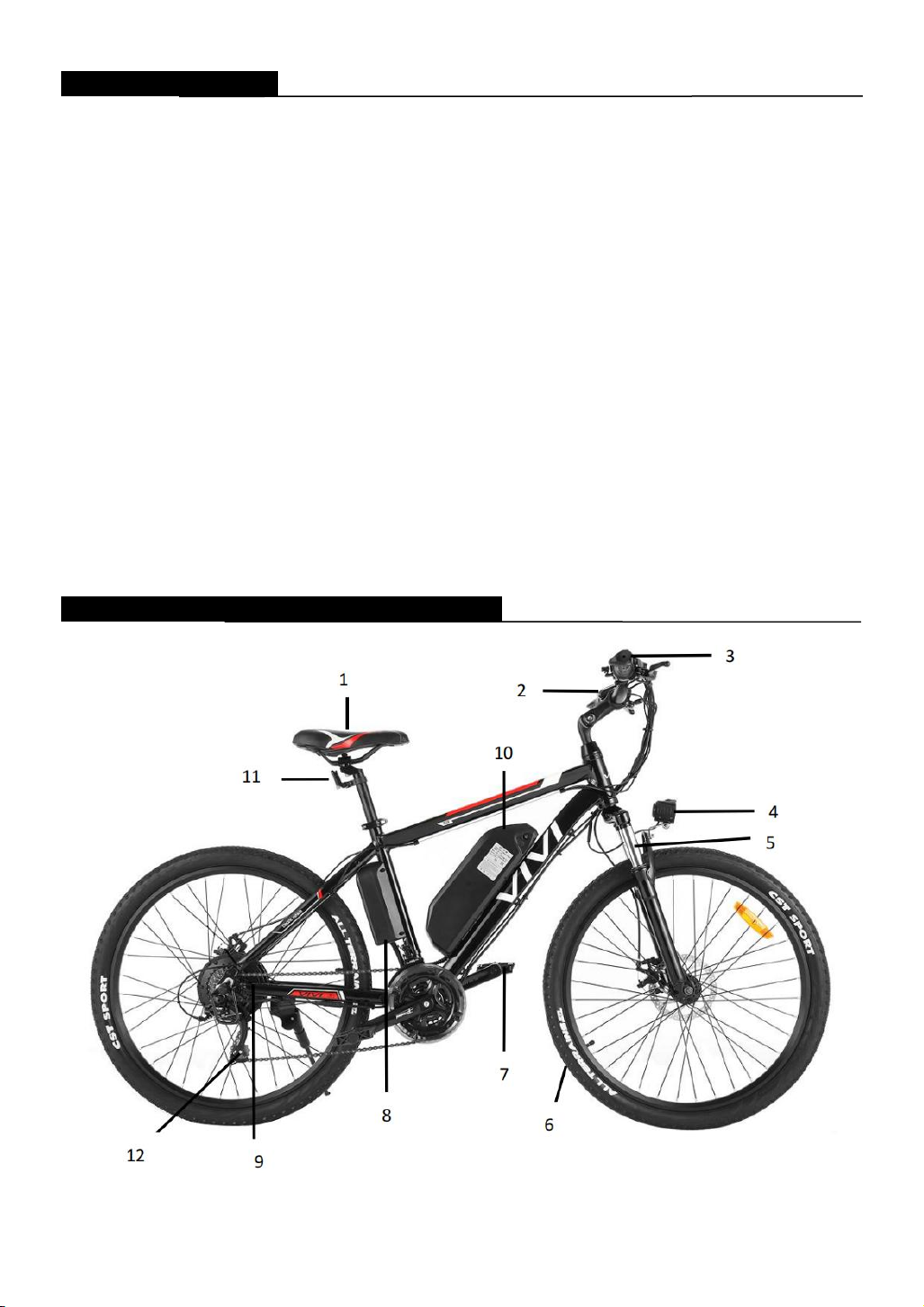

2. Technical configuration parameters

2
1
2
3
4
5
6
Saddle
Meter
Front
derailleur
Headlight
Front fork
Tire
7
8
9
10
11
12
Pedal
Controller
Engine
Battery
rear
reflector
Transmission
3. Meter operation
3.1 Meter instruction

3
Press the "+"
button for 2
seconds
during
power-on
state, the
system
defaults to
turning on the
front light.
When the
front light is
on, press the
"+" button for
2 seconds, the
system
defaults to
turn off the
front light.
3.2 Meter operation
3.3 Meter Solution Instruction:
1. Turn on the machine first and adjust the gear to high-speed gear;
2. Press the "+""-" buttons at the same time. Long press for 3 seconds to 5
seconds, this is the speed limit will be lifted;
3. If you want to restore the factory configuration after the speed limit is lifted,
repeat the above 1.2. operation.
Hold the
button for
2s to switch
on/off the
E-Bike system.
The default
value is “low”
pedal assist
level. Full
Electric
Function (Pure
electric mode)
Press “+” to
crease into
pedal assist
level “Mid”.
Full Electric
Function
(Pure electric
mode)
Press “+”
again to move
into pedal
assist level
“High”. “High”
is the
maximum
power of PAS.
Full Electric
Function
(Pure electric
mode)
Foot riding
(without
pedal
assistant
and electric）
Operating instructions

4
3.4 Operation Cautions
Be careful of the safety use. Don’t attempt to release the connector when
charging the battery.
● Avoid the risk of collision.
● Don’t modify system parameters to avoid parameters disorder.
● Make the display repaired when error code appears.
4. Battery: further information and maintenance
1. How far full charge battery can go? This will depends on the loading weight,
road condition and battery capacity. The average vehicle speed can continue
to travel for a long distance when its under the same condition.
2. It is important to place the fully charged battery on a flat surface in a dry
place when storing the battery for a longer time period, (e.g. during winter
time).
3. Attention: The battery should be re-charged once every 2-3 month when
it is not used.
4.Warning:
4.1.Please keep the battery out of reach of children.
4.2.Never try to open the battery.
4.3. Stop using a damaged battery if the battery is damaged because it has
been dropped somewhere or because of a biking accident. The battery might
contains risk of electrolytes leakage. Beware of chemical burns!
4.4 Do not touch the battery without a cloth or gloves and make sure no acid
touches your eyes.
5.Charging

5
1. For charging the E-bike, simply take the E-bike and bring near to the power
supply that is available. Connect the charging plug to the charging base and
then plug in the power plug of the charger to charger.
2.The battery can either be charged while on the bike or the battery can be
removed and charged at a place of your convenience.
3 .The RED light indicates it is in charging and GREEN light indicates the
battery is fully charged. (Please unplug from the wall) Normally the charging
time is 4-6 hours, depending on the battery capacity.
4. Warning: Charging time over 10 hours is prohibited please kept it away
from high temperature environment and stores it in a environmental
temperature.
6 . Installation Instruction
1. Take out the E-bike from the carton and cut the wrapping rope with a tool.

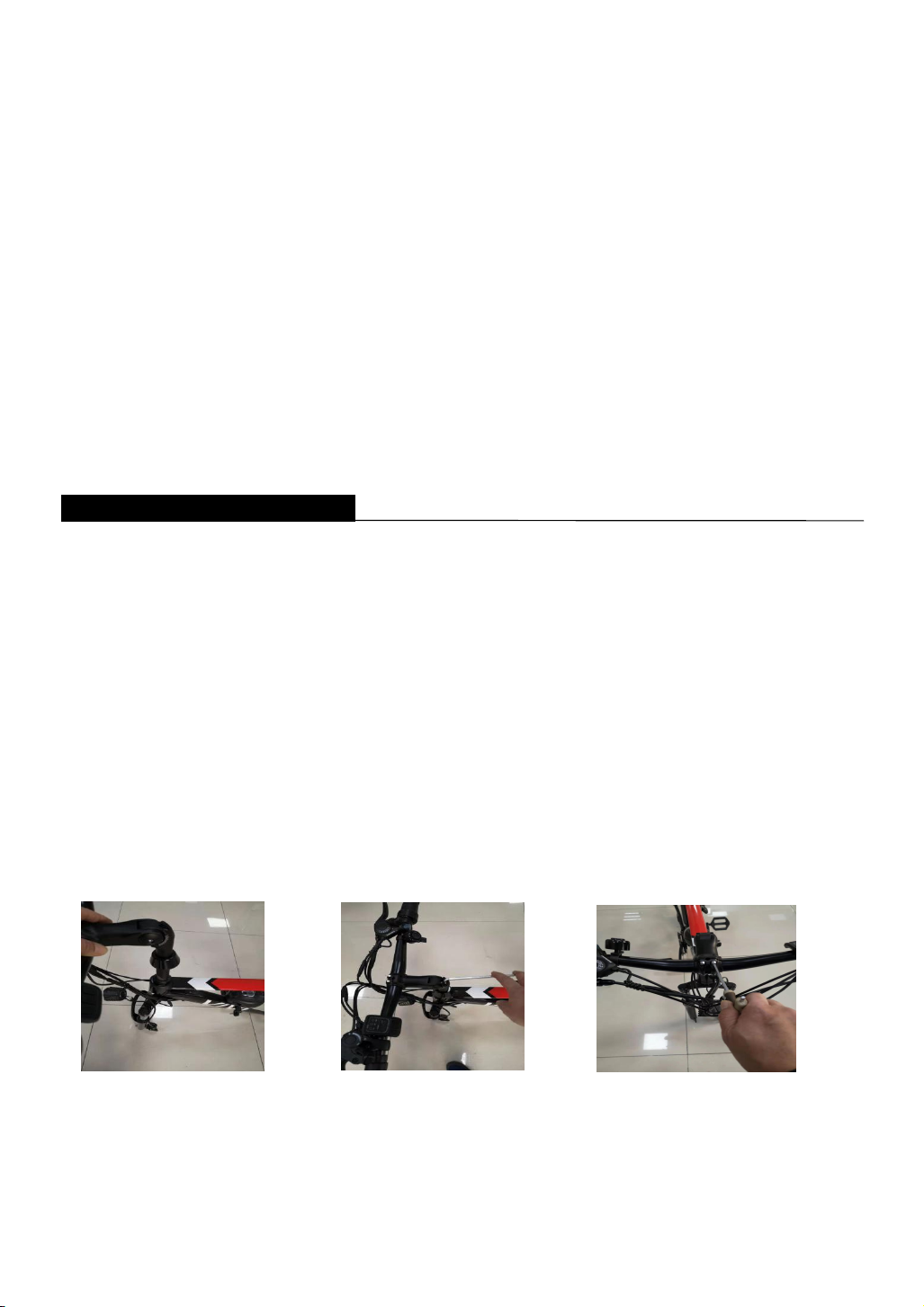

2. Handlebar installation:
2.1 Insert the seat tube vertically and align it with the frame head tube. The
depth must exceed the minimum insertion depth marked on the seat tube.
2.2 Align the standpipe so that the handlebar and the frame are at 90
degrees, and then use an M6 hexagon wrench to tighten the mounting screws
on the standpipe.
2.3 Adjust the correct position of the handlebar, and then use tools to lock the
handlebar cover
2.1 2.2 2.3
3. Headlight installation

6
3.1 Loosen the headlight screw from the front fork; install the headlight in the
front fork screw hole, and tighten the screw with an Allen tool.
4. Front wheel installation
4.1 Cut the wrapping rope, remove the front wheel, remove the front fork
protection lever and the front wheel protection cover.
4.2 Make sure that the front wheel is in line with the rare wheel, then
start installation. First pull the wheel upwards, put the disc brake pad into
the front brake caliper, and then use 15 wrench to tighter the front hub
fixing screw.
4.3 Adjust the adjusting screw of the disc brake to make the disc brake
rotor without obvious friction
5.Foot pedal installation:
Check the two pedals. The pedal with "L" printed on the end of the mandrel
should be installed on the left side of the vehicle (without chain ring), rotate
counterclockwise, and the "R" pedal should be installed on the right side.
(With chain ring), rotate clockwise, and then use a No. 15 wrench Tighten the
pedal spindle.

7
6.Saddle installation
6.1Open the package and take out the saddle and seat post. Install the rear
reflector on the seat post.
6.2Insert the seat post into the frame.
6.3Adjust the seat position to the height that best suits your riding position,
and tighten the quick release (please ensure that the quick release is locked).
7.Adjust the brakes, meters, and transmission system. tighten all of
them with tools.

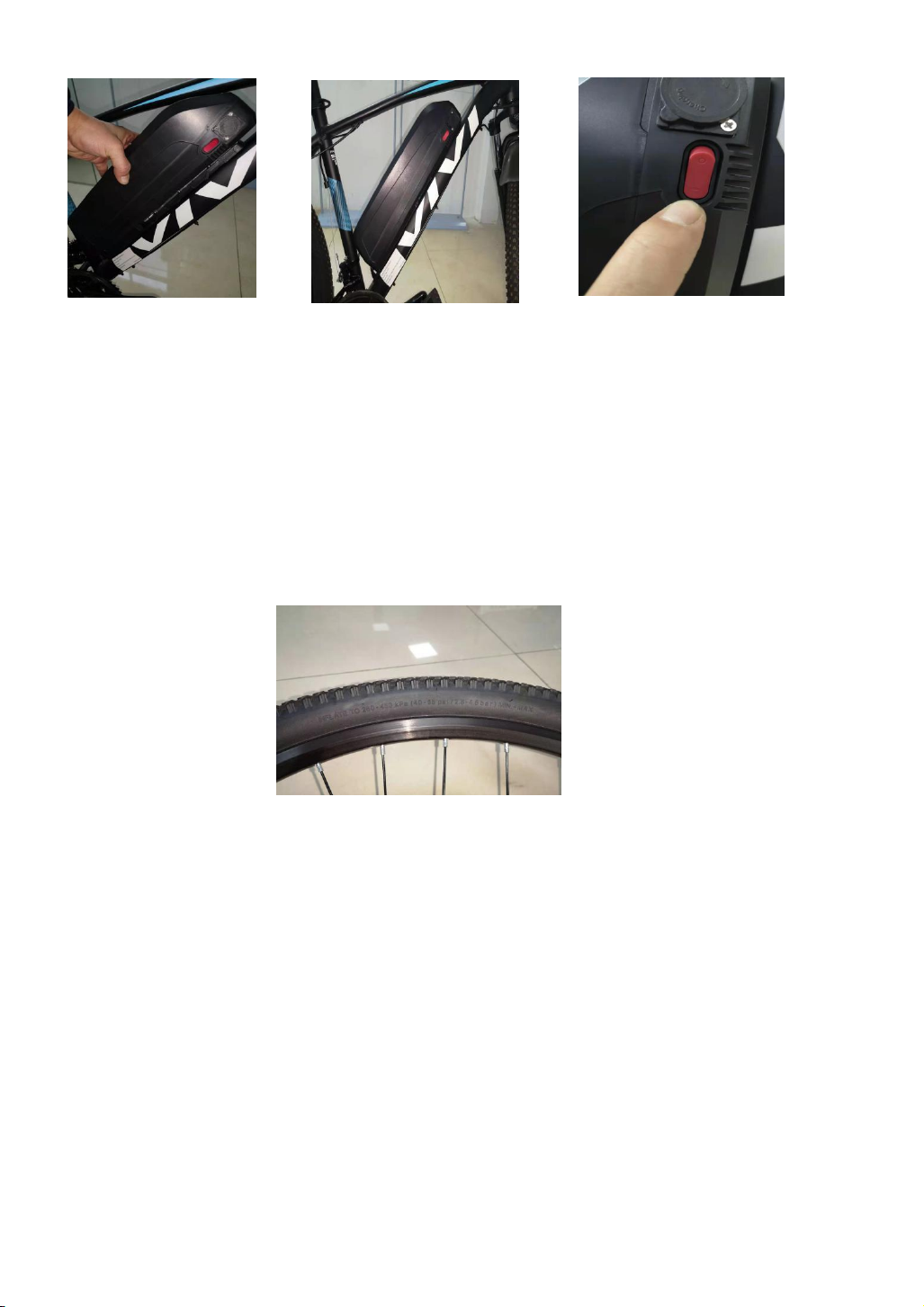

8.Battery installation.
8.1 Take the battery out of the packing box first.
8.2 Install the battery on the battery rack in the Bike.
8.3 Find the battery power switch (red color), press it up, the power is
turned on, and the battery installation is completed.

8
9.Tire inflation instruction
9.1 After the bicycle is assembled, please check whether the air pressure of
the front and rear tires is within the normal value.
9.2 When refilling tires, you must refer to the inflation reference range on the
side of the tire for refilling, generally between 35PSI---65PSI
(280Kpa--450Kpa).

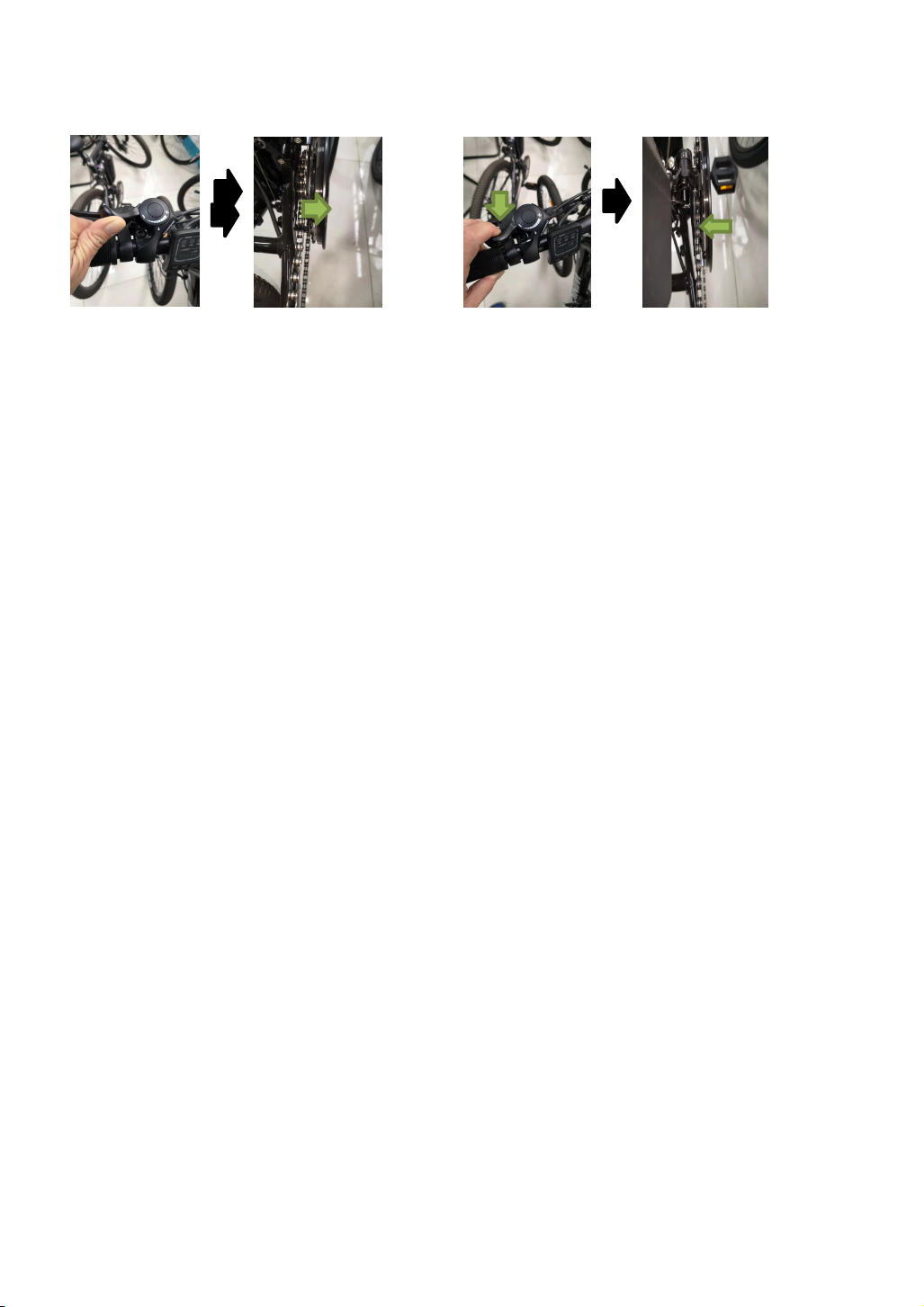

10.Instructions for using Front derailleur
10.1 When you shift forward the left derailleur handle, the front derailleur will
move outward, at the same time, move the chain from the small part of the
chain ring to the large part. These steps will increase the riding speed while
riding, also will increase the pedaling strength of riding. When shift
backward the derailleur handle bar, the front derailleur moves from outside to
inside, at the same time, move the chain from the large part of the chain ring
to the small part. These steps will reduce the riding speed while riding, also
will reduce the pedaling strength of riding. So as to realize the different speed

9
of the front derailleur.
10.2 When you shift forward the right derailleur handle, the back derailleur will
move inside, at the same time, move the chain from the small part of the rear
flywheel to the large part. These steps will reduce the riding speed while riding,
also will reduce the pedaling strength of riding. When the handle bar at the
maximum position(as shown in picture 3 below), press the accelerator button
on the right derailleur handle, the back derailleur will move outward, at the
same time, move the chain from the large part of the rear flywheel to the small
part. These steps will increase the riding speed while riding, also will increase
the pedaling strength of riding.So as to realize the different speed of the back
derailleur.

10
More VIVI electric bike’s installation and repair instructions
Any question about the item, please contact.
Detail Packing List
Description
Quantity
E-Bike
1
Tools (13-15 spanner, 9-11 spanner, 8-10
spanner,14-17 spanner, eleven-shaped
screwdriver, M6, M5, M4, M3 Allen
wrench)
1
Manual
1
Key
2
Charger
1
rear reflector
1
Pedal
1
Saddle
1
Seat tube
1
Battery
1
Fenders
1
Speed control handle
1

English
VIVI
E-bike User’s Manual
CAUTION: READ THIS MANUAL BEFORE USING YOUR EQUIPMENT

CONTANTS
Safety instruction------------------------------------------------------------------Page 1
Technical configuration parameters------------------------------------------------------Page 1
Meter operation-------------------------------------------------------------------Page 3
Battery:Further information and maintenance-----------------------------------Page 4
About Charging---------------------------------------------------------------------------Page 5
Installation Instruction----------------------------------------------------------Page5-10

1
1.Safety Instruction__________________
1. Thank you for purchasing the VIVI E-BIKE. The E-BIKE features the most
recent innovation in technology.
2. For Safety reasons, it is most important that you read this user’s manual
before you operate the bike. Improper handling can reduce its riding
performance and most importantly, cause danger to your safe and healthy.
3. For handling and maintenance of the bicycle, please refer to the E-BIKE
user’s manual which is an integral part of this e-bike user’s manual!
4. Do not at any time dismantle or disassemble any of the above e-bike
components!
5. Please check all parts are tighten and locked before riding.
6. Please make sure that the battery charger and charging plug are always
kept dray and never get wet.
7. The charger should only be cleaned with a dry cloth. Never use a wet cloth,
oil or any other liquid.
2. Technical configuration parameters

2
1
2
3
4
5
6
Saddle
Meter
Front
derailleur
Headlight
Front fork
Tire
7
8
9
10
11
12
Pedal
Controller
Engine
Battery
rear
reflector
Transmission
3. Meter operation
3.1 Meter instruction

3
Press the "+"
button for 2
seconds
during
power-on
state, the
system
defaults to
turning on the
front light.
When the
front light is
on, press the
"+" button for
2 seconds, the
system
defaults to
turn off the
front light.
3.2 Meter operation
3.3 Meter Solution Instruction:
1. Turn on the machine first and adjust the gear to high-speed gear;
2. Press the "+""-" buttons at the same time. Long press for 3 seconds to 5
seconds, this is the speed limit will be lifted;
3. If you want to restore the factory configuration after the speed limit is lifted,
repeat the above 1.2. operation.
Operating instructions
Hold the
button for
2s to switch
on/off the
E-Bike system.
The default
value is “low”
pedal assist
level. Full
Electric
Function (Pure
electric mode)
Press “+” to
crease into
pedal assist
level “Mid”.
Full Electric
Function
(Pure electric
mode)
Press “+”
again to move
into pedal
assist level
“High”. “High”
is the
maximum
power of PAS.
Full Electric
Function
(Pure electric
mode)
Foot riding
(without
pedal
assistant
and electric）

4
3.4 Operation Cautions
Be careful of the safety use. Don’t attempt to release the connector when
charging the battery.
● Avoid the risk of collision.
● Don’t modify system parameters to avoid parameters disorder.
● Make the display repaired when error code appears.
4. Battery: further information and maintenance
1. How far full charge battery can go? This will depends on the loading weight,
road condition and battery capacity. The average vehicle speed can continue
to travel for a long distance when its under the same condition.
2. It is important to place the fully charged battery on a flat surface in a dry
place when storing the battery for a longer time period, (e.g. during winter
time).
3. Attention: The battery should be re-charged once every 2-3 month when
it is not used.
4.Warning:
4.1.Please keep the battery out of reach of children.
4.2.Never try to open the battery.
4.3. Stop using a damaged battery if the battery is damaged because it has
been dropped somewhere or because of a biking accident. The battery might
contains risk of electrolytes leakage. Beware of chemical burns!
4.4 Do not touch the battery without a cloth or gloves and make sure no acid
touches your eyes.

5
5.Charging
1. For charging the E-bike, simply take the E-bike and bring near to the power
supply that is available. Connect the charging plug to the charging base and
then plug in the power plug of the charger to charger.
2.The battery can either be charged while on the bike or the battery can be
removed and charged at a place of your convenience.
3 .The RED light indicates it is in charging and GREEN light indicates the
battery is fully charged. (Please unplug from the wall) Normally the charging
time is 4-6 hours, depending on the battery capacity.
5. Warning: Charging time over 10 hours is prohibited please kept it away
from high temperature environment and stores it in a environmental
temperature.
6 . Installation Instruction
1. Take out the E-bike from the carton and cut the wrapping rope with a tool.
2. Handlebar installation:
2.1 Insert the seat tube vertically and align it with the frame head tube. The
depth must exceed the minimum insertion depth marked on the seat tube.
2.2 Align the standpipe so that the handlebar and the frame are at 90
degrees, and then use an M6 hexagon wrench to tighten the mounting screws
on the standpipe.
2.3 Adjust the correct position of the handlebar, and then use tools to lock the
handlebar cover
2.1 2.2 2.3

6
3. Headlight installation
3.1 Loosen the headlight screw from the front fork; install the headlight in the
front fork screw hole, and tighten the screw with an Allen tool.
4. Front wheel installation
4.1 Cut the wrapping rope, remove the front wheel, remove the front fork
protection lever and the front wheel protection cover.
4.2 Make sure that the front wheel is in line with the rare wheel, then
start installation. First pull the wheel upwards, put the disc brake pad into
the front brake caliper, and then use 15 wrench to tighter the front hub
fixing screw.
4.3 Adjust the adjusting screw of the disc brake to make the disc brake
rotor without obvious friction
5.Foot pedal installation:
Check the two pedals. The pedal with "L" printed on the end of the mandrel
should be installed on the left side of the vehicle (without chain ring), rotate
counterclockwise, and the "R" pedal should be installed on the right side.
(With chain ring), rotate clockwise, and then use a No. 15 wrench Tighten the
pedal spindle.
