Vivid EASYMOUNT Specification sheet

Product instruction manual

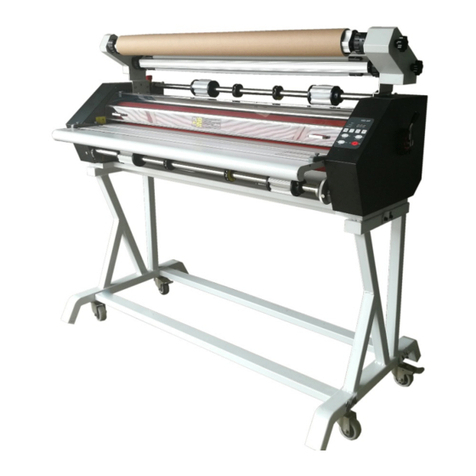

Easymount Wide Format Laminators
The Easymount has been designed to be user friendly,
however we strongly recommend you take a few minutes
to read through this manual to ensure correct operation.
Keep this manual safe for future reference.

2 3
Page 3 - Introduction
Page 4 - Safety Instructions and environmental requirements
Page 5 - Control panel and specications
Page 6 - Installation of laminating lms
Page 7 - Film loading
Page 8 - Feeding the lm and cold laminating
Page 9 - Cold laminating and single hot laminating
Page 10 - Mount lm and optional extras
Page 11- Laminating adjustments
Page 12 - Warranty and incorrect use
Thank you for purchasing the Easymount laminator.
Easymount is a high performance wide format mounting and laminating system with
a solid construction built to last.
The Easymount is great for mounting prints to boards and applying pressure sensitive
laminates as well as applying application tapes, double sided adhesives and vinyls.
The system is easy to use and much faster than squeegeeing by hand and is an ideal
solution to eliminating the hassles and expense of outsourcing.
Please read these instructions carefully before starting to use the system to ensure you
get the best results and are competent at operation.
Should you experience any problems please contact us and we will be happy to help.
Easymount Cold
Easymount Single Heated Roller (SH)
Contents Introduction

4 5
• Please ensure that the voltages of power supply you are using match with rated
working voltages before operating the machine
• The power supply should be close to the machine for convenient use
• The power supply should provide reliable protective earthing connection
• This machine must be earthed reliably so as to ensure the safety of the machine
during operation
• Only the operators of this machine should operate the electric or motion
components/controls
• Please don’t use damaged wires or sockets
• Please keep children away from touching and operating this machine
• Please do not spray water or other liquid on the machine otherwise electric shock or
machine faults could occur
• Please do not replace power cord or plugs yourself, do not put heavy objects on the
power lines as this may cause electric shocks
• During use please take care that no clothes, neckties, hair, necklaces etc are near the
machine otherwise injuries could occur
• Please don’t put burrs, sharp blades or over thick rigid materials into the two rubber
covered rollers (for example, tools, rulers and knives etc.)
• Dont cut adhesive lms directly on the surfaces of the rubber covered rollers to avoid
damage
• Please shut down this machine after laminating to avoid misuse of the machine
• At the end of the working day always gape the rollers to ensure no at spots or
distortions occur
• When you need to move this machine, please shut down the power switch and pull
out the plugs
• Please be aware of the location of the wheels during moving or operating this
machine to avoid foot injuries
• Always ensure the machine is positioned on a at and level oor
• Please shut o the power supply (pull out the power plug) when the machine isn’t
going to be used for long periods of time.
• Ambient temperature 10°C - 60°C, humidity 30% - 80%, Ideal humidity 55%
• Dust - Due to the static adherance of the lm, you should keep the environment clean, a
dust cover is provided with the machine
• Please do not keep the machines in direct sunlight
• Please do not keep the machine in or around dusty areas
• Enough space should be kept around the machine to ensure the secure and eective ap-
plication. The minimum holding areas are 2.5m x 3m
Environmental Requirements
EM-1200 EM-1400 EM-1600
Max Laminating Width 1200mm 1400mm 1600mm
Max Laminating Thickness 25mm
Temperature of Rubber Roller Ambient temperature to 60°C
Approx Highest Line Speed 6m/min
Approx Lowest Line Speed 0.7m/min (adjusting the pressure and speeds)
Rated Working Voltage/Frequency 220V, 50Hz (100V, 60Hz)
Rate Input Power 900W 1000W 1300W
Dimensions 1790 x 650 x 1255mm 1990 x 650 x 1255mm 2190 x 650 x 1255mm
Net Weight 185kg 210kg 245kg
Specications
EM-1200SH EM-1400SH EM-1600SH EM-2100SH
Max Laminating Width 1200mm 1400mm 1600mm 2100mm
Max Laminating Thickness 25mm
Temperature of Rubber Roller Ambient temperature to 60°C
Approx Highest Line Speed 6m/min
Approx Lowest Line Speed 0.7m/min (adjusting the pressure and speeds)
Rated Working Voltage/Frequency 220V, 50Hz (100V, 60Hz)
Rate Input Power 970W 1310W 1500W
Dimensions 1790 x 650 x
1255
1790 x 650 x
1255
1790 x 650 x
1255
1790 x 650 x
1255
Net Weight 185kg 210kg 245kg 280kg
Easymount Single Heated Roller (SH)
Easymount Cold
Safety Instructions The Control Panel

6 7
Take up mandrel (Release Liner)
1. Remove the top mandrel from the
mandrel support brackets
5. Re-load the mandrel on to the brackets
with the lm feeding from the bottom of
the mandrel, if the lm is wound with the
lm on the outside, or o the top of the
roll if the lm is wound on the inside.
2. Loosen the two fastening screws on
one of the mandrel core grips, slide o
one side.
3. Slide on the lm positioning it centrally
on the mandrel and re-x the core grips.
4. Release the tension on the lm by
turning the ‘friction adjustment sleeve’
Pressure sensitive lm (loaded on the top mandrel)
Installation of Laminating Films
1. Remove the mandrel from the mandrel
support brackets
2. Loosen the two fastening screws on
the mandrel core grips, slide o one side
3. Slide on the liner paper/mount lm
and position centrally to match the top
4. Re-load the mandrel into the brackets
1. The take up mandrel is held in place
with a sprung loaded bracket: to remove
push towards the spring and lift upwards
2. Slide an empty cardboard core onto
the take up mandrel and replace
Vinyl/Liner paper/Mount lm (loaded on the bottom mandrel)
1. Lift the feed tray to the upright
position and lock securely. Following the
loading diagram on the left cabinet of
the machine, pull the lm o the bottom
of the mandrel and towards the front of
the machine, going over the top of the
upper roller
2. Peel back the liner paper from the
lm, exposing the adhesive side of the
laminate and stick release liner to take up
mandrel using double sided tape
Pressure sensitive lm (loaded on the top mandrel)
Film Loading
3. Drape the lm over the upper roller
and stick the liner paper to the take up
mandrel using double sided tape
1. Following the loading diagram feed
the paper up over the lower roller
and stick it to the adhesive side of the
pressure sensitive lm
5. Press the drive button and feed
through. PLEASE NOTE When the board
is through the rollers the pressure handle
will need to be adjusted to compensate
for thickness
2. Using the pressure handle raise the
upper roller
3. Using a piece of sti card or mount
board push the overlapped lms into the
nip of the roller
4. Using the roller pressure handle lower
the upper roller so it clamps the material
Liner Paper (Load on the Bottom Mandrel)
(Safety guard lock)

8 9
1. Using the pressure handle raise the
upper roller
5. Using the safety cutter provided slice
between the release paper and lm
cutting only the release paper
6. Apply double sided tape to the release
liner take up core and attach release liner
2. Place vinyl/print through rollers from
feed tray and onto back plate
3. Pull laminate over the top roller and
push through the rollers
4. Using the pressure wheel bring the
rollers down until the handle goes in
neutral mode and slight resistance is felt
Alternative Method
Feeding the Film
7. Press the‘forward’ drive button. The
lm and print will be pulled through the
machine
9. The machine is now in its loaded state
you can lower the feed table, you are now
ready to laminate your prints.
8. Ensure the top and bottom lms match
each other and dont overlap left to right.
If they dont line up, loosen the mandrel
core grip and slide the lm left/right until
they match and then re-tighten
1. Plug in the foot pedal 3. The lms will then begin to be drawn
through the machine
4. You can adjust the rate at which the
machine laminates by turning the speed
control knob
2. To drive the machine press either the
drive button (left hand arrow) continuous
drive or step button (middle arrow) for
the foot switch. The foot switch over rides
the magic eye, it is advisable to start the
machine in the foot switch mode slowly
& then press the continuous button when
running
Cold
Laminating
5. Ensure that as the lm is being drawn
over the rollers it is smooth. If it isnt you
can apply tension to the lm mandrel by
turning the core grip adjustment sleeve
apply just enough pressure to remove
any airpockets or creases
6. Your document can now be fed into
the laminator. Place the document at
on the feed table and push it towards the
nip of the rollers
1. The single heated Easymount can
be run either cold or warm to switch
between the two modes press the hot
roller button on the control panel The
display will then show HOT next to the
top roller icon
3. Plug in the foot pedal2. Set the temperature to approximately
40°C using the up or down buttons.
Both the set temperature and the actual
temperature are displayed.
Single Hot
Laminating
4. To drive the machine press either the
drive button (left hand arrow) continuous
drive or step button (middle arrow) for
the foot switch. The foot switch over rides
the magic eye, it is advisable to start the
machine & then press the continuous
button when running
6. You can adjust the rate at which the
machine laminates by turning the‘speed
control knob’
5. The lms will the begin to be drawn
through the machine.
NOTE: When using continuous mode
if the ‘magic eye’ sensor is blocked by
material or hands the machine will stop
- to over ride the sensor press the foot
pedal

10 11
Temperature
Most pressure sensitive lms benet from around 40°C of heat being applied to help elliminate ‘silvering’. If you dont get the
desired result with 40°C continue adding 5°C of heat until you get the nish required.
Speed
Adjust the speed until you get the required results
Roller Pressure
Under normal operation wind the roller pressure adjustment handle until the rollers meet and the handle goes into a neutral
mode then turn gently until you feel resistance. Then just apply an extra 1/8of a turn to ensure there is sucient pressure.
If ‘BOW’marks appear across the laminated document there is too much roller pressure applied and the top roller should be
lifted slightly.
1. Position the mount lm centrally on
the mandrel and lift it into position on
the brackets
3. Stick it to the exposed pressure
sensitive lm as before. * Ensure the
sticky side of the mount lm is facing
towards you and away from the roller
surface.
* Go through steps of feeding the lm
2. Pull the mount lm up and towards the
bottom roller.
Alternative Method
Mount Film
1. 3 media brackets space evenly on cross
member
3. Either tape leading edge to feeder
sheet OR...
2. Place your roll of media on the brackets
and bring leading edge over the front of
the feed tray
Media Brackets
Optional Extras
...with rollers lifted feed through the
machine and attach to the take up unit
(optional extra)
4. Lower the rollers until neutral position
and tighten until you feel resistance, you
are now ready to run the media from reel
to reel
Media Rewind Take Up
1. To t remove blanking plates from rear
of the machine
3. Fit the other bracket in place of the
right hand blanking plate
2. Fit motorized bracket in place of the
blanking bracket - left hand side looking
from the rear of the machine
1. Plug in the motor unit as shown 2. Fit spring loaded take up mandrel
Laminating Adjustments

Warranty & Incorrect Use
IMPORTANT INFORMATION
Your laminator should reach you in perfect condition, however please retain all original packaging once you have unpacked
your laminator in case you need to return it to us. If your laminator arrives damaged or faulty in anyway, this must be reported
to your
supplier immediately. If you send your laminator back for repair under warranty at any time, then the warranty may be void if
the
laminator is not packaged correctly and as a result is damaged in transit. The laminator you have purchased comes with a 1 year
warranty on defective parts. THIS DOES NOT COVER any jams, misfeeds or wrap arounds caused by operator error and you will
be
liable for the repair costs (including delivery charges) if the damage is caused by operator error.
E&O.E
